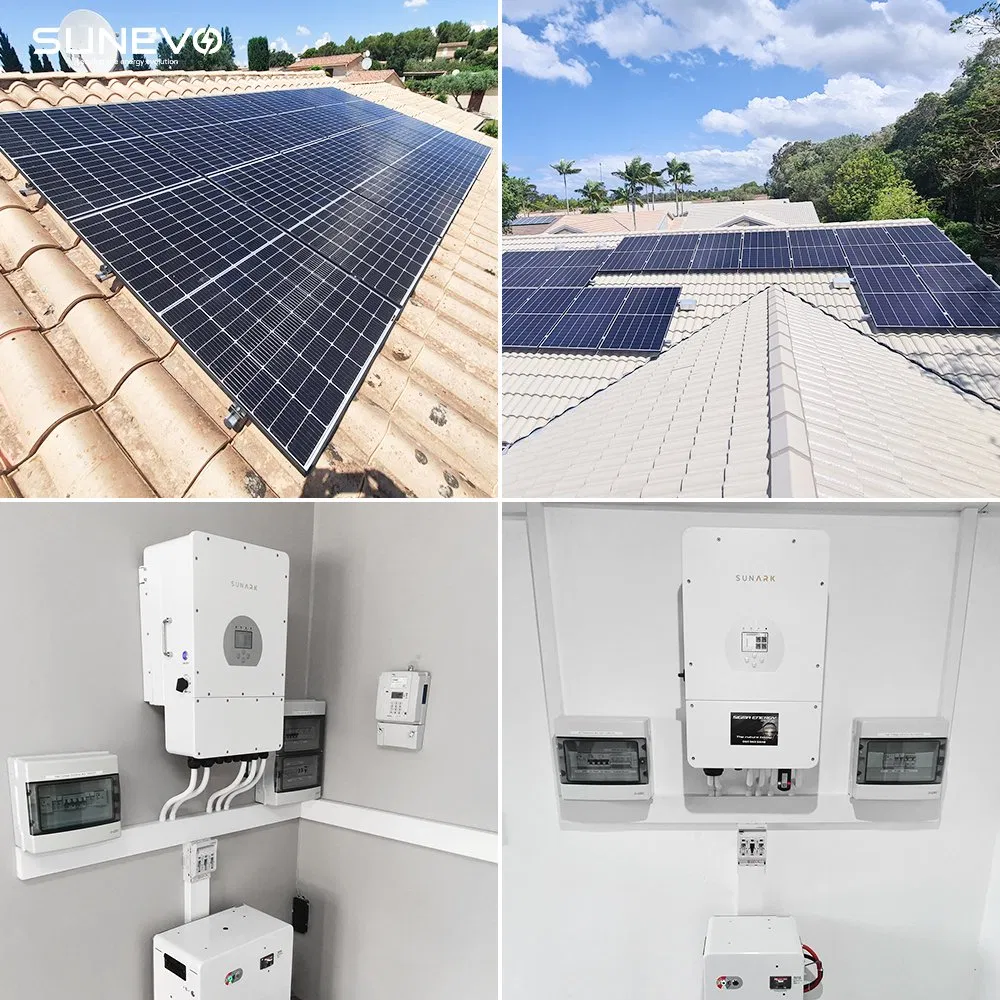

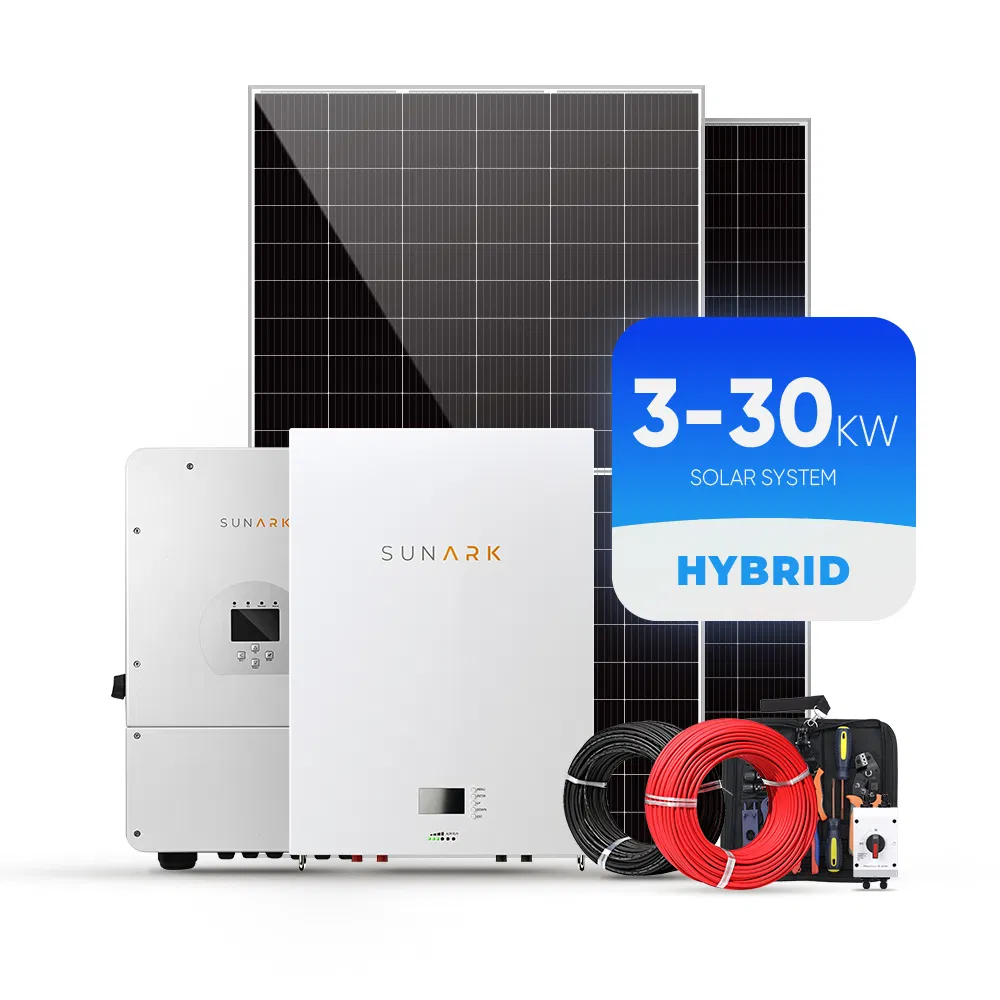

Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
1 / 5
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home
Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home

Sunevo All in One Hybrid Solar Power System 3kw 5kw 10 Kw 20kw 30kw Complete off Grid Solar Panel Energy System for Home

Customization: Available
After-sales Service: Yes
Warranty: 5 Year
Send Inquiry

Product Description

Overview
Product Description
Packaging & Shipping
Application
About Us
Global Project Case
Overview - Basic Info
Model NO.
SE-HY
Condition
New
Certification
ISO, CB, CE, TUV
Application
Home
Specification
Normal, 3-30KW
Solar Panel
Monocrystalline 400-700W
Solar Inverter
Hybrid 3-30kw
Battery Type
Gel / LiFePO4 Lithium Battery
Monitoring System
APP Available for PC and Phone
PV Mounting System
Customized
Other Accessories
Cable, Switch, Assembly Tool, etc
Transport Package
Wooden Box
Origin
Anhui
Production Capacity
5000 Set/Week
Product Description
Hybrid Solar Power System
Warranty Details
Warranty Information
How It Works

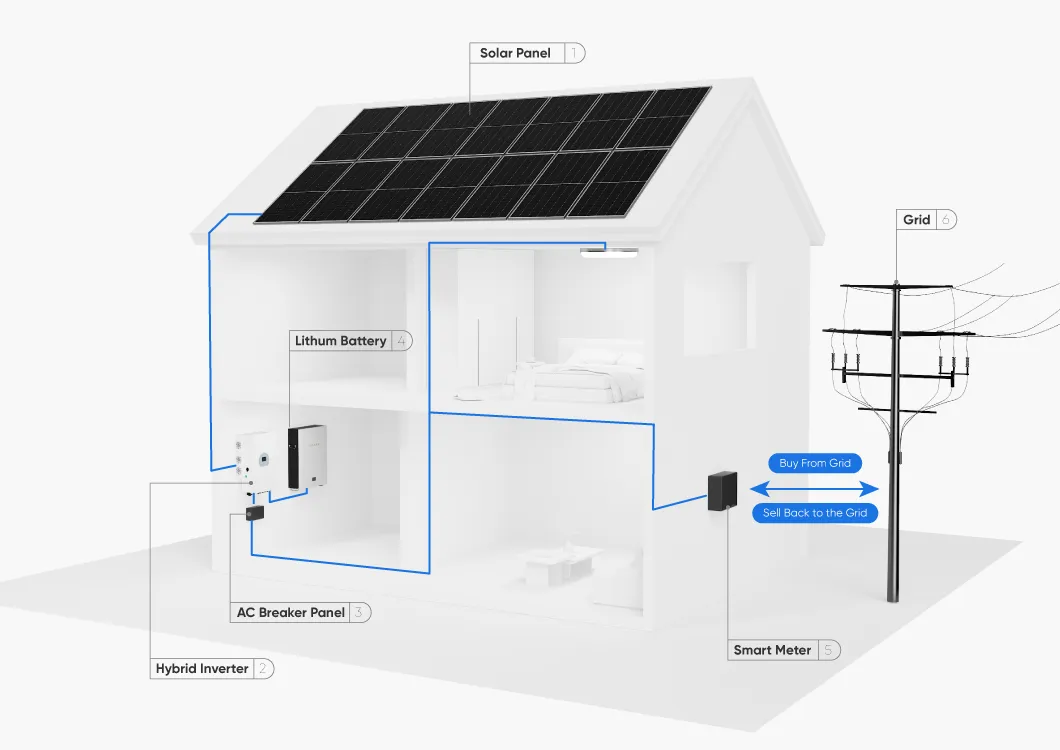

How it works diagram 1

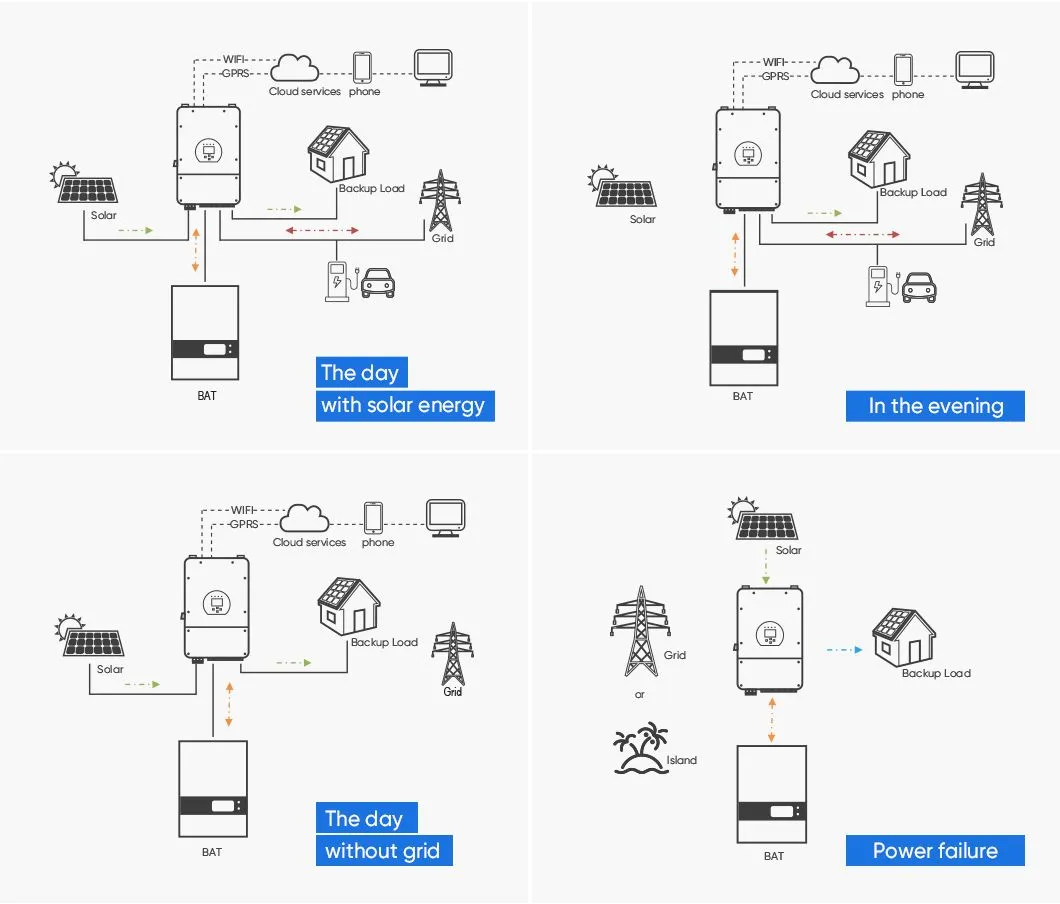

How it works diagram 2
Model SE-3KW-HY SE-5KW-HY SE-10KW-HY
Half Cut Mono 550W Solar Panel 6 Pieces 10 Pieces 21 Pieces
DC Disconnect Switch 1 Piece 2 Pieces 3 Pieces
Hybrid Inverter SUN-3K-SG04LP1-EU SUN-5K-SG03LP1-EU SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery 5Kwh 5Kwh 10Kwh
DC Cable 4mm2 100 meter 200 meter 400 meter
AC Disconnect Switch 1 Piece 1 Piece 1 Piece
MC4 Connector 10 Pairs 10 Pairs 10 Pairs
Mounting System Customized Product Based On Installation Roof/Ground
PV Installation Tools 1 Set
Model SE-15KW-HY SE-20KW-HY SE-30KW-HY
Half Cut Mono 550W Solar Panel 30 Pieces 42 Pieces 63 Pieces
DC Disconnect Switch 4 Pieces 6 Pieces 9 Pieces
Hybrid Inverter SUN-5K-SG03LP1-EU 3 Pieces SUN-10K-SG04LP3-EU 2 Pieces SUN-10K-SG04LP3-EU 3 Pieces
Wall Mounted LiFePo4 Battery 15Kwh 20Kwh 30Kwh
DC Cable 4mm2 600 meter 800 meter 1000 meter
Mounting System Customized Product Based On Installation Roof/Ground
PV Installation Tools 1 Set

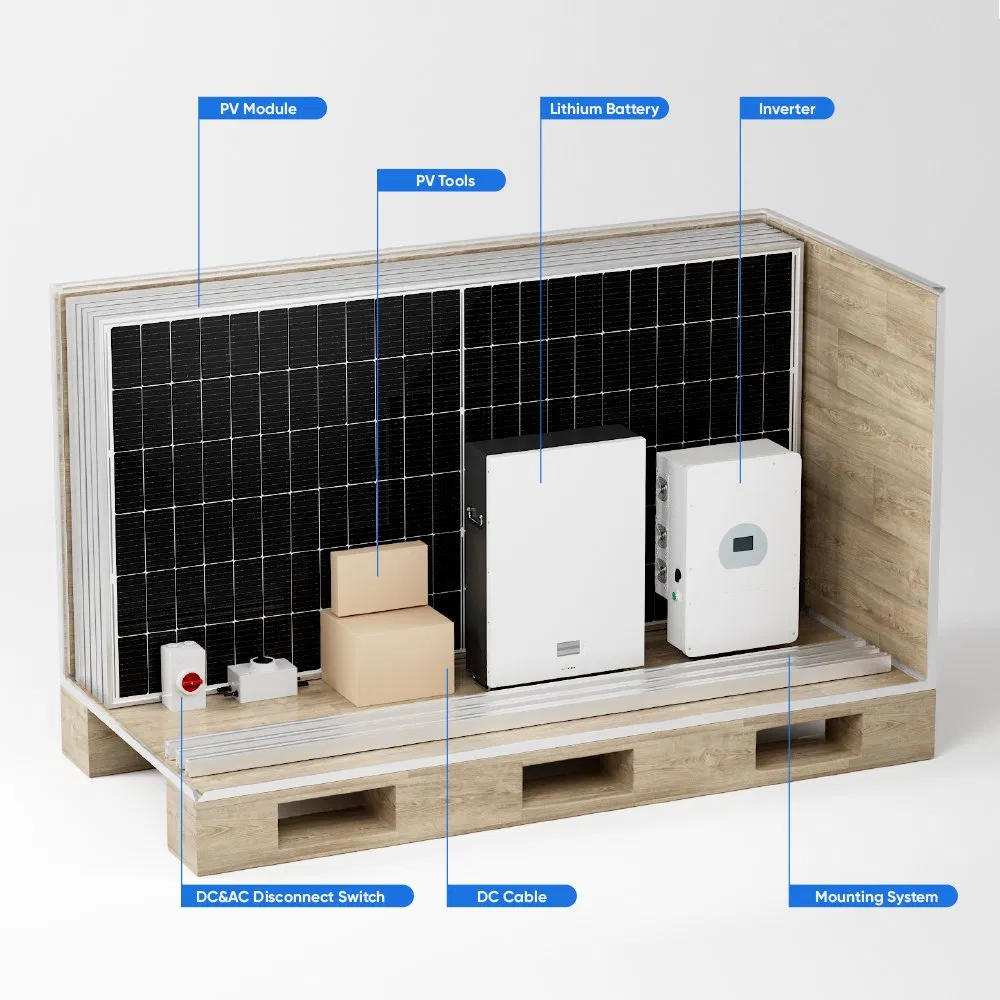

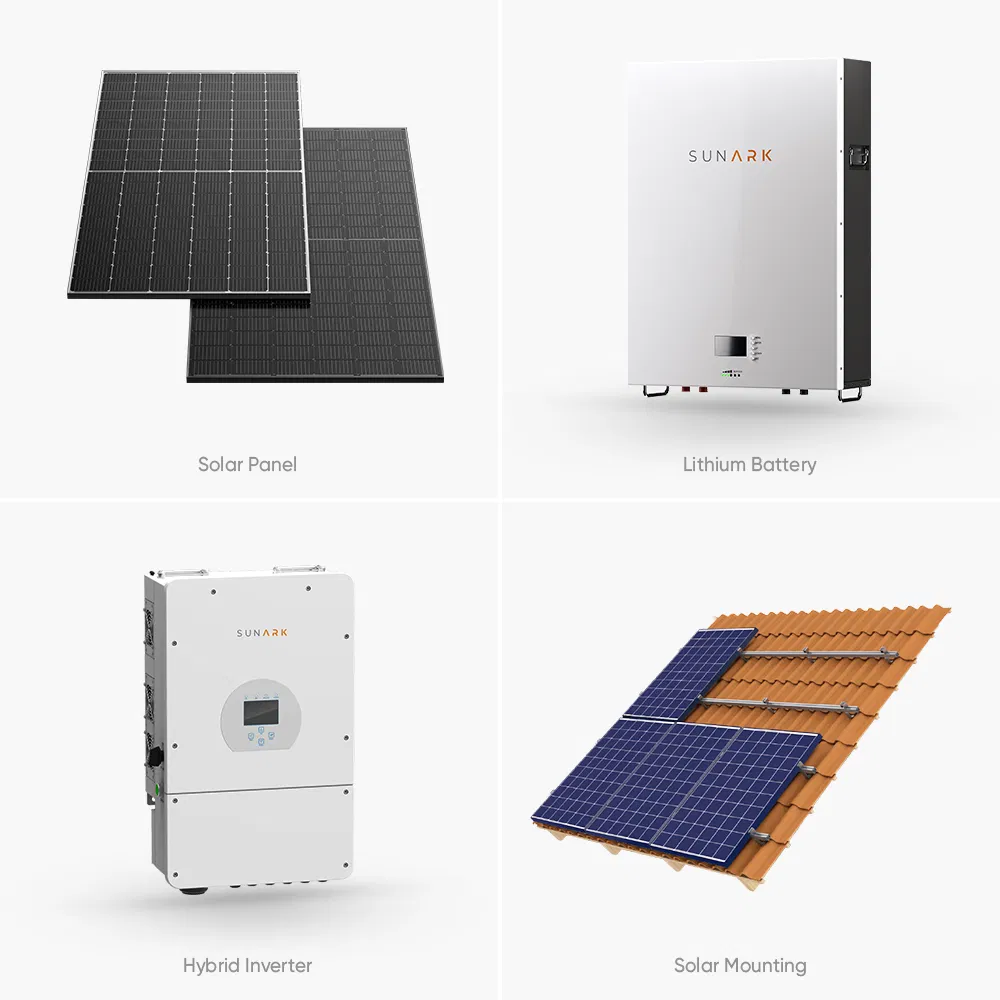

What's Included
Half Cut Mono 750W Solar Panel
Peak Power Watts: 750W
Maximum Power Voltage: 42.68V
Maximum Power Current: 17.58A
Open Circuit Voltage: 50.77V
Short Circuit Current: 18.71A
Dimensions: 2384*1303*33mm
Weight: 37.9kg
Half Cut Mono 750W Solar Panel
Hybrid Solar Inverter
Hybrid Solar Inverter
48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max. charging/discharging current of 240A.
Max. 10pcs parallel.
DC couple and AC couple to retrofit existing solar system.
Monitoring System
Open station supports one-click installation and registration.
Problem support one-click dispatch and navigation.
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability.
Monitoring System
Wall Mounted LiFePo4 Battery
Wall Mounted LiFePo4 Battery
15-20 years design life. Up to 6000 + cycle life.
Wall mount or ground stack brick, simply connecting to inverter.
Battery module is scalable for any larger storage system.
Battery modular built-in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

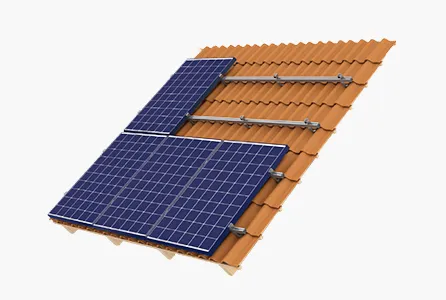

PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip & Tie Optional.
Ground Clip & Lugs Optional.
PV Mounting System

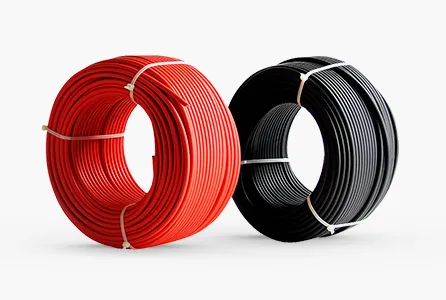

DC Cable & MC4 Connector
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional.
Rated Voltage: 1000VDC (TUV).
Rated Current: 55A, 70A.
Colors: Black for STD, Red Optional.
Lifetime: ≤25 Years.
DC & AC Disconnect Switch
IP Rating: IP66.
Rated Voltage: 1000VDC.
Connection Type: M20, M25, MC4.
Rated Current: 16A, 20A.
DC & AC Disconnect Switch

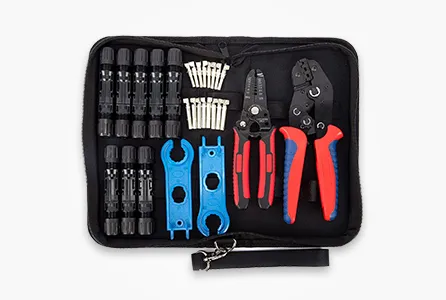

PV Tools
PV Tools
Wire Cable Cutter & Stripper.
MC3 MC4 Crimper.
MC4 Connectors Assembly & Disassembly Tool.
Packaging & Shipping

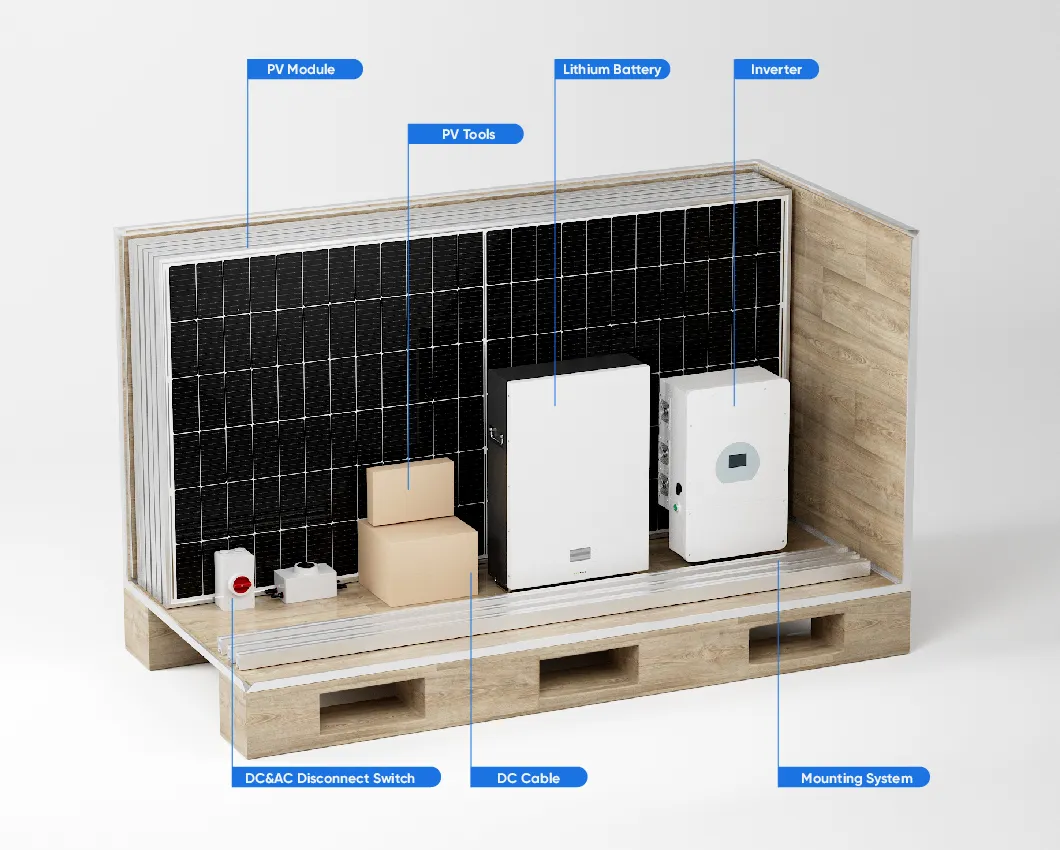

Packaging method 1
Packaging method 2
Application Cases

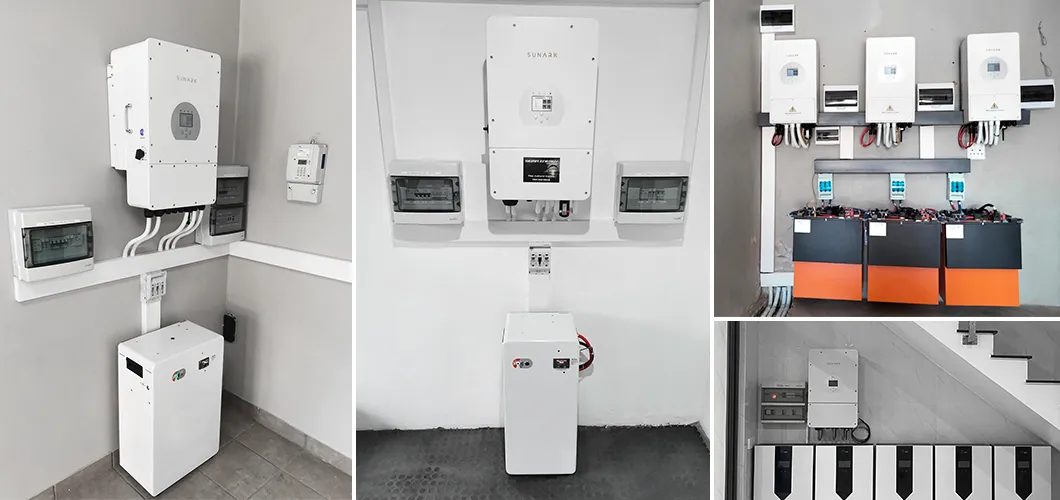

Application case 1

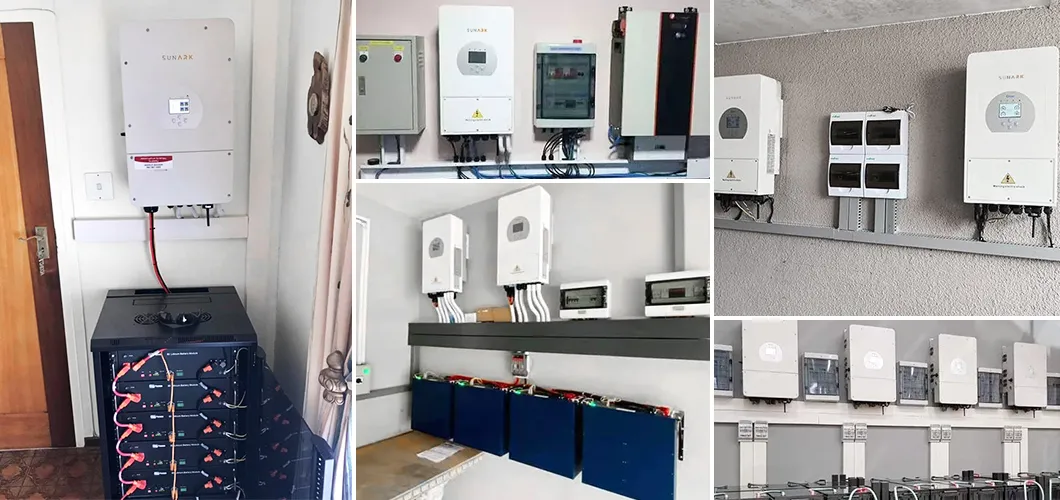

Application case 2

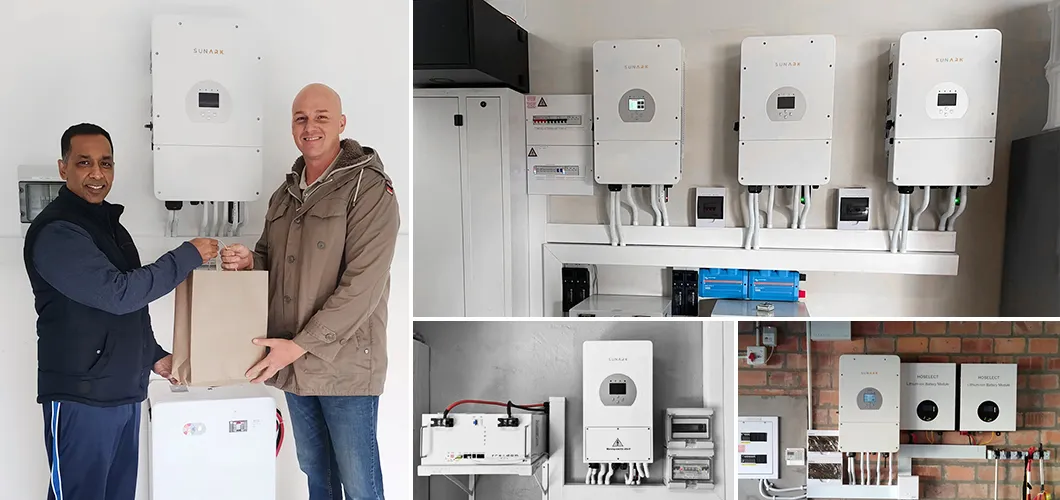

Application case 3
About Us
Production Facility

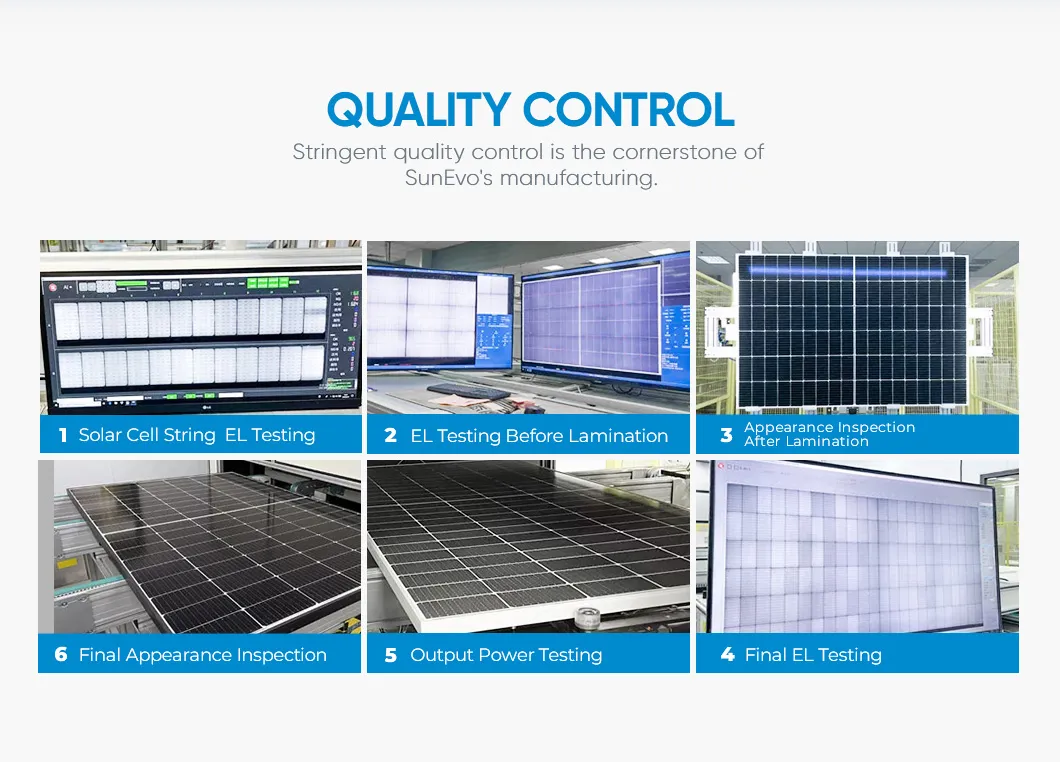

Testing Lab
Certificates

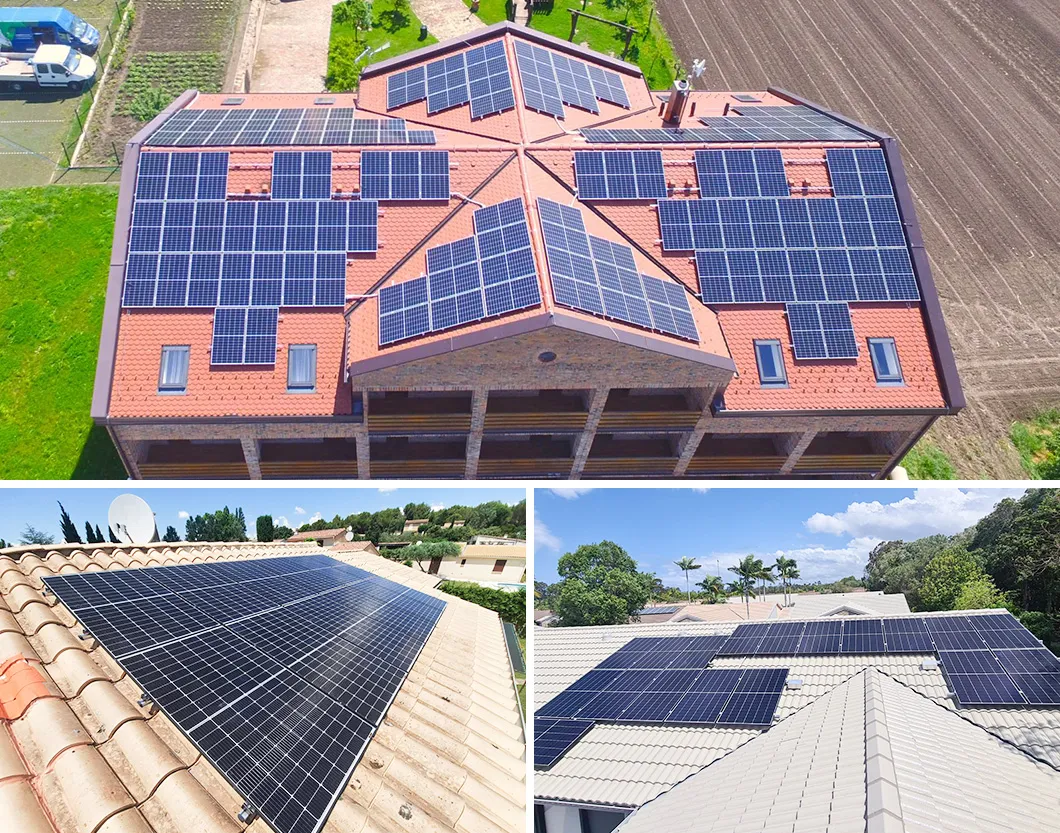

Global Project Cases

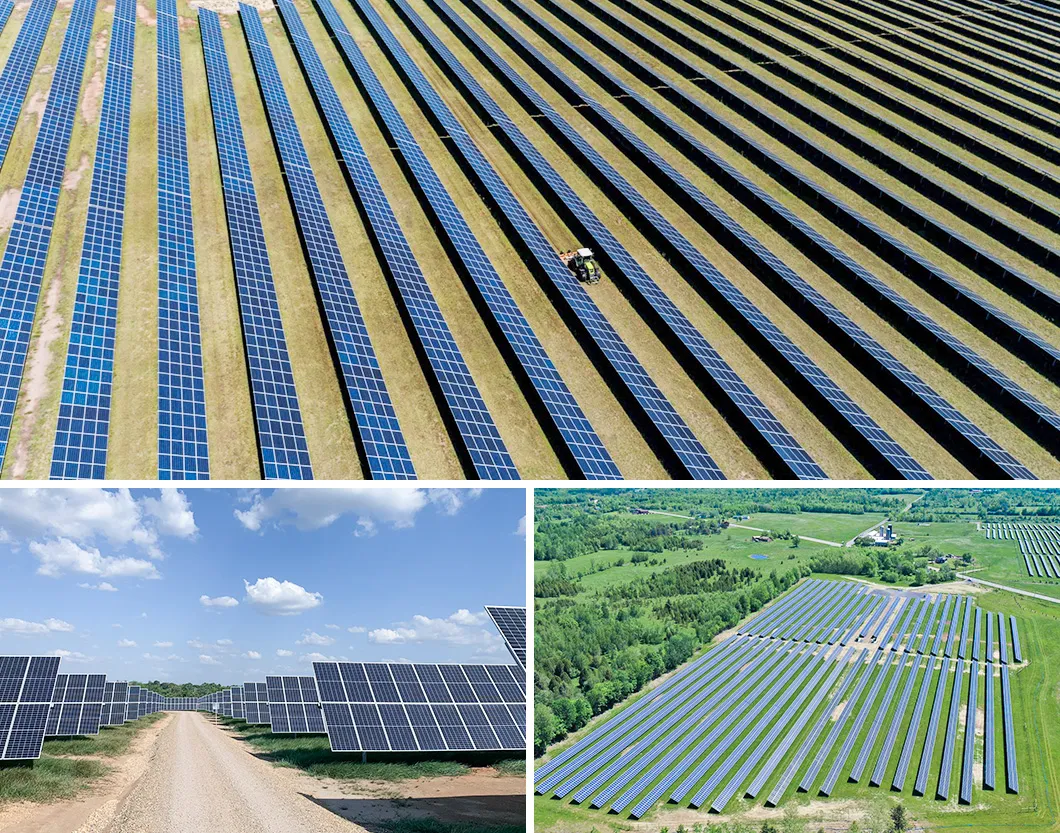

Global project case 1
Global project case 2

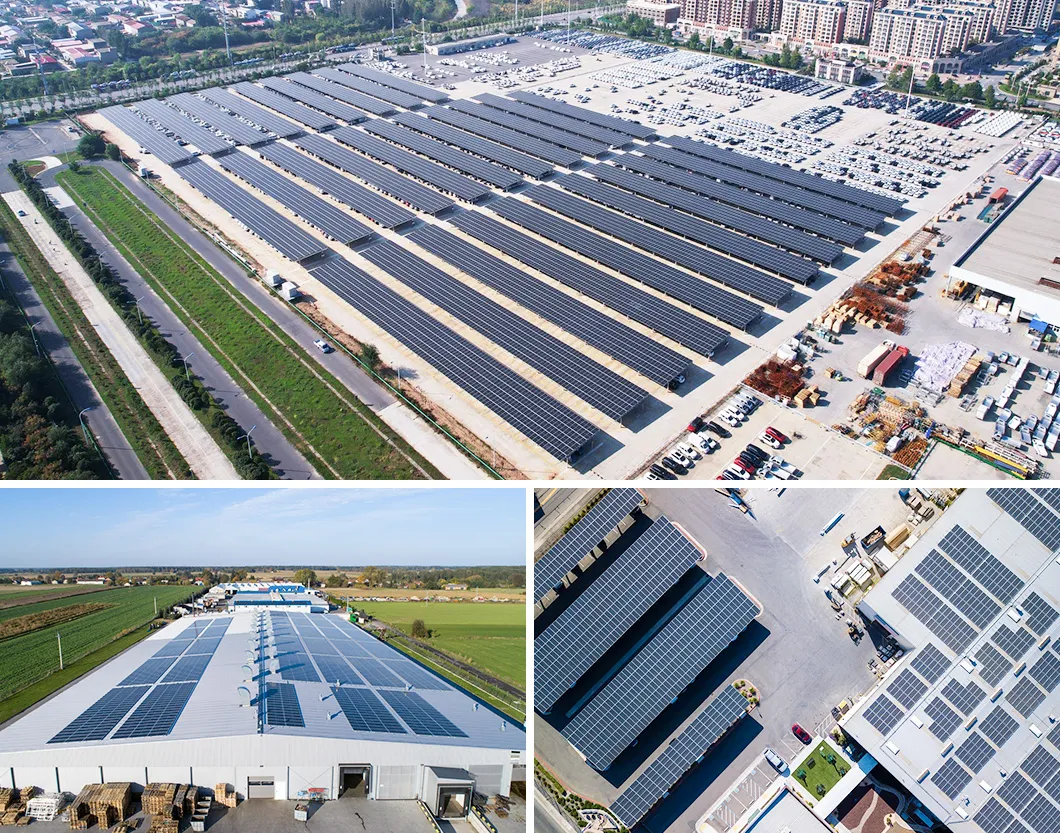

Global project case 3
Frequently Asked Questions
What components are included in the complete hybrid solar system?
The system comes as an all-in-one package containing monocrystalline solar panels, a hybrid solar inverter, a wall-mounted LiFePO4 battery storage, PV mounting systems, DC/AC disconnect switches, DC cables, MC4 connectors, and essential PV installation tools.
What is the lifespan and cycle capability of the LiFePO4 battery?
The wall-mounted LiFePO4 lithium batteries are designed for a 15-20 year service life and can withstand up to 6,000+ charging cycles while preserving high-efficiency energy storage at home.
How does the smart monitoring system help?
The monitoring system includes an easy app available for both PC and phones. It tracks real-time generation and consumption data, stores lifecycle history securely, and features error-navigation tools for quick system dispatch.
Can the system's storage capacity be scaled up in the future?
Yes. The lithium battery storage units are modular and highly scalable. You can simply stack or connect additional wall-mounted modules to meet growing energy storage demands.
Is the PV mounting system compatible with my roof type?
Yes. The mounting system is custom-engineered based on your specific roof or ground setup. It contains standard aluminum rails, adjustable mid/end clamps, and options for asphalt shingle roofs or flat ground installations.
