Solar System absorbs sun's energy to light up your home and power your home electrical appliances including charging mobiles.

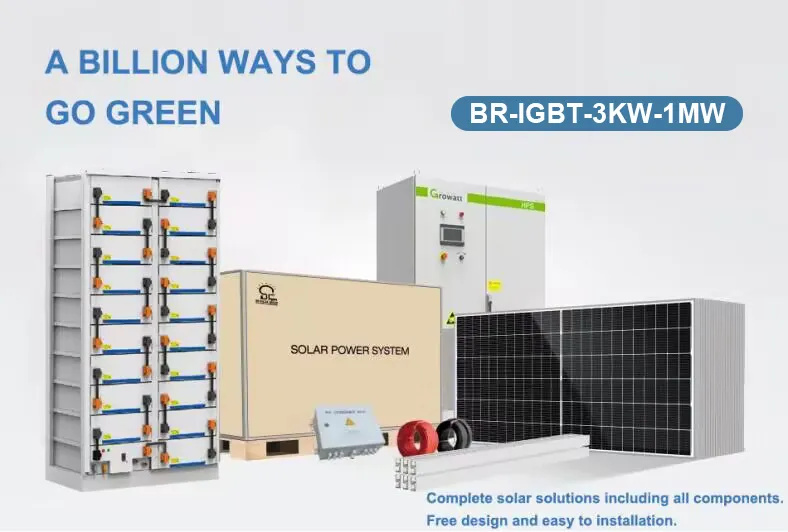

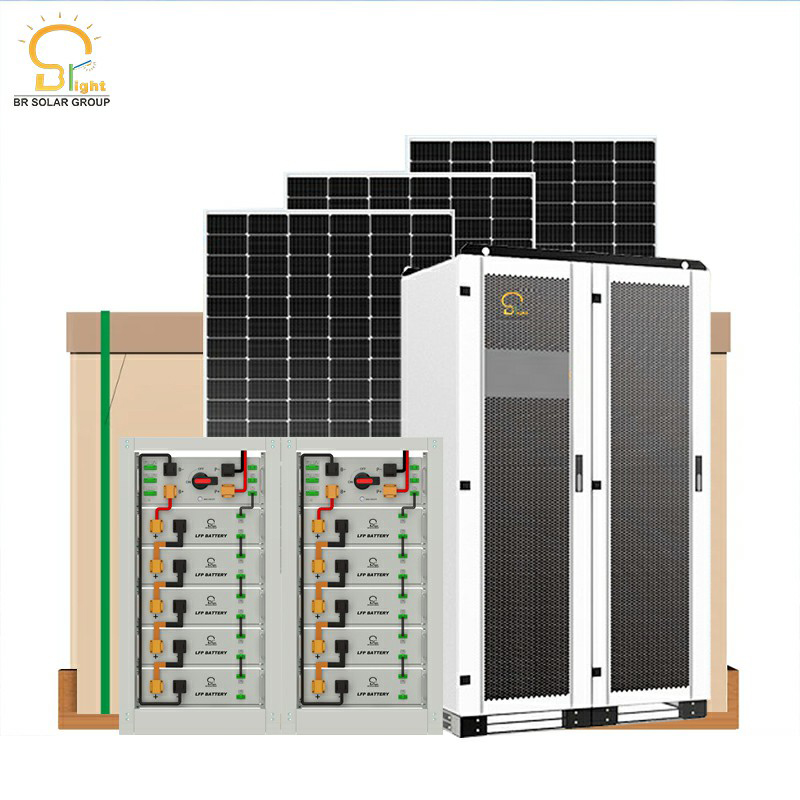

The components of the solar system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery, and inverter. Some system can be with fan, TV set, laptop, air conditioner, etc.
Providing illumination powered from the sun energy, the solar panel in the system convert the sun's energy directly into electricity.
This electricity can be stored in the battery and used for lighting whenever required.
Our solar System, compact, portable and easily mountable, is an economical solution to all your power problems and comes in an easy-to-install kit.
| Component | Specification Details | Qty | Unit |
|---|---|---|---|
| Solar panel | N-Type TOPCon Solar Module, TUV Certificate by Germany; Connection method: 14 strings x 60 parallels. 25 Years Design Lifespan. | 840 | Pcs |
| PV combiner box | 6 inputs, 1 output. Current counter-attack protection, Over current protection, Over-voltage protection, Lightning protection. 20 Years Design Lifespan. | 10 | Pcs |
| Bracket | Aluminum alloy rail tripod system. Anti-Rust, Anti-Corrosion, Anti-Salt Spray, wind resistance ≥150KW/H. | 1 | Set |

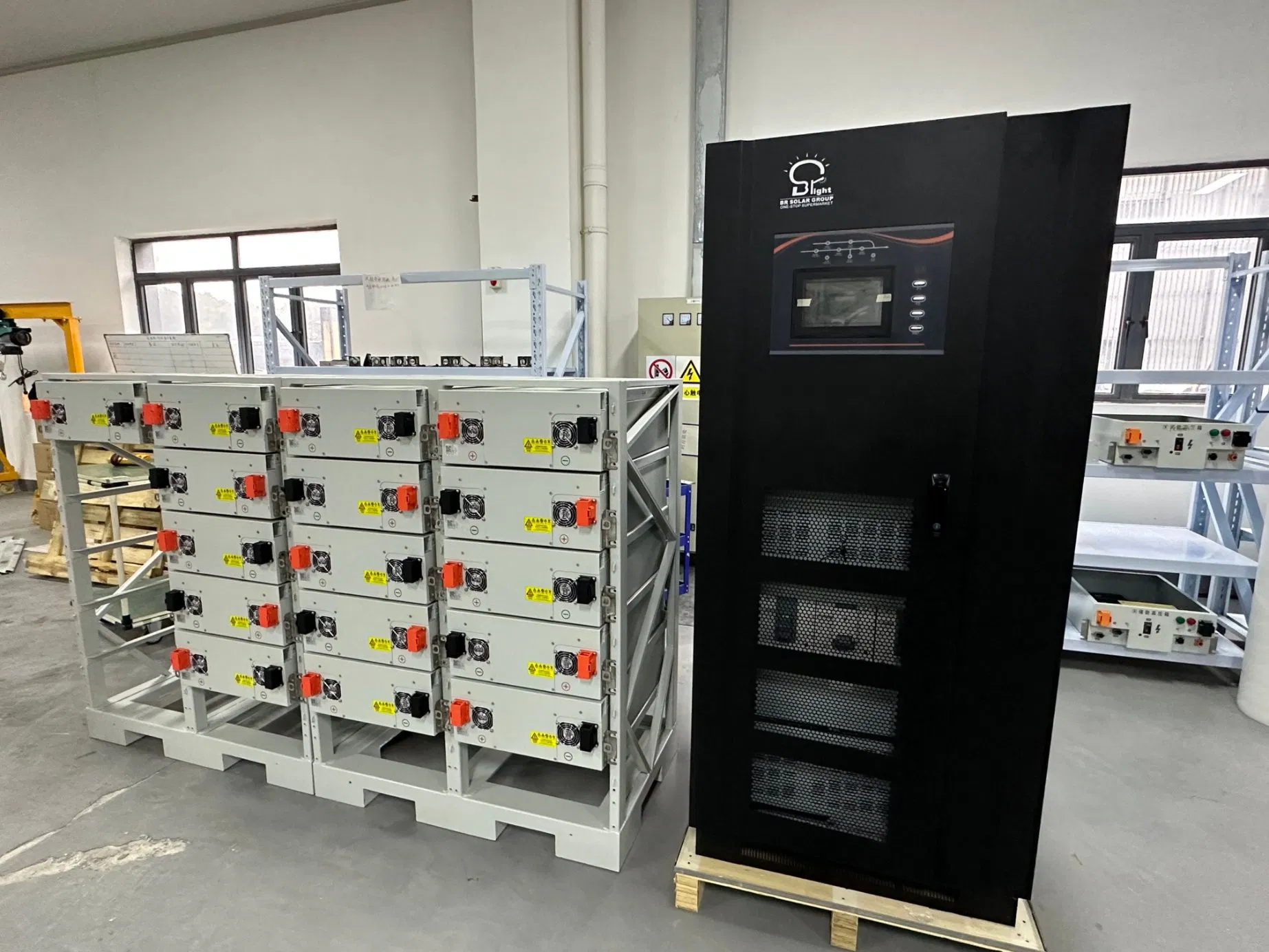

| IGBT TRANSFORMER BASED Hybrid Inverter | IGBT TECHNOLOGY, 500KW/380AC 3PHASE. 1. AC input: 380VAC. 2. Support grid/Diesel Input. 3. Pure sine wave, power frequency output. 4. AC output: 380VAC, 50/60HZ (optional). 5. IGBT Design especially for Inductive loads - Perfect performance for big Inductive Industrial equipments. 15 Years Design Lifespan. |
1 | Set |
| DC Distribution Box | Electrical Distribution Busbar Box. Built-in DC Breakers & Cables. Built-in bolder cables for balanced charging; Easy connection & protection. 15 Years Design Lifespan. | 1 | Set |

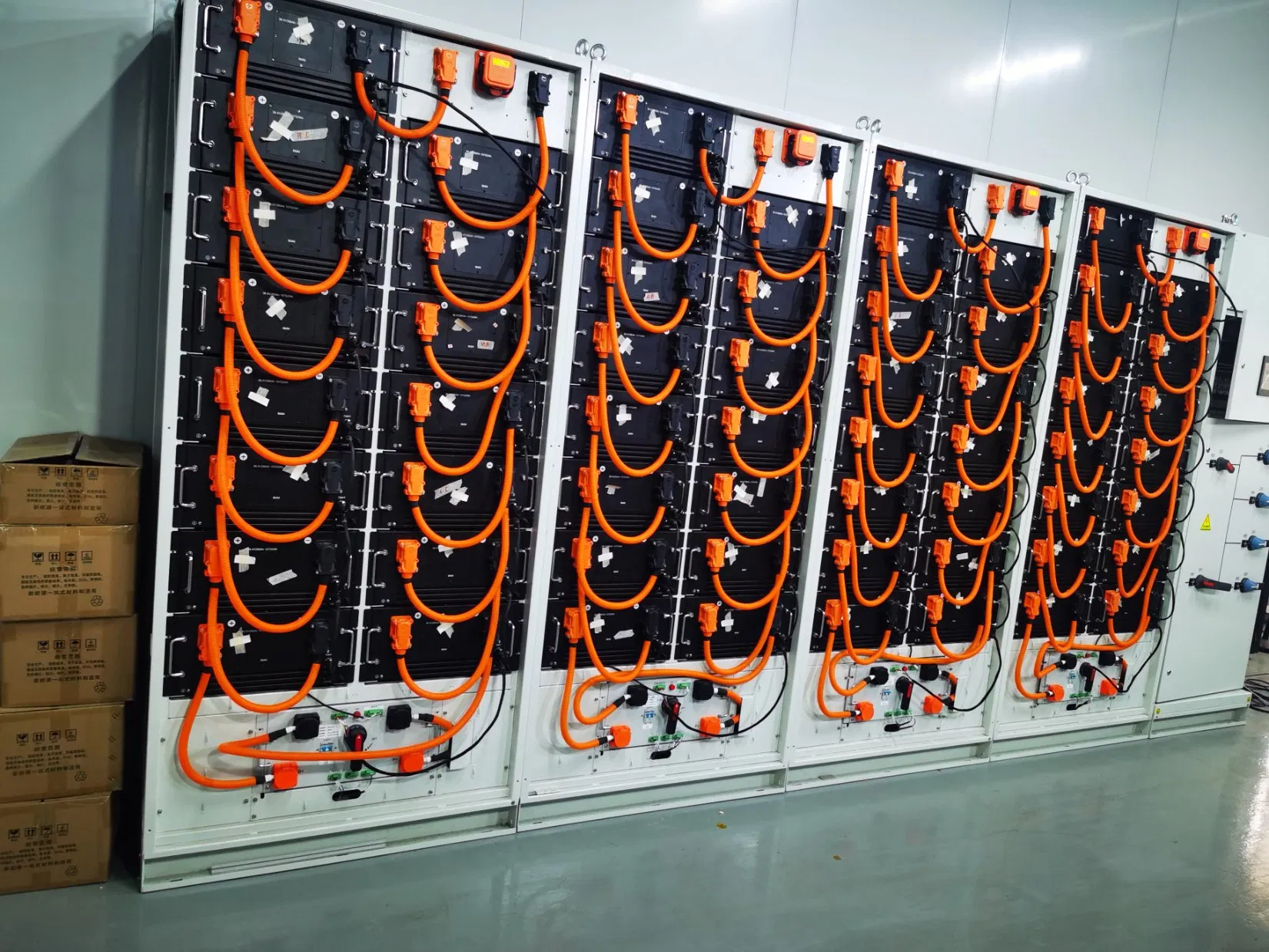

| Lithium Battery | 51.2V280AH modules *14pcs (716.8V--280AH), One cluster. 1. DOD: 90%, >8000 cycles. 2. Communication: CAN. 3. Protection: Over-current/Over-voltage/Short circuit/Under-voltage. Total 1003KWH power as backup. 15 Years Design Lifespan. |
5 | Set |
| Communication Unit | Communication management machine. | 1 | Set |
| AC Distribution | Electrical Distribution Busbar Box. Built-in AC Breakers & Cables. Built-in bolder cables for balanced charging; Easy connection & protection. 15 Years Design Lifespan. | 1 | Set |
| Connector | MC4. Rated Voltage: 1000V DC, rated current: 30A. Water-proof and dust-proof grade: IP67. Ambient temperature: -40ºC to +85ºC. | 150 | Pairs |
| PV cables (solar panel to PV combiner box) | 6mm² Pure Copper. | 3000 | M |
| BVR cables (PV combiner box to DC Box) | 25mm² Pure Copper. | 200 | M |
| BVR cables (DC Box to Inverter) | 120mm² Pure Copper. | 80 | M |

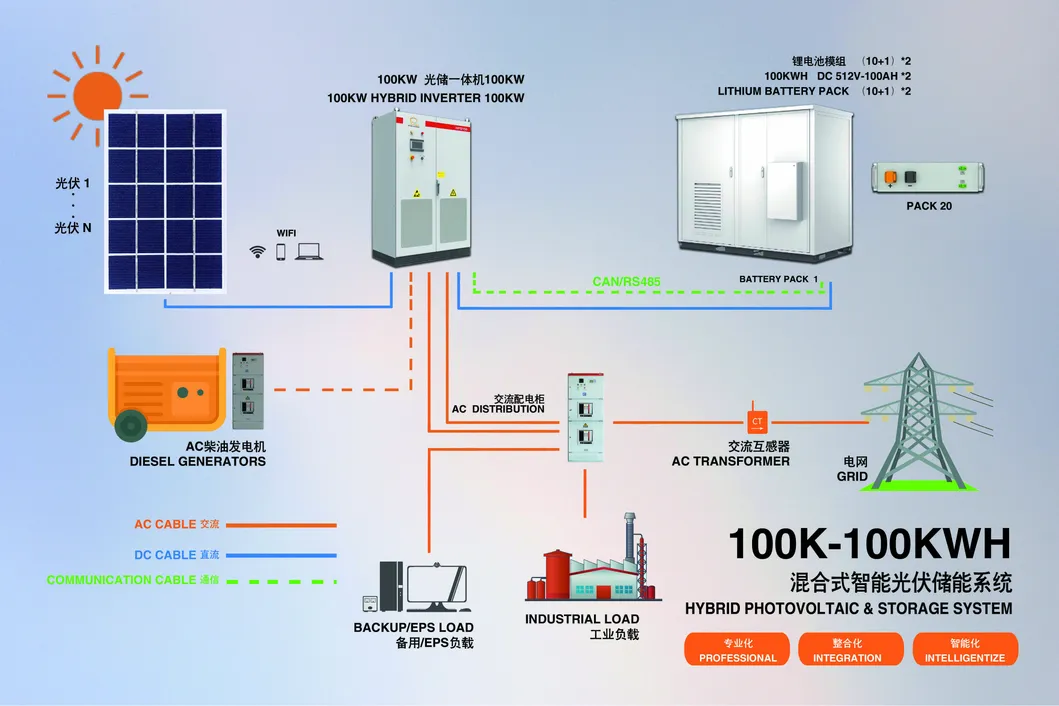

DIAGRAM OF 100KW PARALLEL SOLAR HYBRID SYSTEM:

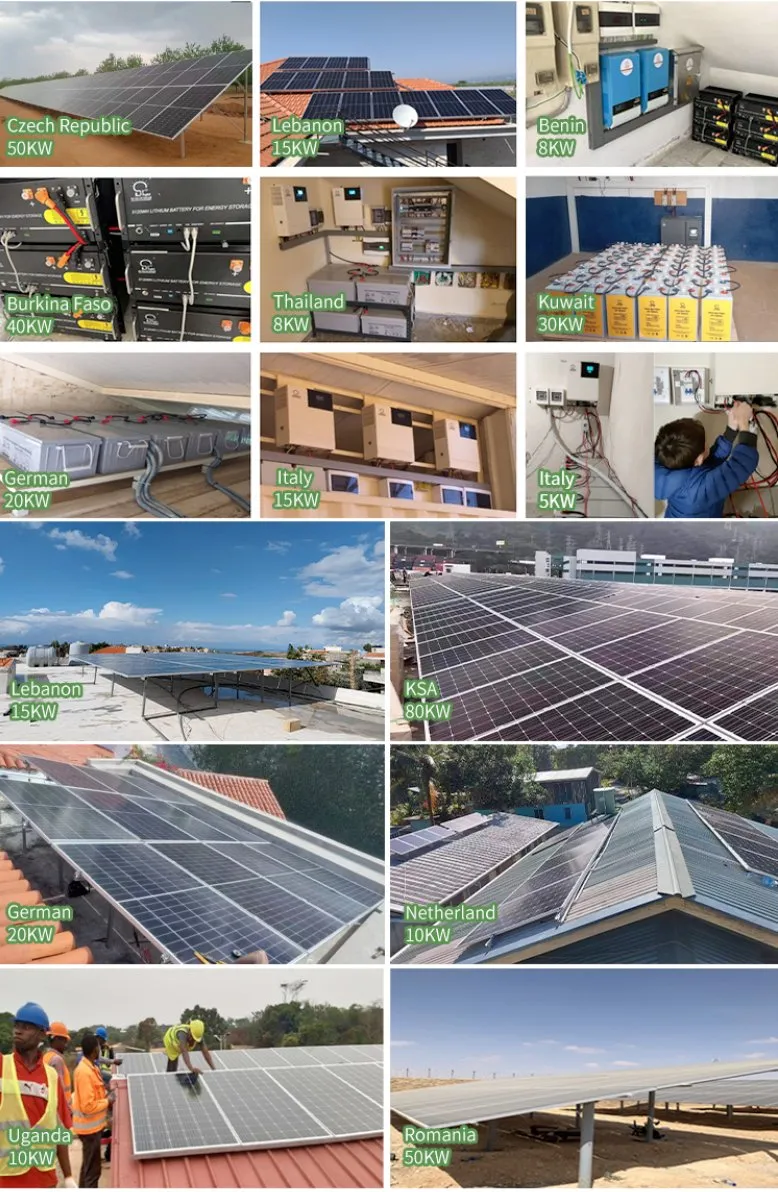

We choose quality materials, as quality is our core culture. Our solar products have been successfully applied in more than 128 countries, including UN projects and NGO projects.
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
A: Sample orders typically require 5-7 days. For mass production, the timeline depends on the specific order quantity.
A: We are a factory with high production capacity and a diverse range of solar products. Welcome to visit us anytime.
A: Samples are usually shipped by DHL, UPS, FedEx, or TNT. It typically takes 7-10 days to arrive. Airline and sea shipping are also available as options.
A: We offer a 3 to 5 years warranty for the entire system and will replace any parts with new ones for free in case of quality problems.
A: The solar power system is designed for residential, industrial, and commercial use. It is ideal for home appliances, battery backup systems, and UPS backup solutions.
