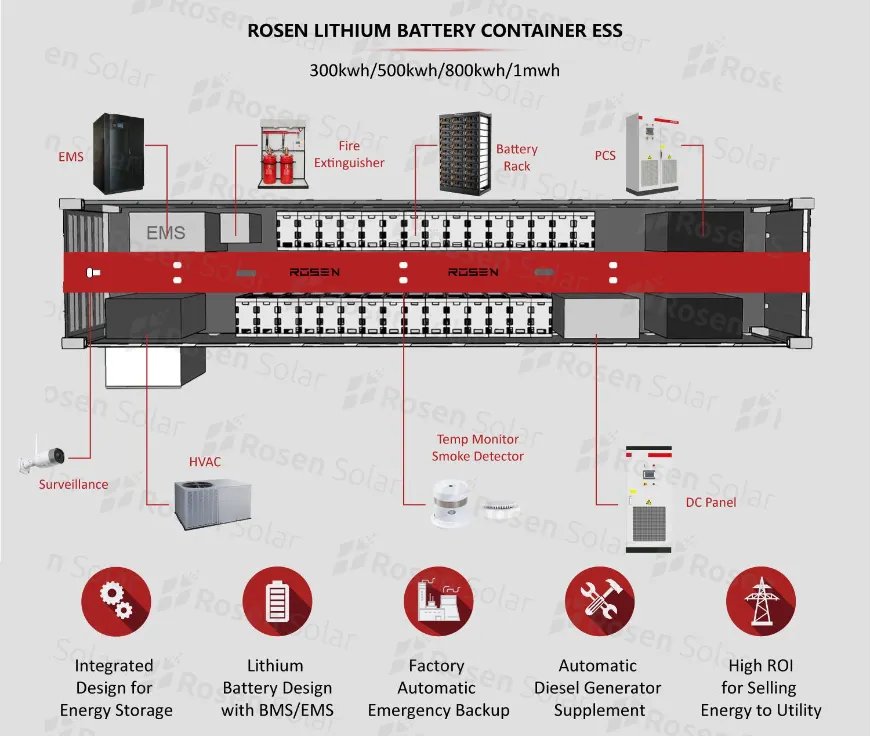

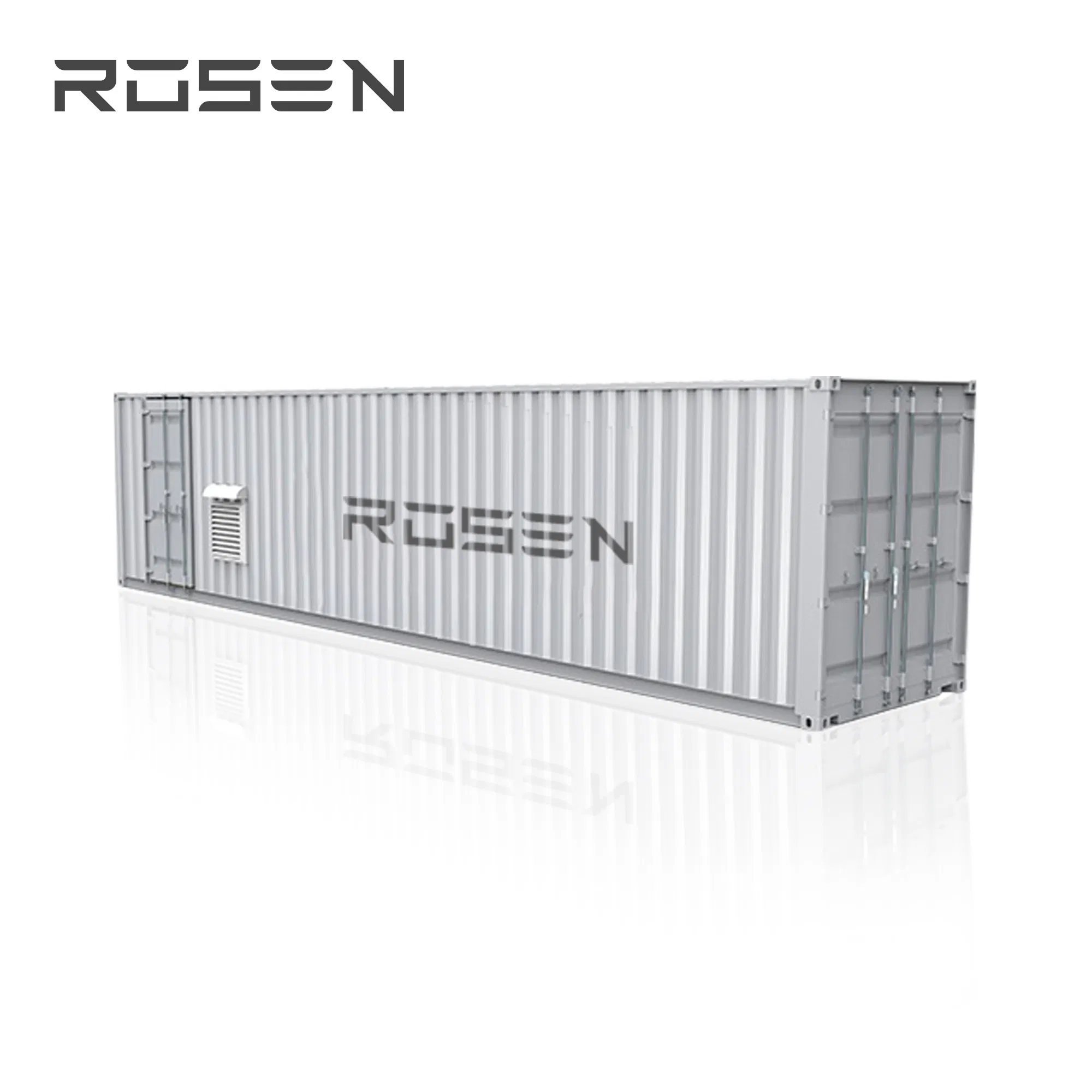

| Lithium Solar Energy Storage System ESS Container | ||||
|---|---|---|---|---|
| Model | RS300KWH-LFP | RS500KWH-LFP | RS800KWH-LFP | RS1MWH-LFP |
| Solar Panel | 300KW | 500KW | 800KW | 1MW |
| PV Combiner Box | Customized | Customized | Customized | Customized |

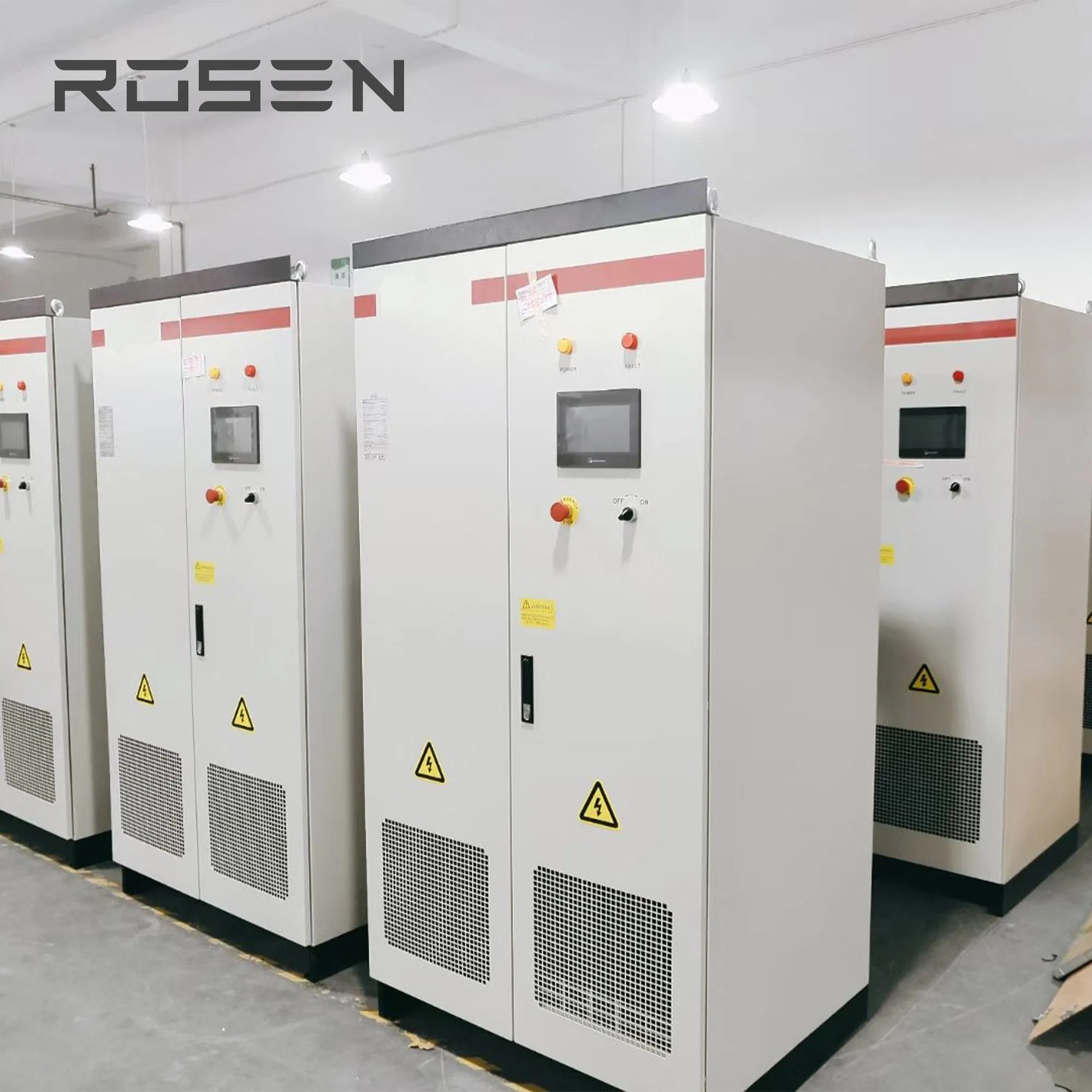

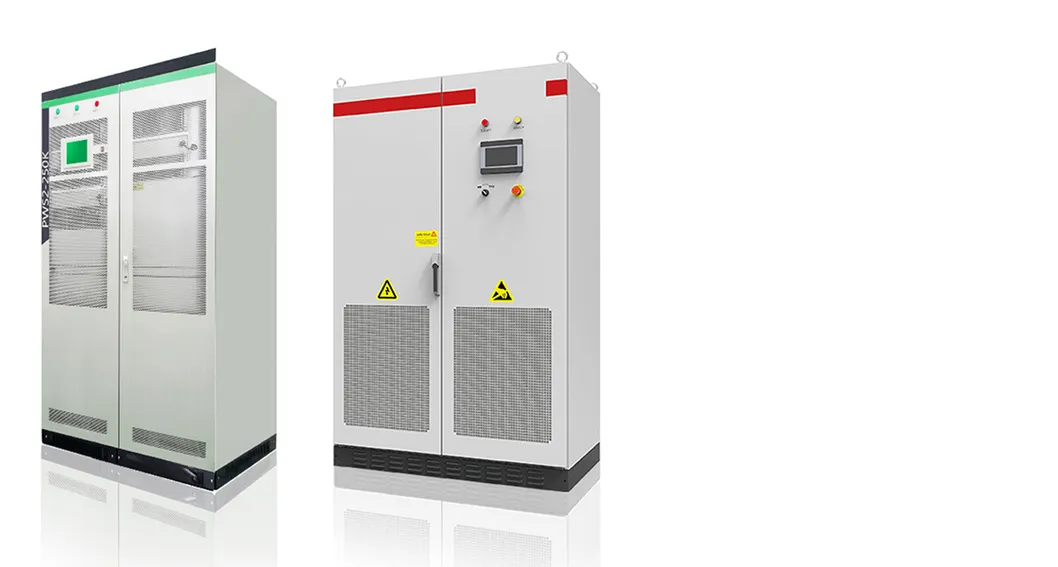

| Hybrid Solar Inverter | 300KW PCS | 500KW PCS | 800KW PCS | 1MW PCS |
| Utility Voltage Range | 380V/360V-440VAC; 480V/432V - 528VAC 50/45~55Hz; 60/55~65Hz | |||
| Solar Battery Packs | Lithium Battery Packs BMS/MBMS/EMS Protection; 2V GEL/OPzV Batteries Optional | |||
| Battery Racks | 4 Racks | 4 Racks | 6 Racks | 8 Racks |
| Data Monitor | WiFi Monitor/4G Terminal Monitor | |||
| PV Cable | 4/6/10/25/35/75/125mm2 | |||
| Installation Brackets | Aluminium Alloy, Stainless Steel, Hot-DIP Galvanized Steel, Ground Screw Mounting, Adjustable Brackets, Solar Tracker | |||
| Installation Site | Color Steel Tile/Tin Pitched Roof, Flat Roof, Cement/Soil Ground, Carport, etc | |||
| Installation Tools | Wire Cable Cutter & Stripper, Multi-Meter, Insulating gloves/covering etc | |||

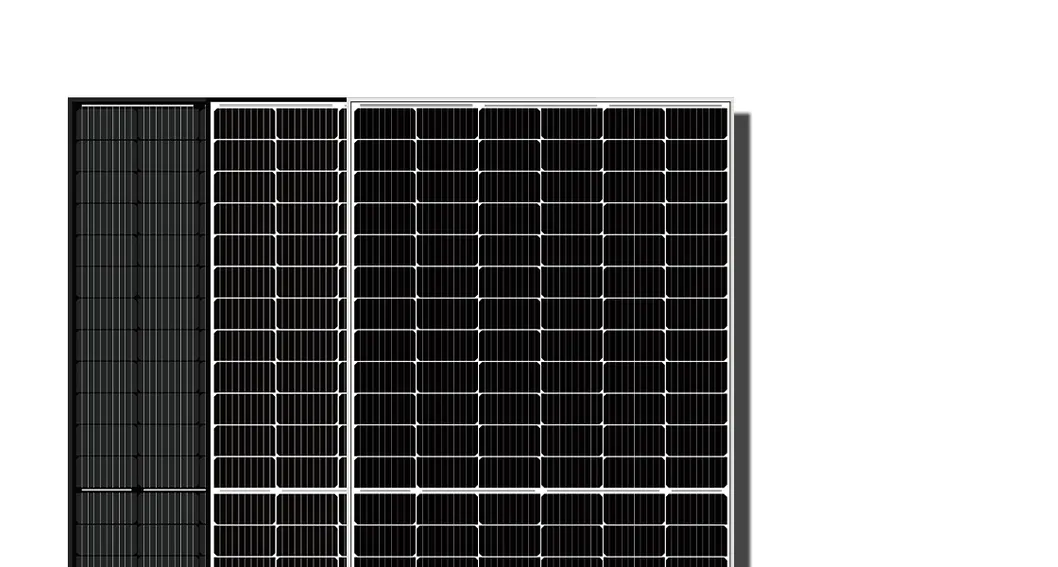

Mono/Poly/flexible/black etc. all types of Panels; High efficiency power up to 450W/550W/600W Half Cell/Bifacial Solar PV Modules. All certificates listed with more than 30 years lifetime and warranty. PID Resistant, High salt and ammonia resistance.
Automatic Switch to charge loads, batteries or from Grid backup with priority setting function; Lithium Battery and GEL storage battery compatible with almost all types of inverters. Comprehensive WiFi monitor for electricity production and consumption data, to check your investment payment on time.

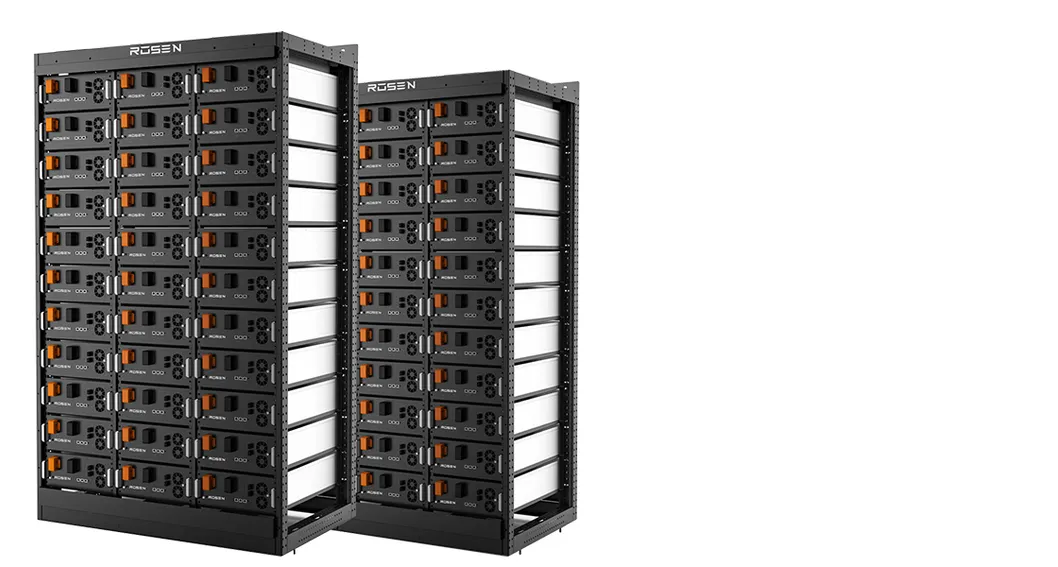

48V LV Storage 96V/192V/384V HV Battery Optional; Lithium ion LiFePO4 Module or Powerwall Optional; Matched BMS and communication for hybrid inverters; Lead Acid Deep Cycle Battery Storage.

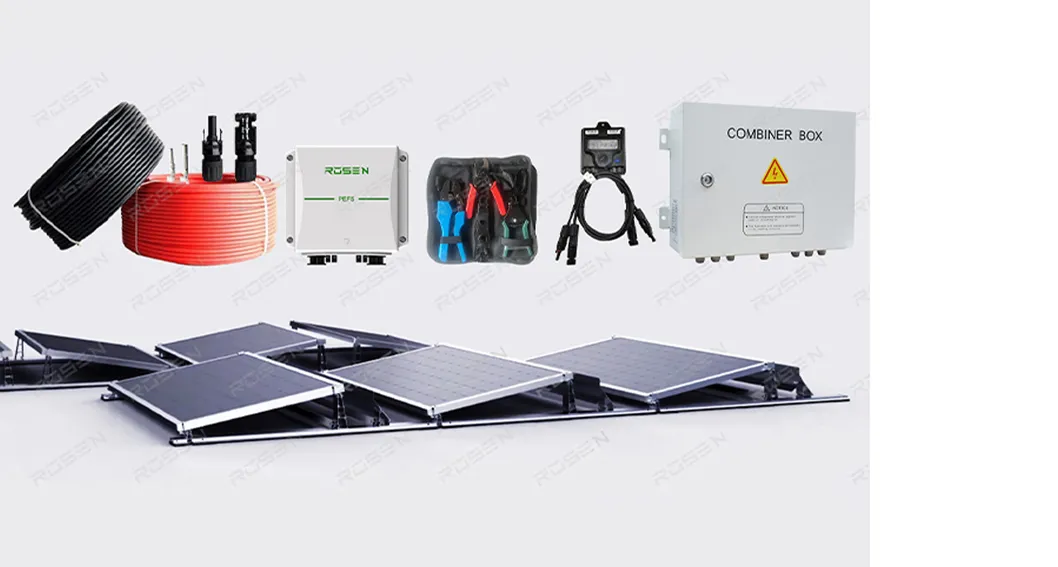

Tile or color steel roof tile/ground installation; DC Breaker/Combiner/Short-Circuit Protection/Lightning Protector/Firefighter Safety Smart Switch; DC Cable & MC4 Connector & Installation Tool Box.

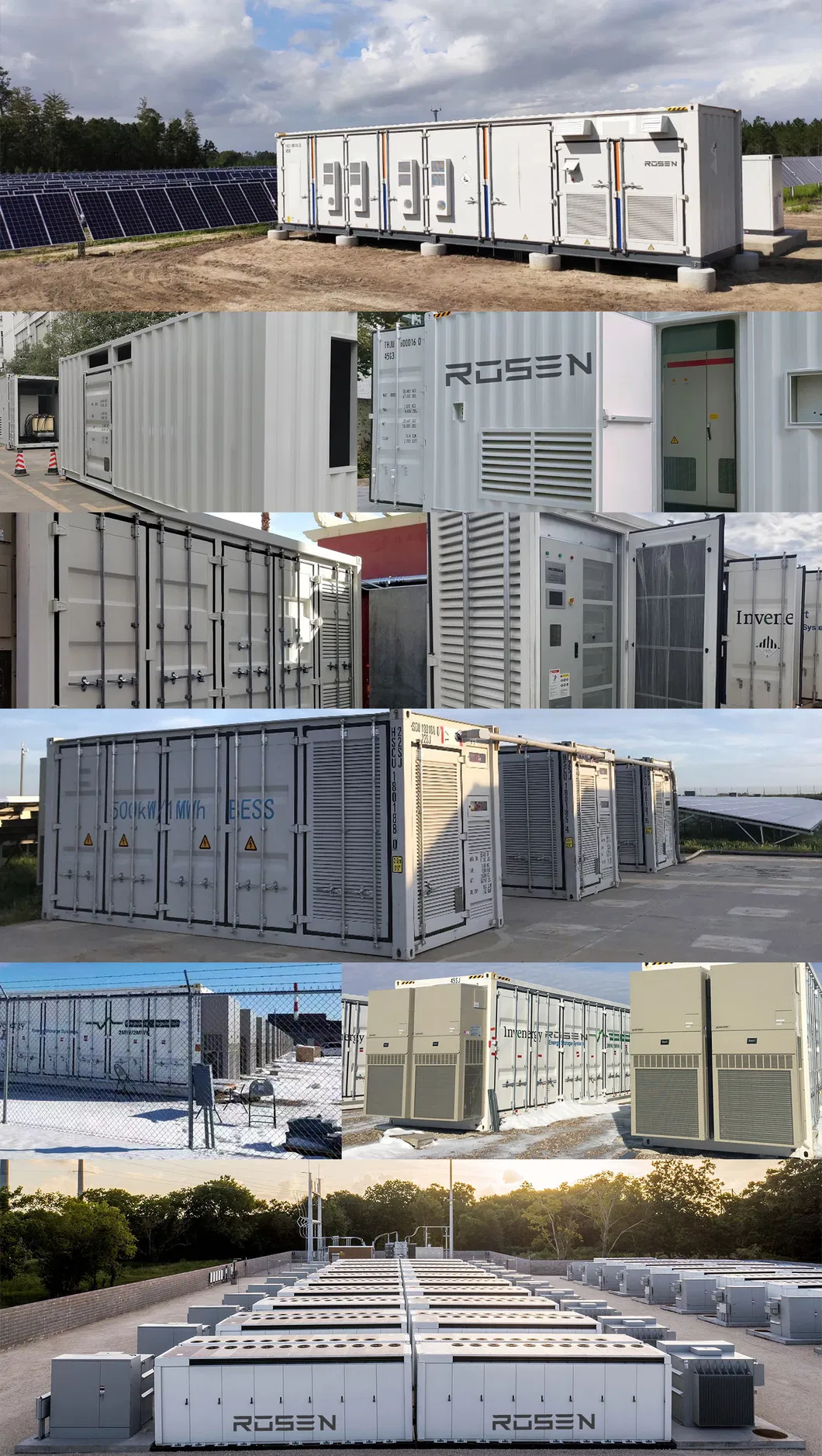

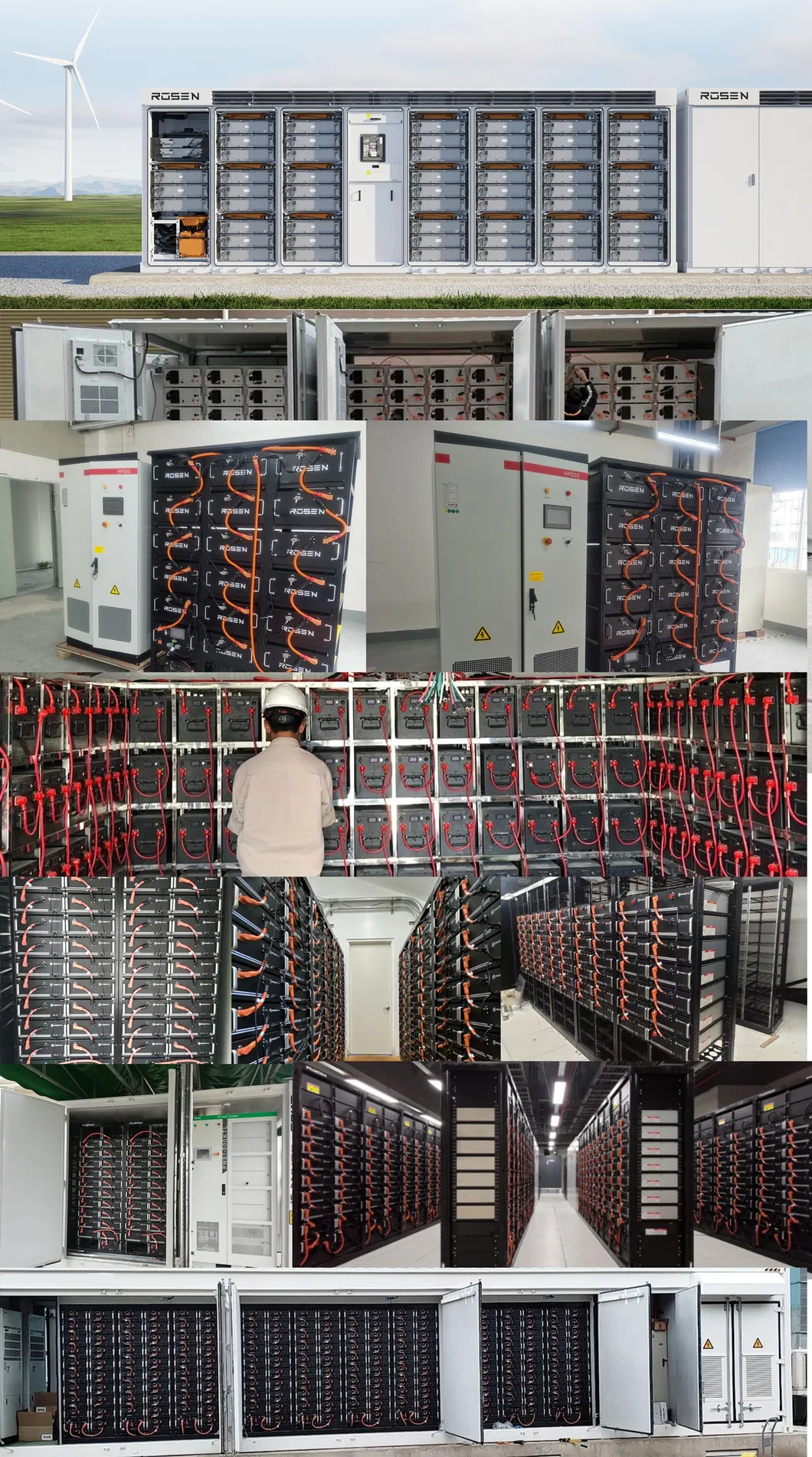

These systems are designed for both industrial and commercial applications, offering high-capacity energy storage solutions for factories, commercial buildings, and large-scale power projects.
Yes, OEM and ODM requests are fully accepted. The mounting brackets, combiner boxes, and entire container setups can be customized to suit roof, ground, tile, or carport installations based on project requirements.

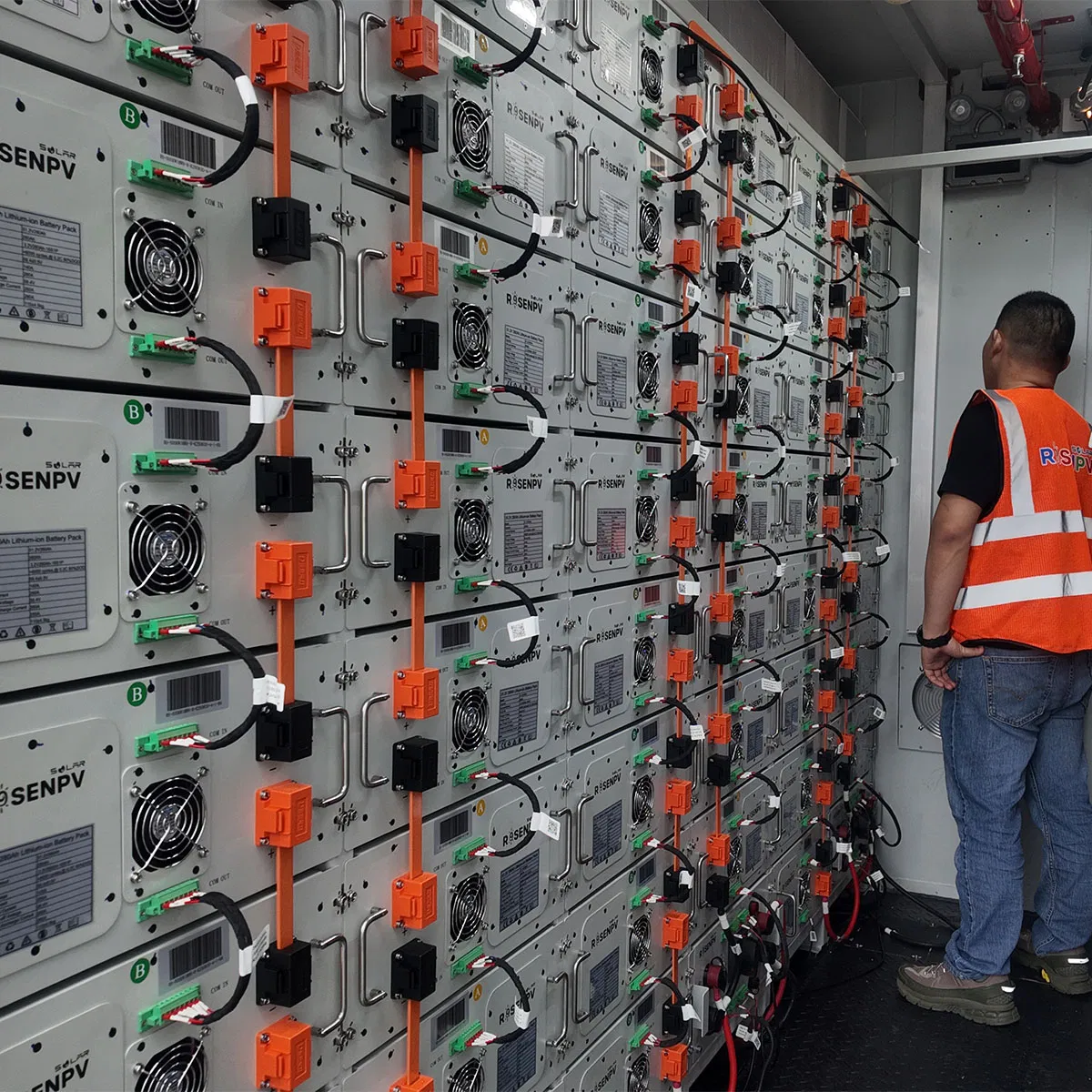

The system supports Lithium-ion (LiFePO4) battery packs, powerwalls, and deep cycle 2V GEL/OPzV batteries, configured with professional BMS/MBMS/EMS protection systems.
The system utilizes advanced WiFi or 4G terminal monitoring devices, allowing real-time tracking of electricity generation and power consumption data via online platforms.
The lithium battery packs and systems are CE and TUV certified, and come with MSDS and UN38.3 certificates to guarantee complete safety during installation and operations.
The solar panels boast a high-performance lifecycle of over 30 years, while the high-grade lithium storage battery packs come with a warranty of up to 10 years.
