Photovoltaic Complete off Grid 15kw 30kw 50kw 80kw 100kw Battery Storage Panel Set Energy Hybrid PV Solar Power Systems Price for Industry Home

Customization:	Available
Weight:	1300 Kg
Warranty:	10 Years

Send Inquiry

Product Description

Overview & Basic Info.

Model NO. CSAS solar system

Cycle Life 1000 Cycles

Nominal Capacity 5kw 3kw 1000W 10kw 10 Kw 6kw 15kw

Certification ISO, CE

Mounting Support Roof or Ground Solar Mount Bracket

Solar Inverter Off Grid Inverter

Solar Panel Monocrystalline Solar Panel

Transport Package Carton/Wooden Box

Trademark OEM/ODM

Origin Jiangsu, China

HS Code 8501802000

Production Capacity 4500 Sets/Month

Product Description

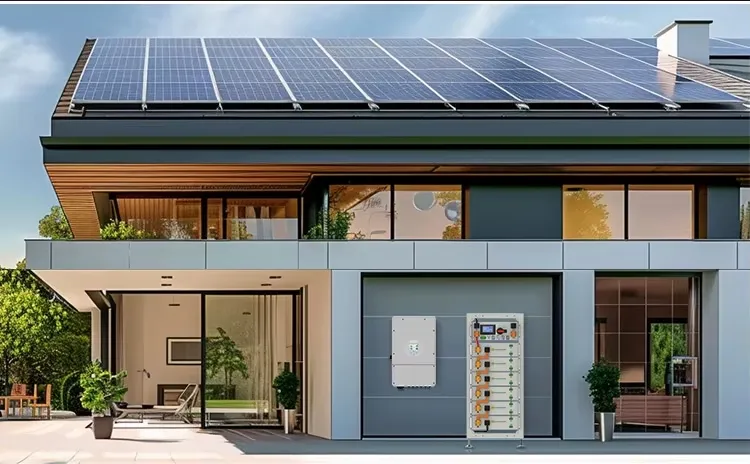

Photovoltaic Complete off Grid Hybrid PV Solar Power Systems

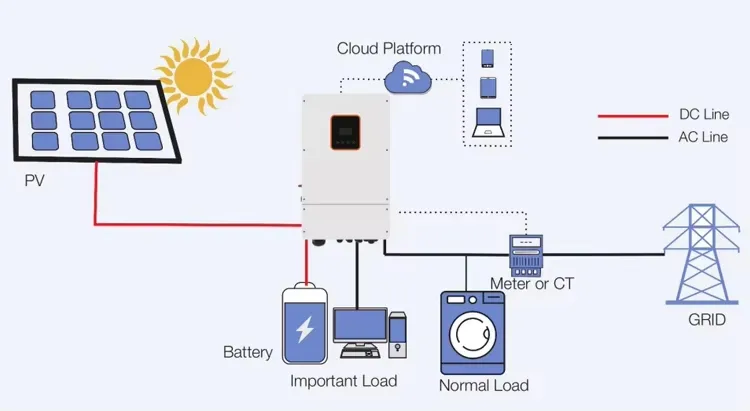

Battery Storage Panel Set Energy Hybrid PV Solar Power Systems

Product Parameters

Parts	Specification	SP5KW	SP6KW	SP8KW	SP10KW	SP12KW
Solar Panel	590W Mono Panel	6 Pieces	10 Pieces	12 Pieces	16 Pieces	20 Pieces
Hybrid Inverter	Single Phase/ Three Phase	1 pcs 5KW	1 pcs 6KW	1 pcs 8KW	1 pcs 10KW	1 pcs 12KW
LiFePO4 Battery	Powerwall/Rack-mounted, 48V 5/10KWH, optional	1 Pieces	2 Pieces	2 Pieces	2 Pieces	2 Pieces
Bracket	Ground or Roof (Customized Optional)	1 set	1 set	1 set	1 set	1 set
PV Cables	4mm²	100 meters	200 meters	200 meters	200 meters	200 meters
MC4 Connector	Male + Female	5 pairs	10 pairs	10 pairs	15 pairs	15 pairs
Installation Tools	Optional	1 set	1 set	1 set	1 set	1 set

Note: Product dimensions and physical appearance in this data sheet are nominal. The manufacturer reserves the right to make the product changes from time to time, without prior notification, which may change the dimensions and/or physical appearance shown.

1. Solar Panel

2. Off Grid Inverter

3. Switch Box

4. Power Meter

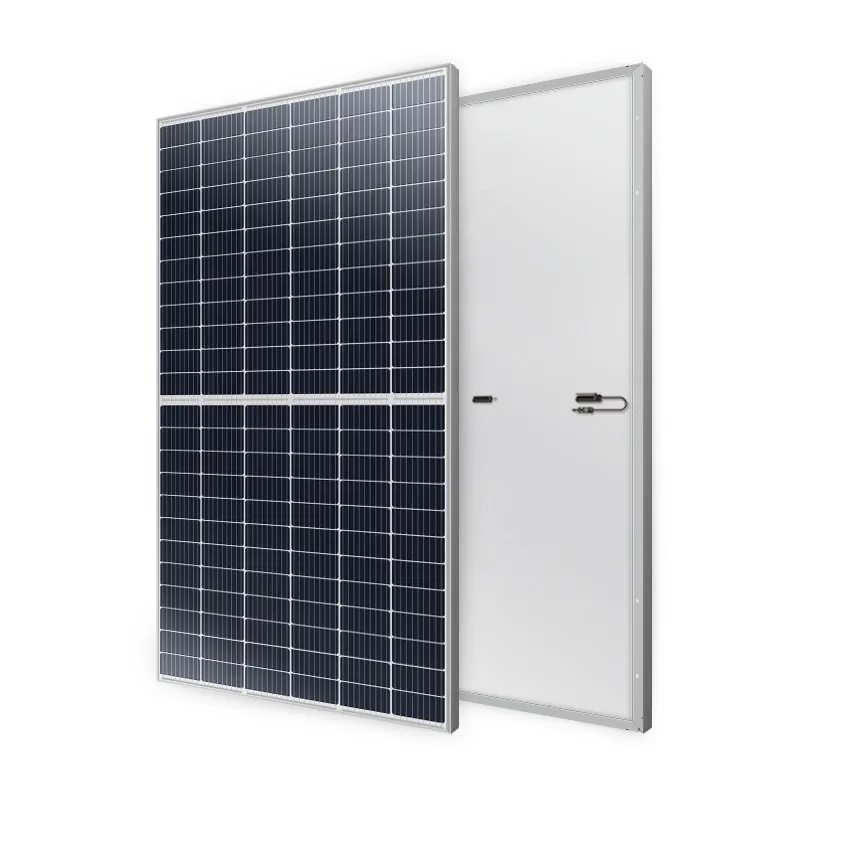

Mono Solar Panels

Peak Power Watts: 590W
Maximum Power Voltage: 41.5V
Maximum Power Current: 11.3A
Open Circuit Voltage: 48.5V
Short Circuit Current: 11.96A
Dimensions: 2094*1038*35 mm
Weight: 25 kg

Inverter with MPPT Controller

AC 220V/230V/50HZ, Capacity 5.5KW, MPPT voltage range 70-450Vdc, Maximum open-circuit voltage 500Vdc. Maximum photovoltaic connection 5.5kwp.
WIFI service is optional and supports individual configuration settings.

Gross Weight (KG): 15
Packaging Dimensions (mm): 600*180*420
Volume (m³): 0.045

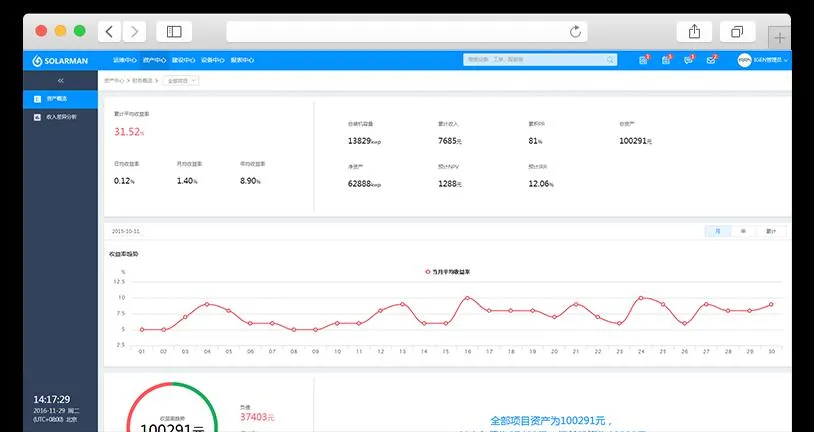

Remote Monitoring System

Data Logging Stick allows you to receive information from your solar power system, in order to keep you informed about the situation of your PV system and the atmospheric conditions, everywhere and every time, thanks to our web server, accessible via Wi-Fi, LAN, or GPRS.
App Available for PC, iOS & Android.

PV Mounting System

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35, 40, 45, 50mm.
L Foot Asphalt Shingle Mount & Hanger Bolt Optional.
Cable Clip & Tie Optional.
Ground Clip & Lugs Optional.

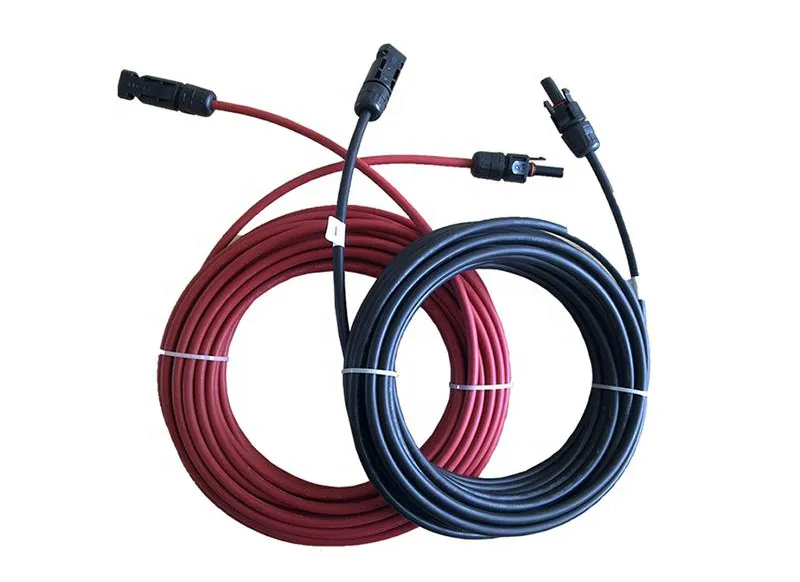

DC Cable & MC4 Connector

Cross Section: 4mm2, 6mm2 Optional.
Rated Voltage: 600VDC/1000VDC (TUV).
Rated Current: 55A, 70A.
Colors: Black standard, Red optional.
Lifetime: ≤25 Years.

Lithium Battery

Capacity: 4.8KWH, includes battery connection cables and communication cables.
Gross Weight(KG): 103
Package Size(mm): 710*500*310
Volume(m³): 0.110

Frequently Asked Questions

What is the expected cycle life of the battery storage system?

The battery system offers a robust cycle life of up to 1000 cycles under standard operating conditions.

What mounting options are available for the solar panels?

The system supports both ground solar mount brackets and roof mount configurations, which can be customized based on your site requirements.

Can I monitor the power output remotely?

Yes, the system is compatible with a remote monitoring system utilizing a Data Logging Stick that connects via Wi-Fi, LAN, or GPRS, with apps available for PC, iOS, and Android.

What are the specifications of the MC4 connectors and DC cables?

The DC cables are rated for 600VDC/1000VDC (TUV) with cross-sections of 4mm² or 6mm² and have a designed lifetime of up to 25 years. The MC4 connectors include male and female pairs.

Does the hybrid inverter support both single-phase and three-phase connections?

Yes, the hybrid inverter configurations can support either single-phase or three-phase setups depending on the selected product parameters.
