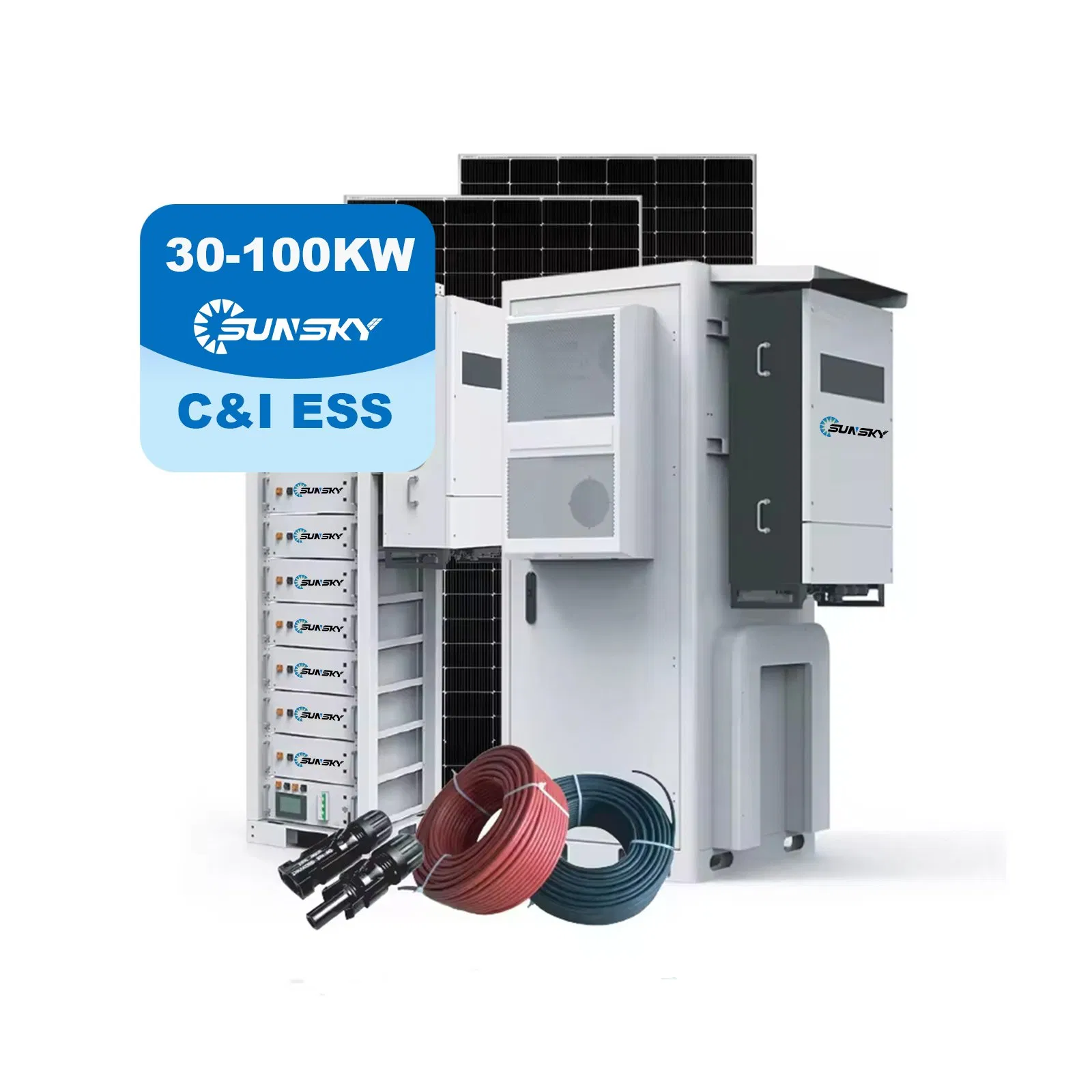

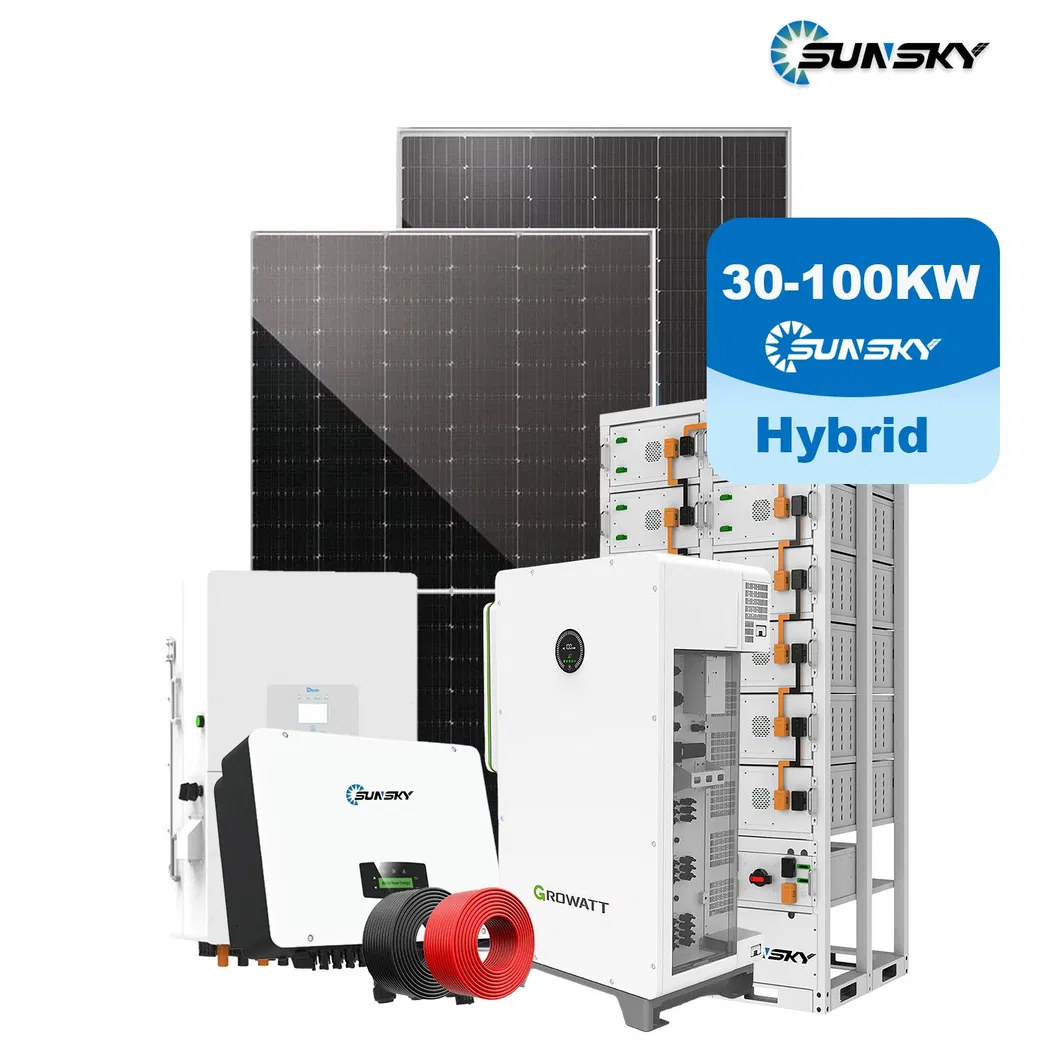

Commercial and Industrial 30kw 50kw 100kw off Grid 50kVA Hybrid Solar Energy 50kwh 100kwh 200kwh Storage LiFePO4 Lithium Battery Backup Power System for Factory

1 / 5

Commercial and Industrial 30kw 50kw 100kw off Grid 50kVA Hybrid Solar Energy 50kwh 100kwh 200kwh Storage LiFePO4 Lithium Battery Backup Power System for Factory

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Recommend Products
Product Parameters
Product Details
Our Factory
Solar Projects
Packaging & Shipping
Our Advantages
FAQ

Overview

Basic Info.

Model NO. SUN50KW3-ESS

Condition New

Certification ISO, CE

Application Home, Industrial, Commercial

Specification Normal, 30KW-100KW

Product Name 30kw 50kw 100kw Solar Storage System

System Type Solar Energy System

Solar System Power Hybrid Solar Inverter

Cycle Life 6000 Times and up Lithium Battery

Output Voltage 380V/400V/480V

Solar Panel Type Topcon N Type Solar Panel

Battery Type Lithium Ion, LiFePO4 Battery

Solar Panels System 100kw Solar System off Grid Home

Technical Support Complete Professional Technical Guidance

Solar System Application Industrial Commercial Solar Energy System

Online Monitoring WiFi/LAN/GPRS

Delivery Time 7 Days

Efficiency 99.8%

System Life Span 30 Years

OEM Service Acceptable

Transport Package Wooden Box

Origin China

HS Code 8501722000

Production Capacity 300sets/Day

Packaging & Delivery

Package Size 128.00cm * 89.00cm * 280.00cm

Package Gross Weight 3900.000kg

Recommend Products

Product Description

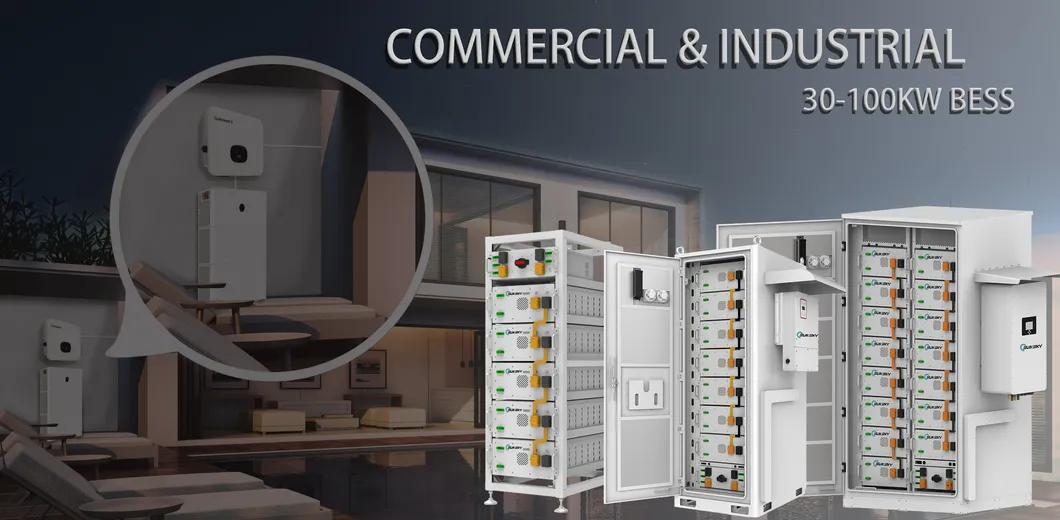

ENERGY STORAGE SYSTEM

Higher Power Output In Off-Grid Model
Support Diesel Generator Access
Pre-Wired Layout
One Stop Shop Proposal
Easy Installation & Debugging

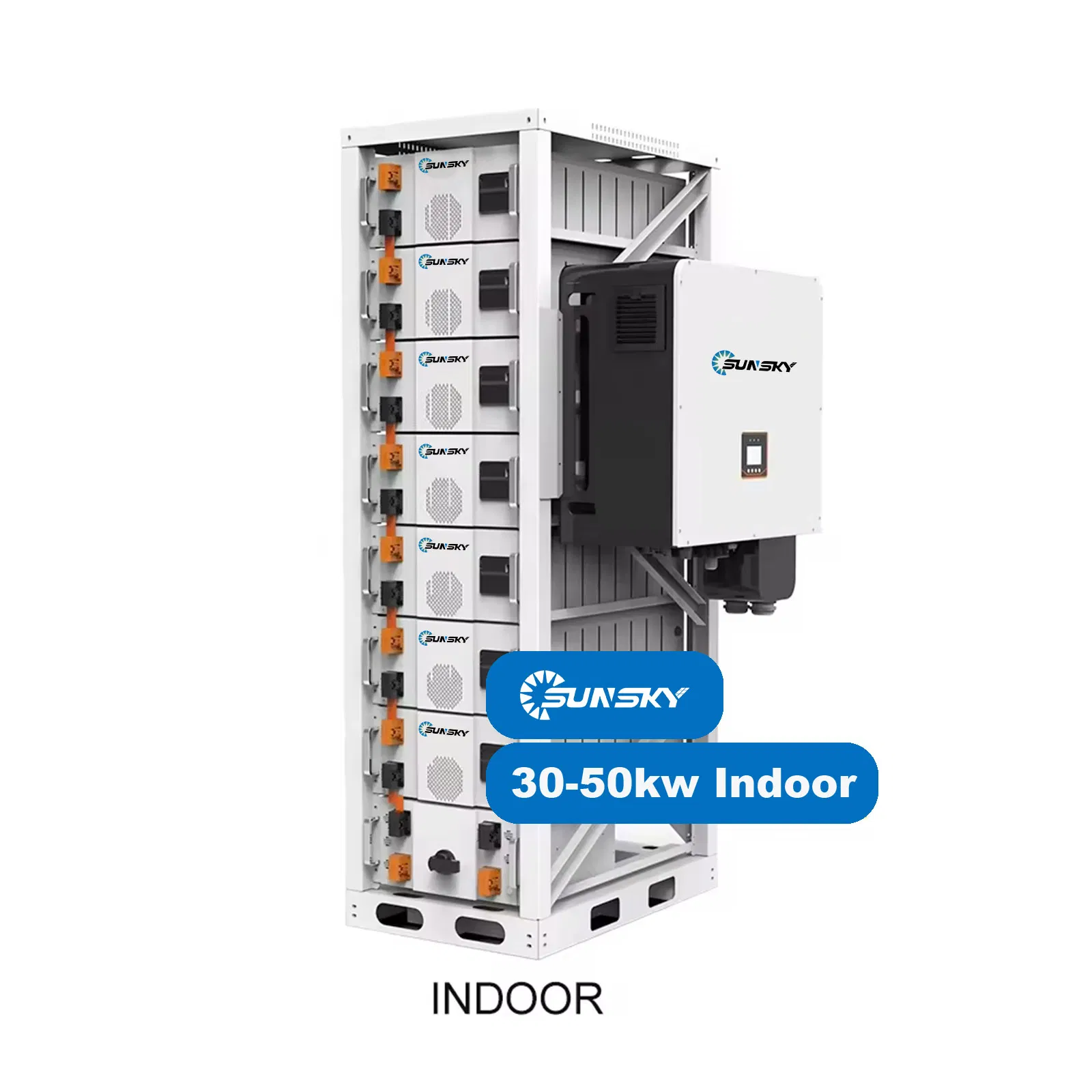

Indoor Or Outdoor Options
Tested Under Multiple Operating Conditions
30KW Or 50KW Solar Storage System
Convenient Operation & Maintenance

System Warranty

Product Parameters

30-100KW SOLAR SYSTEM DESIGN
Model	SUN30KW3E-SS	SUN50KW3-ESS	SUN100KW3-ESS
SYSTEM PARAMETER
Rated output power	30KW	50KW	100KW
System capacity	54.2KWH	100.3KWH	200.6KWH
Battery type	LifePO4
Class of protection	IP32 / IP56 (outdoor)
Quality guarantee	10 Years
INVERTER TECHNICAL PARAMETERS
Model	SUN30KW3	SUN50KW3	SUN100KW3
Max. PV input power	45KW	75KW	1set
MPPT Voltage	250-850VDC
Rated current (A)	43A	72A	144A
Battery Inverter	In-Build	In-Build	In-Build
Communication mode	Wi-Fi / GPRS / 4G
BATTERY TECHNICAL PARAMETERS
Specification	51.2V 106AH	51.2V 280AH	51.2V 120AH
Battery Bank Capacity	54.2KWH	100.03KWH	200.6KWH
Discharge depth	90%
Operating temp range	0~55 / -10~55 (outdoor)
Cycle number	>6000

Product Details

TOPcon Solar Panel

High efficiency up to 22.84%
Complies with European standard IEC61215 and IEC61730
SMBB + Half-cell tech, reduce internal current loss, improve module efficiency, minimize micro-crack impacts, and improve module reliability
Lower temperature coefficient (-0.29%/ºC), lower operating temperature, increase the power generation
Bifaciality rate up to 80-85%, up to 30% power gain from back side
25 or 30 years warranty optional

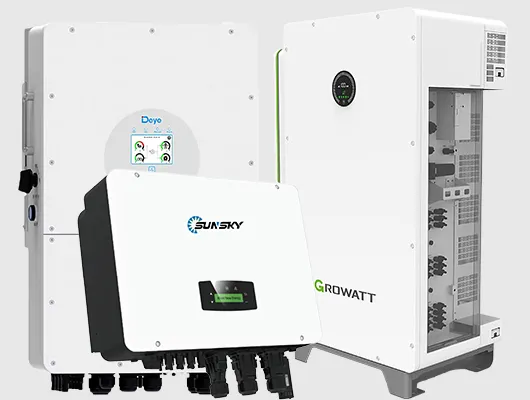

All In One Hybrid Solar Inverter

Intelligent IC control
Multiple protection function
Pure sine wave output
Buzzer alarm to remind
Work instruction function
Double Sided PCB / Import zero device
Aluminum alloy shell
Warranty: 10 Years

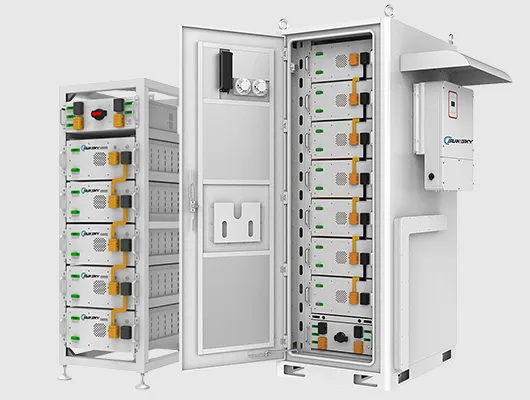

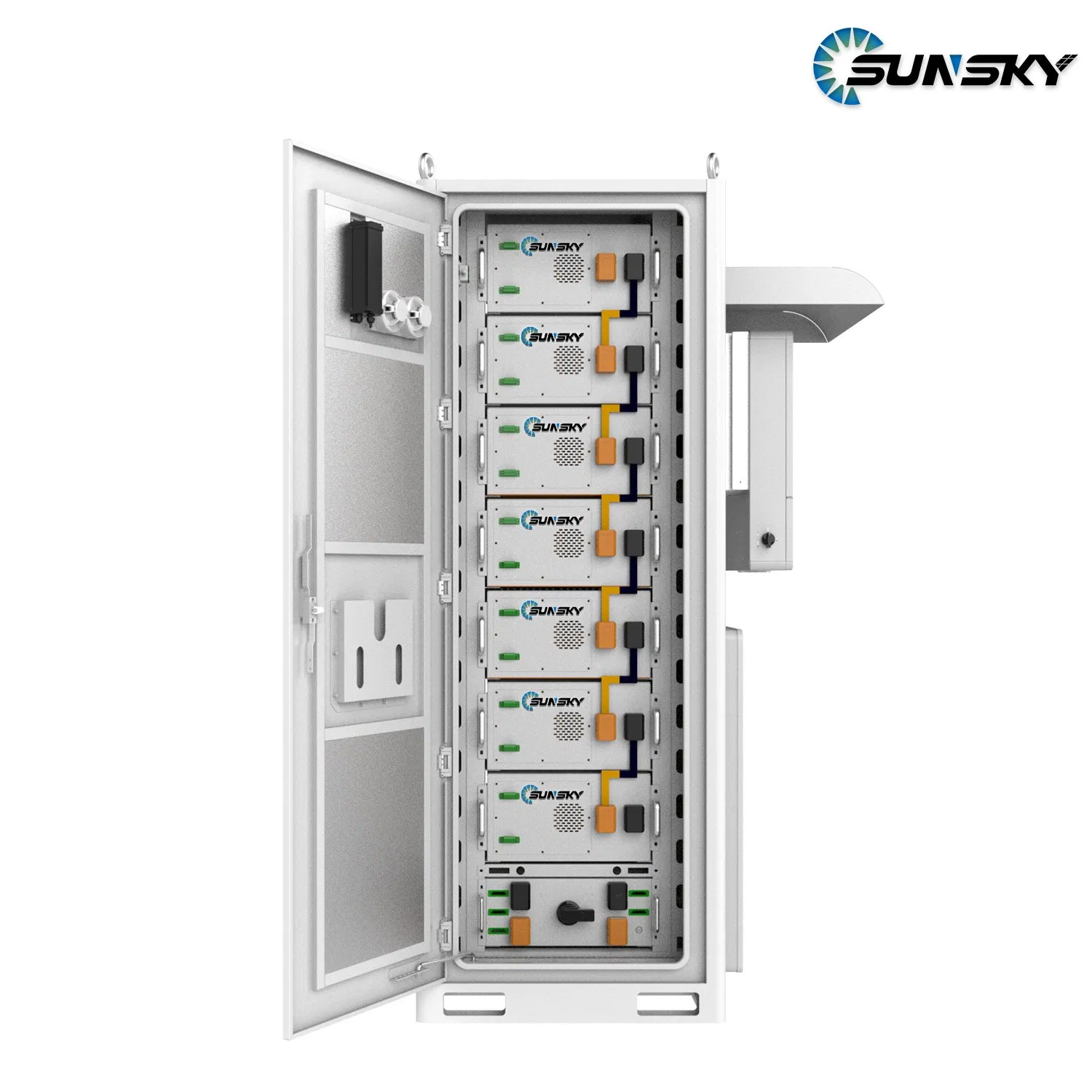

Battery Rack

Safe and reliable
Self-designed BMS
Easy installation and maintenance
Standard rack and module, front maintenance
High power density
LFP battery, ≥160Wh/kg
Flexible customization for different application and installation

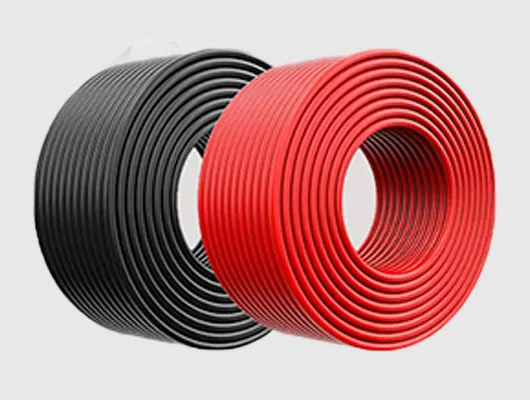

DC Cable & MC4 Connector

Cross Section: 4mm2; 6mm2; 10mm2 Optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black Standard, Red Optional
Warranty: 30 Years

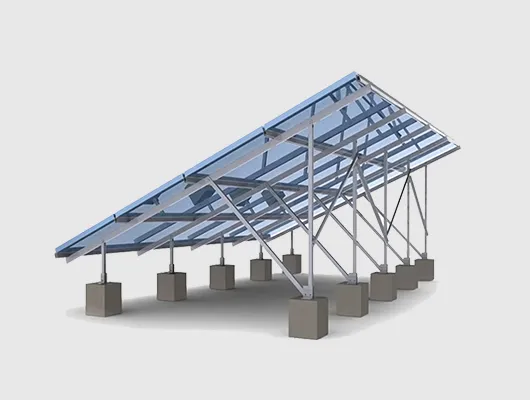

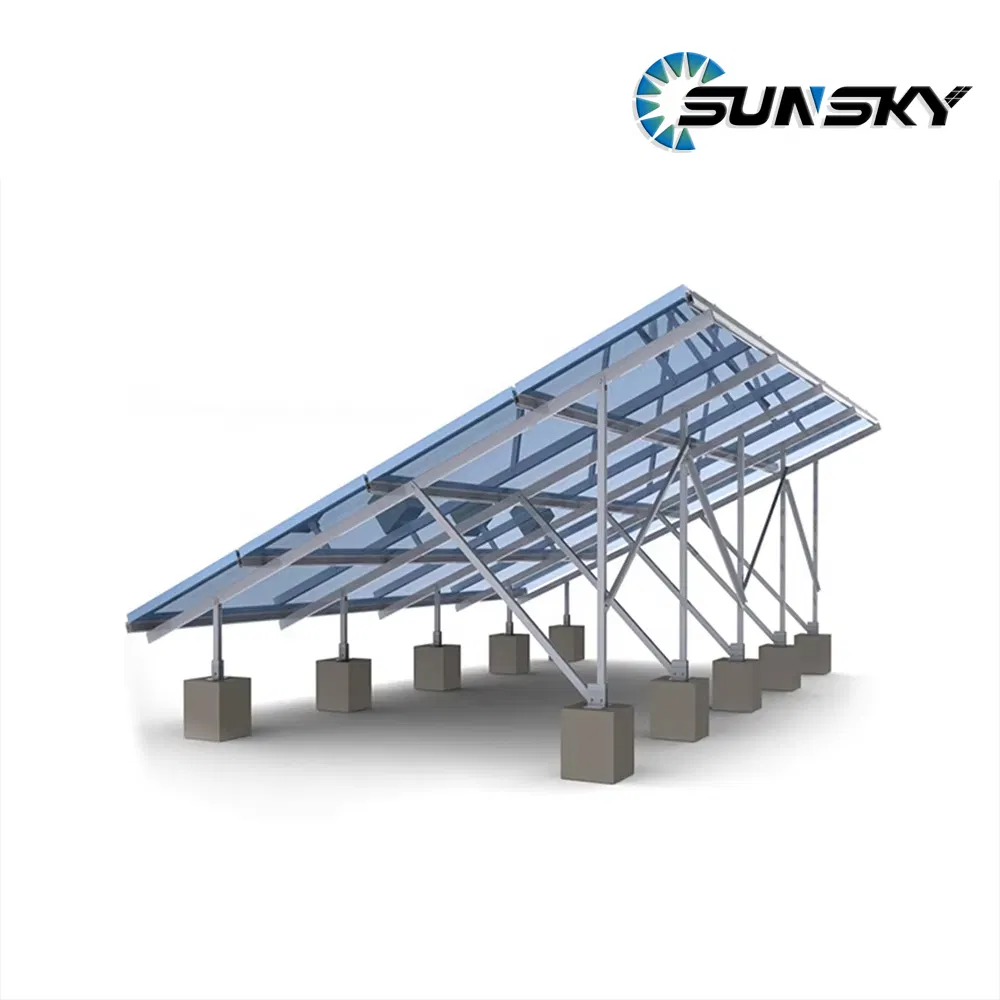

PV Mounting System

Mounting Rail & Rail Splice Kit: Al6005 & SUS304 Bolt
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

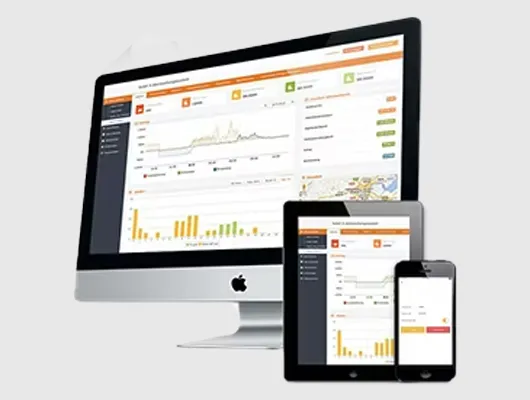

Online Monitoring System

Open Station Supports one-click setup
Fast installation and simple registration process
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure data security and reliability

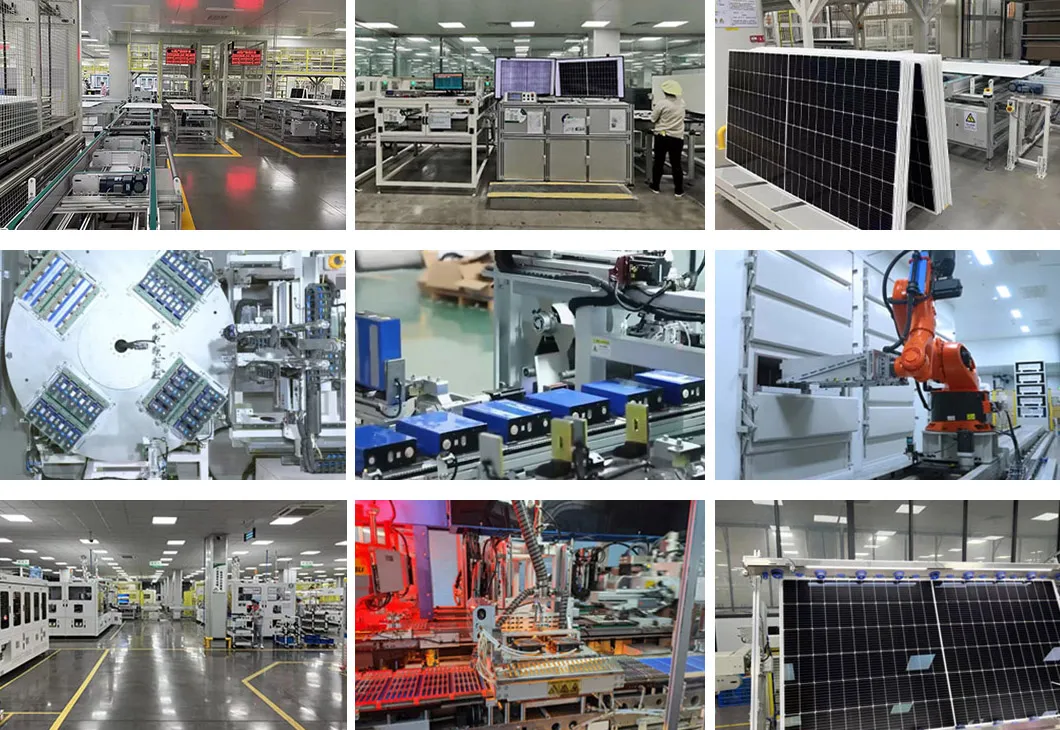

Our Factory

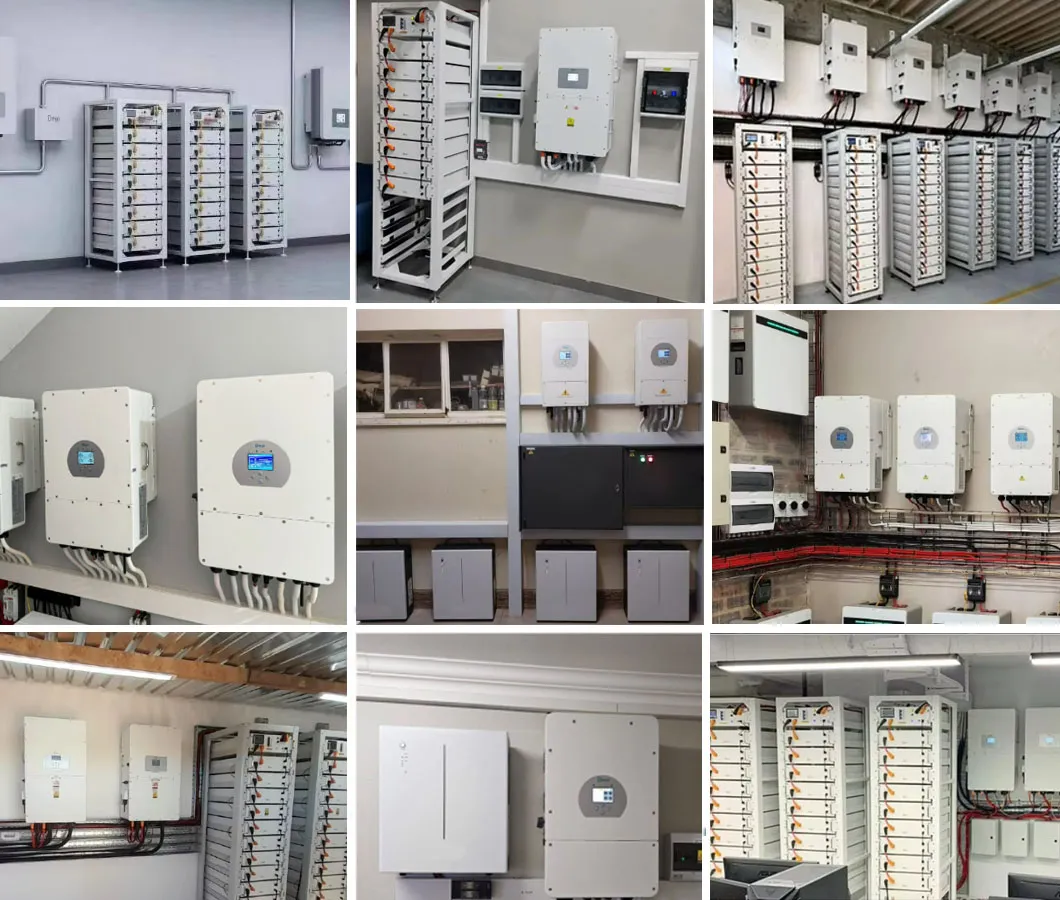

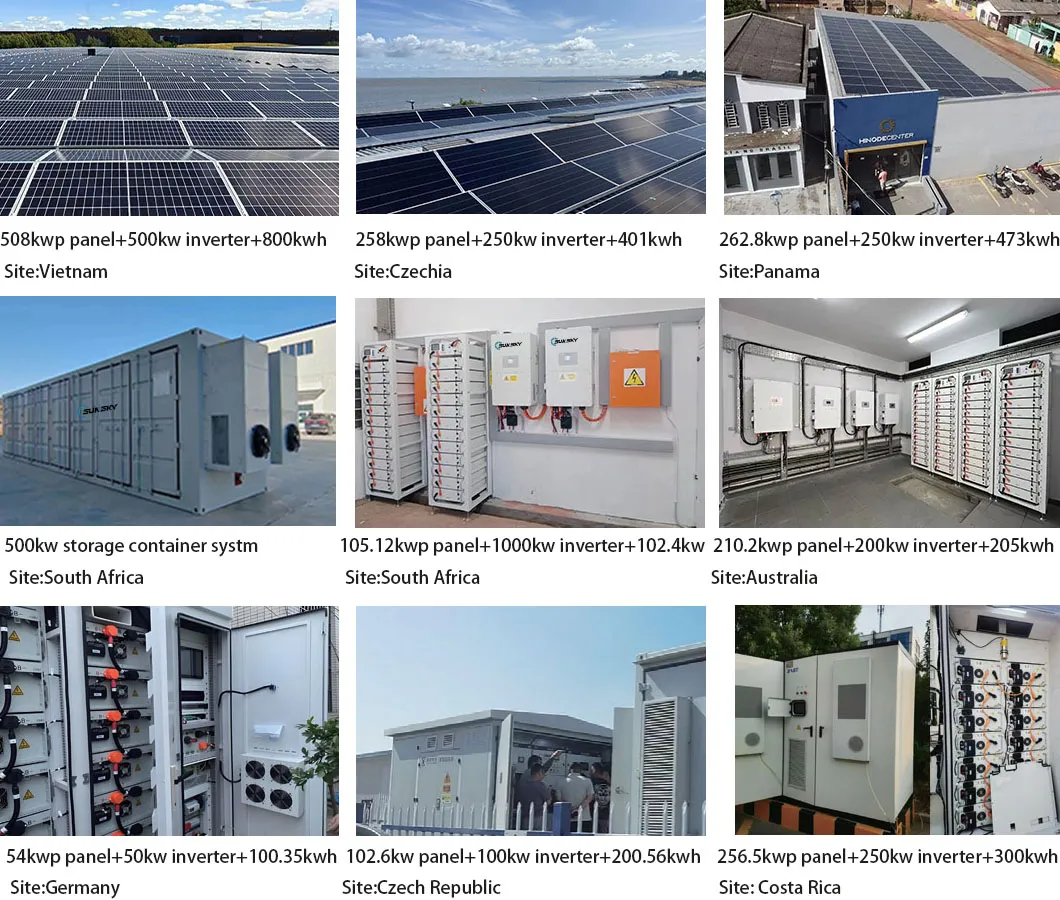

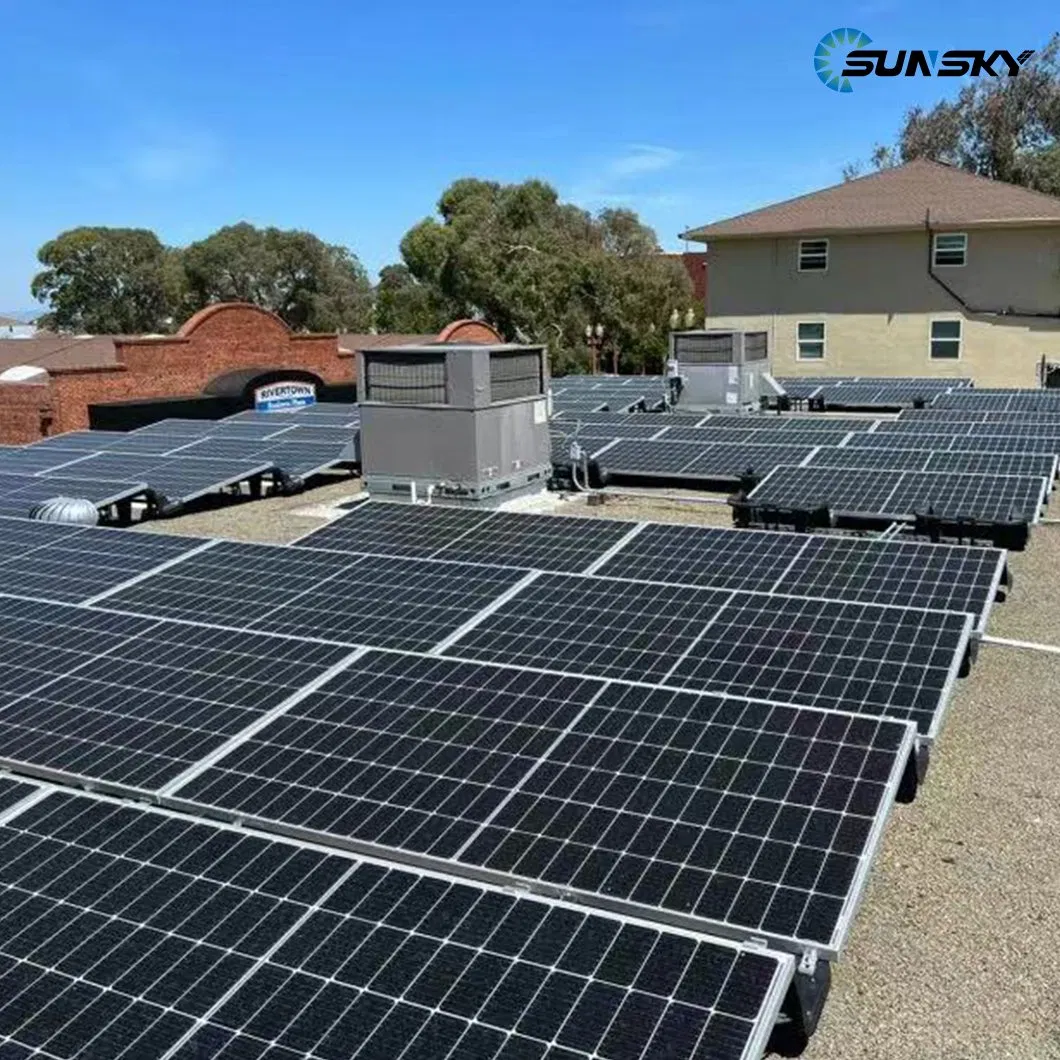

Solar Projects

Certifications

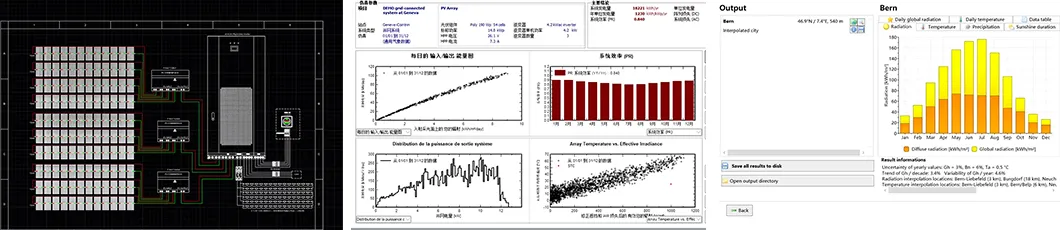

Professional Software Design With 24h Service

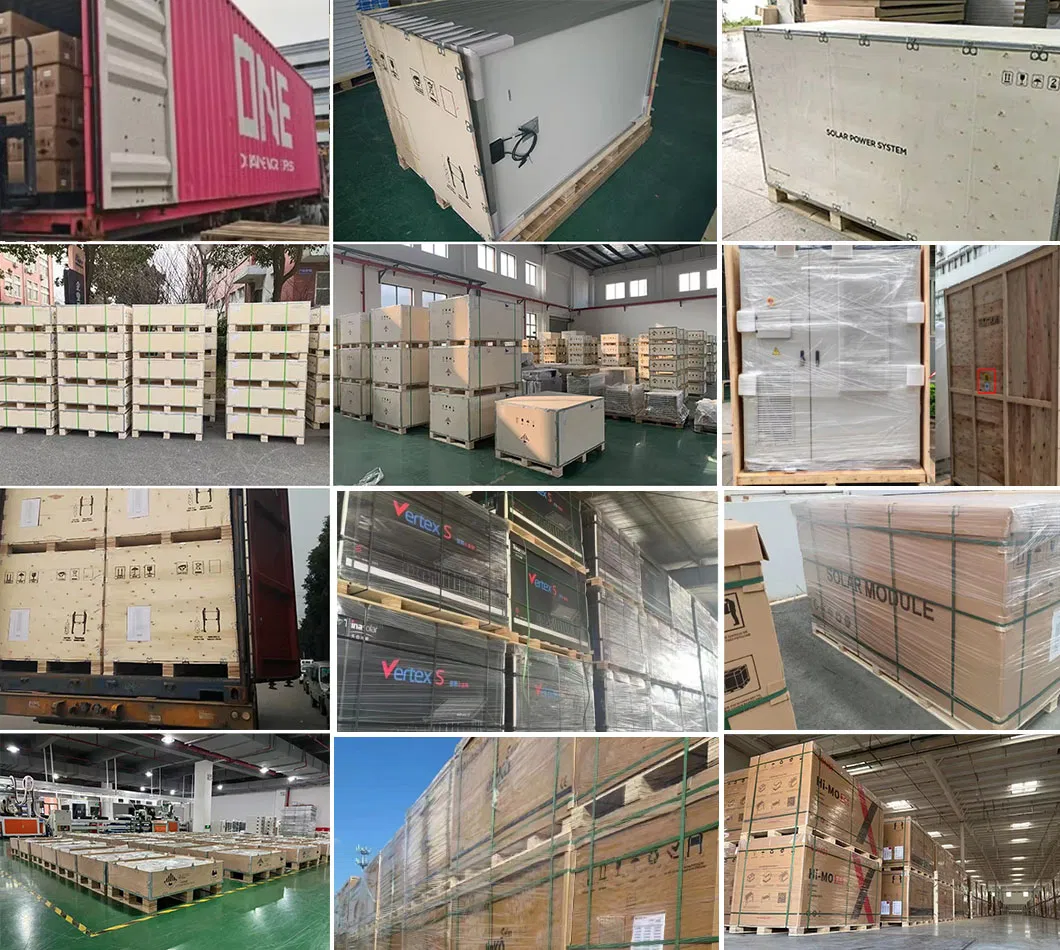

Packaging & Shipping

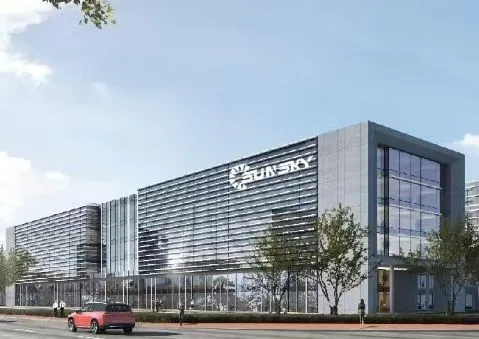

Our Advantages

Founded in 2017, focusing on the production, R&D and design of solar panels, inverters, batteries, complete energy storage systems.

Key Advantages:

Own factory, more competitive price
Professional technical team, the best design
24-hour professional online service
After-sales team, timely solve problems for customers
Customer first, quality first, reputation first
10-30 years quality assurance

FAQ

Q: What's your main products?

A: Solar Panels in different Tier 1 Brand; Solar Inverters ( On Grid / Off Grid / Hybrid ); Rack / Stack / Wall Mounted Lithium Batteries; Solar energy storage battery; ESS Stockage; Solar Energy System For Residential and Commercial Use.

Q: What's the delivery time?

A: Generally within 5-7 days, it will vary based on different products. Please check with our customer service for details; we will arrange it for you as soon as possible.

Q: What kind of payment terms are acceptable?

A: We are flexible with payment conditions, it depends on you.

Q: If I have other questions, who should I ask?

A: You can contact us online and our sales will reply within 10 minutes.

Q: What are the advantages of your company?

A: We have our own factory and also have deep cooperation with other brands, such as Longi, JA solar, Jinko, Trina, Yingli, Deye, Growatt etc., to provide customers with better prices and more choices.

Q: Do you offer OEM service?

A: Yes, OEM and custom configurations are fully acceptable to meet specific project needs.
