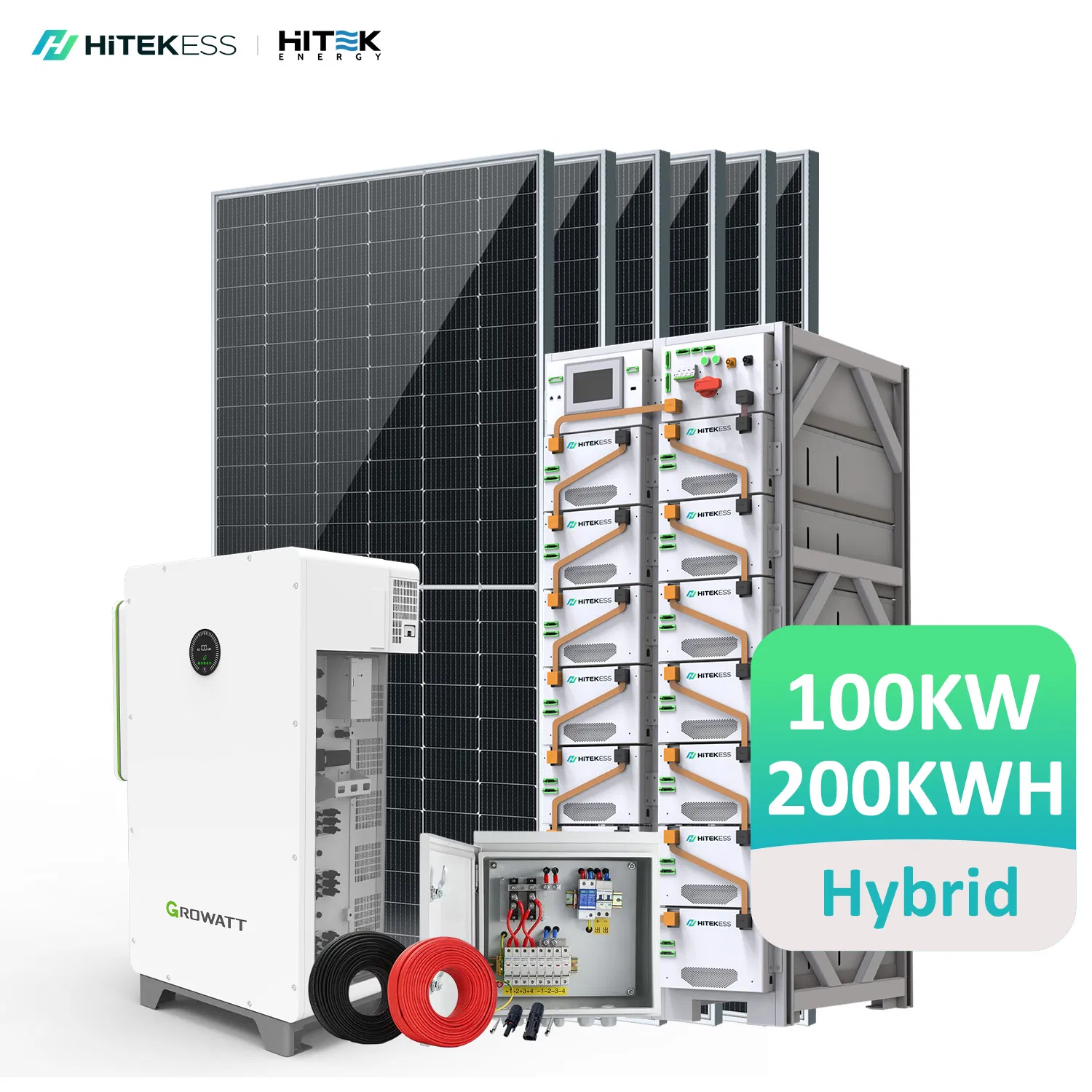

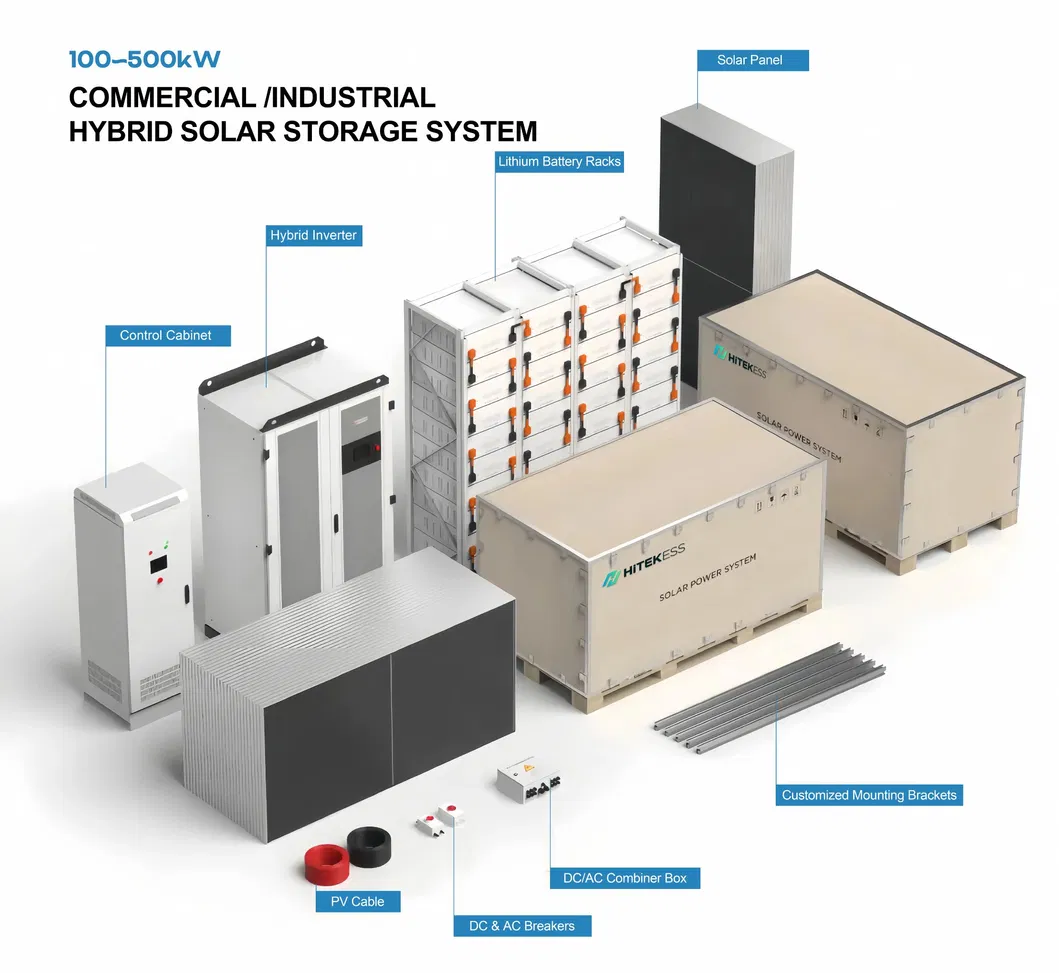

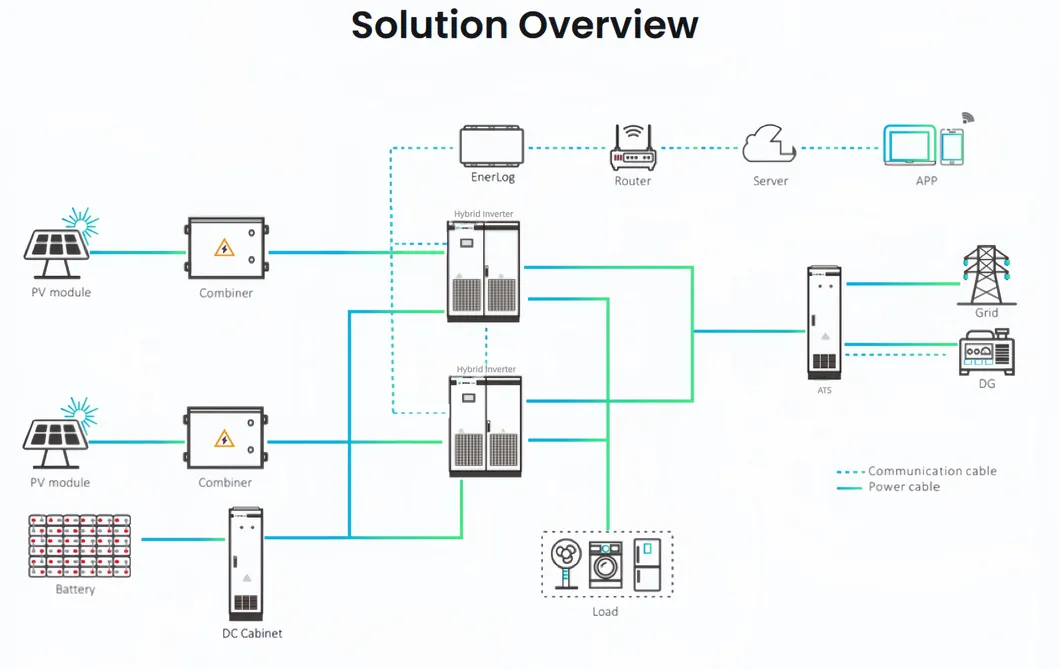

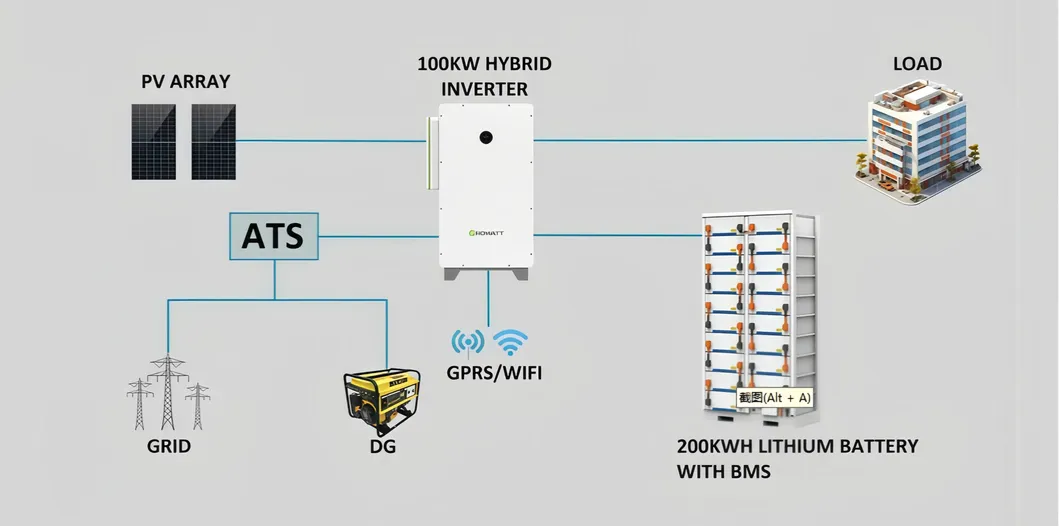

The hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight.
Hybrid solar systems have both on-grid and off-grid capabilities, allowing you to continue running on solar power even if the grid goes dark.

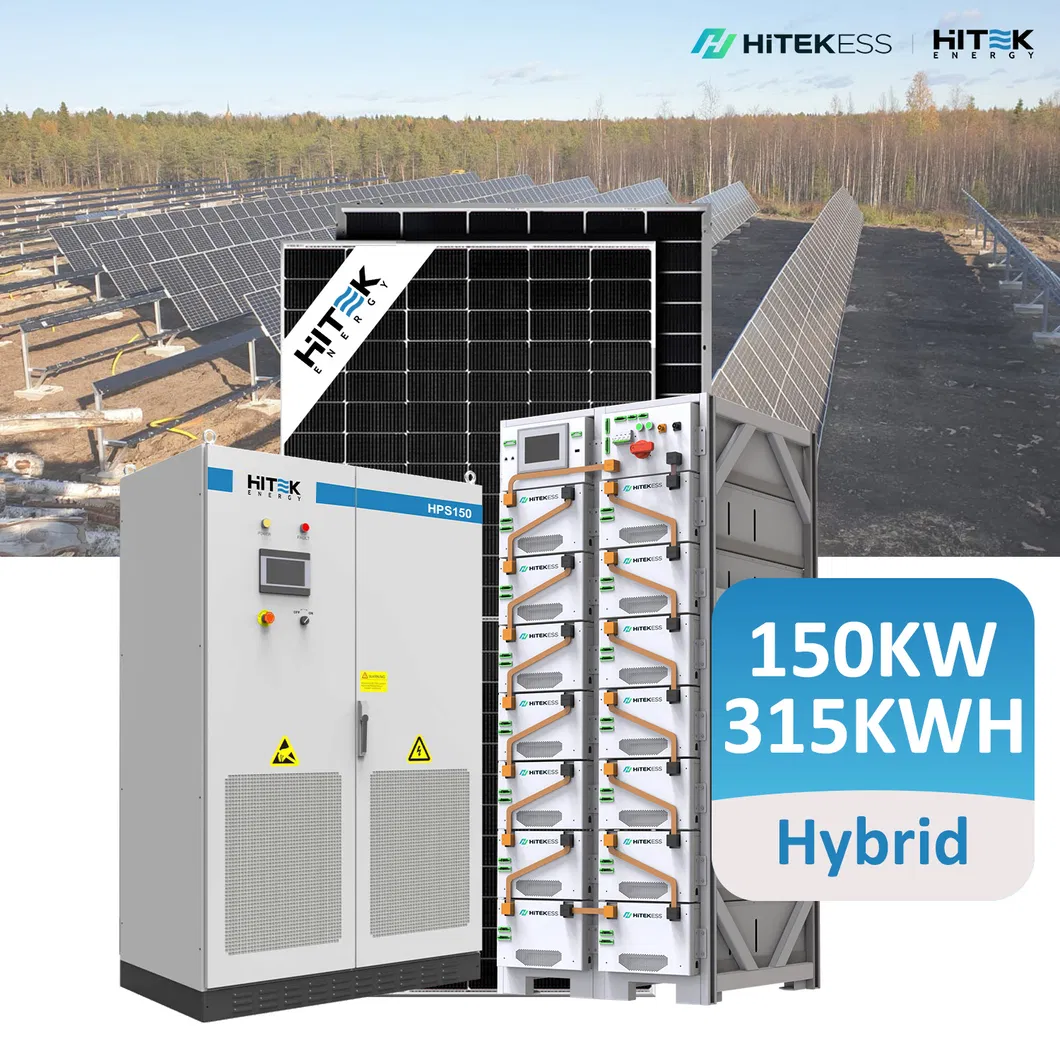

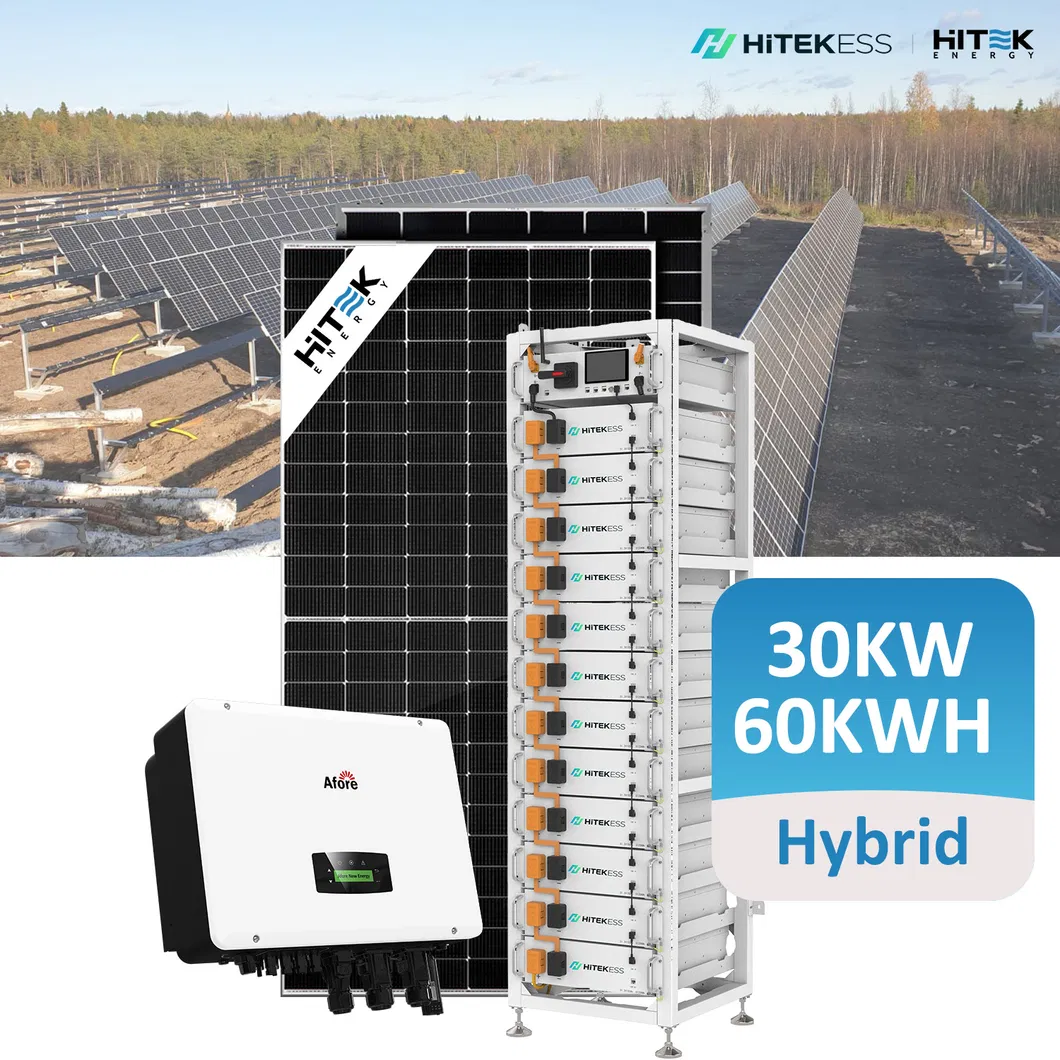

| Model. No. | HT30KW-HY | HT50KW-HY | HT100KW-HY | HT150KW-HY | HT250KW-HY | HT500KW-HY |
|---|---|---|---|---|---|---|
| AC Rated Power | 30KW | 50KW | 100KW | 150KW | 250KW | 500KW |
| Grid Voltage | 208/220/380/400/480VAC | |||||
| Rated grid frequency | 50/60HZ | |||||
| Max. Output (KVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Solar Panel Qty | 54PCS | 85PCS | 170PCS | 255PCS | 425PCS | 850PCS |
| Solar Panel Model | HT600M-72HNB | |||||
| Power in total | 32.4kW | 51kW | 102W | 153KW | 255KW | 510KW |
| Hybrid Inverter Model | HTMPS30 | HTMPS50 | HTMPS100 | HTMPS150 | HTMPS250 | HTMPS500 |
| Rated current (A) | 43A | 72A | 144A | 216A | 361A | 722A |
| MPPT Voltage | 250-850VDC | |||||
| Battery Qty | 8PCS | 7PCS | 14PCS | 22PCS | 28PCS | 70PCS |
| Battery Model | HT48100 | HT48100 | HT48280 | HT48280 | HT48280 | HT48280 |
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V | 51.2V |
| Nominal Capacity | 100AH | 280AH | 280AH | 280AH | 280AH | 280AH |
| Battery Bank Capacity | 40.96KWH | 100.352KWH | 200.704KWH | 315.392KWH | 401.408KWH | 1003.52KWH |
| Battery Combiner Box | 0 set | 0 set | 0 set | 1 set | 1 set | 1 set |
| PV Combiner Box | 1 set | 1 set | 1 set | 1 set | 1 set | 1 set |
| PV Cable 4MM2 | 400m | 600m | 1200m | 1700m | 3000m | 6000m |
| MC4 Connectors | 20 pairs | 20 pairs | 50 pairs | 70 pairs | 120 pairs | 240 pairs |
| EMS | BR3000 (Optional) | |||||
| ATS | ATS-30 (Opt) | ATS-50 (Opt) | ATS-100 (Opt) | ATS-150 (Opt) | ATS-250 (Opt) | ATS-500 (Opt) |
| Container | / | / | 10ft (Opt) | 10ft (Opt) | 20ft (Opt) | 20ft (Opt) |
| Operation Temp | -35 ~ 50ºC (>40ºC derating) | |||||
| Operation Humidity | 0 ~ 95% (no condensation) | |||||
| Max Operation Altitude | 2000m | |||||
The Hybrid solar system is an excellent option for users looking to reduce electricity bills and ensure continuous power supply during outages.

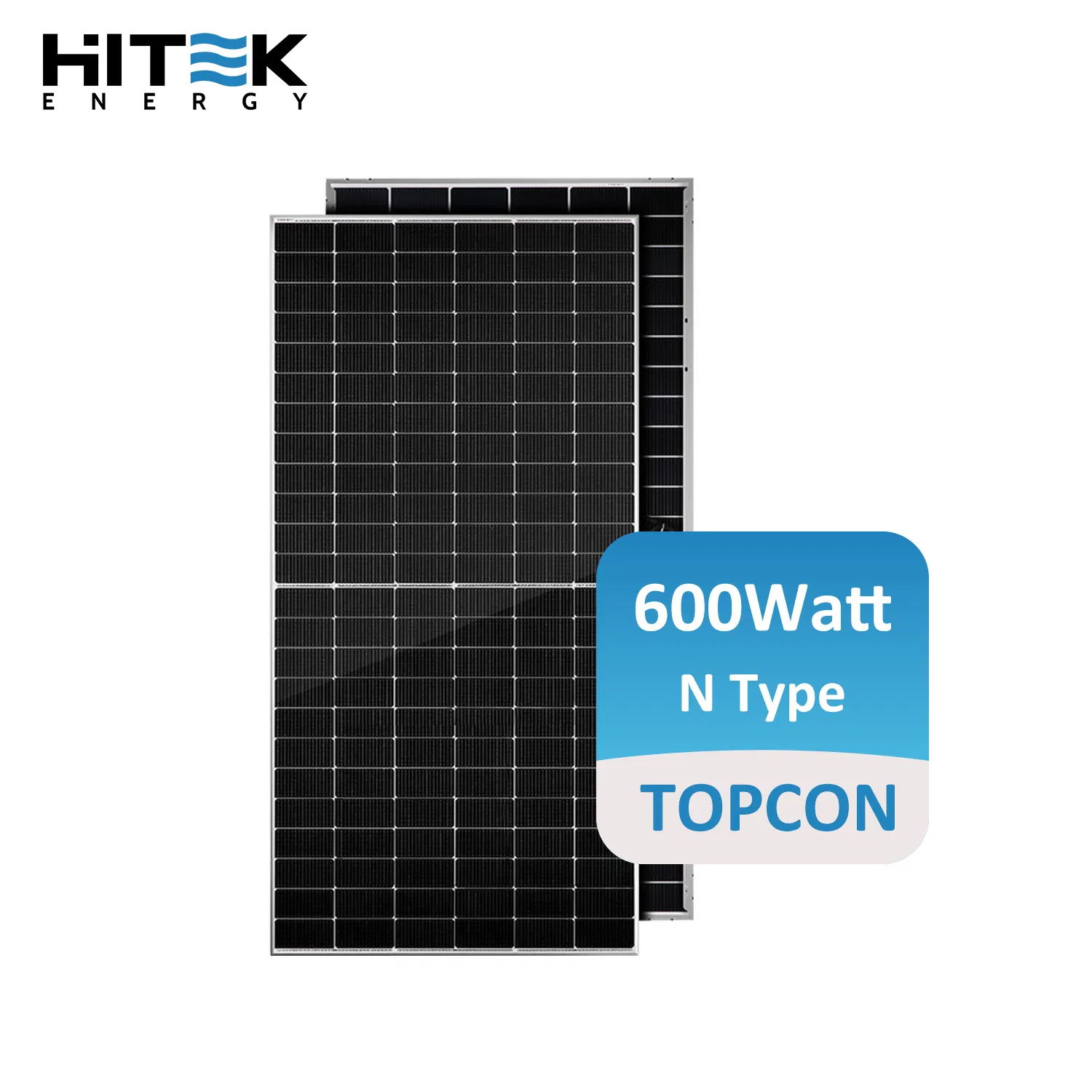

Model: HT600M-72HNB
Peak Power Watt: 600Wp
Open Circuit Voltage (Voc/V): 49.94V
Short Circuit Current (Isc/A): 15.35A
Voltage at Maximum Power (Vmp/V): 41.26V
Current at Maximum Power (Imp/A): 14.54A
Dimensions: 2279*1134*30mm
Weight: 32.5±3% kg
Scalable system configuration, extendable to 300KW. Supports UPS functions and black start. Features 100% unbalanced load capacity during backup alongside a 110% continuous AC overloading capacity. Supports remote control of DG and features multiple MPPT inputs for grid-support functions.
Open Station supports one-click installation and registration. Supports one-click dispatch and navigation with traceable logs for safe operation. Provides full lifecycle data storage to ensure data security and reliability.

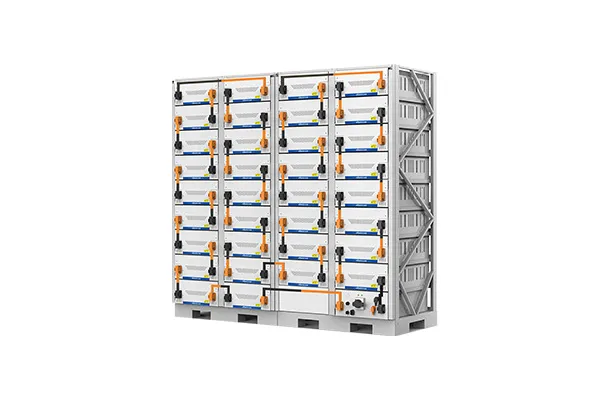

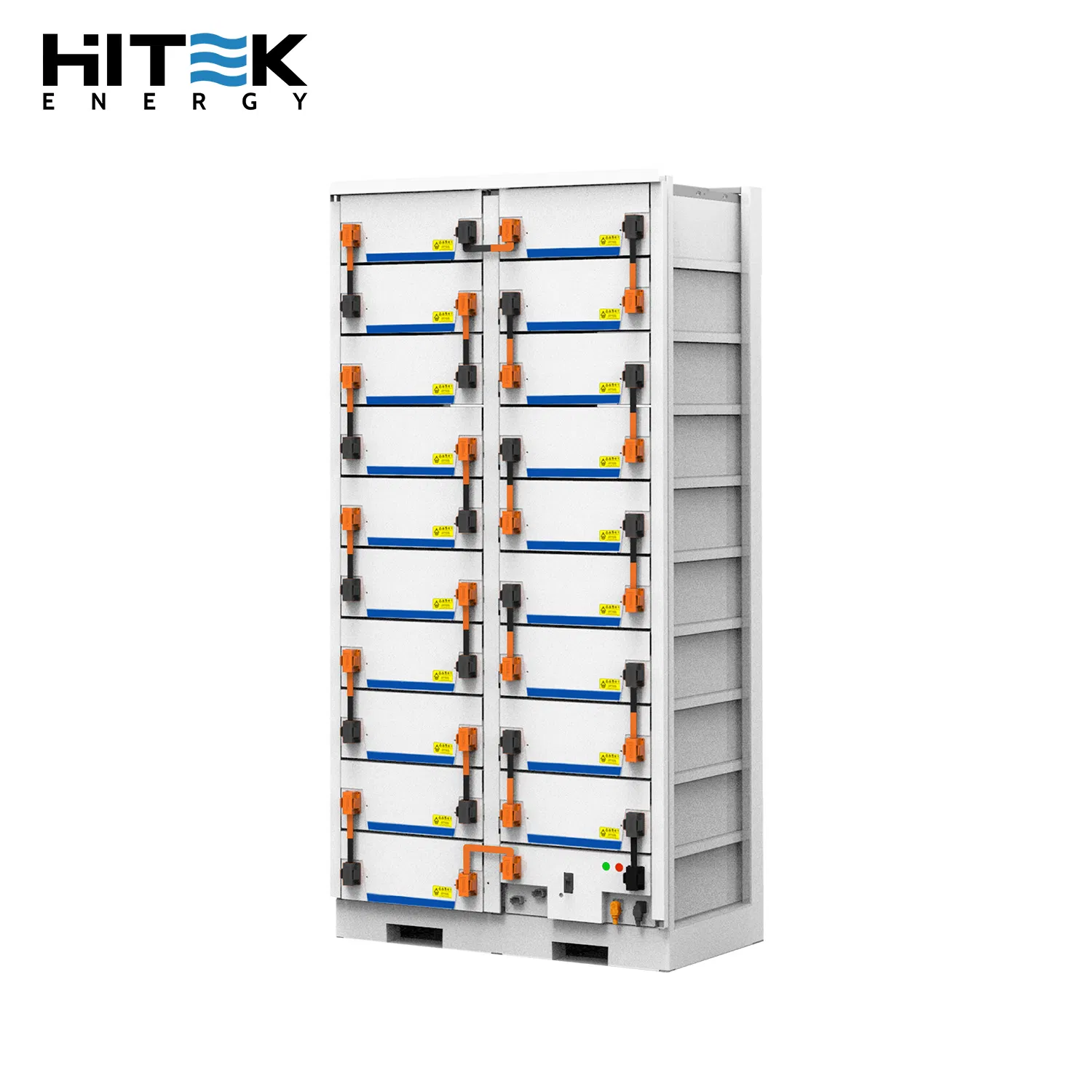

Rack-mounted design featuring deep cycle, long lifespan technology with high discharge performance. Easy to install and maintenance-free. Available in AGM, GEL, and LiFePO4 Lithium Ion types. Suitable for 2V, 12V, 48V, and High Voltage configurations with over 6000 cycles at up to 90% DOD.

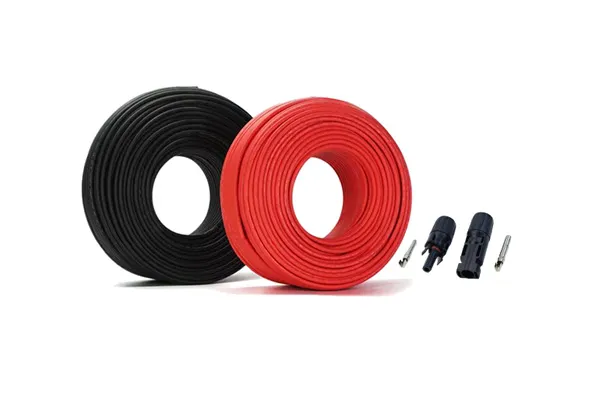

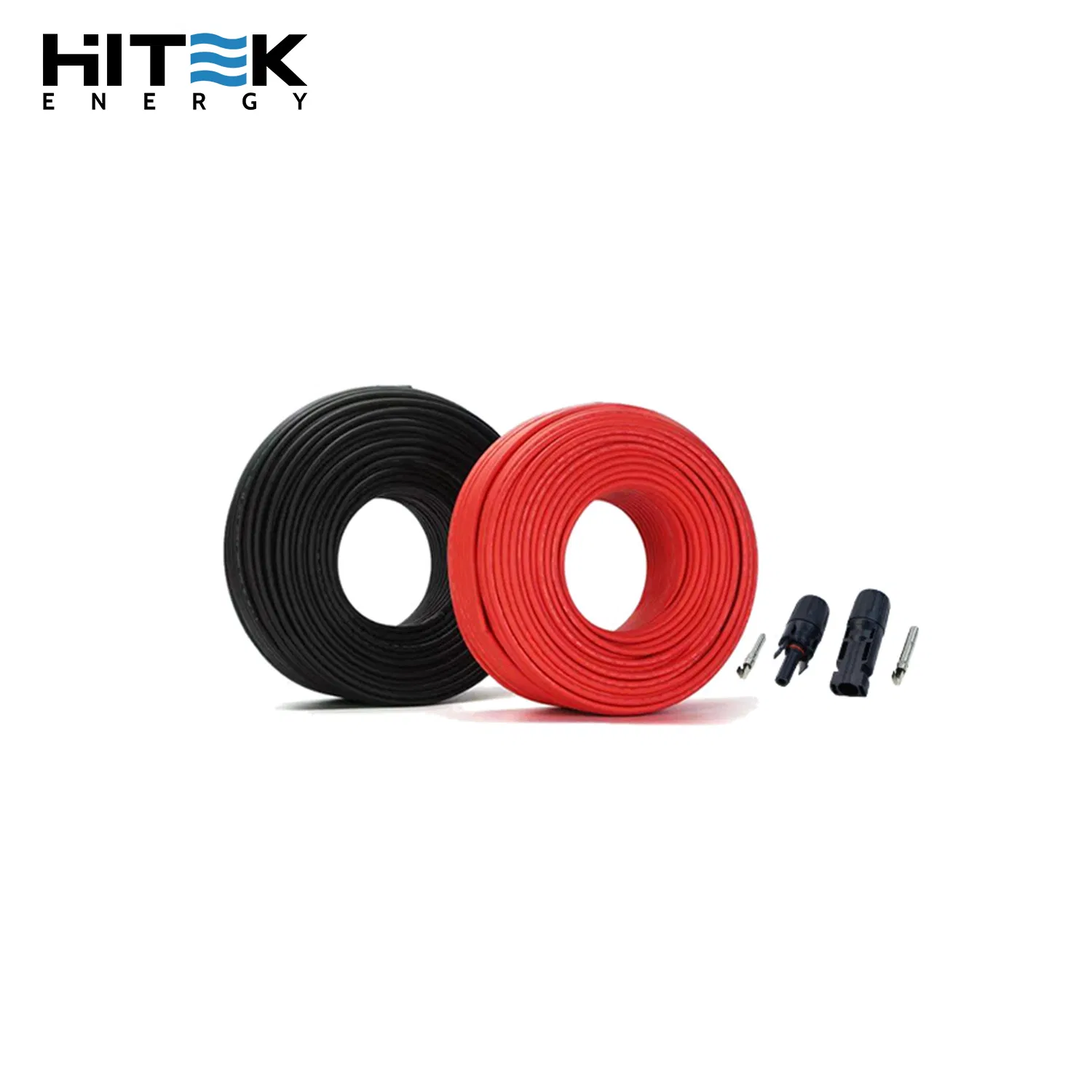

Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC / 1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black (Standard), Red (Optional)
Lifetime: Up to 25 Years

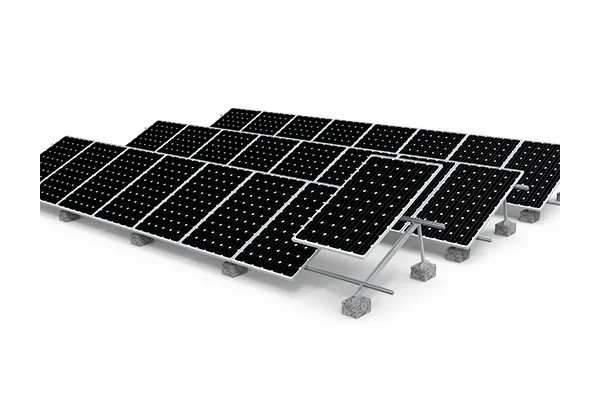

Mounting rail and rail splice kit made of AI6005 & SUS304 bolts. Mid and end clamps available in 30, 35, and 40mm sizes. Optional asphalt shingle mount, hanger bolts, cable clips, ground clips, and lugs.

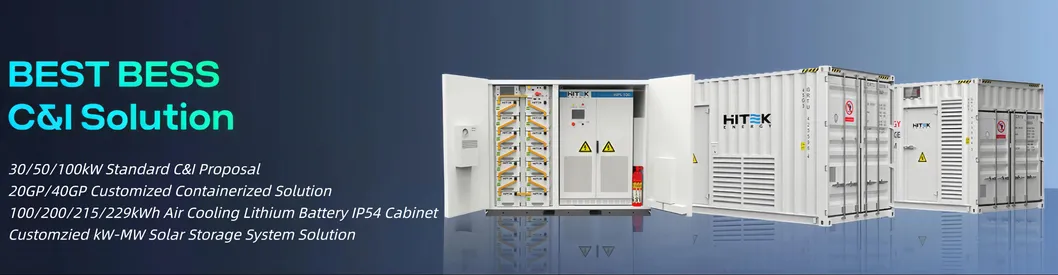

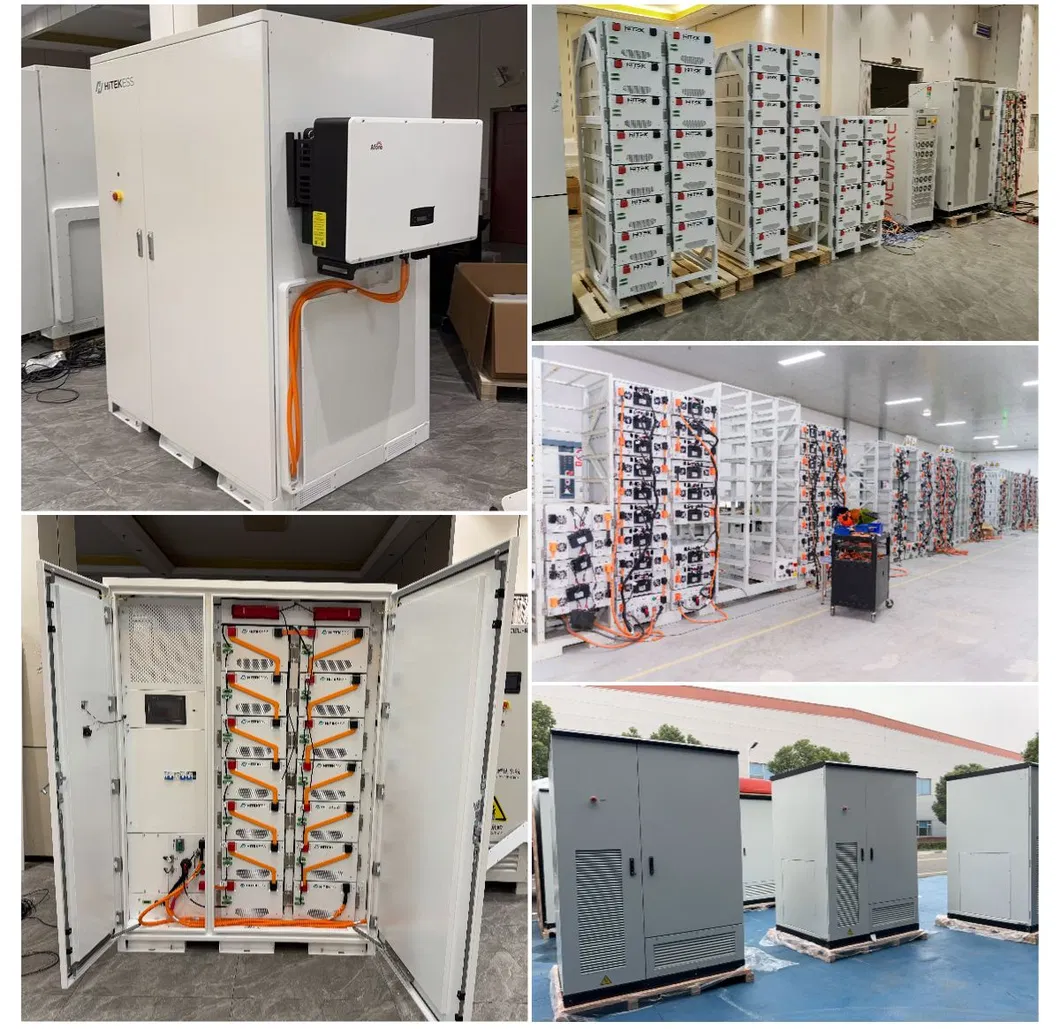

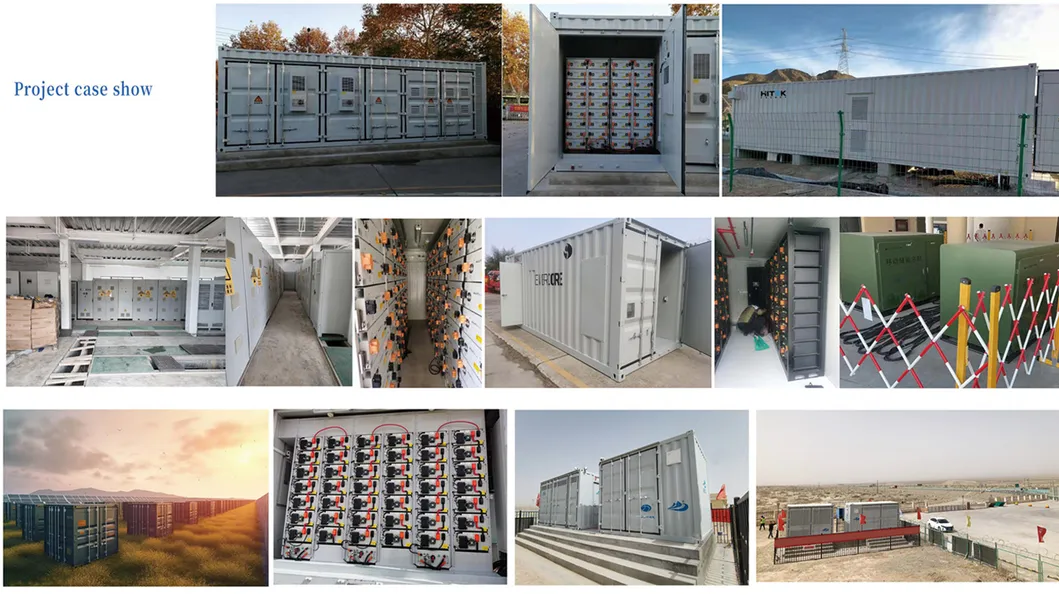

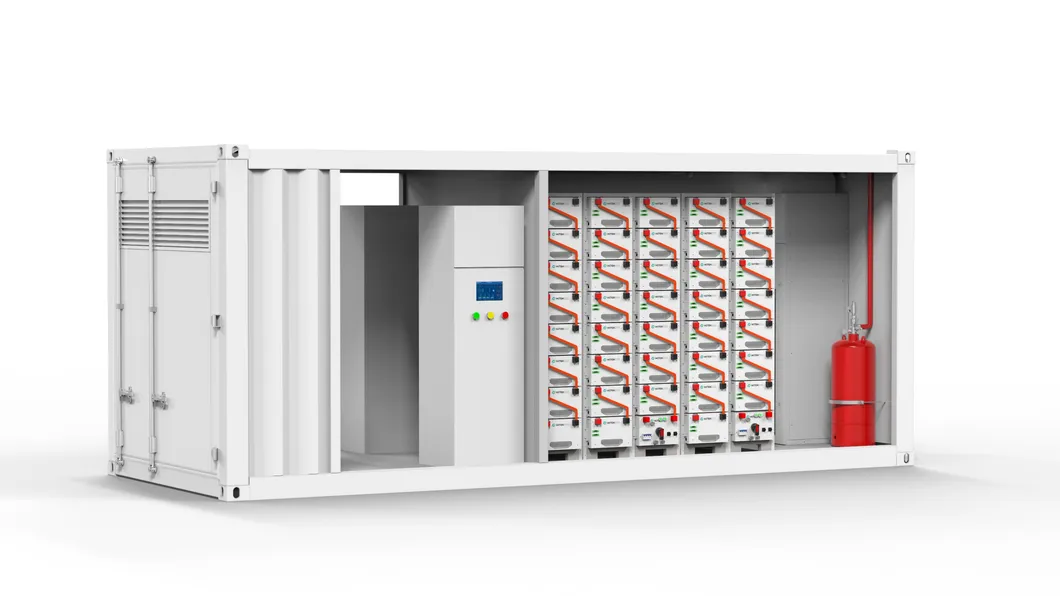

Containerized energy storage system (BESS) is the perfect solution for large-scale energy storage projects. These containers integrate various storage technologies for lighting, consumption control, and air conditioning systems.
Dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses, and factories. Tailored solar energy solutions are available for backup, residential, and commercial needs, catering to unique power requirements.
Using only reliable approved equipment, helping you save money on electric bills is the top priority. Establishing long-term partnership commitments for the entire lifespan of your system.
Let's work together for a better, brighter, and greener future.
