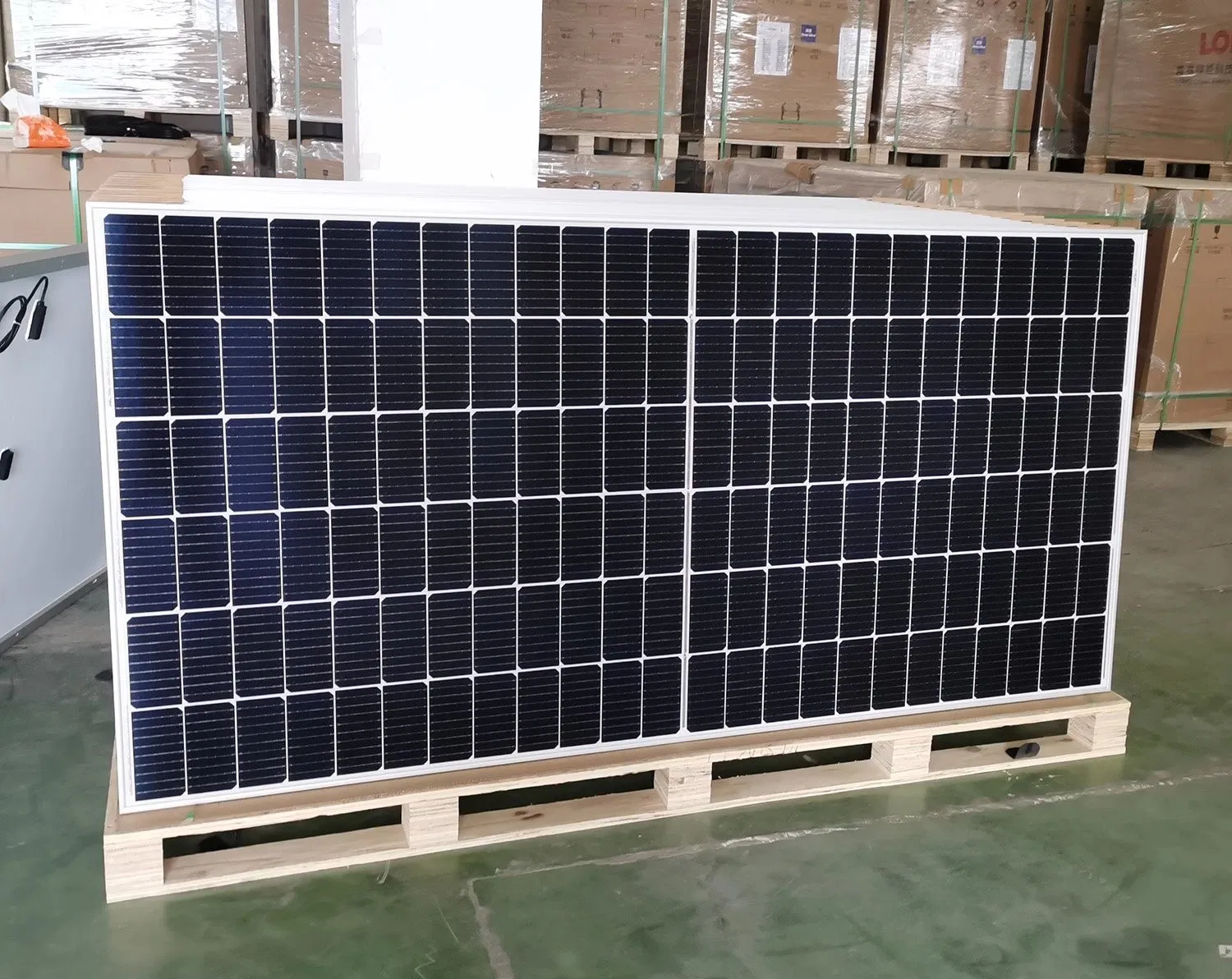

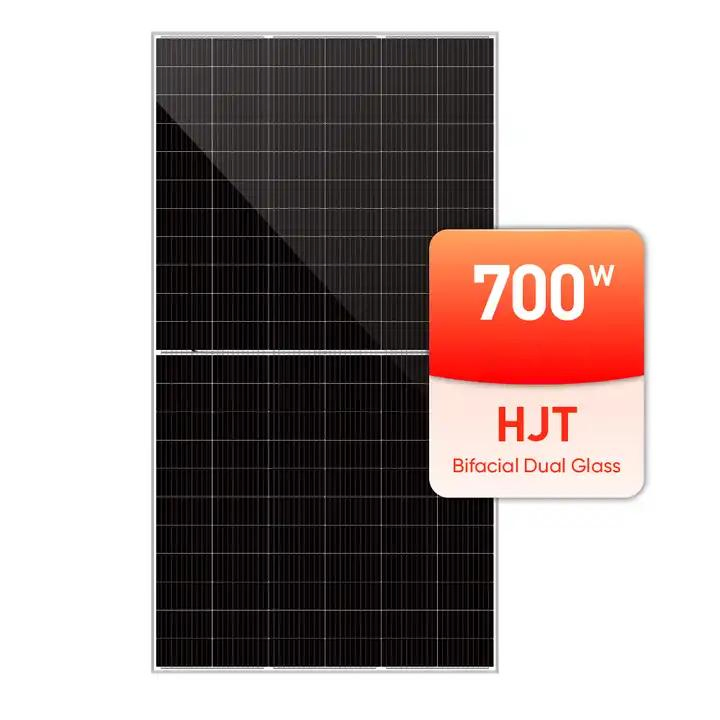

Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
1 / 5
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder
Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder

Alicosolar Longi Jinko Tier 1 Solar Panel 400-700W PV Modules on Grid off Grid Hybrid Solar Power Energy System Builder

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview Product Description Features at a Glance Product Specifications Projects Shown FAQ

Basic Info

Model NO.
SOLAR SYSTEM
Number of Cells
144PCS
Application
Multi-Field
Condition
New
Certification
EST, ISO, CE, TUV
Material
Monocrystalline Silicon
Panel Efficiency
20.0~22.7%
Weight
23.5kg
Frame
Anodized Aluminium Alloy
Connectors
Mc 4 Compatible IP68
Junction Box
IP68 Rated (3 by Pass Diodes)
Max. System Voltage
1500V
Front
3.2 mm Heat Strengthened Glass
Transport Package
Carton/Wooden Box
Specification
2094*1038*32mm
HS Code
8541402000
Production Capacity
10 Gw/Year

Packaging & Delivery

Package Size
2300.00cm * 1150.00cm * 1300.00cm
Package Gross Weight
850.000kg

Product Description

Solar Panel 400-700W PV Modules Power Energy System Banner

Features at a Glance

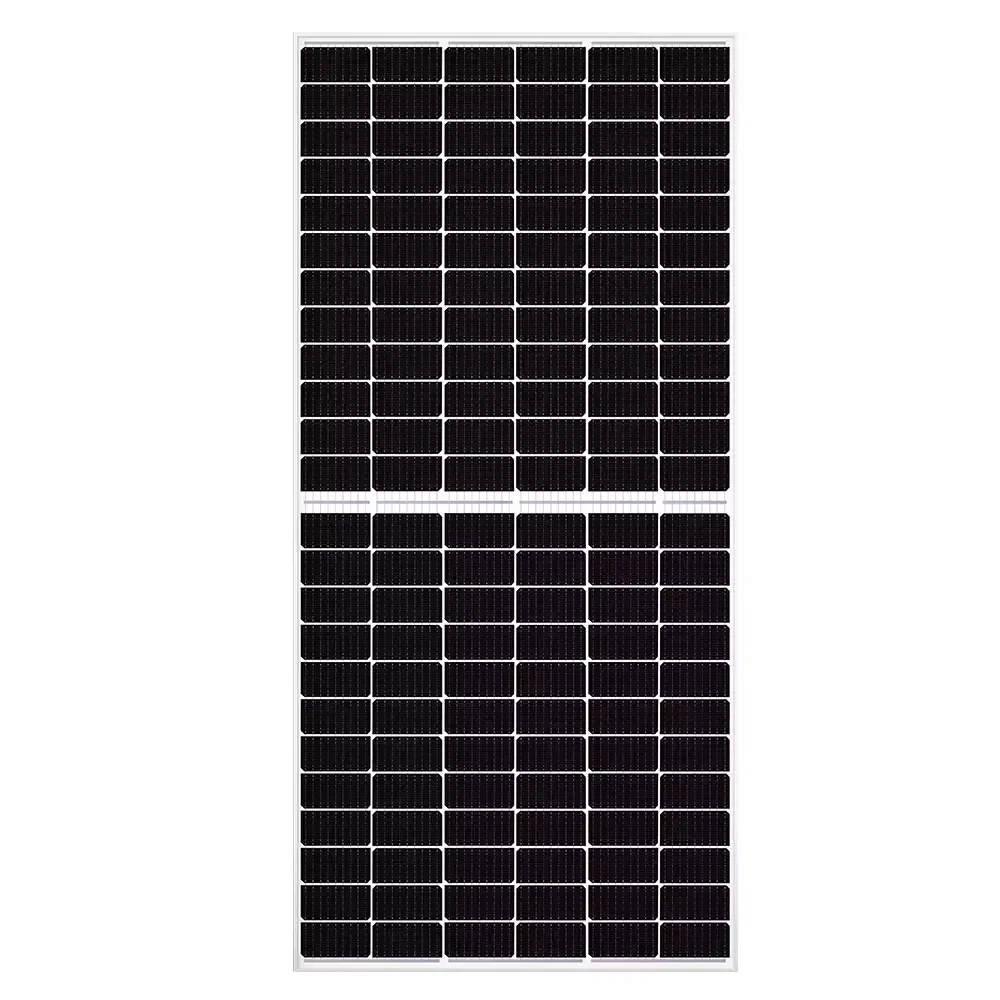

Solar Module Features
Module Technology
  • Monofacial module exceeding 480 W
  • 144 cell + mono Hi-MO technology
  • Power range 450 ~ 480 W
  • Low power loss in cell connection
  • More energy than single facial module
  • Enhanced reliability
  • Low NMOT: 41 ± 3 °C
  • LID + LeTID less than 2.0%
  • Lower hot spot temperature
  • Better shading tolerance
Cell & Structural Frame
  • CELL: Increased the area exposed to light, increased module power, and reduced BOS cost.
  • GLASS: 3.2 mm heat strengthened glass on front side with robust protection.
  • FRAME: 35 mm anodized aluminium alloy offering robust protection.
  • INSTALLATION: Reserved mounting holes for quick and easy setup.
  • BACK SIDE: Less shading on back side allows for greater energy yield.

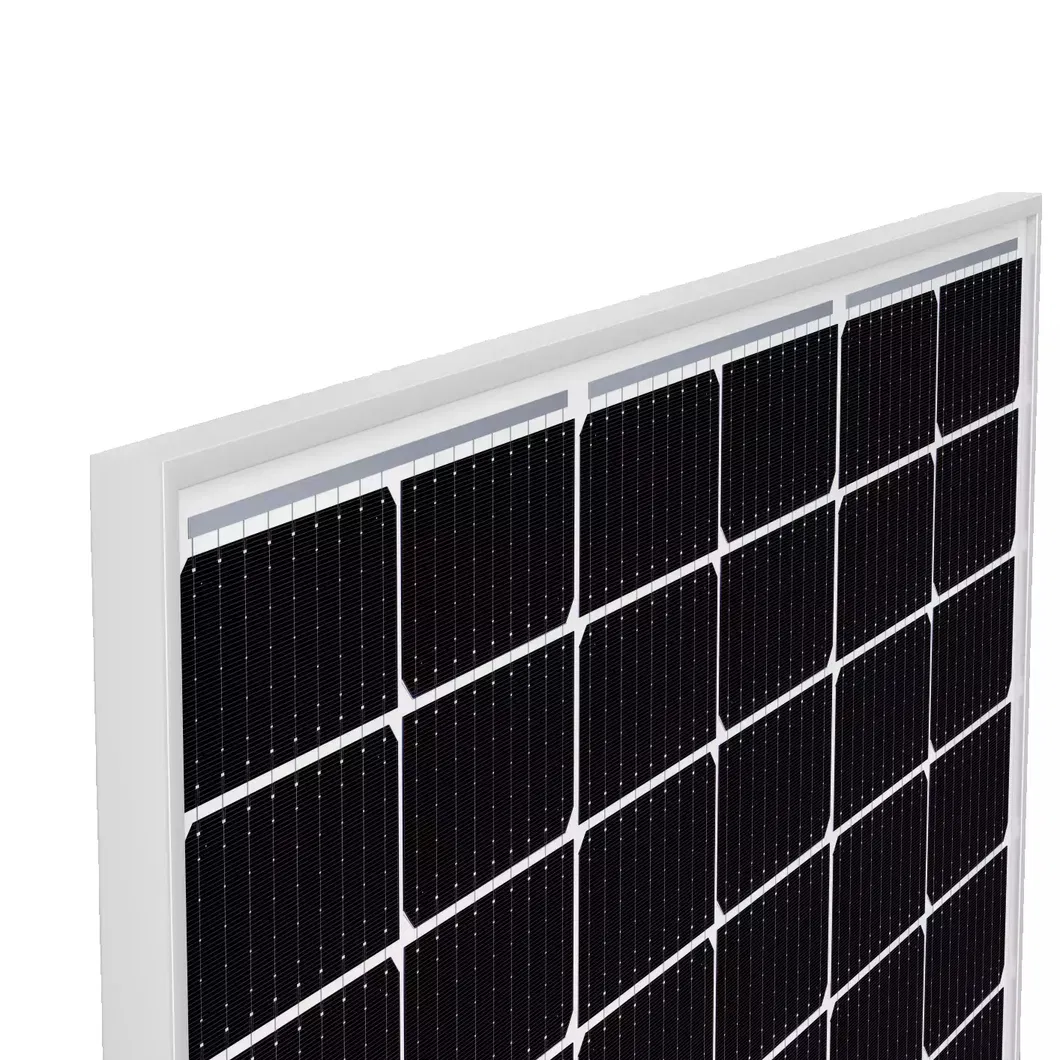

Solar Cell and Glass Details
IP68 Junction Box Features
IP68 Split Junction Box
  • Better heat dissipation & higher safety
  • Smaller size: No shading on cells & greater energy yield
  • Optimised cable length: Simplified wire fix, reduced energy loss in cable

Product Specifications

Mechanical Data Electrical Data
Cell Type Mono-crystalline Operating Temperature -40°C ~ +85°C
Cell Arrangement 144 [2 X (12 X 6)] Max. System Voltage 1500 V (IEC)
Dimensions 2094*1038*35 mm Module Fire Performance TYPE 3 (1703) or CLASS C (IEC61730)
Weight 23.5kg Max. Series Fuse Rating 20 A
Front Single 3.2 mm coated tempered glass Application Classification Class A
Frame Anodized aluminium alloy Power Tolerance 0 ~ + 5 W
J-Box IP68, 3 bypass diodes Power Bifaciality 70%
Cable 4.0 mm², 300mm in length Temperature Characteristics
Cable Length 300mm in length (customizable) Temperature Coefficient (Pmax) -0.35 % / °C
Connector MC4-EVO2 Temperature Coefficient (Voc) -0.27 % / °C
Per Pallet 33 pieces Temperature Coefficient (Isc) 0.048 % / °C
Per Container (40' HQ) 660 pieces or 561 pieces (US only) Nominal Operating Temperature 42 ± 3°C

Production Gallery

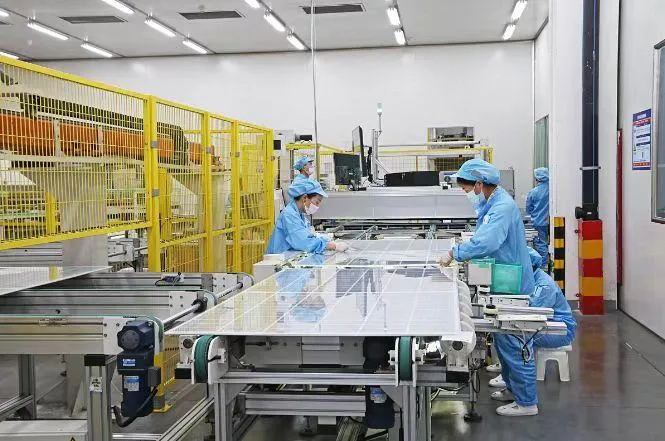

Production Process

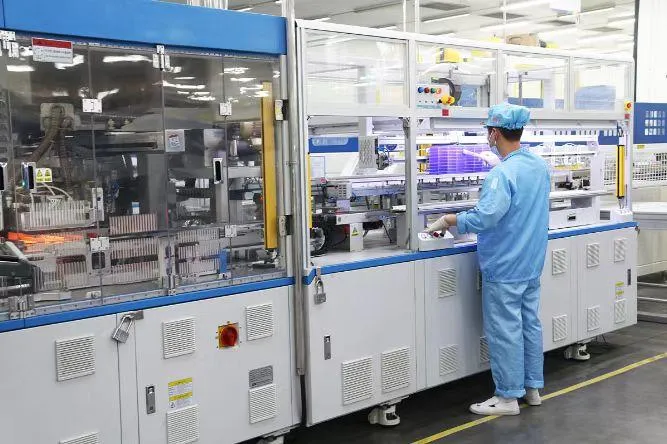

Quality Control Process

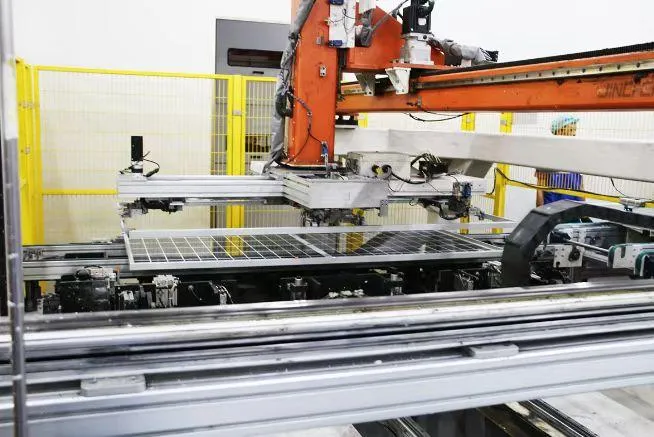

Manufacturing Facility

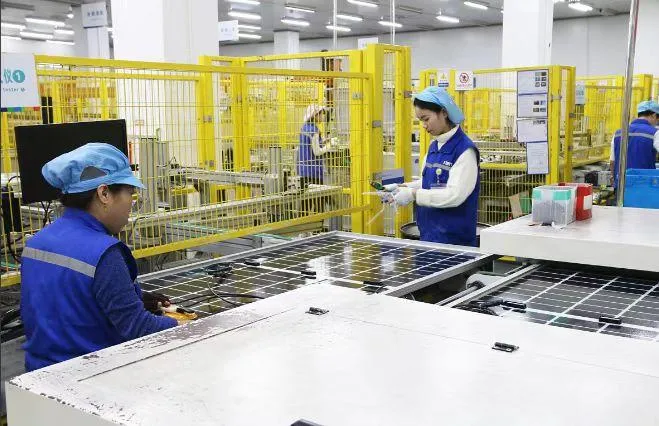

Advanced Equipment

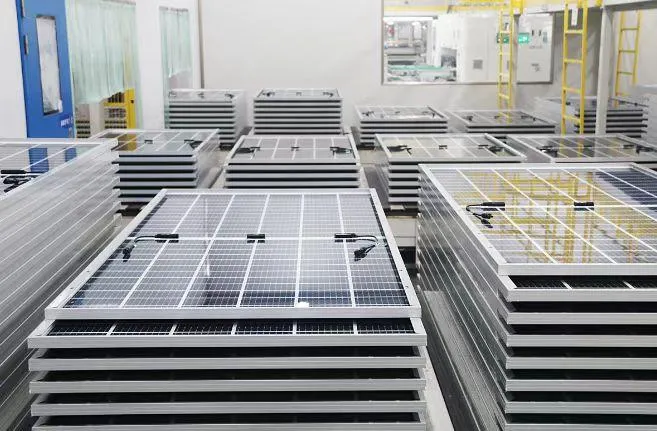

Automated Production

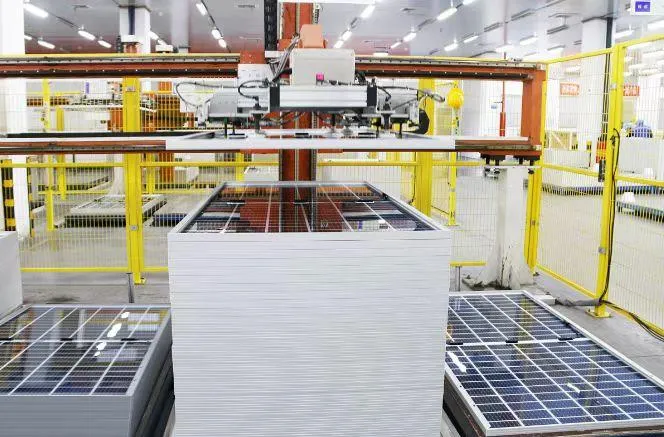

Testing Operations

Projects Shown

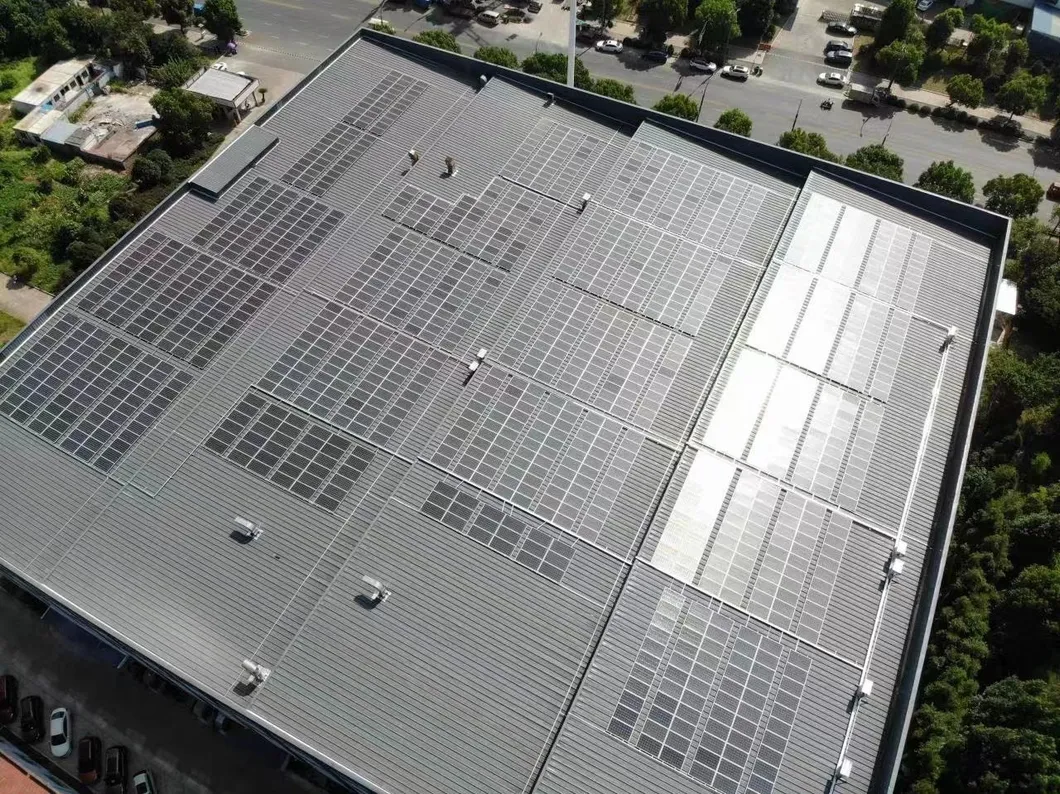

Solar Project Example 1

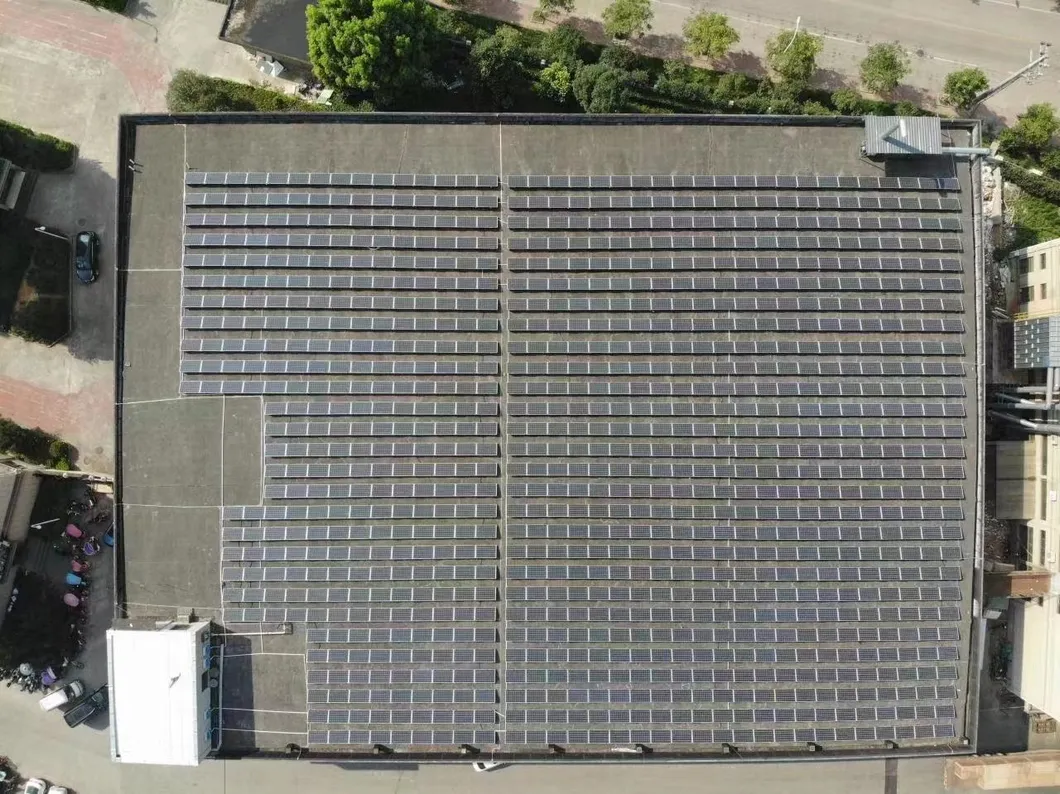

Solar Project Example 2

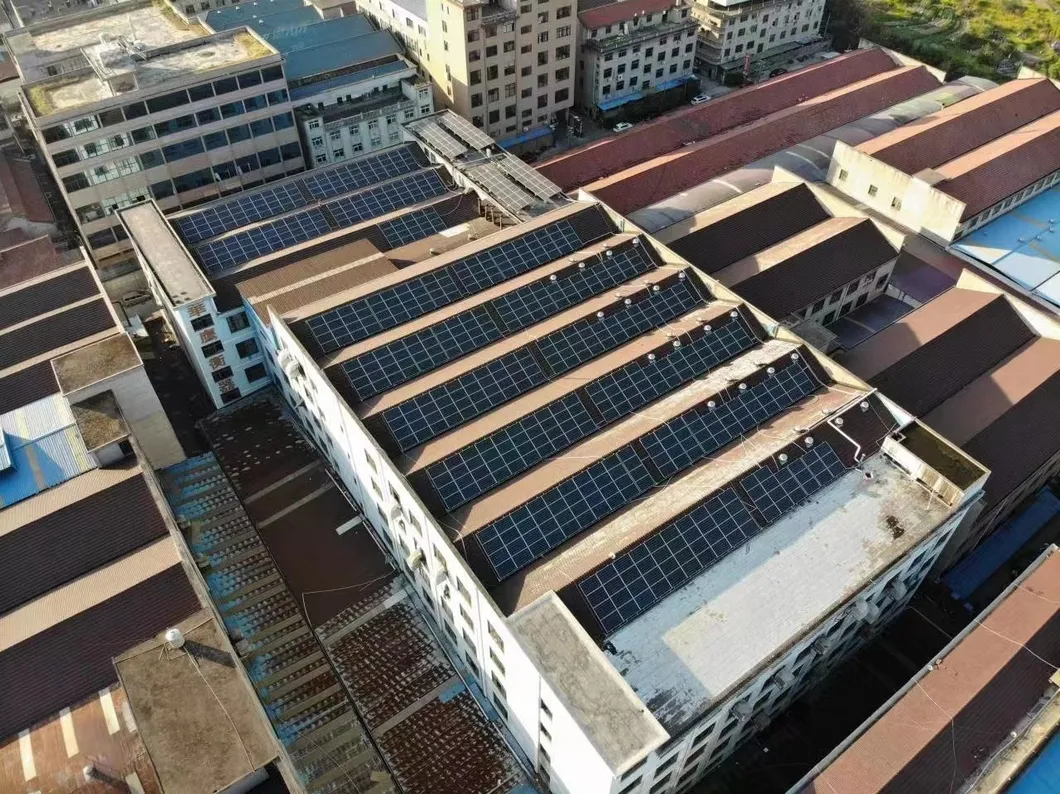

Solar Project Example 3

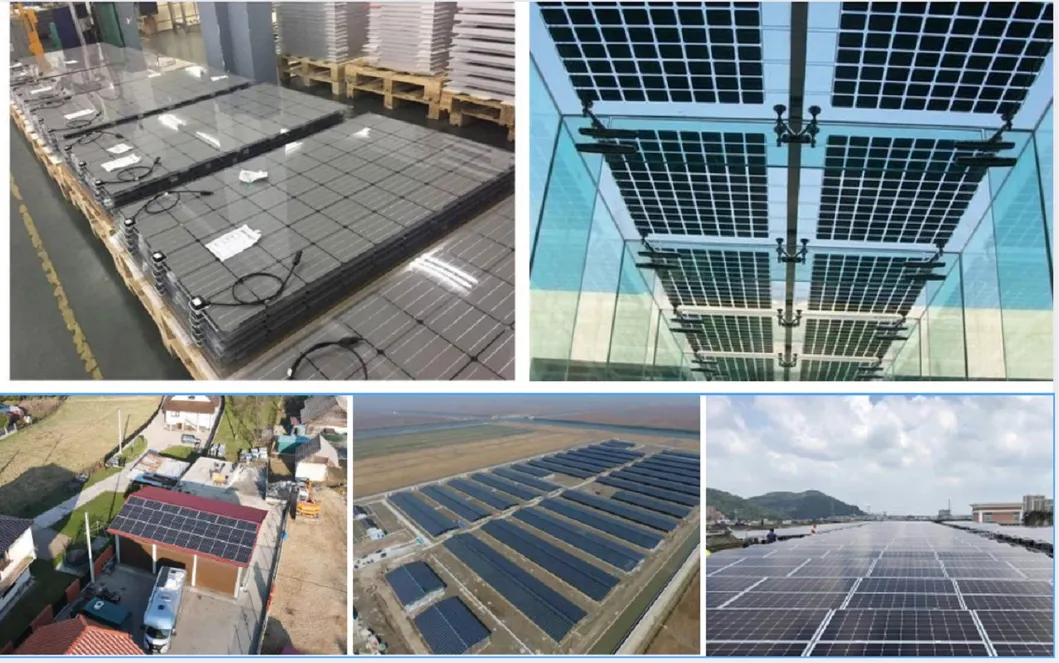

Solar Project Installation 4

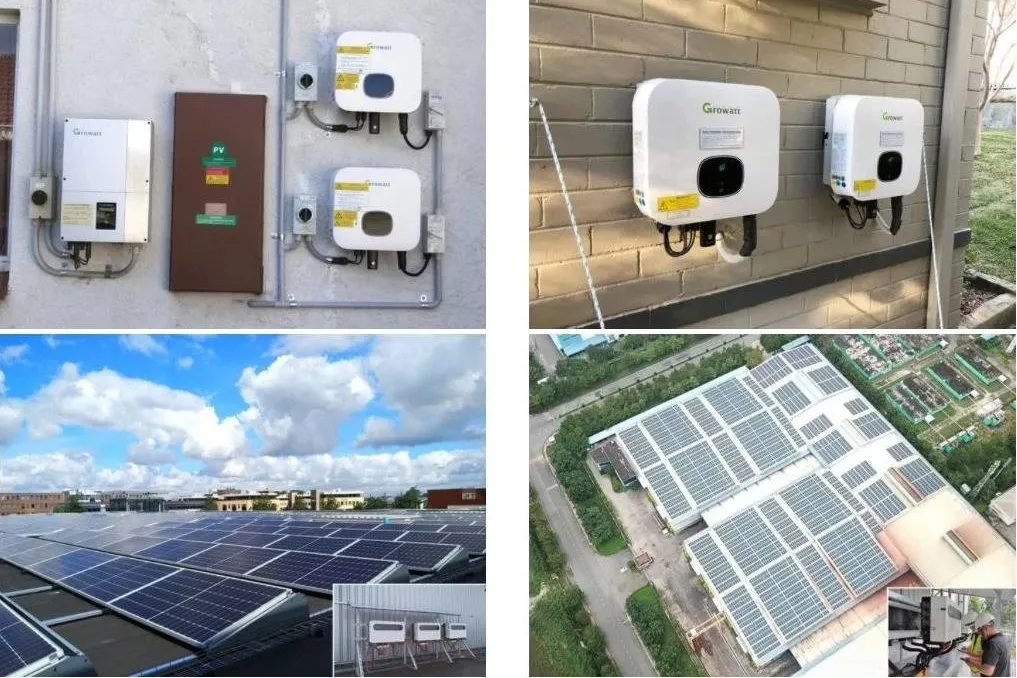

Solar Project Installation 5

Frequently Asked Questions

What is the efficiency of these solar modules?
The panels offer a high conversion efficiency ranging between 20.0% and 22.7%, leveraging advanced monocrystalline silicon technology.
How do these panels perform under shading conditions?
With 144 half-cut cells and IP68-rated split junction boxes featuring 3 bypass diodes, these modules minimize power loss and offer superior shading tolerance compared to conventional panels.
What are the mechanical benefits of the 35mm frame and heat-strengthened glass?
The 3.2 mm heat-strengthened front glass combined with a 35 mm anodized aluminium alloy frame provides high structural load tolerance, offering a stable and robust protection system that extends module lifespan up to 30 years.
Can these panels be used in large-scale system voltages?
Yes, they are compatible with system voltages up to 1500V (IEC standard), which reduces overall BOS (Balance of System) costs in large-scale on-grid, off-grid, and hybrid arrays.
Can the cable length be customized for different array setups?
Standard modules ship with 4.0 mm² cables at 300mm in length. However, custom cable lengths are available on demand to optimize layout and simplify array wiring.
