Overview

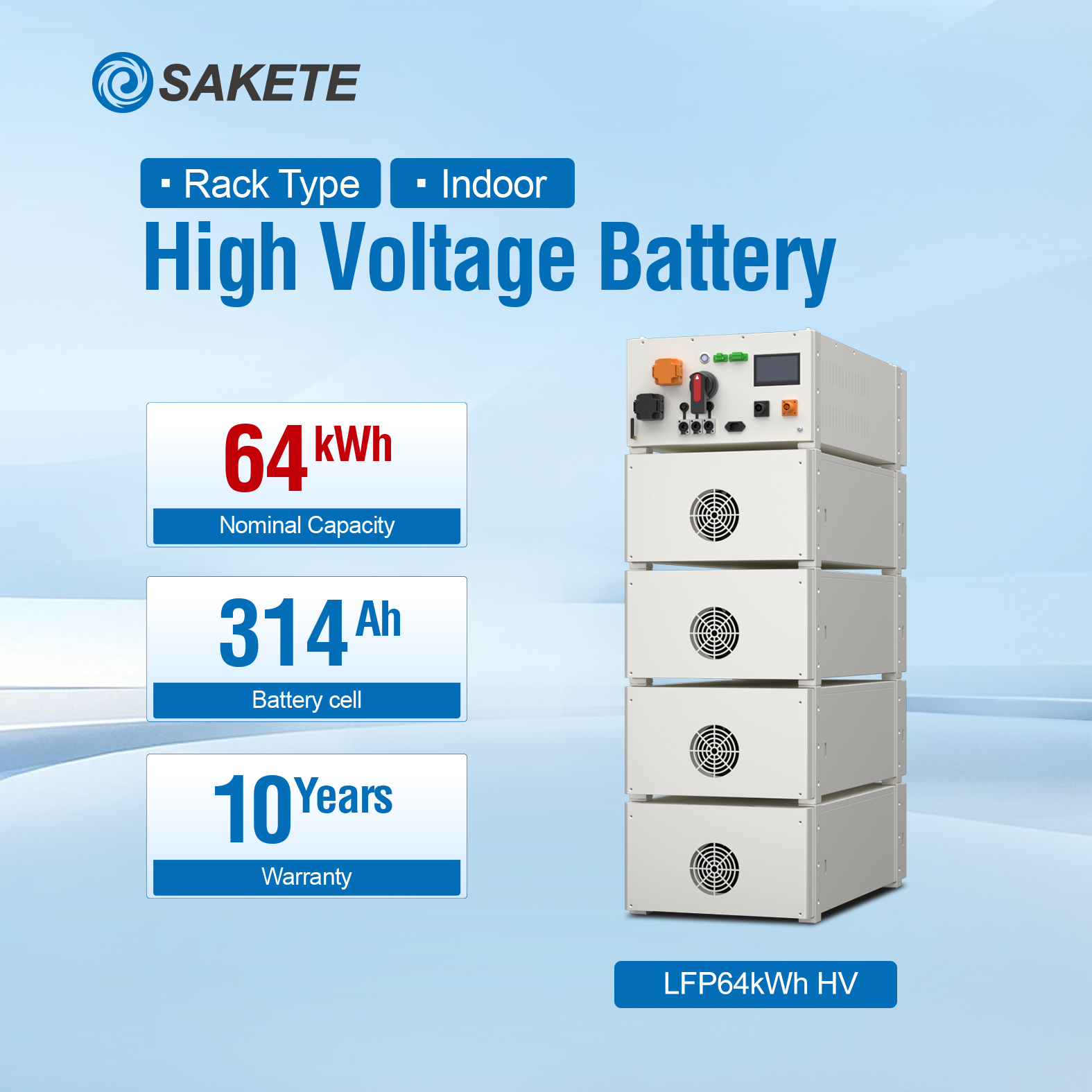

HV Series

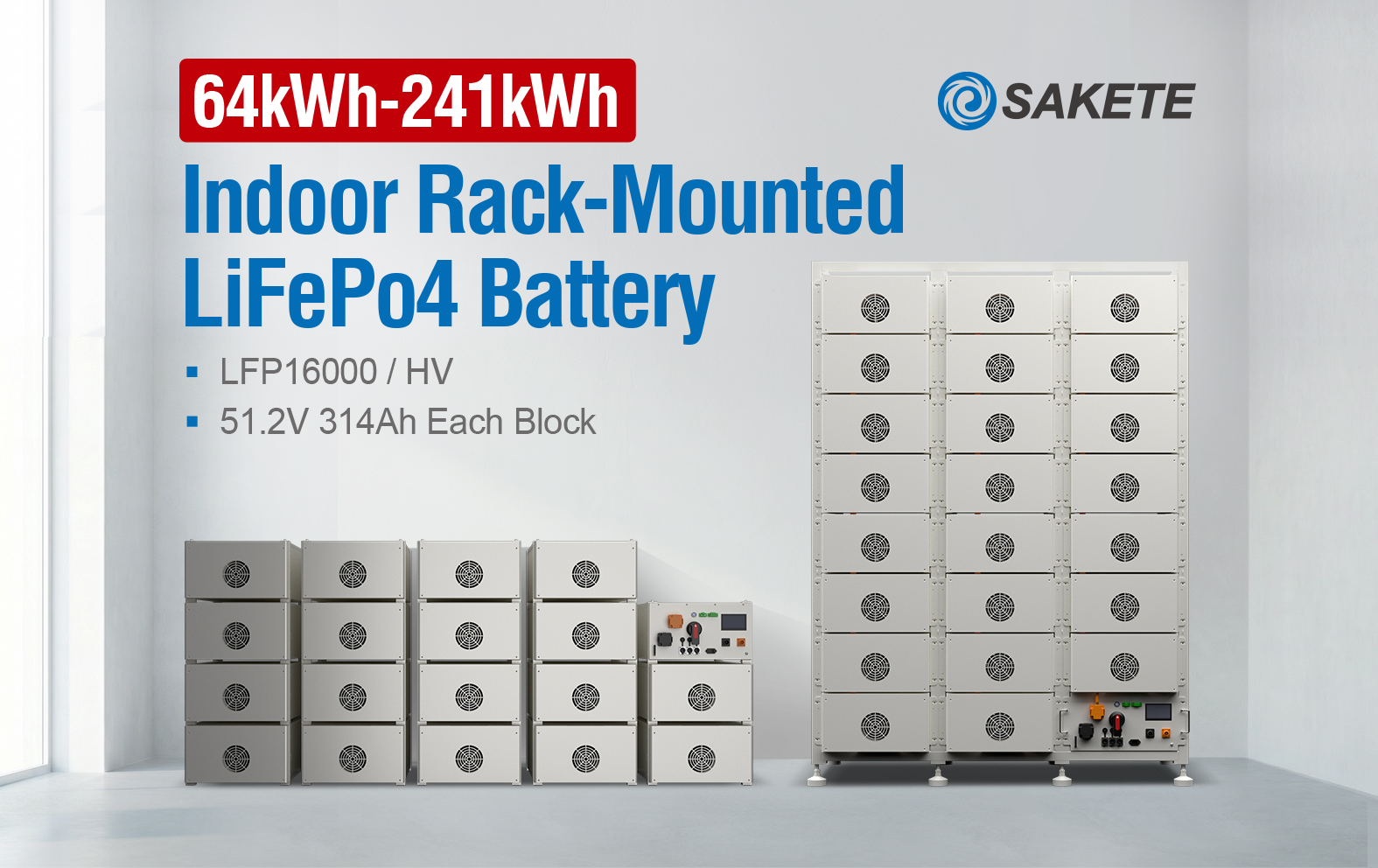

Adopting a modular design, this product supports flexible multi-string expansion, making it ideal for scenarios including villas, commercial & industrial facilities and microgrids. Built on high-safety LFP battery cells, it features long cycle life, high power density, and a compact form factor. The intelligent BMS (Battery Management System) ensures stable operation throughout the system lifecycle. Its modular architecture enables customized configurations, providing an efficient and reliable green energy solution.
Highlights
- Long service life: >15 Years life span, 10 years quality warranty
- Flexible Scalability: Scalable up to 1000V, support Max.21 battery packs stack

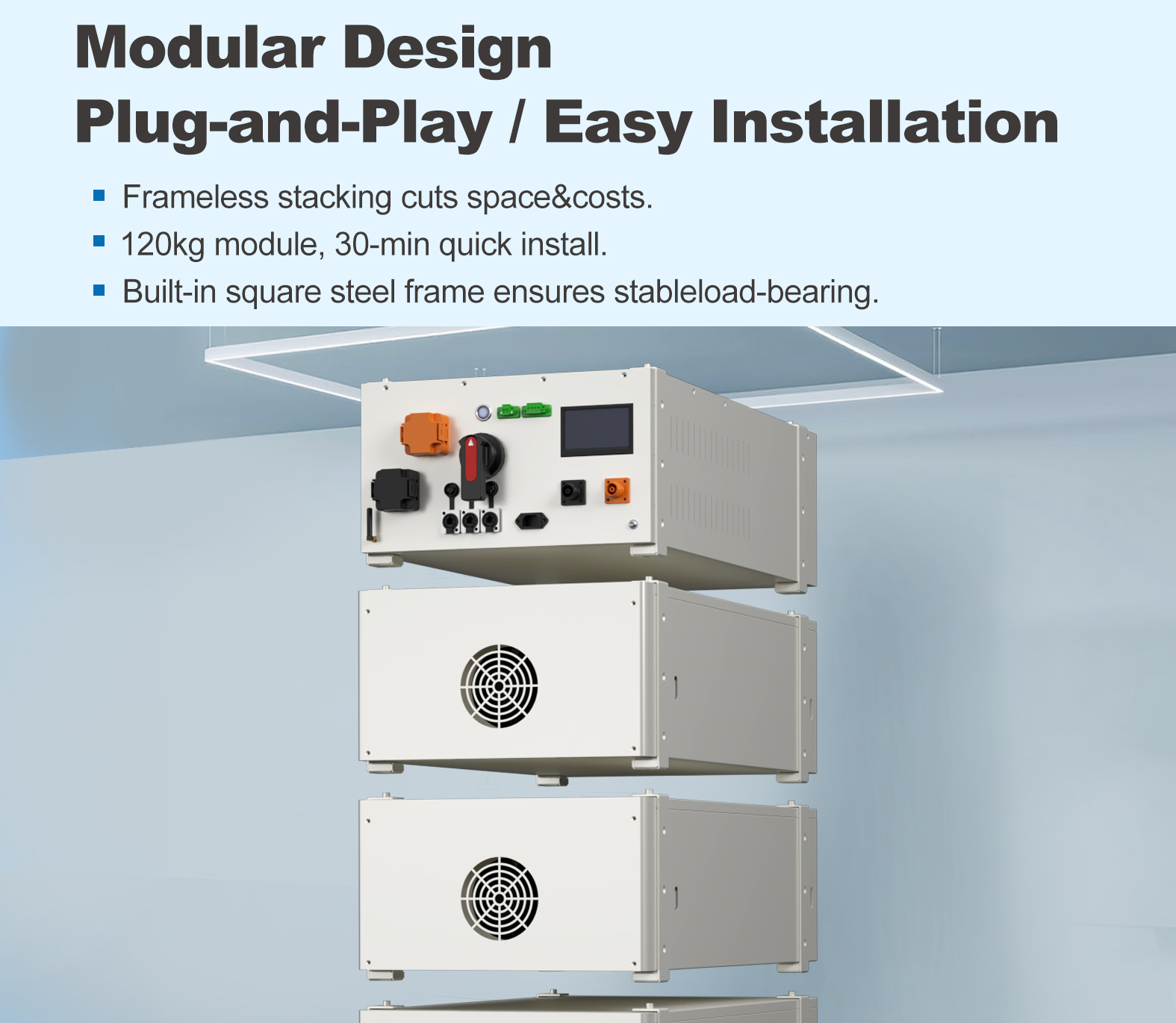

- Easy Installation: Plug & Play, modular design
- Safety & Reliable: Grade A battery cell, IP20 triple hardware protection

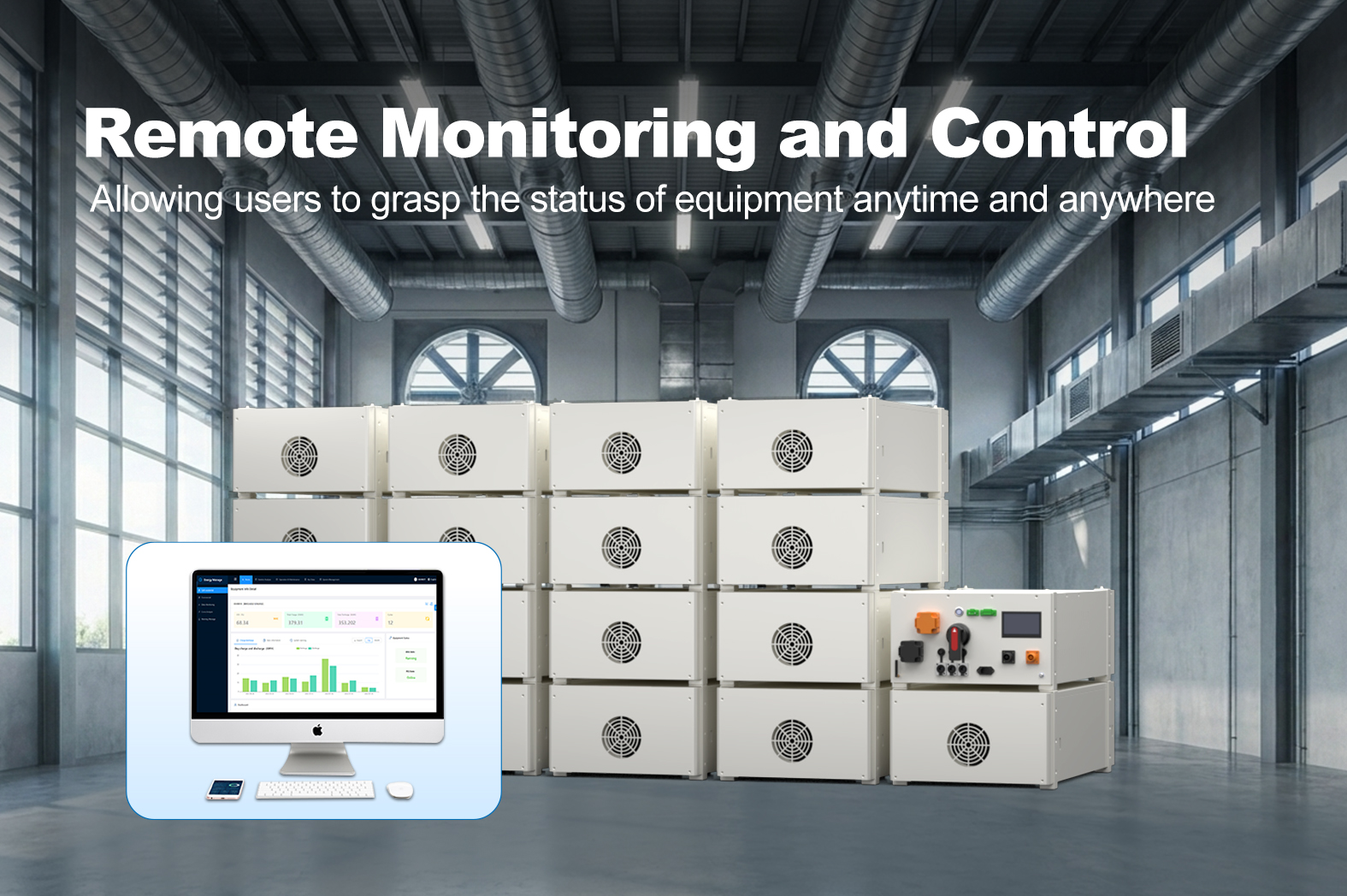

- Intelligent: Smart BMS system, support remote online monitoring
- High inverter compatibility: Growatt, Deye, Solis, Solinteg, Sofar, Afore……
Technical Specifications
| Module Type |
LFP 64kWh/HV |
LFP 80kWh/HV |
LFP 96kWh/HV |
LFP 112kWh/HV |
LFP 128kWh/HV |
LFP 144kWh/HV |
| Nominal Capacity (at 25°C) |
64.31kWh |
80.38kWh |
90.46kWh |
112.54kWh |
128.61kWh |
144.69kWh |
| Usable Capacity (90% DOD) |
57.9kWh |
72.3kWh |
86.8kWh |
101.3kWh |
115.8kWh |
130.2kWh |
| Battery Module |
LFP 16000 /HV : 51.2V 314Ah |
| Number of Modules |
4 |
5 |
6 |
7 |
8 |
9 |
| Nominal Voltage |
204.8V |
256.0V |
307.2V |
358.4V |
409.6V |
460.8V |
| Operating Voltage Ranges |
179.2-227.2V |
224.0-284.0V |
268.8-340.8V |
313.6-397.6V |
358.4-454.4V |
403.2-511.2V |
| Nominal Dis-/Charge Current |
157 / 157A |
| Weight |
510kg |
630kg |
750kg |
870kg |
990kg |
1110kg |
| Dimension(mm) |
874*960*800 |
874*960*800 |
874*960*800 |
874*960*8001 |
1311*960*800 |
1311*960*800 |
| Operating Condition |
Indoor |
| Operating Temperature Charge |
From 0~45℃ |
| Operating Temperature Discharge |
From -10~50°C |
| Storage Temperature |
From -20~50℃ |
| Humidity |
Up to 90% (non-condensing) |
| Pollution Degree |
3 |
| Over Voltage Category |
II |
| Cooling Type |
Natural cooling |
| IP Rating |
IP20 |
| Protective Class |
I |
| Max. Number in a cluster |
15 |
| Warranty |
10 years |
| Life Span |
>15 years |
| Communication Interface |
CAN/RS485 |
| Protection Mode |
Triple hardware protection |
| Battery Protection |
Over-current/Over-voltage/Short circuit/Under-voltage |

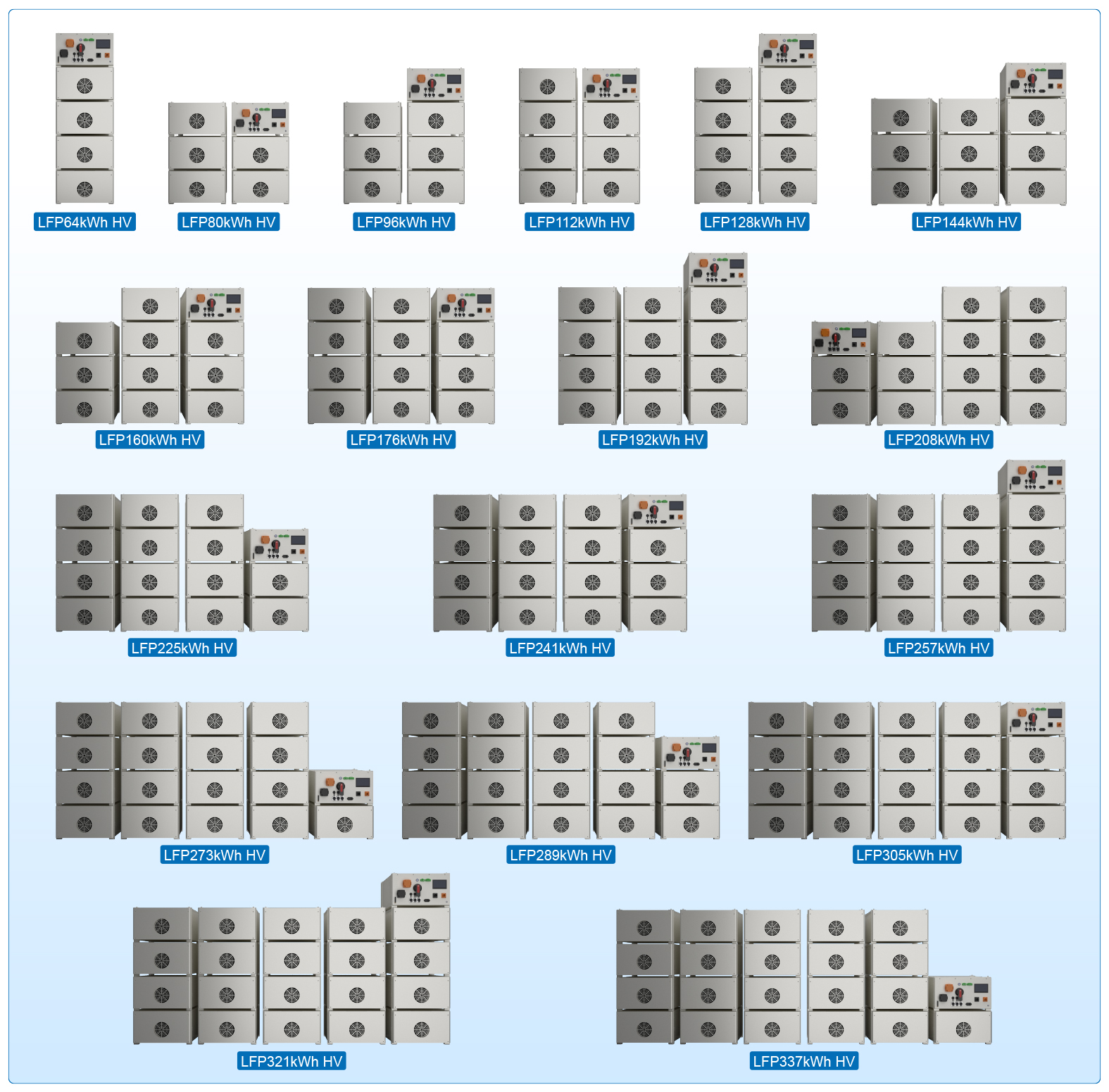

| Module Type |
LFP 160kWh/HV |
LFP 176kWh/HV |
LFP 192kWh/HV |
LFP 208kWh/HV |
LFP 225kWh/HV |
LFP 241kWh/HV |
| Nominal Capacity (at 25 °C) |
160.77kWh |
176.84kWh |
192.92kWh |
209.00kWh |
225.08kWh |
241.15kWh |
| Usable Capacity (90% DOD) |
144.7kWh |
159.2kWh |
173.6kWh |
188.1kWh |
202.6kWh |
217.0kWh |
| Battery Module |
LFP 16000 / HV : 51.2V 314Ah |
| Number of Modules |
10 |
11 |
12 |
13 |
14 |
15 |
| Nominal Voltage |
512.0V |
563.2V |
614.4V |
665.6V |
716.8V |
768.0V |
| Operating Voltage Ranges |
448.0-568.0V |
492.8-624.8V |
537.6-681.6V |
582.4-738.4V |
627.2-795.2V |
672.0-852.0V |
| Nominal Dis-/Charge Current |
157/157A |
| Weight |
1230kg |
1350kg |
1470kg |
1590kg |
1710kg |
1830kg |
| Dimension(mm) |
1311*960*800 |
1311*960*800 |
1748*960*800 |
1748*960*800 |
1748*960*800 |
1748*960*800 |
| Operating Condition |
Indoor |
| Operating Temperature Charge |
From 0~45℃ |
| Operating Temperature Discharge |
From -10~50℃ |
| Storage Temperature |
From -20~50℃ |
| Humidity |
Up to 90% (non-condensing) |
| Pollution Degree |
3 |
| Over Voltage Category |
II |
| Cooling Type |
Natural cooling |
| IP Rating |
IP20 |
| Protective Class |
I |
| Max. Number in a cluster |
15 |
| Warranty |
10 years |
| Life Span |
>15 years |
| Communication Interface |
CAN/RS485 |
| Protection Mode |
Triple hardware protection |
| Battery Protection |
Over-current/Over-voltage/Short circuit/Under-voltage |

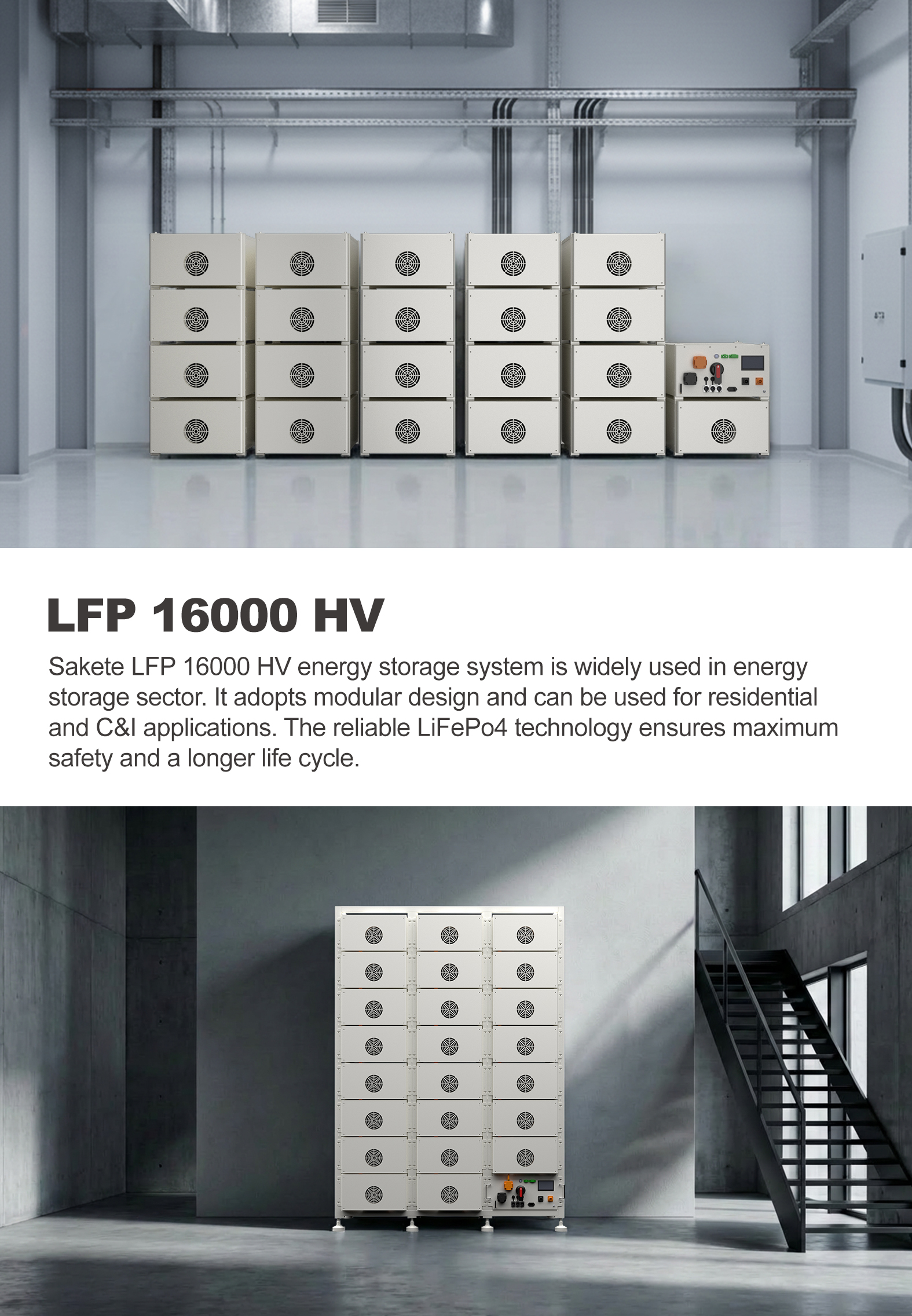

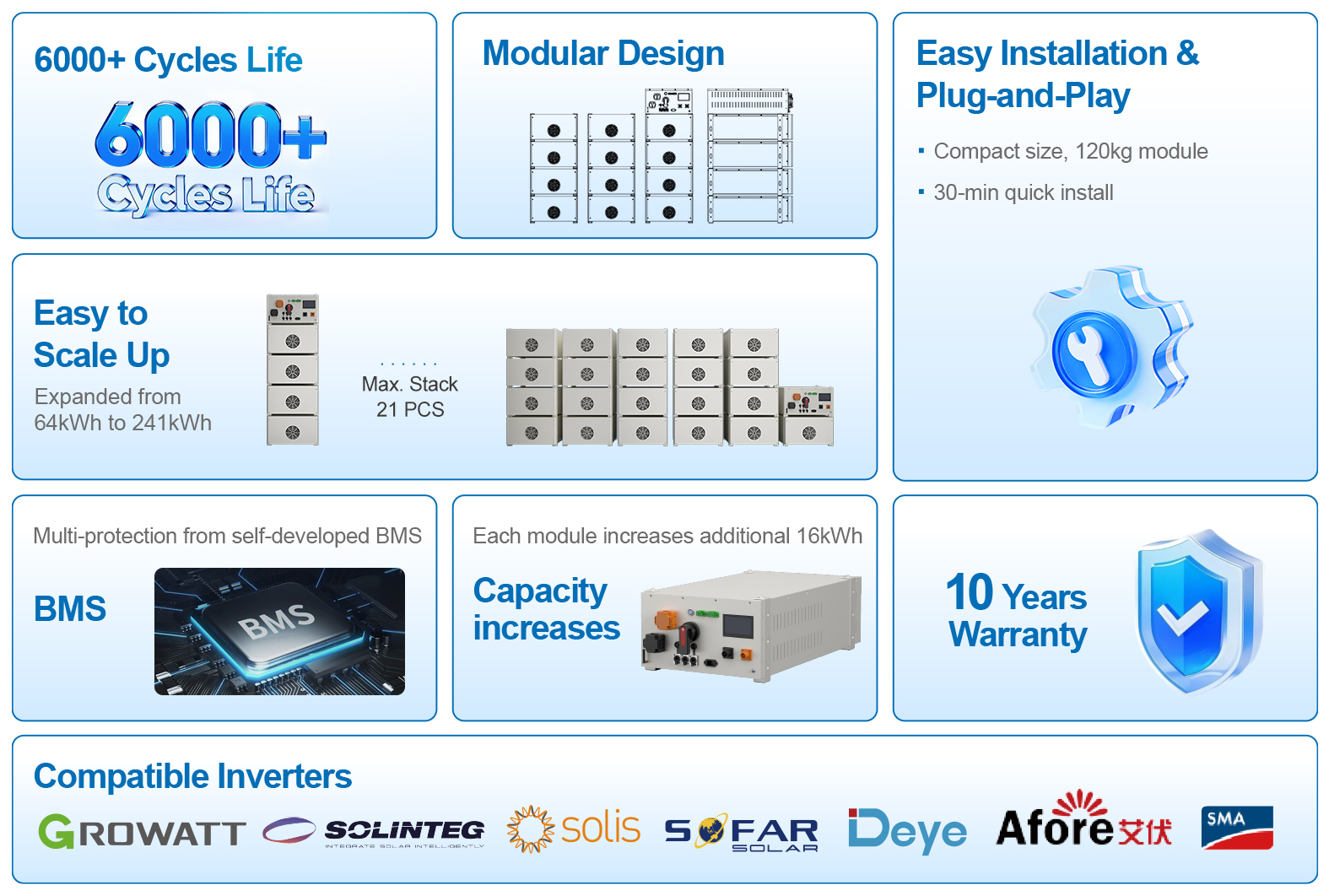

Product Advantages
Product Details

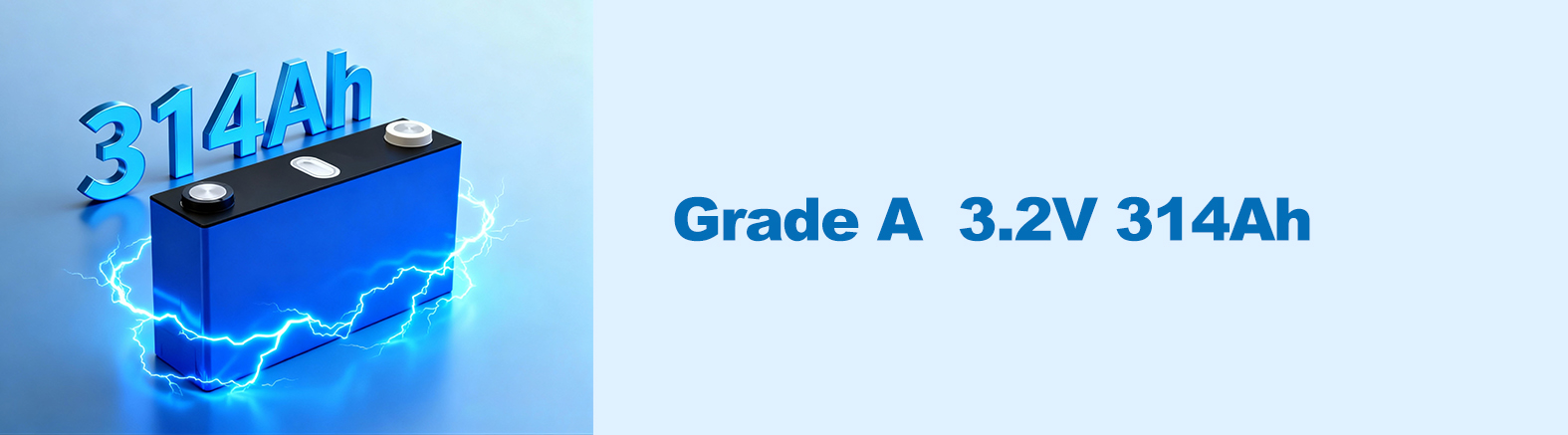

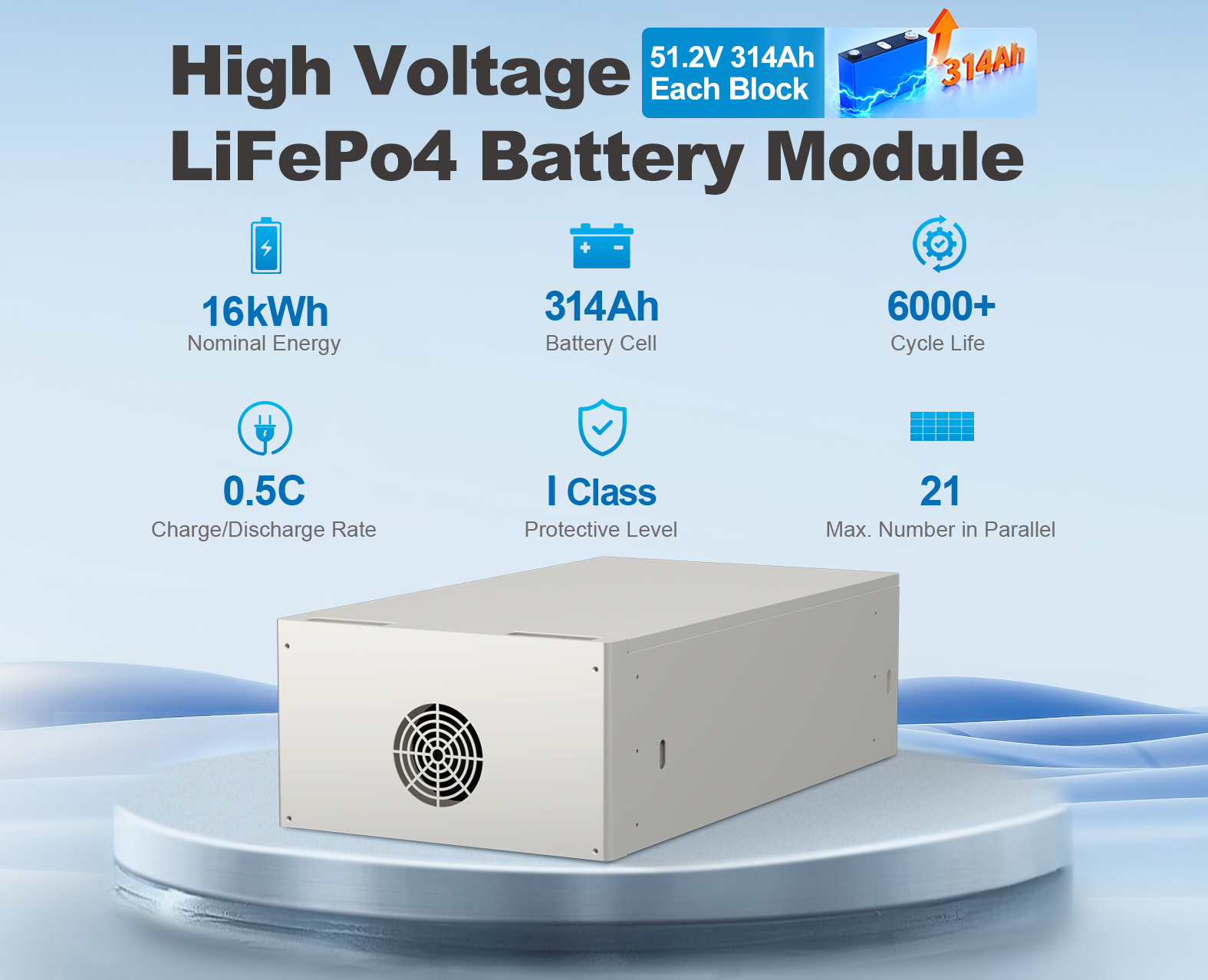

The 3.2V 314Ah lithium battery offers ample single-cell capacity, stable voltage, and minimal output voltage fluctuation during charge and discharge, making it suitable for various scenarios such as photovoltaic energy storage and industrial equipment. It also boasts a long cycle life, reliable safety, and excellent thermal stability with overcharge and over-discharge protection, ensuring peace of mind.

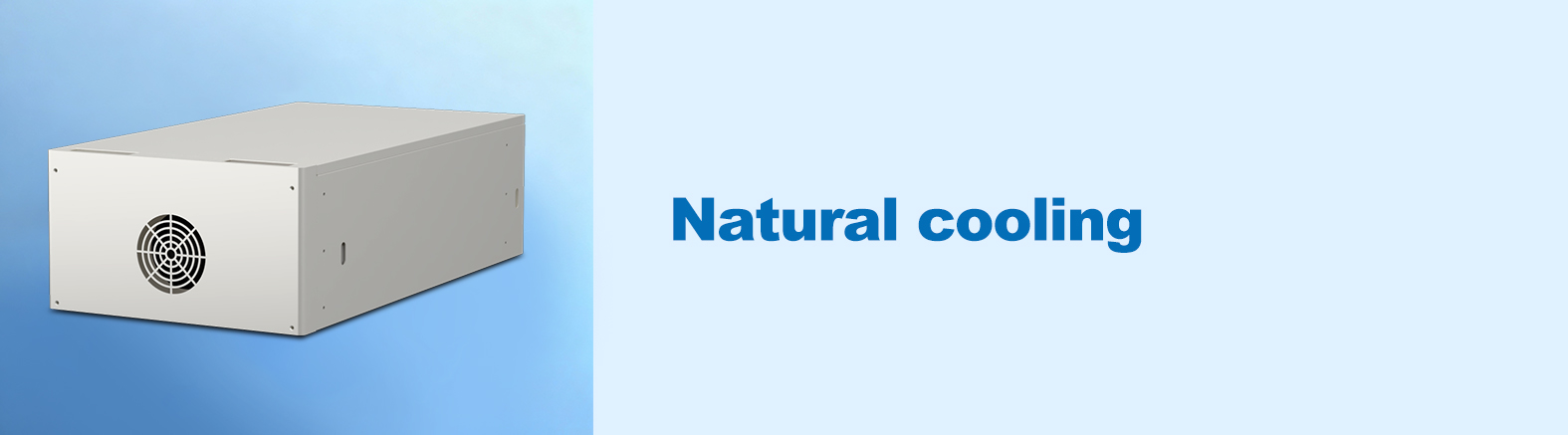

This energy storage battery features a natural cooling design, eliminating fans and active cooling systems to reduce cost and improve reliability. With zero auxiliary power consumption and no moving parts, it operates quietly, stably, and maintenance-free. By connecting 3.2V 314Ah cells in series, we can get basic battery modules with different voltages to meet different project requirements. The robust thermal structure extends battery life and enhances safety for indoor and small to mid-scale C&I applications.
Protection and Alarm:
1- Charge/Discharge End. Charge Over Voltage
2- Charge/Discharge Over Current. High/Low Temperature
3- Operation Record

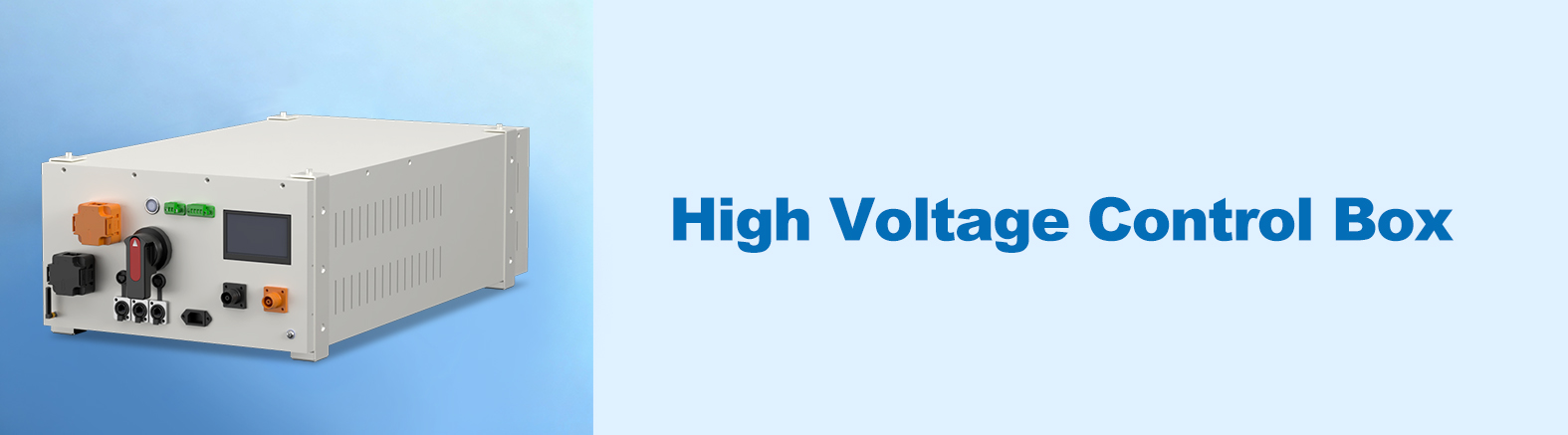

This high-voltage box is the high-voltage electrical hub and safety barrier of the energy storage system, directly determining its safety, stability, and overall operational reliability.

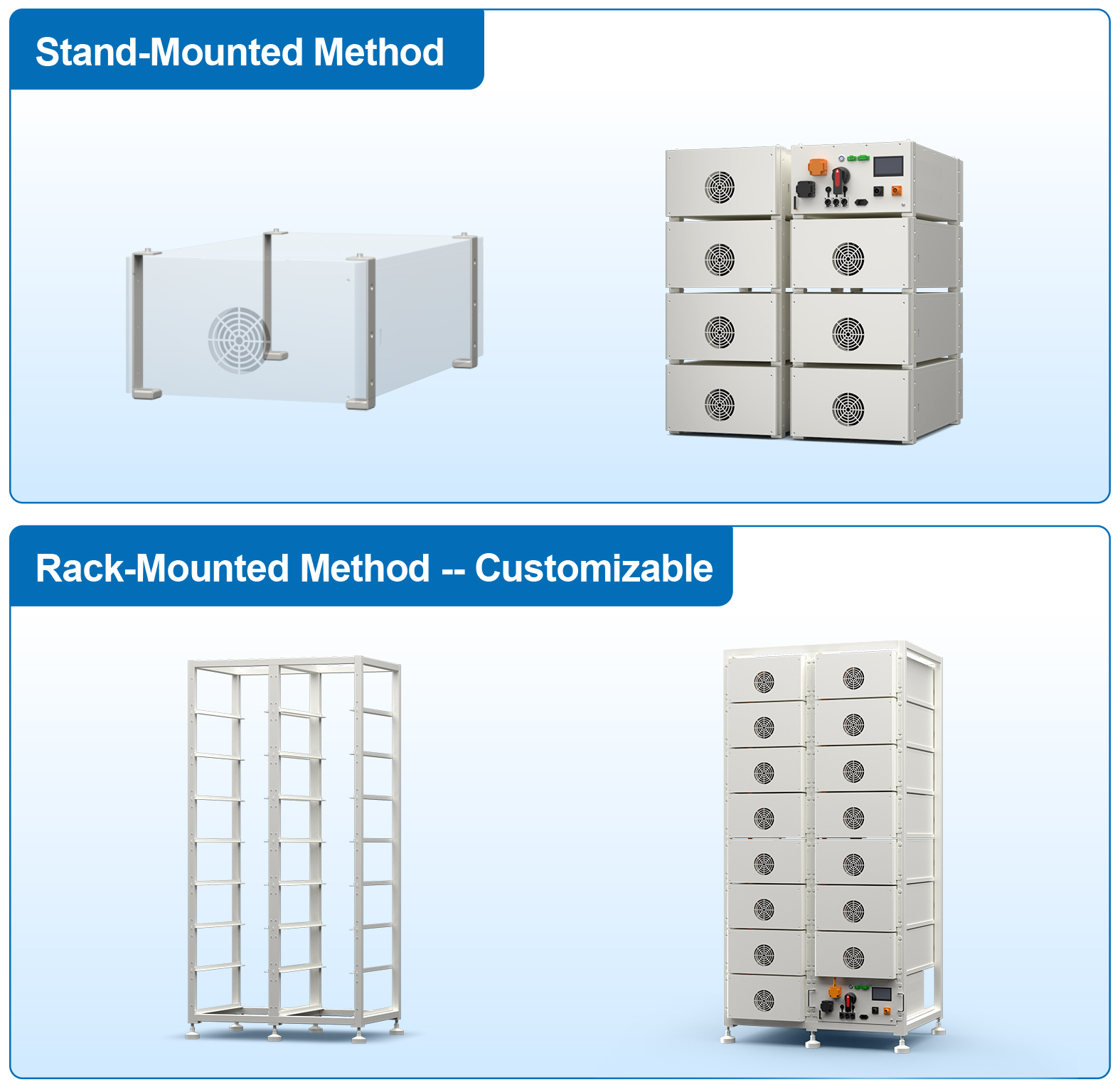

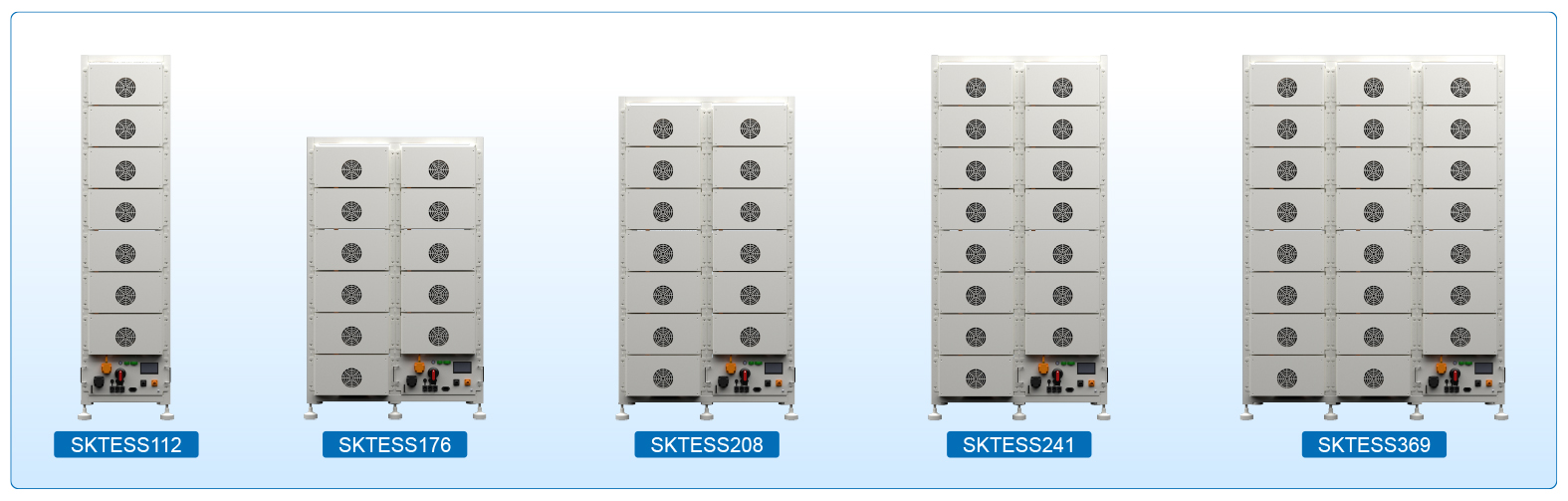

Installation Instructions

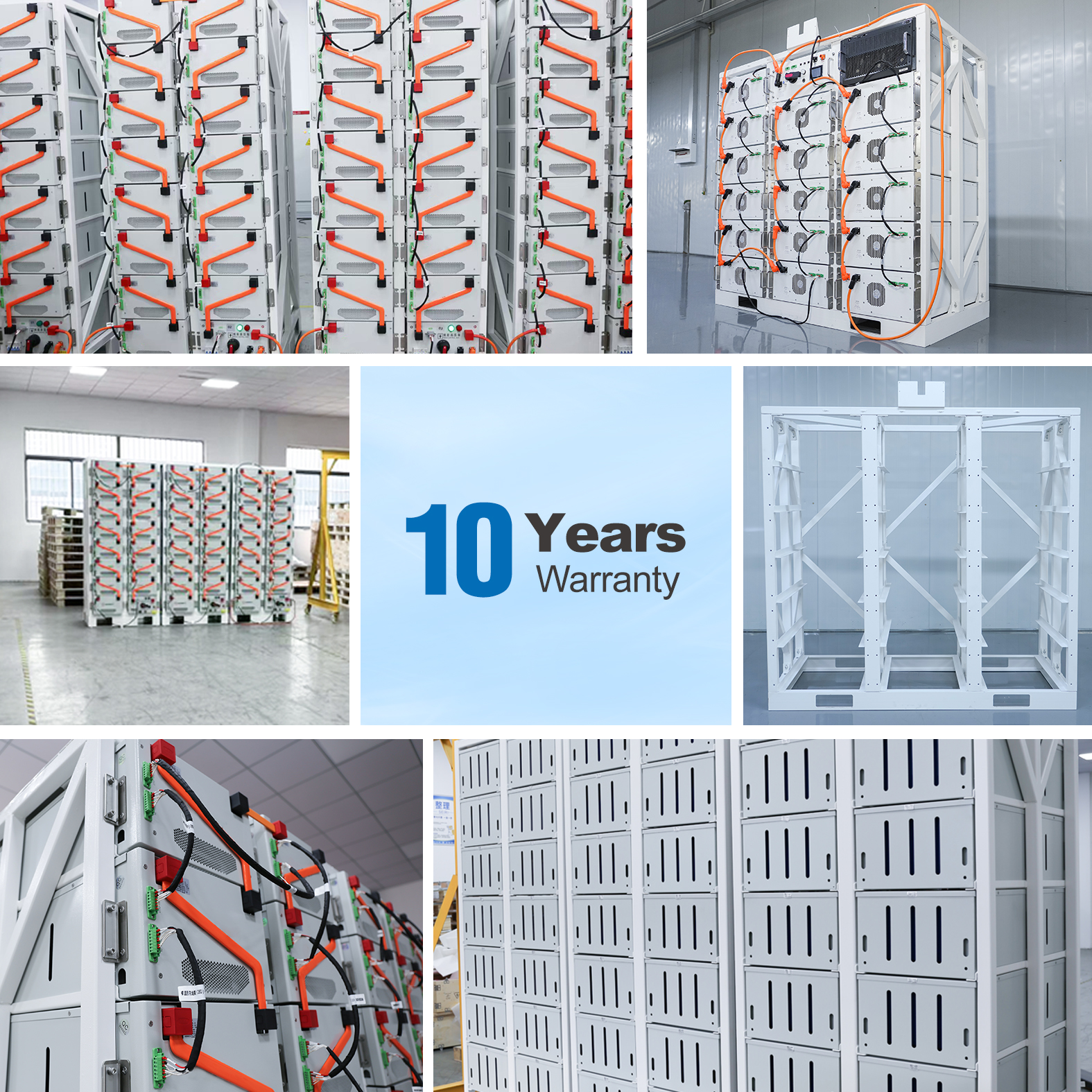

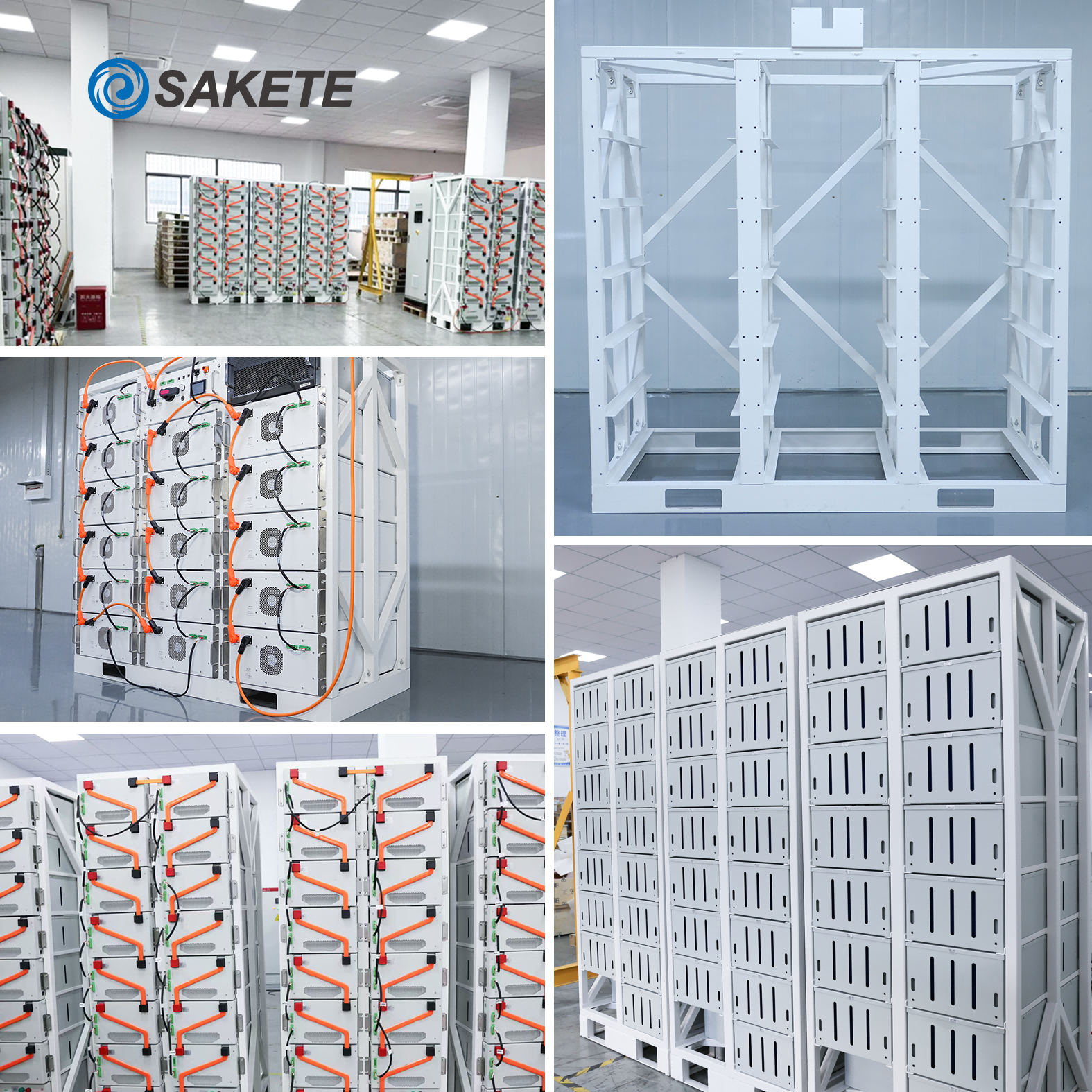

Project Cases
Our Strengths
- Integrating research, development, production, sales and service
- Providing integrated green energy solutions for multiple scenarios
- Comprehensive product portfolio featuring a diversified industrial, commercial and residential storage product matrix
- Robust ‘3S’ (BMS, EMS, PCS) product architecture ensuring seamless, stable operation of smart industrial, commercial and residential storage systems
- Possesses OEM & ODM capabilities
- Products hold industry certifications guaranteeing safety, reliability and efficiency
- 24-hour professional technical support team
Frequently Asked Questions (FAQ)
What is the lifespan and warranty of the HV Series battery system?
The battery system offers a service lifespan of over 15 years, and it is backed by a comprehensive 10-year quality warranty.
How scalable is this high-voltage battery storage system?

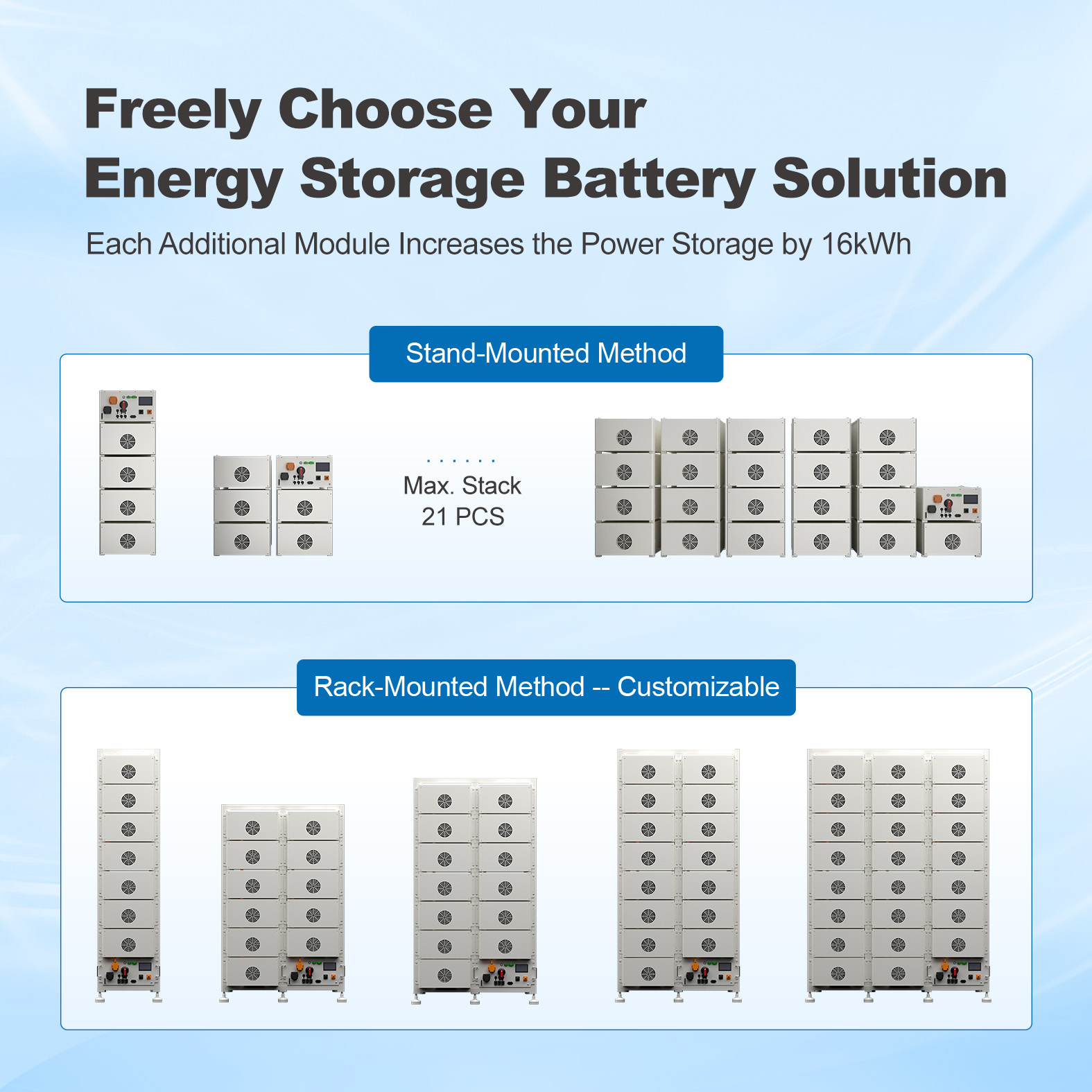

It features highly flexible scalability. The modular design supports system voltages up to 1000V, allowing a maximum stack of 21 battery packs in a single system configuration.
What types of inverters are compatible with this system?

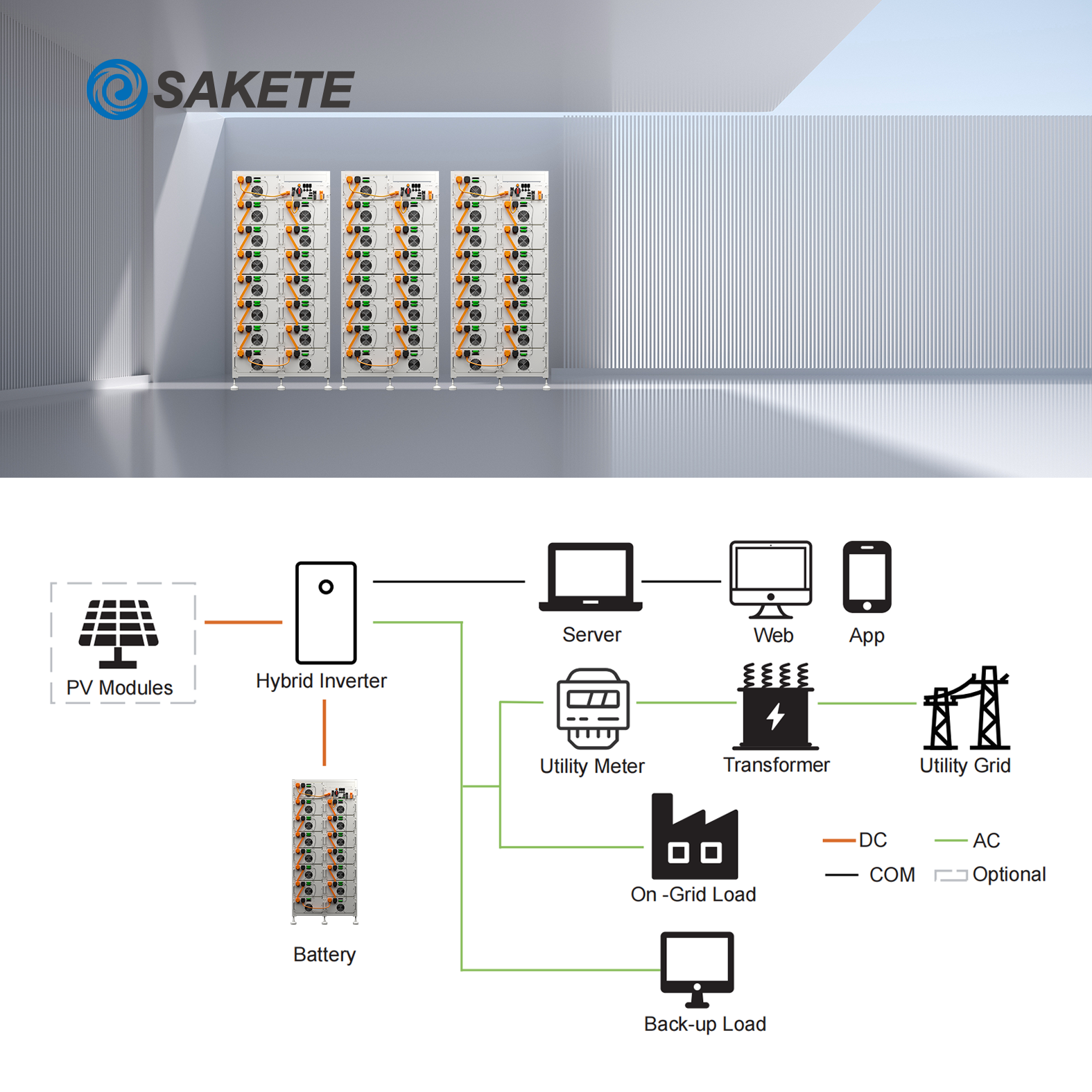

It offers high inverter compatibility and seamlessly integrates with major global brands, including Growatt, Deye, Solis, Solinteg, Sofar, Afore, and more.
What safety mechanisms are integrated into the battery cells?
Built on Grade A LFP battery cells, the system features IP20 protection alongside triple hardware protection and a smart BMS that shields against over-current, over-voltage, short circuit, and under-voltage.
Does this energy storage system require active cooling?
No, the battery modules utilize a natural cooling design. This eliminates the need for fans and active cooling systems, resulting in zero auxiliary power consumption, quiet operation, and lower maintenance costs.
What communication protocols does the intelligent BMS support?
The system features smart BMS control with CAN and RS485 communication interfaces, supporting remote online monitoring and system diagnostics.
