Product Description

Products Description

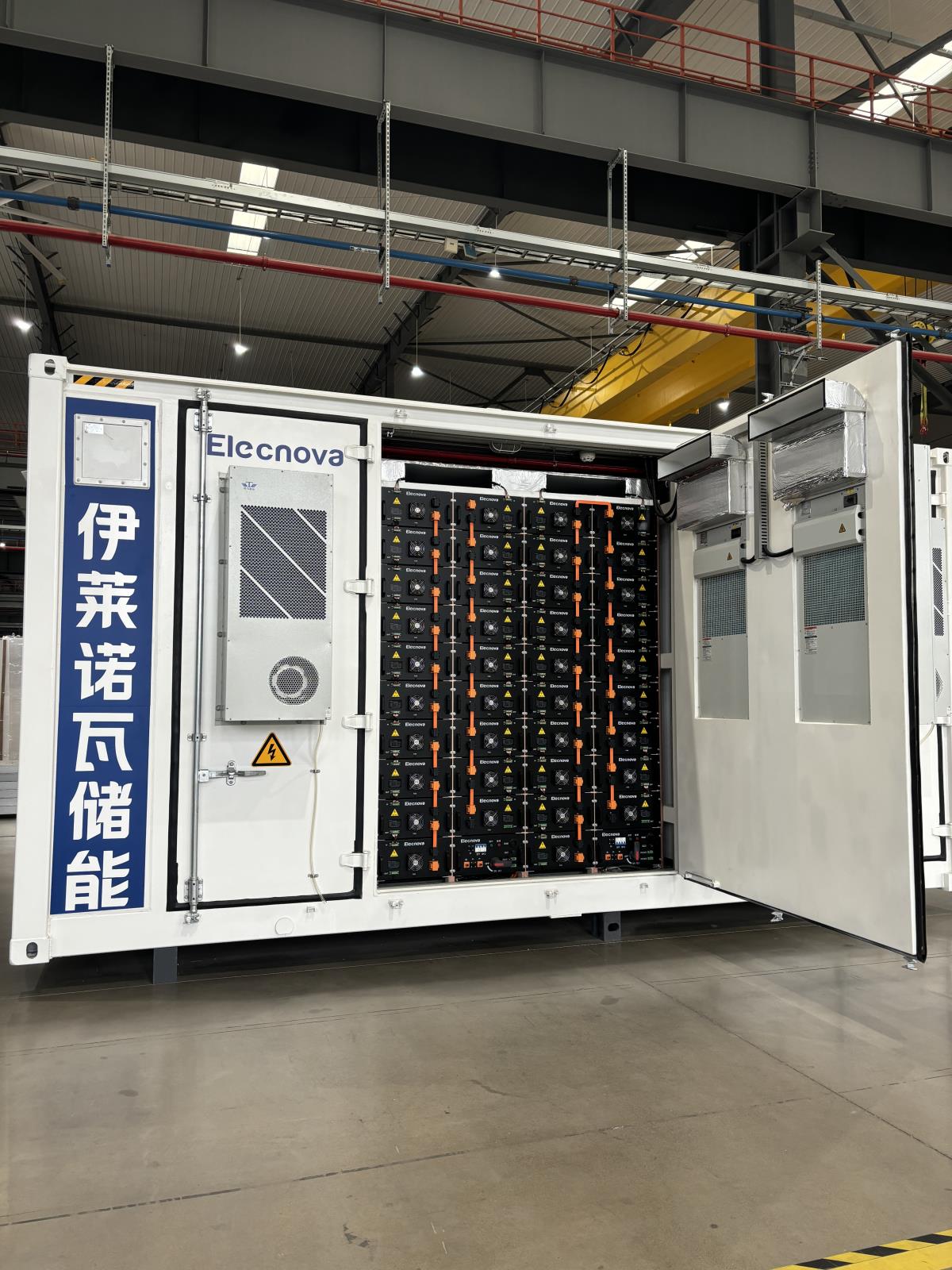

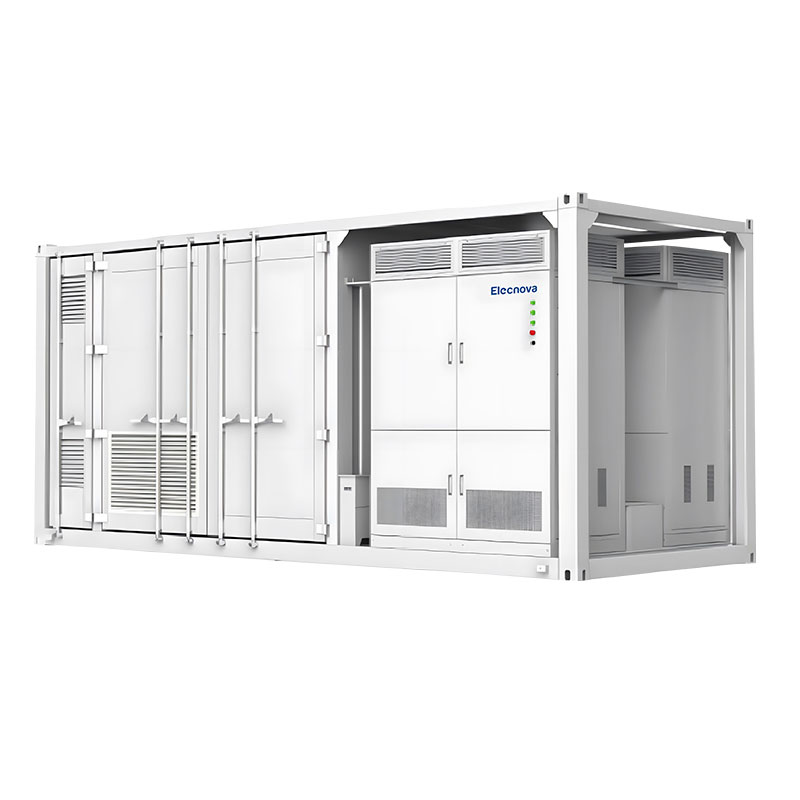

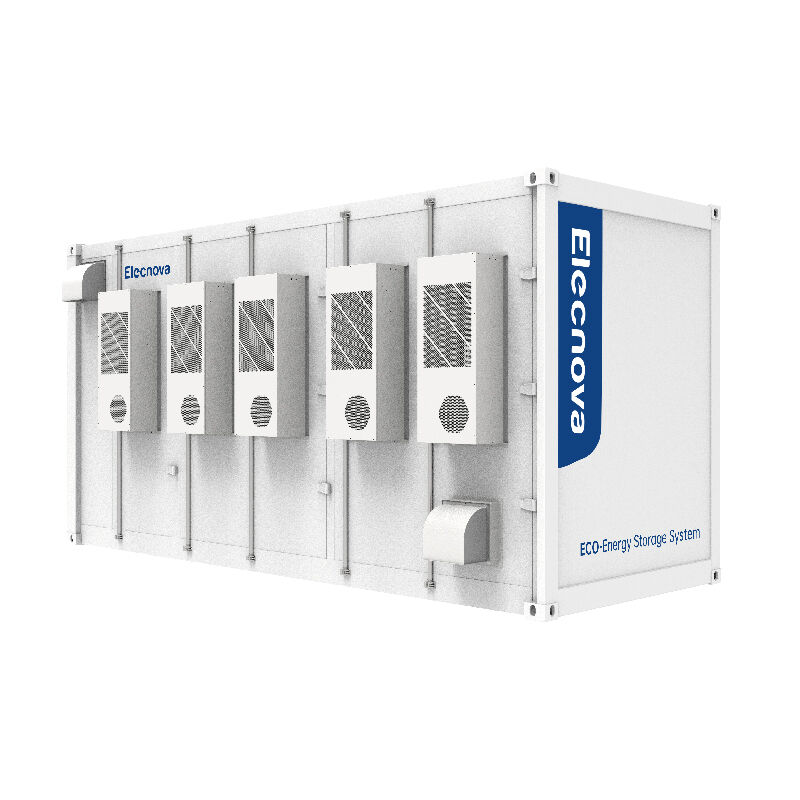

Off-grid Energy Storage Island Grid Balance Frequency Regulation Energy Self-consumption UN38.3 Container Scale 3.858MWh BESS
🛈
The #ECO-B20FT3858WS Lithium-ion battery cabinet uses an advanced liquid cooling system to keep the cabinet internal temperature difference less than 3°C, which improves the consistency of cell temperature and extends the battery life. The modular design makes the parallel solution more flexible and can be combined with centralized PCS to form an ESS with higher energy density.

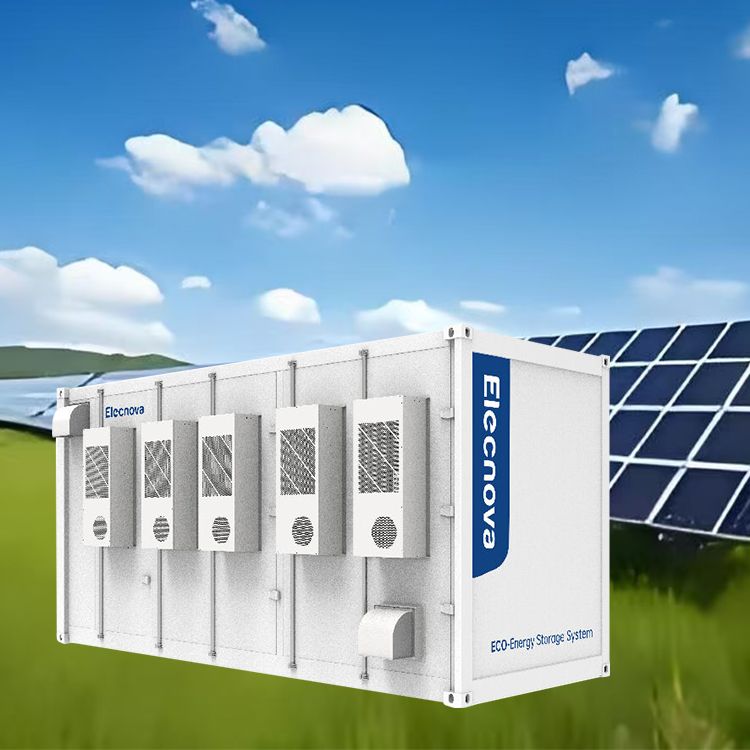

Battery Energy Storage System Container

Specification

Item Specification
Configuration 10P380S
Rated Energy 3.858MWh
Rated Voltage 1368V DC
DC Voltage Range 1165-1498VDC (individual battery 2.8-3.6V DC)
PACK Protection Level IP65
Nominal Rate 0.5P
Operating Environment Temperature -25°C ~ 55°C
Fire Suppression Method Combustible gas detection / smoke detection / temperature detection + Active warning + Module-level fire suppression (perfluorohexanone)
Protection Level IP55
Cooling Air Force Cooling
Operating Altitude ≤2,000m (derating above 2,000m)
Dimensions (Width*Depth*Height) 6058*2438*3100 (mm)
Compliance UN38.3, IEC62619, UL1973, UL9540, CE-EMC

Main Product

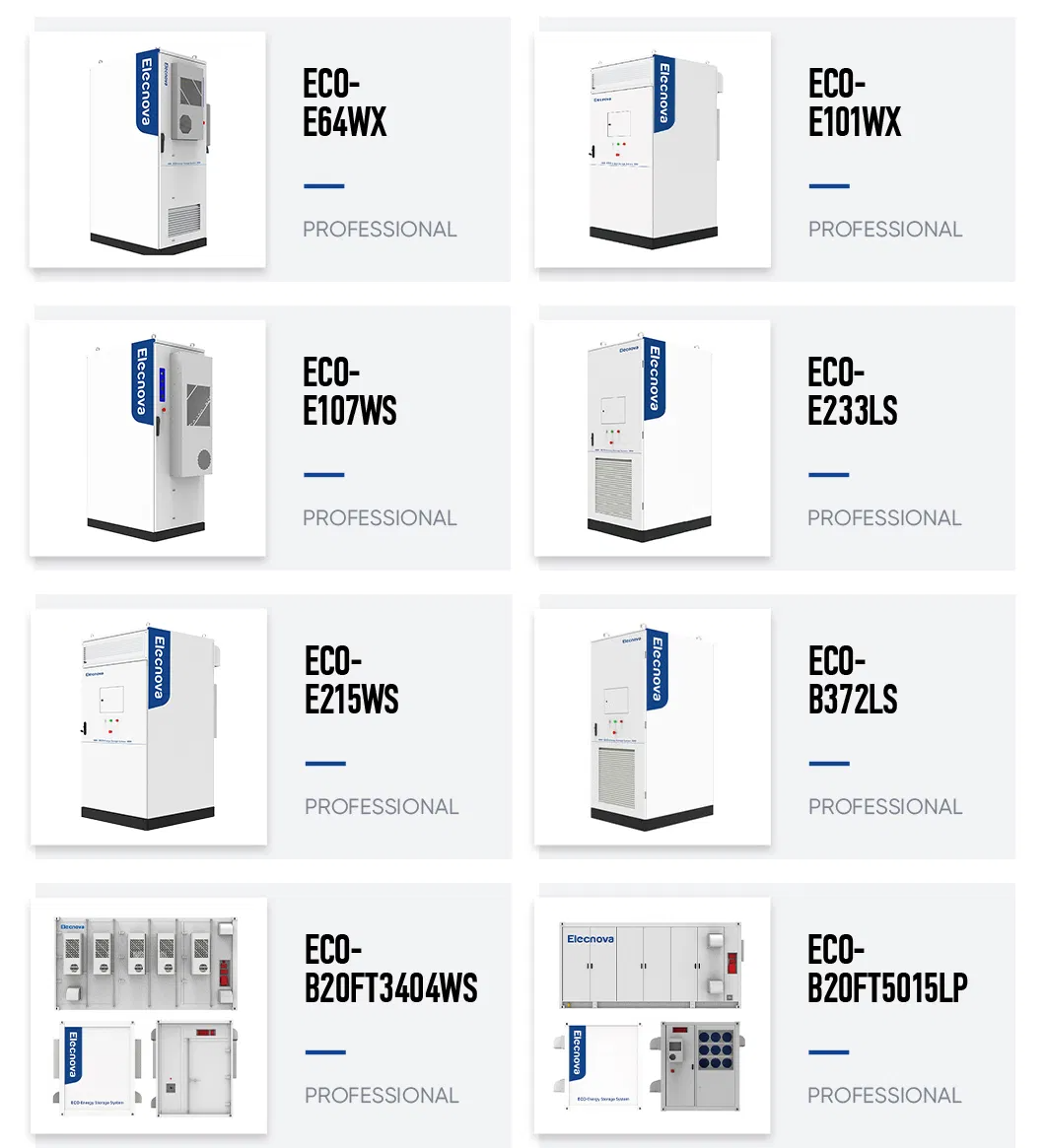

Main Product Details

Production Profile

Manufacturing Facility Overview
The manufacturing facility integrates R&D, production, sales, and service, offering a comprehensive product ecosystem from smart terminal components and equipment to IoT platforms. These electrical application solutions empower users with intelligent, digital energy management and provide reliable data services for energy conservation, safety, and refined management.
Over the past decade, the manufacturer has been honored with numerous prestigious technology awards and holds 122 invention and utility model patents, alongside 42 software copyrights. Offering overall supporting capabilities for system integration across PACK, PCS, and BMS, the system is designed to meet diversified energy demands across power generation, grid-side, and user-side applications.

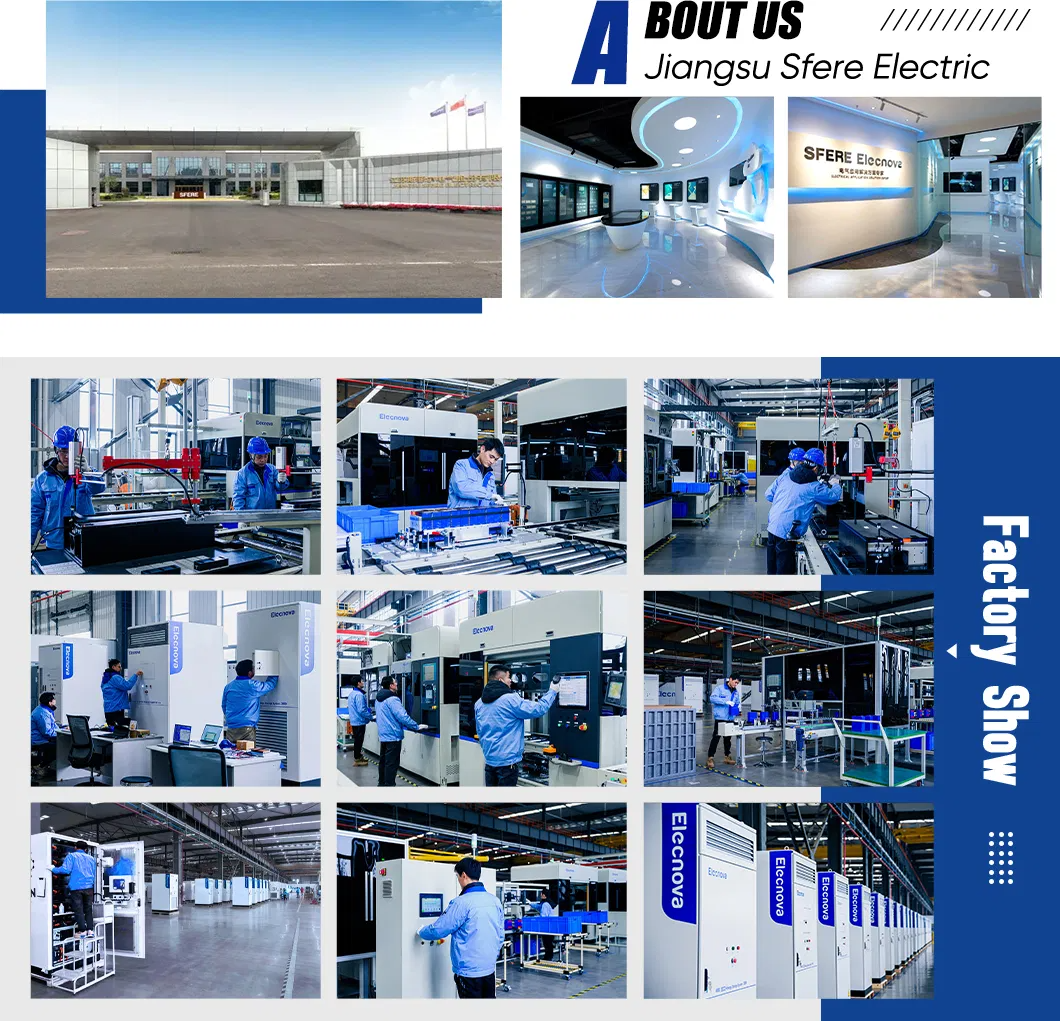

Quality Standards and Certificates

Exhibition

Exhibition Presence

Packing & Delivery

Packing and Delivery Process

Frequently Asked Questions

What is the total capacity of this BESS container?
The battery energy storage system (BESS) container has a rated capacity of 3.858MWh with a rated voltage of 1368V DC.
How does the cooling system work to protect the batteries?
It utilizes an advanced liquid cooling system that keeps the internal temperature variance within the cabinet under 3°C. This ensures high cell temperature consistency and significantly prolongs battery service life.
What safety and fire suppression systems are integrated?
The unit is equipped with combustible gas detection, smoke detection, and temperature detection. It offers active warnings alongside module-level fire suppression utilizing perfluorohexanone.
Which international compliance standards does the system meet?
The system complies with major global standards, including UN38.3, IEC62619, UL1973, UL9540, and CE-EMC.
What is the protection rating for the system container and battery pack?
The overall container system has an IP55 protection level, whereas the individual battery PACKs are rated at IP65 for dust and moisture resistance.
