Buying low-cost electricity during off-peak hours and discharging it during peak or ultra-peak periods to reduce corporate energy costs.
Optimizing demand through energy storage deployment to minimize short-term peak loads, lower demand charges, and enhance user revenue.
During power shortages, enterprises voluntarily reduce consumption (e.g., peak shaving) to support grid stability, earning economic incentives in return.
Providing emergency power to critical uninterrupted loads in industrial parks during outages, ensuring operational continuity and business stability.
Participating in power market transactions—such as peak shaving, frequency regulation, and spot trading—through aggregated storage or virtual power plants to boost user profits.
| Product Model | Model 233CE | |
| System Parameter | Battery Cell | LFP (LiFePO4) 3.2V 280Ah |
| System Capacity | 233kWh | |
| Rated Power | 105kW | |
| Access Method | 3W+N/3W+N+Pe | |
| Communication | CAN / RS485 / Ethernet / 4G | |
| Communication Standard | Modbus TCP, Modbus RTU, CAN2.0, IEC61850, IEC104 | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol (pack-level + cluster-level) + Water Fire Protection (cabinet-level) | |
| Operating Altitude | 4000m (>2000m, derating operated) | |
| Operating Temperature | 0ºC~50ºC (charge), -20ºC~50ºC (discharge), 25ºC±2ºC (optimum) | |
| Relative Humidity | 5% ~ 95% RH | |
| Protection Level | IP54 | |
| Anti-corrosion Level | C4 | |
| Noise | ≤75dB | |
| Weight | 2800kg±50kg | |
| Size | L1560mm * D1380mm * H2385mm | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Power Factor | ≥0.99 (-1~1) | |
| DC Component | <0.5% | |
| THDi | <2% (rated power) | |
| THDu | <3% (off-grid, linear load) | |
| Charge-Discharge conversion time | <100ms | |
| Automatic on-grid and off-grid switching time | 20ms (optional) | |
| Anti-backflow | Optional | |
| Overload Capability | 1.1 times for long-term | |
| DC Side | Series-parallel Number | 1P260S |
| Rated Voltage | 832V | |
| Voltage Range | 728~936V | |
| Maximum Current | 159A | |
| Discharge Depth | 95%DOD | |
| Certifications | CQC, LVRT/HVRT, EN 62477, EN 61000, EN 50549-2, UN38.3, EN 62619, VDE 4105, VDE O126-1-1, XP C15-712-3, UTE C15-712-1, VFR 2019 | |

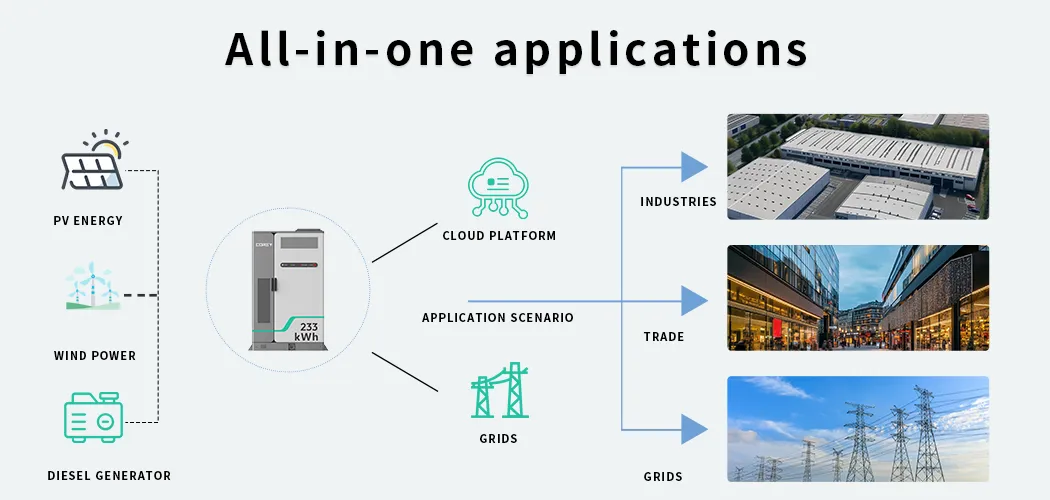

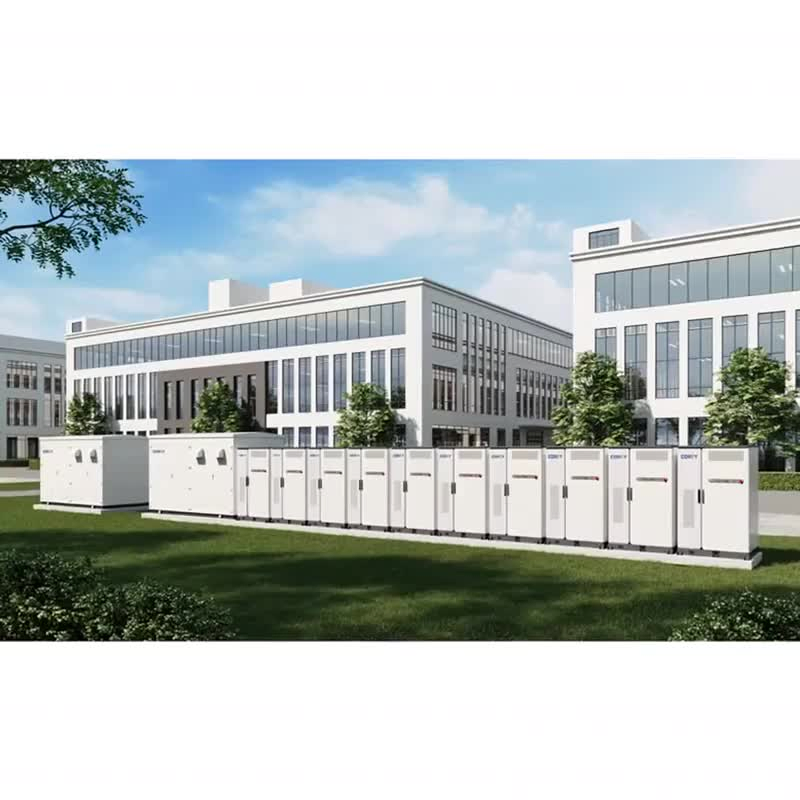

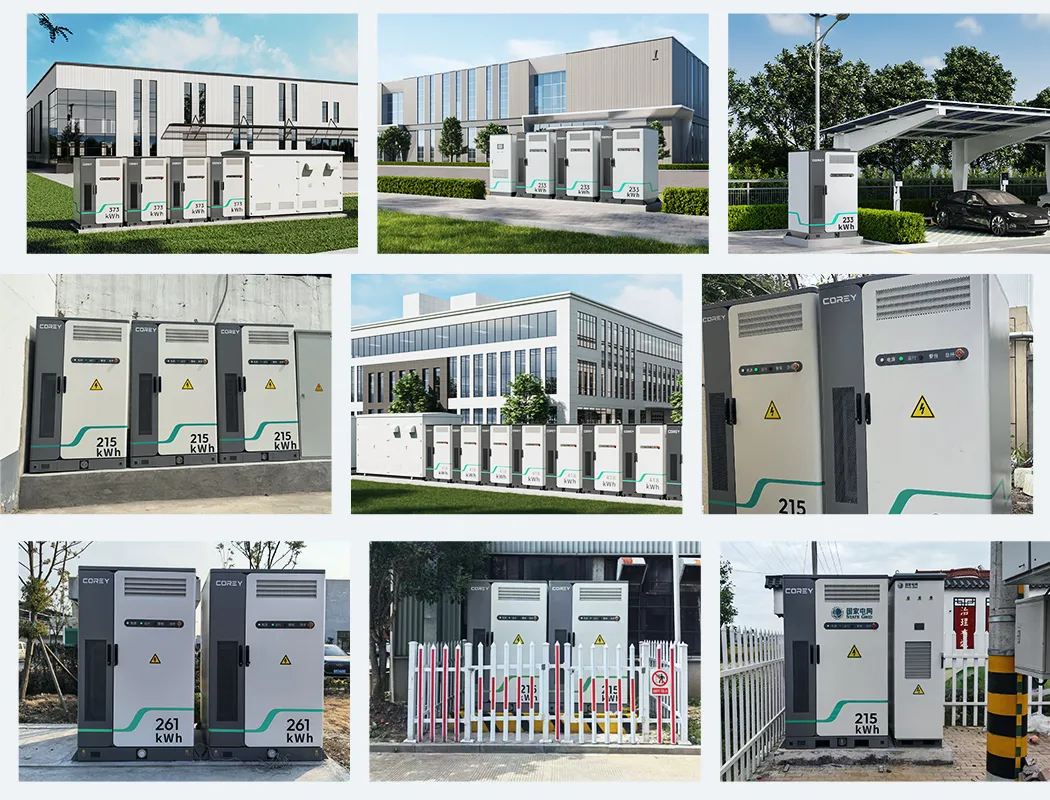

Ideal for factory buildings, commercial buildings, areas with power shortages, and remote off-grid locations.
The enterprise was established in 2014, beginning its journey in automated intelligent equipment with laser welding technologies for new energy lithium battery modules, and providing advanced intelligence manufacturing solutions for top-tier lithium battery energy storage system integrators.
The power supply technology division was founded to provide comprehensive, one-stop green power station solutions, including turnkey services, microgrid solutions, photovoltaic project configurations, and energy storage system implementation.
The enterprise is committed to becoming a leading global microgrid solution provider and clean energy system supplier, aimed at driving safe, clean, and intelligent energy transformations globally.

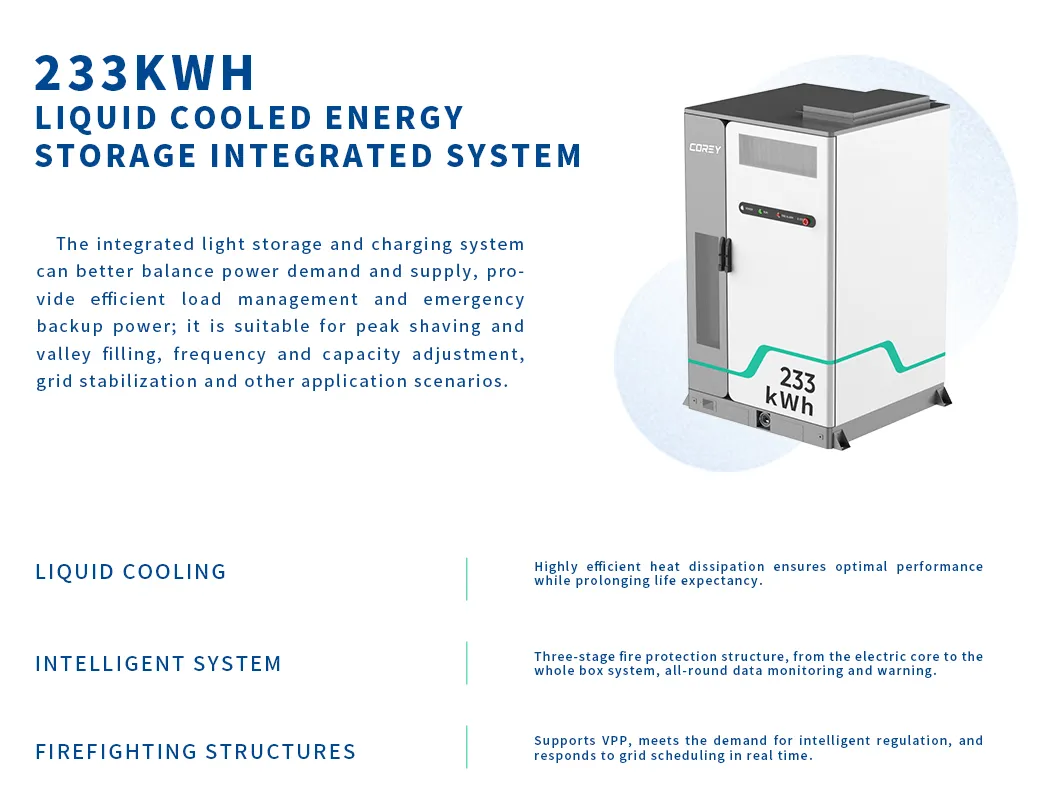

It is primarily designed for factories, commercial properties, microgrids, and remote off-grid locations. It provides load management, peak-shaving capabilities, and reliable emergency backup power during utility outages.
The system charges its battery storage units using lower-cost electricity during off-peak hours (typically overnight). It then discharges this stored energy during peak daytime pricing periods, reducing reliance on expensive grid power.

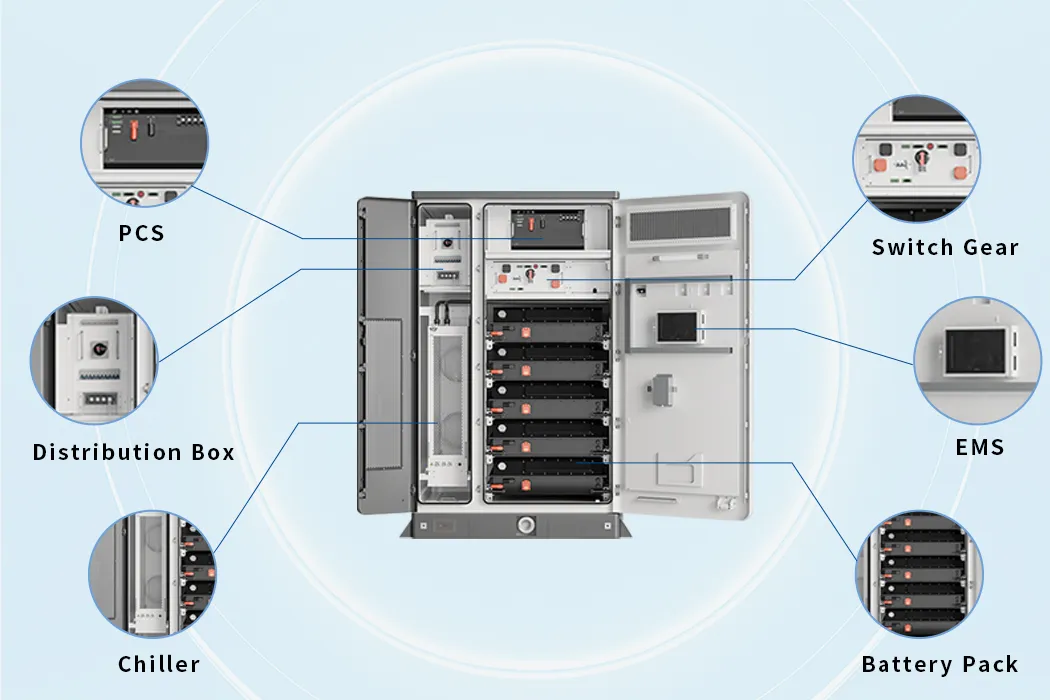

The system utilizes intelligent liquid cooling for optimal temperature control, alongside a multi-tier fire suppression system featuring pack-level/cluster-level aerosols and cabinet-level water protection.
Yes. The system supports automatic on-grid and off-grid switching. The optional configured switching mechanism responds within 20 milliseconds, ensuring uninterrupted operations for key industrial facilities.
The system meets multiple global quality standards, carrying certifications such as CE, CQC, UN38.3, EN 62619, EN 62477, and grid compliance standards including VDE 4105 and EN 50549-2.
The system offers a long cycle life of up to 9000 cycles. It features an IP54 protection level and C4 anti-corrosion rating, ensuring durability for demanding outdoor installations.
