📋 Basic Info.

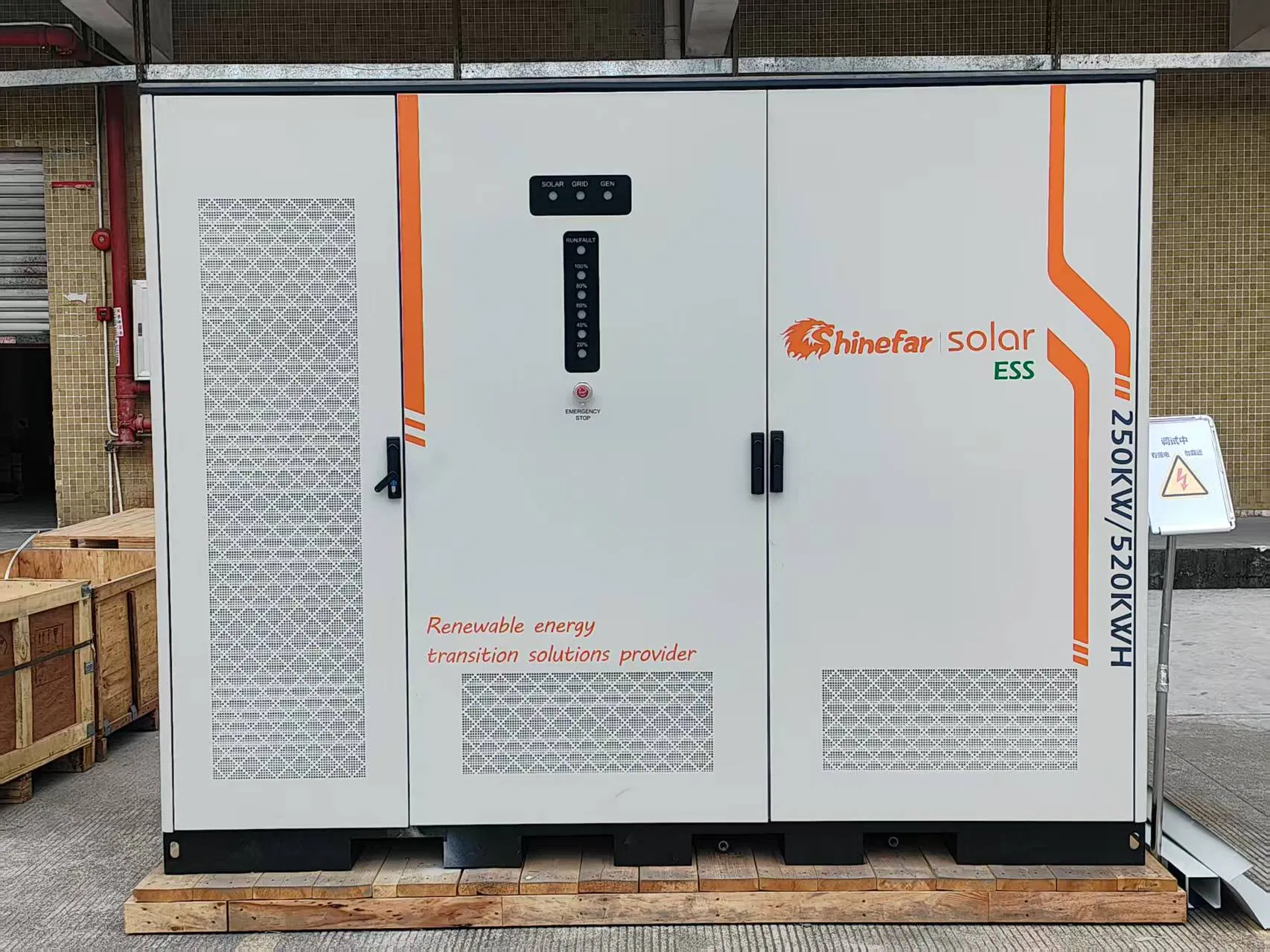

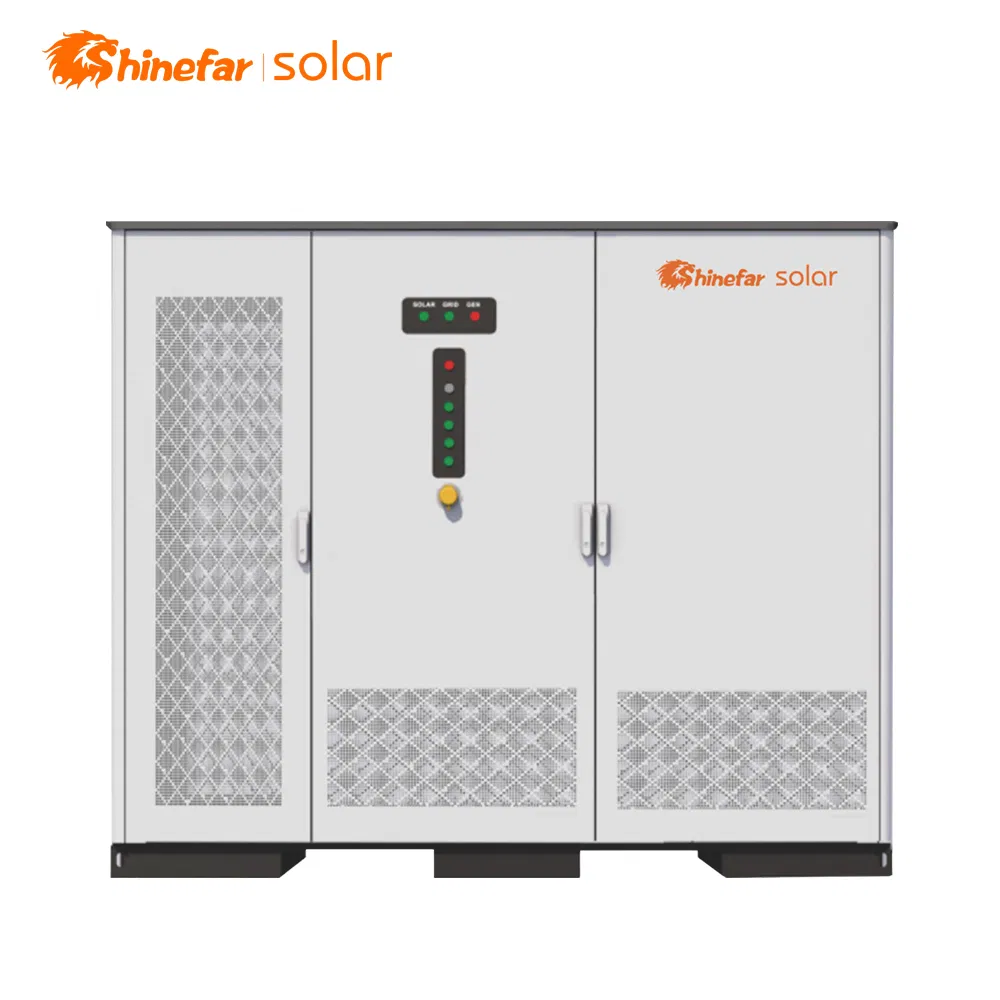

Model NO.ESS-250KW/520KWH
Energy Capacity520kwh
Power Configuration100kW-250kW
Cycle Life6000 Cycles
Cooling MethodFull Liquid Cooling (Temperature Difference ≤3ºC)
Diesel Generator PortYes
Communication TypeRS485/WiFi
IP GradeIP65 (Battery)
Fire Protection SystemYes
Operating Temperature-10ºC - 55ºC
Humidity Range5%~95%
Battery Cooling MethodLiquid Cooling
PCS Cooling MethodIntelligent Cooling
Weight4900kg (About)
Transport PackageCarton Box with Wooden Pallet
Specification2480*1400*2050mm
Production Capacity5000 PCS Per Day
🔌 Product Description
We specialize in manufacturing PERC, N-type TOPCon, and HJT solar panels. We focus on research and development of solar panels, on/off grid systems, and hybrid solar systems. We devote ourselves to providing excellent one-stop solar solutions.

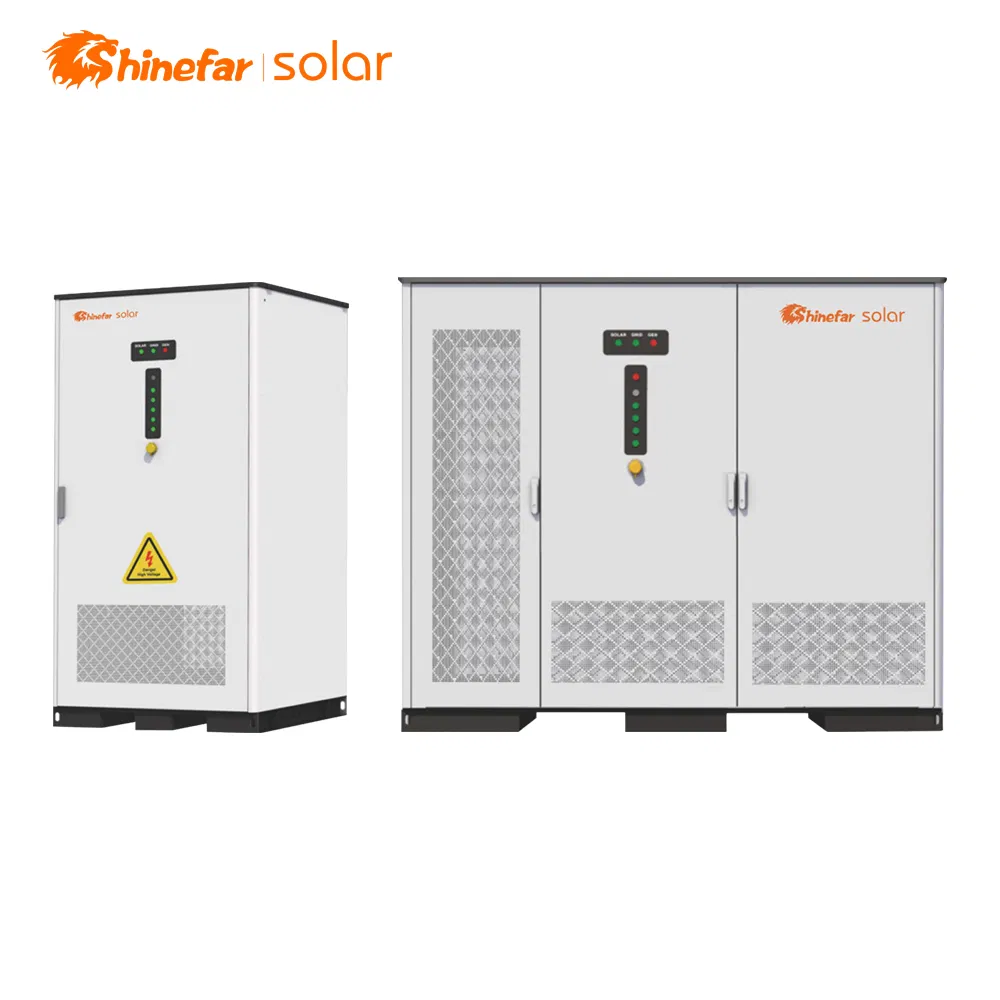

| Module |
ESS-125KW/261KWH |
ESS-250KW/520KWH |

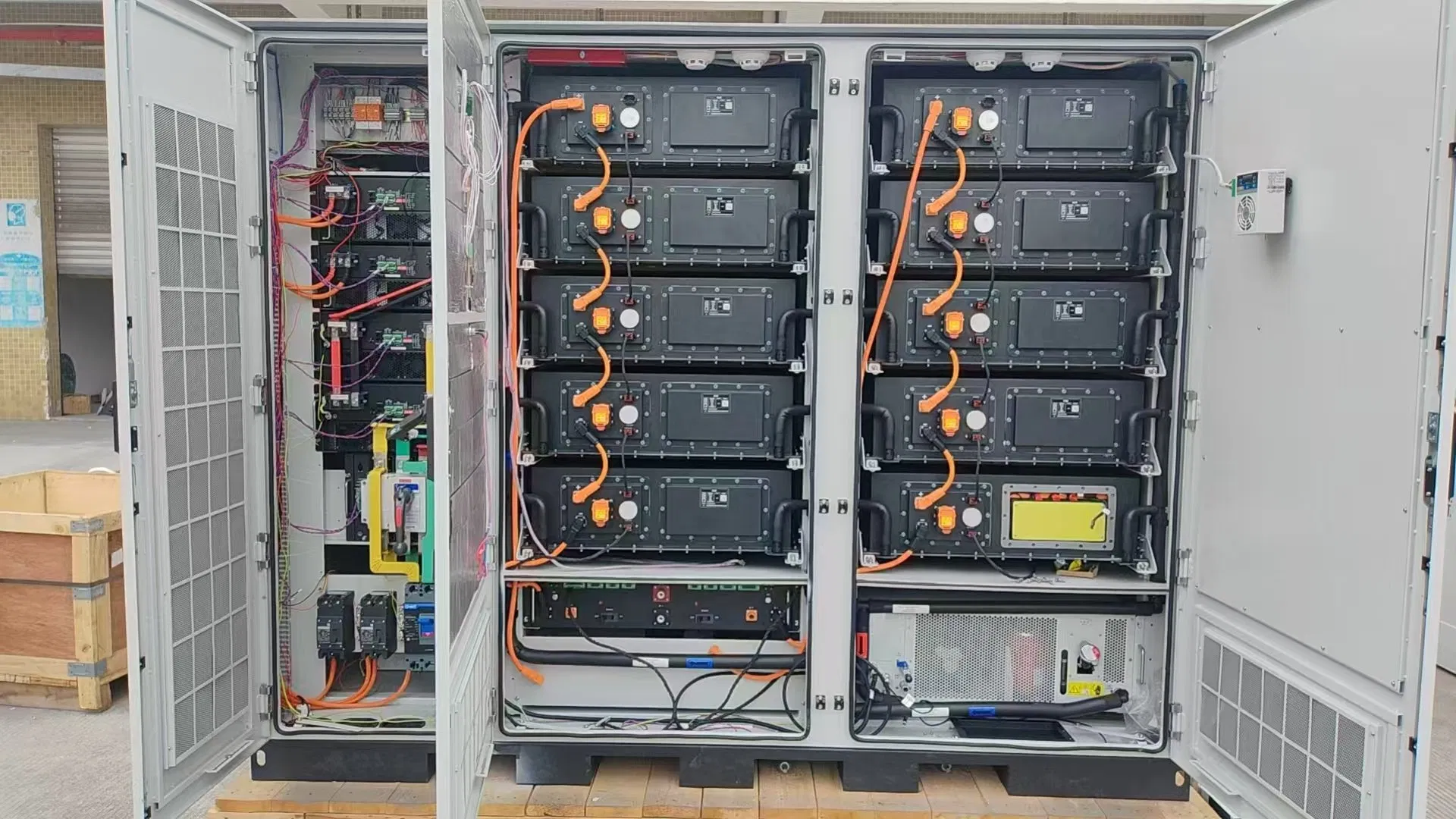

| Battery |
| Battery Type |
LiFePO4 |
| Rated Energy |
261KWh |
520KWh |
| Nominal Voltage |
832V |
832V |
| Rated Capacity |
314Ah |
628Ah |
| PV |
| Max. Power |
120KW |
240KW |
| Max. PV Voltage |
950Vdc |
| MPPT Voltage Range |
250-950Vdc |
| Max. PV Current |
200A |
200A*2 |
| MPPT Channels |
1 |
2 |
| AC (On Grid) |
| Rated Power |
125KW |
250KW |
| AC Voltage |
3/N/PE, 230/400V |
| Rated Frequency |
50Hz/60Hz |
| Max. AC Current |
180A |
375A |
| AC (Off Grid) |
| Rated Power |
125KW |
250KW |
| AC Voltage |
3/N/PE, 230/400V |
| Rated Frequency |
50Hz/60Hz |
| Max. AC Current |
180A |
375A |
| Switching Time |
<10ms |
| Parallel Number |
10 |
6 |
| General Data |
| Diesel Generator Port |
Yes |
| Communication Type |
RS485/WiFi |
| IP Grade |
IP54 |
IP65 (Battery) |
| Fire Protection System |
Yes |
| Operating Temperature |
-10ºC ~ 55ºC |
| Humidity Range |
5%~95% |
| Altitude |
<2000m |
| Battery Cooling Method |
Air Cooling |
Liquid Cooling |
| PCS Cooling Method |
Intelligent Cooling |
| Size |
1190*1170*2260mm |
2480*1400*2050mm |
| Weight |
2600kg (about) |
4900kg (about) |
🌍 Global Layout
With a solid global presence, we have been shipping products to Europe, Latin America, North Africa, and Southeast Asia. To better serve our international customers, we have established seven overseas branches and service centers in Germany, Spain, Poland, Finland, Thailand, Brazil, and the UK. Furthermore, our European manufacturing base in Spain is currently under construction and is scheduled to commence production in 2026.

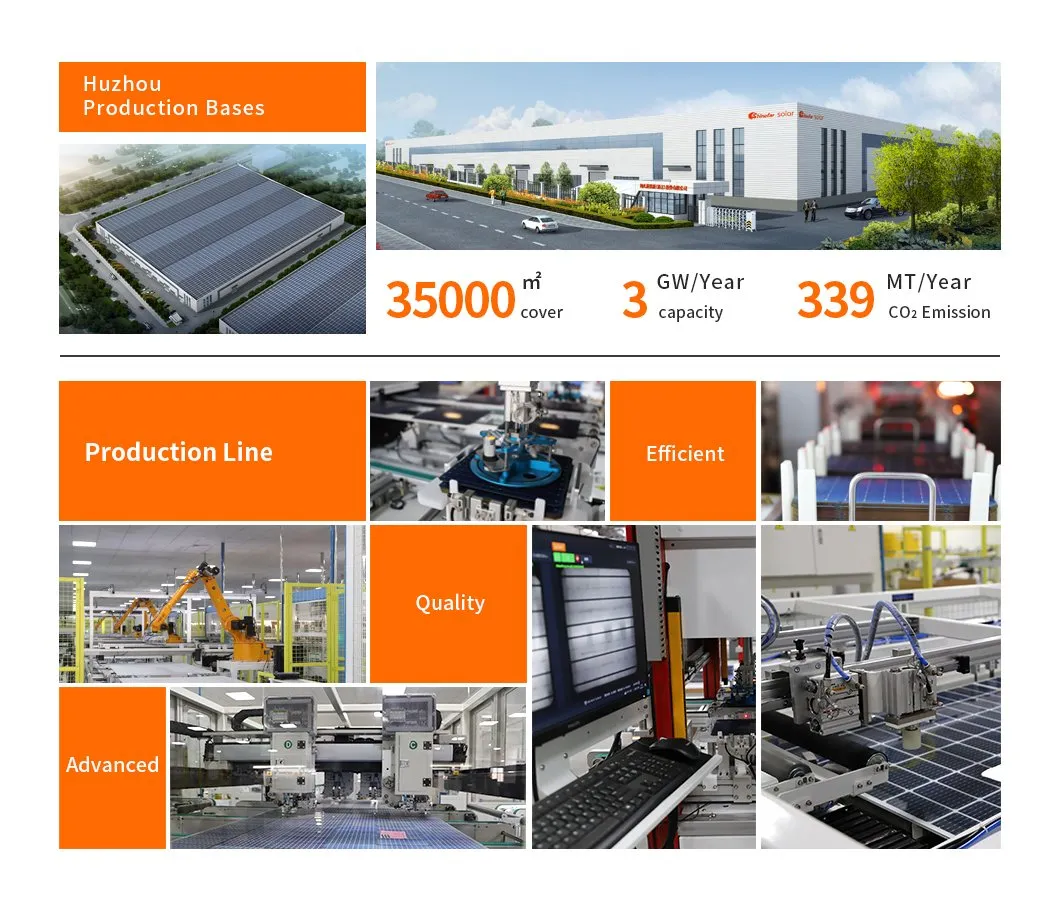

🏭 Our Factory
Our advanced production facilities span over 35,000 m² with an annual production capacity of 3GW. The factory currently operates 3 fully automated production lines. Each panel undergoes five rigorous quality tests, checking layer by layer before reaching the customer.

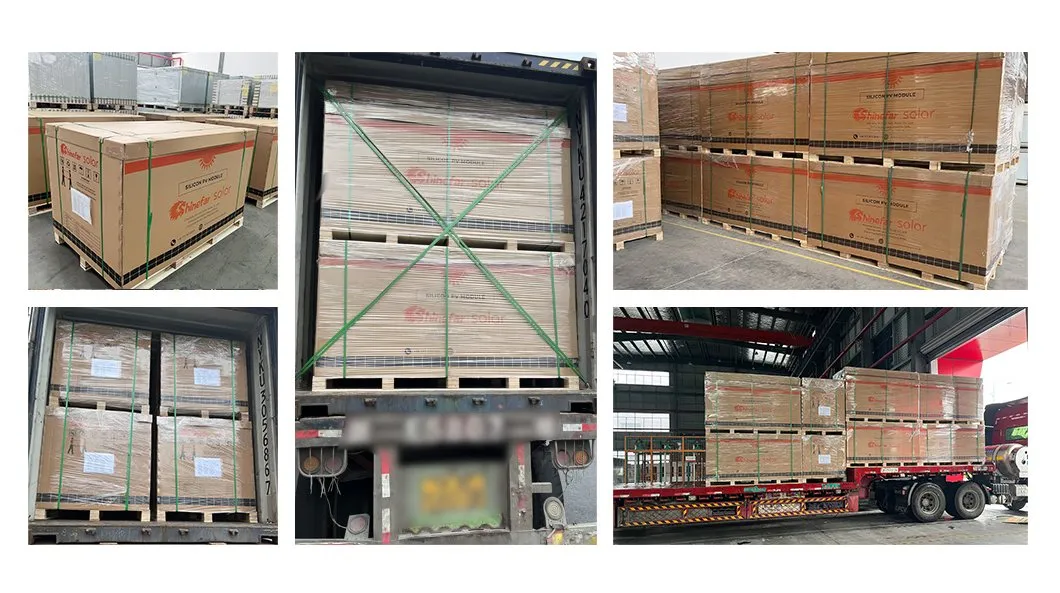

🚚 Packaging & Shipping
Discover Our Solar Panel Packaging Solutions:
1. Standard Packaging: 31 pcs/pallet or 37 pcs/pallet. Efficiency meets practicality with our standard packaging.
2. Special Packaging: 1 pc/carton or 2 pcs/carton. This bespoke approach caters to your specific order sizes and ensures your solar panels arrive in pristine condition.

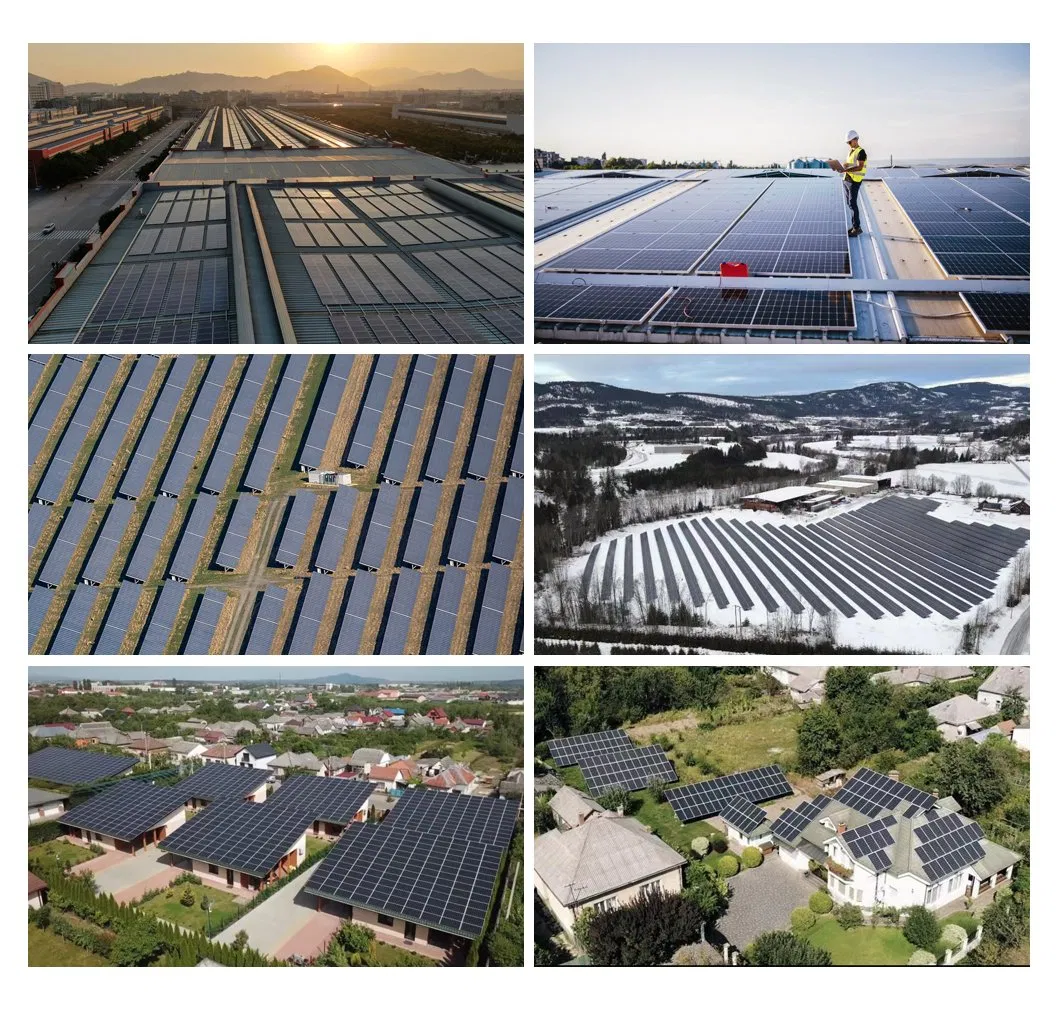

💼 Project Case
With a global presence that extends to Brazil, Morocco, Ukraine, Vietnam, and beyond, we are proud to be at the forefront of solar innovation. Our footprint in these diverse regions underscores our commitment to sustainable energy solutions. Through photovoltaic projects that harness the sun's brilliance, we're shaping a greener, cleaner future for the world.
🎖 Certifications
According to the needs of different markets, we have full certifications:
ISO 9001; ISO 14001; ISO 18001; TUV; CE; ROHS; IEC; PID; DEWA; CB; RETIE; INMETRO; Ammonia 62716; Salt Mist Corrosion 61710; SGS-CPVT Extreme Testing; SGS-Statement.
❓ Frequently Asked Questions
Q
What are the key technical differences between the 261KWh and 520KWh energy storage systems?
The main differences lie in battery capacity, dimensions, and cooling methods. The 261KWh model has a rated capacity of 314Ah, uses air cooling for the battery, and weighs about 2600kg. The 520KWh model has a rated capacity of 628Ah, utilizes liquid cooling, and weighs approximately 4900kg.
Q
How does the liquid cooling system work in the energy storage system?
The 520KWh model uses a full liquid cooling method that maintains a strict temperature difference of ≤3ºC. This guarantees optimal performance, enhances system safety, and extends the overall battery lifespan.
Q
Is this energy storage solution compatible with solar installations?
Yes, the systems support PV input with maximum PV power of up to 120KW for the 261KWh version and 240KW for the 520KWh version. They operate with an MPPT voltage range of 250-950Vdc.
Q
What is the transition time when switching from on-grid to off-grid mode?
The system features a rapid grid switching time of less than 10 milliseconds, ensuring continuous power supply for critical commercial and industrial loads.
Q
What standard certifications do your products comply with?
Our systems are certified according to global requirements, including ISO 9001, ISO 14001, ISO 18001, TUV, CE, ROHS, IEC, PID, DEWA, CB, RETIE, INMETRO, Ammonia 62716, and Salt Mist Corrosion 61710 standards.
