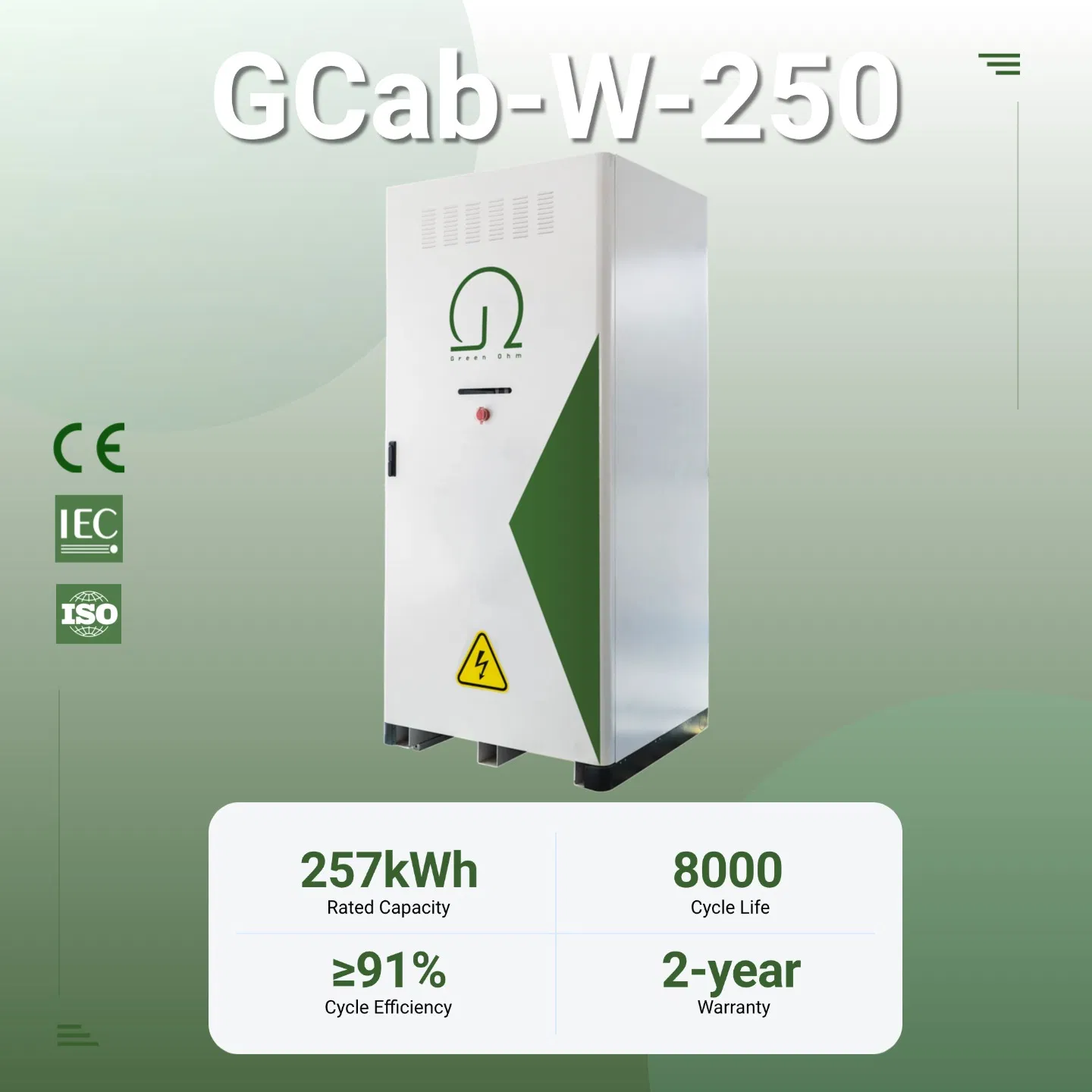

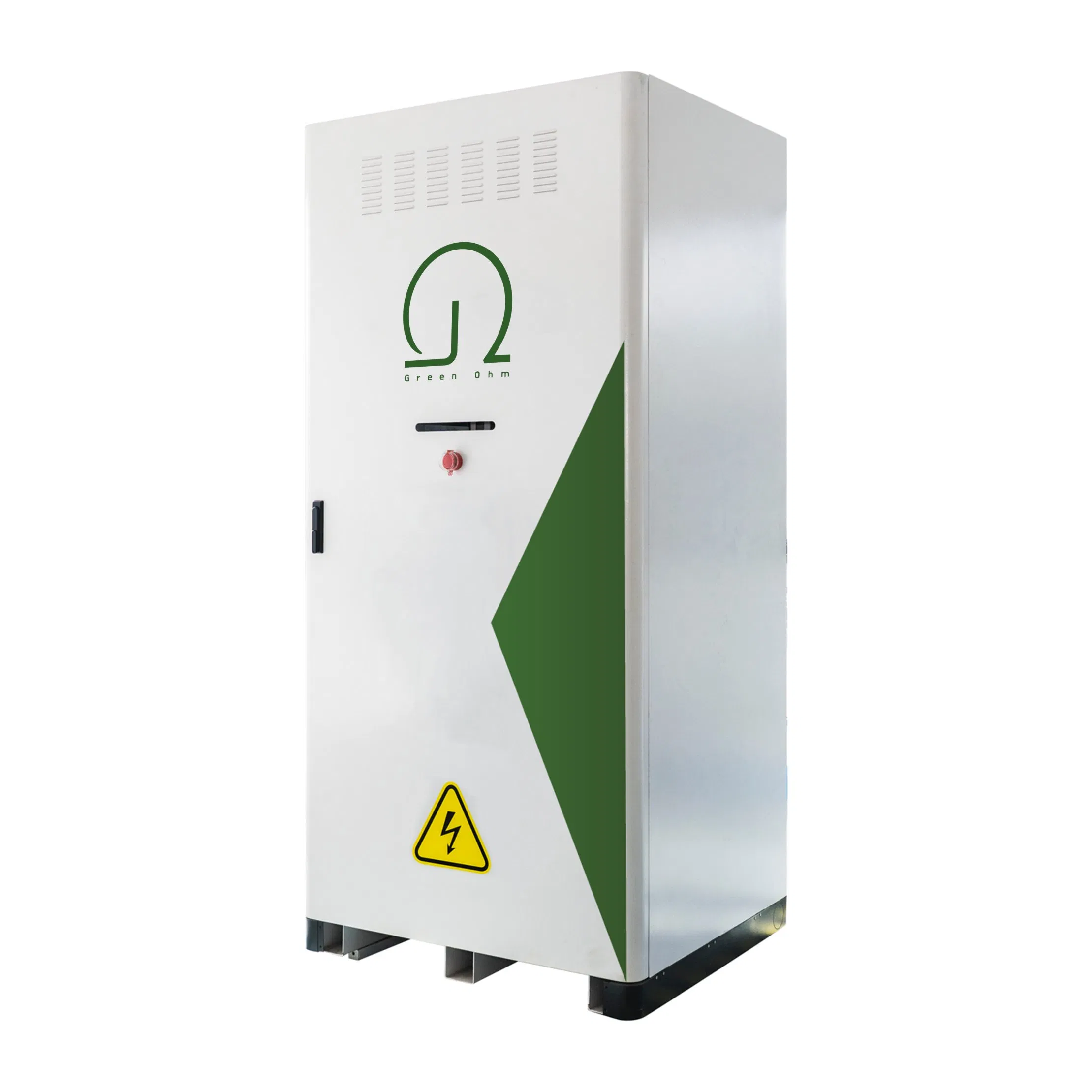

| Model | GCab-W-200 | GCab-W-250 | GCab-W-800 |
| Basic Electrical Parameters | |||
| Rated Capacity | 225kwh | 257kwh | 836kwh |
| Rated Charge/ Discharge Power | 1100kw/110kw | 125kw/125kw | 418kw/418kw |
| Voltage Range ( VDC) | 710-1500 | 810-1500 | 1123-1500 |
| Depth Of Discharge (DoD) | 95% | ||
| Round-trip Efficiency | ≥ 91% | ||
| Mechanical & Structural Parameters | |||
| Dimensions (WxDxH) | 1200X1100X2700mm | 1200X1100X2700mm | 1550X2430X2900mm |
| Weight | 2500KG | 2650KG | 10500KG |
| Protecting Method | IP54+1K10 | ||

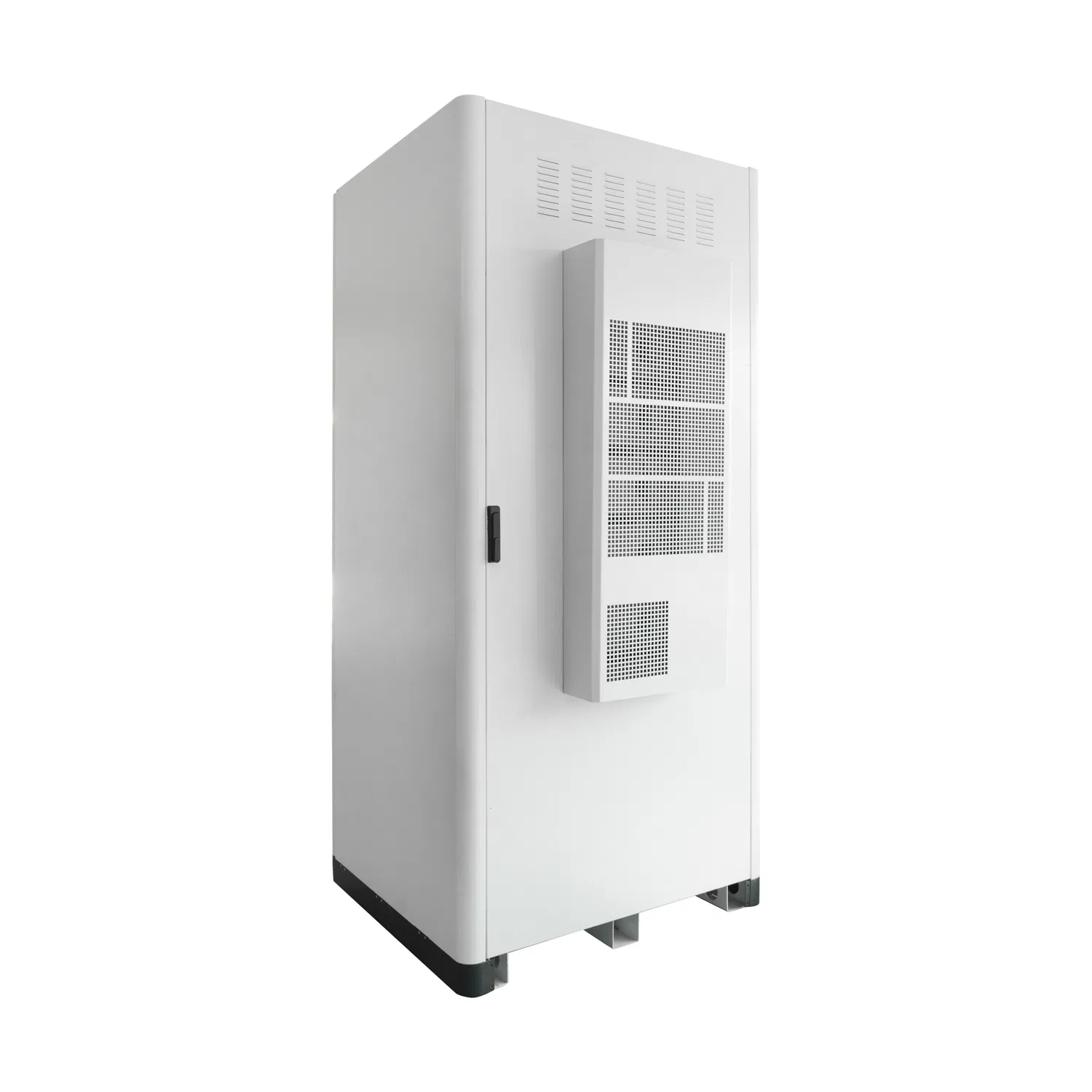

| Cooling Method | Forced air cooling | ||
| Battery System Characteristics | |||
| Battery Type | LFP (Lithium Iron Phosphate) | ||
| Cycle Life | 8000 cycles | ||
| Service Life | 15 years | ||
| Operating Temperature Range | Charging : 0-50°C | Discharging : -20--- 50°C | ||
| Power Converstation System | |||
| Self-discharge Rate | ≤ 3% Per Month | ||
| PCS Topology | Bidirectional energy storage converter + MPPT | ||
| Grid-tied Characteristics | Voltage ± 10% ,Frequency ± 2.5% | ||
| Off-grid Switching Time | ≤ 10 ms | ||
| THDi | ≤ 3% | ||
| Intelligent Management System | |||
| EMS Functions | Peak-valley arbitrage control,demand management, VPP interface, SOC balancing algorithim | ||
| Communication Protocols | Standard Modbus TCP/RTU, ICE 61850, CAN2.0B | ||
