High Voltage off Grid Commercial Industrial Cabinet 215kwh 372kwh Ess Container Battery System Bess Solar Energy Storage

Customization: Available
Container Size: 2700*2900*1900mm
Weight: 4.5t

Product Description

  • Overview
  • Product Parameters
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
Basic Info.
Model NO.PLPF0280C0-1331R2A
Nominal Voltage1331.2
Warranty2y
Nominal Capacity373
Battery Type302V/280ah
Rated Output Power2200kVA
Rated Grid Voltage690V
Operating Temperature-30℃— 60℃
Transport PackageContainer
Specification2300*2500*1400mm
TrademarkPlannano
OriginChina
Product Parameters
Product model PLPF0280C0-1331R2A
Battery parameter 1p416s
Cell type 3.2V/280Ah
Cell life ≥6000@100%DOD,80%EOL
Rated battery capacity 373kWh
AC parameters
Rated output power 110kW
AC output power 184A
Rated grid voltage 690V
Grid voltage range ±15%
Rated grid frequency 50Hz/60Hz
Grid frequency range ±2.5Hz
Grid connected power factor -1(leading)~1(lagging)
Total distortion rate of current harmonics THDI <=3(at rated power)
Isolation mode Transformer Isolation(optional)
AC off grid voltage 400V
Adjustable range of AC voltage ±10%
AC off grid frequency 50Hz/60Hz
Off grid output THDu ≤2% ( Linear Load )
System parameter
Product Size (width x height x depth) 2300X 2500X 1400
Humidity range 0~95%(No condensation)
Operating temperature range - 30~ 60ºC (>40ºC derating)
Converter cooling method air/Liquid Cooled
fire extinguishing system Aerosol/Perfluorocopper (optional)
Maximum altitude 4000m
display Touch Screen
Communication protocol ModBus -TCP/ModBus -RTU/IEC104

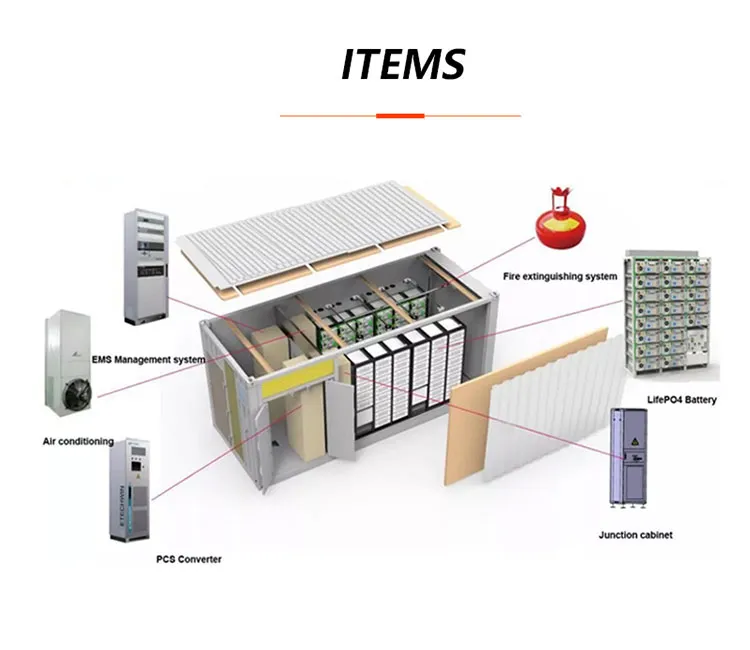

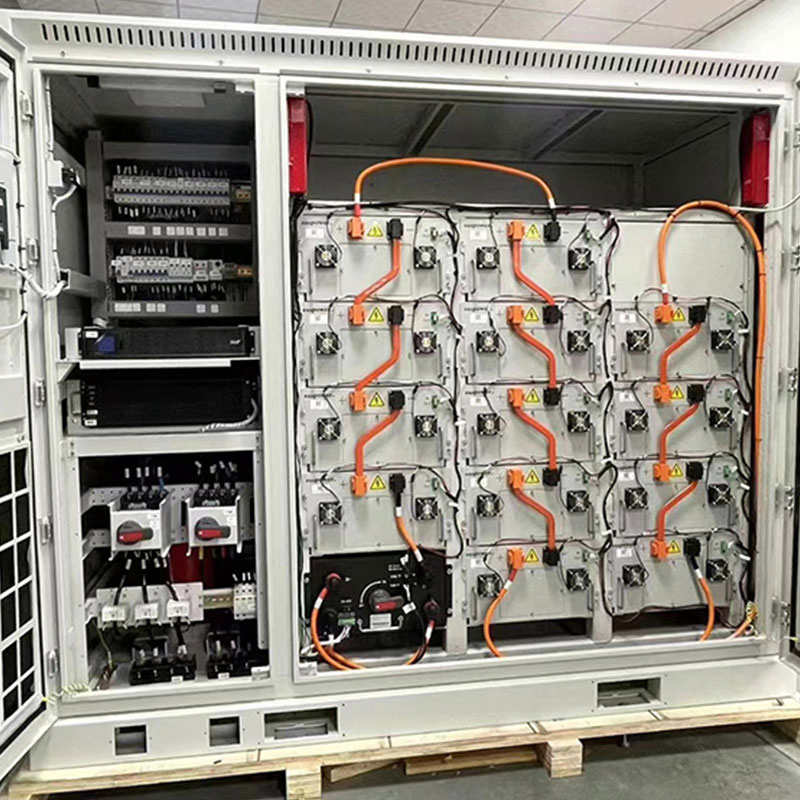

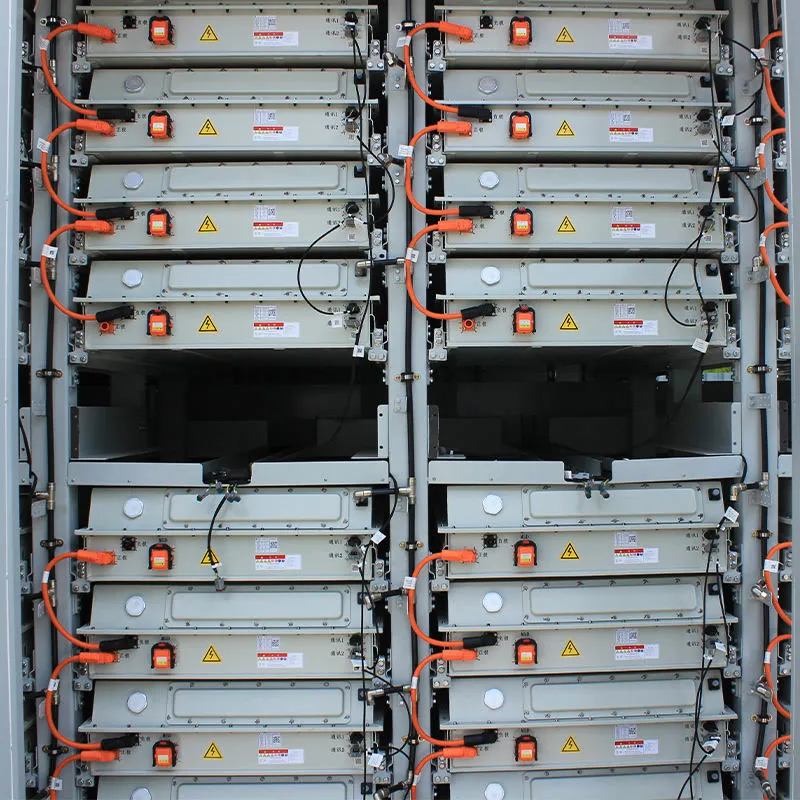

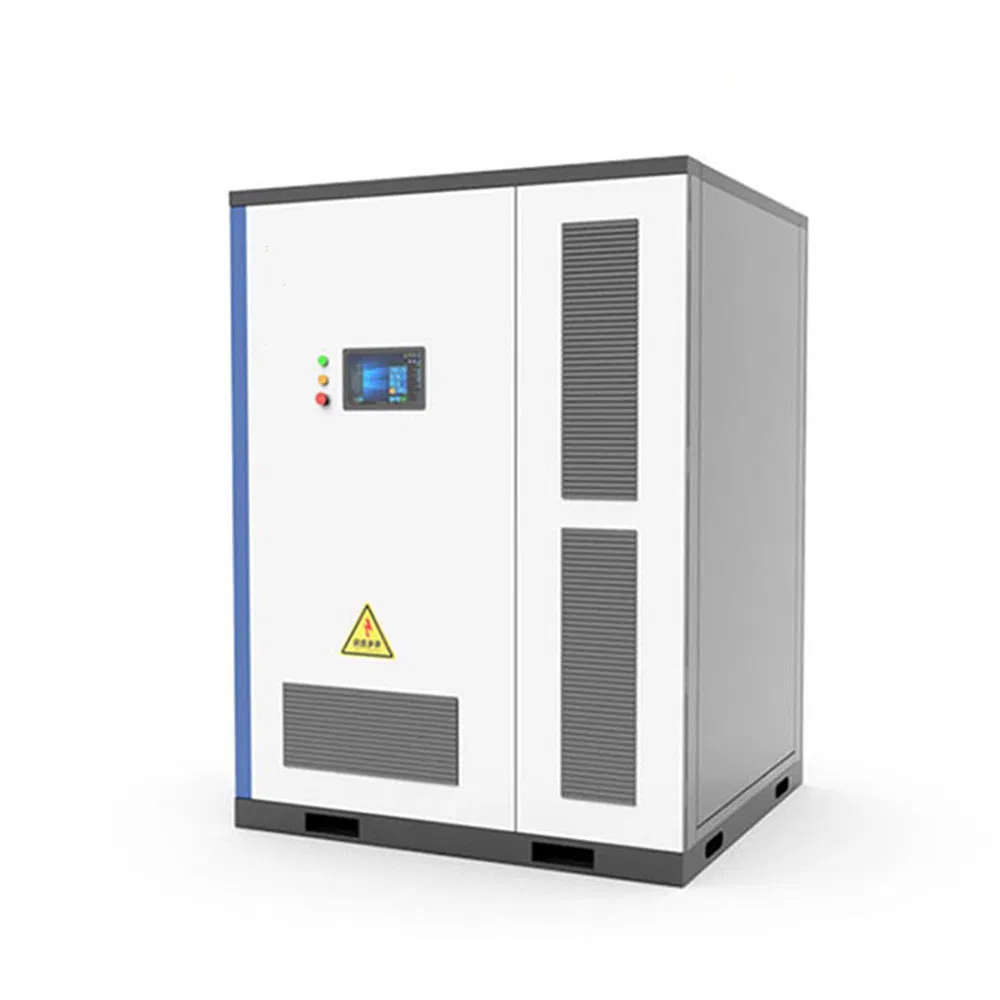

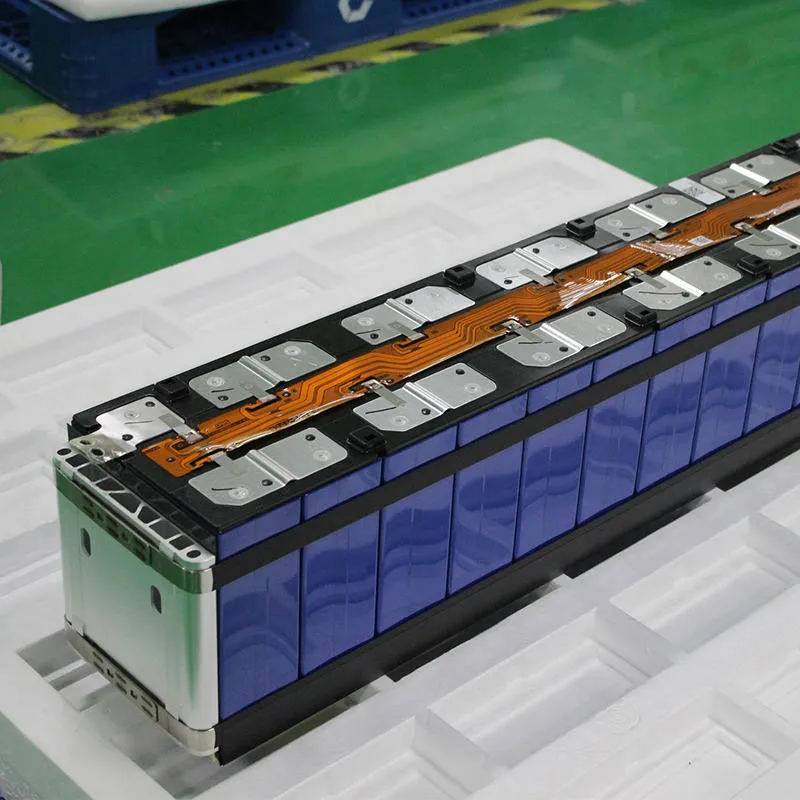

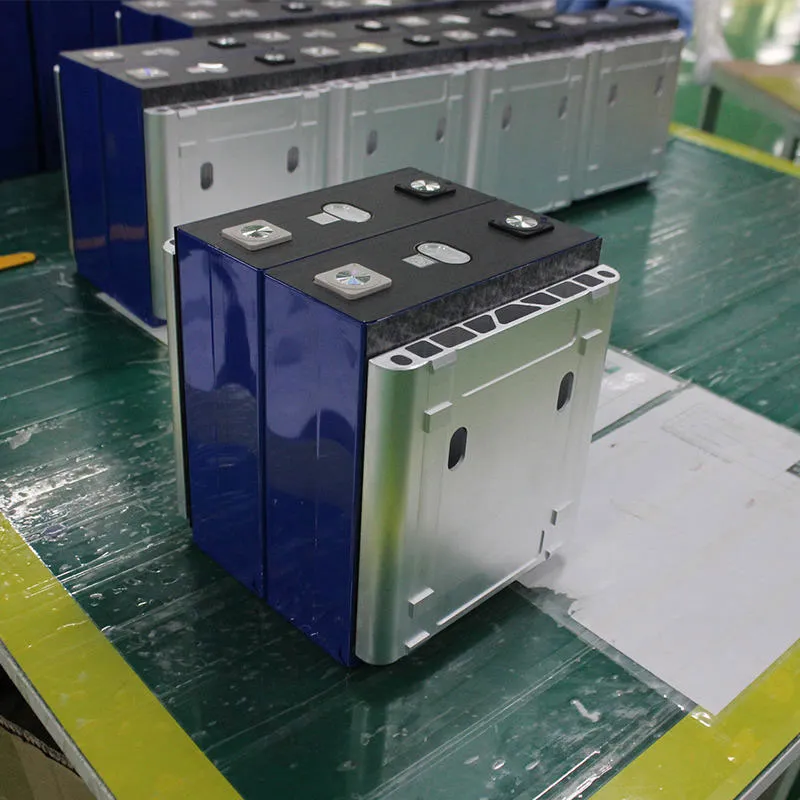

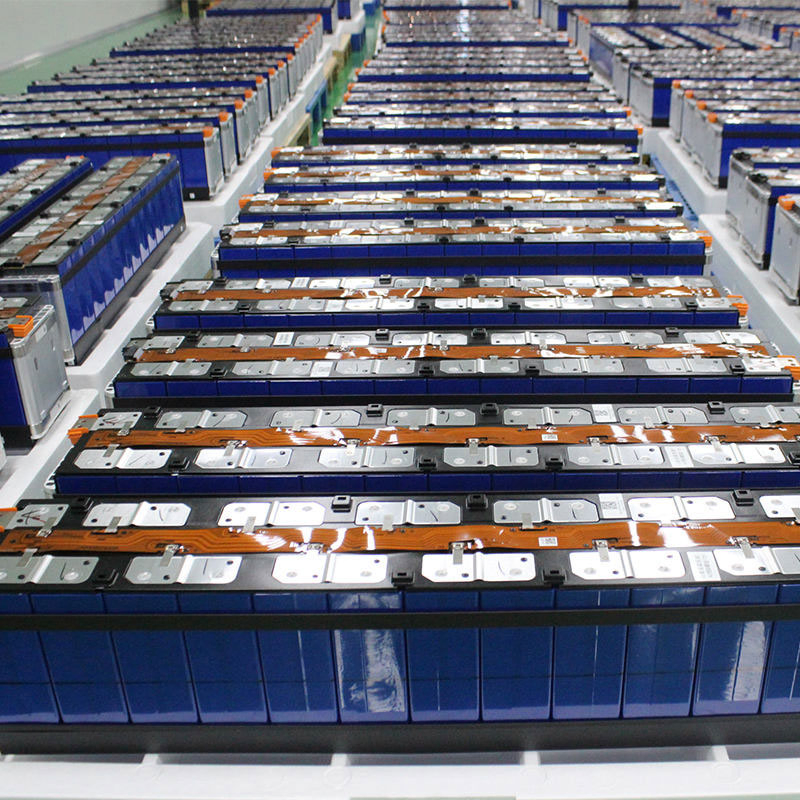

Detailed Photos

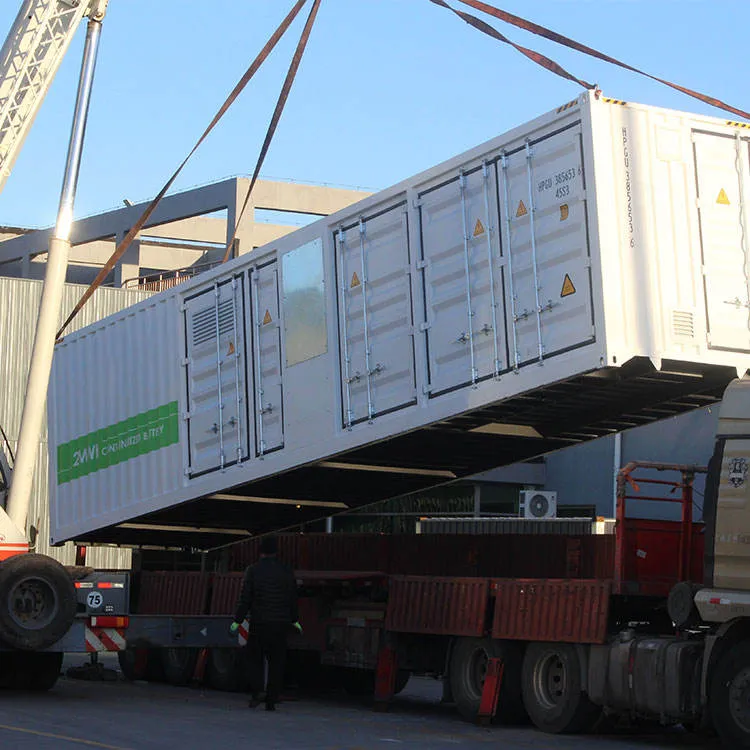

Packaging & Shipping

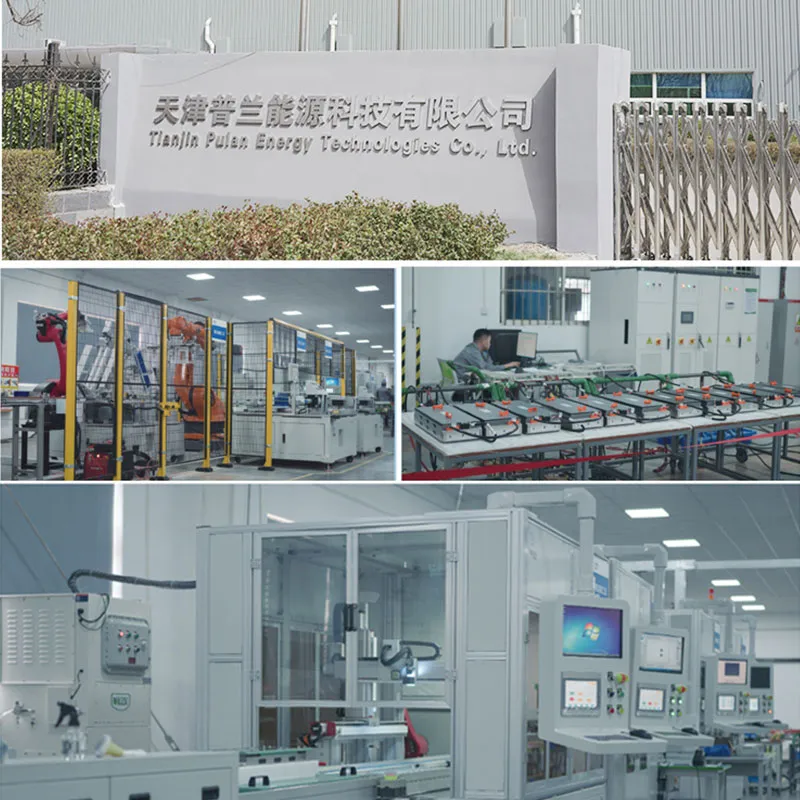

Company Profile
Focuses on the research and development, manufacturing, marketing and technical service of graphene-based materials and their applications in clean energy. Based on excellent technical service and support, the company is aimed to supply a complete solution to green-energy storage and products in power system for the clients.
Together with joint research labs, the company owns high-standard test instruments, and a top-class technical and management team.

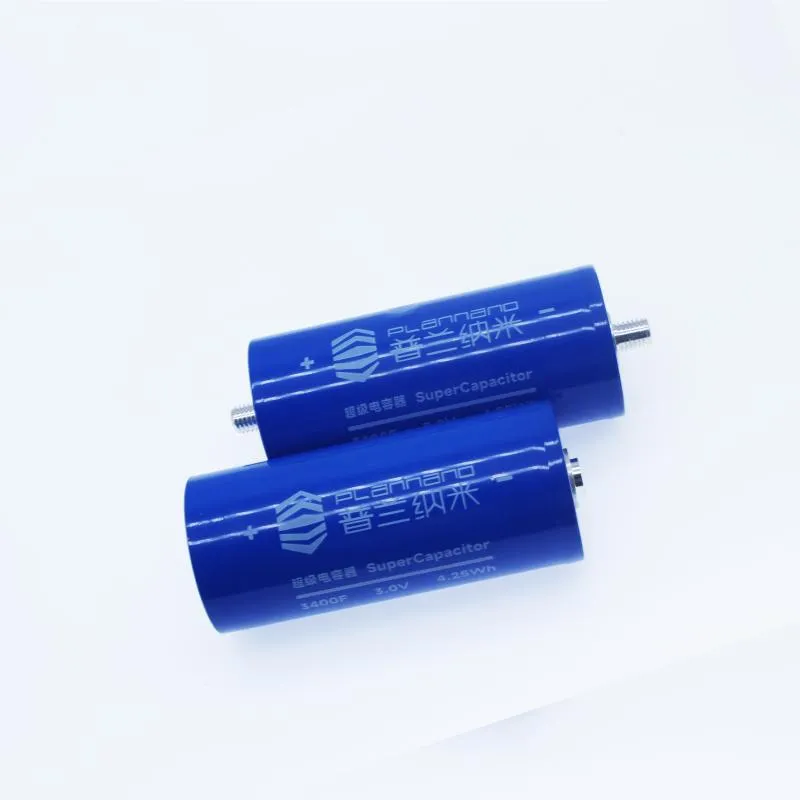

With more than 50 patents in preparation and application of graphene-based material, the building of the production lines for the material and products has been completed. The team has successfully developed and mass-produced such products as graphene, LTO, Si/C material, super capacitor cells ranging from 0.1F to 3000F, 16V500F/48V165F super capacitor modules, LTO battery cells and modules ranging from 20Ah to 500Ah. The main products can be widely applied to new-energy vehicles, rail transportation, smart grid, micro grid, engineering machinery, industrial energy-saving and other fields.
The company always does its utmost to make the clients satisfied and treats credibility and integrity as its foundation. Based on the newest achievements in science and technologies, the focus is aimed to manufacture the most advanced clean-energy products with high quality and supply the most reliable solutions to energy-related systems. Taking social responsibility, efforts are on the way to making contributions to the development of the world green energy industry.
Frequently Asked Questions (FAQ)
1. What is the nominal capacity and lifecycle of the battery system?
The battery system has a rated battery capacity of 373kWh, with a cell lifecycle of ≥6000 cycles at 100% Depth of Discharge (DOD) up to 80% End of Life (EOL).
2. What are the key AC input and output parameters?
The system features a rated output power of 110kW, an AC output power of 184A, and operates at a rated grid voltage of 690V with a grid frequency of 50Hz/60Hz.
3. What cooling and fire safety technologies are integrated?
The converter uses either air or liquid cooling systems, while fire safety is maintained using optional Aerosol or Perfluorocopper fire extinguishing systems.
4. Under what environmental conditions can this energy storage system operate?
It operates within a temperature range of -30ºC to 60ºC (with derating above 40ºC), handles humidity levels from 0 to 95% (non-condensing), and can be installed up to a maximum altitude of 4000 meters.
5. Which communication protocols are supported by the display and monitoring system?
The system features a touch screen display interface and supports ModBus-TCP, ModBus-RTU, and IEC104 communication protocols.
