Storage 105kw 215kwh 215A Ess High Voltage Commercial Industrial Cabinet Battery Container 105kw System Bess Solar Energy

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Info
Model NO.
OEM
Nominal Voltage
648-864V / 768V
Warranty
5 Year
Nominal Capacity
215kWh
Cycle Life
8000 Cycles
Maximum Input Power
156kw
Maximum Input Voltage
1100V
MPPT Voltage Range
180-850V / 550V
Start Voltage
195V
Max Short Circuit Current
2X32A / 2X40A
MPPT Quantity
10
Cell Specification
LFP 3.2V / 280Ah
Battery Rack Configuration
1p240s
Rated Power
100kw
Allowable Grid Voltage
400V (-15% ~ +15%)
Way of Connection
3p + N + PE
Allowable Grid Frequency
50/60Hz (45-55Hz / 55-65Hz)
Maximum Current Output
166.7A
Off-Grid Switching Time
<20ms
Origin
China
Packaging & Delivery
Package Size
155.00cm * 130.00cm * 230.00cm
Package Gross Weight
2500.000kg
Product Description

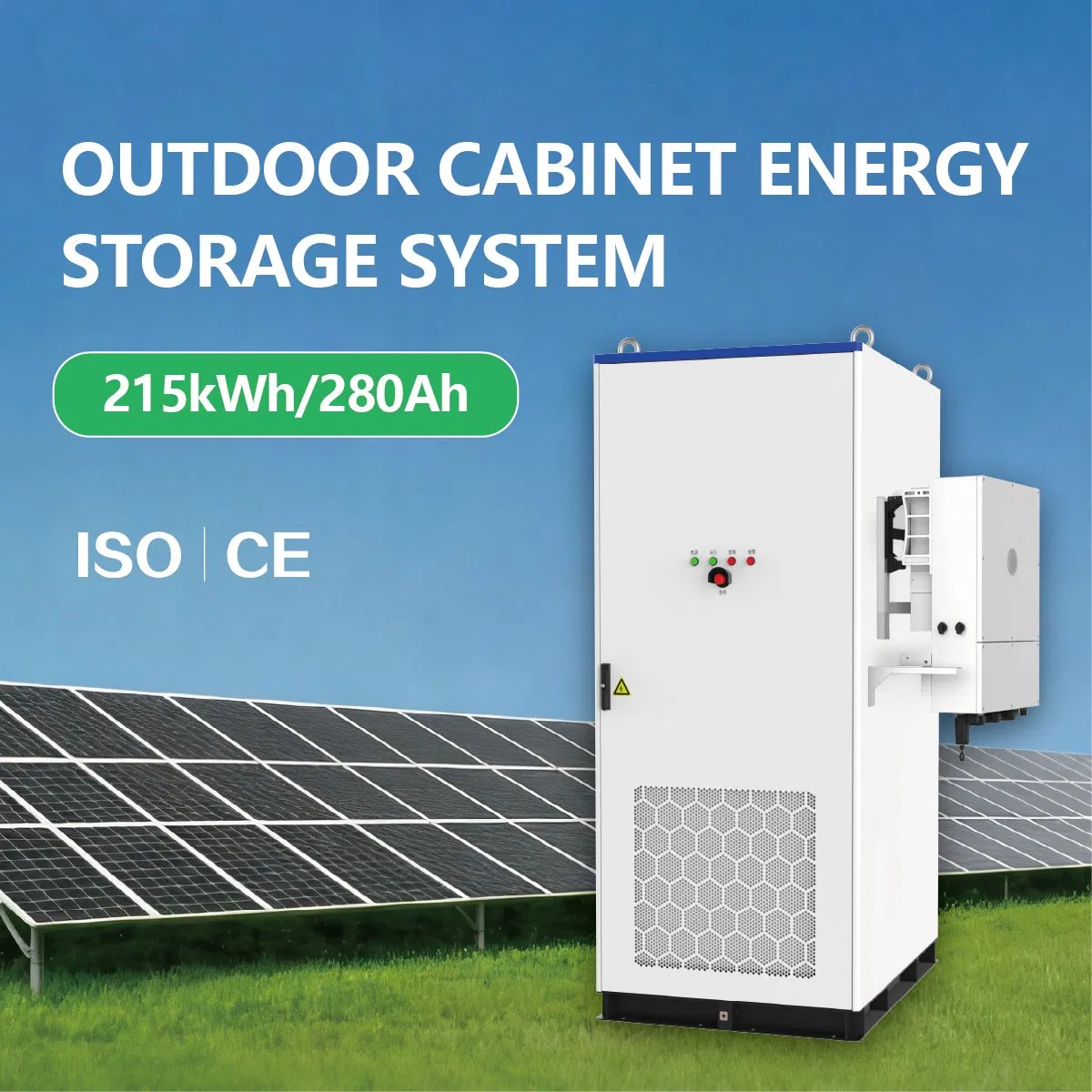

Energy Storage System Container

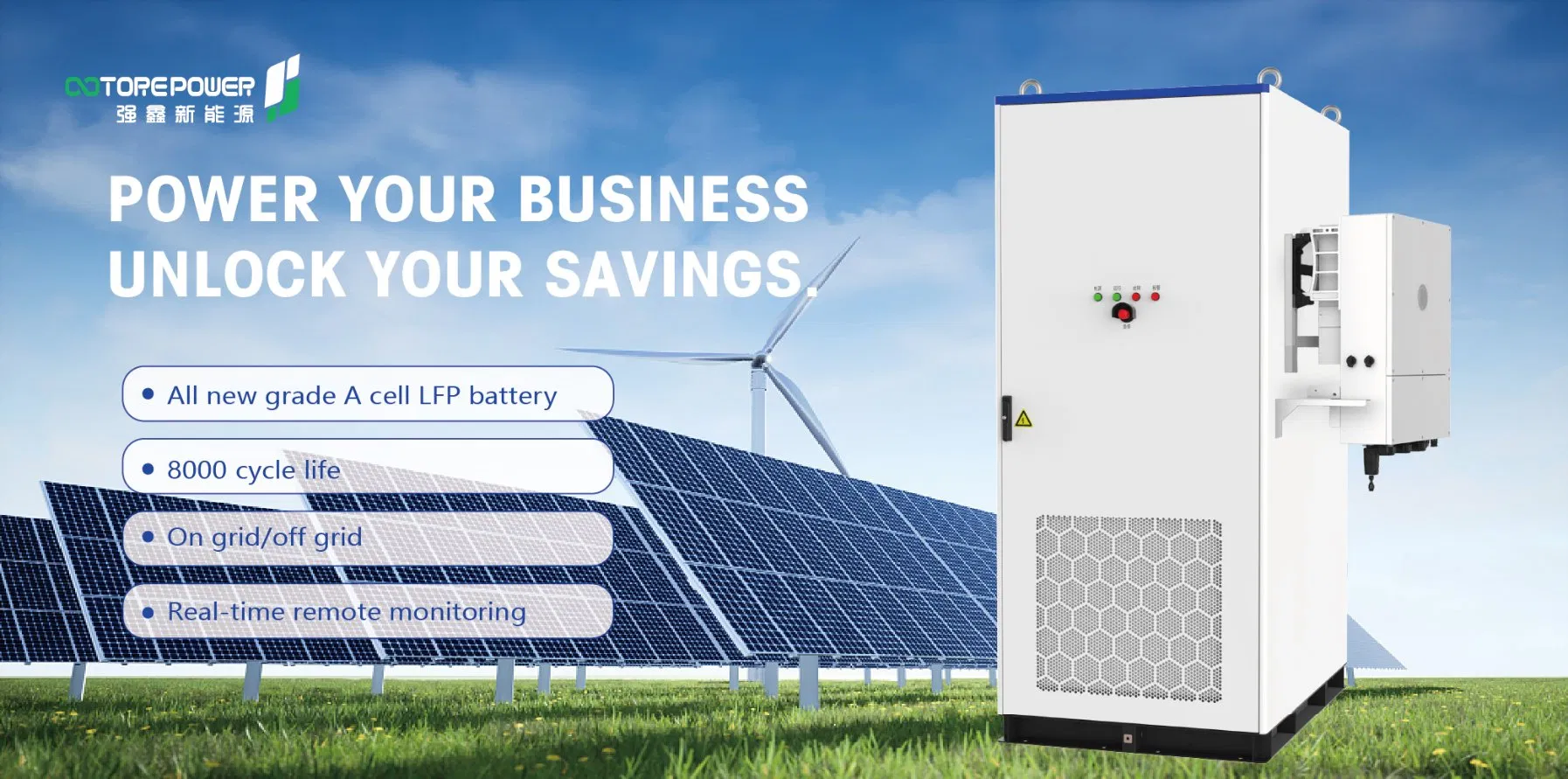

Industrial Cabinet Battery Container

If you are looking for a professional energy storage system overall solution provider in China, we are your ideal choice. We provide highly stable electrical connections and fully automated turnkey projects for energy storage system integration, helping customers achieve safer, more efficient, and smarter energy storage deployment and management.

Bringing customers improved system reliability, optimized lifecycle costs, rapid deployment, and intelligent operation and maintenance support.

Are you planning an Energy Storage System project?
Get industry-specific solutions today:
  • Free Energy Storage System project layout design
  • Appointment for factory inspection / video inspection
  • Submit requirements and obtain preliminary solutions within 24 hours
Why Choose Our Energy Storage System Solution?
  1. We have established a stable and efficient collaboration mechanism with local power companies by using localized cooperation as the cornerstone of our services.
  2. During the on-site installation process, we dispatch an experienced team of professional engineers to strictly follow standardized operating procedures.
  3. In order to maximize your investment benefits, we promise to provide a 48-hour after-sales response service.
  4. We attach great importance to the transmission of knowledge and provide comprehensive training that combines on-site and online training.
Project Parameter
IP Rating IP54 (Pack: IP67)

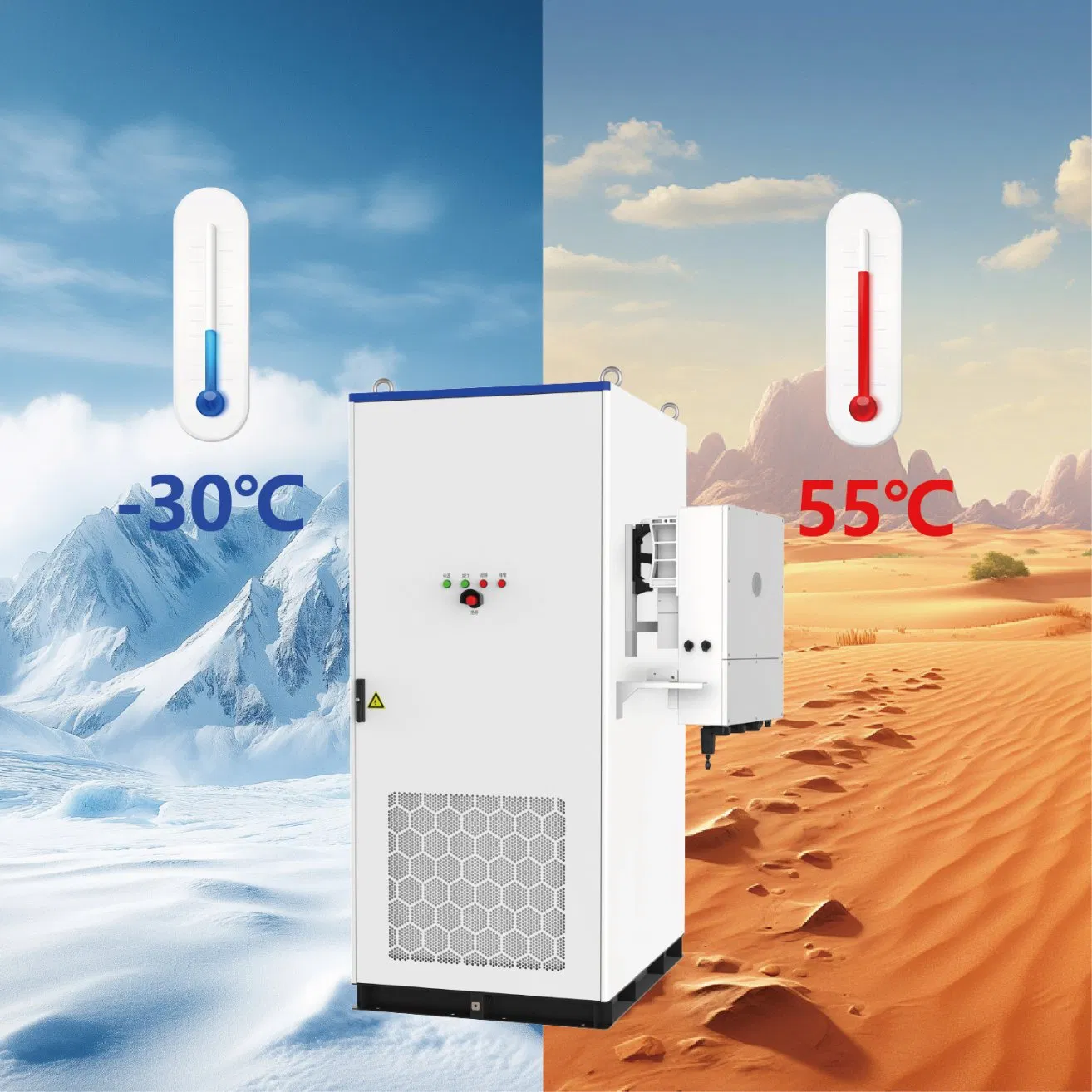

Environmental Temperature -30 ~ 55°C
Environment Humidity ≤95% RH (non-condensing)
Cooling Method Liquid cooling
Fire Safety Configuration Aerosol
Communication Interface Ethernet / CAN / RS485
Maximum Working Altitude 2000m
Compliant with Standards GB/T 34120, GB/T 36276, UN38.3
Product Details
Detail Image 1 Detail Image 2

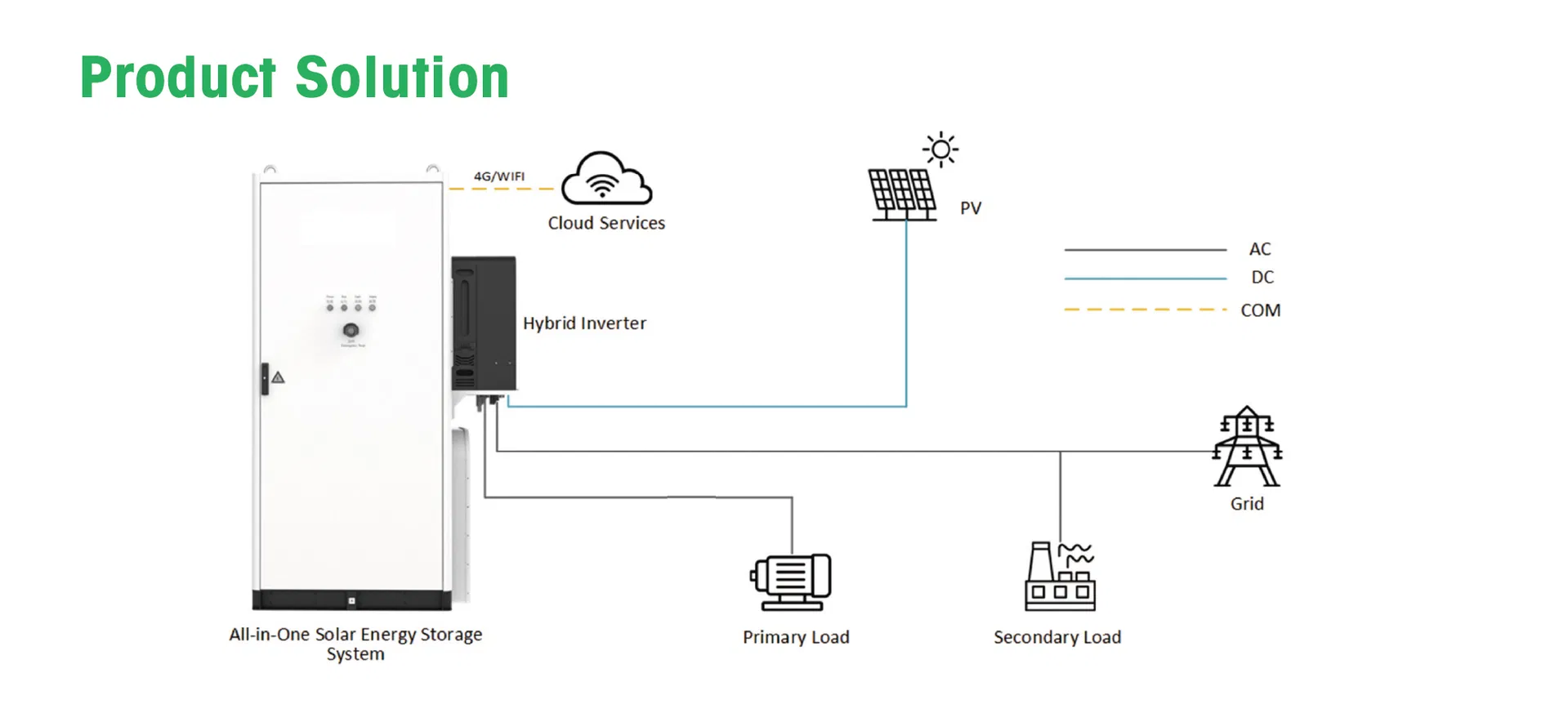

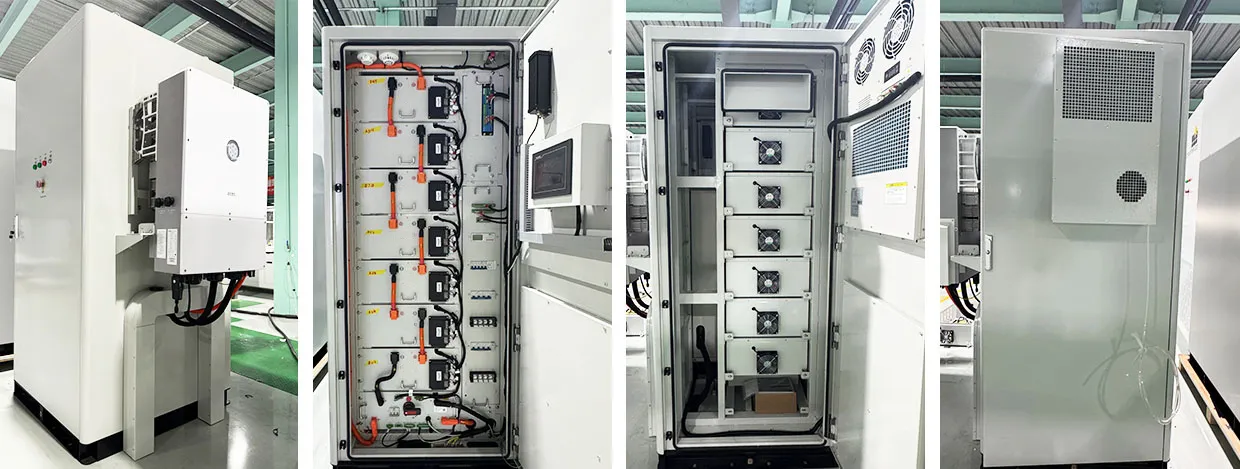

Detail Image 3 Detail Image 4
Company Profile

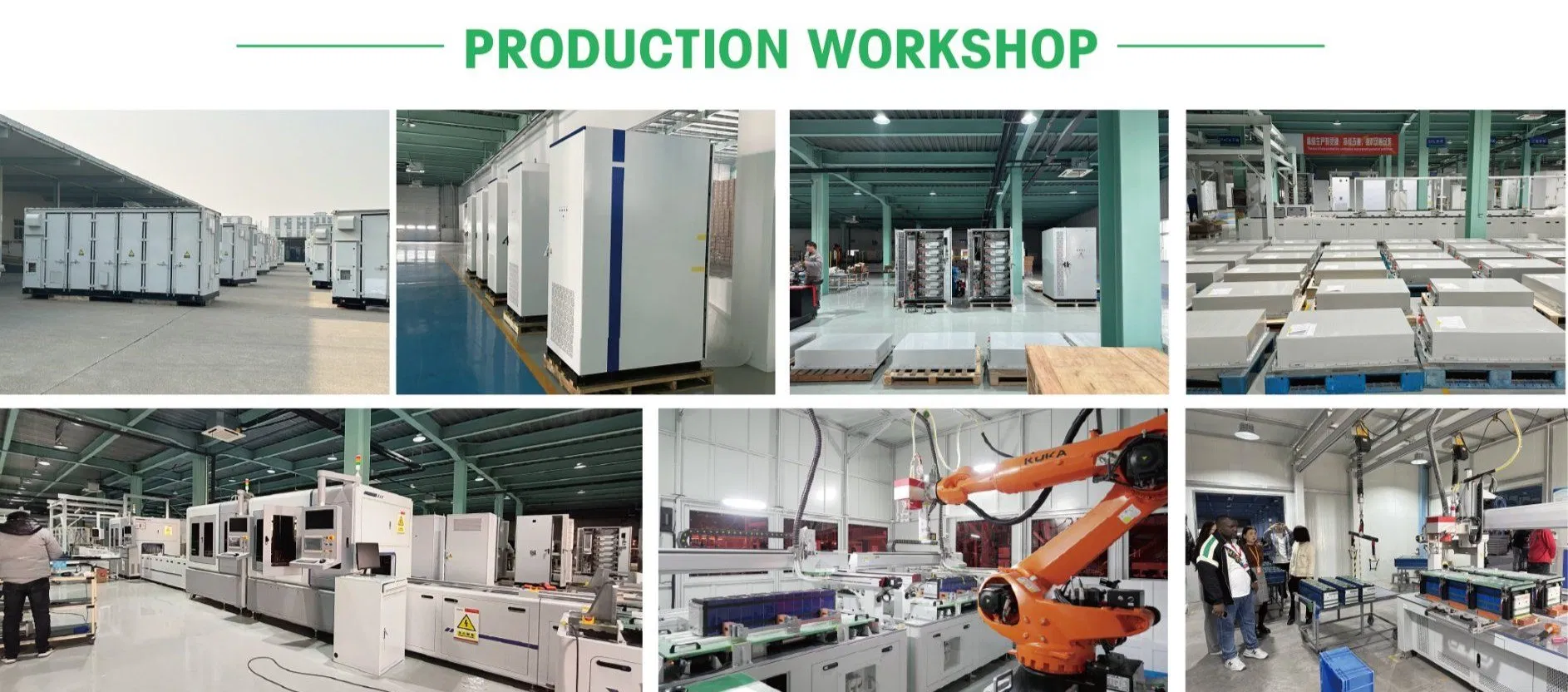

We are a technology-based enterprise specializing in integrated energy storage system solutions. For over 20 years, we have been committed to providing innovative large-scale energy storage, industrial and commercial energy storage, household energy storage systems, and lithium battery module PACK accessories to global customers. Our modern production base spans 20,000 square meters, equipped with automated production lines and advanced equipment, holding CE, ISO 9001, ISO 14001, and ISO 45001 certifications along with multiple patents.

Relying on our strong research and development capabilities, we are developing into a leading one-stop provider of renewable energy solutions, offering comprehensive turnkey services, microgrid photovoltaic projects, and advanced energy storage technologies. Our energy storage products have been widely used in diverse scenarios worldwide.

We provide comprehensive pre-sales consultation and after-sales service, with the core goal of promoting clean and intelligent energy transformation, helping to establish a zero-carbon power system that provides stable, safe, and clean electricity. We remain dedicated to providing reliable, customized solutions based on your requirements.

Factory Image 1 Factory Image 2 Factory Image 3
Factory Image 4 Factory Image 5 Factory Image 6
Factory Image 7
Frequently Asked Questions
Q1. Do you have any MOQ limit?
A: Yes. In general, the MOQ is 1 set.
Q2. Are you a manufacturer or trading company?
A: We are a professional manufacturer specializing in lithium-ion batteries and integrated energy storage systems.
Q3. How about your delivery time?
A: For large capacity systems, we can deliver in around 25 days, depending on the items and quantity of your order. It usually takes 1-2 days if the items are in stock.
Q4. Can you provide OEM and ODM services?
A: Yes, we provide free OEM and ODM services. We can customize the packaging and design the logo according to your specific requirements.
Q5. Do you test all your goods before delivery?
A: Yes, all our products are fully tested and inspected before dispatch to ensure optimal quality.
Q6. What is your warranty policy?
A: We provide a 5-year warranty on our systems and take full responsibility for our product quality.
