Buying low-cost electricity during off-peak hours and discharging it during peak or ultra-peak periods to reduce corporate energy costs.
Optimizing demand through energy storage deployment to minimize short-term peak loads, lower demand charges, and enhance user revenue.
During power shortages, enterprises voluntarily reduce consumption (e.g., peak shaving) to support grid stability, earning economic incentives in return.
Providing emergency power to critical uninterrupted loads in industrial parks during outages, ensuring operational continuity and business continuity.

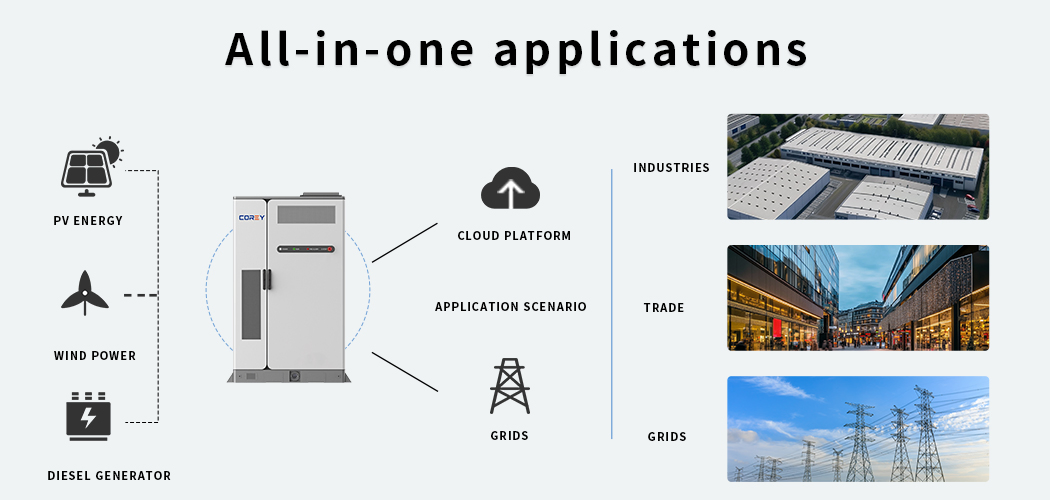

As an independent market entity, commercial and industrial energy storage often participates in various power market transactions-such as peak shaving, frequency regulation, and spot trading-through aggregated storage or virtual power plant models, thereby boosting user profits.
The commercial and industrial storage cabinet system uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. Divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.
Serve as an emergency backup power source to ensure continuous operation.
Modular design, expansion and customization. Convenient installation.
Optimize energy usage and reduce costs.
Reduce operation and maintenance costs, promote green energy consumption.
Grid-connected/off-grid switching, multiple protection mechanisms.

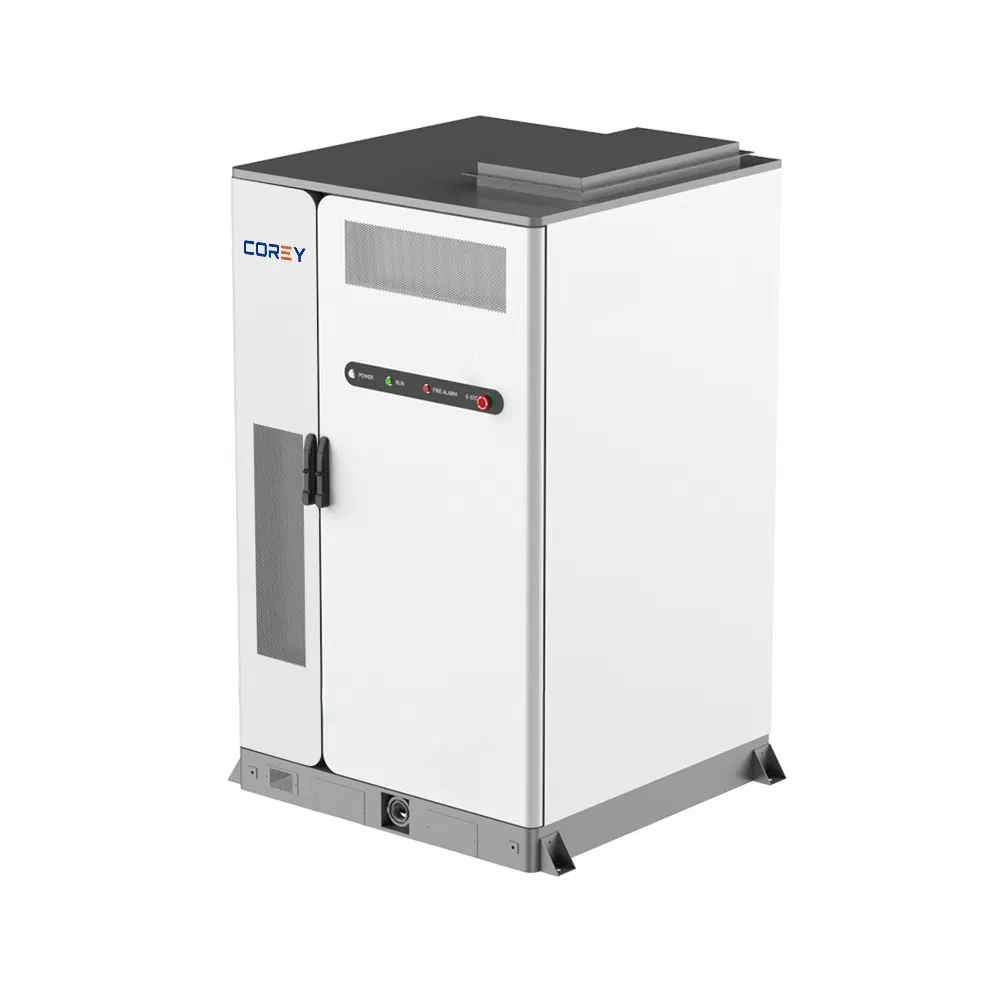

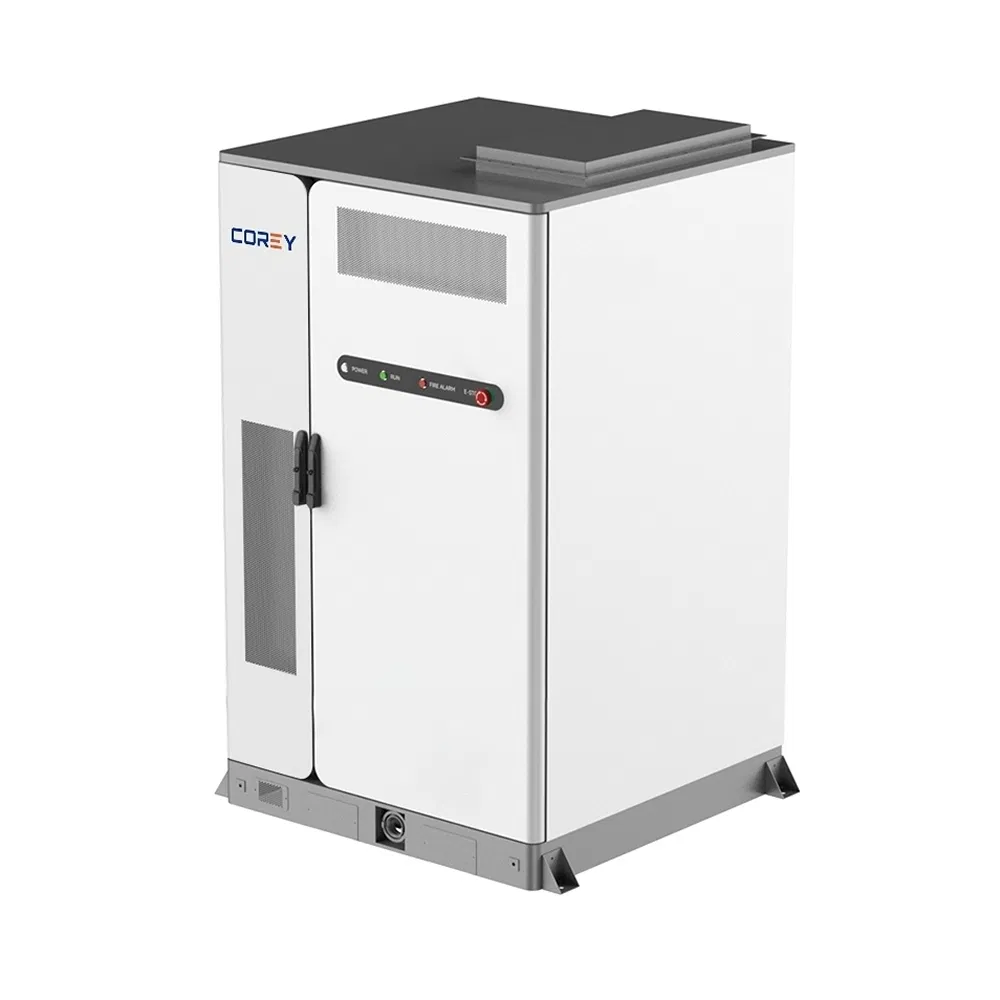

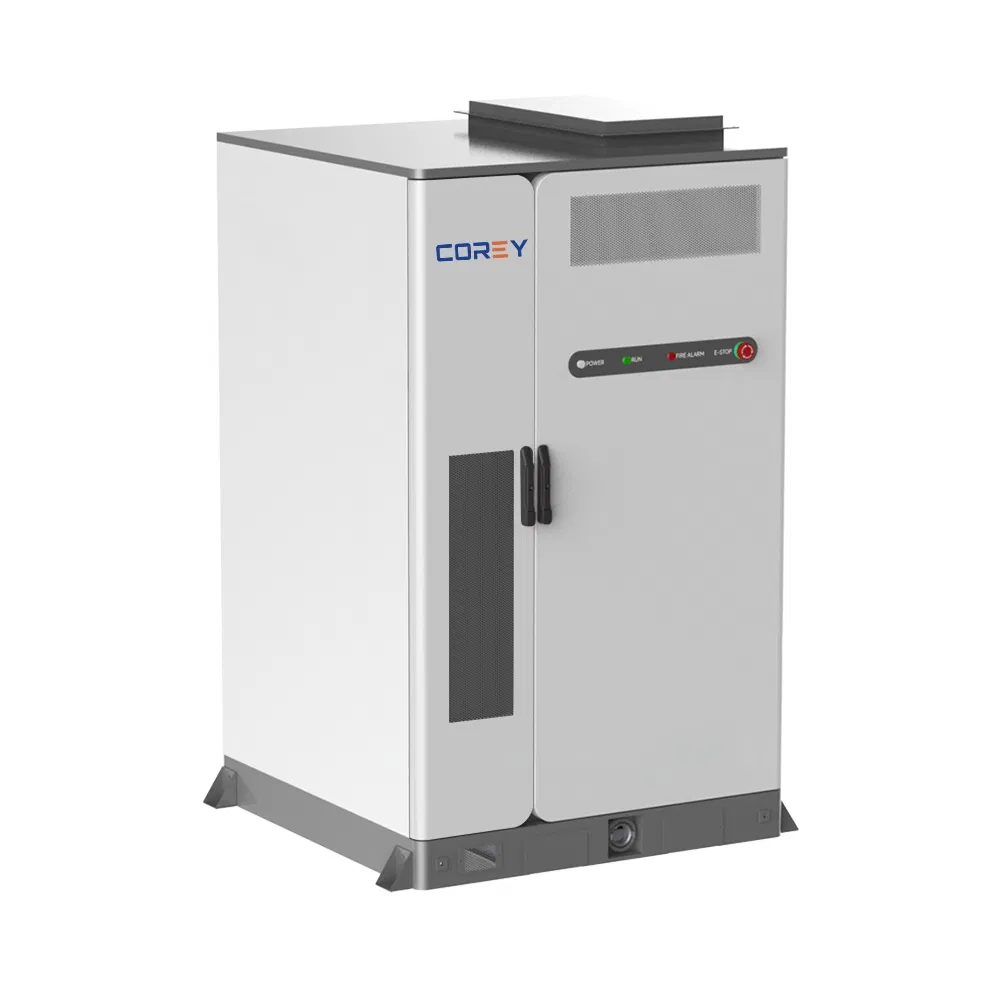

| Parameter Name | Specifications (215CE Model) | |
|---|---|---|
| Product Model | 215CE | |
| System Parameter | Battery Cell | LFP(LiFePO4) 3.2V 280Ah |
| System Capacity | 215kWh | |
| Rated Power | 105kW | |
| Access Method | 3W+N/3W+N+Pe | |
| Communication | CAN/RS485/Ethernet/4G | |
| Communication Standard | Modbus TCP, Modbus RTU, CAN2.0, IEC61850, IEC104 | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol (pack-level + cluster-level) + Water Fire Protection (cabinet-level) | |
| Operating Altitude | 4000m (>2000m, derating operated) | |
| Operating Temperature | 0ºC~50ºC (charge), -20ºC~50ºC (discharge), 25ºC±2ºC (optimum) | |
| Relative Humidity | 5% ~ 95% RH | |
| Protection Level | IP54 | |
| Anti-corrosion Level | C4 | |
| Noise | ≤75dB | |
| Weight | 2600kg±50kg | |
| Size | L1560mm*D1380mm*H2385mm | |
| AC Side | Rated Voltage | 230V/400V (±15%) |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Power Factor | ≥0.99 (-1~1) | |
| DC Component | <0.5% | |
| THDi | <2% (rated power) | |
| THDu | <3% (off-grid, linear load) | |
| Charge-Discharge conversion time | <100ms | |
| Automatic on-grid and off-grid switching time | 20ms (optional) | |
| Anti-backflow | Optional | |
| Overload Capability | 1.1 times for long-term | |
| DC Side | Series-parallel Number | 1P240S |
| Rated Voltage | 768V | |
| Voltage Range | 682~864V | |
| Maximum Current | 170A | |
| Discharge Depth | 95% DOD | |
| Certifications | CQC, LVRT/HVRT, EN 62477, EN 61000, EN 50549-2, UN38.3, EN 62619, VDE 4105, VDE O126-1-1, XP C15-712-3, UTE C15-712-1, VFR 2019 | |

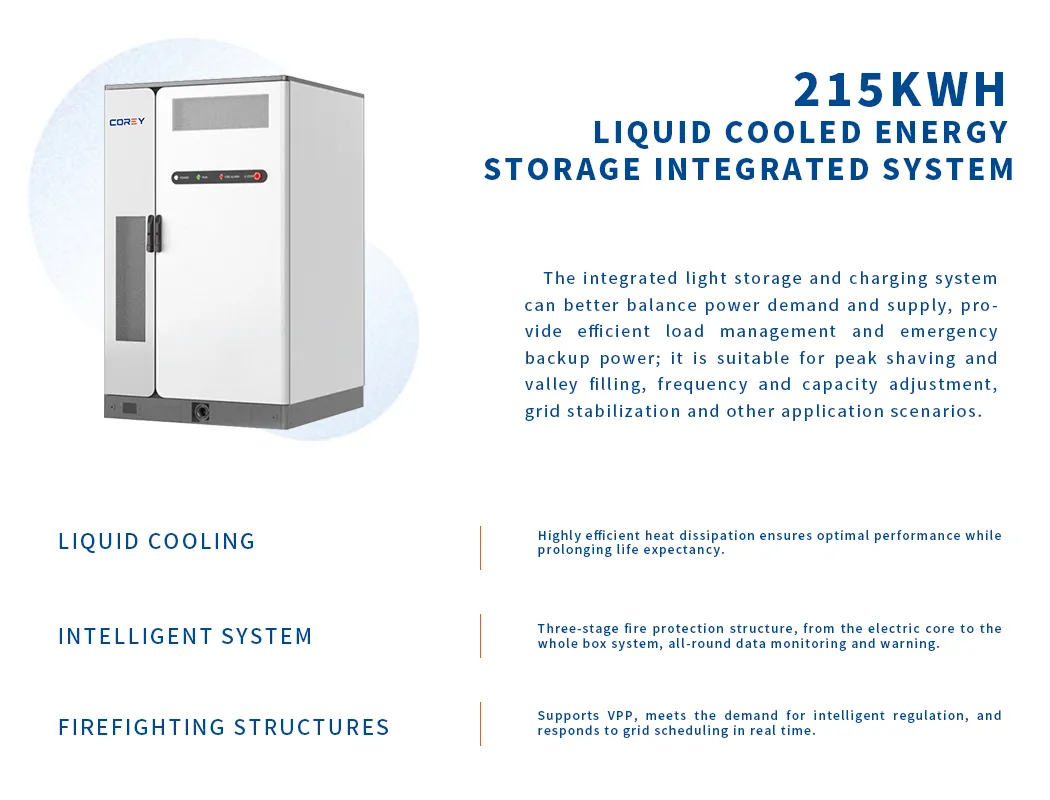

The system utilizes high-quality LFP (LiFePO4) 3.2V 280Ah battery cells, offering a standard system capacity of 215kWh and achieving a long service life of up to 9000 cycles.
It features a multi-stage safety design which isolates faults to prevent propagation. The system integrates pack-level and cluster-level aerosols alongside a cabinet-level water fire protection system to ensure maximum safety for people and property.
The intelligent liquid cooling design maintains optimal cell operating temperatures (with optimum cell temperature at 25ºC±2ºC), improving system efficiency, stabilizing output, and prolonging the life expectancy of the battery cells.
The standard charge-discharge conversion time is under 100ms. An optional automatic on-grid/off-grid switching system can achieve a seamless transition in as fast as 20ms to protect critical uninterrupted loads.
Yes. The enclosure boasts an IP54 protection level and C4 anti-corrosion rating, ensuring safe, reliable, and durable outdoor operation in various industrial and commercial settings.
