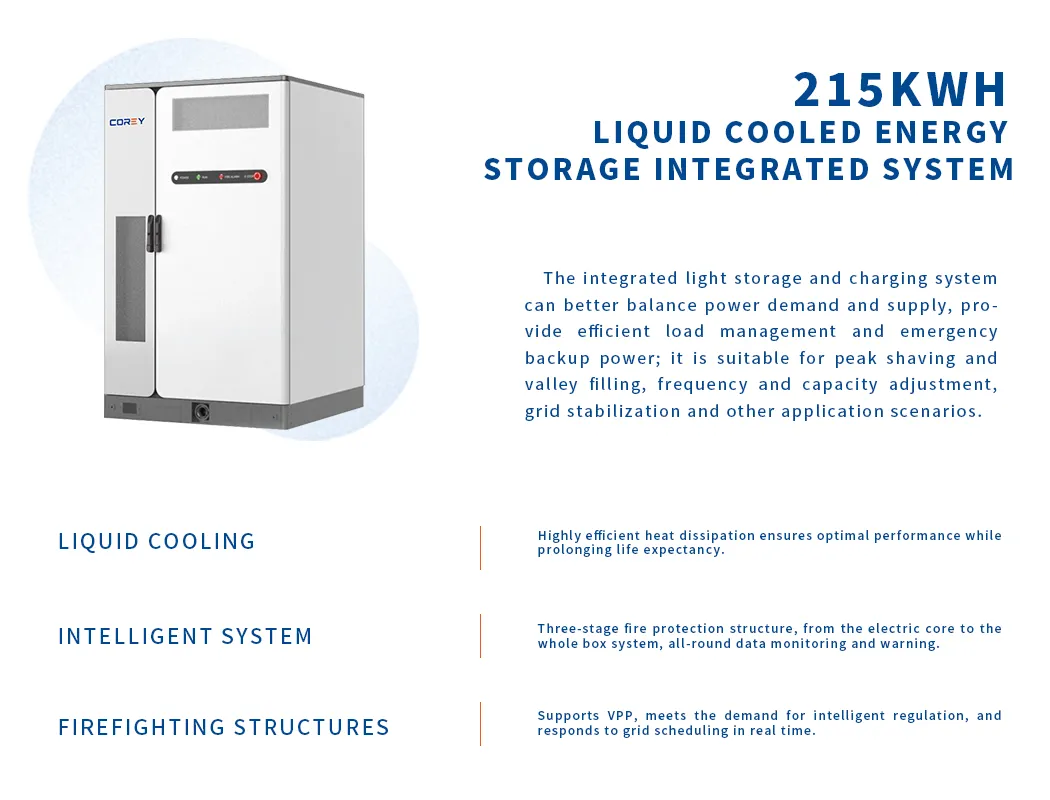

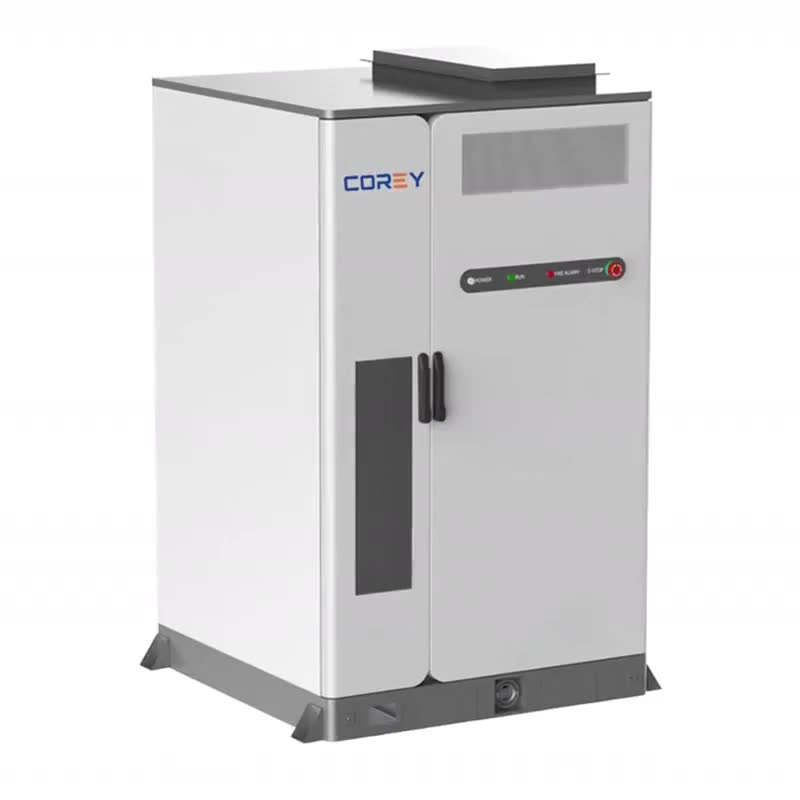

The commercial and industrial storage cabinet system developed by COREY uses a multi-stage protection design of battery packs and battery clusters to effectively isolate faults and prevent fault spread. Divided system design and three-tier intelligent fire safety design minimize the risk of fire spread, ensuring the safety of people and assets.

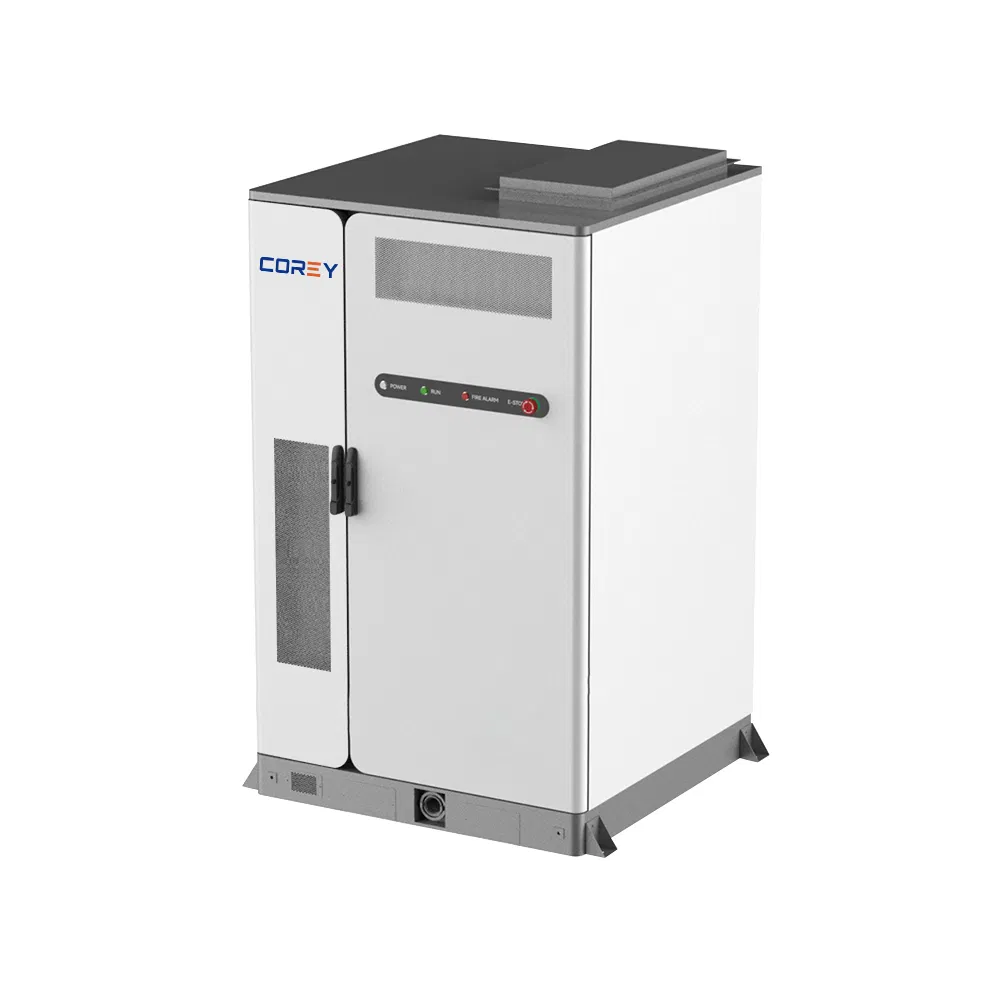

| Product Model | COREY 215CE | |
|---|---|---|
| System Parameter | Battery Cell | LFP(LiFePO4) 3.2V 280Ah |
| System Capacity | 215kWh | |
| Rated Power | 105kW | |
| Access Method | 3W+N/3W+N+Pe | |
| Communication | CAN/RS485/Ethernet/4G | |
| Communication Standard | Modbus TCP,Modbus RTU, CAN2.0, IEC61850, IEC104 | |
| Cooling Method | Intelligent Liquid Cooling | |
| Fire Fighting | Aerosol(pack-level + cluster-level ) + Water Fire Protection(cabinet-level) | |
| Operating Altitude | 4000m(>2000m, derating operated) | |
| Operating Temperature | 0ºC~50ºC(charge),-20ºC~50ºC(discharge),25ºC±2ºC(optimum) | |
| Relative Humidity | 5% ~ 95% RH | |
| Protection Level | IP54 | |
| Anti-corrosion Level | C4 | |
| Noise | ≤75dB | |
| Weight | 2600kg±50kg | |

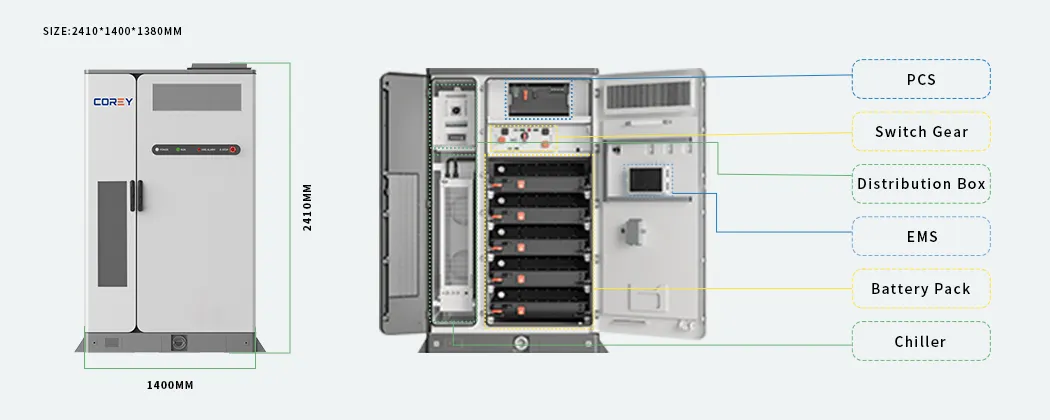

| Size | L1560mm*D1380mm*H2385mm | |
| AC Side | Rated Voltage | 230V/400V(±15%) |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Power Factor | ≥0.99(-1~1) | |
| DC Component | <0.5% | |
| THDi | <2%(rated power) | |
| THDu | <3%(off-grid,linear load) | |
| Charge-Discharge conversion time | <100ms | |
| Automatic on-grid and off-grid switching time | 20ms(optional) | |
| Anti-backflow | Optional | |
| Overload Capability | 1.1 times for long-term | |
| DC Side | Series-parallel Number | 1P240S |
| Rated Voltage | 768V | |
| Voltage Range | 682~864V | |
| Maximum Current | 170A | |
| Discharge Depth | 95%DOD | |
| Certifications | CQC,LVRT/HVRT,EN 62477,EN 61000,EN 50549-2,UN38.3,EN 62619,VDE 4105,VDE O126-1-1,XP C15-712-3,UTE C15-712-1,VFR 2019 | |

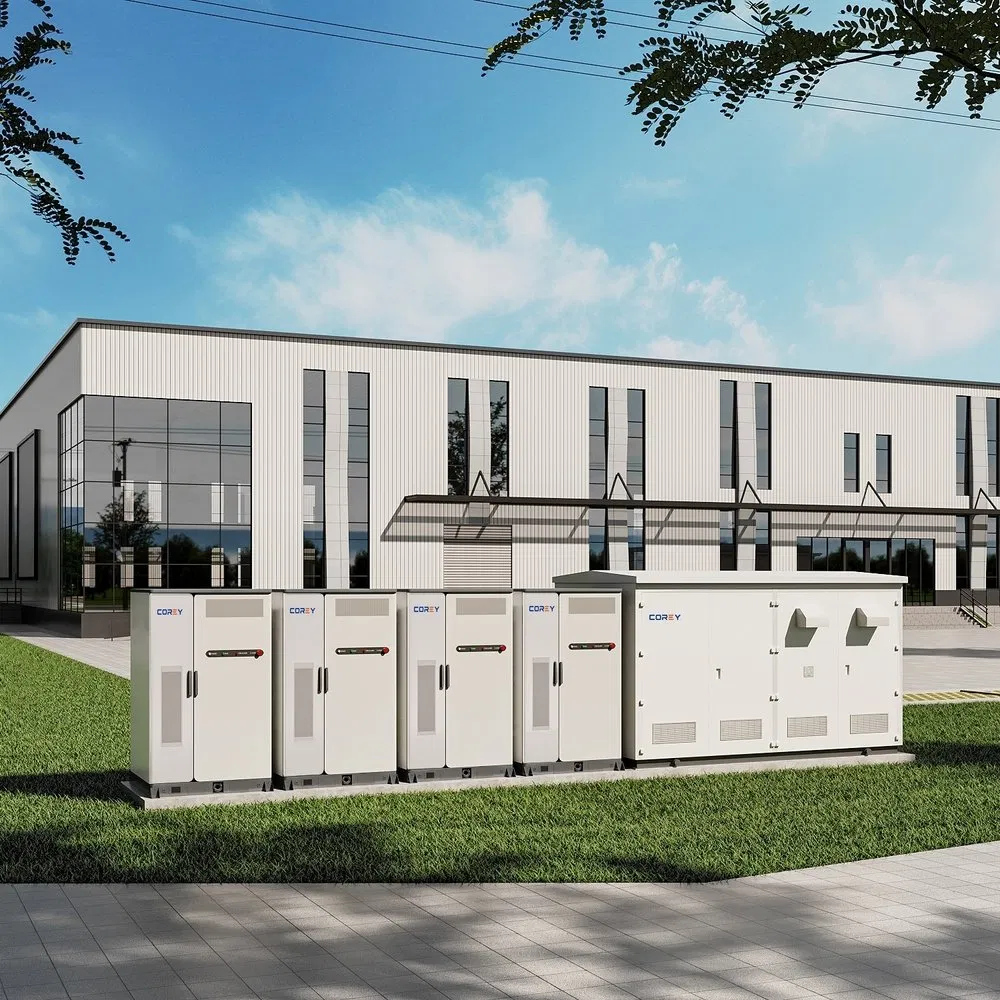

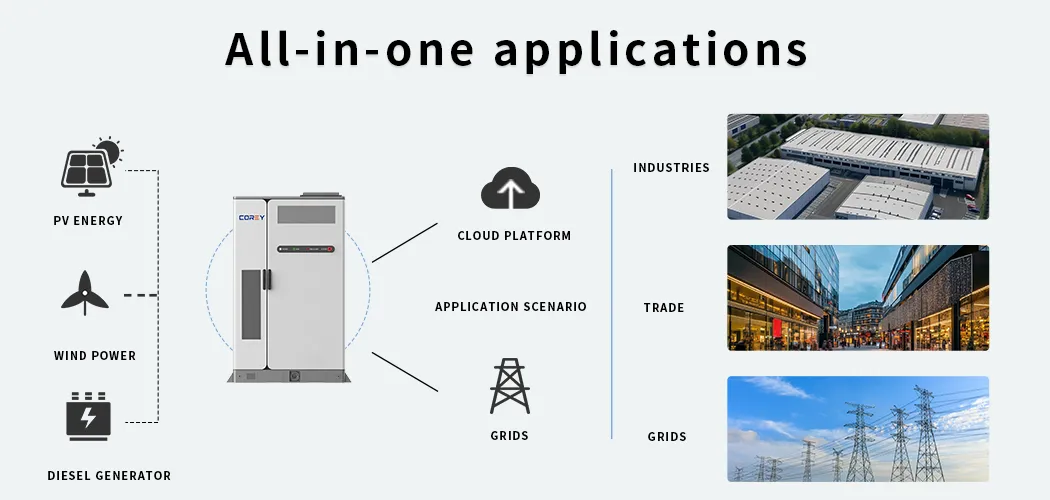

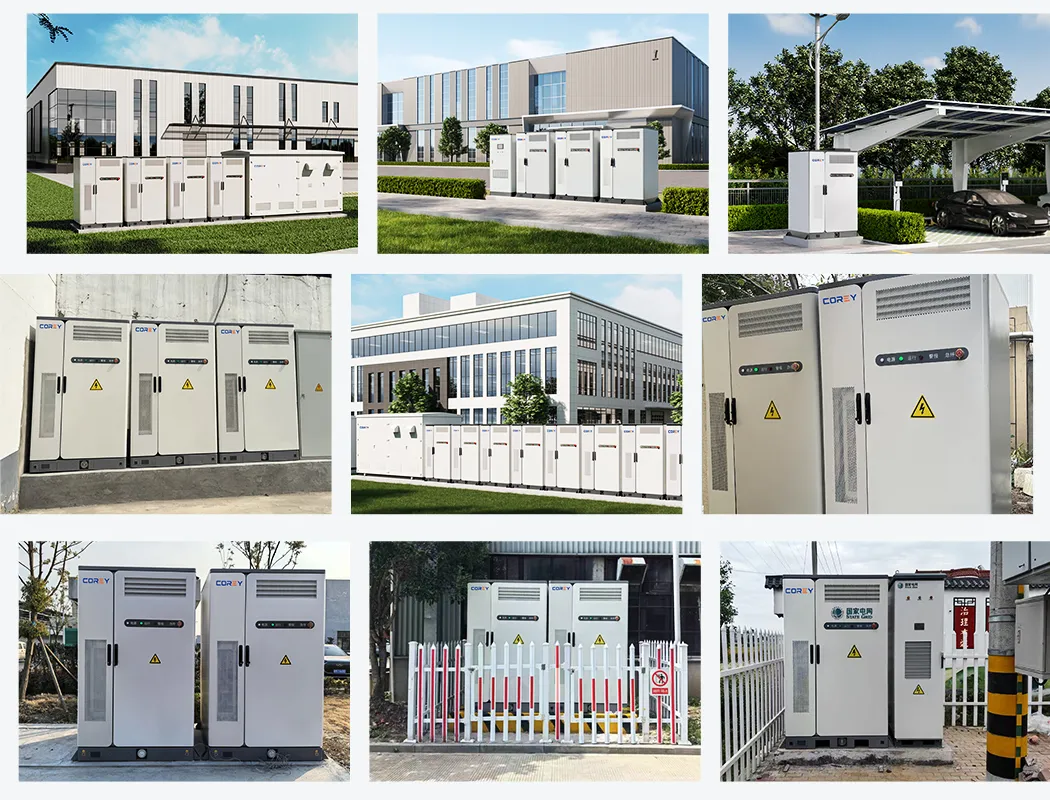

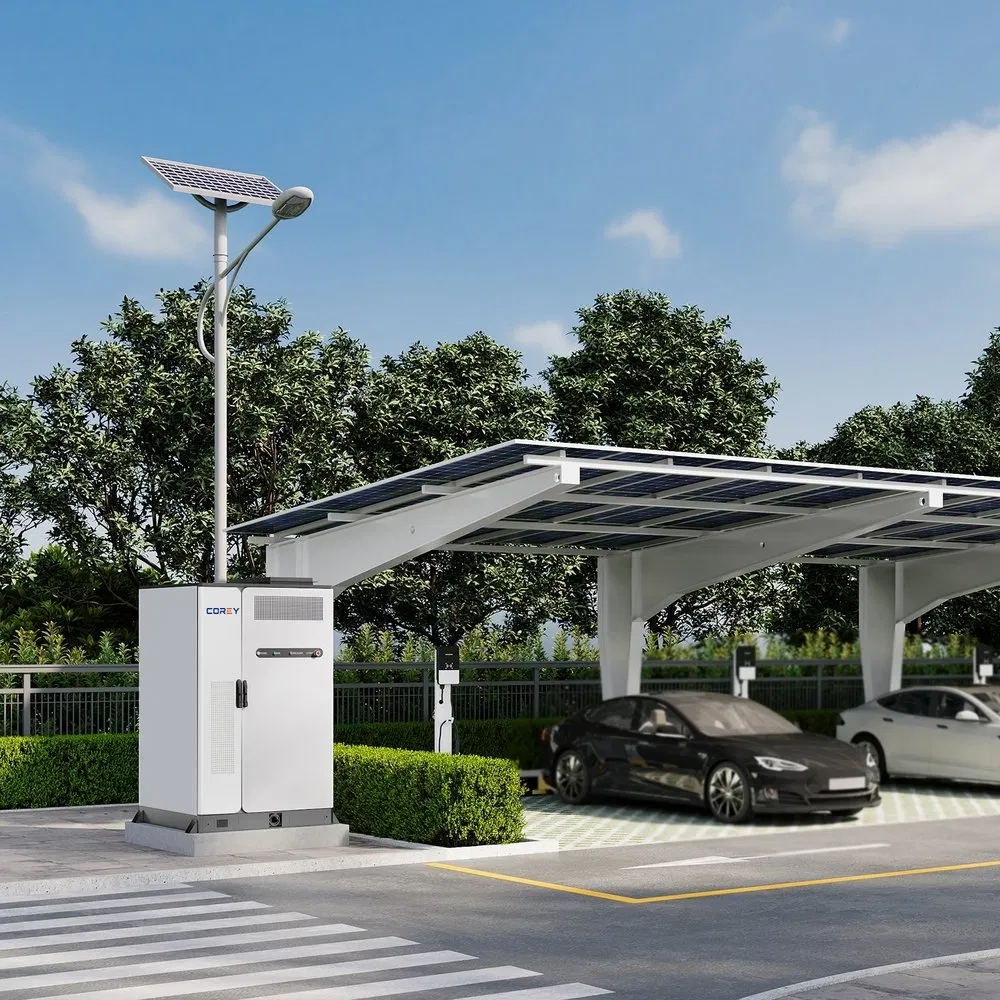

Commercial buildings, factory buildings, remote areas and areas with power shortages.

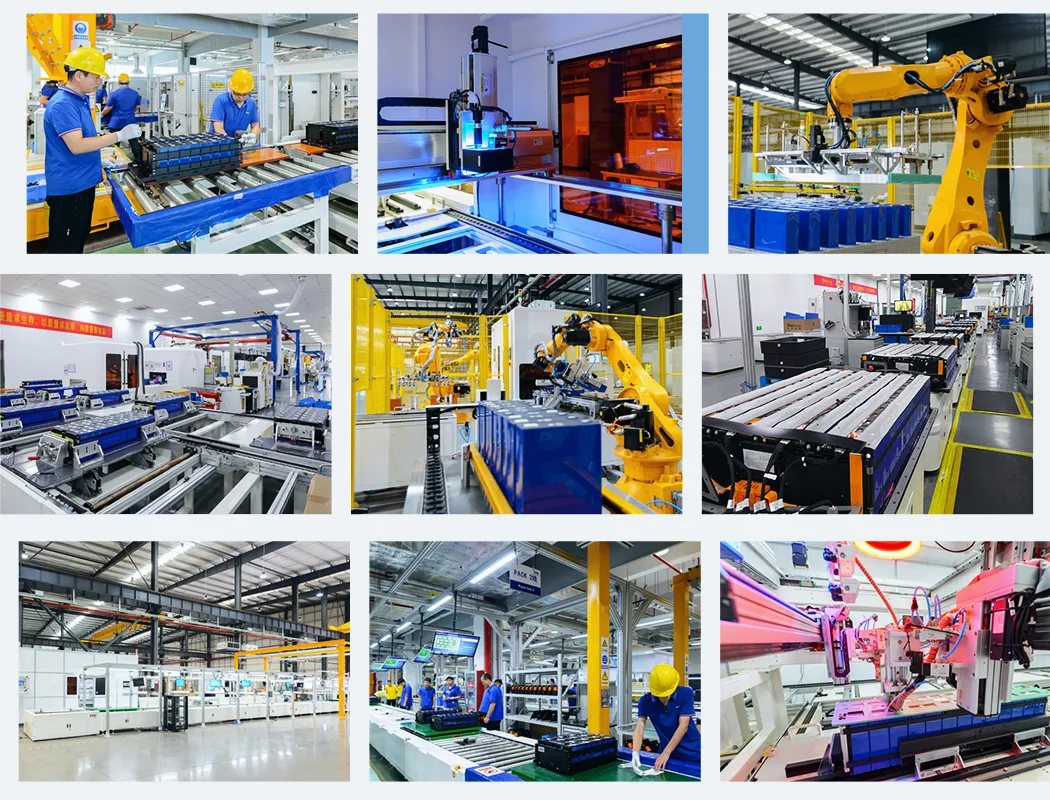

COREY GROUP (formerly known as Suzhou Huijuhe Electromechanical Equipment Co.Ltd.) was established in 2014. lt started the business of automated intelligent equipment with laser welding technologies for new energy lithium battery modules, provided "high intelligence manufacturing solutions" for top lithium battery energy storage system integration manufacturers.
