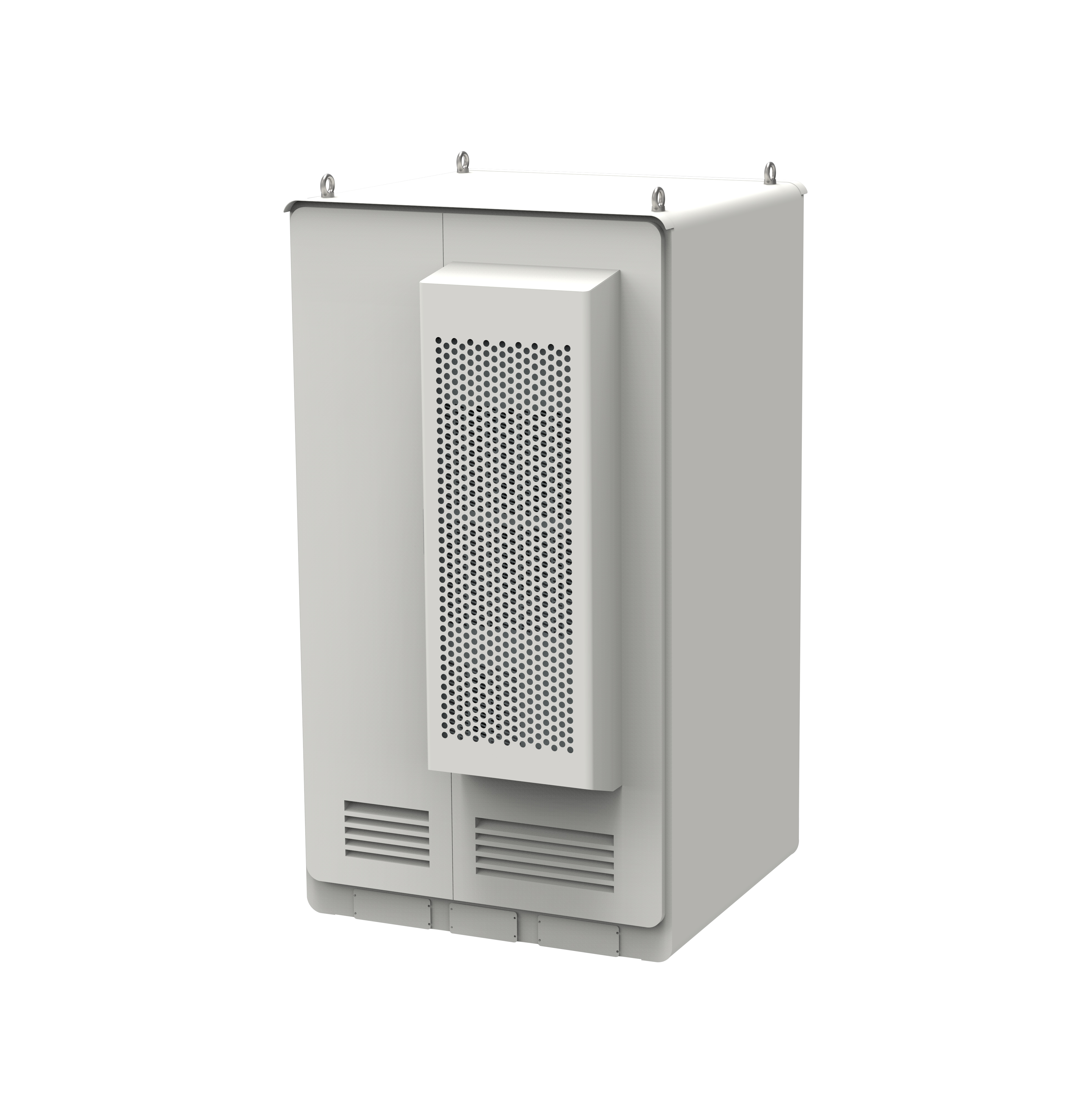

| VPCN-100KW/104kWh | |||
|---|---|---|---|
| Grid Connection Parameters | Battery Parameters | ||
| Grid type | 3L+N+PE | Battery type | Lithium iron phosphate |
| Rated Power | 100kW | Rated capacity(battery cell) | 150Ah |
| Rated voltage | 400V | Rated energy | 104kWh |
| Operating mode | Off Grid/On Grid | Magnification | 1C |
| Grid Connection Parameters | System Parameters | ||
| Access point | User side 380V | Cooling system | Industrial grade air conditioner/forced air cooling |
| Rated frequency | 50/60Hz | Fire fighting system | Perfluorohexanone gas |
| Total harmonic distortion rate | ≤3% full load | Noise level | ≤70dB |
| Three-phase unbalance | 100% | Working temperature | -20~50℃ |
| Protection level | IP54 | Width*Depth*Height(mm) | 1265*1340*2000 |
| Seamless switching | STS cabinet (optional) | Integrated system size(mm) | 1265*1570*2000 (Including air conditioner) |
| VPCN-100KW/215kWh | |||
|---|---|---|---|
| Grid Connection Parameters | Battery Parameters | ||
| Grid type | 3L+N+PE | Battery type | Lithium iron phosphate |
| Rated Power | 100kW | Rated capacity(battery cell) | 280Ah |
| Rated voltage | 400V | Rated energy | 215kWh |
| Operating mode | Off Grid/On Grid | Magnification | 0.5C |
| Grid Connection Parameters | System Parameters | ||
| Access point | User side 380V | Cooling system | Industrial grade air conditioner/forced air cooling |
| Rated frequency | 50/60Hz | Fire fighting system | Perfluorohexanone gas |
| Total harmonic distortion rate | ≤3% full load | Noise level | ≤70dB |
| Three-phase unbalance | 100% | Working temperature | -20~50℃ |
| Protection level | IP54 | Width*Depth*Height(mm) | 1265*1470*2500 |
| Seamless switching | Optional STS | Integrated system size(mm) | 1265*1680*2500 (Including air conditioner) |
