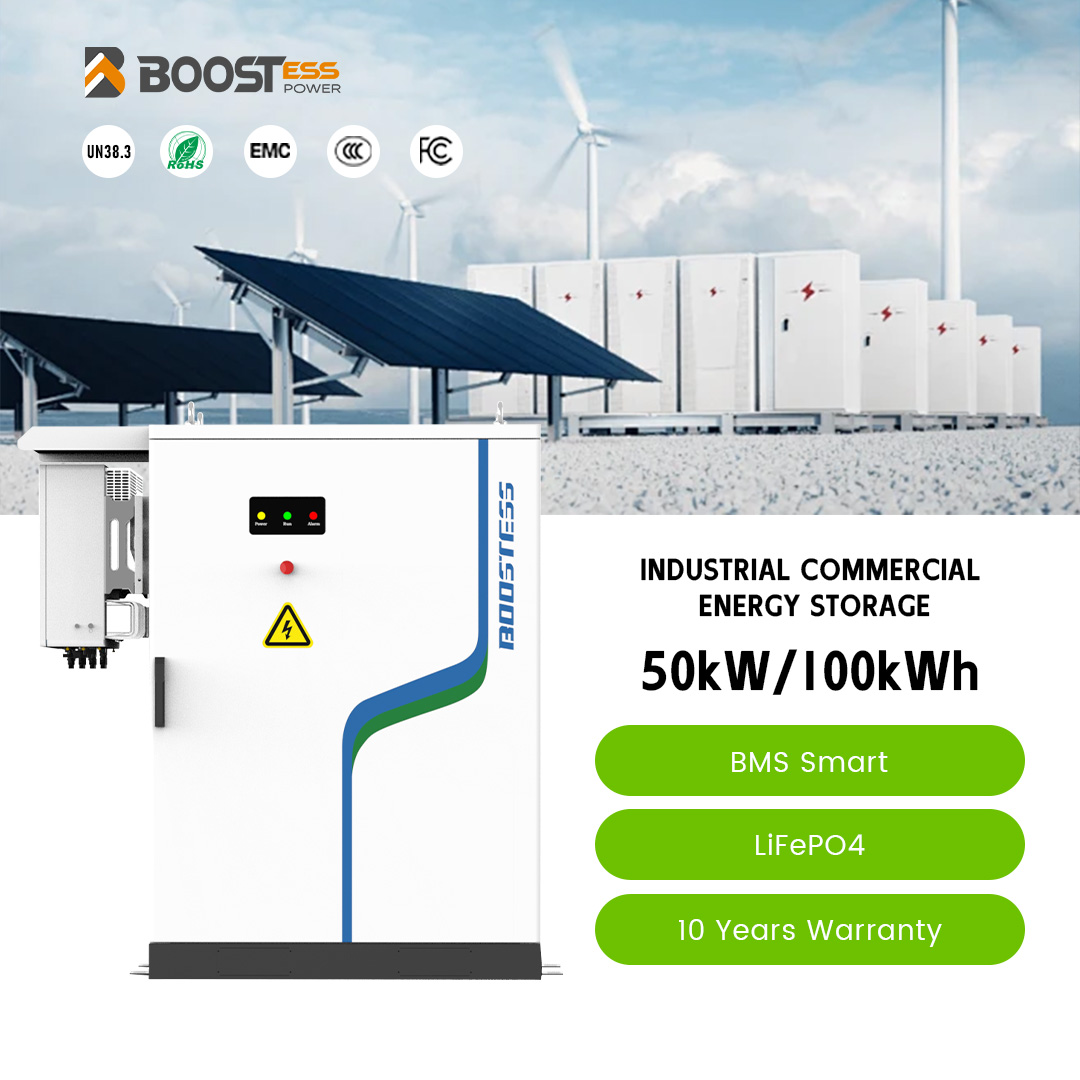

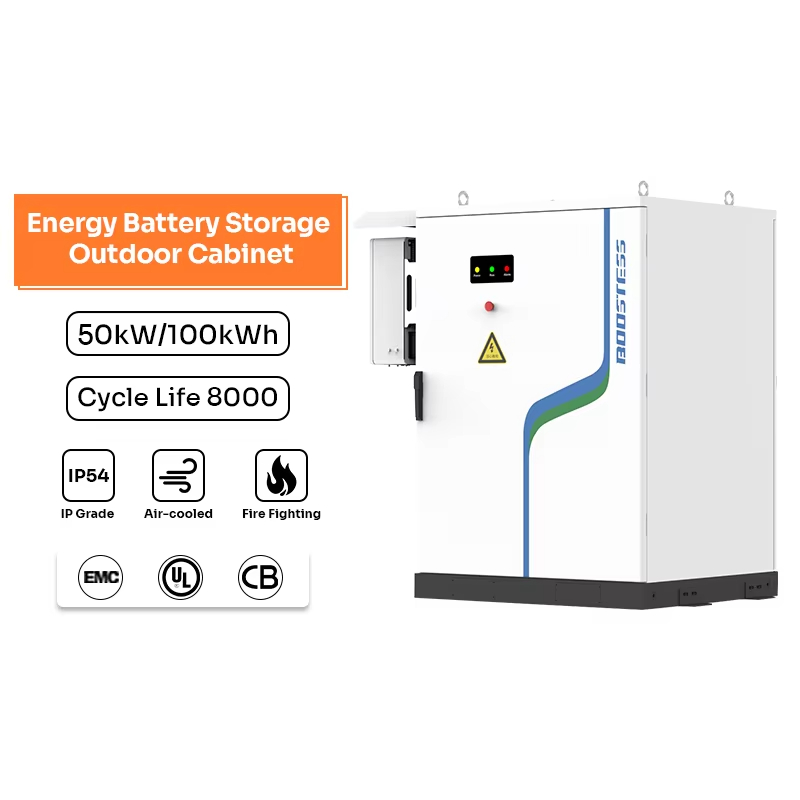

| 50kW / 100kWh All In One ESS Industrial & Commercial Energy Storage System | ||||
|---|---|---|---|---|
| BESS SIDE | ||||
| DC Parameter | ||||
| Battery Type | LFP | Operating Voltage Range | 280V ~ 408.8V | |
| Configuration | 1P100S | Charge/Discharge Current | 140A / 140A | |
| Rated Capacity | 314Ah | Cooling Mode | Air Conditioning Cooling | |
| Rated Energy | 100kWh | Battery Cycle | 8000 @ 25°C, 80% DOD 0.5P | |
| Rated Voltage | 318V | Fire Protection System | Aerosol Extinguishing | |
| Rated Power | 50kW | Detector Type | Temperature / Smoke Sensor / Water Leak | |
| PV Parameter | ||||
| Max. Recommended PV Array Power | 100kW | MPPT Voltage Range | 150V ~ 850V | |
| Max. Usable PV Input Power | 96kW | MPPT Number | 4 | |
| Max. PV Input Voltage | 1000V | Max. Input Strings Number | 8 | |
| Start-up Voltage | 180V | Max. Input Current per MPPT | 4 * 40A | |
| Rated PV Input Voltage | 600V | Max. Short Circuit Current | 4 * 60A | |
| AC Parameter | ||||
| Rated Output Power | 50.0kW | Rated Grid Output Current | 76A / 72.2A | |
| Max. Apparent Output Power | 50.0kVA | Max. Output Current | 76A / 72.2A | |
| Rated Grid Voltage | 3/N/PE, 220V / 380V, 230V / 400V | Power Factor | > 0.99 (0.8 leading - 0.8 lagging) | |
| Rated Grid Frequency | 50Hz / 60Hz | THDi | < 3% | |
| System Parameter | ||||
| Operating Environment | -20°C ~ 55°C (Power derating 45°C+) | Class Of Protection | Cabinet: IP54, Inverter: IP66 | |
| Size (W*D*H mm) | 1130 * 1000 * 1600 | Allowable Relative Humidity | 0 - 95% | |
| Weight | About 1.4t | Allowable Altitude | ≤ 4000m (Power derating 2000m) | |
| DC Component | 0.5% | Overload Capacity | 110% long term | |
| Units Expansion | On-grid: up to 10 units in parallel | Off-grid: up to 6 units in parallel | |||
| Certification Standard | IEC62619, EN62477, IEC63056, IEC61000, UN38.3, IEC61727, EN50549-1, VDE-AR-N 4105, NTS631, TORErzeuger, AS4777.2, NRS097-2-1 | |||
| INVERTER SIDE | ||||
| INPUT DC (PV Side) | ||||
| Recommended Max. PV Array Size | 100kW | MPPT Voltage Range | 150V ~ 850V | |
| Max. Usable PV Input Power | 96kW | Max. Input Current | 4 * 40A | |
| Max. Input Voltage | 1000V | Max. Short Circuit Current | 4 * 60A | |
| Rated Voltage | 600V | MPPT Number | 4 | |
| Start-up Voltage | 180V | Max. Input Strings Number | 8 | |
| Battery | ||||
| Battery Type | Li-ion | Max. Charge / Discharge Current | 70A * 2 | |
| Battery Voltage Range | 150V ~ 800V | Number of Battery Ports | 2 | |
| Max. Charge / Discharge Power | 55kW / 35kW | Communication | CAN / RS485 | |
| Output AC (Grid Side) | ||||
| Rated Output Power | 50kW | Rated Grid Output Current | 76A / 72.2A | |
| Max. Apparent Output Power | 50kVA | Max. Output Current | 76A / 72.2A | |
| Rated Grid Voltage | 3/N/PE, 220V / 380V, 230V / 400V | Power Factor | > 0.99 (0.8 lead - 0.8 lag) | |
| Rated Grid Frequency | 50Hz / 60Hz | THDi | < 3% | |
| INPUT AC (Grid Side) | ||||
| Max. AC Passthrough Current | 152A / 144.4A | Rated Input Voltage | 3/N/PE, 220V / 380V, 230V / 400V | |
| Rated Input Frequency | 50Hz / 60Hz | |||
| Input Generator | ||||
| Max. Input Power | 50kW | Rated Input Current | 76A / 72.2A | |
| Rated Input Voltage | 3/N/PE, 220V / 380V, 230V / 400V | Rated Input Frequency | 50Hz / 60Hz | |
| Output AC (Back-up) | ||||
| Rated Output Power | 50kW | Max. Apparent Output Power | 1.6 * Rated Power, 2s | |
| Back-up Switch Time | < 10ms | Rated Output Voltage | 3/N/PE, 220V / 380V, 230V / 400V | |
| Rated Frequency | 50Hz / 60Hz | Rated Output Current | 76A / 72.2A | |
| THDv (@linear load) | < 2% | |||
| Efficiency | ||||
| Max. Efficiency | 97.8% | EU Efficiency | 98.5% | |
| BAT Charged by PV Max. Efficiency | 97.4% | BAT Charged / Discharged to AC Max. Efficiency | 97.5% | |
| Protection | ||||
| Anti-islanding Protection | Yes | DC Reverse-polarity Protection | Yes | |
| Integrated DC Switch | Yes | Short Circuit Protection | Yes | |
| Output Over Current Protection | Yes | Surge Protection | DC Type II / AC Type II | |
| Integrated AFCI 2.0 | Optional | |||
| General Data | ||||
| Dimensions (W * H * D) | 530 * 880 * 290mm | Operating Ambient Temperature | -25°C ~ +60°C | |
| Weight | 73kg | Relative Humidity | 0 - 100% | |
| Topology | Transformerless | Ingress Protection | IP66 | |
| Self-consumption (night) | < 35W | Cooling Concept | Intelligent fan-cooling | |
| Max. Operation Altitude | 4000m | Grid Connection Standard | G99, VDE-AR-N 4105/VDE V 0124, EN50549-1/-10 | |
| Safety / EMC Standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN55011 | |||
| Connection and Communication | ||||
| PV Connection | MC4 Quick Connection Plug | Battery Connection | Terminal Connector | |
| AC Connection | Terminal Block | Display | 7.0" LCD Display & Bluetooth + APP | |
| Communication | CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN | |||
| BATTERY PACK SIDE | ||||
| Battery Pack Parameter | ||||
| Battery Type | LFP 314Ah | Battery Capacity | 20.096kWh | |
| Battery Configuration | 1P20S | Rated Battery Voltage | 64V | |
| Battery Voltage Range | 56V ~ 72V | Weight | 135kg | |
| Charge / Discharge Rate | ≤ 0.5C | Dimensions (W * H * D) | 490 * 896.5 * 230mm | |
| Ingress Protection | IP20 | |||
