| Model | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU |
|---|---|---|---|
| Battery Input Data | |||
| Battery Type | Lead-acid or Li-Ion | ||
| Battery Voltage Range (V) | 40-60V | ||
| Max. Charging Current (A) | 190A | 210A | 240A |
| Max. Discharging Current (A) | 190A | 210A | 240A |
| External Temperature Sensor | Yes | ||
| Charging Curve | 3 Stages / Equalization | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max. DC Input Power (W) | 10400W | 13000W | 15600W |
| Rated PV Input Voltage (V) | 550V (160-800V) | ||
| Start-up Voltage (V) | 160V | ||
| MPPT Voltage Range (V) | 200-650V | ||
| Full Load DC Voltage Range (V) | 350-650V | ||
| PV Input Current (A) | 13+13 | 26+13 | |
| Max. PV Isc (A) | 17+17 | 34+17 | |
| No. of MPPT Trackers | 2 | ||
| No. of Strings per MPP Tracker | 1 | 2+1 | |
| AC Output Data | |||
| Rated AC Output and UPS Power (W) | 8000W | 10000W | 12000W |
| Max. AC Output Power (W) | 8800W | 11000W | 13200W |
| AC Output Rated Current (A) | 12.1/11.6A | 15.2/14.5A | 18.2/17.4A |
| Max. AC Current (A) | 18.2/17.4A | 22.7/21.7A | 27.3/26.1A |
| Max. Continuous AC Passthrough (A) | 45A | ||
| Peak Power (off grid) | 2 times of rated power, 10S | ||
| Power Factor | 0.8 leading to 0.8 lagging | ||
| Output Frequency and Voltage | 50/60Hz; 3L/N/PE, 220/380, 230/400Vac | ||
| Grid Type | Three Phase | ||
| DC injection current (mA) | THD ≤ 3% (Linear load ≤ 1.5%) | ||
| Efficiency | |||
| Max. Efficiency | 97.60% | ||
| Euro Efficiency | 97.00% | ||
| MPPT Efficiency | 99.90% | ||
| Protection | |||
| Integrated | PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection | ||
| Output Over Voltage Protection | DC Type II / AC Type III | ||
| Certifications and Standards | |||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | ||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| General Data | |||
| Operating Temperature Range (°C) | -40°C - 60°C, >45°C derating | ||
| Cooling | Smart cooling | ||
| Noise (dB) | ≤ 45 dB | ||
| Communication with BMS | RS485; CAN | ||
| Weight (kg) | 33.6kg | ||

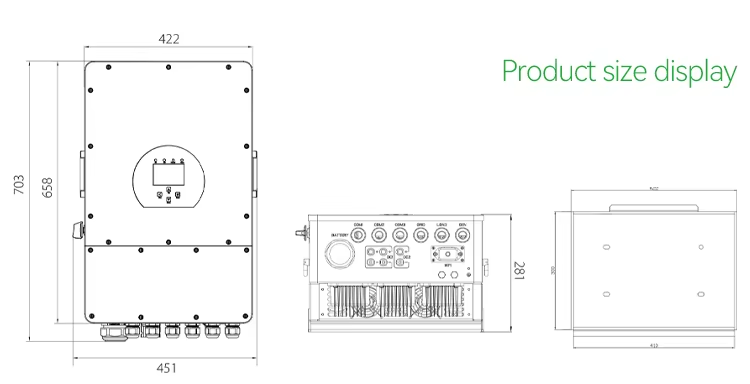

| Size (mm) | 422W x 699.3H x 279D | ||
| Protection Degree | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 years | ||
