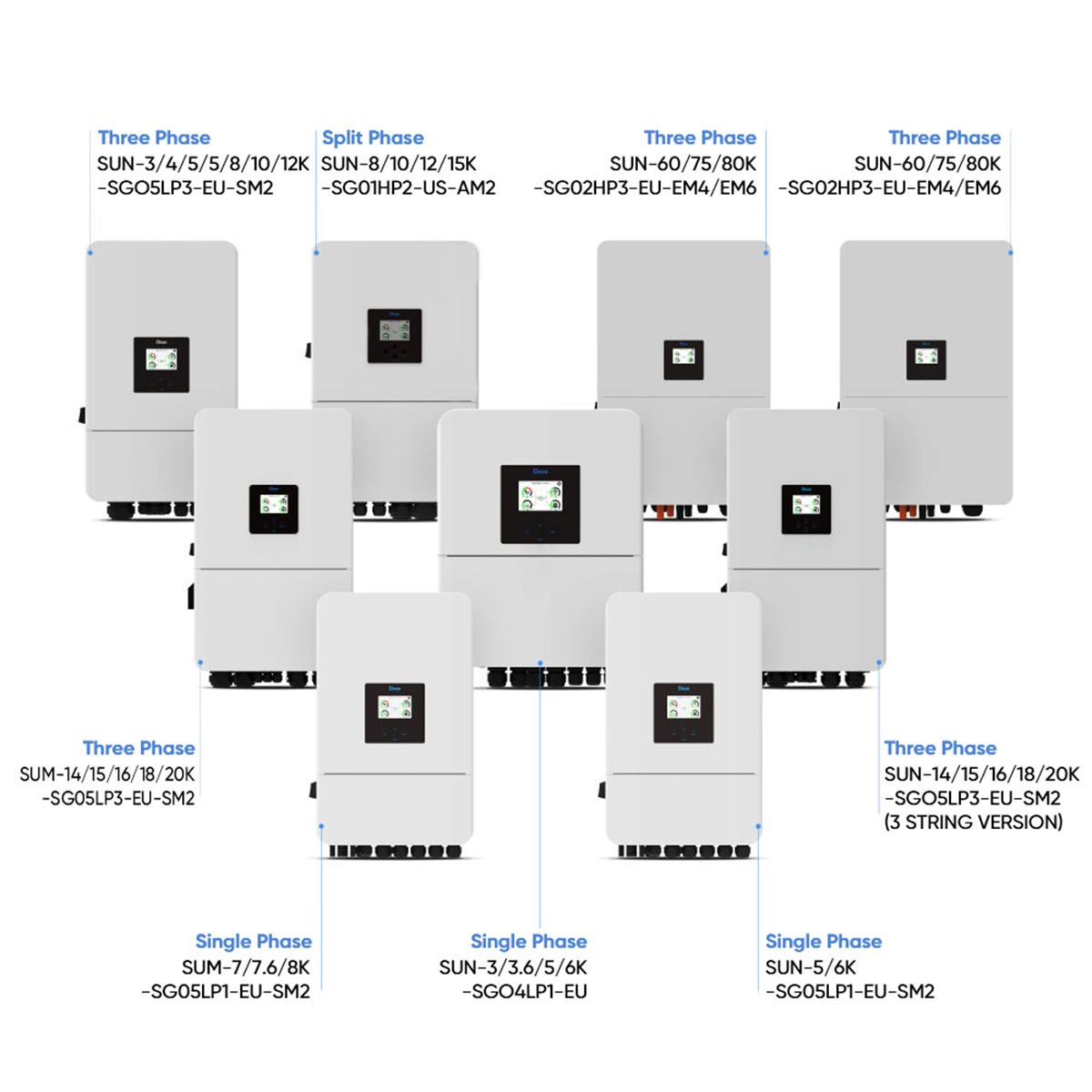

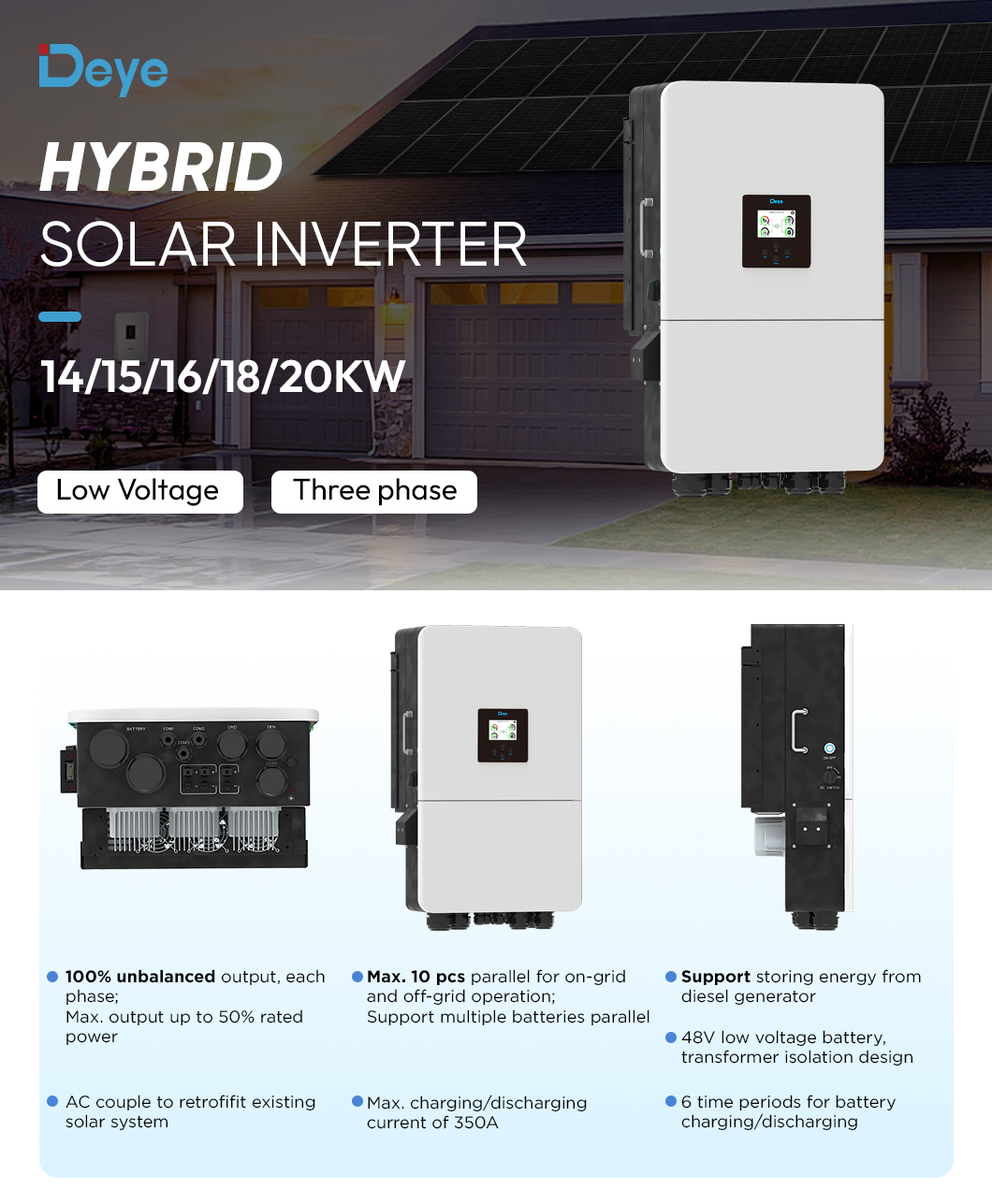

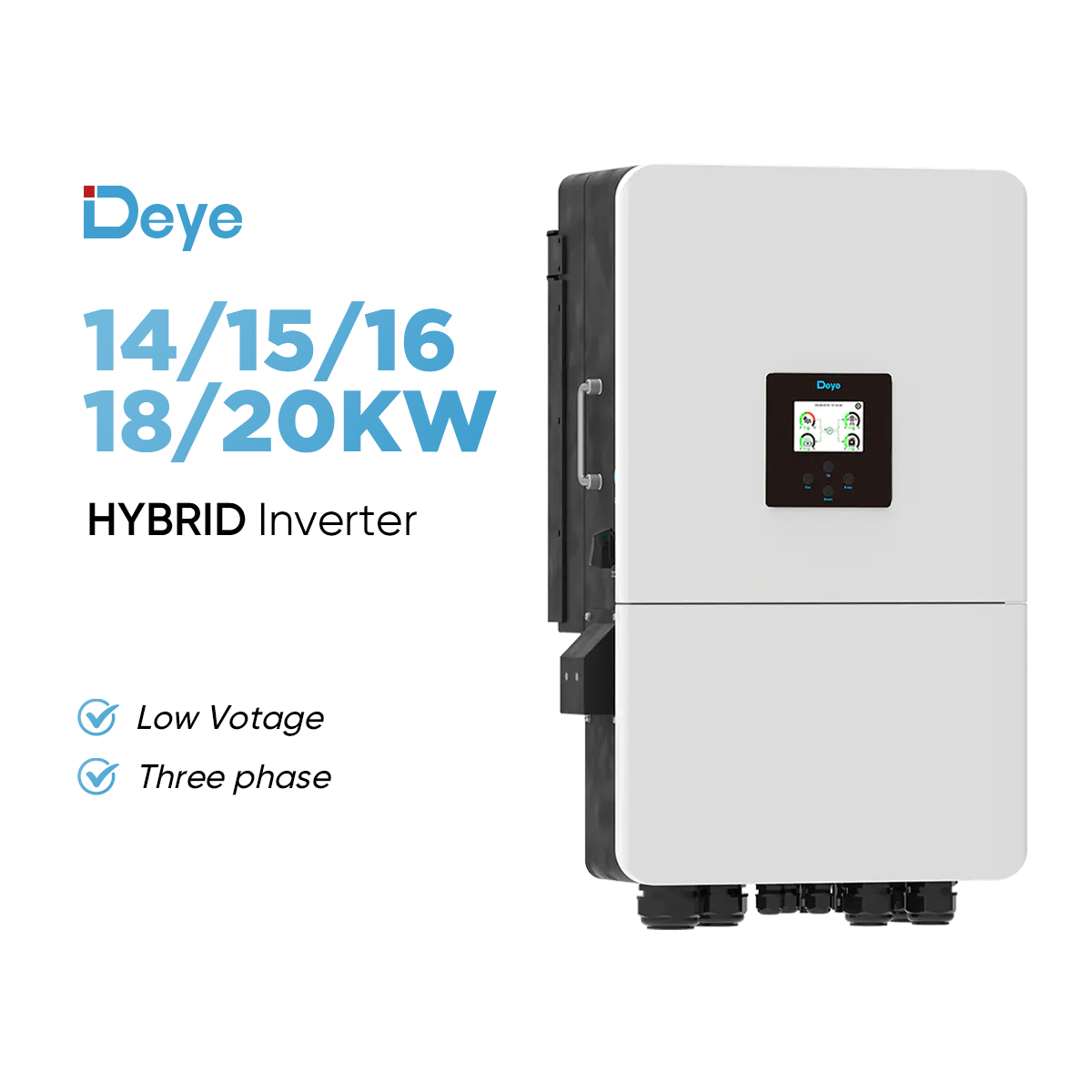

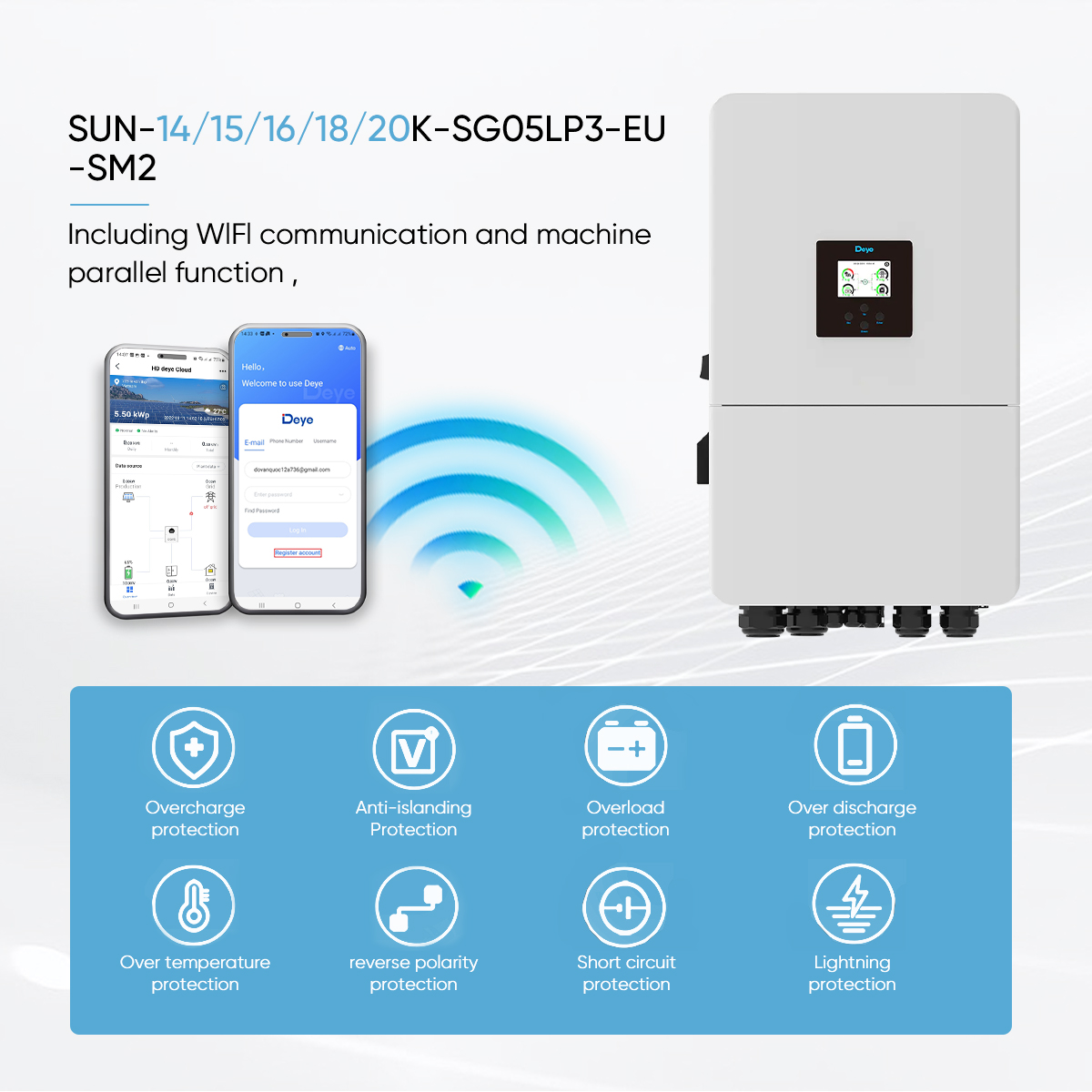

| Model | SUN-14K-SG05LP3-EU-SM2 | SUN-15K-SG05LP3-EU-SM2 | SUN-16K-SG05LP3-EU-SM2 | SUN-18K-SG05LP3-EU-SM2 | SUN-20K-SG05LP3-EU-SM2 |
|---|---|---|---|---|---|
| Battery Type | Lead-acid or Lithium-ion | ||||
| Battery Voltage Range (V) | 40-60 | ||||
| Charging Strategy for Li-ion Battery | Self-adaption to BMS | ||||
| Number of Battery Input | 1 | ||||
| Max. PV Input Power (W) | 21000 | 22500 | 24000 | 27000 | 30000 |
| MPPT Voltage Range (V) | 160-650 | ||||
| No. of MPP Trackers / No. of Strings MPP Tracker | 2 / 2+1 | ||||
| Peak Power (off-grid) (W) | 2 times of rated power, 10s | ||||
| Rated Input/Output Voltage/Range (V) | 220/380V, 230/400V 0.85Un-1.1Un | ||||
| Rated Input/Output Grid Frequency/Range (Hz) | 50/45-55, 60/55-65 | ||||
| Communication Interface | RS485/RS232/CAN | ||||
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) | ||||
| Operating Temperature Range (°C) | -40 to +60°C, >45°C Derating | ||||
| Permissible Altitude | 3000m | ||||
| Noise (dB) | <60 | ||||
| Ingress Protection (IP) Rating | IP 65 | ||||

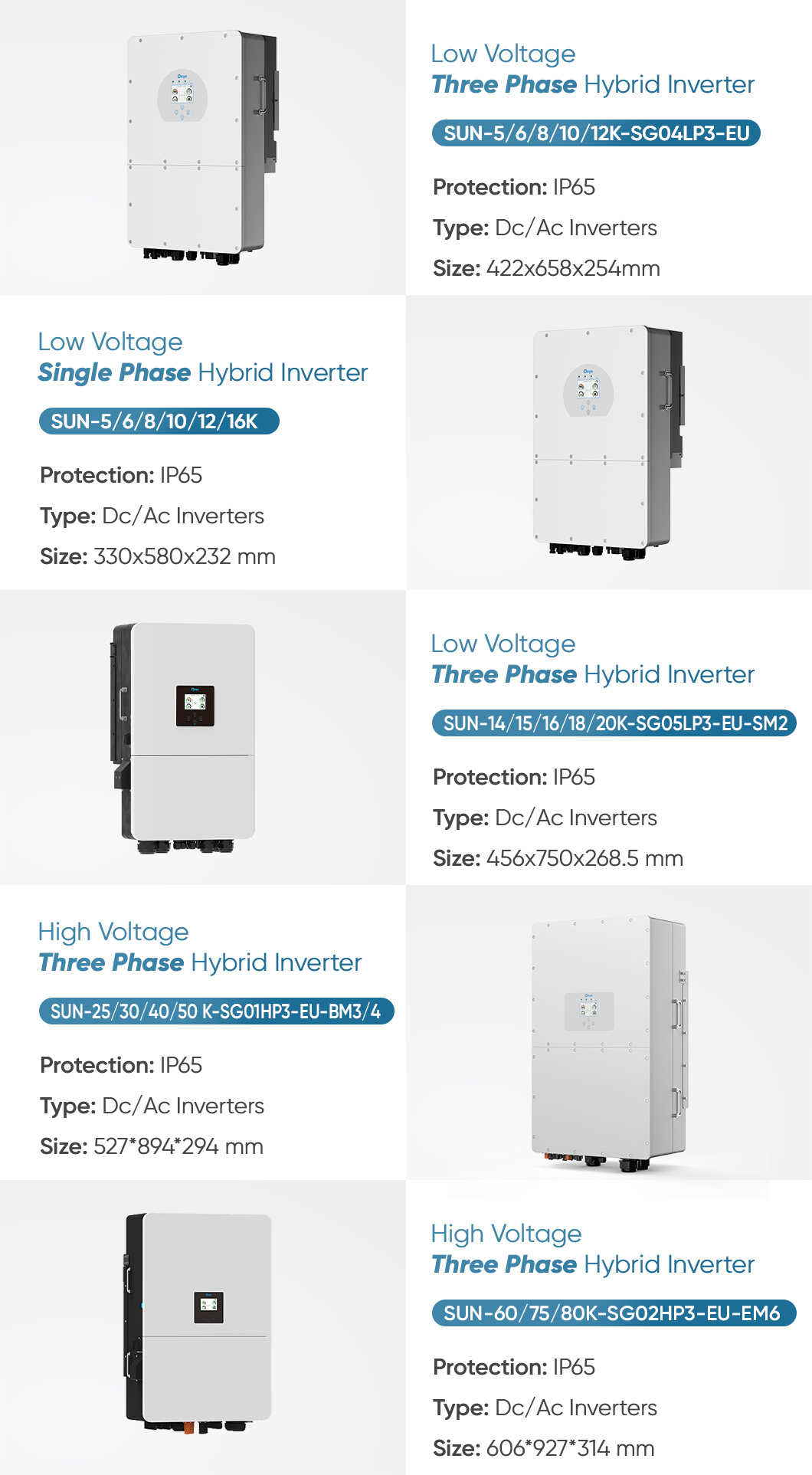

| Cabinet Size (WxHxD mm) | 456×750×268.5 (Excluding Connectors and Brackets) | ||||
| Weight (kg) | 50.6 | ||||
| Warranty | 5 Years / 10 Years (Warranty Period depends on the Final Installation Site of Inverter, more info please refer to Warranty Policy) | ||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105 | ||||
