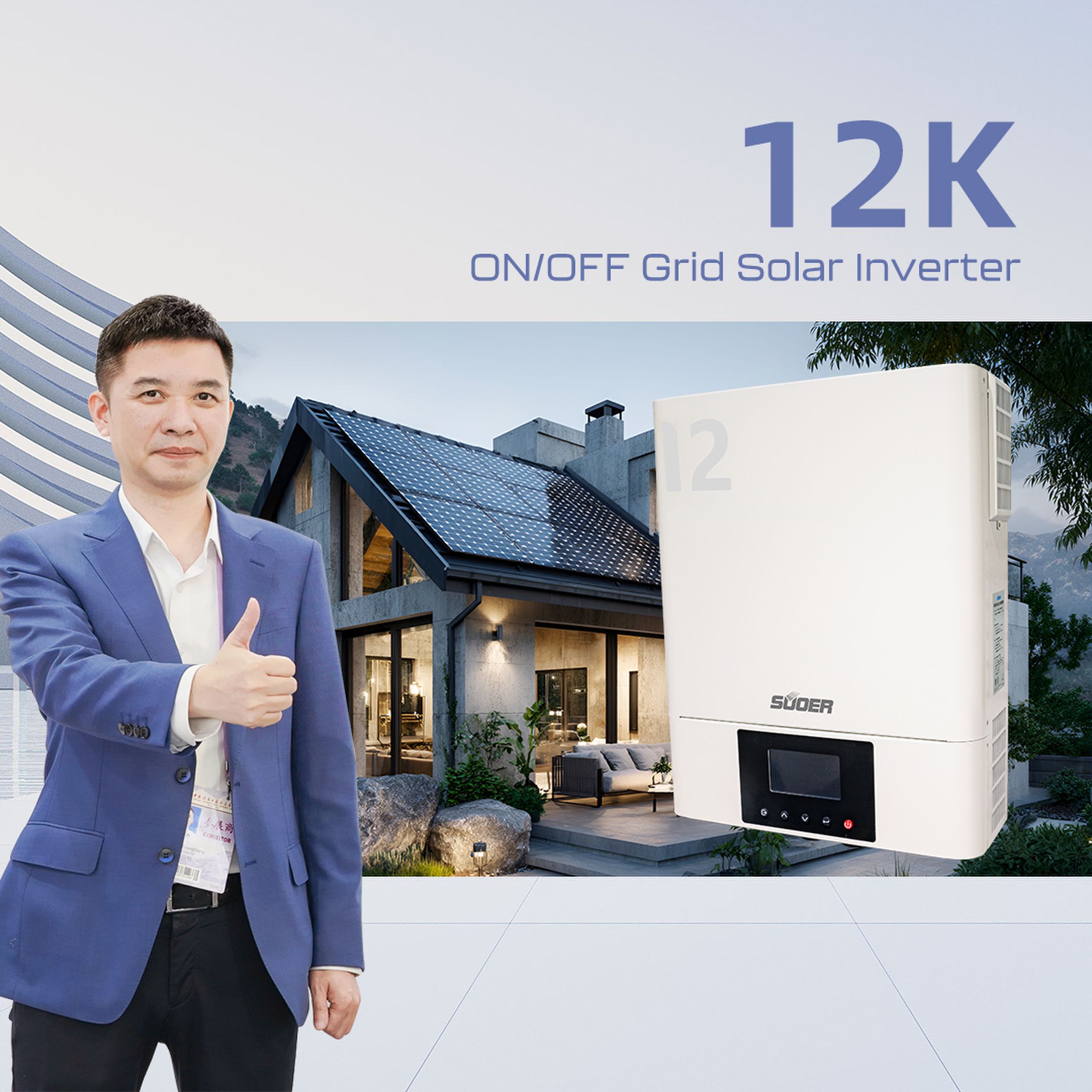

Hybrid Inverter 12kw Solar Inverter Power Charger System Hybrid Solar Inverter with Mppt Charge Controller

📋 Specification

🔍 Product Description

Model	VMS-V-9K-48-H/HG
RATED POWER	9000W
INPUT
Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt. Mode)	230 VAC ± 5%
Surge Power	15000VA
Transfer Time	15 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform	Pure sine wave
BATTERY
Battery Voltage	48 VDC
Floating Charge Voltage	54 VDC
Overcharge Protection	66VDC
SOLAR CHARGER & AC CHARGER
Max. PV Array Open Circuit Voltage	500VDC
Max. PV Array Power	11000W (5500W*2)
MPP Range @operating Voltage	90~450VDC
Max. Solar Charge Current	150A
Max. AC Charge Current	120A
Max. Charge Current	120 A
PHYSICAL
Dimension, D x W x H (mm)	147 x 432 x 553mm
Net Weight (kgs)	17.2
Communication Interface	RS485 / Wifi / Dry-contact
ENVIRONMENT
Humidity	5% to 95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C to 50°C
Storage Temperature	-15°C to 60°C

⭐ Features

Dual outputs, for smart load management
Maximum PV input current increases to 27A
Status indication with RGB lights

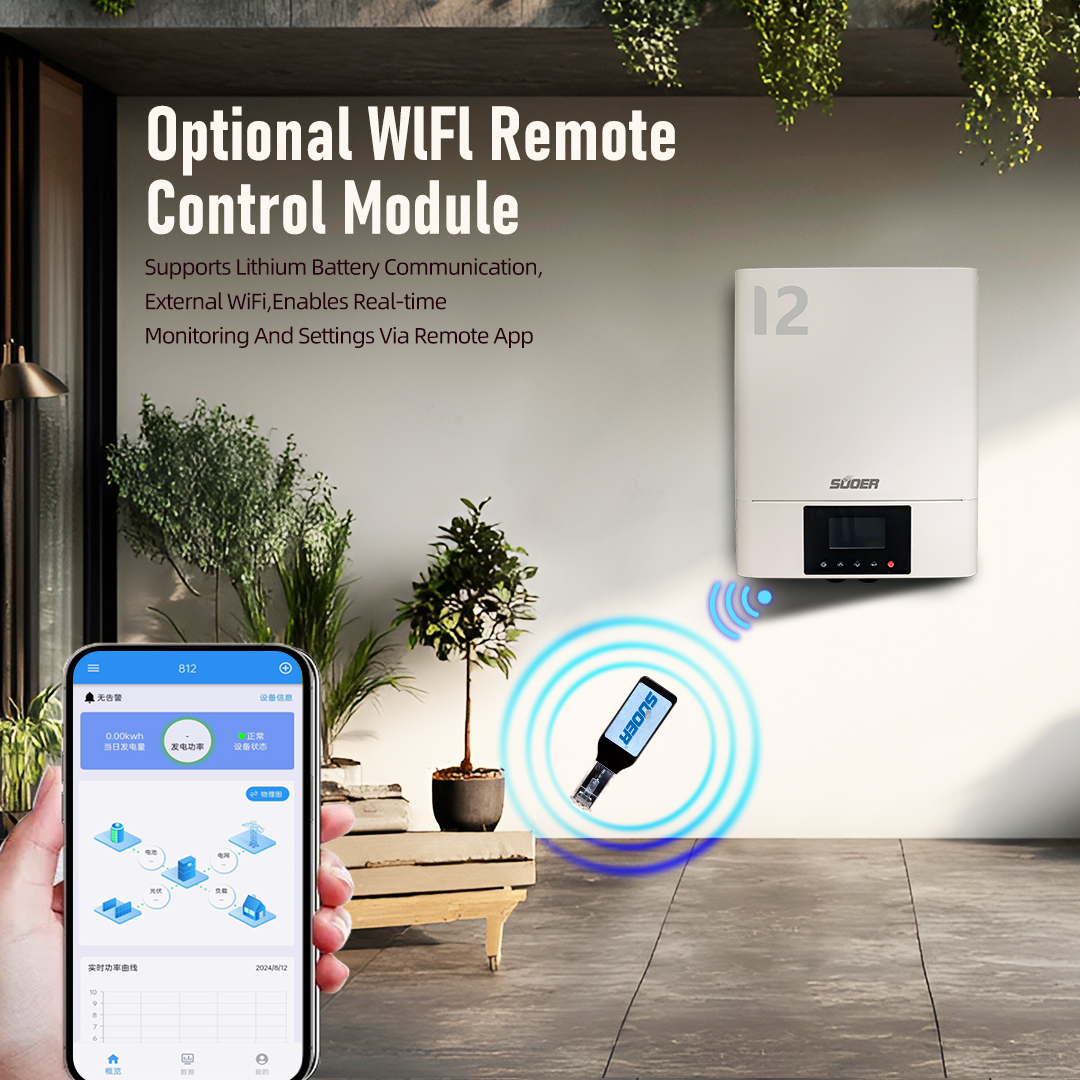

Built-in Wi-Fi for mobile monitoring (Android/iOS App is available)
Supports USB On-the-Go function
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Selectable high power charging current
Compatible to Utility Mains or generator input
Built-in anti-dust kit
Optional DC output for DC fan, LED bulb, router and so on (only for 8K model)

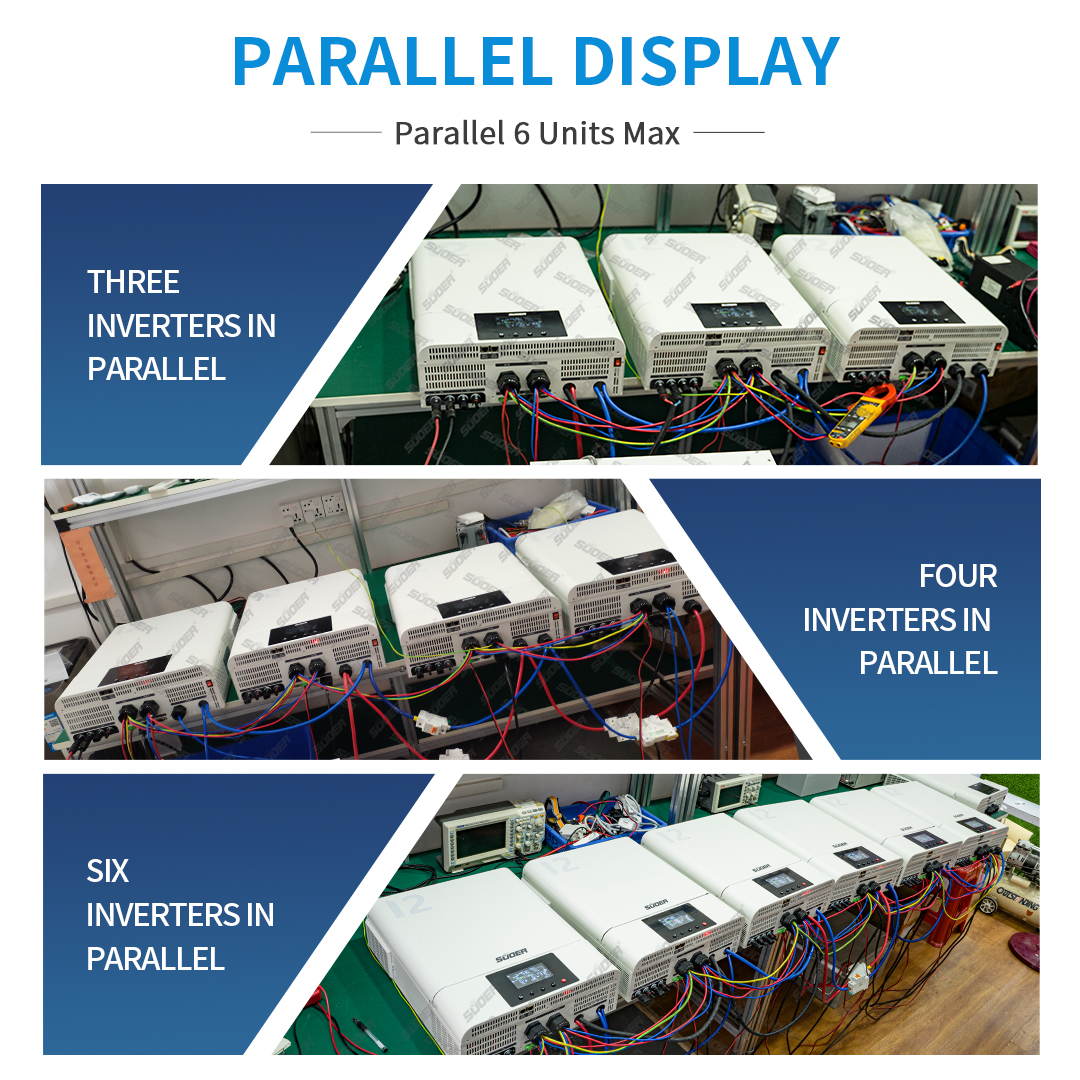

Parallel operation with up to 6 units

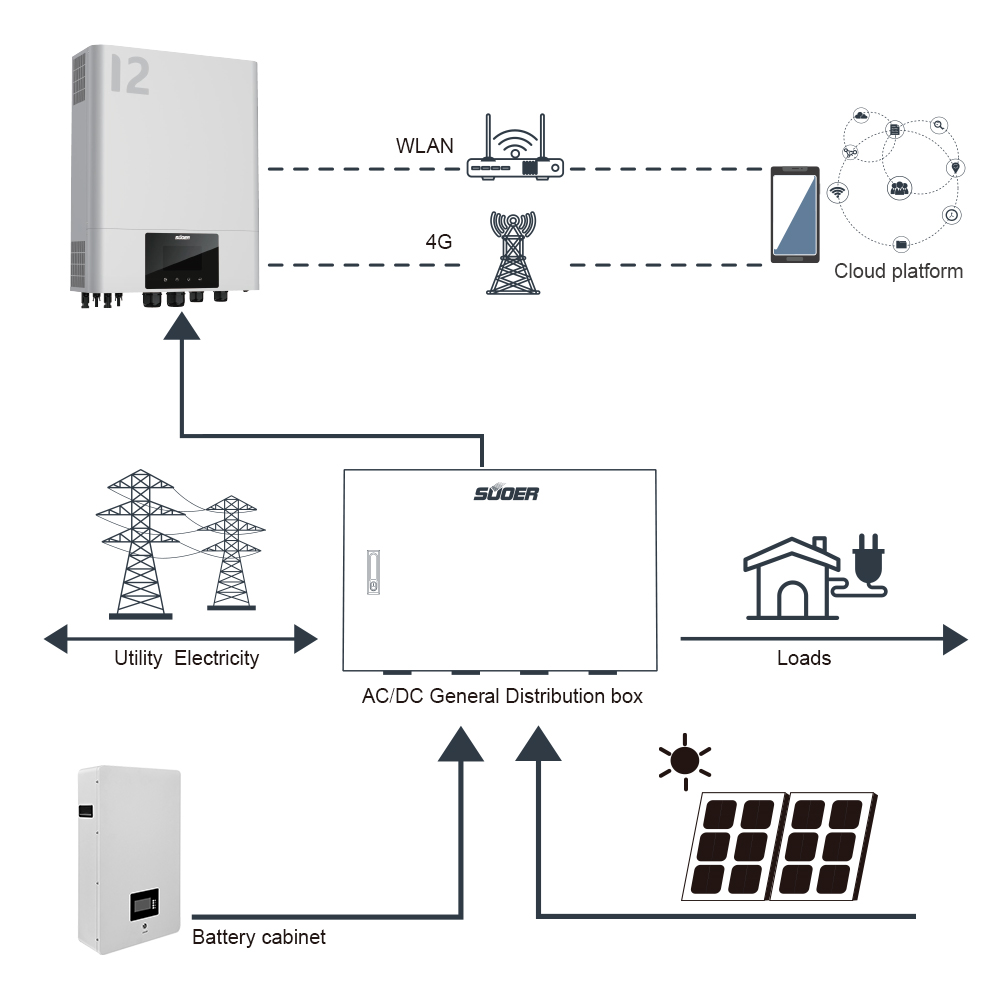

⚙️ System Setup

⚡ Performance & Protection

🛡️ Secure

Built-in AC/DC distribution protection switch to realize short circuit and overcurrent protection of mains, photovoltaic, battery and inverter output.
Equipped with photovoltaic lightning protection and AC output leakage protection.
Inverter features over temperature, overload, over/under voltage and short circuit protection.
Battery module incorporates over temperature, over current, over/under voltage and short circuit protection.
Cabinet includes a wall-mount plate to ensure stable fixing.
Fully complies with EU LVD and EMC directives.

🧠 Brain Power

Independent monitoring unit with a 7-inch color touch screen to easily view and configure parameters.
Detects PV power generation, mains power supply, battery charging/discharging and inverter output voltage, current, and power.
Integrated metering function for photovoltaic power generation and mains power.
Records daily, weekly, monthly and annual power comparison bar charts.
Comprehensive alarm functions for photovoltaic, mains, battery and inverter systems.
Multi-time peak and valley power control configuration.
Capacity and life cycle detection for each battery group.
Supports Cloud platform web pages and mobile App connections via Wi-Fi.
Compatible with smart home systems and supports remote firmware upgrades.

💰 Economy

Eliminates the need for additional distribution boxes and connection cables.
High-voltage PV mode means no additional photovoltaic junction boxes are required.
Integrated cabinet design reduces connectivity cables between the inverter and battery.
Wi-Fi data collector simplifies communication layout.
Optimizes space occupation with compact cabinet design.
Easy installation workflow reduces system setup labor costs.
MPPT maximum tracking efficiency ≥98%.
Highly compatible with battery packs from various manufacturers.

🚀 Efficient

MPPT efficiency ≥98%, inverter max efficiency ≥95%, and mains mode efficiency ≥99%.
Install and connect cables to the Converged cabinet in just 10 minutes.
Replace inverter and battery modules within 1 minute without full cabinet disassembly.
Fast-connect design allows battery cabinet setup in under 10 minutes.

🌱 Environment

Fully compliant with the EU RoHS 2.0 directive.
Modern appliance design integrates cleanly into the residential home environment.

❓ FAQ

1. What core power products are available in this lineup?

The core range includes complete Energy Storage Systems, Solar Energy Systems, Solar Pump Inverters, Solar Power Inverters, Battery Chargers, Solar Controllers, and Grid Tie Inverters.

2. How is the product quality standard guaranteed?

Quality is maintained through strict operational guidelines: a pre-production sample is tested before starting mass production, followed by a final quality inspection before shipment.

3. What standard safety certifications do these systems hold?

These energy storage products comply with international environmental and safety standards, holding CE, RoHS, and EU LVD/EMC certifications.

4. Is it possible to monitor the solar energy system status remotely?

Yes. The system has built-in Wi-Fi communication and supports an independent monitoring unit with a 7-inch color touch screen, enabling tracking through mobile apps (iOS & Android) and web pages.

5. Can this inverter be used with utility grids or diesel generators?

Yes, it is highly flexible and fully compatible with both Utility Mains and generator inputs, supporting parallel operations with up to 6 units.

6. What delivery conditions and payment options are supported?

Supported delivery terms include FOB and EXW. Payments can be processed in currencies like USD, HKD, and CNY via standard methods such as T/T and cash.
