| Parameter Type | Specifications |
|---|---|
| DC Input | |
| Max. Input Power | 15600W / 18200W / 20800W |
| PV Voltage Range | 150~425V |
| Max. PV ISC (A) | 44+44+44 |
| AC Output | |
| Rated Power W/VA | 12000W / 14000W / 16000W |
| Nominal Voltage/Range | 230Vac |
| Frequency | 50 / 60Hz |
| AC Output Topology | L+N+PE |
| Battery | |
| Battery Voltage Range | 40~60V |
| Battery Type | Lithium / Lead-acid |

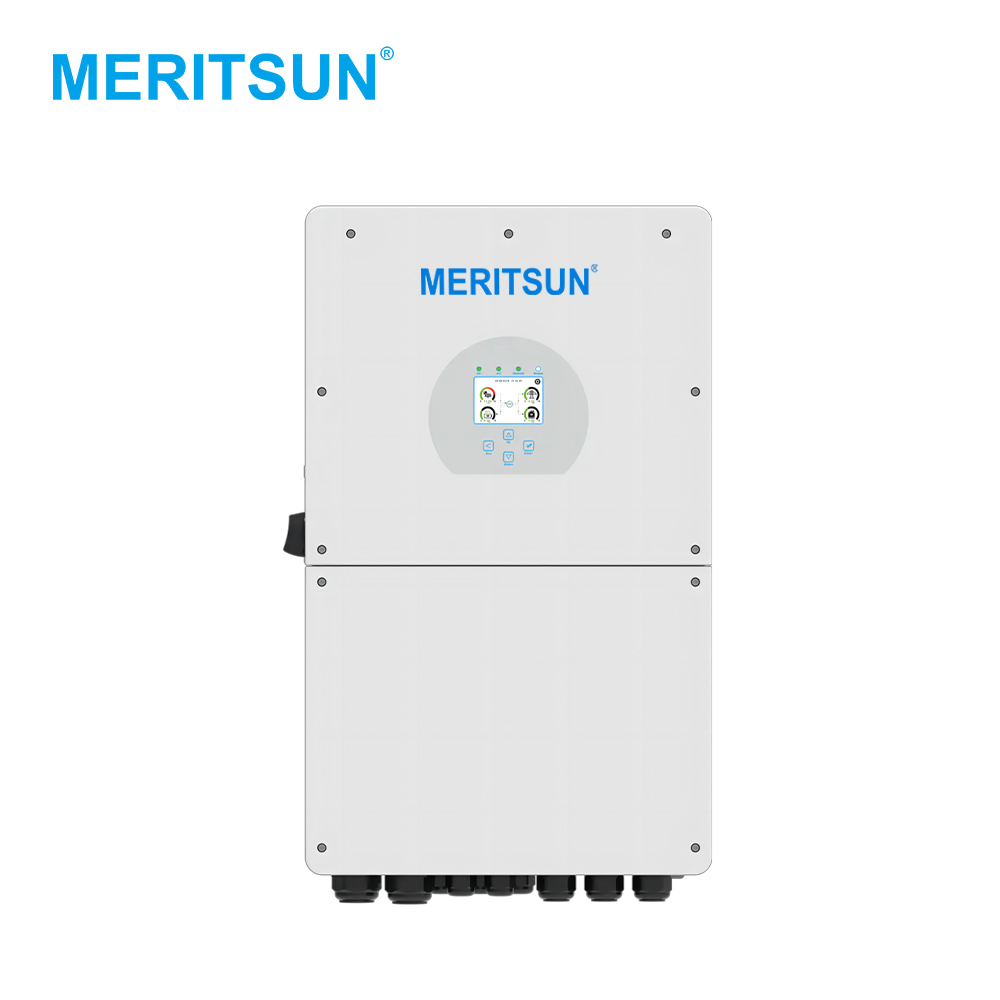

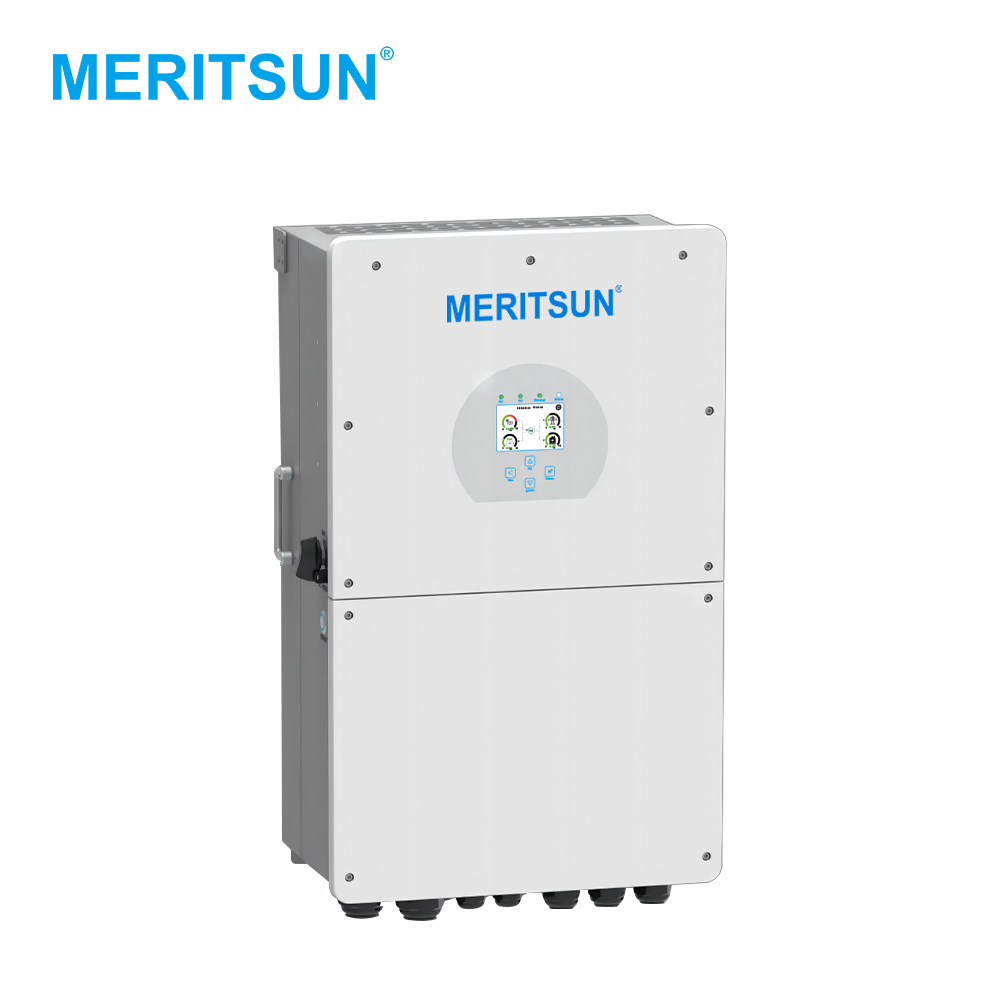

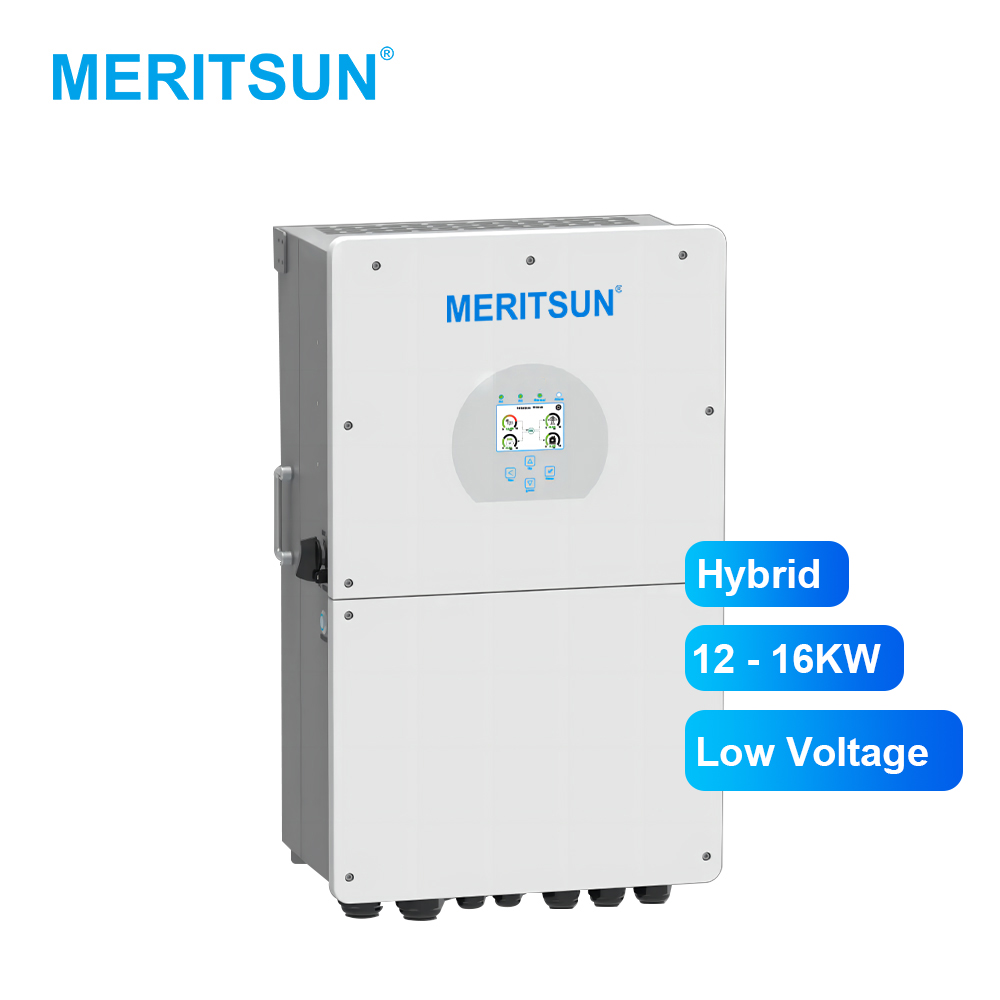

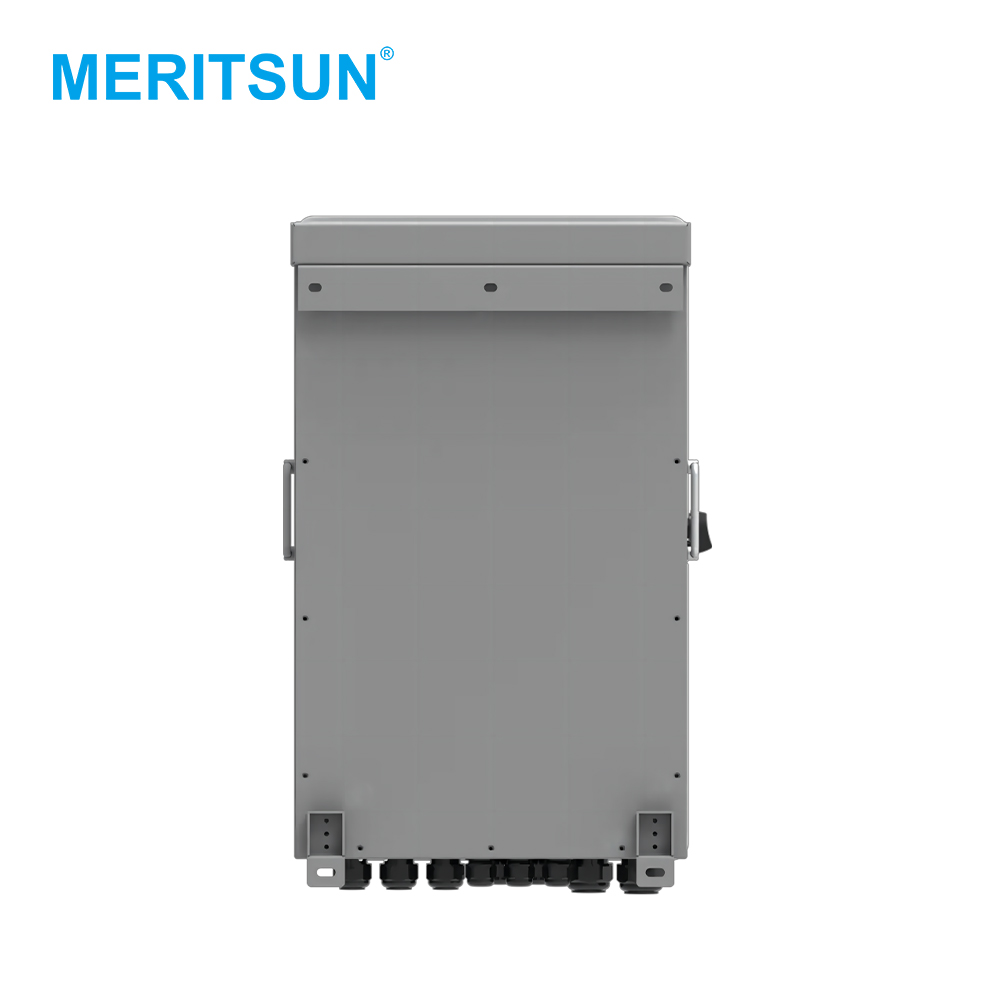

SUN 12/14/16K-SG, hybrid inverter, is suitable for residential and light commercial use, maximizing self-consumption rate of solar energy and increasing your energy independence.
During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via SUN 12/14/16K-SG. Finally, the stored energy can be released when the loads require it.
The battery can also be charged by the diesel generator to ensure uninterrupted supply in the event of grid blackout. It is equipped with RS485/CAN port for battery communication.
Thanks to the smart monitoring platform, our full series inverter products support remote shutdown immediately when an accident occurs. Setting parameters and FW updates remotely makes PV plant O&M easier.
The PV voltage range is 150V to 425V, allowing for efficient compatibility with various solar panel configurations.
Yes, our smart monitoring platform supports remote parameters setting, immediate remote shutdown in case of accidents, and over-the-air firmware updates for easier operation and maintenance.
Yes, the inverter supports energy storage from a diesel generator, ensuring an uninterrupted power supply during prolonged grid blackouts.
The inverter works with both Lithium and Lead-acid batteries, featuring a safe 48V low voltage battery design with a voltage range of 40V to 60V.
You can connect up to 10 units in parallel, making the system highly scalable for residential and light commercial use.
Yes, it supports both DC couple and AC couple designs, allowing you to retrofit and optimize your existing solar setup.
