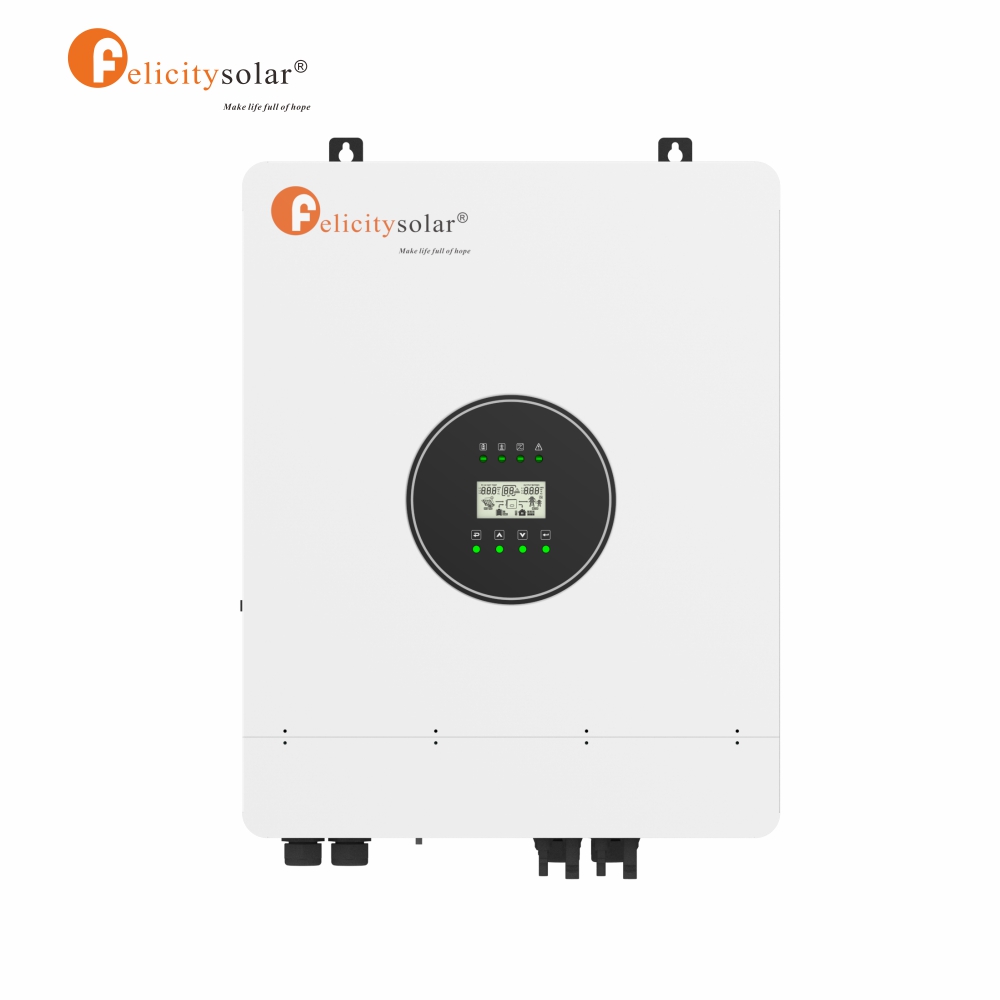

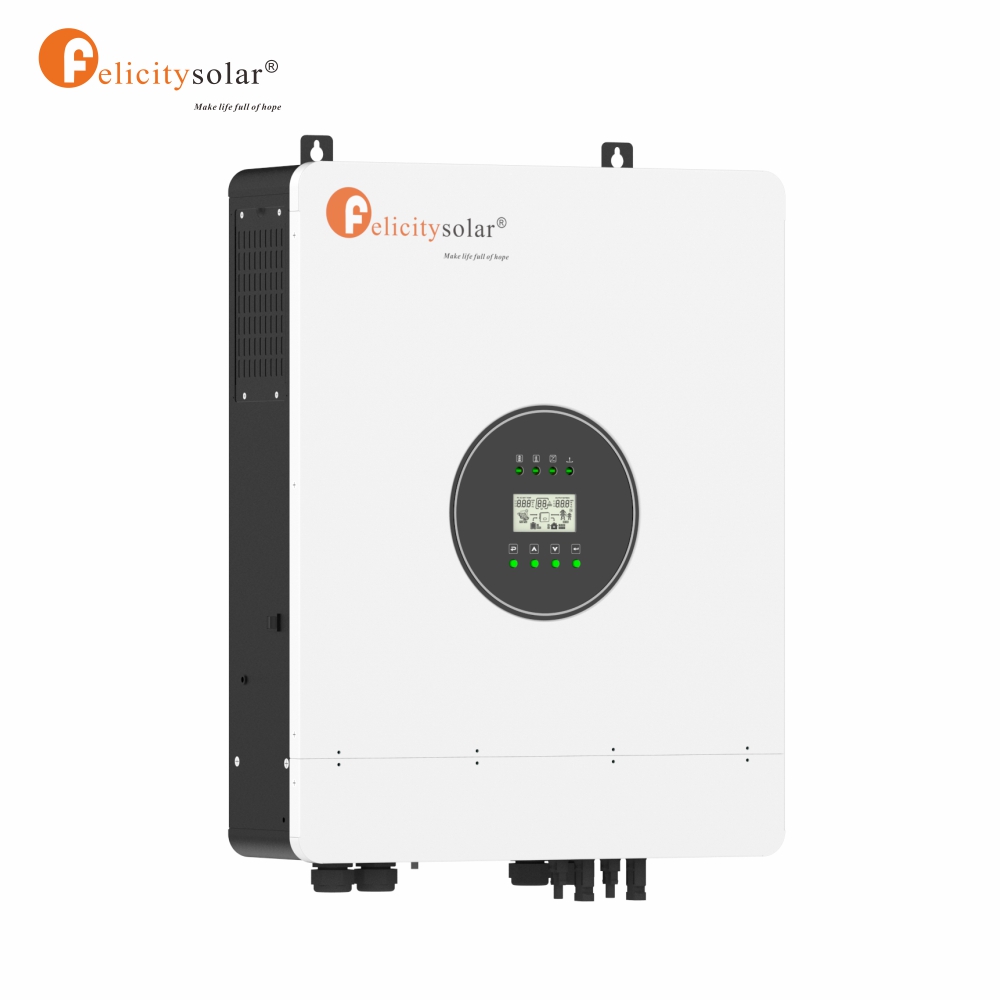

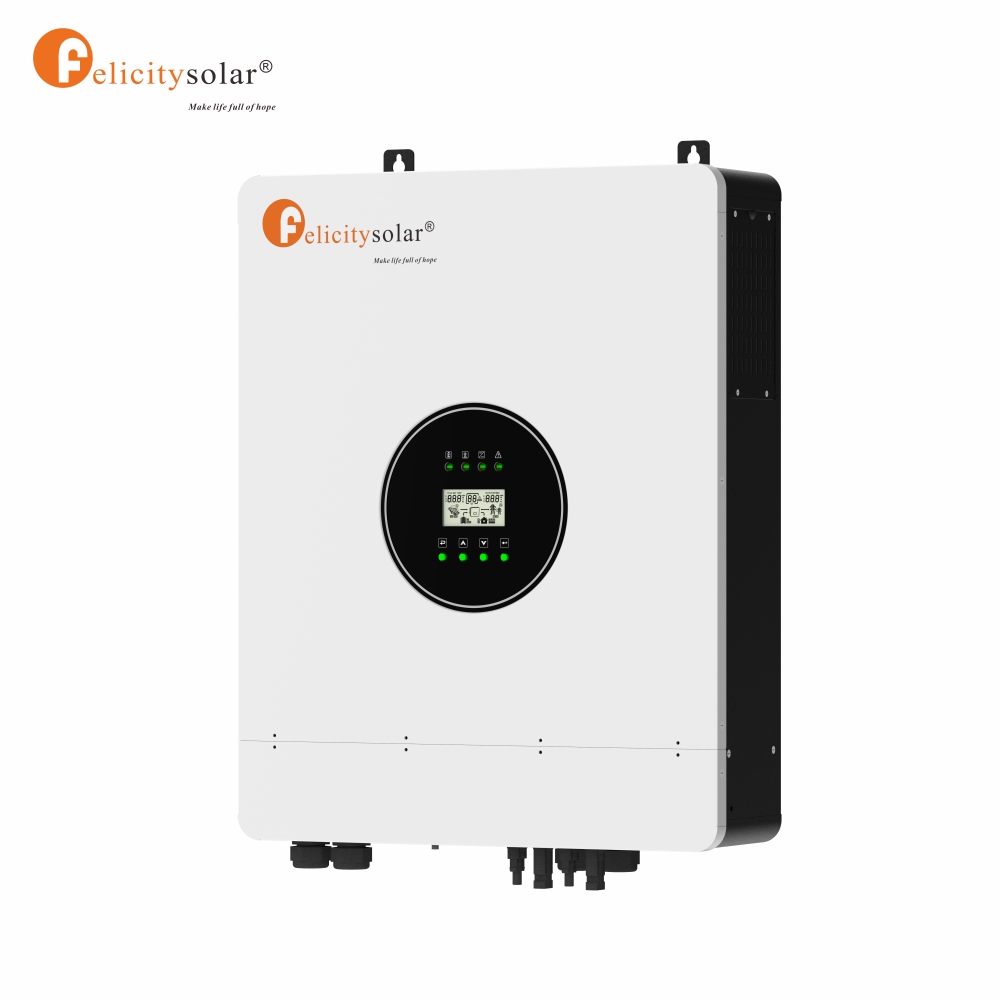

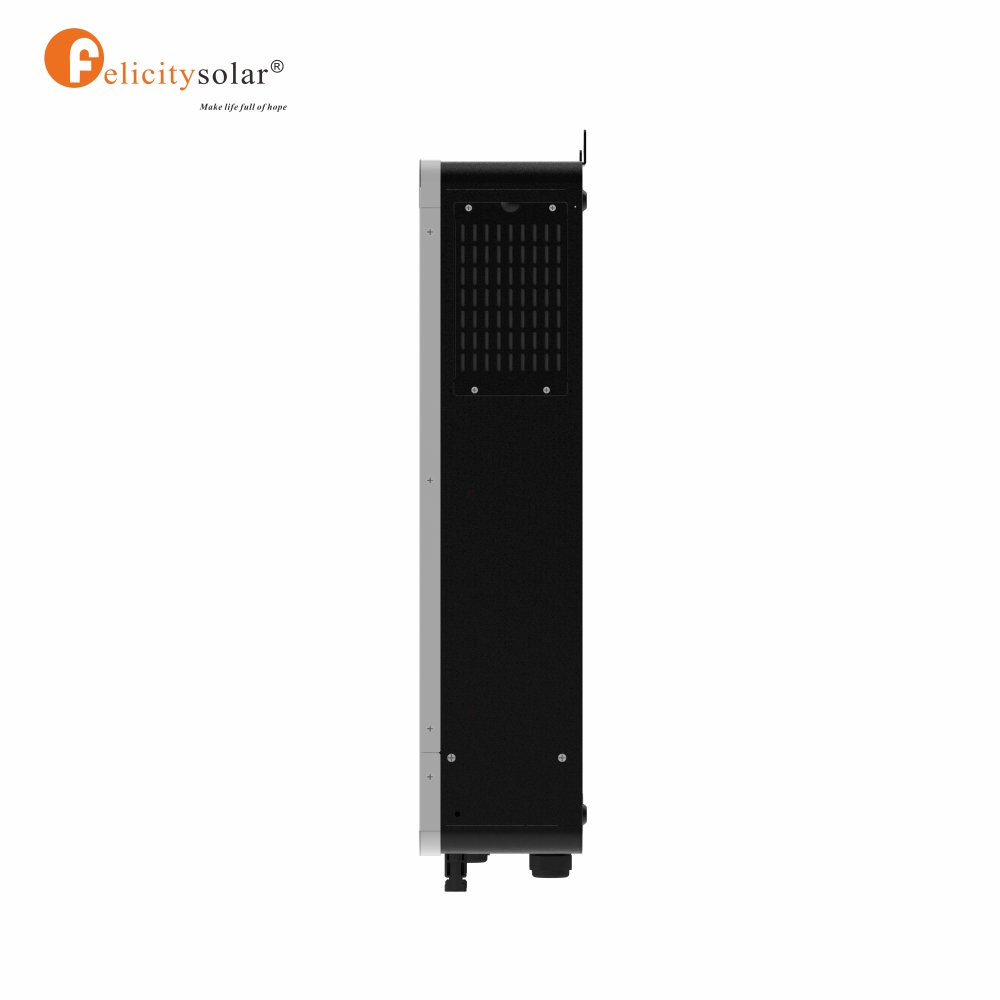

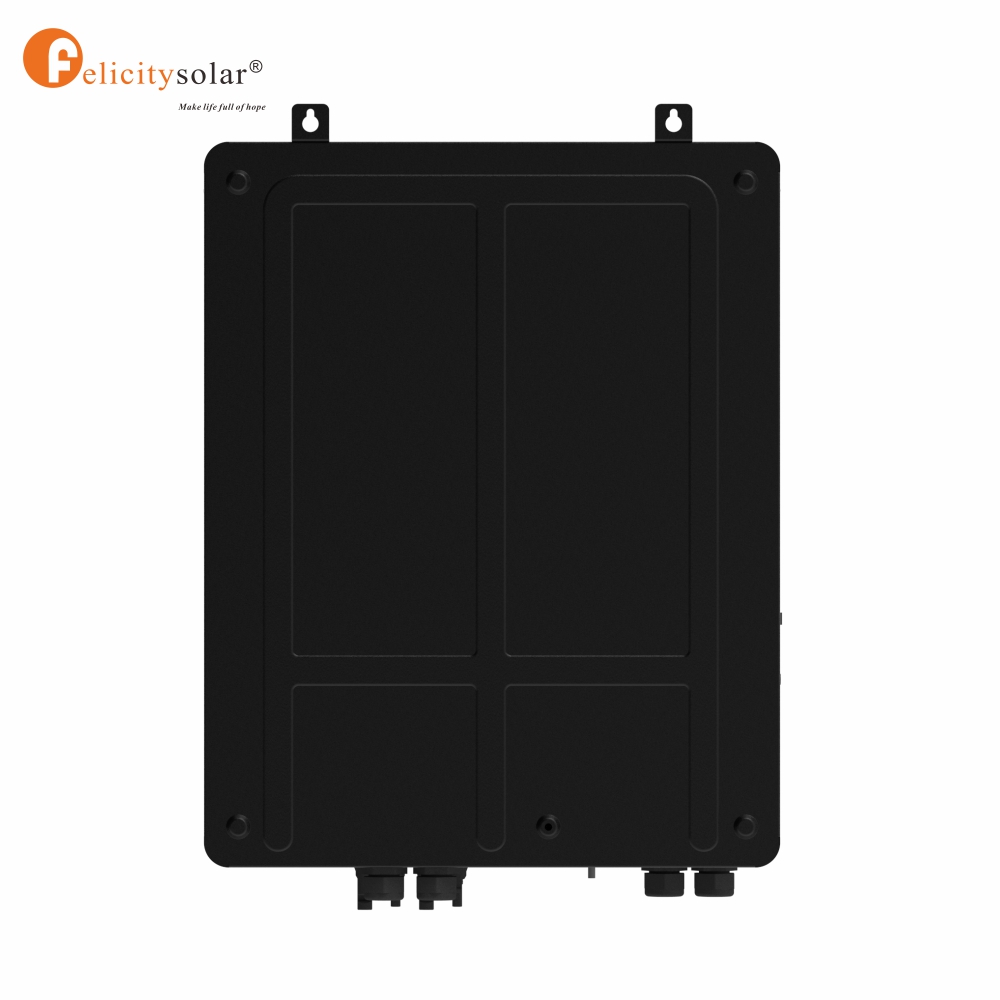

Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
1 / 5
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI
Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI

Felicity Solar Hybrid Inverter Off Grid 48v 220v 8kw Inverter Built in WIFI

Send Inquiry

Product Description

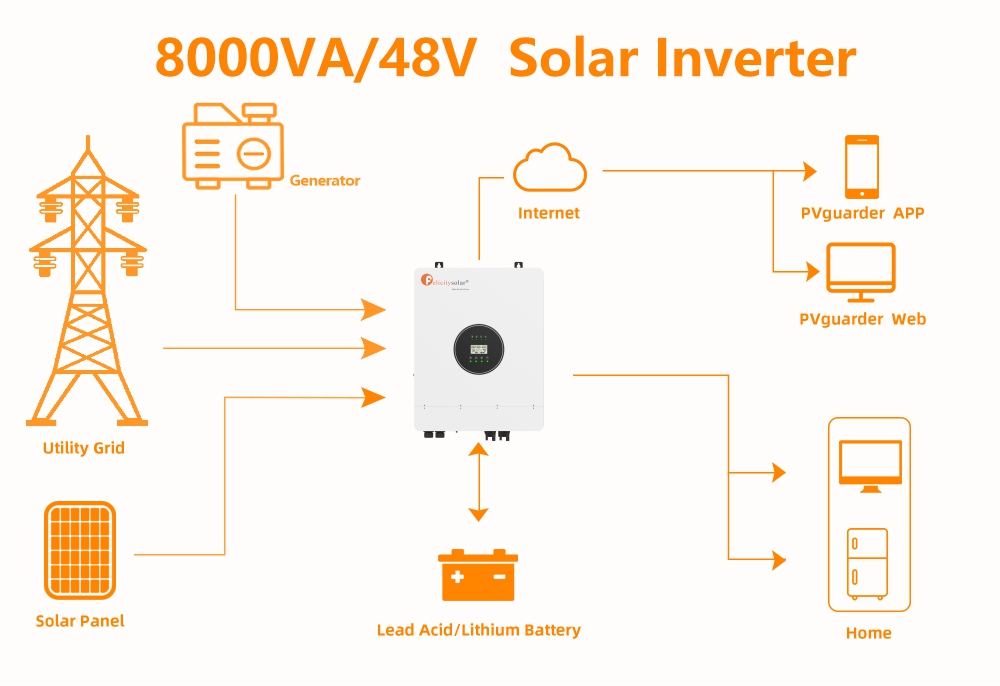

Solar Inverter System Diagram

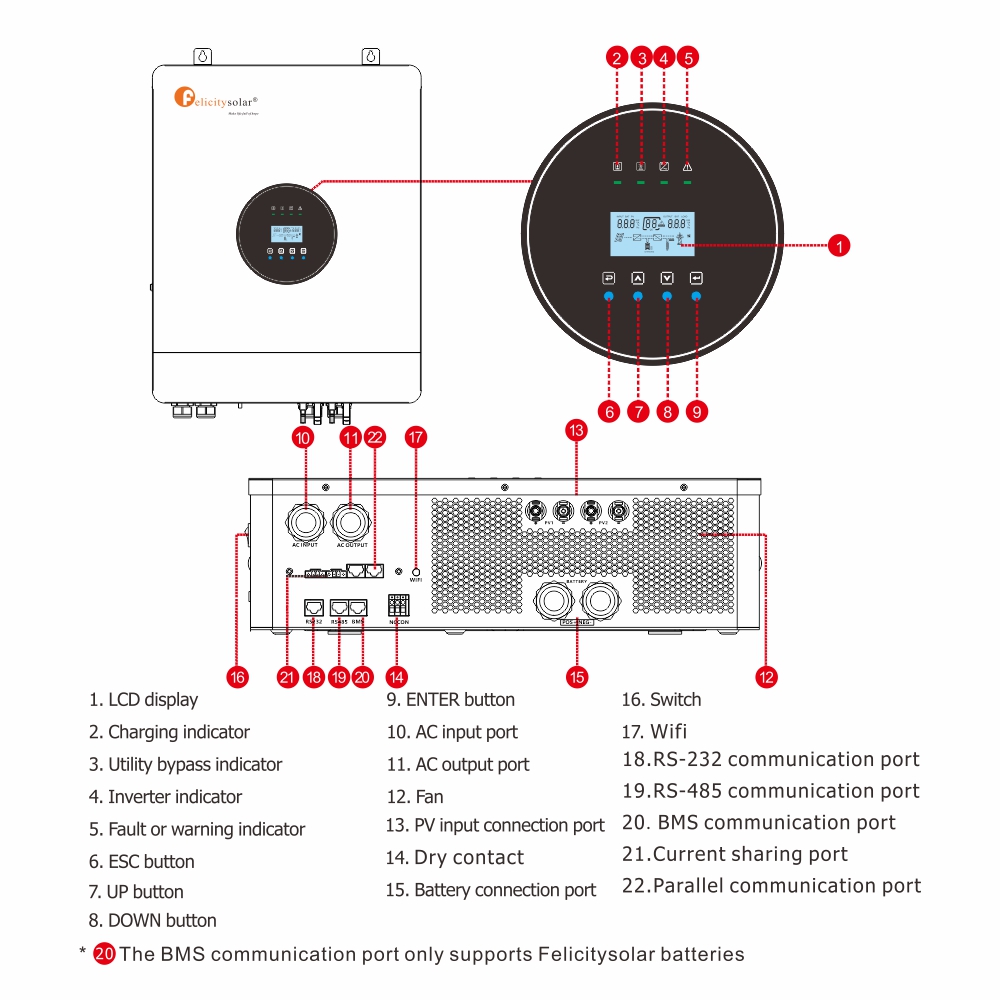

Inverter View 1 Inverter View 2
Technical Specifications
Model IVEM8048
Rated Output Power 8000VA / 8000W
Nominal DC Input Voltage 48V
Output Voltage Waveform Pure sine wave
Nominal Output Voltage 230Vac±5%
Nominal Output Frequency (Hz) 50±0.3Hz/60Hz±0.3Hz (Adjustable)
Parallel capability Yes, up to 6 units
Peak Efficiency 93%
Over-Load Protection (SMPS load) 5s @ ≥150% load; 10s @ 105%~150% load
Surge Rating 2 * rated power for 5s
Capable of Starting Electric Yes
Output Short Circuit Protection Yes
Cold Start Voltage 46V
General Specifications
Operating Temperature 0°C ~ 55°C
Range Storage Temperature -15°C ~ 60°C
Net Weight (Kg) 23.7KG
Product Size (D*W*H) 607 x 406 x 141 MM
Package Dimension (D*W*H) 712 x 582 x 259 MM
Key Features & Functionalities
✓ Cold start function.
✓ Inverter running without battery.
✓ Lithium battery activation function.
✓ Auto restart while AC is recovering.
✓ Built-in MPPT solar charge controller.
✓ Parallel connection quantity up to 6 units.
✓ Configurable AC/Solar Charger priority via LCD.
✓ Compatible to mains voltage or generator power.
✓ Overload / Over temperature / Short circuit protection.
✓ Configurable battery charging current and appliances input voltage range via LCD.
Inverter Feature Graphic
Detailed Design & Component Layout
Detail Image 1 Detail Image 2 Detail Image 3 Detail Image 4 Detail Image 5
Inverter Series Lineup
Inverter Series Selection Guide
Frequently Asked Questions
Can the IVEM8048 inverter operate without a battery connection?
Yes, this inverter supports battery-free operation. It can run directly from solar panel arrays or utility mains power when a battery bank is not connected.
What is the parallel capability limit of this model?
The IVEM8048 inverter can be configured in parallel with up to 6 units to scale up the system output capacity for larger power requirements.
Does this solar inverter support lithium battery activation?
Yes, it features a built-in lithium battery activation function to help wake up and recover deeply discharged lithium-ion battery packs.
What are the safety protection mechanisms built into this system?
The system features comprehensive built-in protections including overload protection, short circuit protection, over-temperature protection, and utility recovery auto-restart functionality.
Can I configure the system settings directly on the device?
Yes, the customizable AC/solar charger priority settings, battery charging currents, and acceptable input voltage ranges can be configured manually via the built-in LCD interface.
Is the inverter compatible with external generators?
Yes, this inverter is designed to be compatible with utility mains power as well as auxiliary generator power for reliable off-grid operations.
