| Parameter Item |
Specification Detail |

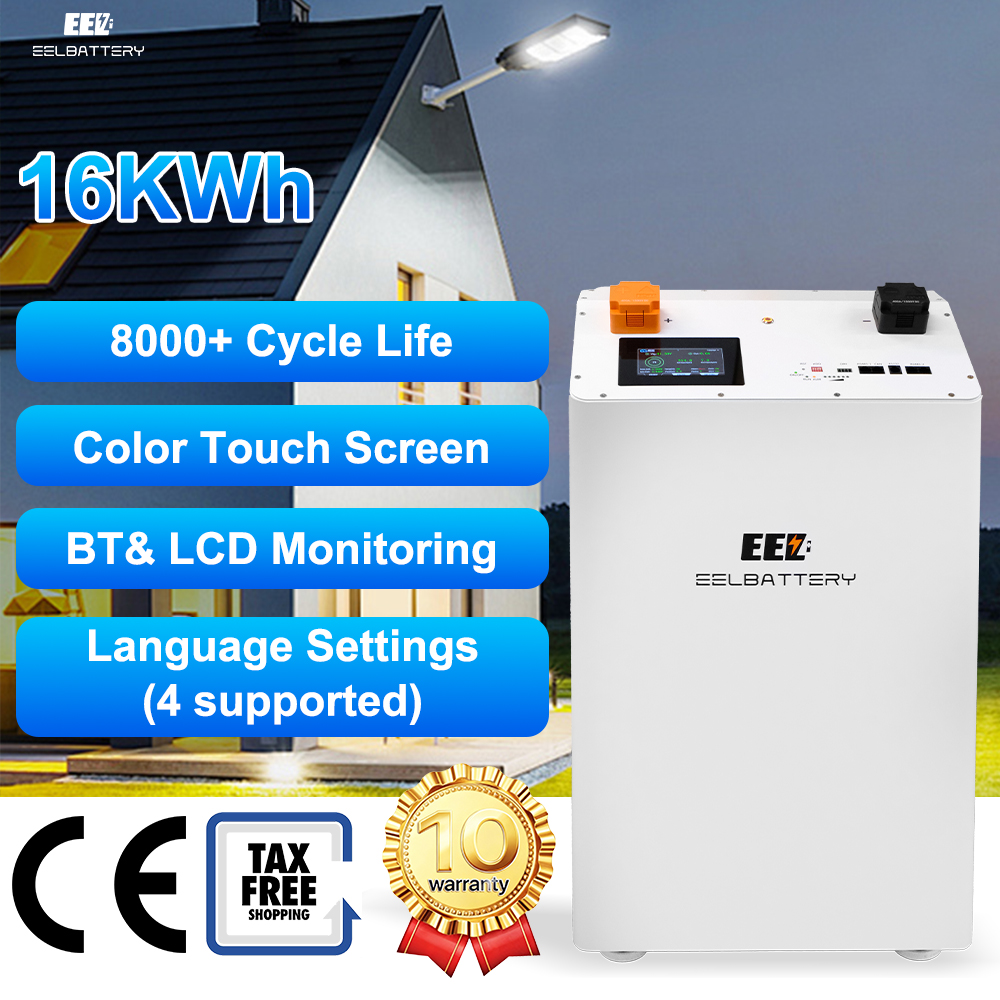

| Model |
JKLIV3-51.2V 16KWh / JKLIV3-16KWh-200A |
| Cell Technology |
LiFePO4 battery cells |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
314Ah |
| Nominal Energy |
16KWh |
| Heating System |
YES |

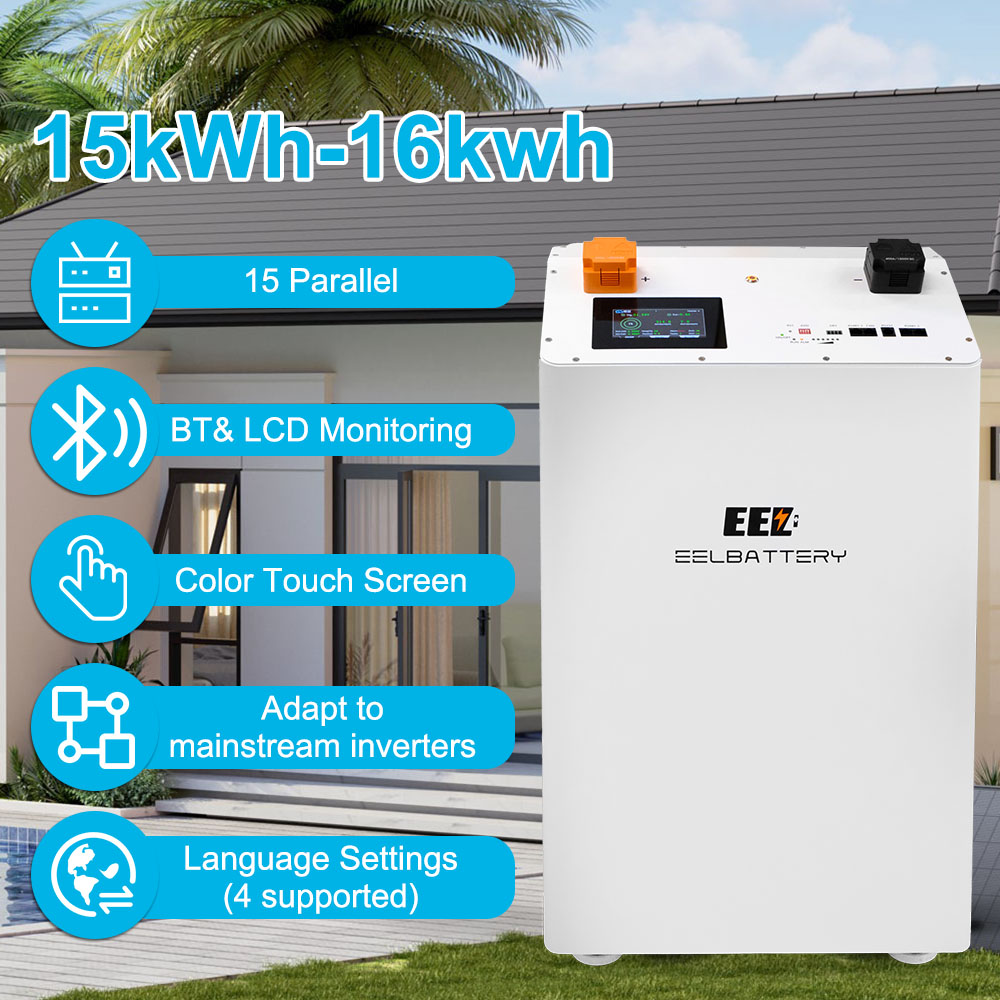

| Scalability |
Up to 15 Units in Parallel |

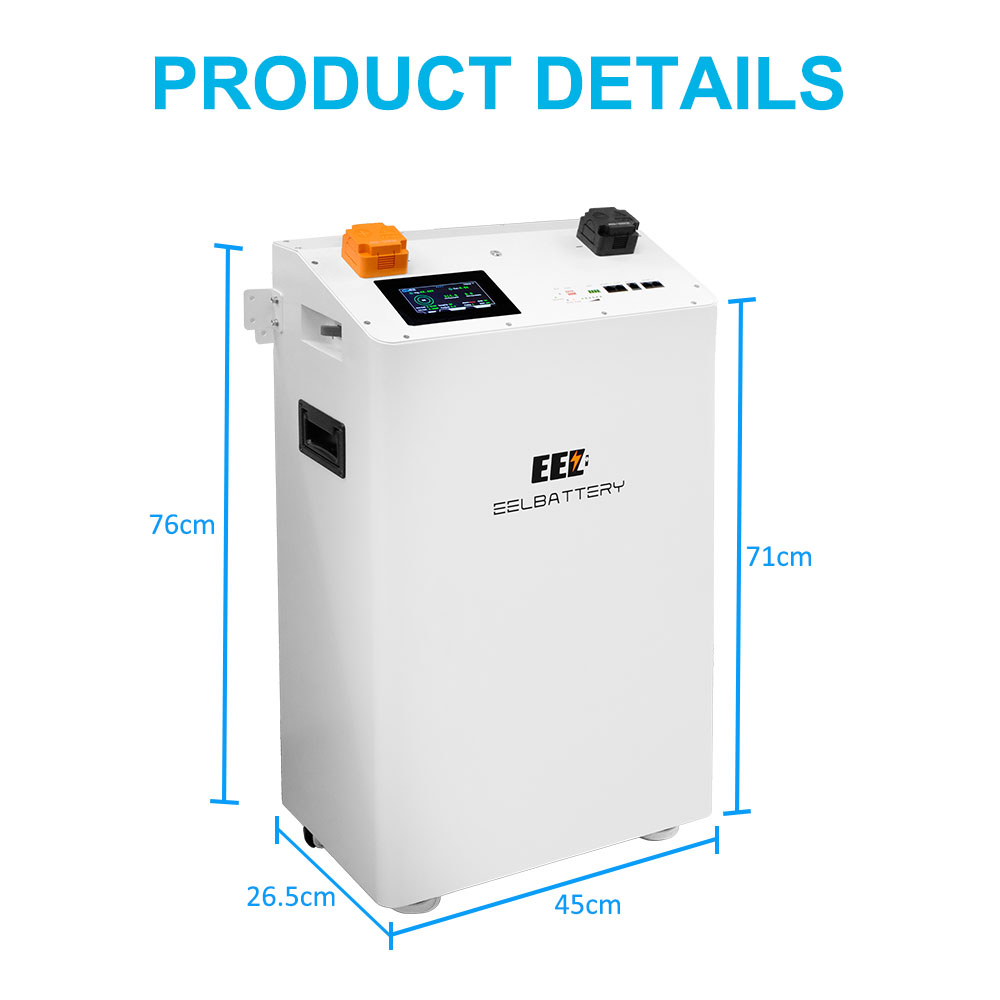

| Dimensions (L/W/H) |
40 * 25 * 70 cm |
| Gross Weight |
130kg |
| Installation |
Indoor |
| Warranty |
10 Years Product Warranty (15 Years Service Life) |
| Electrical Parameter |
| BMS |
PB2A16S20P |
| Max Charge Current |
200A |
| Max. Cont. Charge Current |
200A |
| Max. Cont. Discharge Current |
200A |
| Operating Voltage Range |
43.2V - 57.6V |
| Charge Cut-off Voltage |
58.4V |
| Discharge Cut-Off Voltage |
43.2V |
| General Parameter |
| Cycle Life |
≥8000 cycles |
| Service Life |
15 Years |

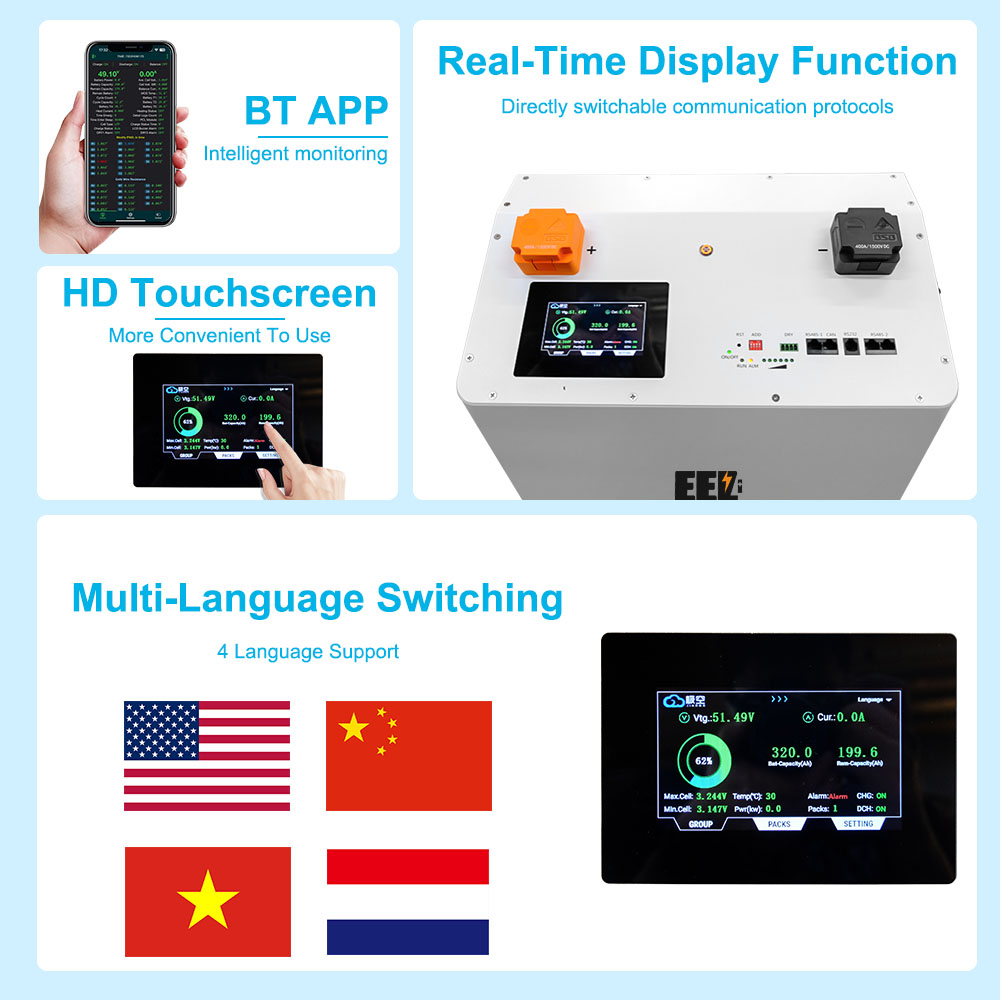

| Display |
4.3 inch Touchscreen |
| Communication |
RS485, RS232, CAN |
| Charge Temperature Range |
0°C ~ 60°C (Under 0°C extra heating mechanism) |
| Discharge Temp. Range |
-30°C ~ 60°C (Under 0°C work with reduced capacity) |
| Storage Temp. Range |
-30°C ~ 55°C @ 60% ± 25% relative humidity |
| Compatible Inverters |
Victron, Growatt, Deye, Goodwe, Must, SMA, etc. |
* Contact for the latest inverter-compatible list.
** Under specific test conditions.

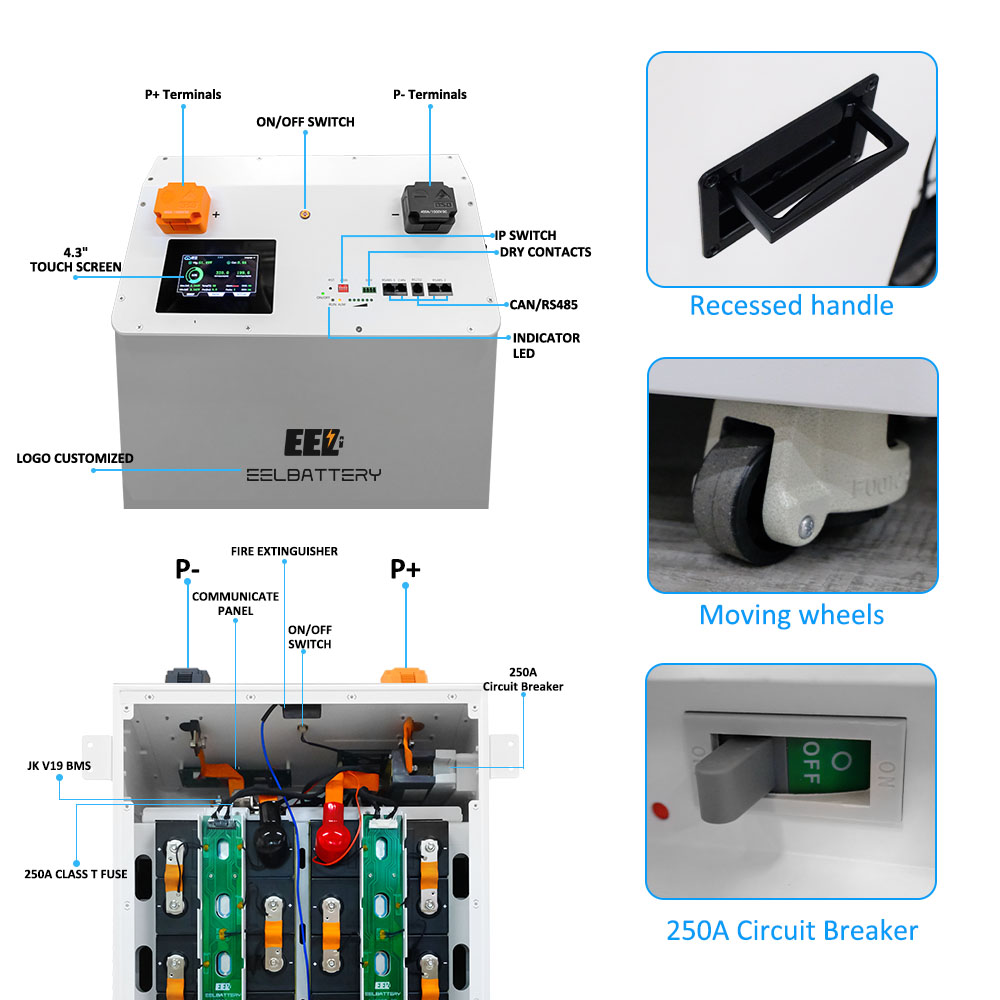

Parts List
- 1 * Battery Pack (Preassembled)
- 1 * Hard-Wooden Packing Box
| Total Delivery Time = Handling Time + Transit Time (+ holidays + weekends) |
| Ship to |
Warehouse |
Shipping Option |
Handling Time (Days) |
Estimated Delivery (Days) |
| EU Country |
PL / DE |
FedEx/DHL/UPS |
1 ~ 7 |
2 ~ 15 |
| EU Country |
CN |
Sea Freight + Express |
1 ~ 15 |
35 - 45 |
| USA |
USA |
FedEx/DHL/UPS |
1 ~ 7 |
2 ~ 7 |
| USA |
CN |
Sea Freight + Express |
1 ~ 15 |
25 - 35 |
| CA / UK |
CN |
Sea Freight + Express / Truck Delivery / Train + Truck |
1 ~ 7 |
35 ~ 50 |
| AU |
CN |
Sea Freight + Express / Truck / Train + Truck |
1 ~ 15 |
25 - 35 |
| Asian |
CN |
Sea Freight + Express / Truck / Train + Truck |
- |
25 - 60 working days |
| Other Region |
CN |
Contact for details |
- |
Calculated based on location |
* The above transportation time is only the reference time of most orders, excluding inspection time or other special time, such as natural accidents, congestion, and other uncontrollable factors.
* The tracking information will be updated after pickup by local express. Please wait patiently or reach out for help.
Frequently Asked Questions
What is the cycle life and expected service life of this battery pack?
The battery utilizes advanced LiFePO4 cells offering a cycle life of ≥8,000 cycles and an estimated service life of 15 years, backed by a 10-year product warranty.
Can I expand this battery system in the future?
Yes, this battery system is highly scalable and supports up to 15 units connected in parallel to increase capacity as your energy storage needs grow.
How does the integrated heating system function?
The battery includes a built-in heating mechanism designed to enable safe charging at temperatures under 0°C. It also supports discharge operations down to -30°C.
Which solar inverters are compatible with the BMS?
The built-in BMS supports RS485, RS232, and CAN protocols, ensuring compatibility with major inverters such as Victron, Growatt, Deye, Goodwe, Must, SMA, and others.
What accessories are included in the packaging box?
Every shipment contains one preassembled battery pack and a robust hard-wooden packing box designed for maximum protection during transit.
