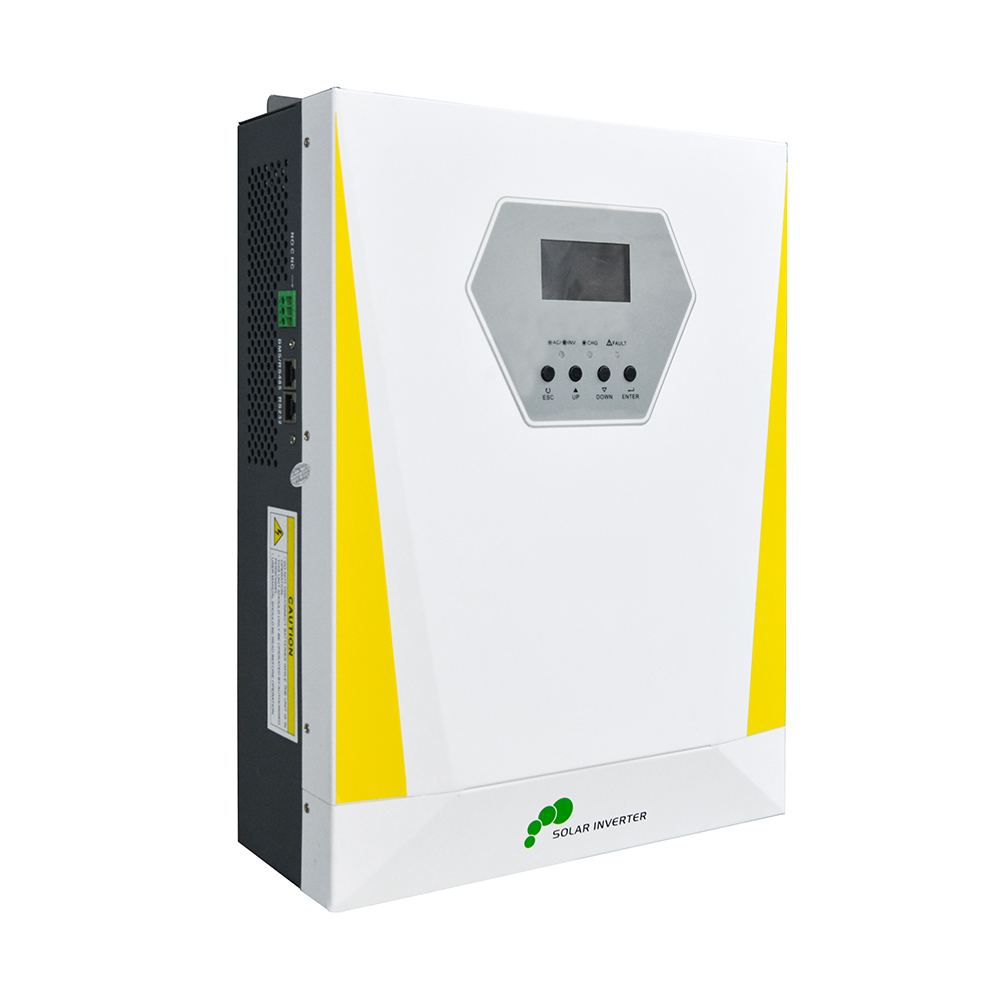

| Model | GA3024MH | GA3624MH | GA5548MH | GA6248MH |
| Input Formation | L+N+PE | |||
| AC Input | 220/230/240VAC | |||
| Input Voltage Range | 90-280VAC ± 3V (Normal Mode) / 185-264VAC ± 3V (UPS Mode) | |||
| Frequency | 50/60Hz (Adaptive) | |||
| Rated Power | 3000W | 3600W | 5500W | 6200W |
| Output Voltage | 208/220/230/240VAC ± 5% | |||
| Output Frequency | 50/60Hz ± 0.1% | |||
| Output Wave | Pure Sine Wave | |||
| Transfer Time (Adjustable) | 10ms for Computer Equipment, 20ms for Household Equipment | |||
| Peak Power | 6000VA | 7200VA | 11000VA | 12400VA |
| Overload Ability | Battery Mode: 21s @ 102%~110% load, 10s @ 110%~130% load, 3s @ 130%-150% load, 400ms @ >150% load | |||
| Peak Efficiency (Battery Model) | >94% | |||
| Rated Voltage | 24VDC | 48VDC | ||
| Constant Charging Voltage | 28.2VDC | 56.4VDC | ||
| Float Charging Voltage | 27VDC | 54VDC | ||
| PV Charging Method | MPPT | |||
| Max PV Input | 4200W | 4200W | 5500W | 6200W |
| MPPT Tracking Range | 120~500VDC | 120~500VDC | 120~500VDC | 120~500VDC |
| MAX PV Input Voltage | 500VDC | 500VDC | 500VDC | 500VDC |
| MAX PV Charge Current | 100A | 100A | 100A | 100A |
| MAX AC Charge Current | 60A | 80A | 60A | 80A |
| MAX Charge Current | 100A | 120A | 100A | 100A |

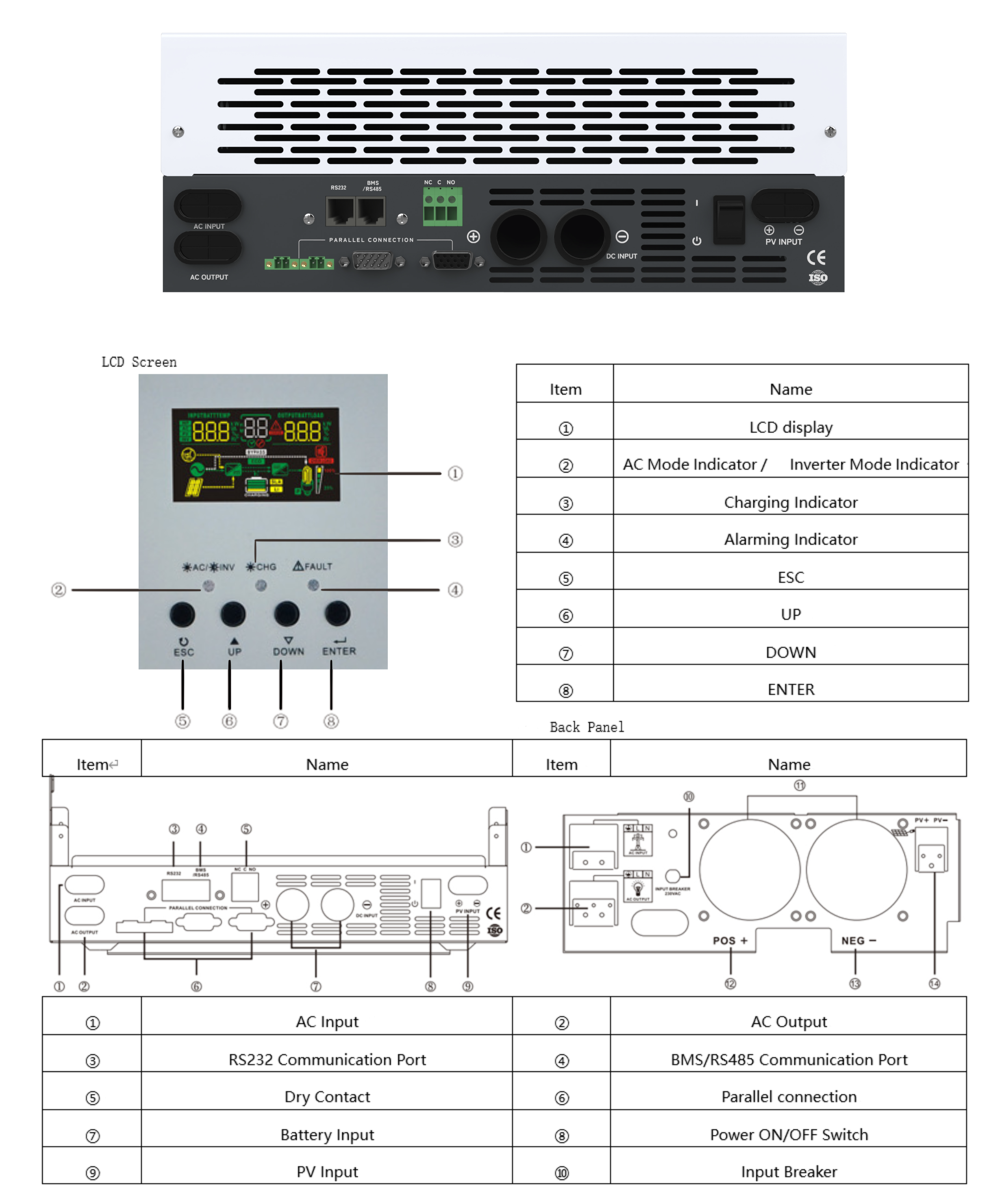

| LCD | Can display operating mode/load/input/output | |||

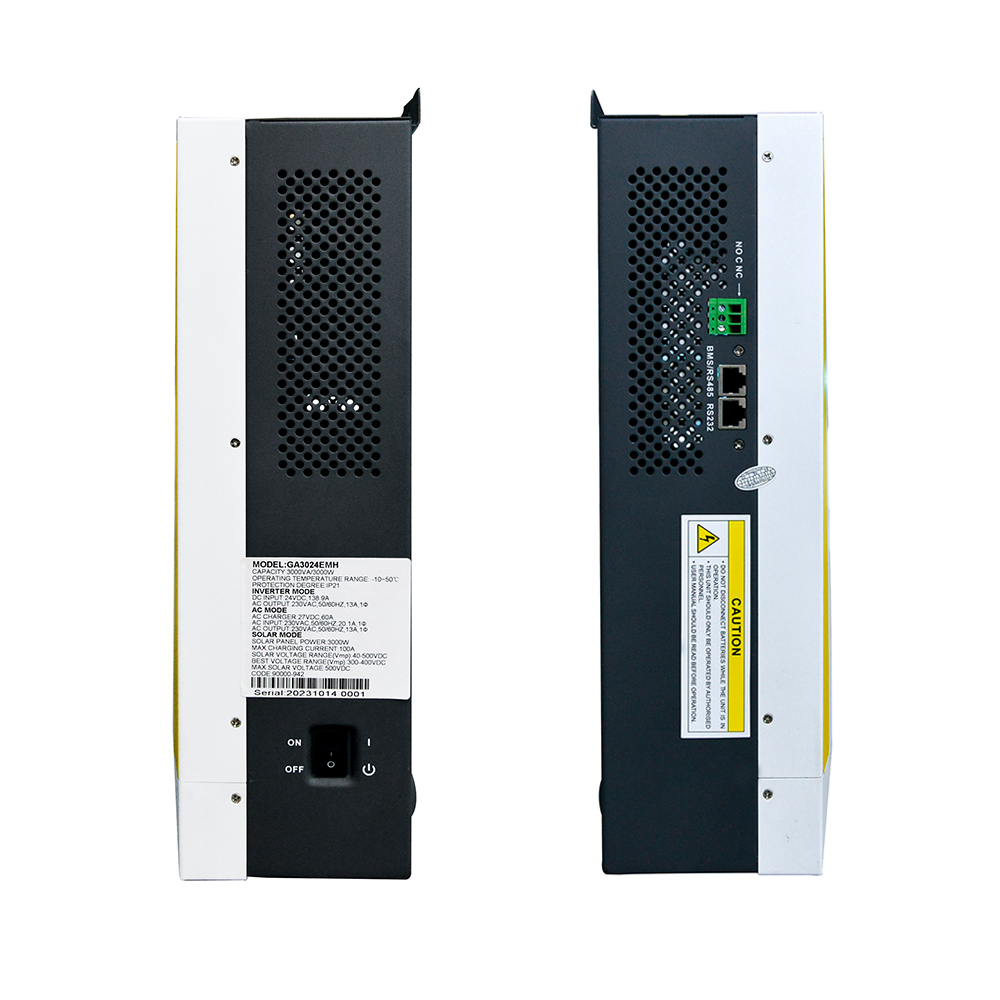

| RS232 | 5PIN/Pitch2.54mm, Baud Rate 2400 | |||
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card, WIFI 2×5PIN/Pitch2.54mm | |||
| Parallel Interface | Not Support Parallel | Support Parallel | ||
| Operating Temperature | 0℃ ~ 40℃ | |||
| Storage Temperature | -15℃ ~ 60℃ | |||
| Work Altitude | No more than 1000m. If >1000m, rated power will decrease, MAX 4000m. | |||
| Operating Environment Humidity | Non-Condensing | |||
| Noise | <50dB | |||

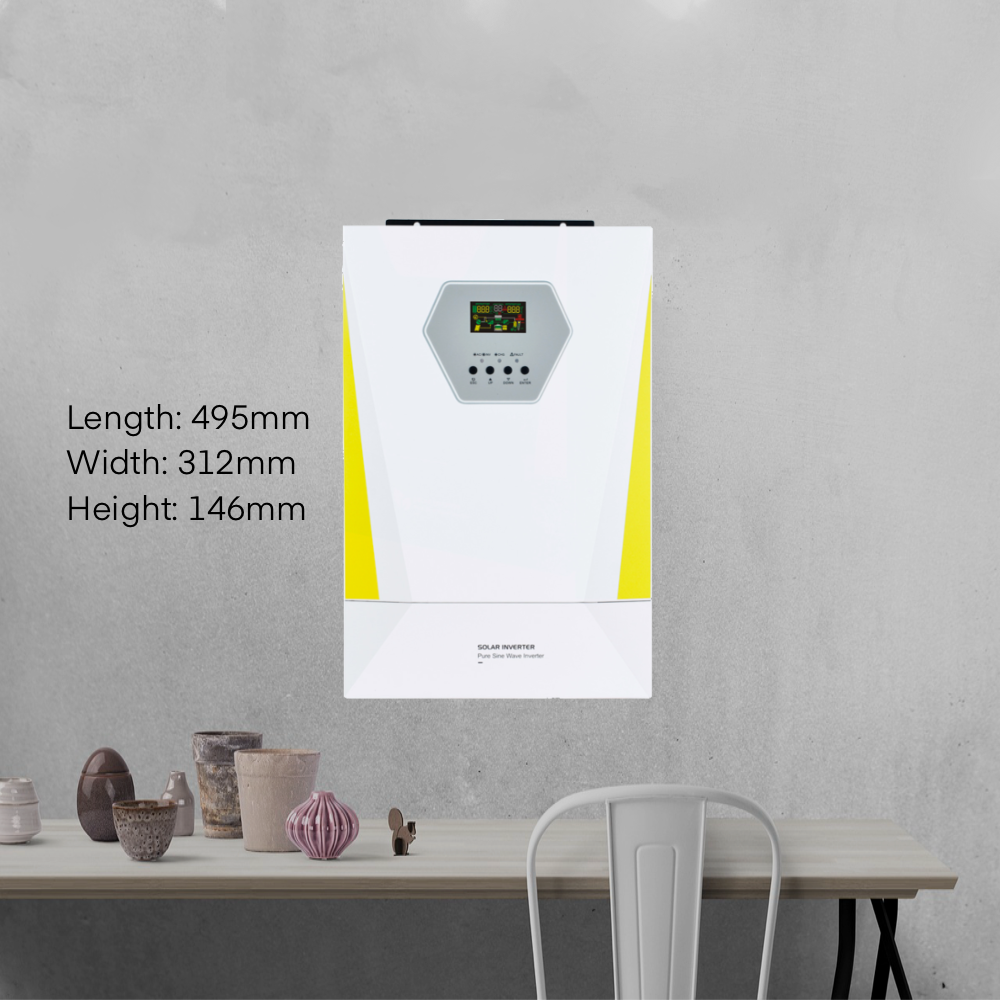

| L*W*H (mm) | 495*312*125mm | |||
