Containerized Energy Storage System for Commercial Use

Customization: Available
Power: 241kw
Product Model: Rjh-1516241f

Product Description

Basic Info

Model NO. LD-005
Cell Type LFP(LiFePO₄)
Rated Capacity 314ah
Rated Energy 241kwh
Rated Voltage 768VDC
Maximum Charging Voltage 840VDC
Discharge Cut-off Voltage 648VDC
Human-Computer Interaction Internet of Things + APP
Communication Interface Can/RS485
Protection Level IP55
Corrosion Resistance Grade C4 (C5 Optional)
Fire Protection Rating Aerosol
Working Temperature 25℃ ± 5℃
Specification 1000*620*160mm
Production Capacity 500000

Packaging & Delivery

Package Size 1545.00cm * 2045.00cm * 1435.00cm
Package Gross Weight 2350.000kg

Product Description

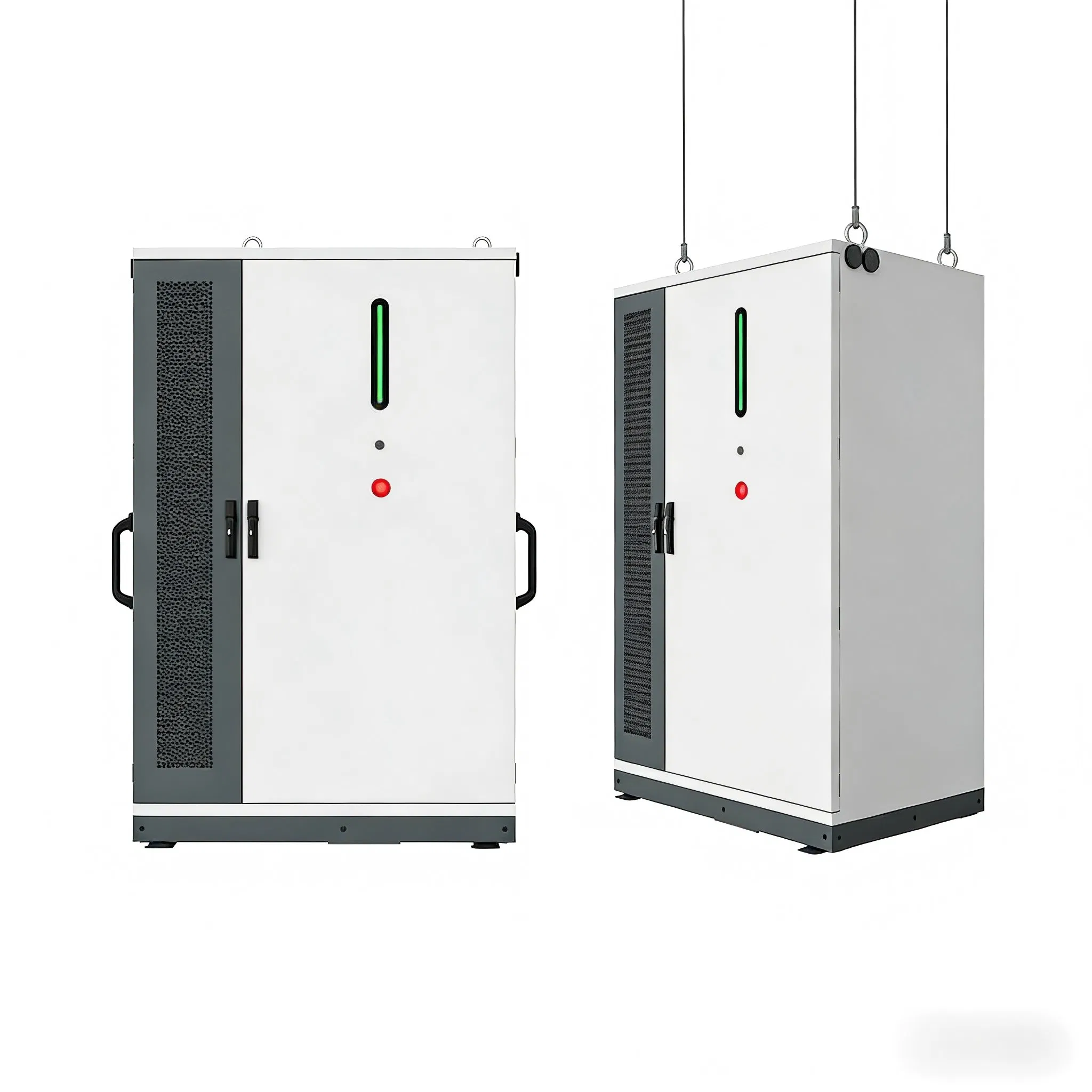

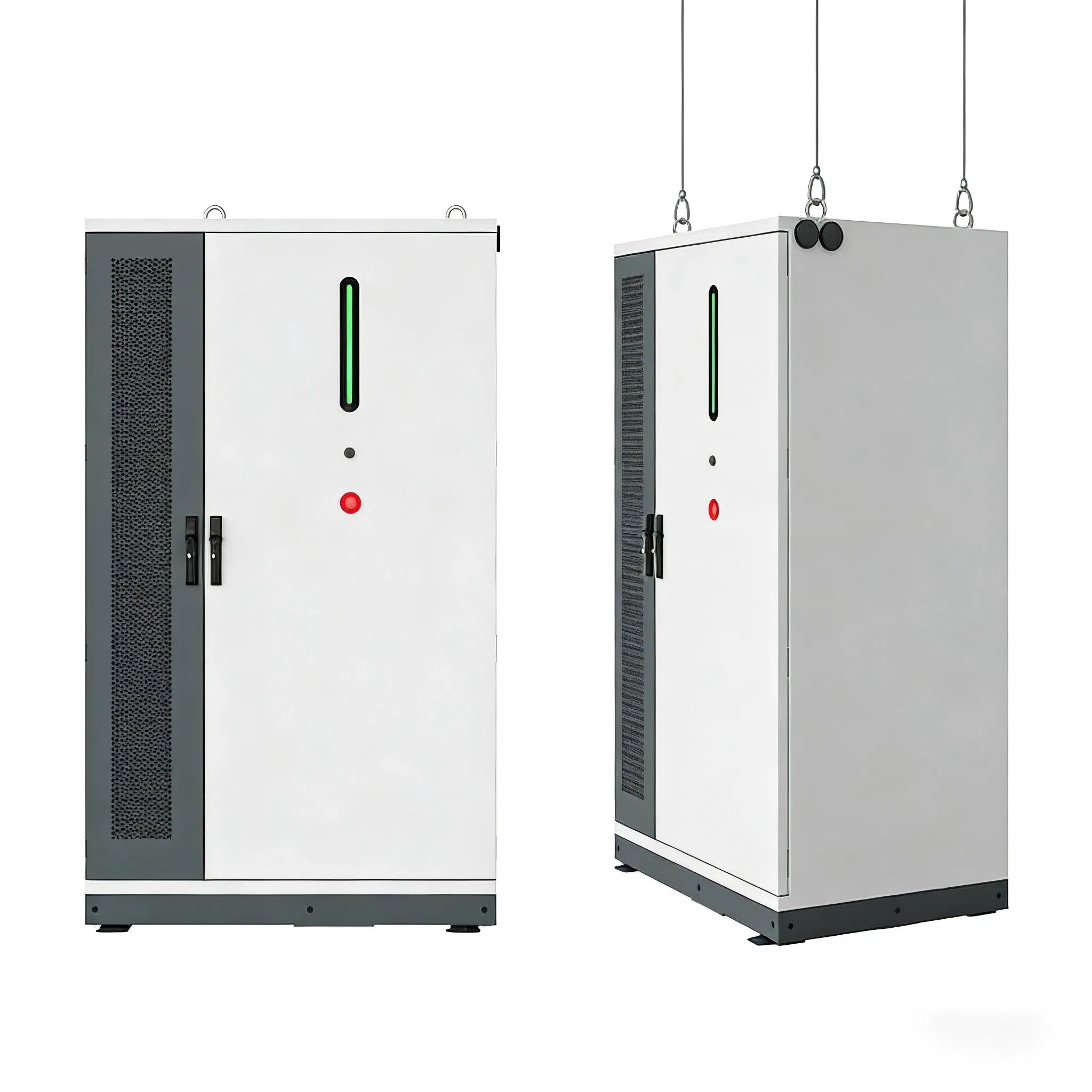

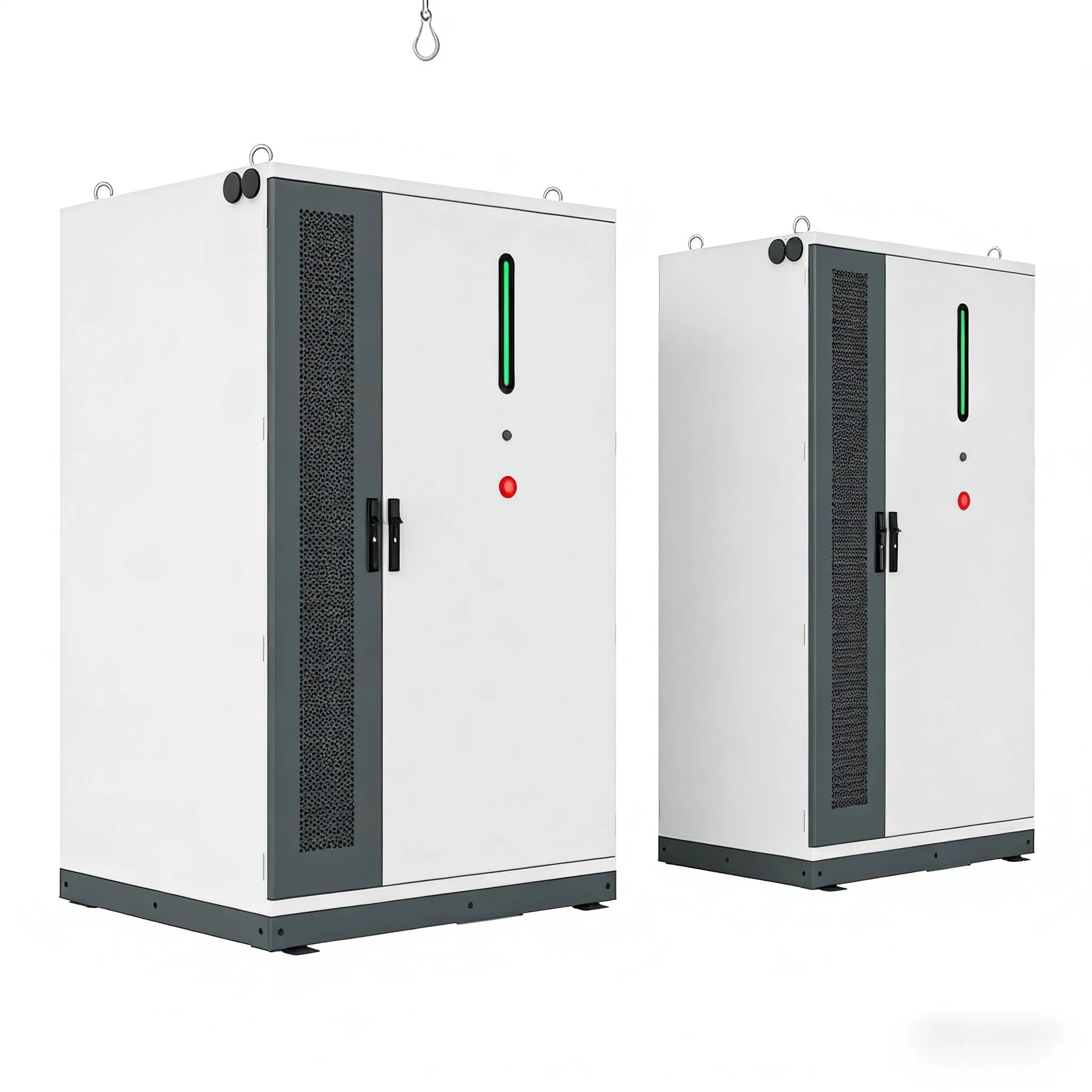

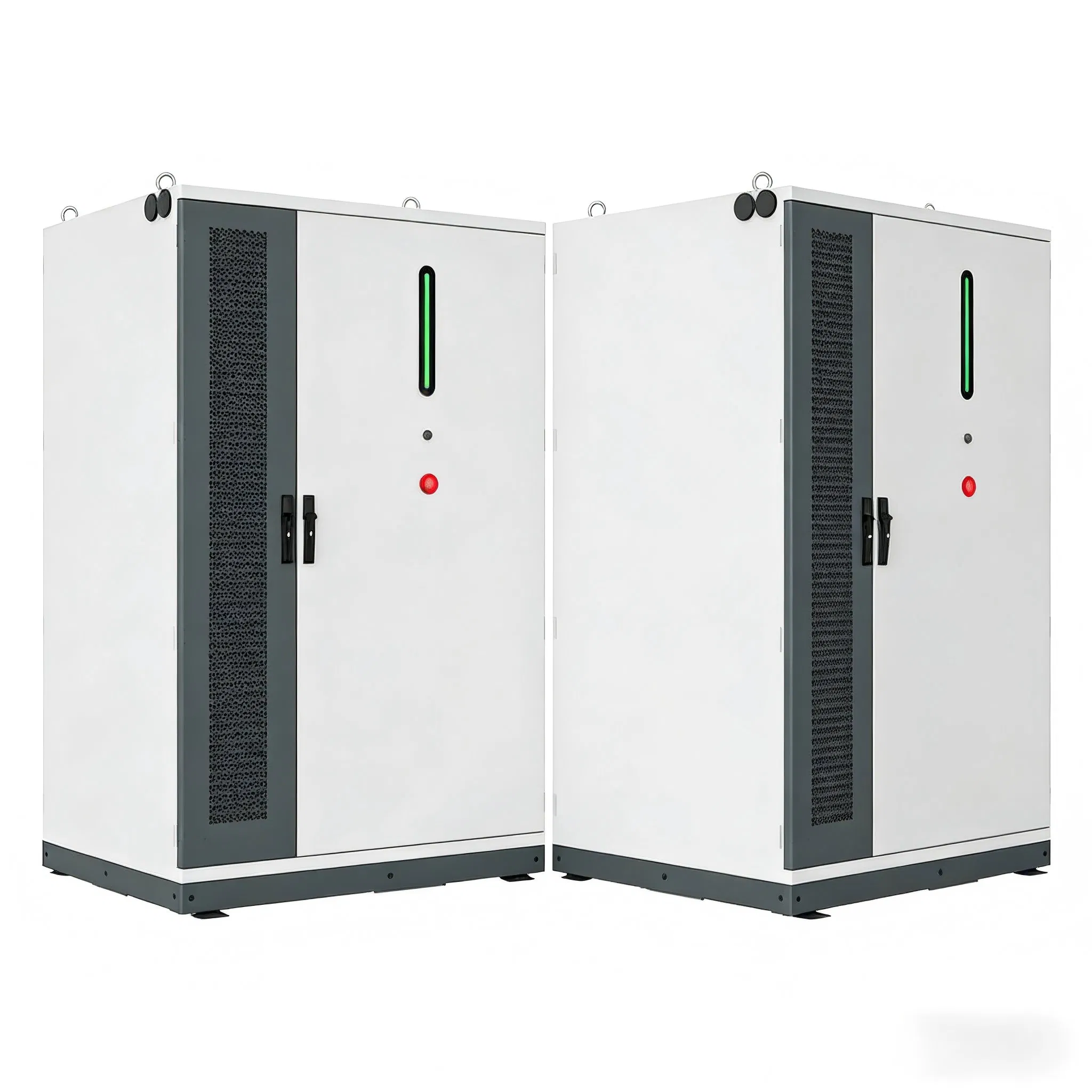

⚡ VoltaNest: All-In-One Energy Storage Cabinet

Three configurations. Customizable according to customer needs:

  • Configuration A: 30KW Inverter + 61kWh Lithium Battery
  • Configuration B: 60KW Inverter + 112kWh Lithium Battery
  • Configuration C: 100KW Inverter + 241kWh Lithium Battery

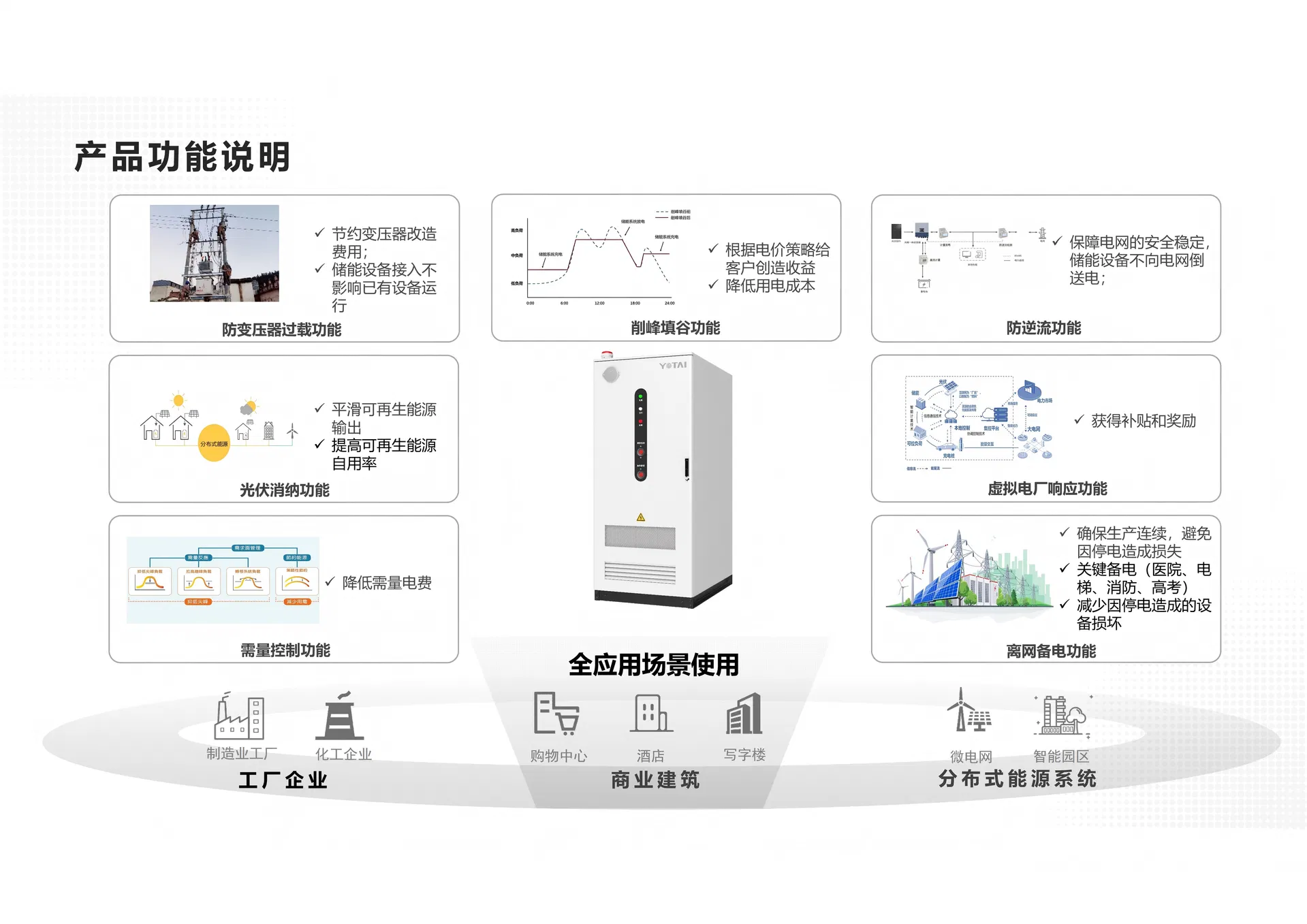

🔍 Perfect Solution For Your Power Challenges
  • Large daily electricity consumption
  • Unstable power grid conditions
  • High electricity prices and tariff rate spikes
  • Peak-shaving and valley-filling optimization
  • Microgrids and island grids lacking external power supply
  • Emergency backup power supply requirements

Our 30-100kW/61-241kWh outdoor integrated cabinets are engineered for industrial and commercial storage setups.

📦
All-in-One Design

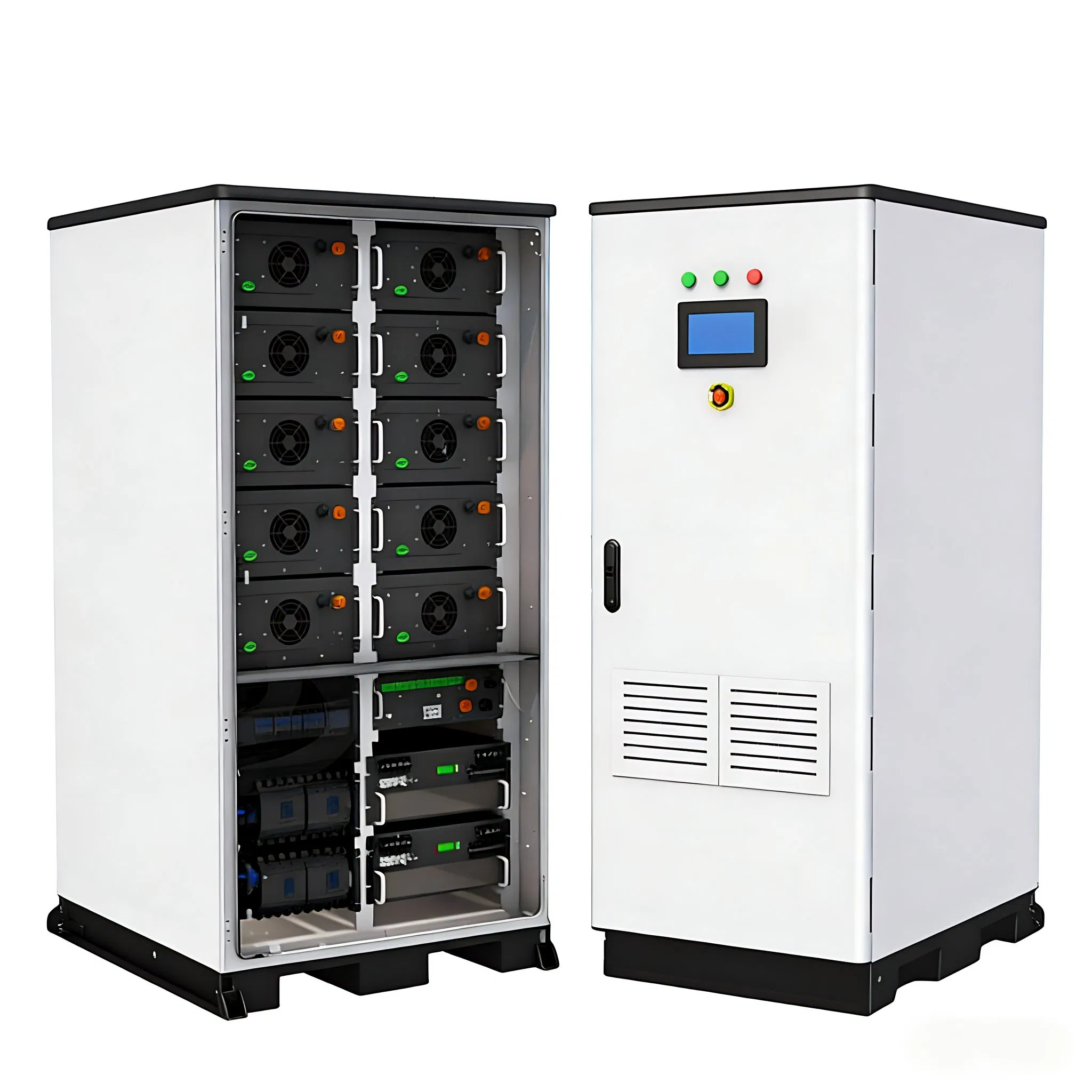

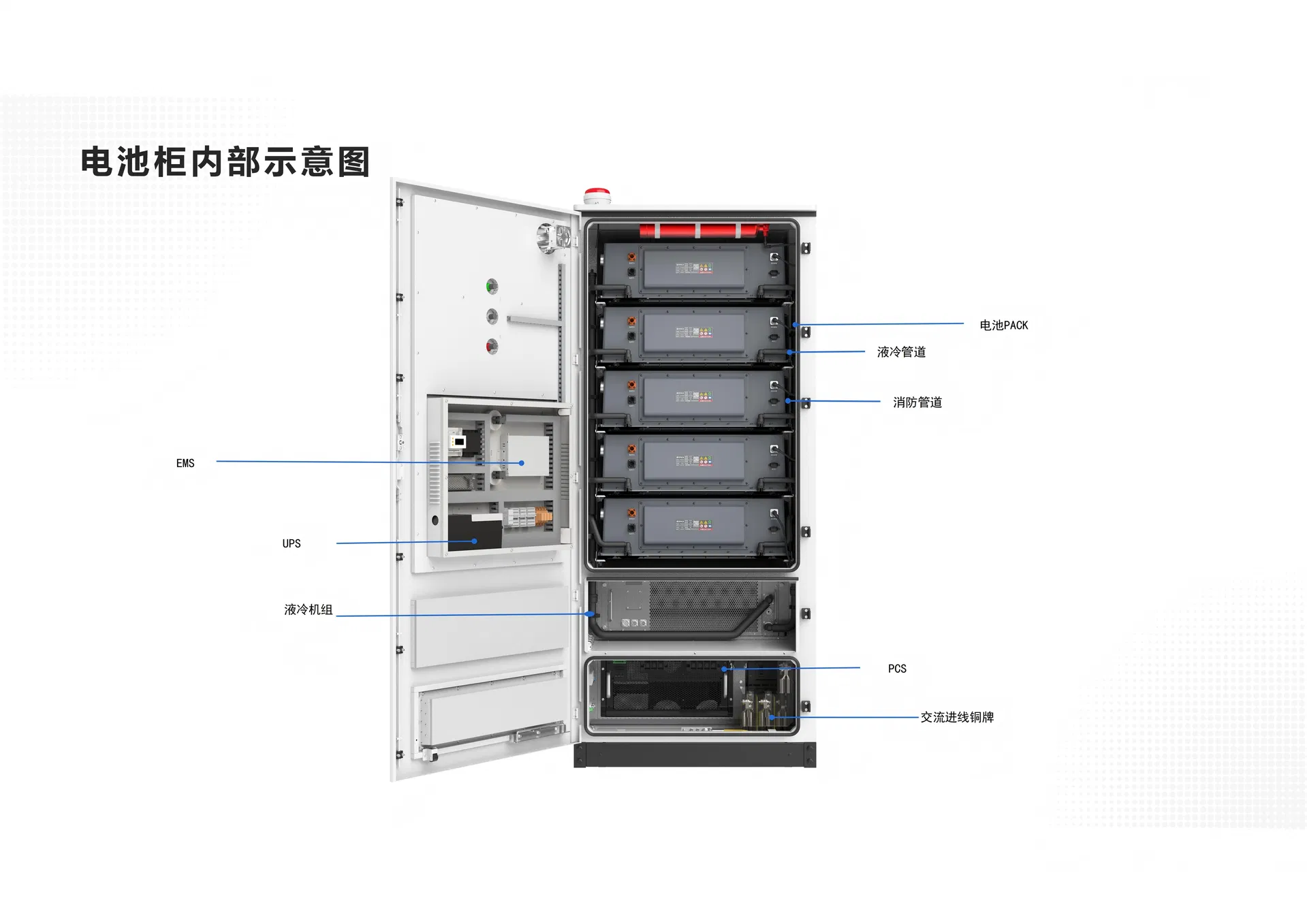

Integrated PCS, BMS, EMS, battery modules, and intelligent control systems in a compact outdoor cabinet, reducing installation complexity and cost.
🔋
High-Performance Cells
Equipped with 314Ah LiFePO4 (LFP) cells, supporting 8000+ cycles and stable operation beyond 10 years (12000+ cycles optional).
🛡️

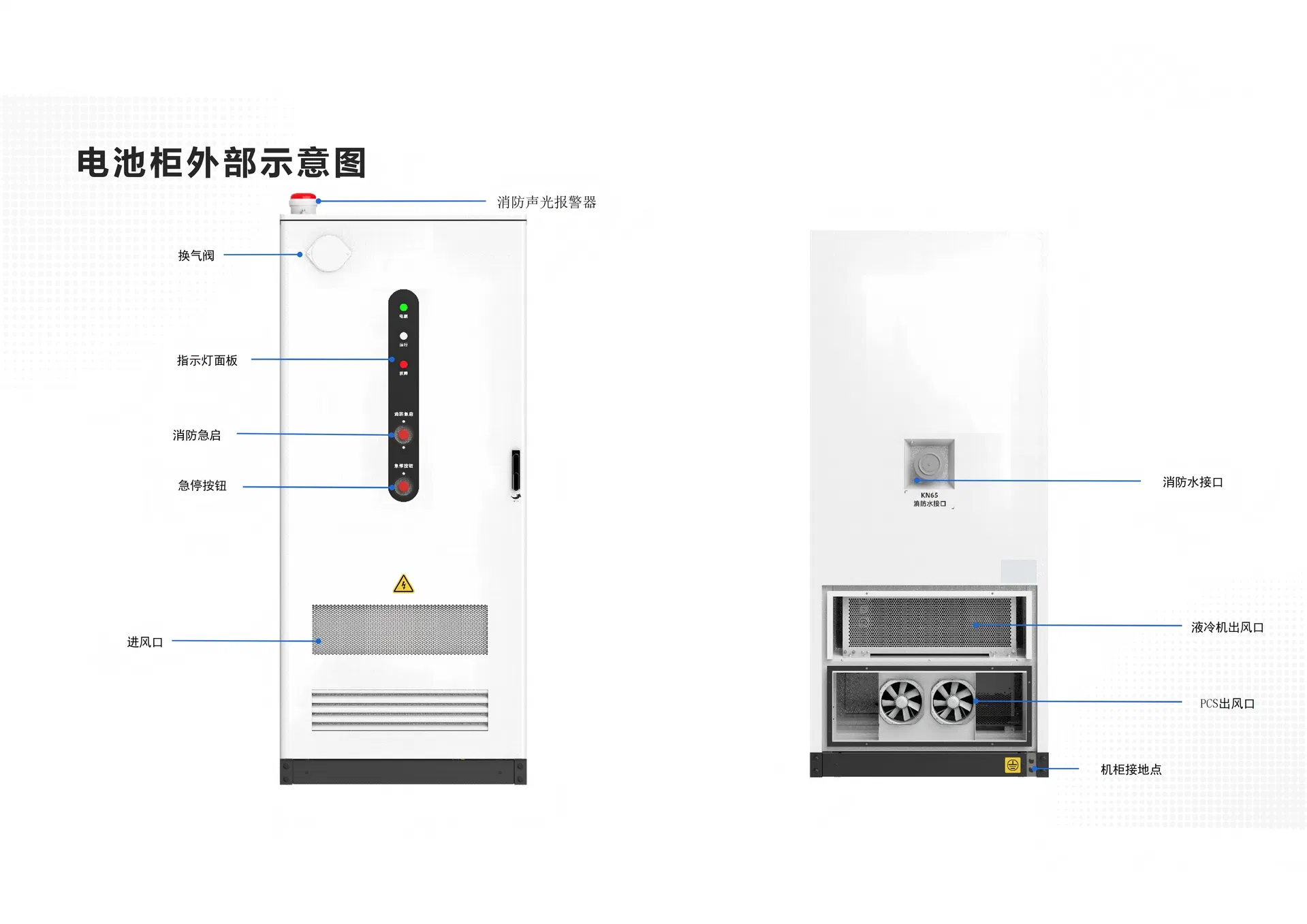

Climate & Safety Protection
Built-in industrial AC maintains constant temperature and humidity. Features fluoroketone fire suppression and IP54 rating for reliability in harsh environments.
☁️
Cloud Smart Management
Real-time cloud monitoring with remote O&M and strategy optimization. Data dashboard visualizes energy efficiency and revenue metrics.
🔄
Multi-Energy Input

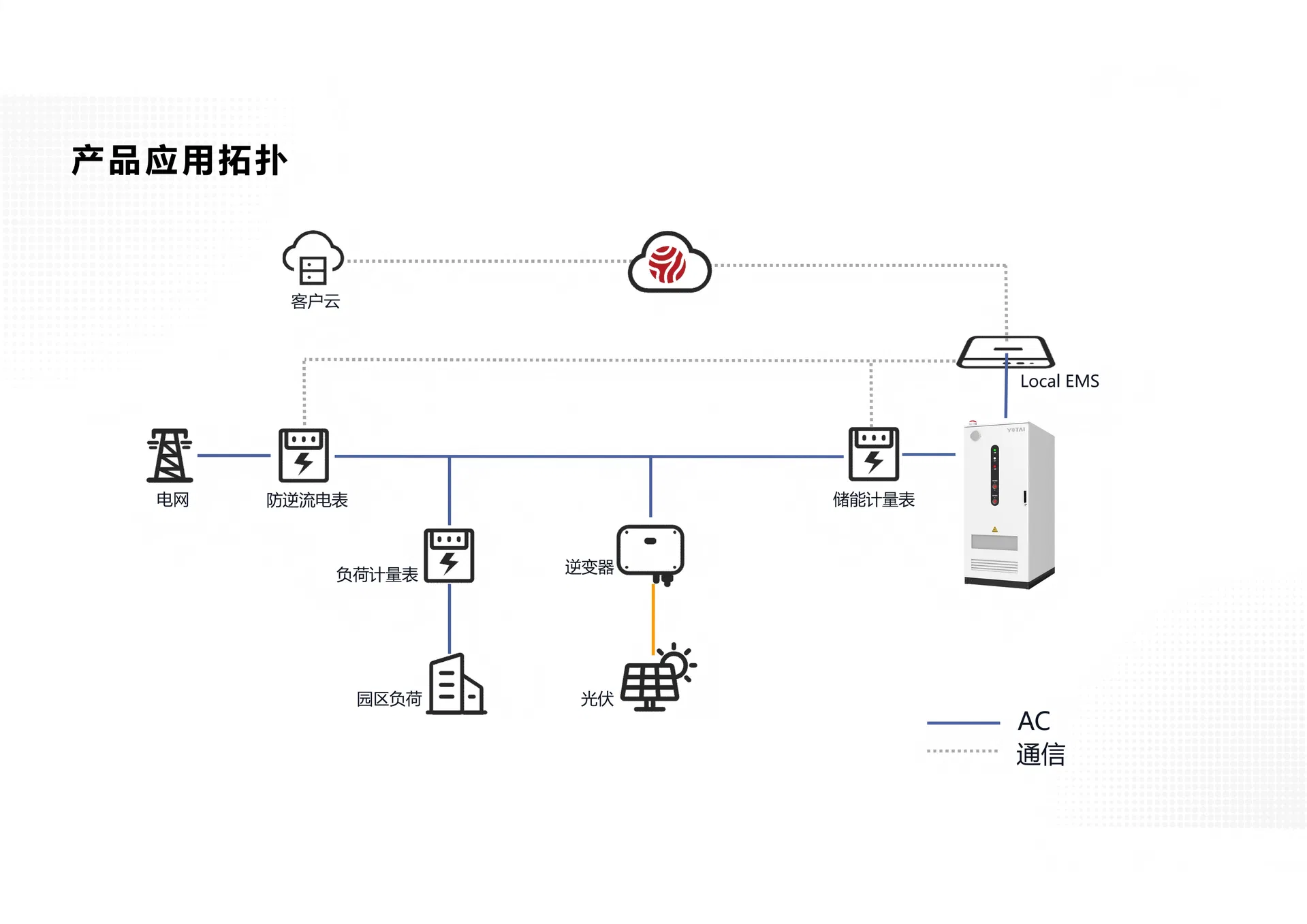

Compatible with PV, grid power, diesel generators, and wind power. Built-in STS enables automatic energy switching under 10ms for uninterrupted supply.

Product Gallery

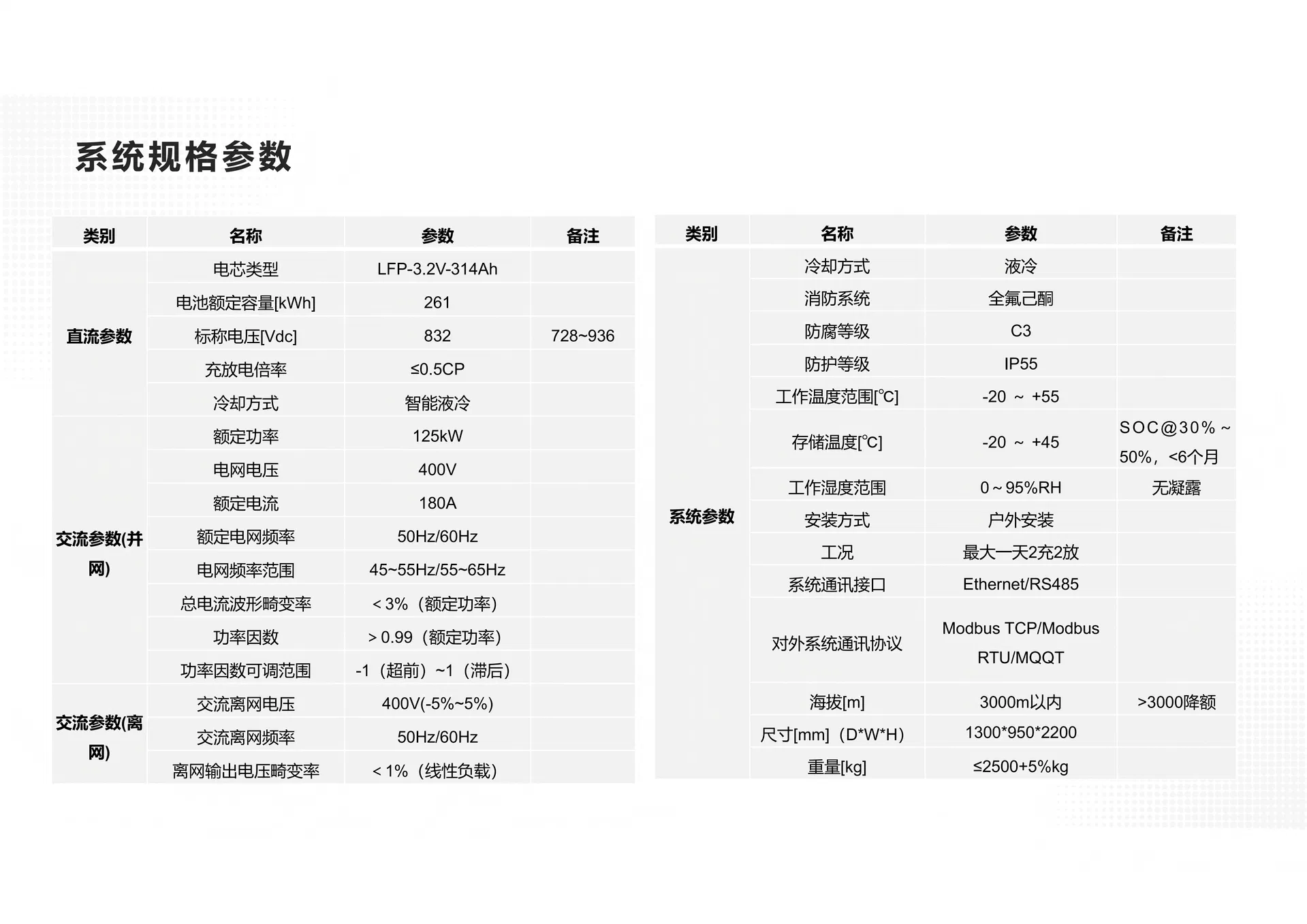

Technical Specifications

Model VN-AES30-HC61 VN-AES60-HC112 VN-AES100-HC241
System Specification
Nominal Output Power 30KVA 60KVA 100kVA
Max.Output Power 33KVA 66KVA 110KVA
Energy Configuration 61.44kWh 112.5KWh 241.14KWh
Battery Chemistry LiFePO4
System Nominal Voltage 614.4V 358.4V 768V
System Operating Voltage 508.8~691.2V 296.8~403.2V 636~864V
Switching Time (On-grid/Off-grid) <10ms
Rated PV Input Power 36kW 72kW 120kW
Max.PV Input Power 38.4kW 76.8kW 144kW
Max.PV Input Current 2*32A 4*32A 4*50A
Max.PV Input Voltage 850V 850V 950V
Number of MPPT 2 4 4
MPPT Voltage Range 200~830V 200~950V
Start Up DC Voltage 250V
Battery Technical Specification
Battery Cell 3.2V/100Ah 3.2V/314Ah 3.2V/314Ah
Connection Method 1P192S 1P112S 1P240S
Battery Module Energy 614V/100Ah 358.4V/314Ah 716.8V/314Ah
Max.Charging/Discharging Current 50A 157A 157A
Operating Temperature Range Charge -20~55ºC; Discharge 0~55ºC
Cycle Life >8000
PCS Technical Specification (On-grid)
Rated Output Power 30kVA 60kVA 100kVA
Rated Output Current 43.5A 87A 152A
Rated Grid Voltage 400V/230V
Grid Voltage Range -20%~15%
Grid Frequency Range 50Hz (47Hz~52Hz) / 60Hz (57Hz~62Hz)
THDi (@Rated Power) <5% <3%
Power Factor 0.8 leading ~ 0.8 lagging
PCS Technical Specification (Off-grid)
Rated Output Power 30KVA 60KVA 100KVA
Max.Output Power 33KVA 66KVA 110KVA
Rated Output Current 43.5A 87A 152A
Max.Output Current 48A 96A 168A
Rated Voltage 400V/230V
THDi (@Resistive load) <3% <1.5%
Unbalanced Load Capacity 100%
Rated Output Frequency 50/60Hz
Output Overload Current <1.1 times Stable output / <1.25 times for 100s / <1.5 times for 100ms
Max.Efficiency 97.80% 98.78%
General Specification
Altitude 4000m
IP Rating IP54
Humidity 5%~95%
Dimension (W×H×D) 1068×1854×1035mm 1450×2070×1210mm 1866×2300×1210mm

Company Profile

With 10 years of professional experience, we are a leading manufacturer of lithium-ion batteries, battery packs, and LiFePO4 storage batteries. Equipped with eight advanced manufacturing lines and over 500 engineers, technicians, and assembly line workers, our products and facilities are certified with MSDS, UN38.3, CE, EMC, IEC, UL, KC, BIS, CB, and ISO9001:2015. Our batteries assure the highest consistency of product quality and reliability.

Serving a global customer base, we provide top-quality batteries for solar energy storage systems, electric scooters, medical devices, power tools, RVs, helicopters, boats, and more. We integrate new energy storage technologies with a series of innovative technologies such as big data computing, cloud computing, and the Internet of Electrical Things to develop a new generation of intelligent control and nuclear-grade safety new energy storage products. These systems are aimed at customers in the transportation, energy, and other fields, providing world-class intelligent energy full lifecycle solutions.

We always aim to be a long-term partner to our customers for sustained growth. Our attention to detail, uncompromising demand for quality, and continuous improvement for excellence will set you apart from your competitors. We ensure that every customer enjoys high quality, the best pricing, fast delivery, and premium support. We look forward to succeeding together with you.

Frequently Asked Questions (FAQ)

❓ What configurations are available for the VoltaNest Energy Storage Cabinet?
The VoltaNest All-In-One cabinet is customizable and offered in three standard configurations: 30KW Inverter + 61kWh Lithium Battery, 60KW Inverter + 112kWh Lithium Battery, and 100KW Inverter + 241kWh Lithium Battery.
❓ What type of battery cells are utilized in this system?
The system features high-performance 314Ah LiFePO4 (LFP) cells. These cells provide 8000+ cycle charges and ensure stable system operation for over 10 years, with an optional configuration supporting 12000+ cycles.
❓ How does the system handle extreme weather and safety concerns?
The cabinet is equipped with a built-in industrial air conditioning unit that keeps temperatures and humidity constant. For safety, it features fluoroketone fire suppression and offers an IP54 protection level (IP55 optional) to handle harsh outdoor environments.
❓ Does the system support automatic power switching?
Yes, it features a built-in STS (Static Transfer Switch) which allows automatic switching between on-grid and off-grid configurations in less than 10 milliseconds. It is fully compatible with PV, grid power, diesel generators, and wind power.
❓ Can the cabinet be monitored remotely?
Absolutely. The system features Cloud Smart Management which allows for real-time cloud monitoring, remote Operation & Maintenance (O&M), and strategic optimization. The dashboard visualizes efficiency and revenue data.
❓ What quality certifications do these energy storage products carry?
All systems are fully tested and certified with MSDS, UN38.3, CE, EMC, IEC, UL, KC, BIS, CB, and comply with ISO9001:2015 quality standards.
