⚡ Basic Info & Specifications
Electrical Specs
Model NO.
ECO-E20FT2170LP-2
Nominal Voltage
400V
Nominal Capacity
2170 Kwh
Cycle Life
8000 Cycles
Round Trip Efficiency
89%
Protection & Cooling
Ingress Rating
IP55
Cooling
Liquid + Forced Air
Fire Suppression
Aerosol + Water Spray
Anticorrosion Rating
C4 (C5 Optional)
Operating Temp.
-25℃~55℃
Logistics & Standards
Warranty
5 Years
Dimensions (W*D*H)
6,058*2,438*2,591 mm
Package Size
606.00cm * 244.00cm * 260.00cm
Gross Weight
28000.000kg
Origin
China
📘 Product Description

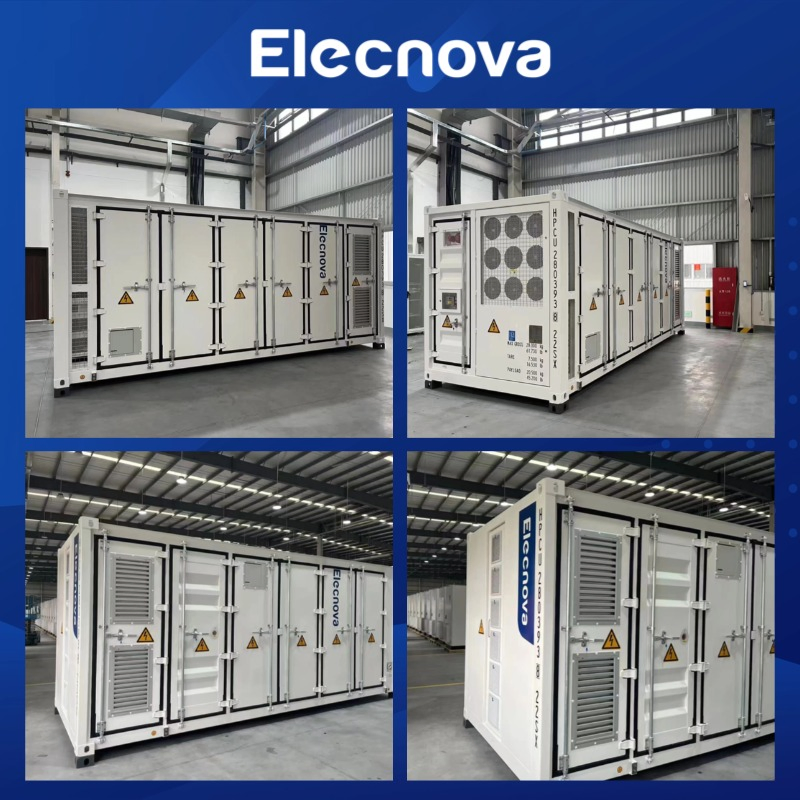

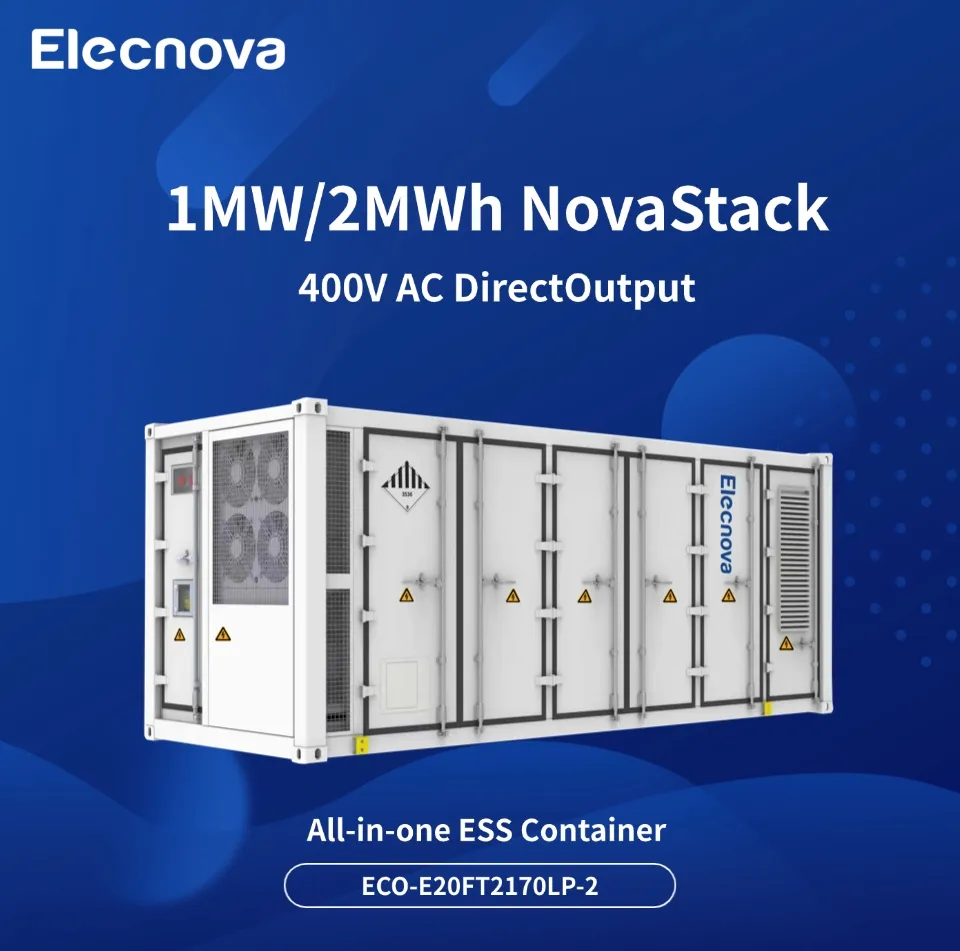

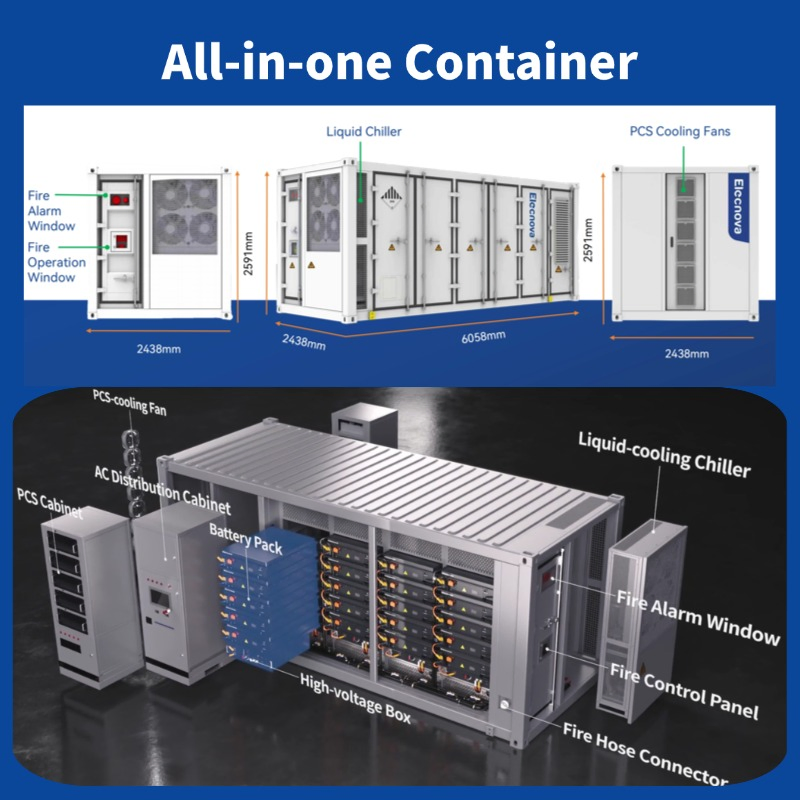

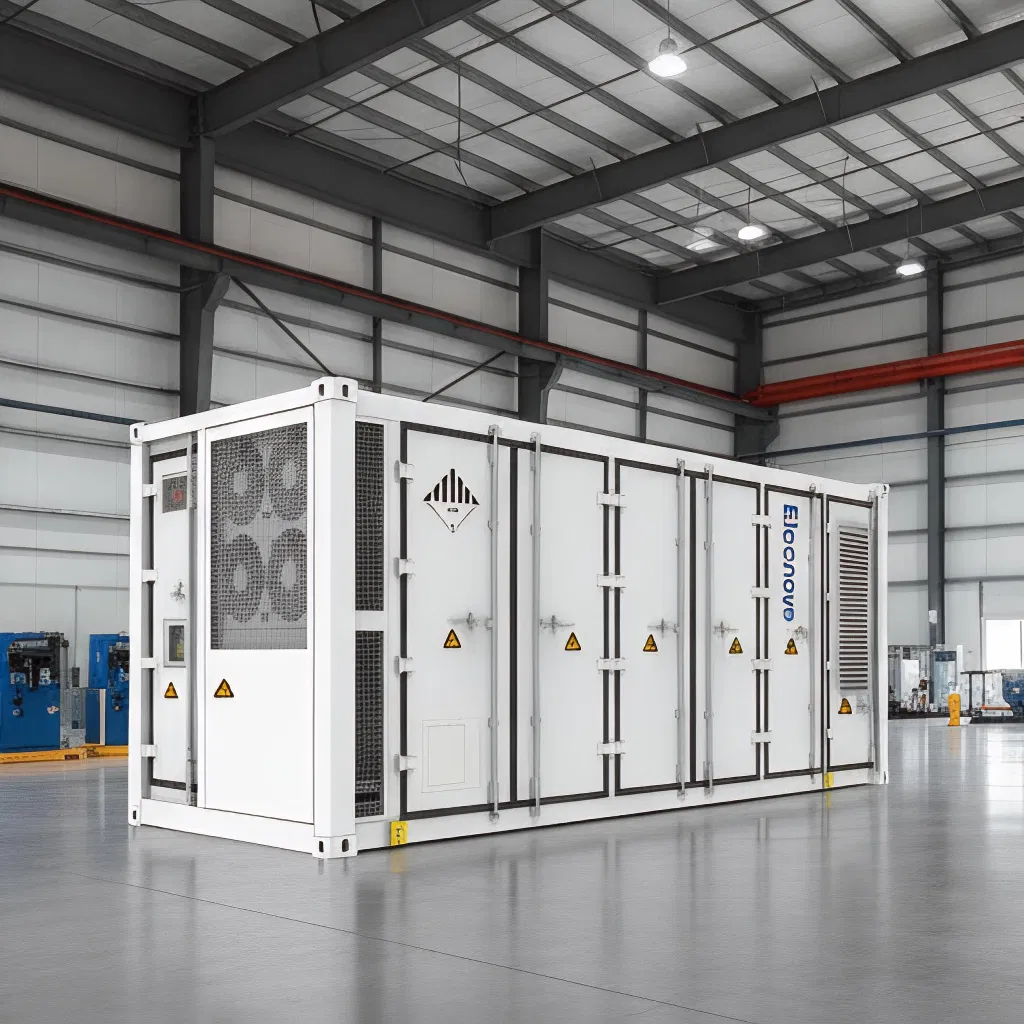

Our innovative 400 V all-in-one container solution integrates PCS, EMS, BMS, cooling and fire suppression systems, AC combiner cabinet, and other essential components. The highly integrated system, combined with high-quality 314 Ah battery cells, delivers higher energy density in a compact footprint. Its efficient hybrid cooling system ensures stable operation, keeping cell temperature differences within 3 ºC. Designed in a standard 20 ft container, the solution allows easy transportation, rapid installation, and flexible deployment, making it suitable for a wide range of commercial, industrial, and utility-scale energy storage applications.
| DC Side Specifications |
| Cell Type |
LFP / 314 Ah |
| Pack Configuration |
48.2 kWh / 1P48S |
| System Configuration |
2170 kWh / 9P240S |
| Rated DC Voltage |
768 V |
| DC Voltage Range |
672 ~ 864 V |
| Max. Charge/Discharge Rate |
0.5 P |
| Max. Depth of Discharge |
100% (25 ± 2 ºC) |
| AC Side Specifications |
| Rated Output Power |
1000 kW |
| Rated AC Voltage |
400 V |
| AC Voltage Range |
±15% |
| Grid Type |
3W+N+PE |
| Rated Frequency |
50 Hz / 60 Hz |
| Power Factor |
0.99/ -1 ~ +1 |
| THDi |
≤3% |
| DC Ratio |
<0.5% Ipn |

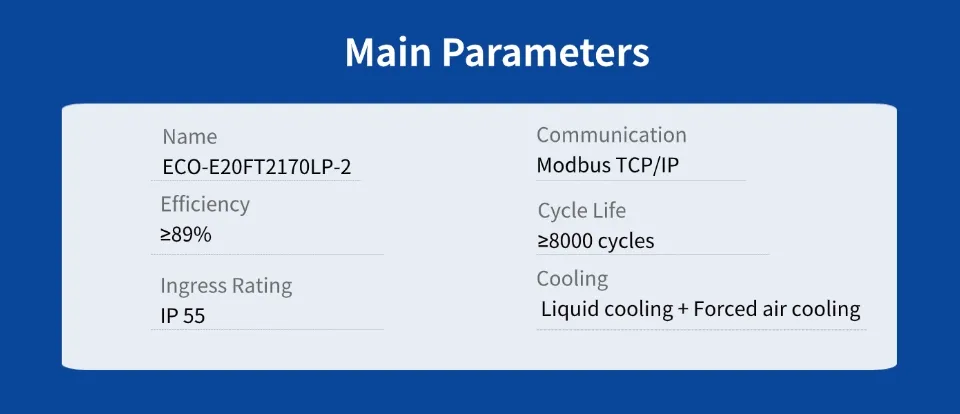

| General System Specifications |
| Max. Round Trip Efficiency |
89% |
| Cycle Life |
≥ 8,000 cycles |
| Communication |
Modbus TCP/IP |
| Fire Suppression System |
Aerosol system+Water spray system |
| Ingress Rating |
IP55 |
| Cooling |
Liquid cooling+Forced air cooling |
| Operating Temperature |
-25ºC~55ºC (Derating after 45ºC) |
| Anticorrosion Rating |
C4 (C5 optional) |
| Humidity |
0~95% RH (non-condensing) |
| Noise |
≤ 80 dB |
| Altitude |
3000m (Derating above 2000m) |
| Dimensions (W*D*H) |
6,058*2,438*2,591 mm |
| Weight |
28 t |
| Safety/EMC |
UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A, IEC62933-5-2 |
| Grid code |
EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CEI0-21, CEI0-16 |
📊 System Diagram & Safety Features

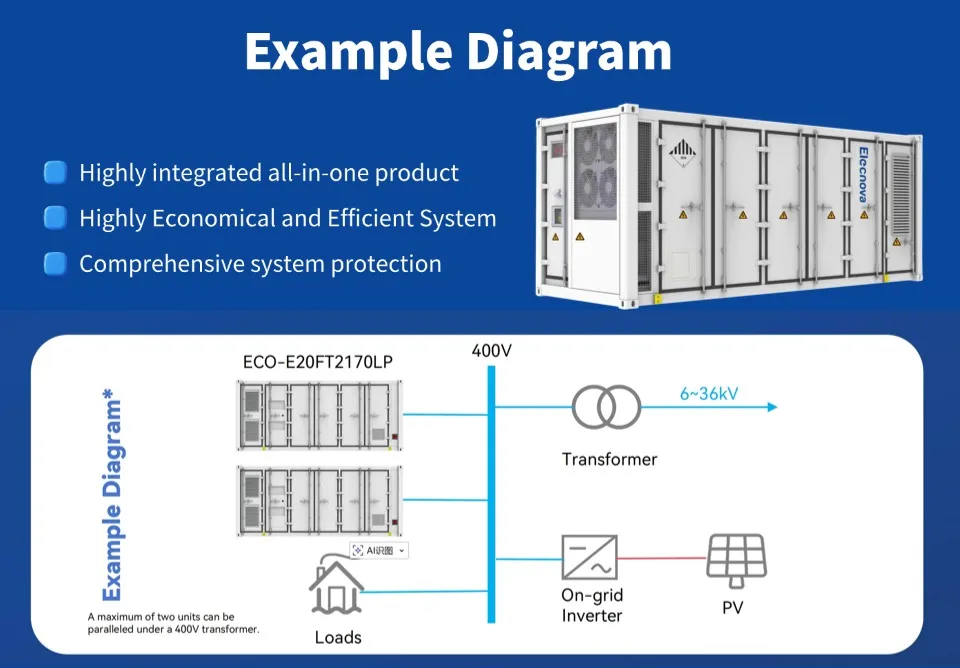

System Configuration:
· Integrated 400V AC output connects to a 6~36kV transformer for grid integration
· Supports on-grid inverter, PV, and loads in a complete renewable setup

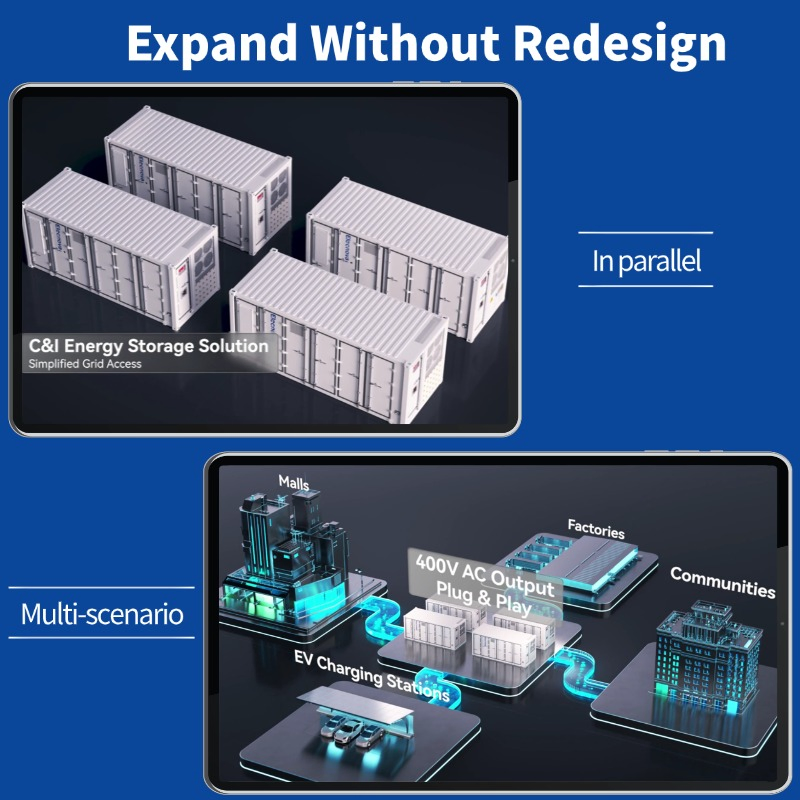

· Up to two units can be paralleled under a 400V transformer for capacity expansion
Wide Operating Range:
· Temperature: -25°C to +55°C
· Humidity: 0~95% RH (non-condensing)
· Altitude: Up to 3000m
One System, Infinite Conditions - designed for diverse global climates and applications.
Certified Safety:
· Successfully tested under ANSI/CAN/UL 9540A:2025 (Unit Level)
· Test report issued by TÜV SÜD (Report No.: 704082527110-00)
The Guarantee of Safety - robust performance and fire safety validated by independent testing.

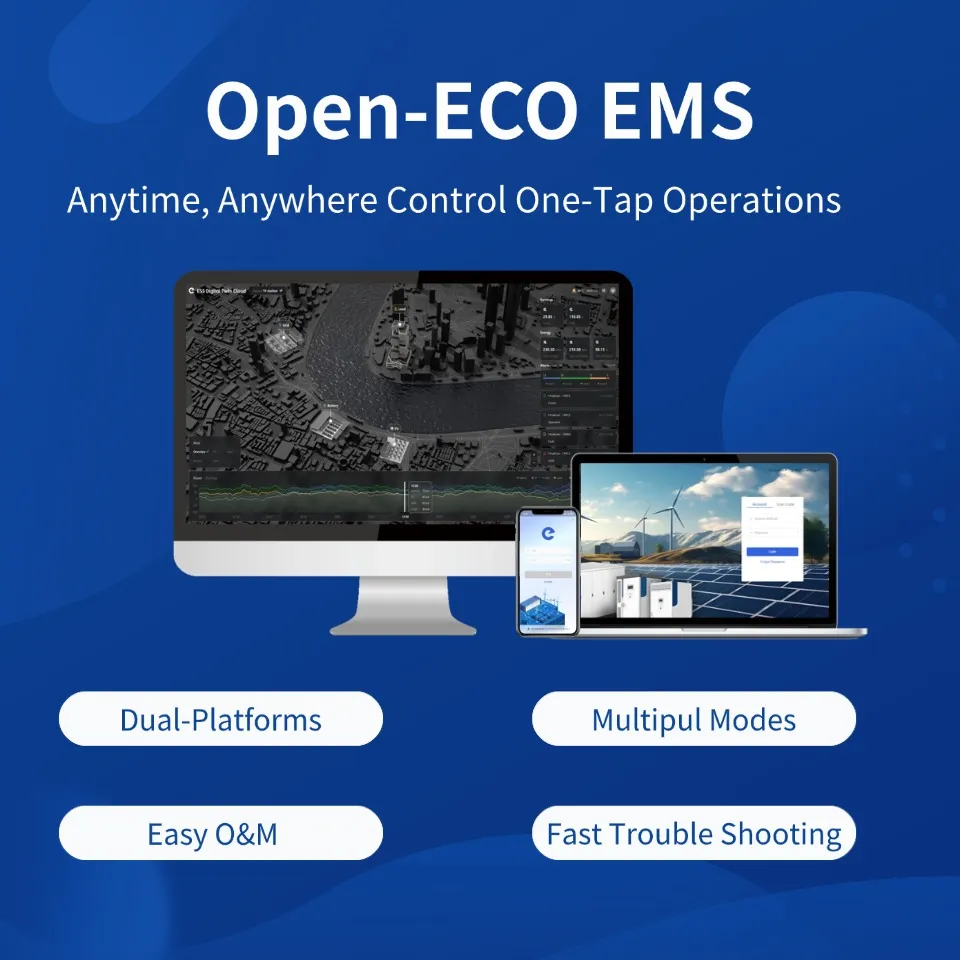

EMS (Energy Management System) Features:
· Anytime, Anywhere Control: One-tap operations via dual-platform access (web and mobile)
· Multiple Operation Modes: Flexible configurations for various use cases and grid requirements
· Easy O&M: Simplified operation and maintenance through intuitive interface
· Fast Trouble Shooting: Quick diagnostics and issue resolution
Three-Tiered Support System:
· Level 1 - Automated Support: AI chatbot and digital twin platform for immediate assistance
· Level 2 - Technical Support: Dedicated engineer, remote diagnostics, and troubleshooting within < 4 hours
· Level 3 - Field Engineering: On-site support, hardware replacement, and system optimization within < 72 hours

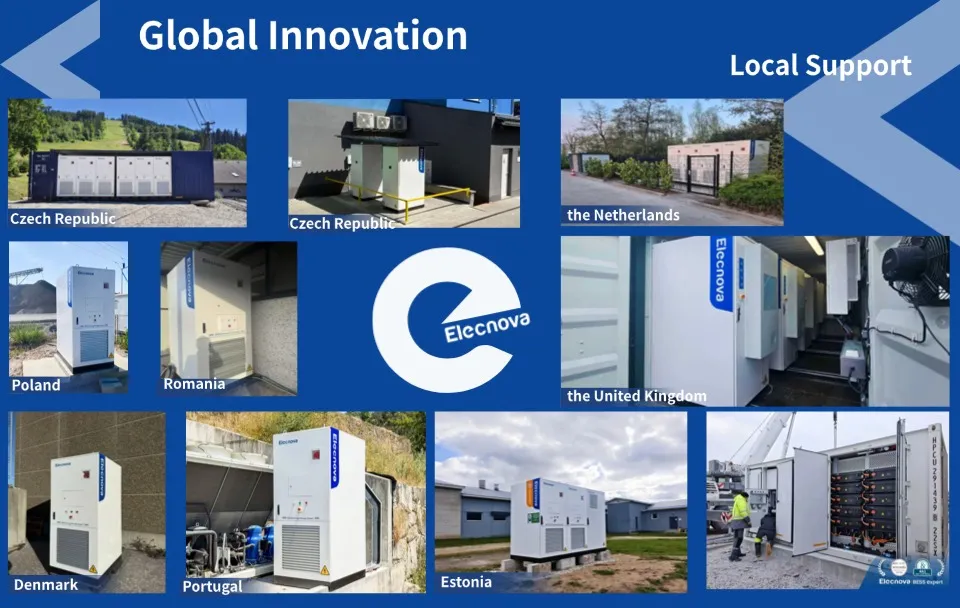

🌍 Global Project Cases
Our global project cases across Europe demonstrate a strong commitment to "Global Innovation, Local Support." Active markets include the Czech Republic, the Netherlands, Poland, Romania, the United Kingdom, Denmark, Portugal, and Estonia. With a deep presence in key European countries, we combine worldwide expertise with localized service to deliver reliable energy storage solutions tailored to regional grid needs.
🛡️ Manufacturing & System Adaptability
With 28 years of industry experience, our brand is a leading player in the energy storage sector. We dedicate 10% of revenue to R&D, ensuring continuous technological advancement. Our EcoVadis rating reflects a strong commitment to environmental, social, and governance (ESG) standards.

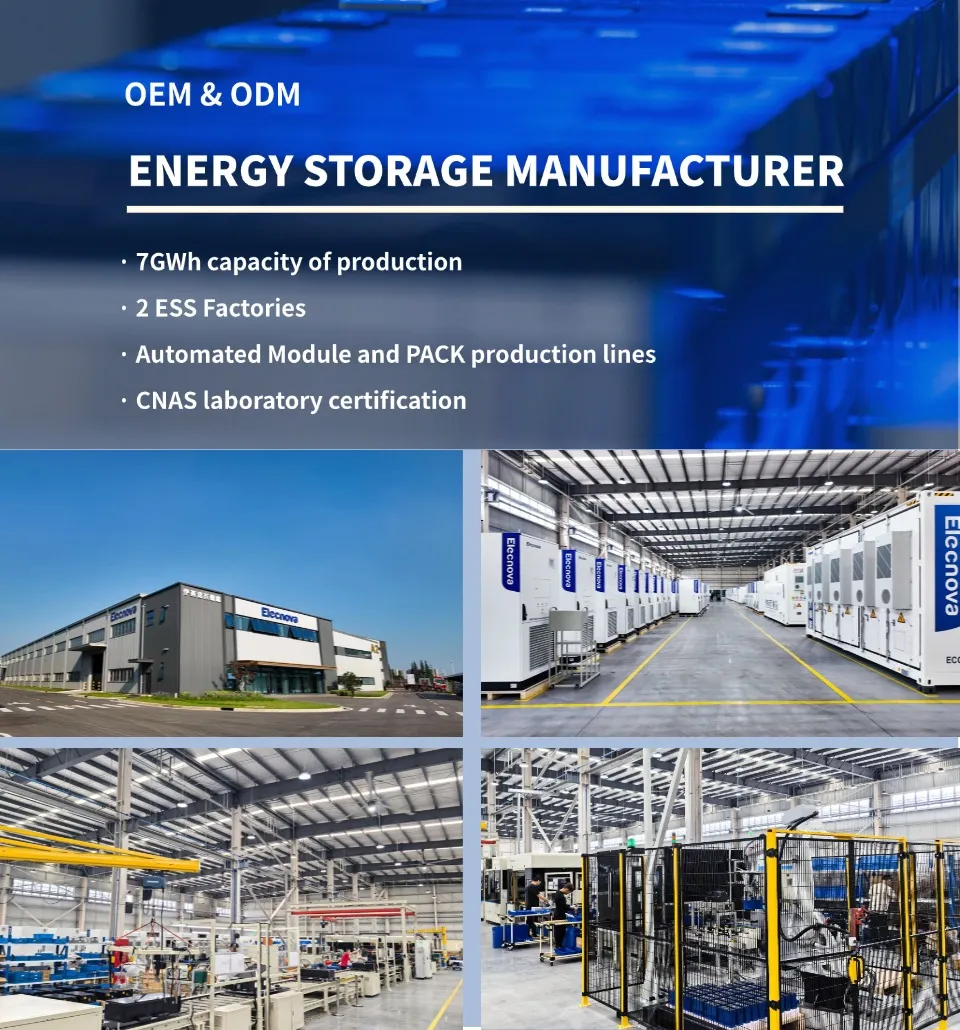

Key Production Capabilities:
· Production capacity of 7GWh with 2 dedicated ESS factories.
· Equipped with automated Module and PACK production lines to ensure standardized manufacturing.
· Facilities hold CNAS laboratory certification, guaranteeing rigorous quality control.

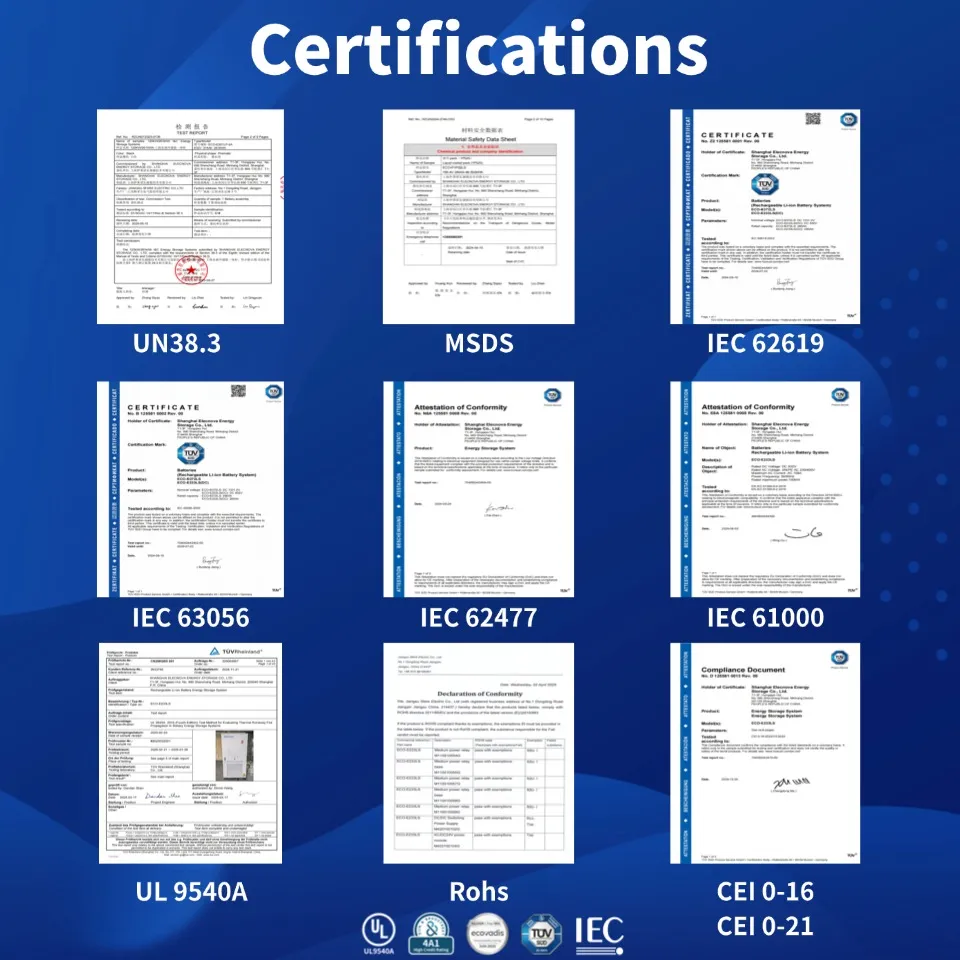

Compliance & Certifications:
· Compliance achieved in more than 25 countries and regions across Europe, Africa, and beyond.
· Standard compliance: European Norm EN Standards, Germany, United Kingdom, Italy, South Africa, Netherlands, Belgium, Sweden, Finland, Denmark, and more.
· Transport & Safety: UN38.3, MSDS.
· Industry Standards: IEC 62619, IEC 63056, IEC 62477, IEC 61000, CEI 0-16, CEI 0-21.
· North American Compliance: UL 9540A.
· Environmental: RoHS.

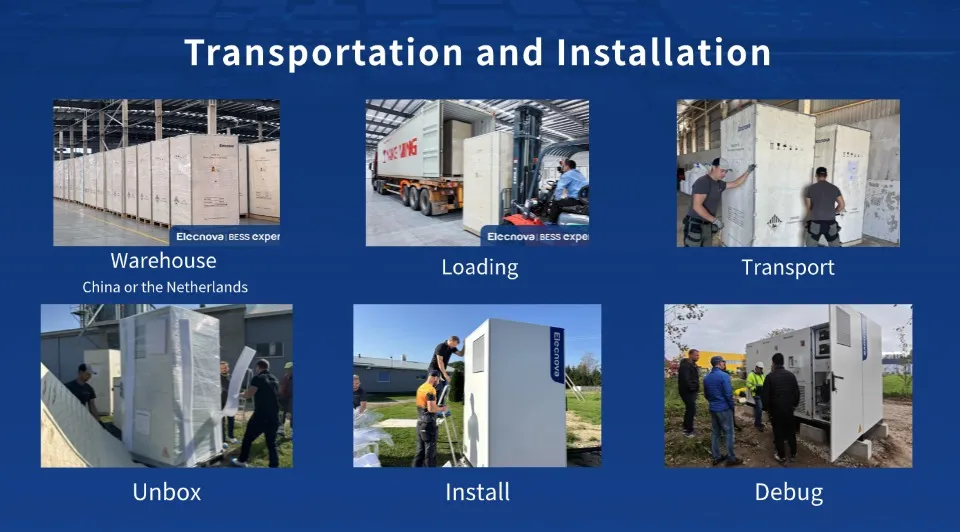

Systematic Delivery Process:
· Warehouse: Dedicated warehouses ensure equipment is stored to the highest standards, ready for dispatch.
· Loading: Specialized forklifts and strict protocols safeguard BESS units during vehicle loading.
· Transport: A reliable logistics network delivers equipment globally with full visibility.
· Unboxing & Installation: Experienced teams conduct careful unboxing and build BESS units with precision.
· Debugging: Technical experts execute full debugging and optimization before final grid connection.
❓ Frequently Asked Questions
Who are we? Are you a trading company or manufacturer?
We are a dedicated manufacturer of energy storage systems. Established in 1998, our facilities feature modern production lines and specialized engineering teams to support international projects.
Can you supply OEM & ODM services?
Yes, we provide full OEM and ODM services. Please note that minimum order quantities apply depending on the customization requirements.
Can you ship battery products by sea or by air?
Yes. We work closely with long-term, certified shipping forwarders who specialize in international battery logistics, ensuring safe and compliant transport via sea and air.
How long is the product warranty?
Our standard warranty ranges from 5 to 10 years, depending on the specific product line, configuration, and integration environment.
Why should we buy from your brand over other suppliers?
We specialize in complete vertical integration, manufacturing our own PCS, battery PACKs, BMS, EMS, and all-in-one container enclosures. This ensures unparalleled compatibility, safety, and system efficiency.
How do you provide after-sales service?
We operate overseas service divisions and work with local partners to provide troubleshooting, replacement parts, and field engineering support when required.
