| Nominal Voltage | 1000-1500VDC |
| Discharge Rate | Ultrahigh Discharge Rate |
| Shape | Square Battery |
| Electrolyte | Li-ion |
| Installation | Fixed |
| Rechargeable | Chargeable |
| Rated Total Power | 640kw |
| Max Output Channels | 12 Charging Terminals |
| Installation Type | Floor Standing |
| Nominal Input Current | 969A |
| Output Voltage Range | 50-1000VDC |
| Transport Package | Container |
| Specification | 6058 × 2896 × 2438 mm |
| Origin | China |
| HS Code | 8504402000 |
| Production Capacity | 500 pieces/Year |

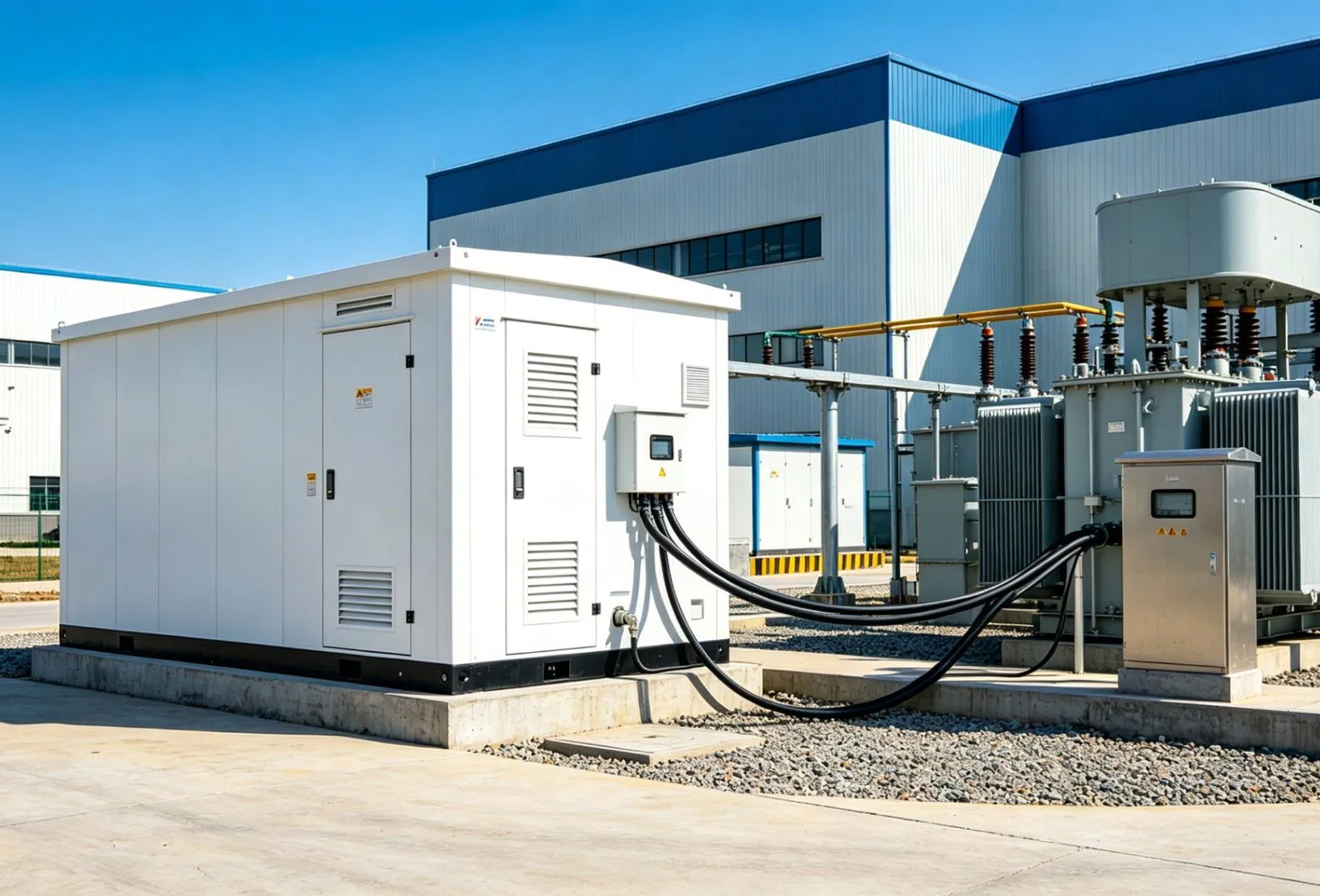

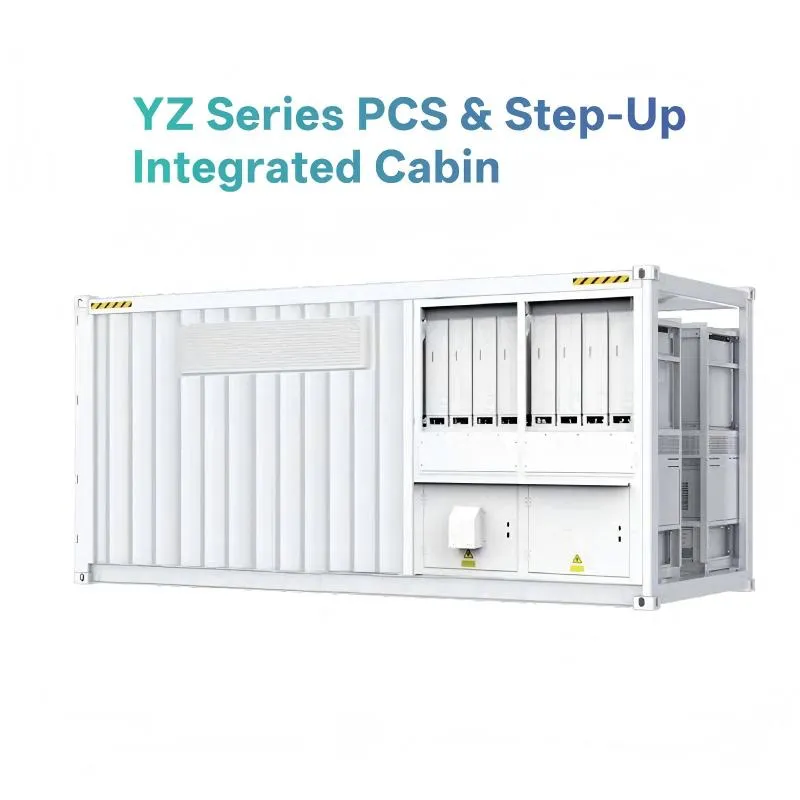

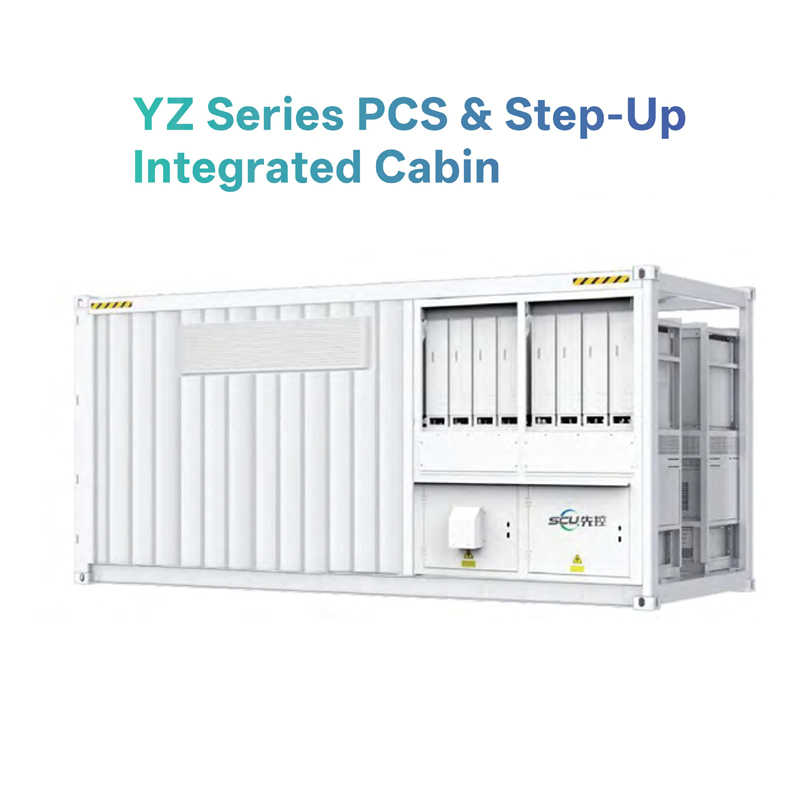

The YZ Series PCS & Step-Up Integrated Cabin integrates power conversion system and step-up transformer, with three power models: YZ1250-ZC, YZ2500-ZC, YZ3000-ZC, delivered as an all-in-one container unit.
The container is pre-assembled with PCS modules, step-up transformer, power distribution, cooling and monitoring communication systems, fully tested before delivery. On-site installation only requires connection with battery clusters and 10~35kV medium voltage grid, saving land space and construction time. Compatible with 1000~1500V high-voltage battery systems, it supports bidirectional power conversion for grid-tied and off-grid operation.

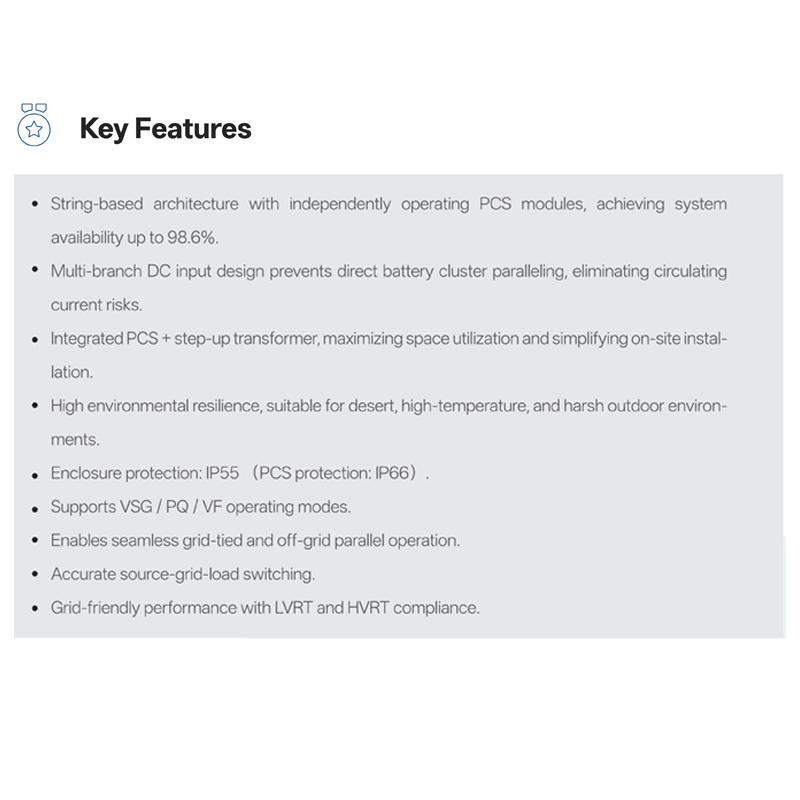

Ultra-high System Reliability: Adopts independent modular PCS layout. Individual module failure only affects its own branch without full-system shutdown, reaching 98.6% system availability and minimizing power station downtime losses.
Effective Battery Lifespan Protection: Multi-channel isolated DC input avoids direct parallel connection of battery clusters, completely eliminating circulating current risks, reducing cell heat generation and extending the service life of lithium battery packs.
Greatly Reduced On-site Construction Costs: PCS and step-up transformer are fully pre-integrated in a standard container cabin. No separate transformer room or power distribution building is required, cutting over 60% of field wiring, civil work and commissioning workload.
Wide Adaptability for Global Outdoor Projects: Wide temperature operating range from -40℃ to +60℃, together with IP55 cabinet & IP66 module dustproof and waterproof performance, supporting stable operation in deserts, high-temperature zones and coastal salt-fog areas.
Flexible Operation for Diverse Grid Demands: Equipped with VSG, PQ and VF control modes, supporting seamless grid-tied/off-grid switching. It covers multiple application demands including grid frequency regulation, peak-valley arbitrage and island standby power supply.
Full Grid Compatibility Worldwide: Built-in LVRT and HVRT functions with THDi less than 3% under rated power. It satisfies grid access standards for most countries and regions, applicable to both 50Hz and 60Hz power grids.
Universal & Expandable Communication Compatibility: Supports RS485, CAN and Ethernet ports, matching mainstream protocols such as Modbus RTU/TCP, IEC104 and IEC61850. It can seamlessly connect with third-party BMS and EMS platforms for remote monitoring and data management.
Complete Multi-layer Safety Protection Mechanism: Integrated overvoltage, overcurrent, short-circuit, insulation monitoring and overheating protection functions, with graded fault alarm and shutdown logic to avoid safety hazards for equipment and battery clusters.

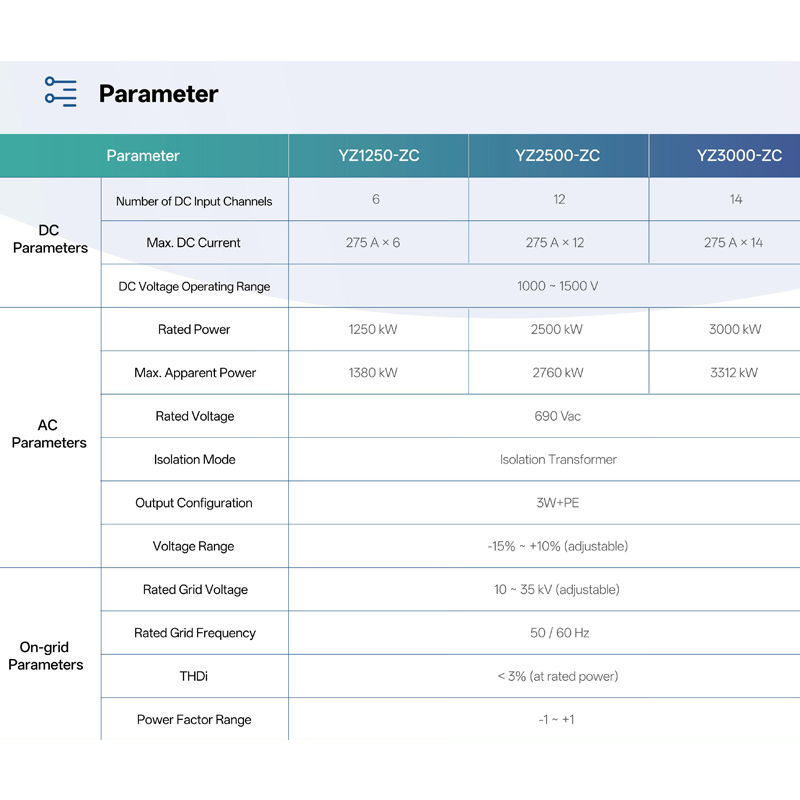

| Category | Parameter | YZ1250-ZC | YZ2500-ZC | YZ3000-ZC |
|---|---|---|---|---|
| DC Parameters | Number of DC Input Channels | 6 | 12 | 14 |
| Max. DC Current | 275 A × 6 | 275 A × 12 | 275 A × 14 | |
| DC Voltage Operating Range | 1000 ~ 1500 V (uniform for all models) | |||
| AC Parameters | Rated Power | 1250 kW | 2500 kW | 3000 kW |
| Max. Apparent Power | 1380 kW | 2760 kW | 3312 kW | |
| Rated Voltage | 690 Vac (uniform for all models) | |||
| Isolation Mode | Isolation Transformer (uniform for all models) | |||
| Output Configuration | 3W+PE (uniform for all models) | |||
| Voltage Range | -15% ~ +10% (adjustable) (uniform for all models) | |||
| On-grid Parameters | Rated Grid Voltage | 10 ~ 35 kV (adjustable) (uniform for all models) | ||
| Rated Grid Frequency | 50 / 60 Hz (uniform for all models) | |||
| THDi | < 3% (at rated power) (uniform for all models) | |||
| Power Factor Range | -1 ~ +1 (uniform for all models) | |||

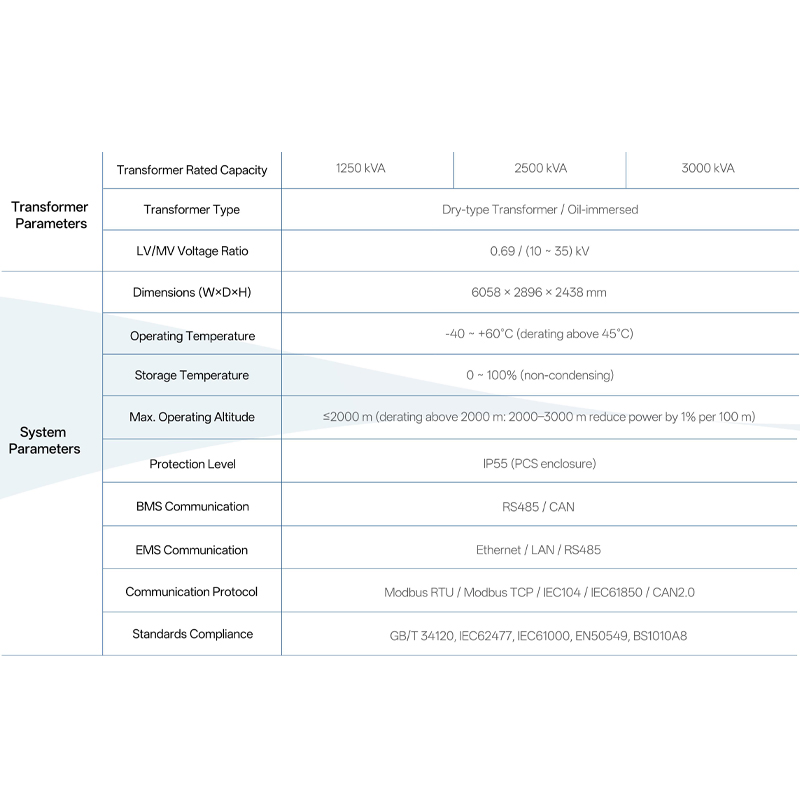

| Transformer Parameters | Transformer Rated Capacity | 1250 kVA | 2500 kVA | 3000 kVA |
| Transformer Type | Dry-type Transformer / Oil-immersed (uniform for all models) | |||
| LV/MV Voltage Ratio | 0.69 / (10 ~ 35) kV (uniform for all models) | |||
| System Parameters | Dimensions (W×D×H) | 6058 × 2896 × 2438 mm (uniform for all models) | ||
| Operating Temperature | -40 ~ +60℃ (derating above 45℃) (uniform for all models) | |||
| Storage Temperature | 0 ~ 100% (non-condensing) (uniform for all models) | |||
| Max. Operating Altitude | ≤2000 m (derating above 2000 m: 2000-3000 m reduce power by 1% per 100 m) (uniform for all models) | |||
| Protection Level | IP55 (PCS enclosure) (uniform for all models) | |||
| BMS Communication | RS485 / CAN (uniform for all models) | |||
| EMS Communication | Ethernet / LAN / RS485 (uniform for all models) | |||
| Communication Protocol | Modbus RTU / Modbus TCP / IEC104 / IEC61850 / CAN2.0 (uniform for all models) | |||
| Standards Compliance | GB/T 34120, IEC62477, IEC61000, EN50549, BS1010A8 (uniform for all models) | |||
