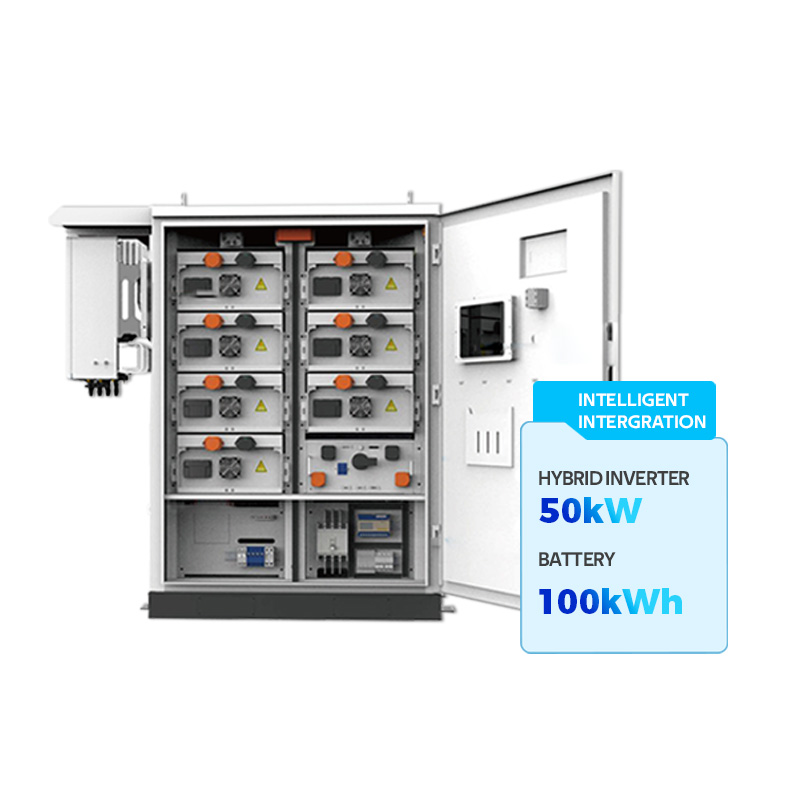

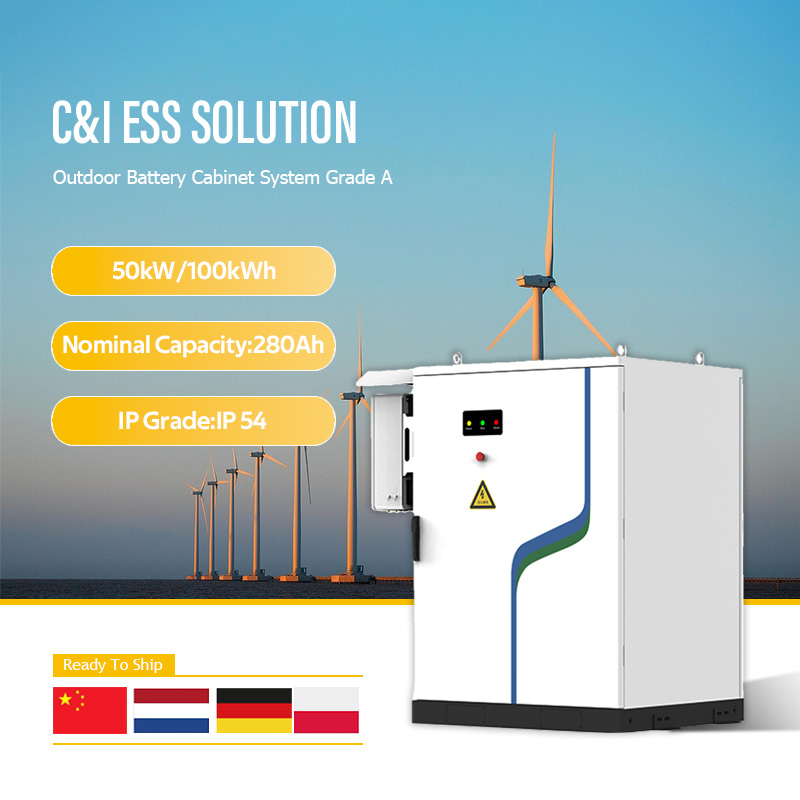

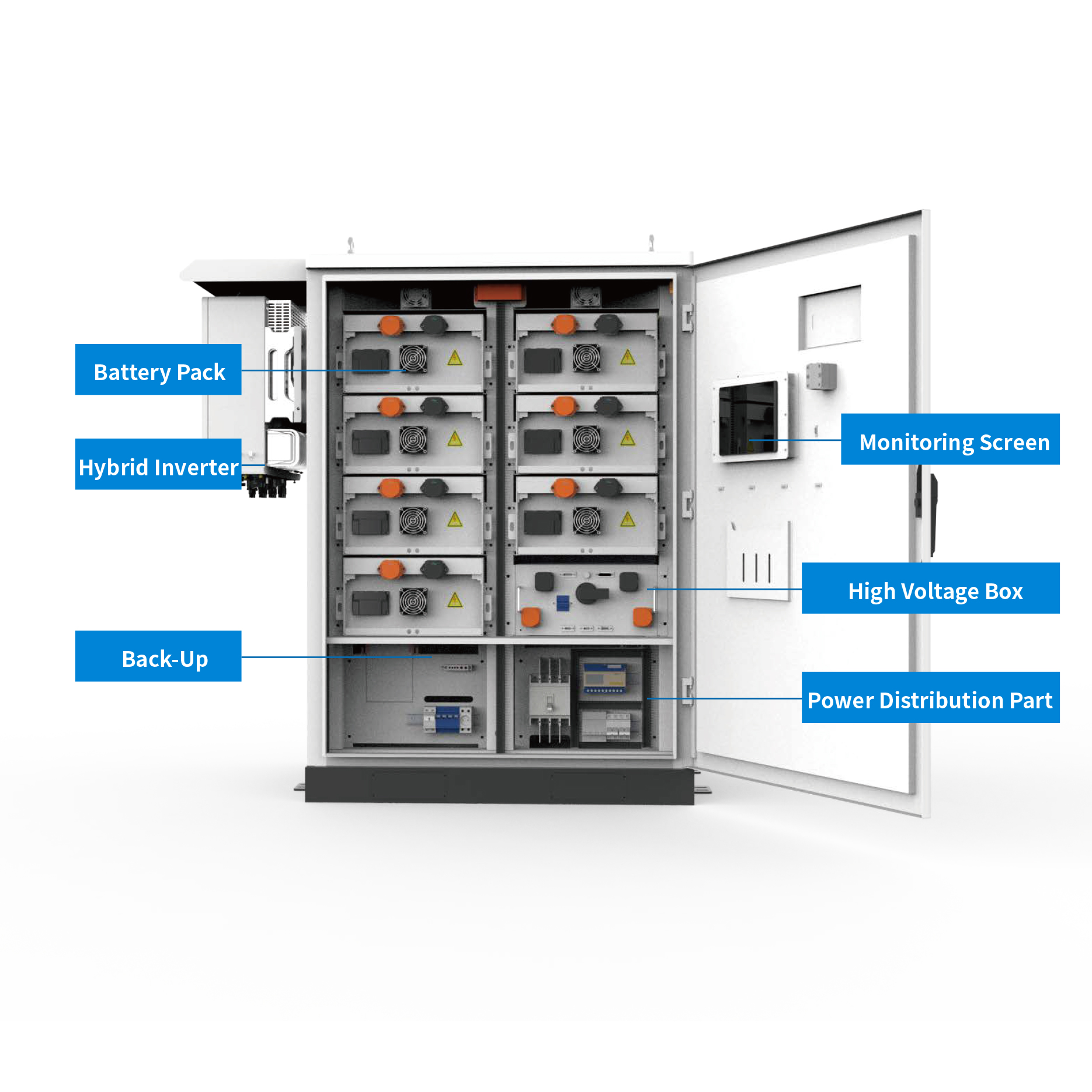

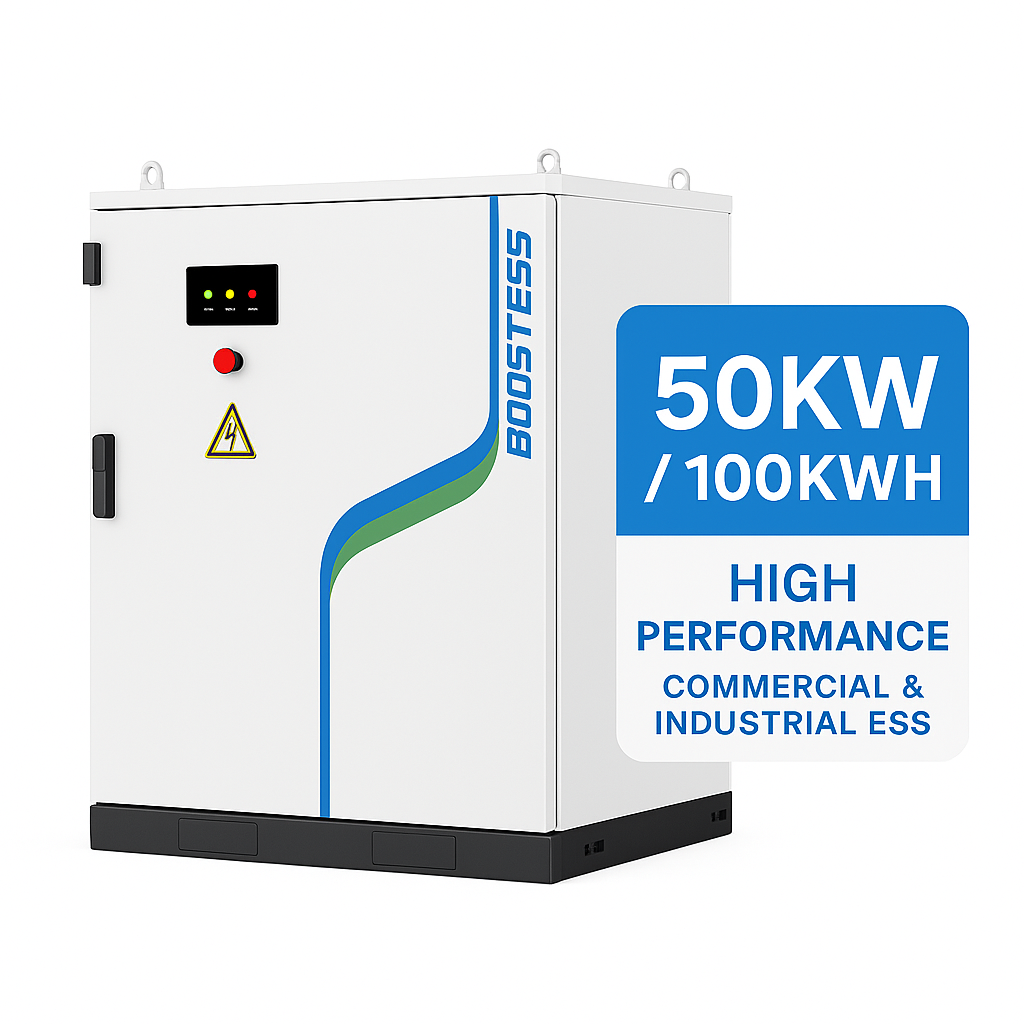

| DC Parameters | |||
| Battery Type | LFP | Operating Voltage Range | 280V～408.8V |
| Combination Mode | 1P112S | Charge/Discharge Current | 100A/100A |
| Rated Capacity | 280Ah | Cooling Mode | Air Cooling |
| Rated Energy | 100kWh | Cycle Number | 6000 |
| Rated Voltage | 358.4V | Fire Protection System | Aerosol Extinguishing |
| Rated Power | 50kW | Detector Type | Temperature / Smoke Sensor / Water Leak |
| PV Parameters | |||
| Maximum Input Power | 75kW | ||
| Maximum DC Input Voltage | 1000V | ||
| MPPT Operating Voltage Range | 200-850V | ||
| Maximum Input Current | 30A×4 | ||
| Rated Output Power | 50kW | ||
| Maximum Conversion Efficiency | 98.8% | ||
| AC Parameters | |||
| Rated Output Power | 50kW | ||
| Rated Voltage | 3L/N/PE; 220/380V; 230/400V; 240/415V | ||
| Grid Frequency | 50/60Hz | ||
| Maximum Output Current | 83A | ||
| Power Factor | 0.8 Lead... 0.8 lag | ||
| System Parameters | |||
| Operating Environment | -20℃～50℃（Power derating 45℃+） | ||

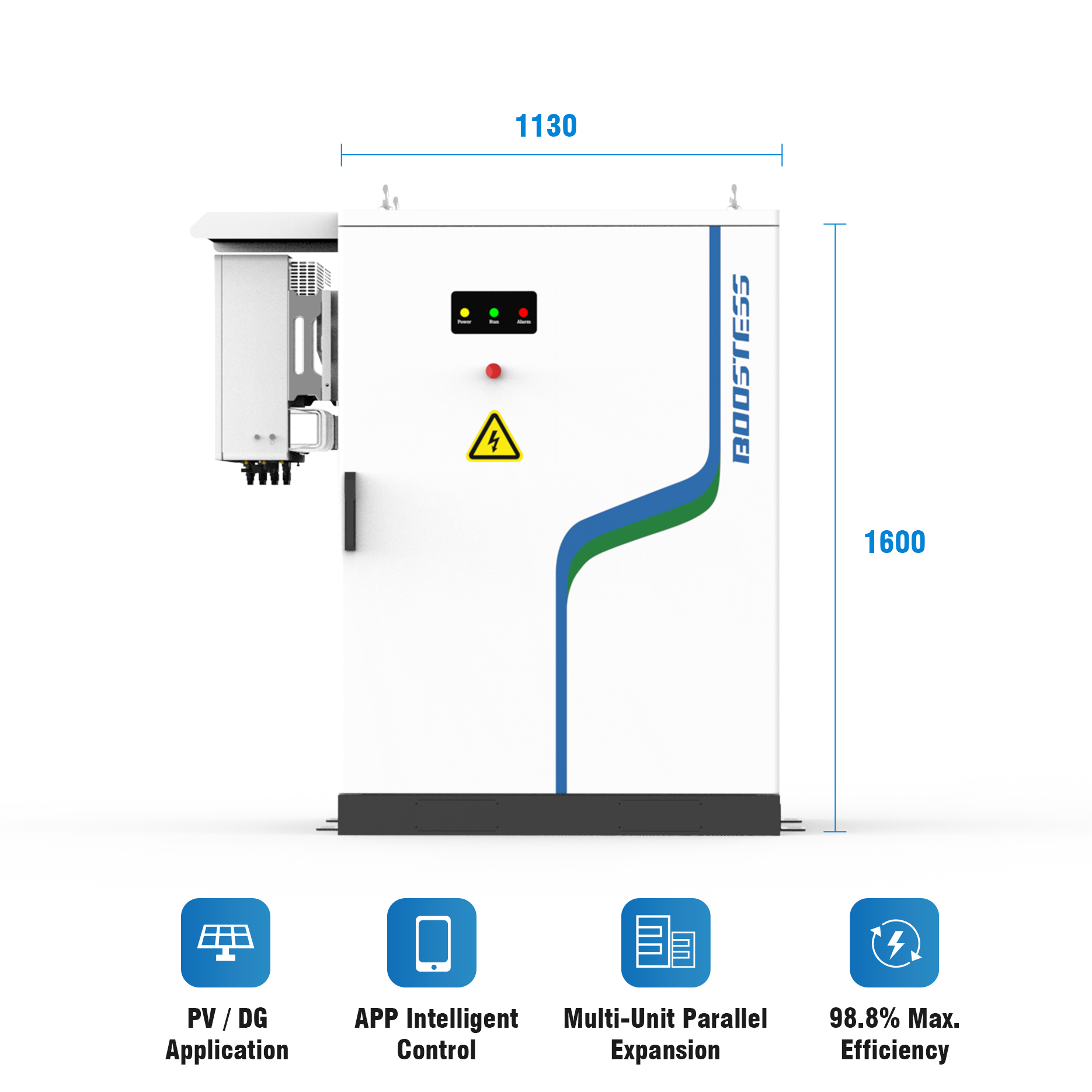

| Size | 1130*1000*1600mm | ||
| Weight | About 1.4t | ||
| Class Of Protection | IP54 | ||
| Allowable Relative Humidity | 0-95% | ||
| Allowable Altitude | ≤2000m（Power derating 2000m +） | ||
| Certification Standard | IEC62619, EN62477-1, IEC 63056 | ||

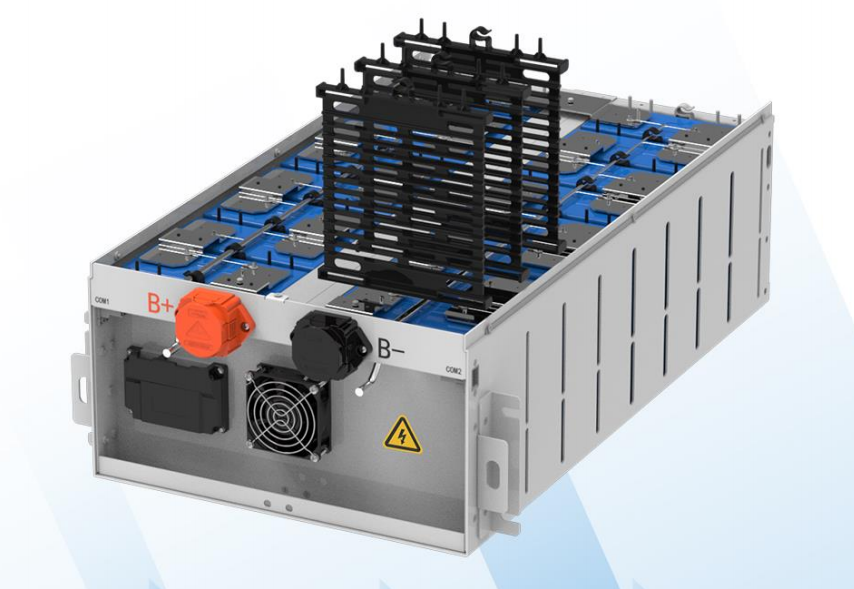

Our energy storage modules are continuously developed and optimized:

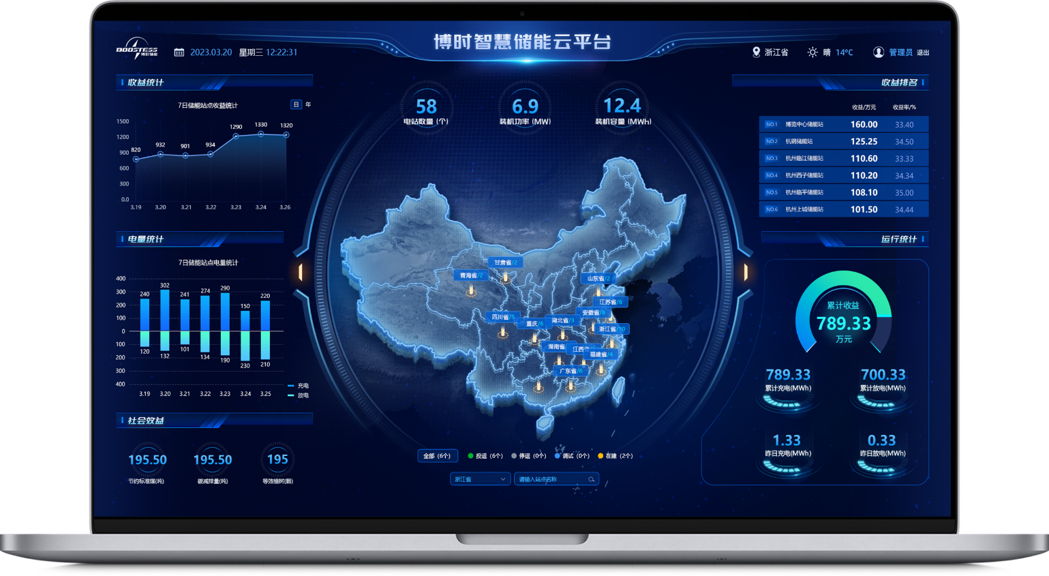

Cloud remote operation and maintenance:
The system monitors local device data and evaluates status to dynamically allocate output power to each energy storage device, coordinate power between multiple devices, optimize operating modes, and ensure the highest system efficiency and maximum benefits.
7X24 hours cloud real-time monitoring, analyze the consistency and safety of the battery pack, predict the algorithm in advance, potential risks, real-time warning, ensure the safety of the battery and equipment, and quickly send and repair orders in case of system failure.
Through the system, check the equipment operation status, peak and valley power, load power and energy storage revenue in real time. Realize the remote control of equipment and online update of the system, optimize the operation strategy of equipment, provide peak load shifting, demand control, emergency control, load tracking and other strategies, and improve the overall economic benefits.
System information is clear at a glance, the operation is convenient and fast, the operation, virtual scene dynamic display, different sites, the location is more clear, equipment monitoring information, site information graphical control.
Based on technology accumulation, the system capacity and performance index are greatly improved

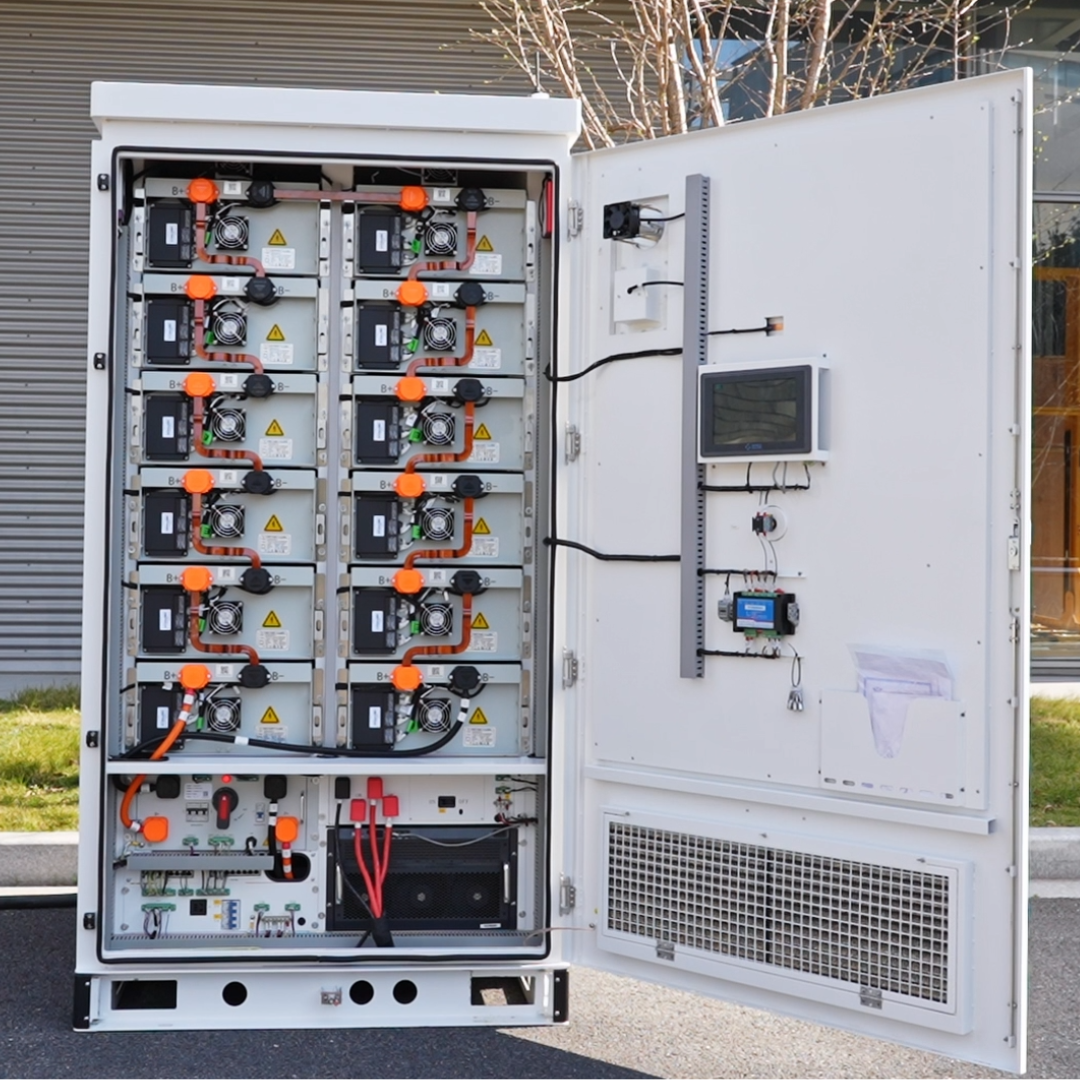

New type of battery management system Testing and development
Customize various system specifications according to actual application scenario requirements

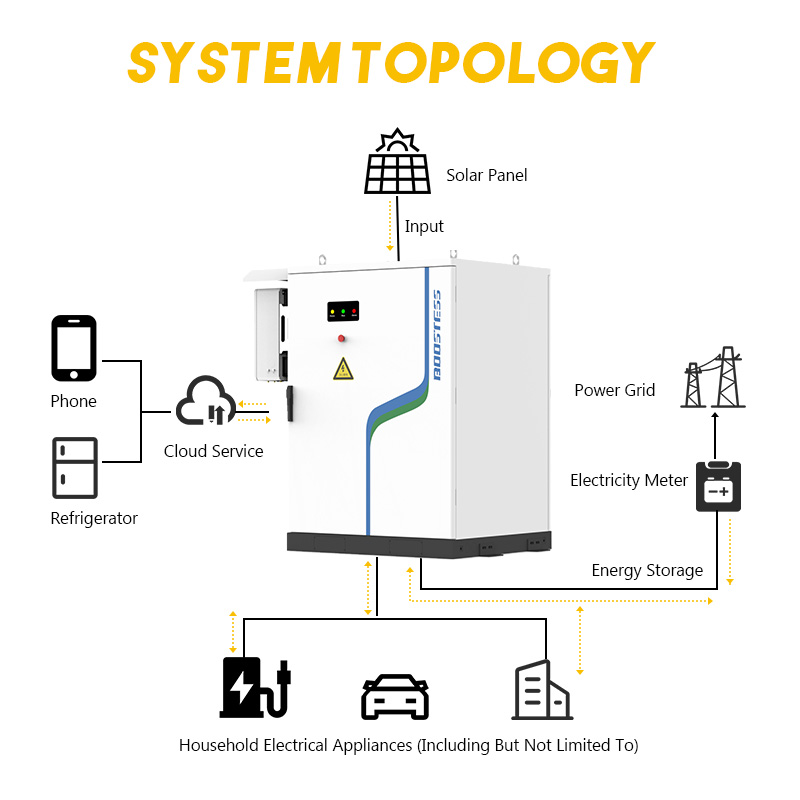

* Pre-installed containerized systems (battery + PV input) reduce installation/commissioning time and costs.
* Plug-and-play deployment for rapid setup.
* AI-optimized air-cooling maintains full power at 45°C (IP54 rated for dust/moisture).
* Round-trip efficiency (RTE) 3% higher than competitors.
* LFP (LiFePO₄) batteries ensure safety and long cycle life.

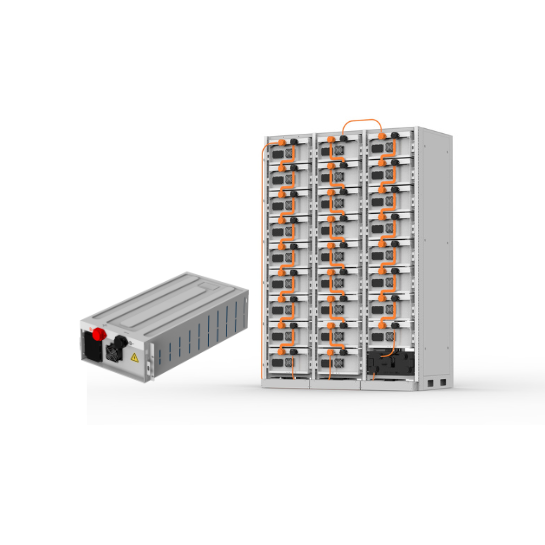

* Modular cabinets/containers allow flexible capacity customization (e.g., 100kWh–5MWh).
* Supports on/off-grid operation and parallel deployment (up to 4 units off-grid).
* Reduces energy costs by 30%–70% through peak shaving, solar integration, and grid independence.
* Lower maintenance costs via cloud monitoring and quick-plug component design.
* Multi-layer protection: automatic fire extinguishers, PACK-level immersion fire tech, and active thermal management.
* Cell-level temperature control (<5℃ variation) and strict quality certifications (IEC/UN38.3).
* Cloud-based remote monitoring, AI energy optimization, and 24/7 fault detection.
* Adaptive charging/discharging strategies maximize ROI.
* Manufacturing Strength: Fully automated production lines (air/liquid-cooled PACKs), ODM capabilities and GWh-scale project experience.

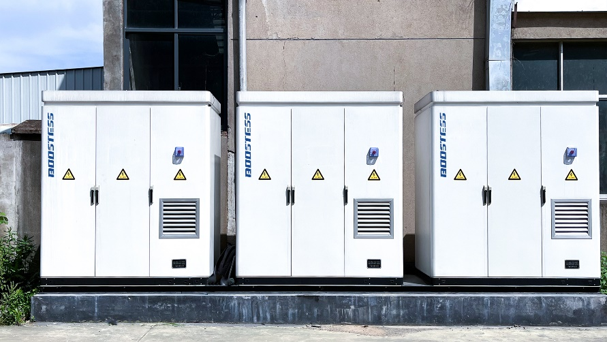

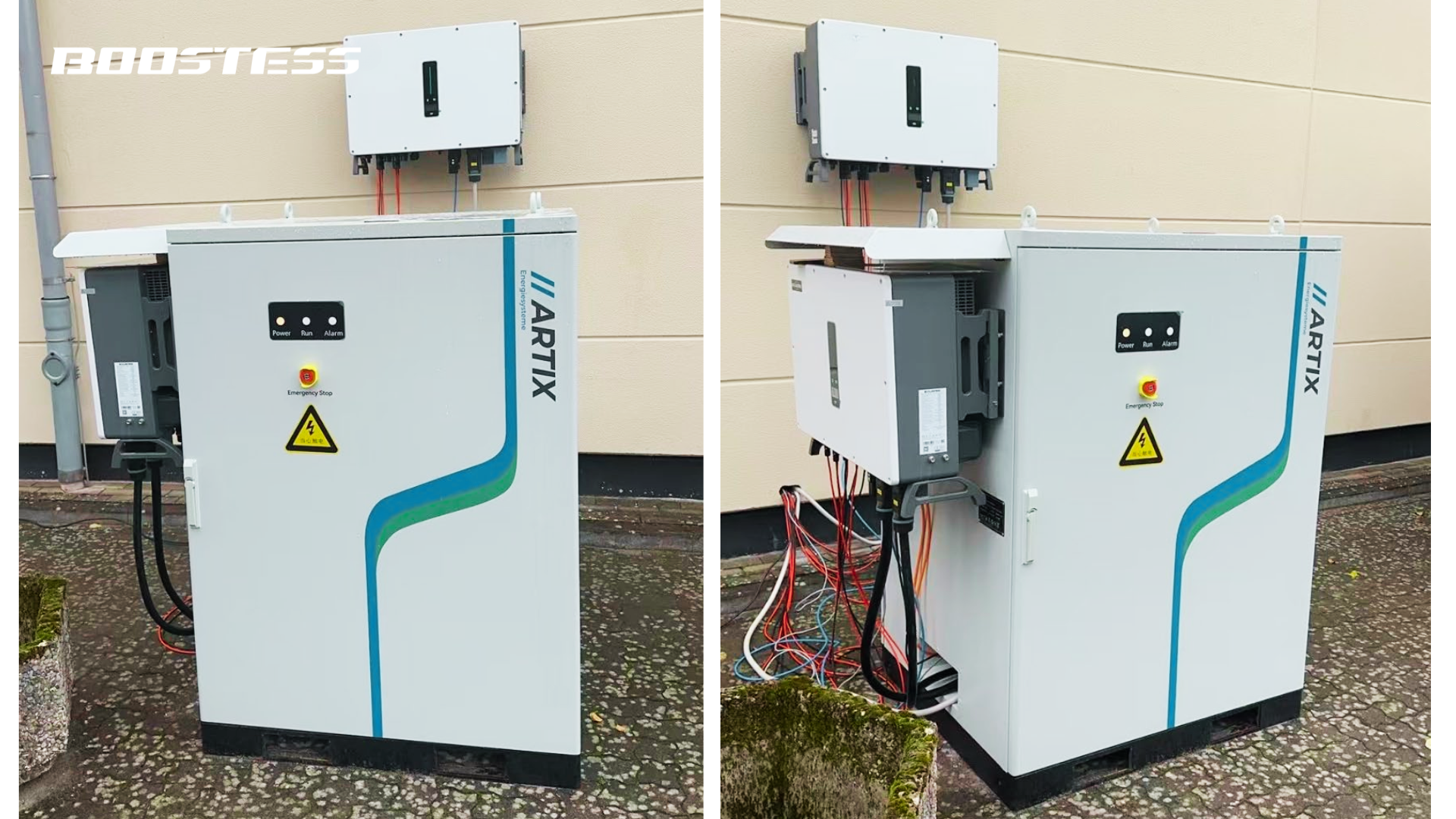

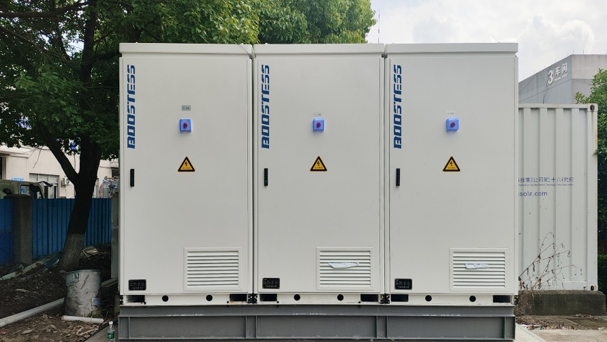

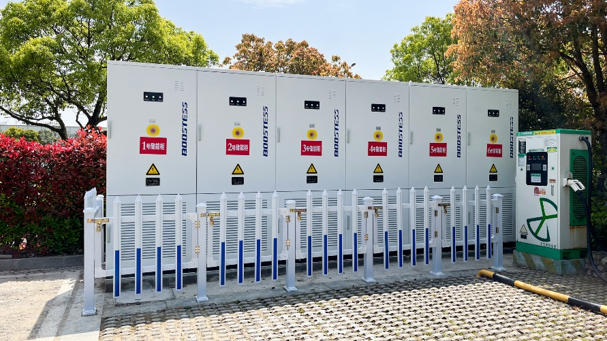

Energy Storage: 300kW/600kWh
Purpose: Peak shaving and valley filling, off-grid backup

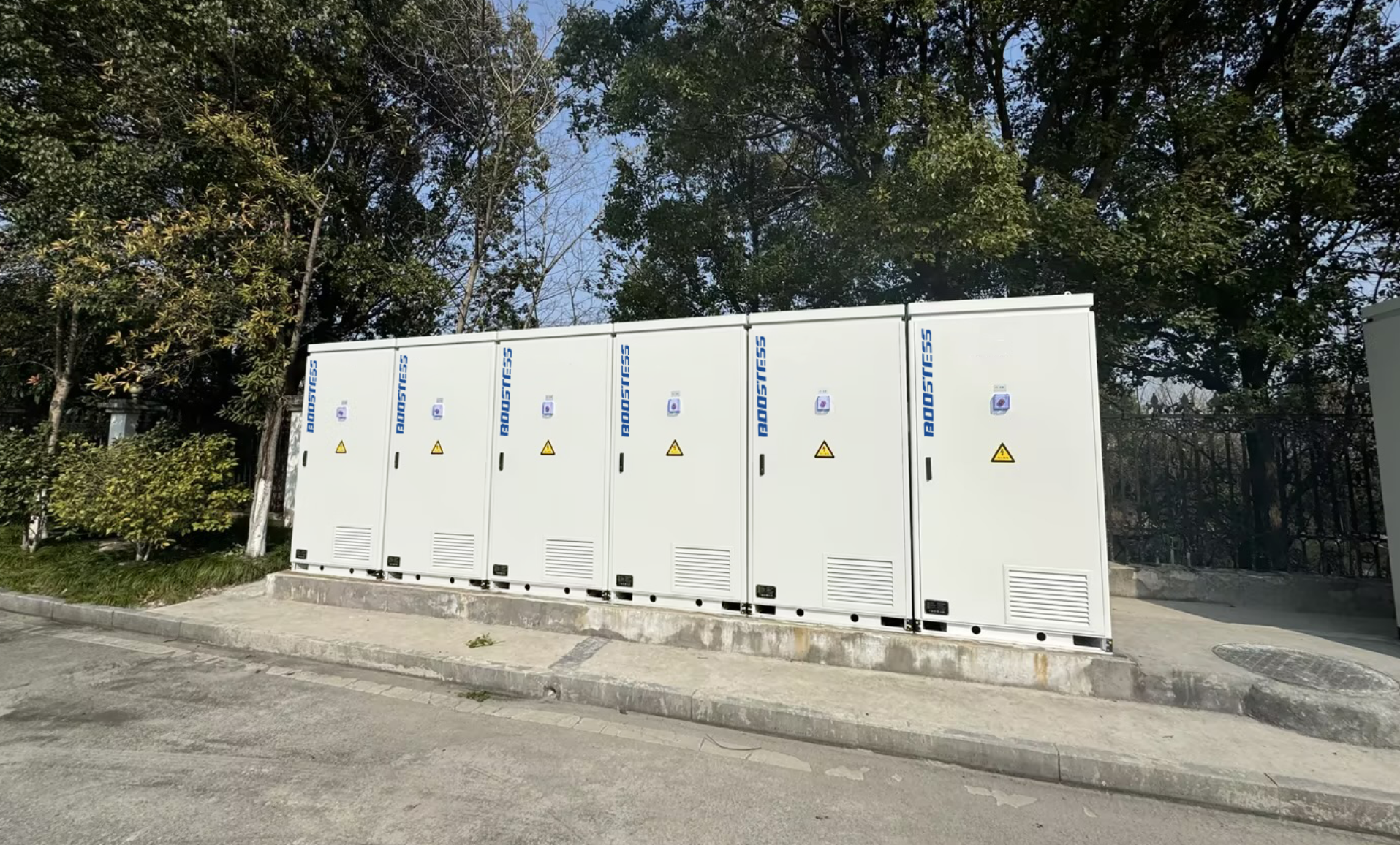

Energy Storage: 1.05MW/2.15MWh
Purpose: Peak shaving and valley filling, off-grid backup

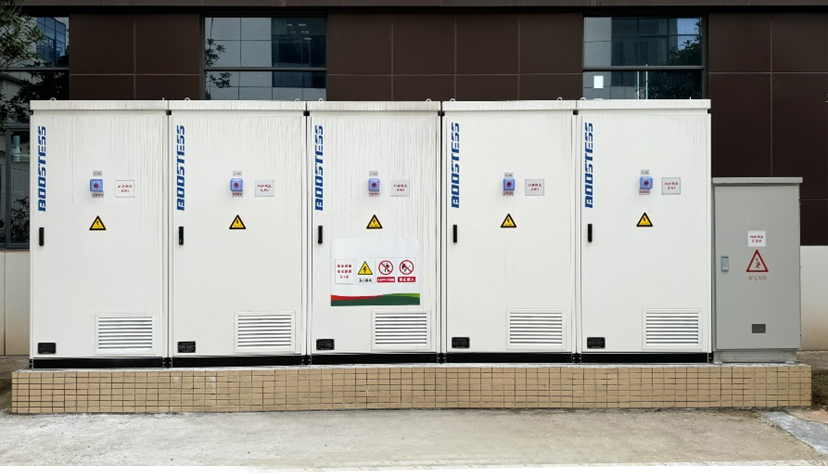

Energy Storage: 300kW/600kWh
Purpose: Peak shaving and valley filling, off-grid backup

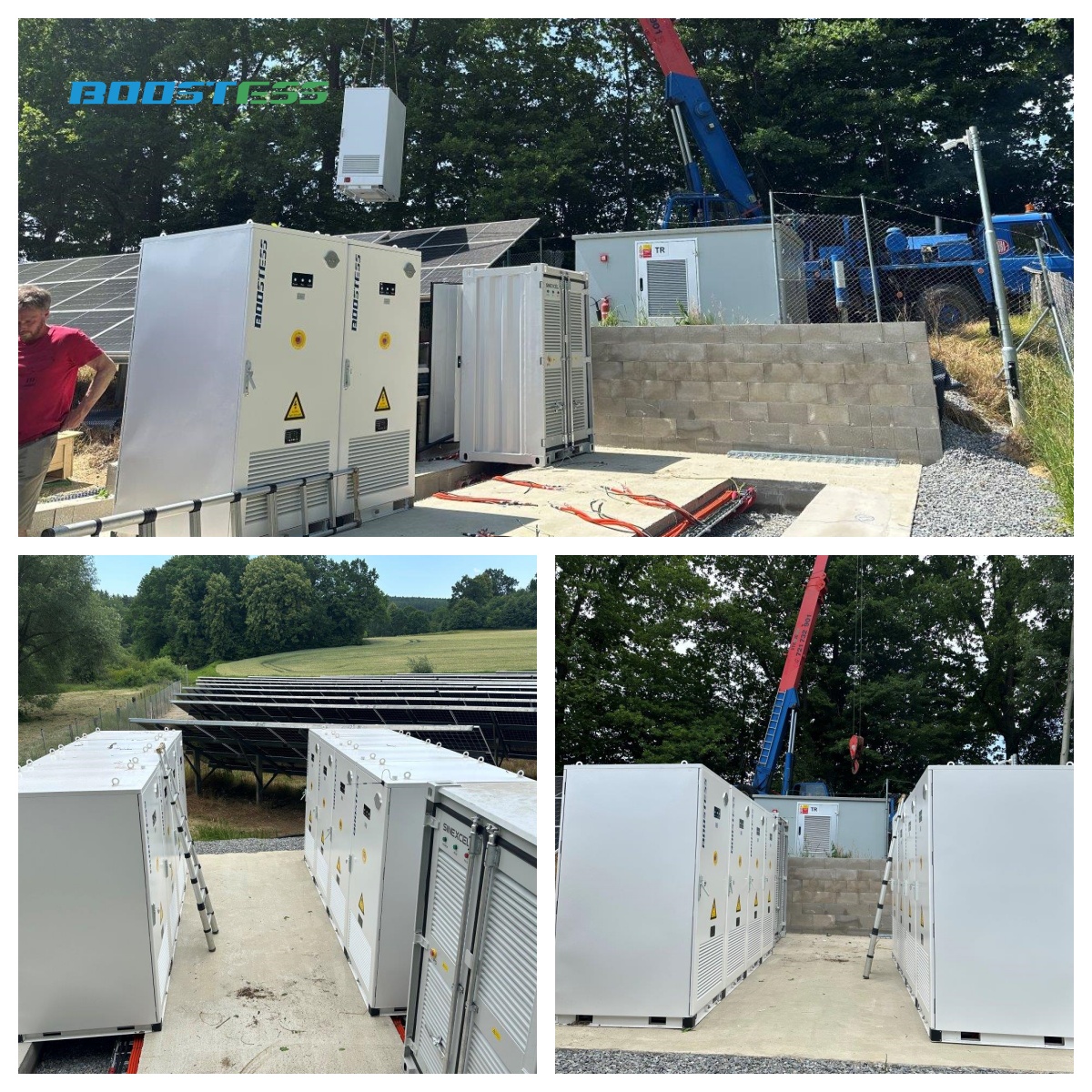

Energy Storage: 630kW/1.29MWh
Purpose: Peak shaving and valley filling, off-grid backup
Energy Storage: 300kW/600kWh
Purpose: Peak shaving and valley filling, off-grid backup
We are a national high-tech enterprise specializing in the design, development, manufacturing and sales of new energy storage products, gathering a group of high-quality R&D, sales and overseas high-level talent team.

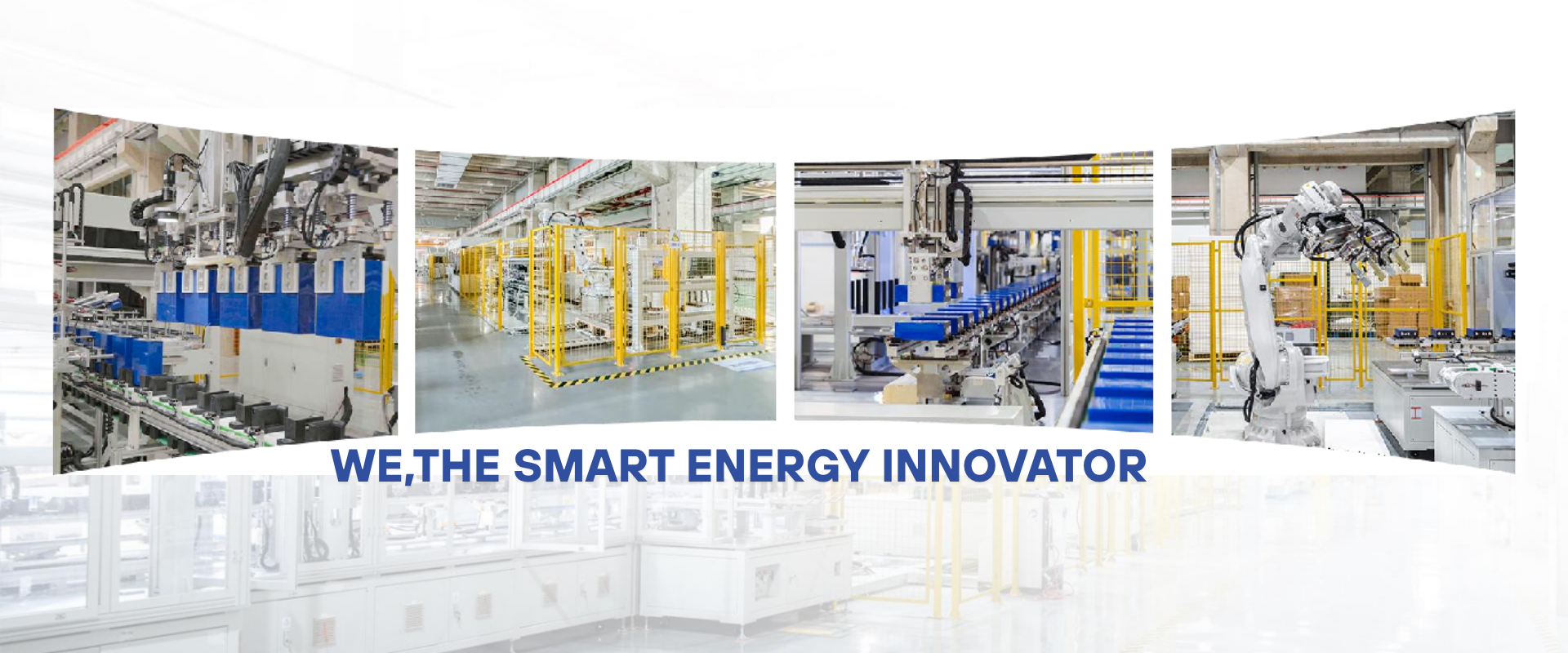

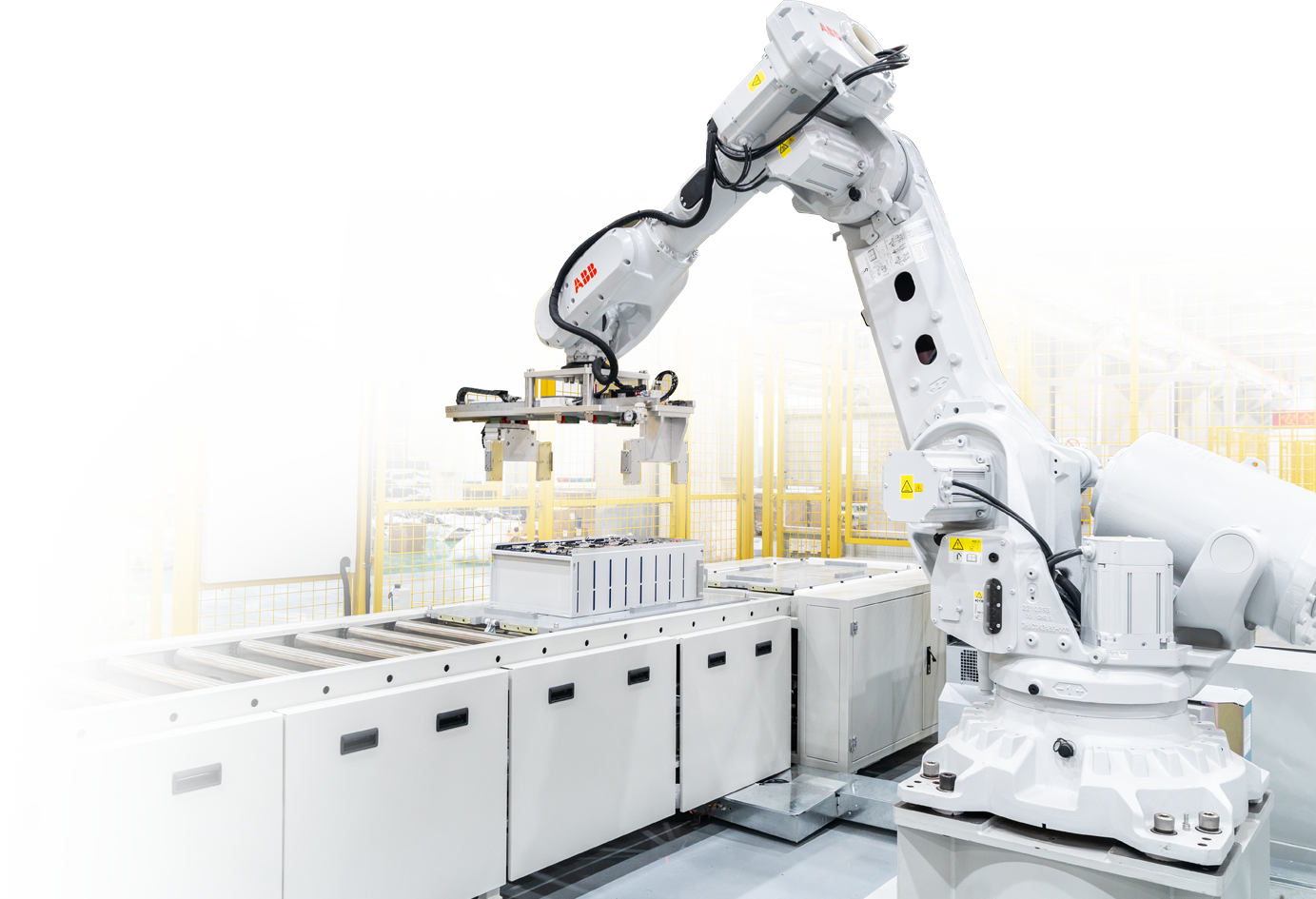

Our Intelligent Manufacturing Factory is currently equipped with a complete automated air-cooled PACK production line and a liquid-cooled battery PACK production line to meet the production and OEM needs of all categories, including large-scale energy storage, industrial and commercial integrated cabinets, etc.
Efficient and stable production capacity output is the premise for project establishment. We are equipped with multiple automated battery PACK production lines to meet the needs of GWh-level energy storage projects.
We have strict control and inspection on the quality of energy storage products. At the same time, we adopt advanced production technology to ensure product stability and long-term reliability.

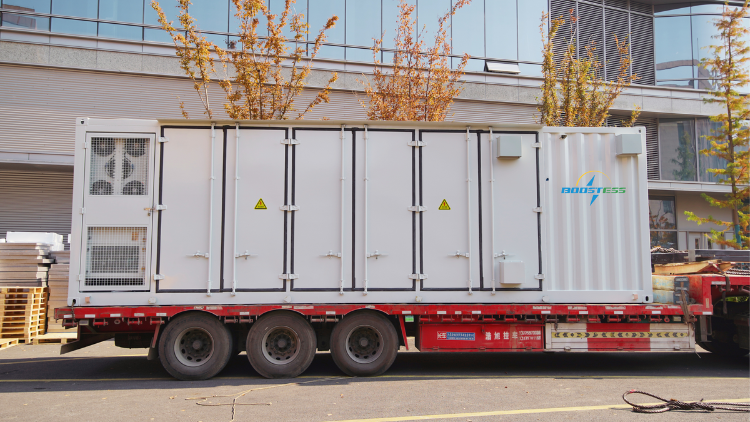

With automated production lines and flexible supply chain management, we can flexibly respond to changes in demand and deliver products efficiently within a reasonable time.
