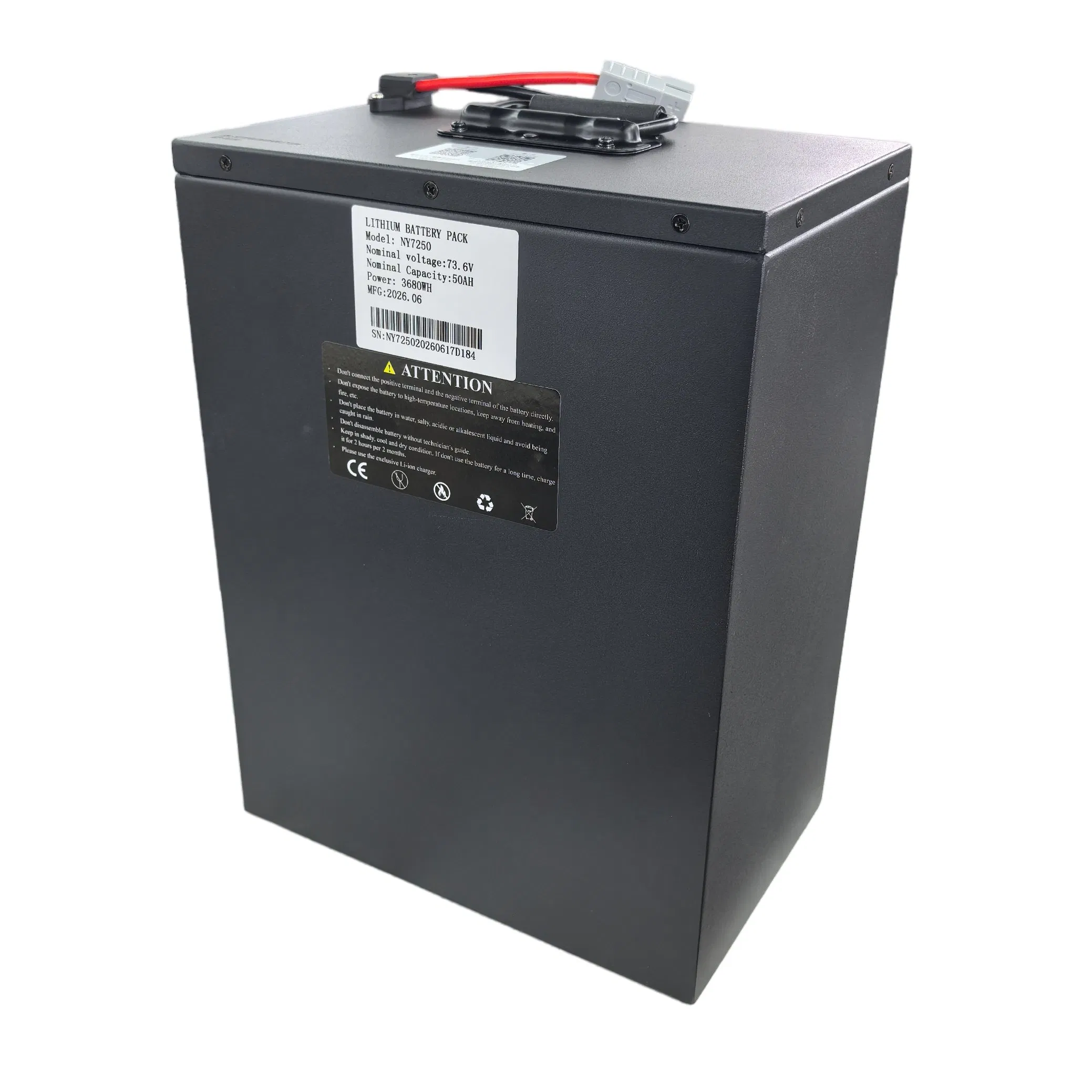

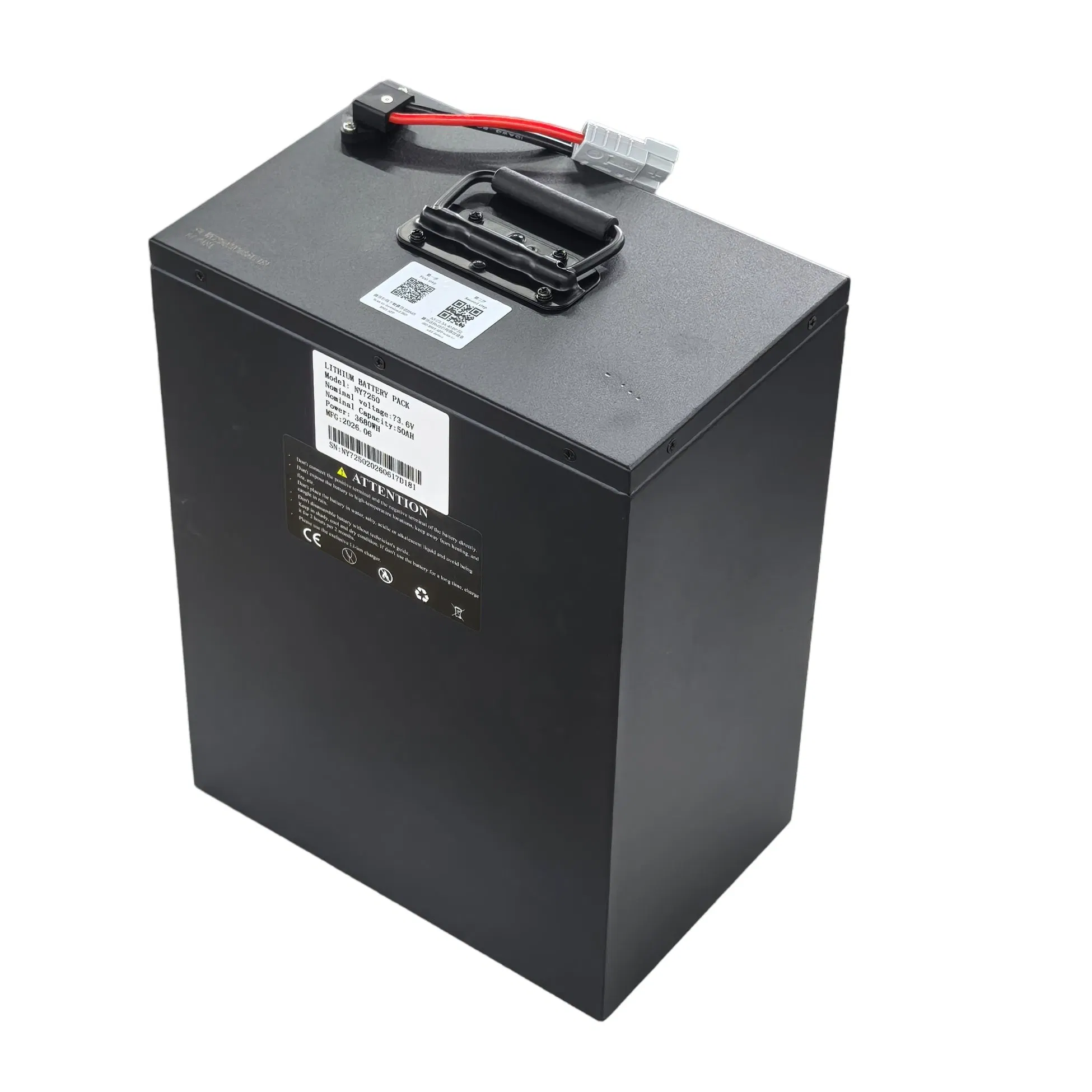

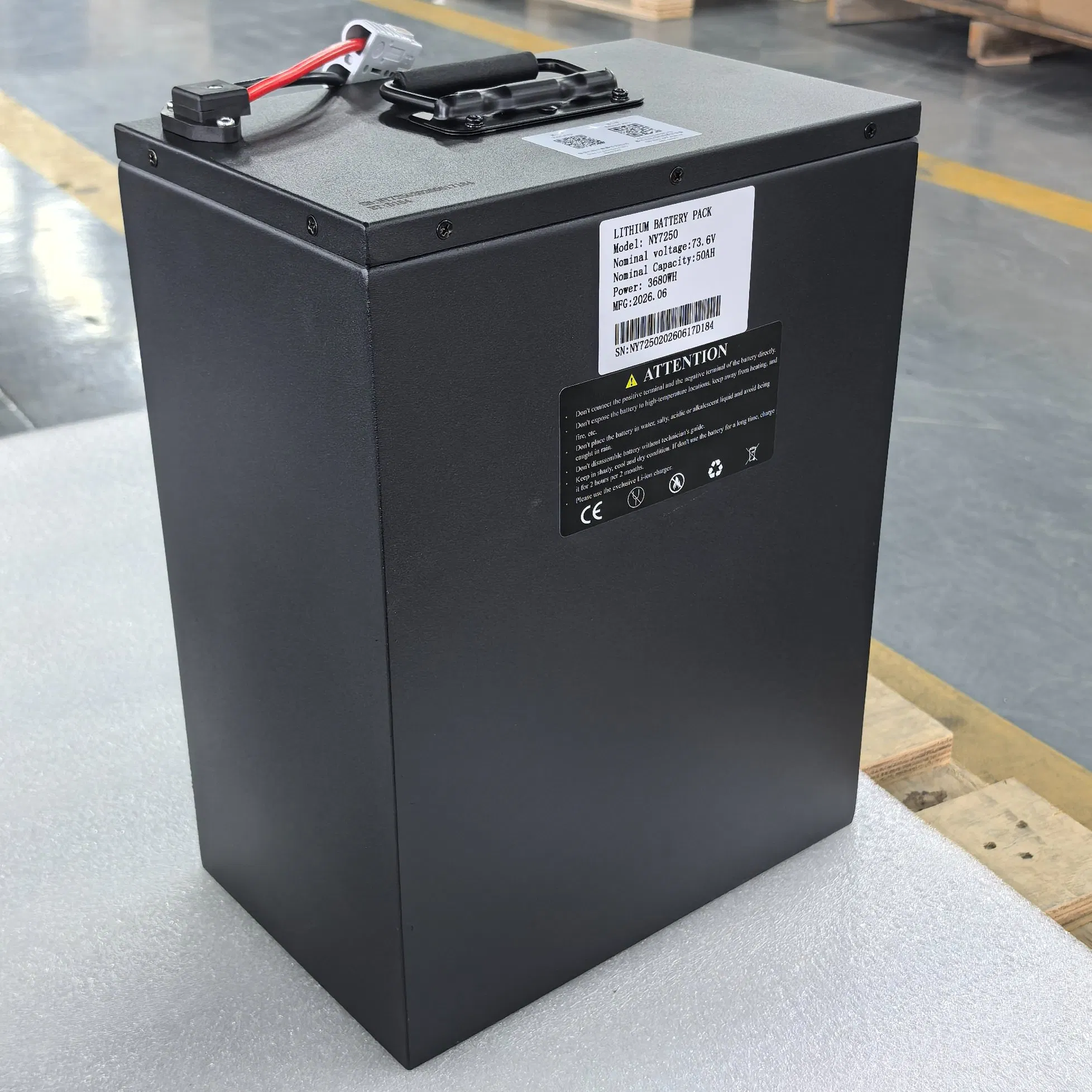

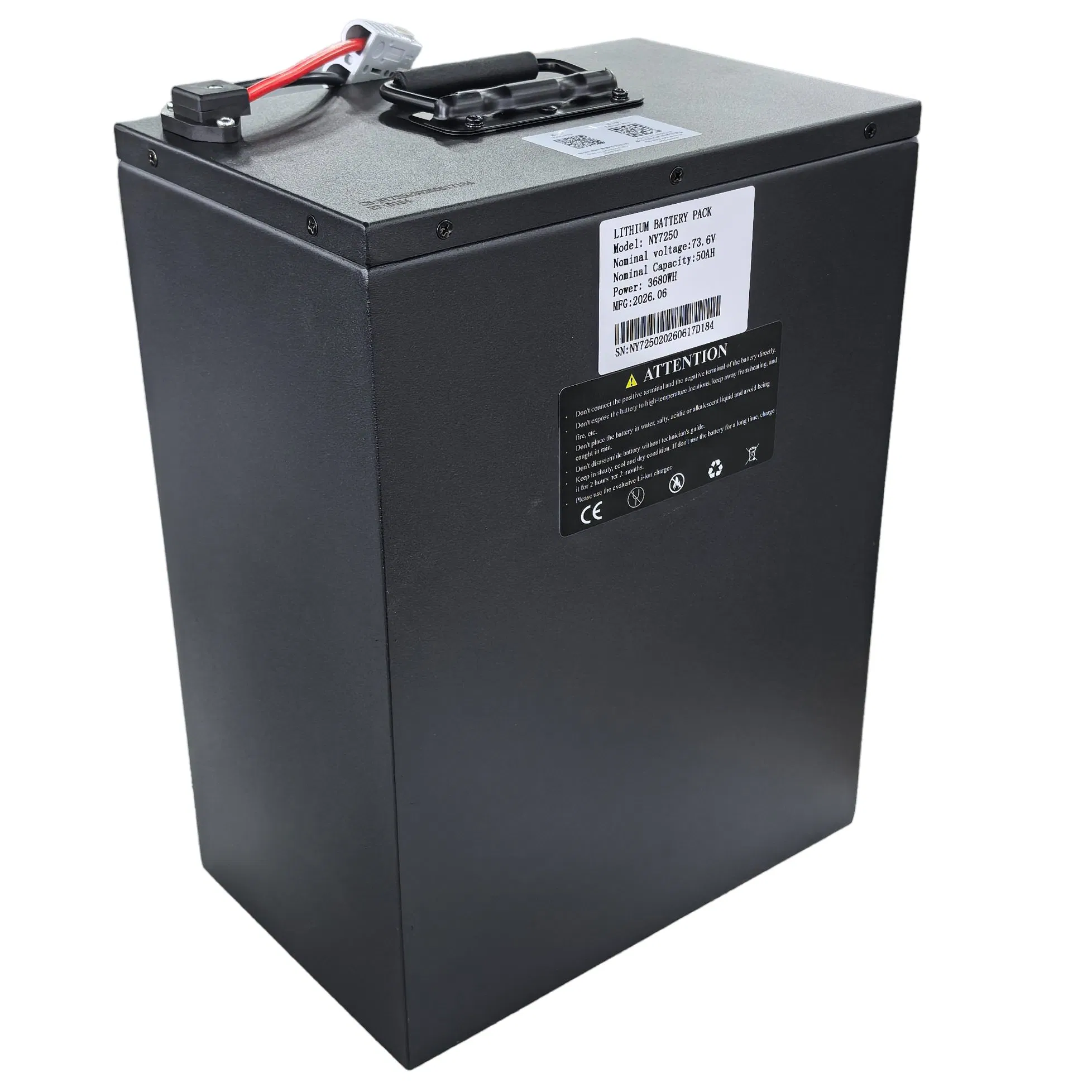

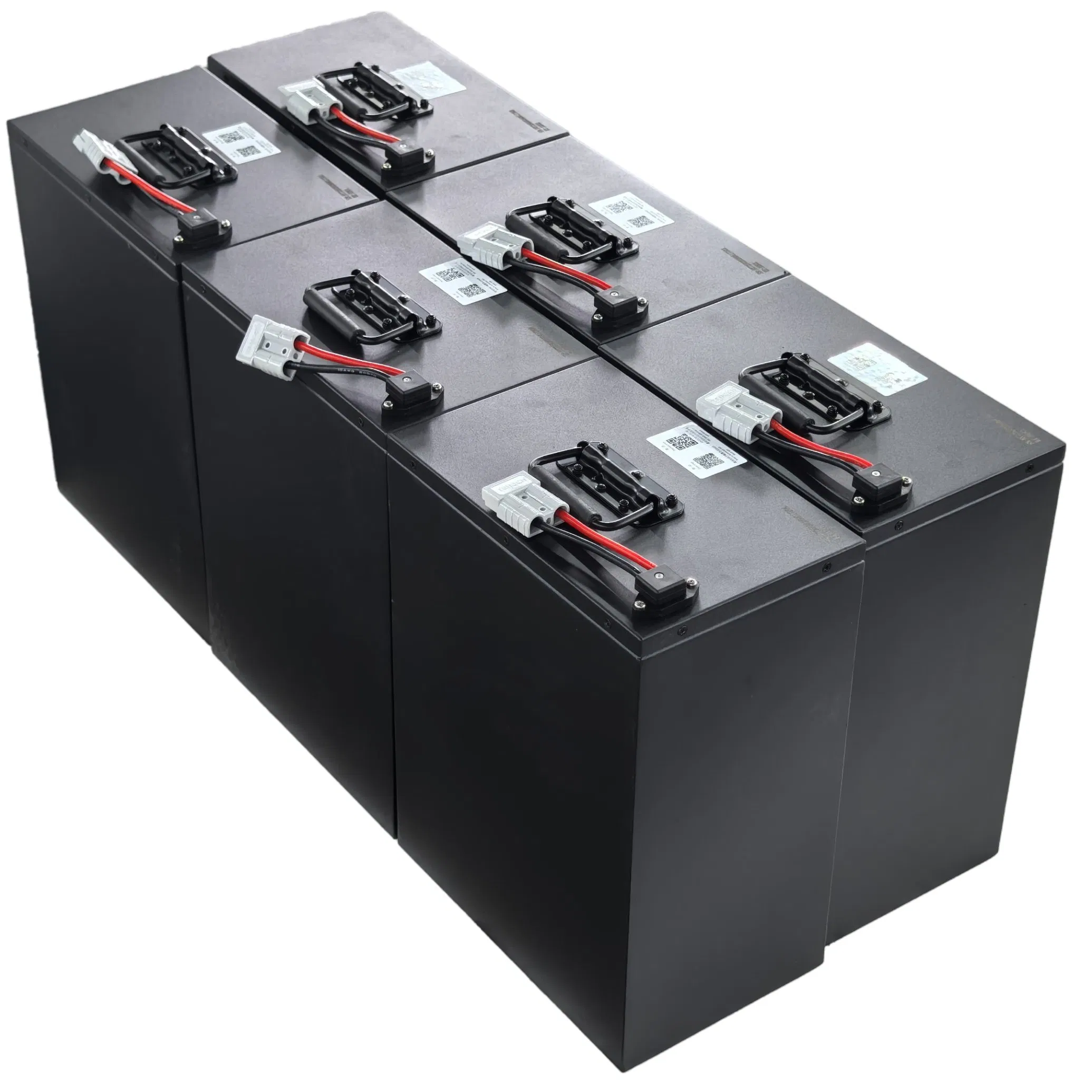

This battery is usually suitable for electric vehicles, electric bicycles, home energy storage and other fields, and it has the following characteristics.
| Item | Specification | Remarks |
|---|---|---|
| Typical Capacity | 50Ah | 0.5C discharge |
| Minimum Capacity | 50Ah | 0.5C discharge |
| Nominal Voltage | 73.6V | - |
| Discharging Voltage (Min) | 57.5V | - |
| Charging Voltage (Max) | 83.95V | - |
| Charging Current (Std) | 10A | (0 ~ +45°C) |
| Discharging Current (Std) | 10A | (-20 ~ +60°C) |
| Max Charging Current | 25A | (0 ~ +45°C) |
| Discharging Current (Max/Peak 3s) | 120A | (-20 ~ +60°C) |
| Max Continuous Discharging Current | 60A | (5 ~ +45°C) |
| Battery Pack Weight | 28kgs | - |
| Storage Temp (< 1 Month) | -20 ~ +60°C | - |
| Storage Temp (< 3 Month) | -20 ~ +45°C | - |
| Storage Temp (< 12 Month) | -20 ~ +25°C | - |
| Charging Temperature Range | 0 ~ +45°C | - |
| MSDS/UN.38.3/SEA SHIPPING REPORT | Yes | - |
Technical Support & Custom Solutions:
Samples are available. Please share your specifications and requirements for evaluation. We provide comprehensive technical support covering cell manufacturing, inspection, assembly, and application. Reasonable budget and quotation solutions can be supplied for project requirements.
Usage Guidelines & Warranty Reminders:
DIY battery pack cells must be balanced (same voltage) before assembly. Please inspect voltage and resistance appearance upon arrival. Returns are only valid for unused, unwelded, and undamaged cells within 15 days. Warranty period is 1 year (from successful delivery) covering capacity drops below 80% with proof. Wrong wiring, improper charger usage, or unbalanced assembly leading to damage will void the warranty.
