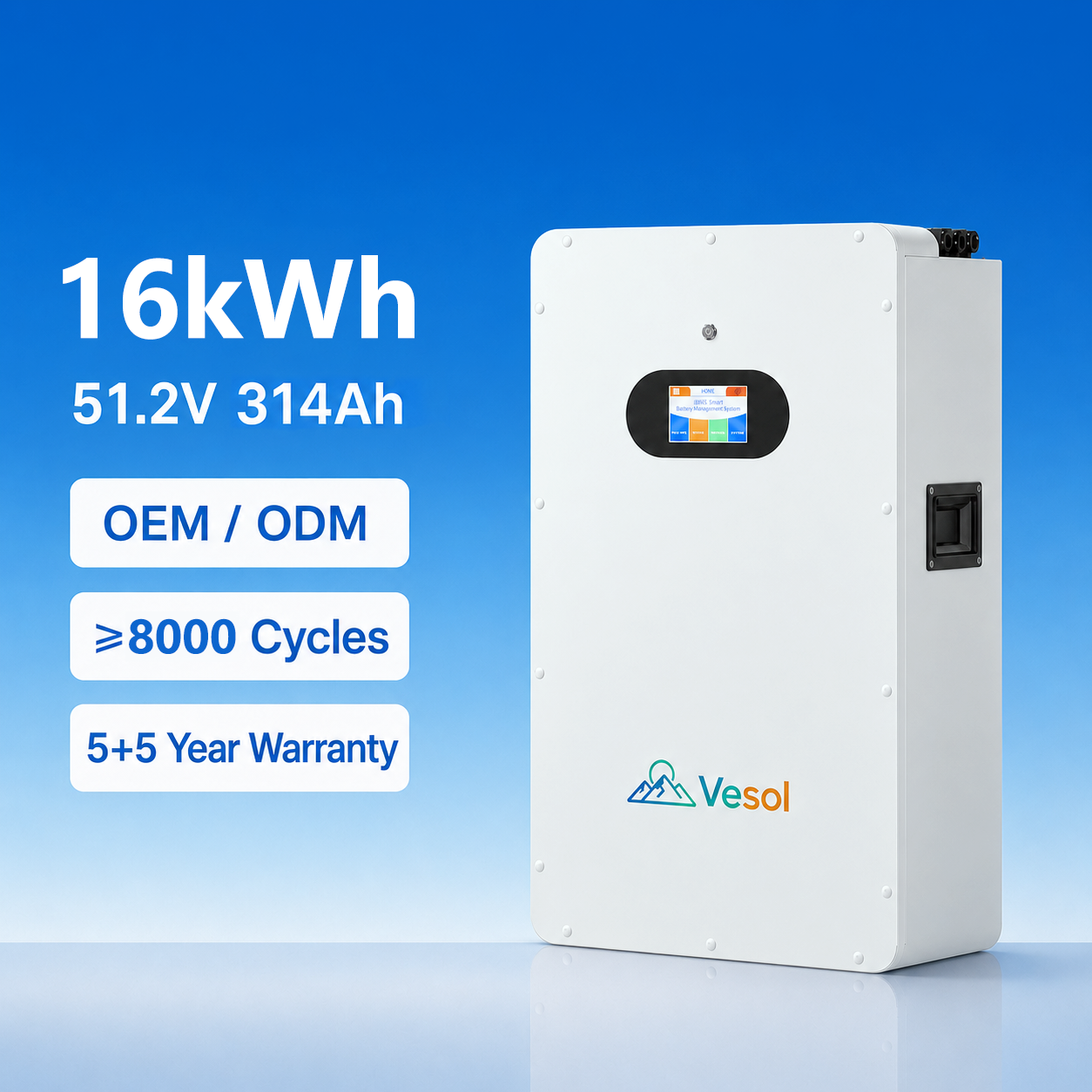

| Model | HZEB-LCT-5 | HZEB-LCT-10 | HZEB-LCT-16 |
|---|---|---|---|
| Battery Type | LiFePO₄ | ||
| Nominal Voltage | 51.2V | 51.2V | 51.2V |

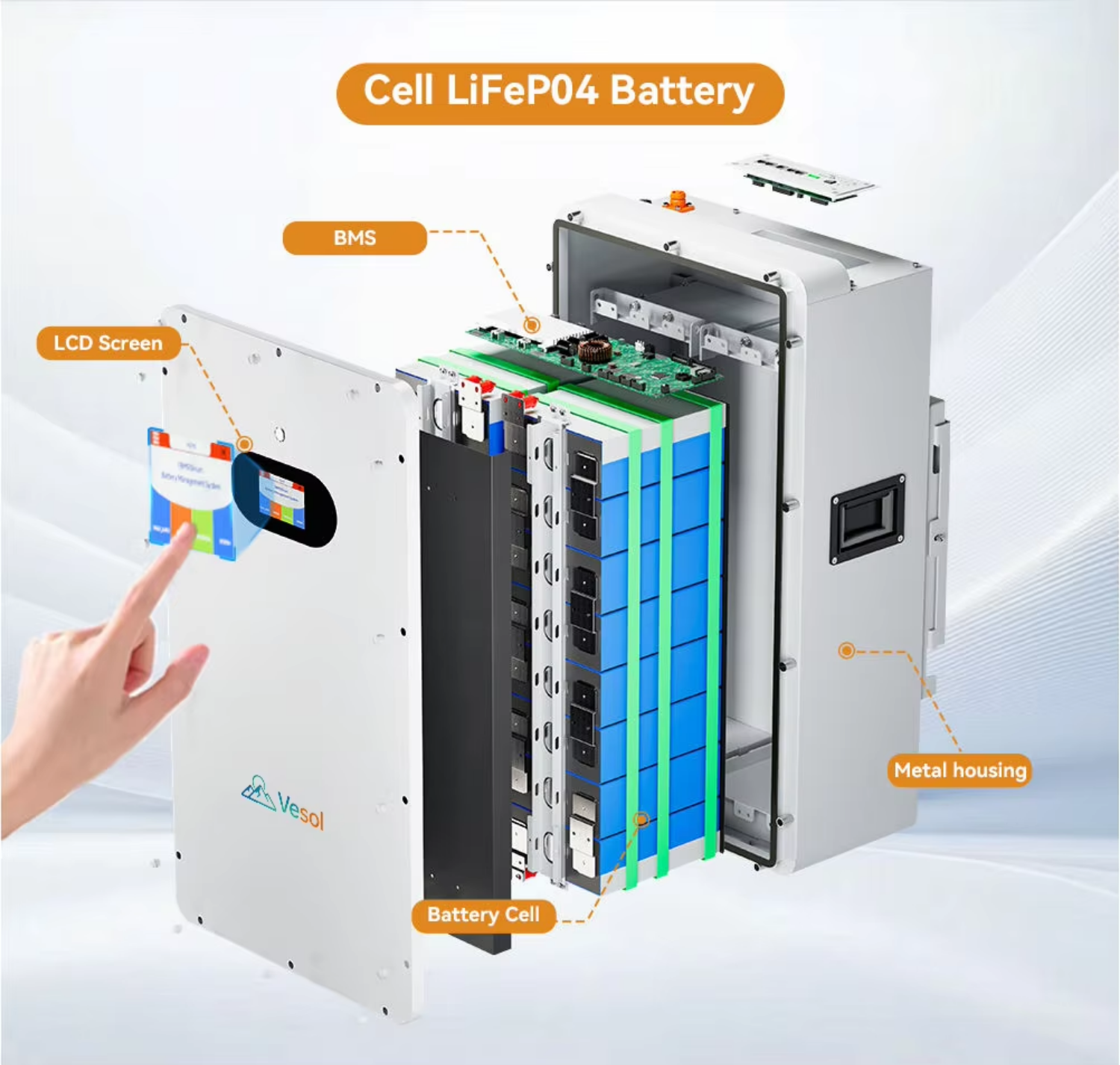

| Configuration | 3.2V100Ah/1P16S | 3.2V206Ah/1P16S | 3.2V314Ah/1P16S |
| Capacity(Ah) | 100Ah | 206Ah | 314Ah |
| Nominal Energy(kWh) | 5.12kWh | 10.55kWh | 16.08kWh |
| Usable Energy(kWh@90%DOD)[1] | 4.61kWh | 9.49kWh | 14.47kWh |
| Max.Charge/Discharge Current(A)[2] | 100A | 100A | 150A |
| Voltage Range(V) | 44.8~57.6V | ||

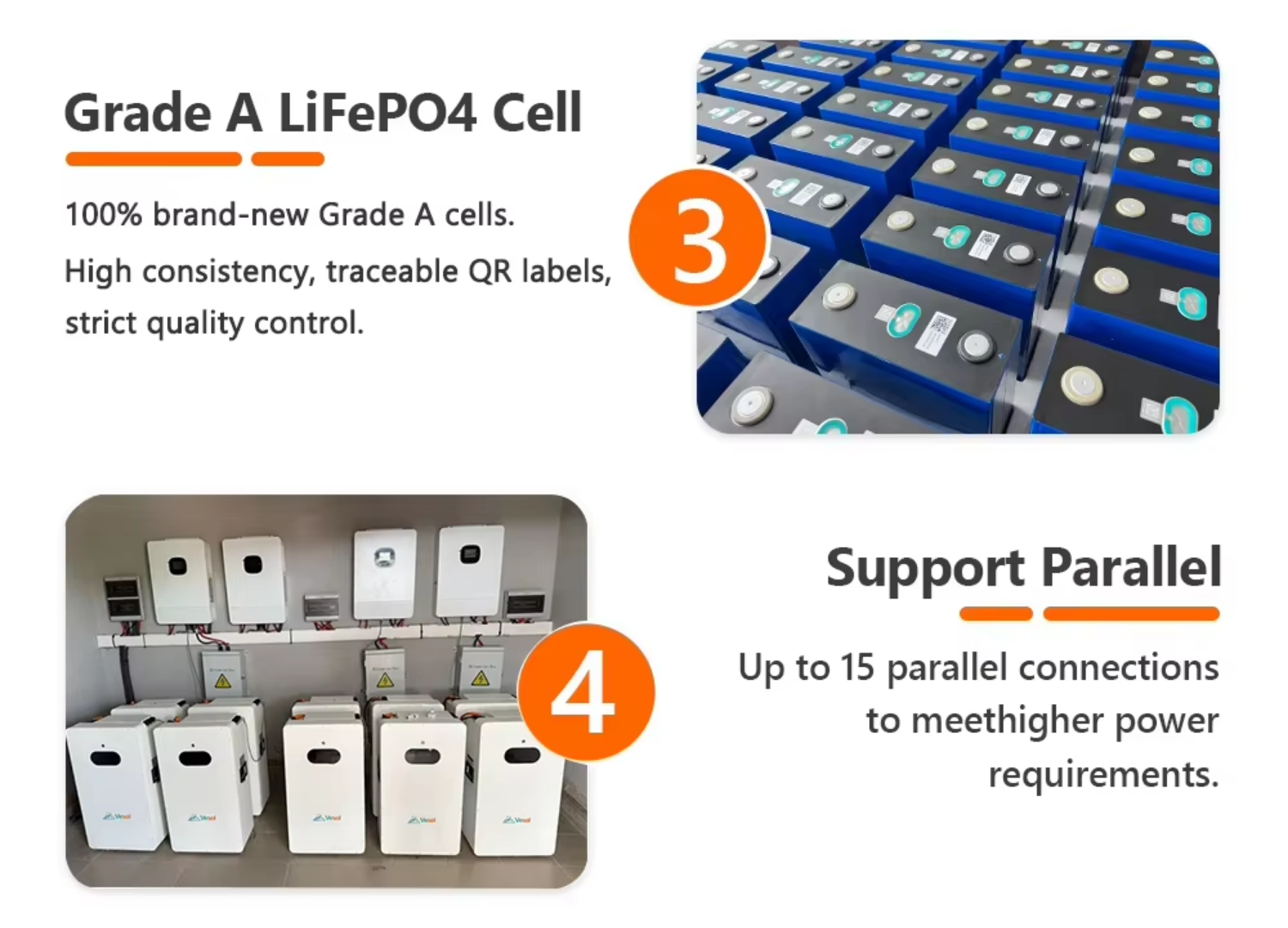

| Scalability | Up to 15 units in parallel | ||

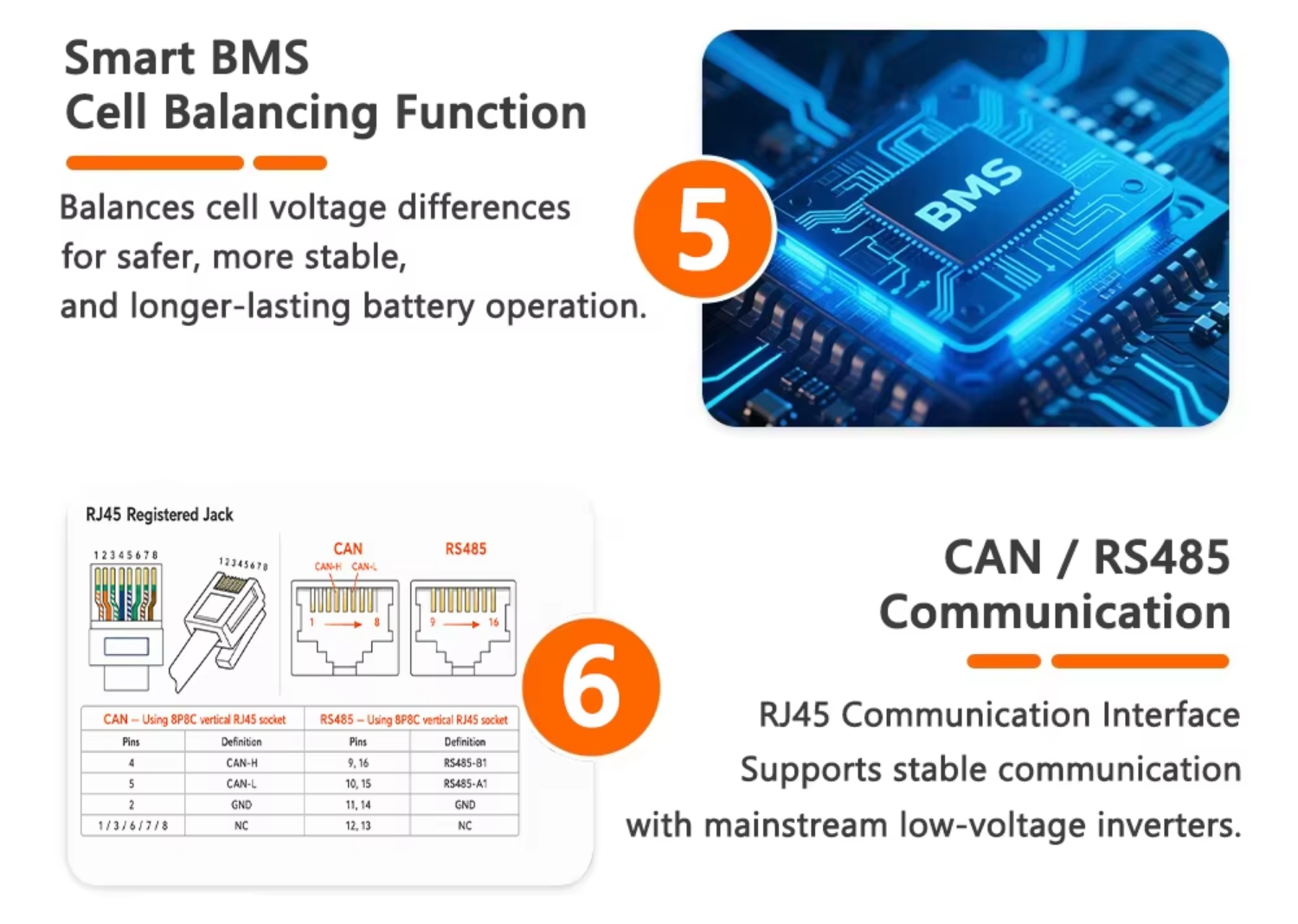

| Communication Interface | CAN;RS485 | ||

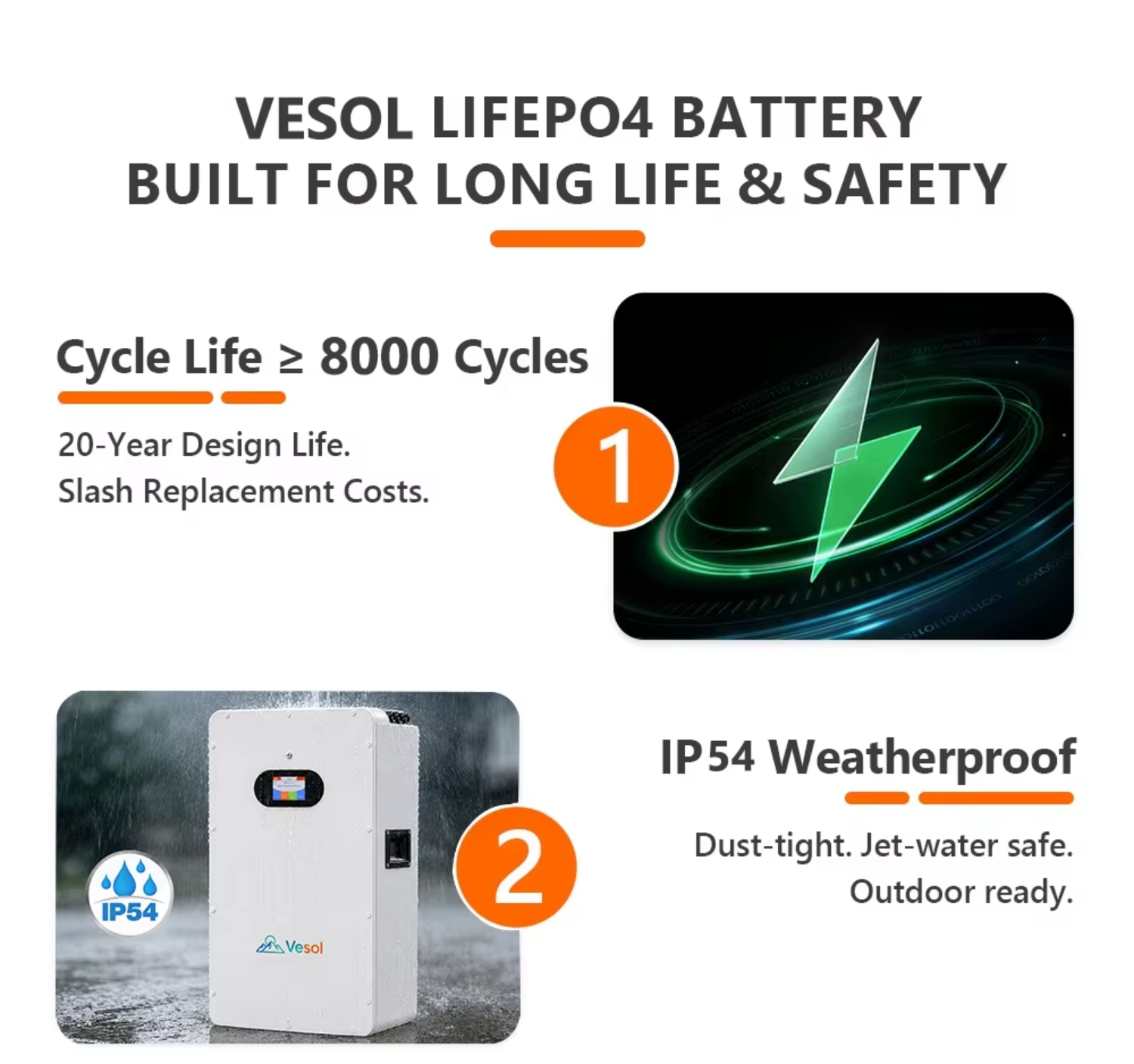

| Cycle Life (@25℃,90%DOD)[3] | ≥6000Cycles | ≥6000Cycles | ≥8000Cycles |
| Warranty Period[4] | 5+5 years | ||
| Cumulative Discharge Energy | 8.2MWh | 16.9MWh | 25.8MWh |
| PHYSICAL SPECIFICATIONS | |||
| Weight(kg) | 59kg | 83.5kg | 127kg |

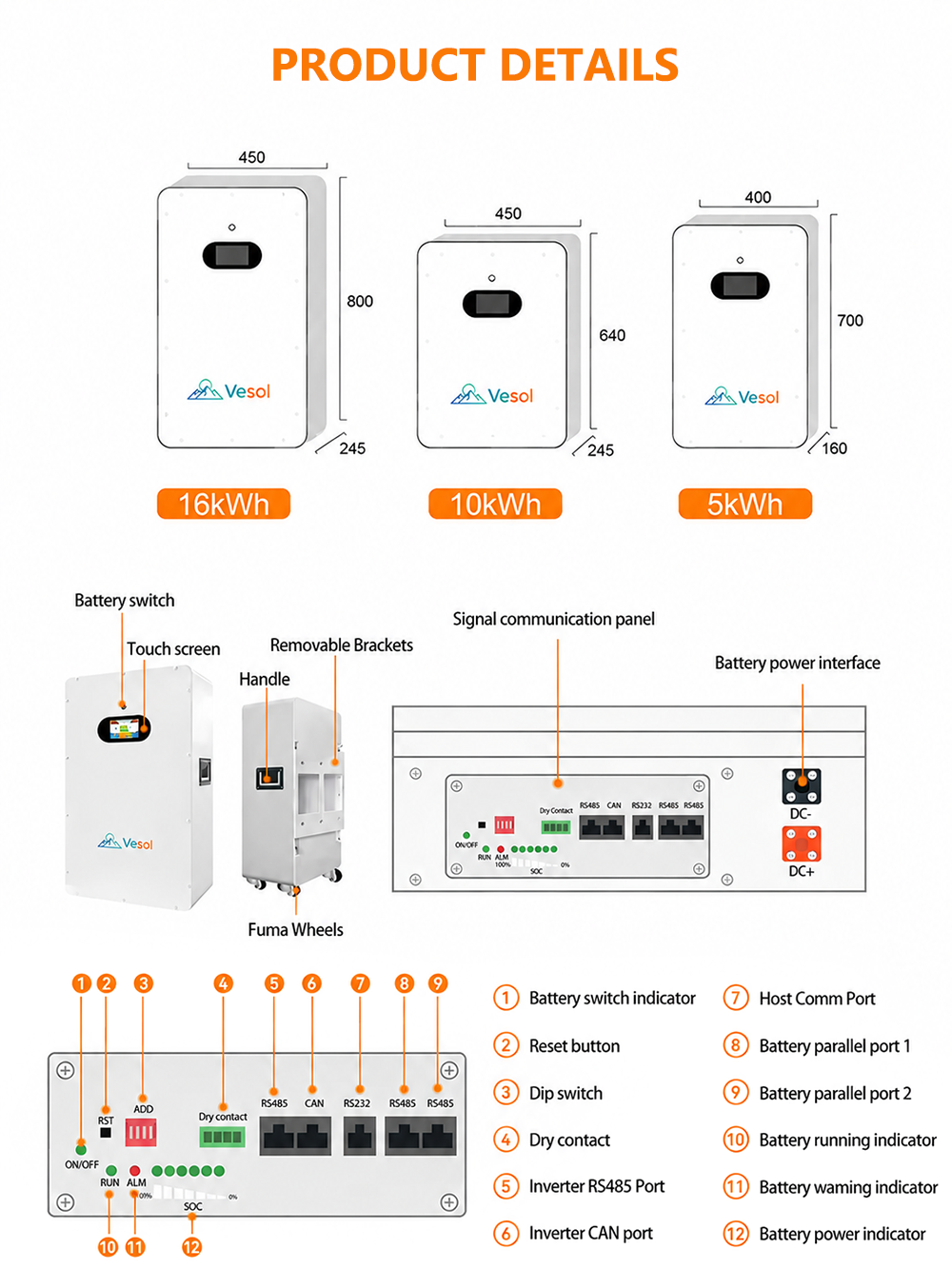

| Dimension(W*D*H) | 400*160*700mm | 460*245*640mm | 460*245*800mm |

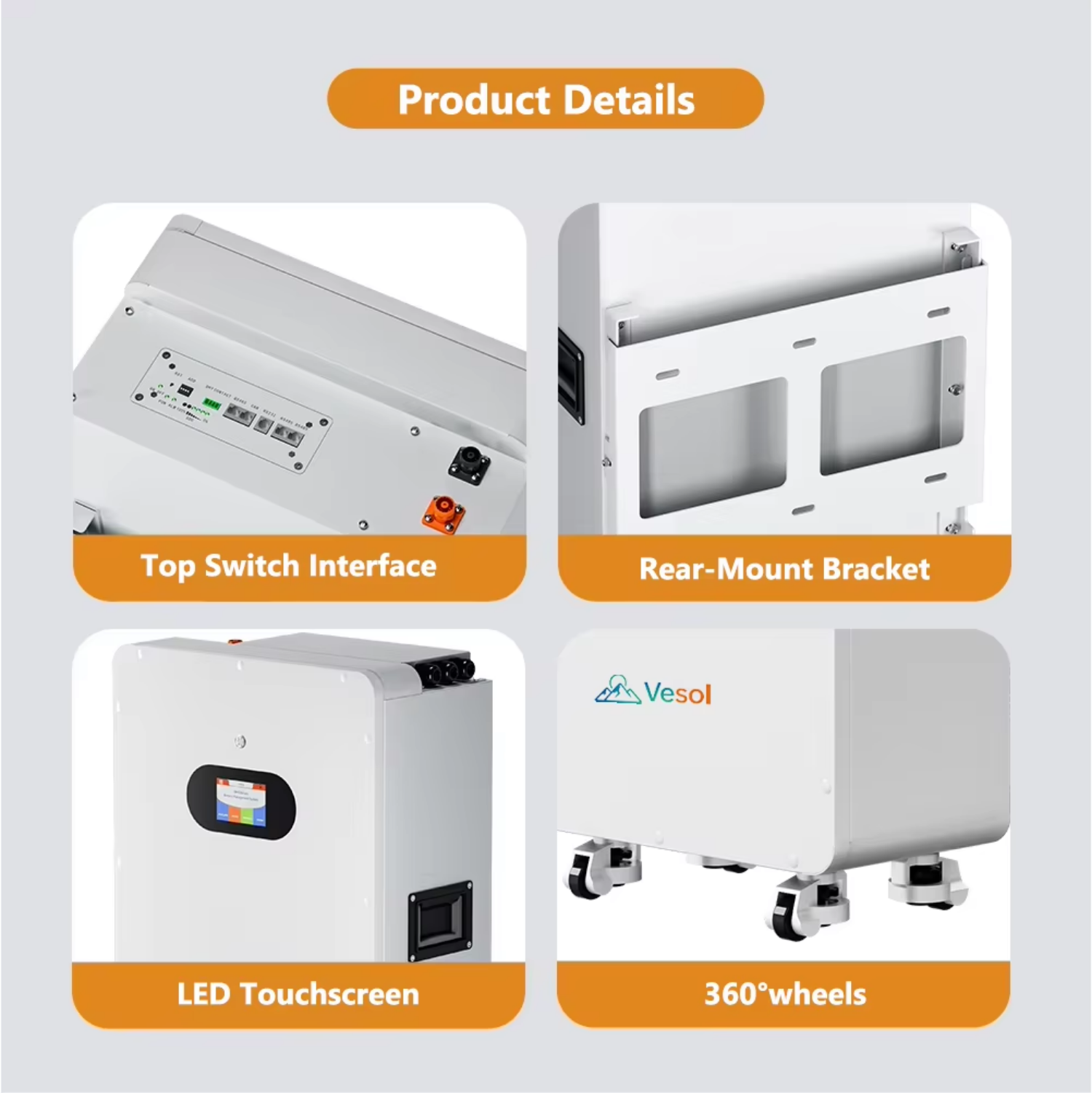

| Installation Method | Wall/Ground Mounted(20kWh battery ground-mounted only) | ||

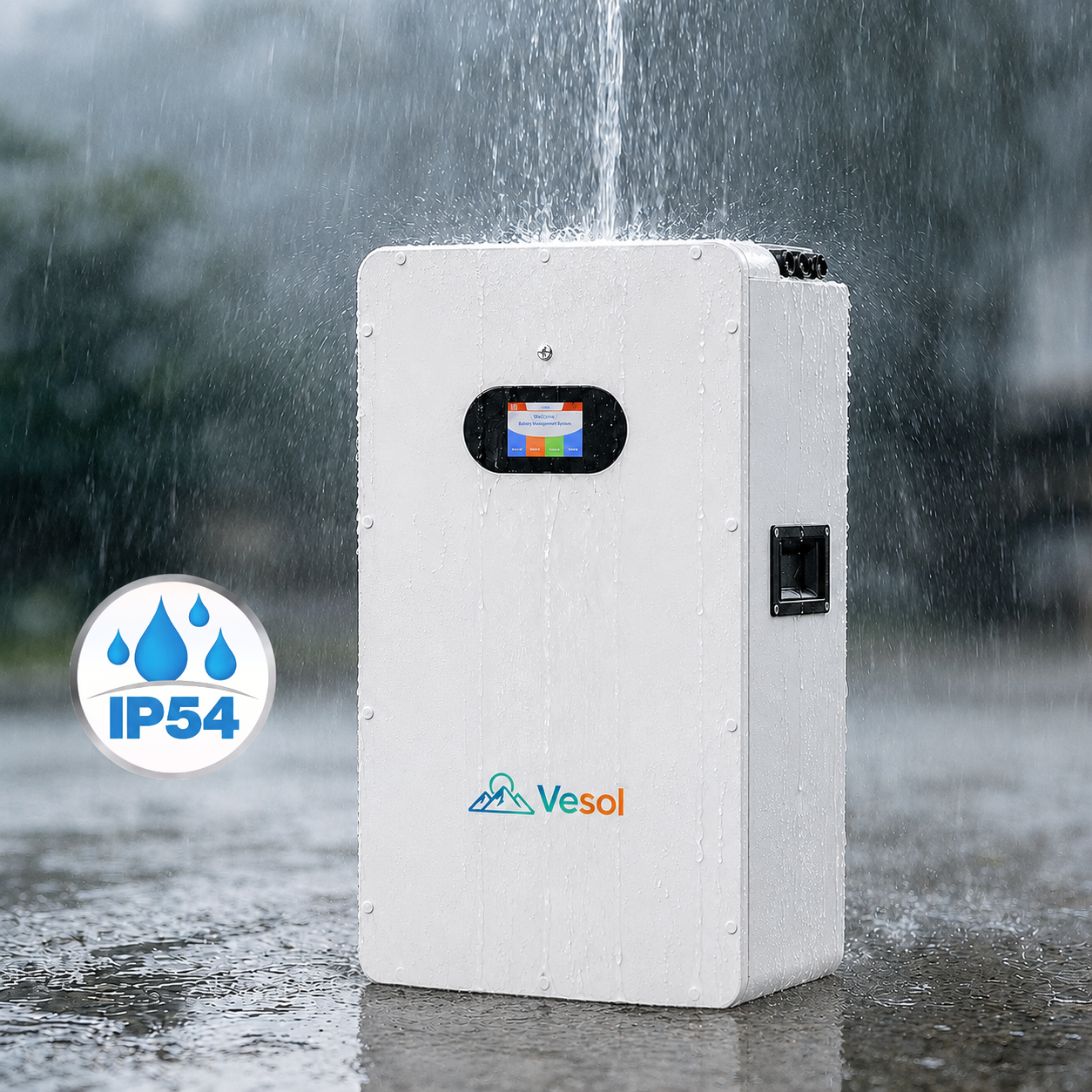

| IP Rating | IP54 | IP54 | IP54 |
| SECURITY AND CERTIFICATION | |||
| Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC,IEC63056 | ||
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 | ||

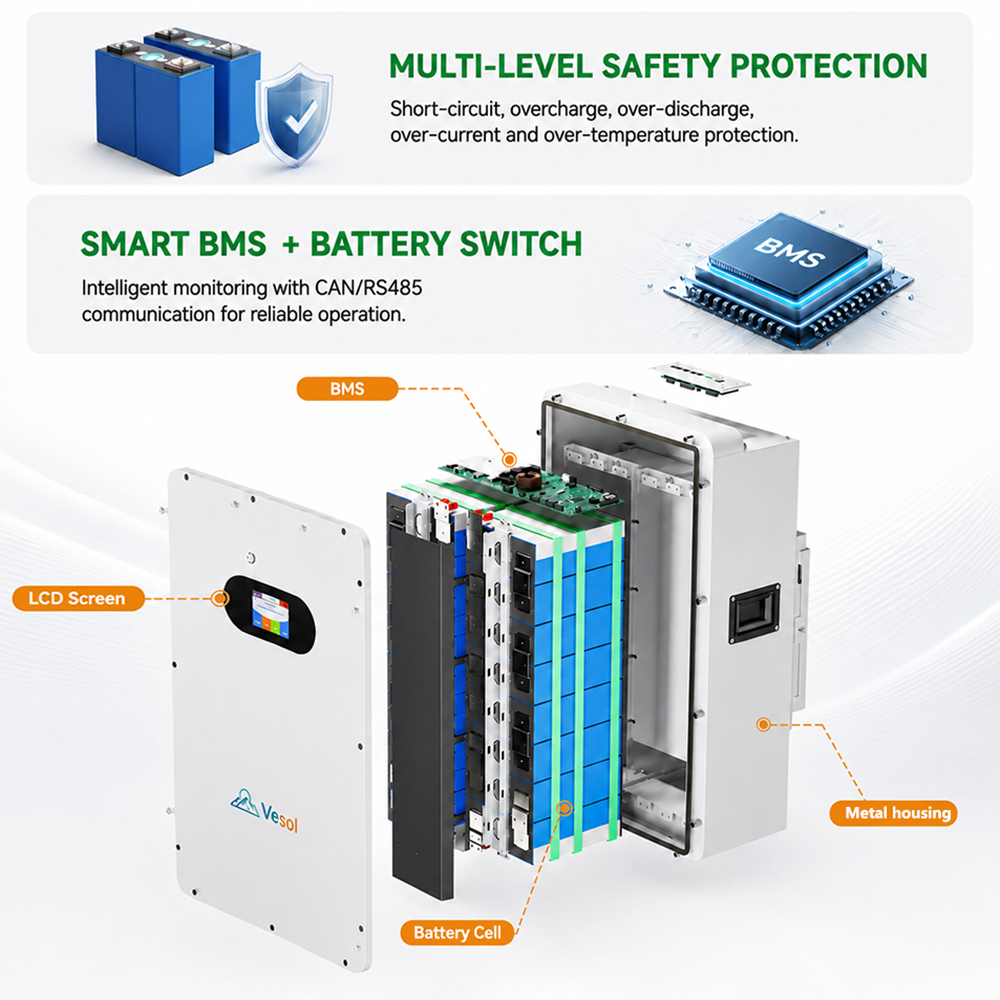

| Protection | BMS | BMS | BMS |
| ENVIRONMENTAL SPECIFICATIONS | |||
| Operating Temperature Range(℃) | Charge 0℃~55℃;Discharge-20℃~55℃ | ||
| Altitude(m) | ≤2000m | ||
| Humidity | ≤90%(Non-condensing) | ||
