| Parameters | Requirements | |||
| General Requirements | ||||

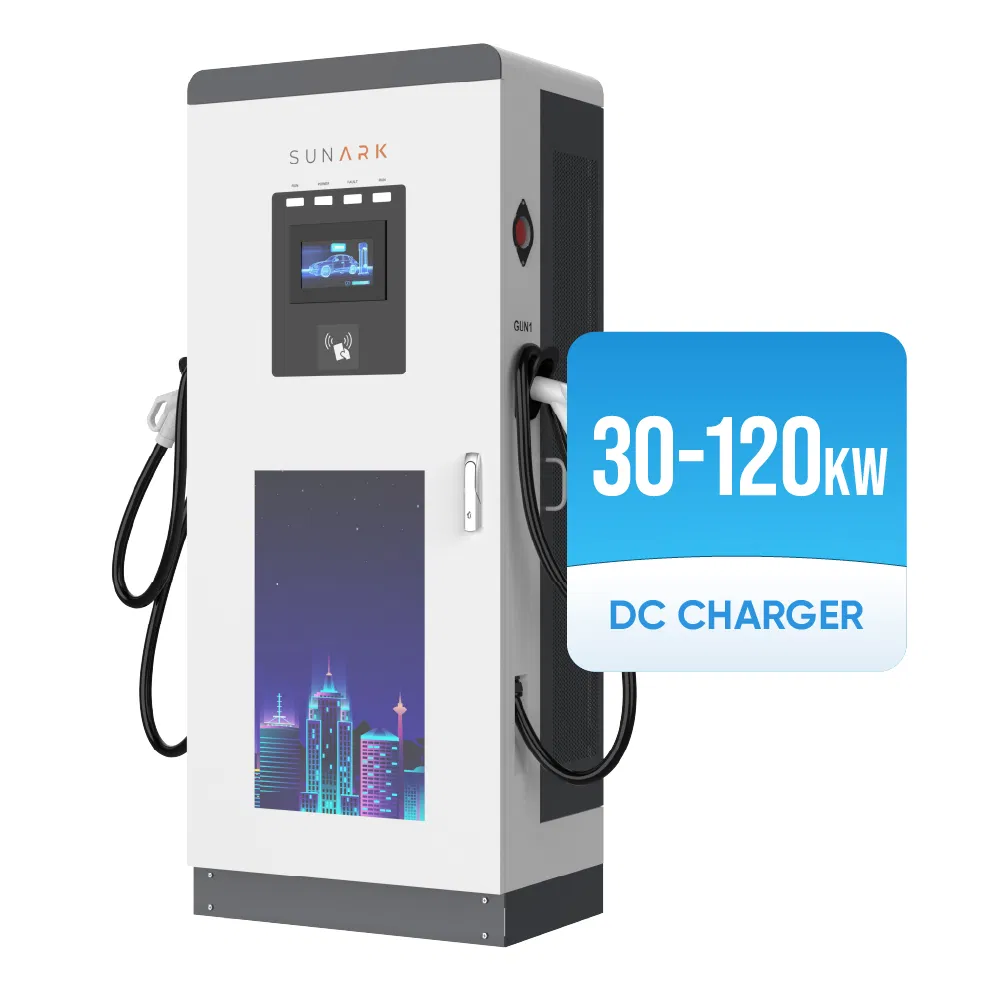

| EV Charger Type | DC | |||
| Charger Capacity | 30KW | 40KW | 50KW/60KW | 80KW |
| Product Model NO. | ENC-DCL030A ANSI-DCL030A JIS-DCL030A | ENC-DCL040A/B ANSI-DCL040A/B JIS-DCL040A/B | ENC-DCL060A/B ANSI-DCL060A/B JIS-DCL060A/B | ENC-DCL080B ANSI-DCL080B JIS-DCL080B |

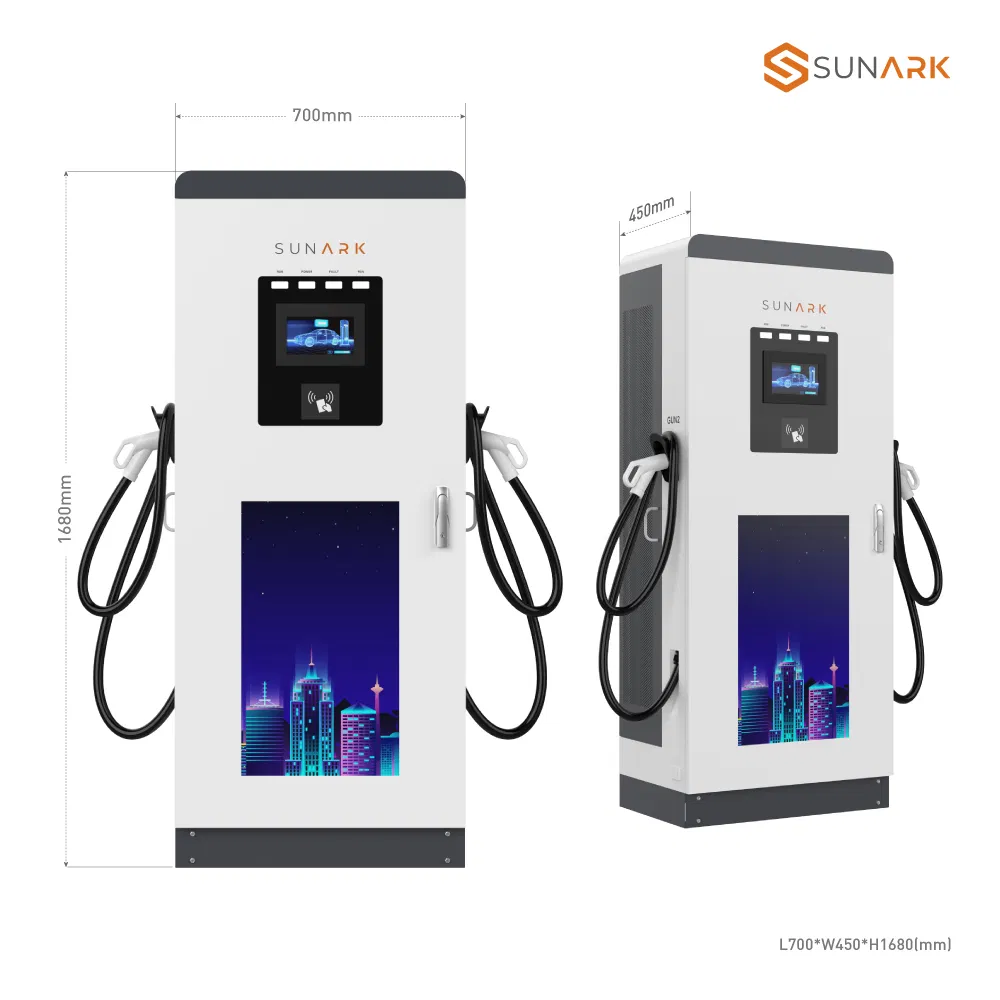

| Mounting | Ground-Mounted | |||
| Input Requirements | ||||
| AC Supply System | Three-Phase, 5 Wire AC system | |||
| Nominal Input Voltage | AC380V±15% | |||
| Input Frequency | 45-65Hz | |||
| Environmental Requirements | ||||
| Ambient Temperature Range | -25 to 55°C | |||
| Ambient Humidity | 5 to 95% | |||
| Storage Temperature | -40 to 70°C | |||
| Mechanical Requirements | ||||
| IP Ratings | IP 54 | |||
| Cooling | Air-cooled | |||
| Output Requirements | ||||
| Number of Outputs | 1 | 1 or 2 | 2 | |
| Type of Each Output | DC200-750V / DC150-500V(JIS) | |||
| Single Output Max. Current | 125 Amp | 150 Amp | 200 Amp | |
| Power Factor | ≥0.99 (50% load above) | |||
| User Interface & Display Requirements | ||||

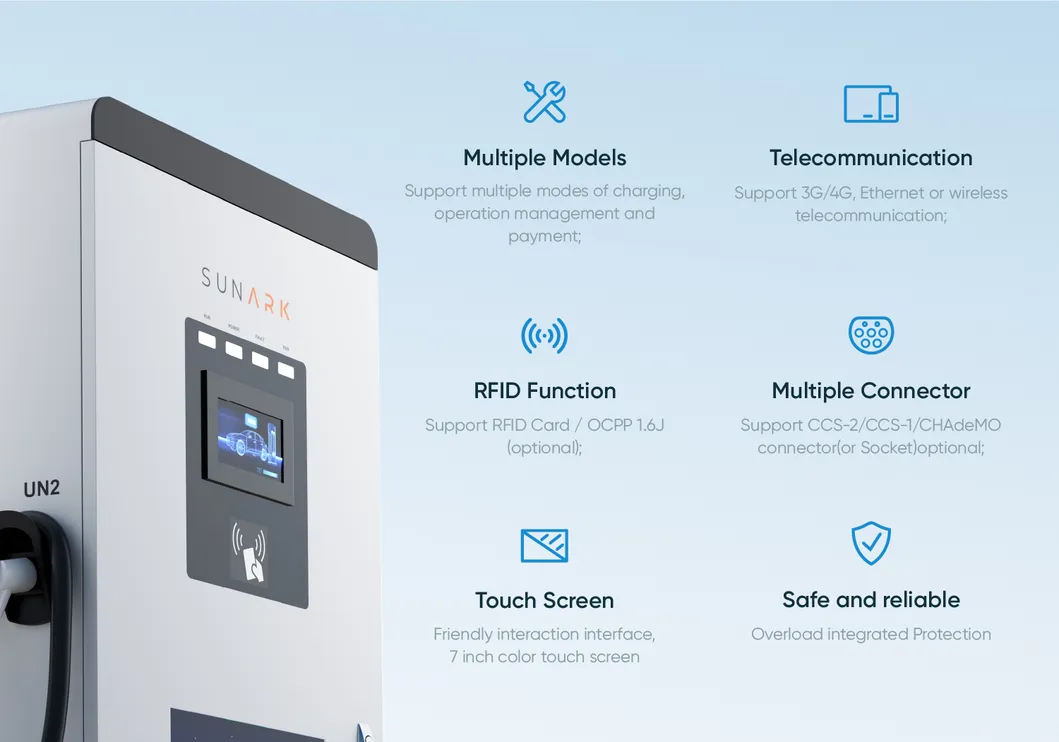

| Display & Touch-Screen Size | 7 Inches Touch Screen with Shell | |||
| User Authentication | QR Code/RFID Card /Password Login | |||
| Metering Information | Consumption Units | |||
| Communication Requirements | ||||
| Communication between EVSE and Server | OCPP 1.6J Protocol (Optional) | |||
| Interface between Charger and CMS | Ethernet/3G/4G/WIFI (Optional) | |||
| Protection & Safety Requirements | ||||

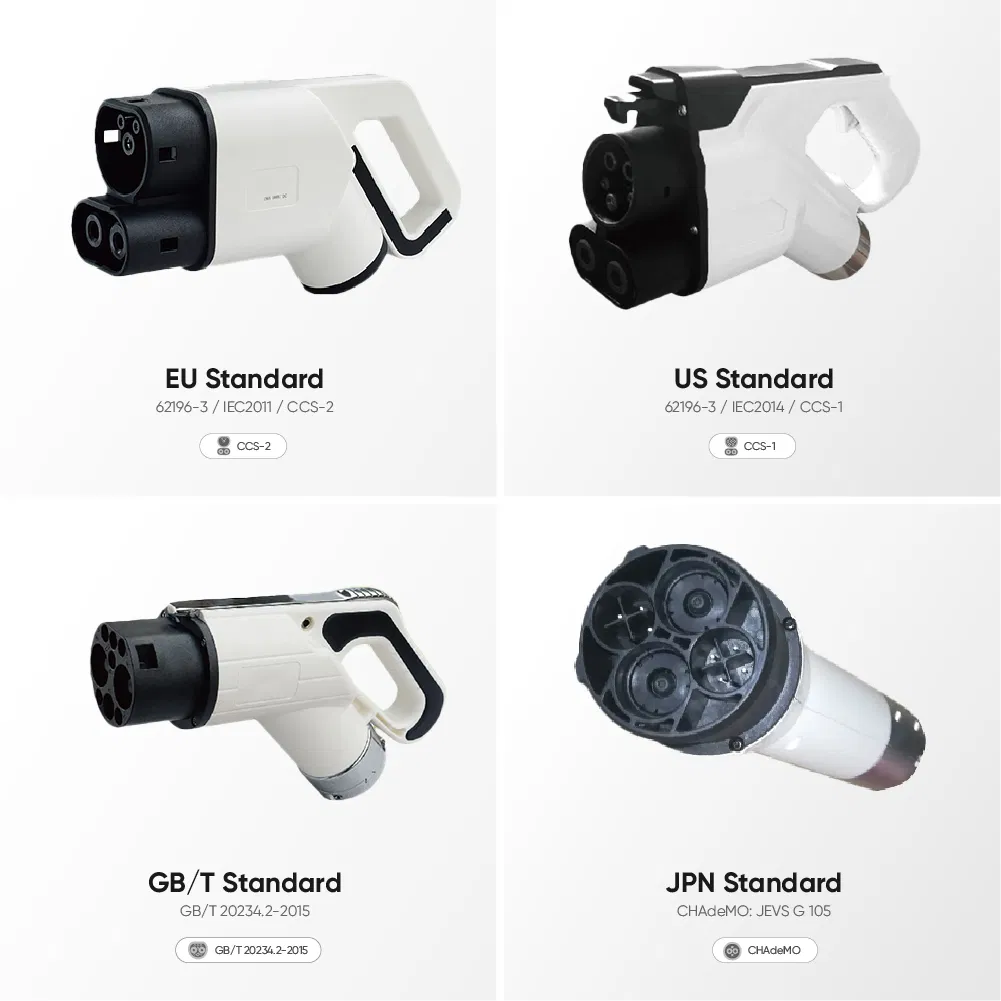

| Executive Standard | IEC 62196 2017, IEC 61851 2017, SAE J1772, CHAdeMO etc. | |||
| Safety Parameters | Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | |||
| Parameters | Requirements | |
| General Requirements | ||
| EV Charger Type | DC | |
| Charger Capacity | 90KW/100KW | 120KW |
| Product Model NO. | ENC-DCL100B ANSI-DCL100B JIS-DCL100B | ENC-DCL120B ANSI-DCL120B JIS-DCL120B |
| Mounting | Ground-Mounted | |
| Input Requirements | ||
| AC Supply System | Three-Phase, 5 Wire AC system | |
| Nominal Input Voltage | AC380V±15% | |
| Input Frequency | 45-65Hz | |
| Environmental Requirements | ||
| Ambient Temperature Range | -25 to 55°C | |
| Ambient Humidity | 5 to 95% | |
| Storage Temperature | -40 to 70°C | |
| Mechanical Requirements | ||
| IP Ratings | IP 54 | |
| Cooling | Air-cooled | |
| Output Requirements | ||
| Number of Outputs | 2 | |
| Type of Each Output | DC200-750V DC150-500V(JIS) | |
| Single Output Max. Current | 200 Amp | |
| Power Factor | ≥0.99 (50% load above) | |
| User Interface & Display Requirements | ||
| Display & Touch-Screen Size | 7 Inches Touch Screen with Shell | |
| User Authentication | QR Code/RFID Card /Password Login | |
| Metering Information | Consumption Units | |
| Communication Requirements | ||
| Communication between EVSE and Server | OCPP 1.6J Protocol (Optional) | |
| Interface between Charger and CMS | Ethernet/3G/4G/WIFI (Optional) | |
| Protection & Safety Requirements | ||
| Executive Standard | IEC 62196 2017, IEC 61851 2017, SAE J1772, CHAdeMO etc. | |
| Safety Parameters | Over Current, Over Voltage, Under Voltage, Residual Current, Surge Protection, Leakage Protection, Short Circuit, Over Temperature, etc. | |
