Commercial IP65 Smart APP Home Use Solar Universal AC Car Charger 7/22kw Three-Phase Type2/Gbt Single-Gun Portable Electric Vehicle Wall Byd EV Charging Station

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview

Basic Info

Model NO. SNEV-220/7-F-1-A1
Charging Interfaces One Pile with One Charge
Location Public Use
Installation Wall Mounted
Charge Method Normal Charge
Output Power 7/11/22kw
Rated Current 16/32A
IP Grade IP65
Charging Gun Single Gun
Output Voltage 220/380V
Display Size 4.3inches
Communication 4G, Ethernet
Operating Temp. -20℃~+55℃
Protection Undervoltage, Short-Circuit, Anti-Surge

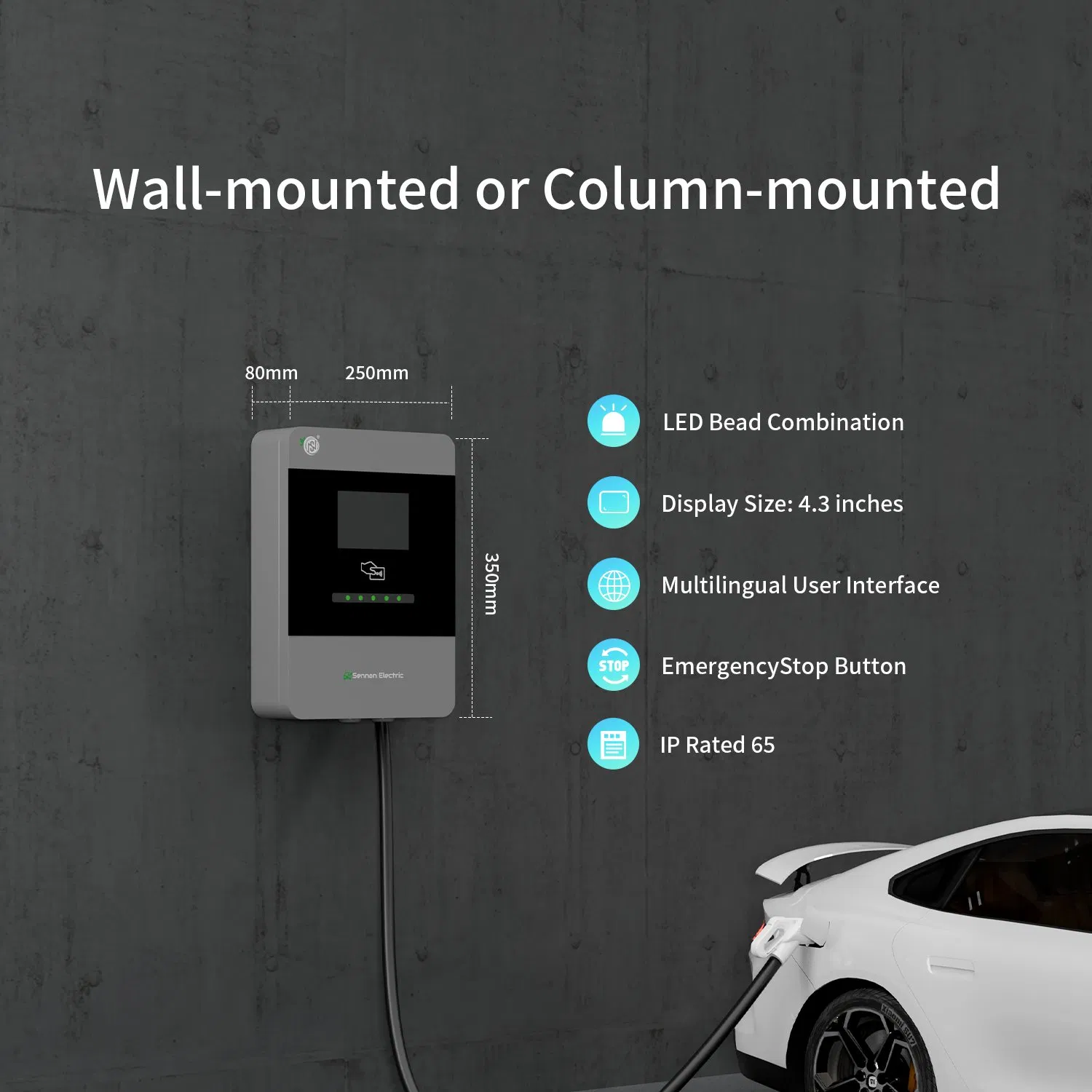

Specification 250*80*350mm
HS Code 8537109090

Packaging & Delivery

Package Size 18.00cm * 27.00cm * 40.00cm
Gross Weight 4.500kg
Package Type Carton
Specification
Item 7KW AC EV Charger 11KW AC EV Charger 22KW AC EV Charger
Model Number SNEV-220/7-F-1-A1 SNEV-380/11-F-1-A1 SNEV-380/22-F-1-A1
Product Size (L*D*H) 250*80*350mm
Input Voltage 220VAC 380-400VAC 380-400VAC
Input Frequency 50/60Hz
Output Current 32A 16A 32A
Output Power 7KW 11KW 22KW
Charging Guns Single gun
Cable Length 5M

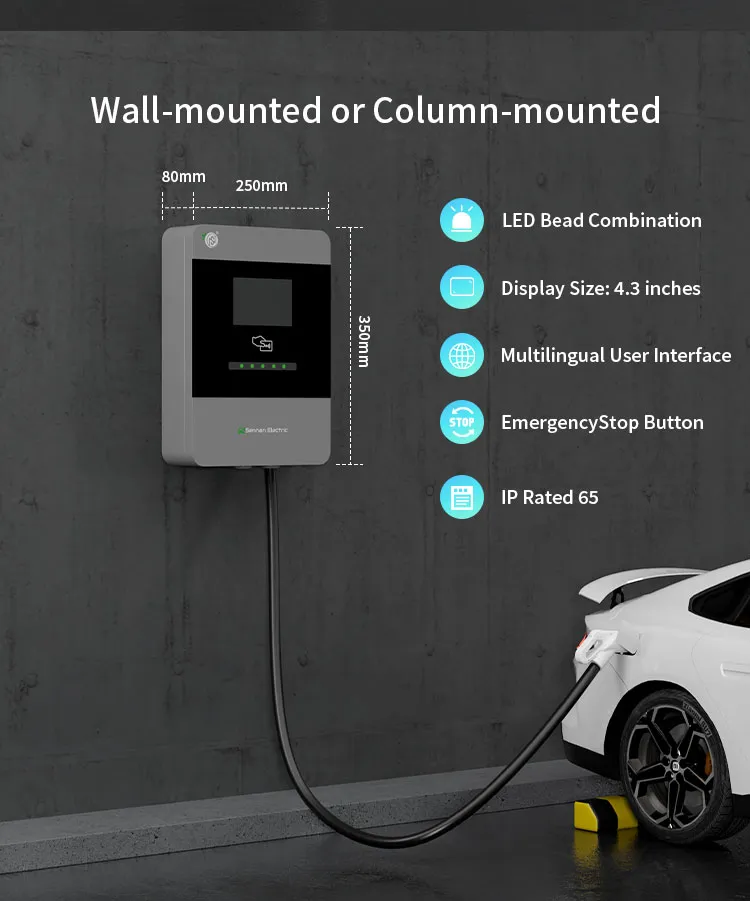

Installation Wall-mounted / Floorstanding
IP Rating IP65

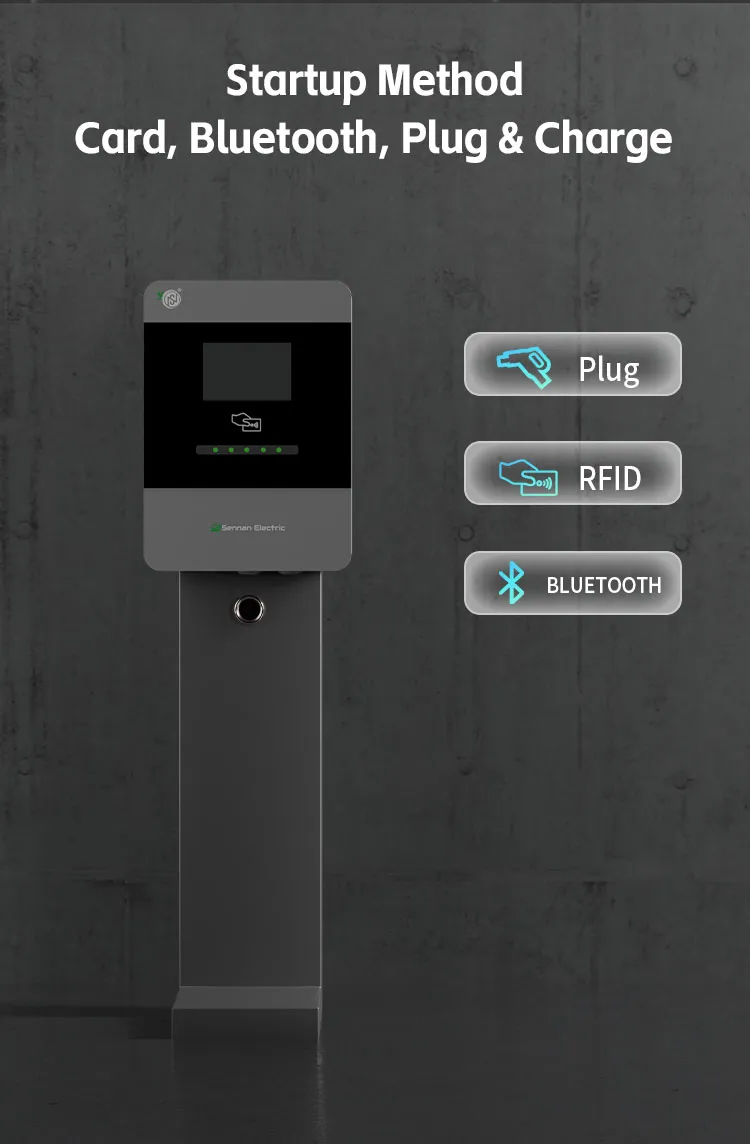

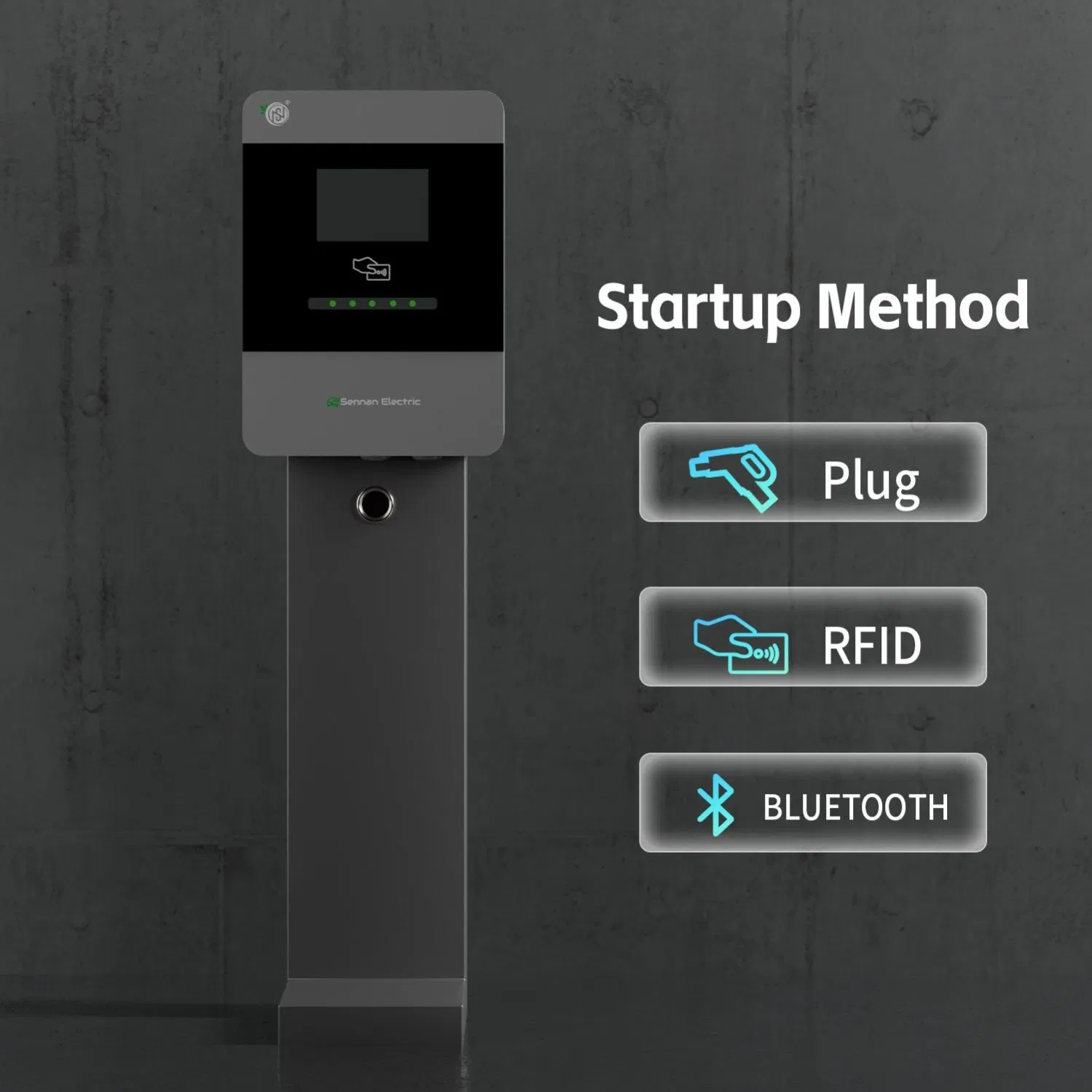

Start-up Modes RFID card, Scan code, VIN code, Password
Connectivity 4G, Ethernet, Bluetooth

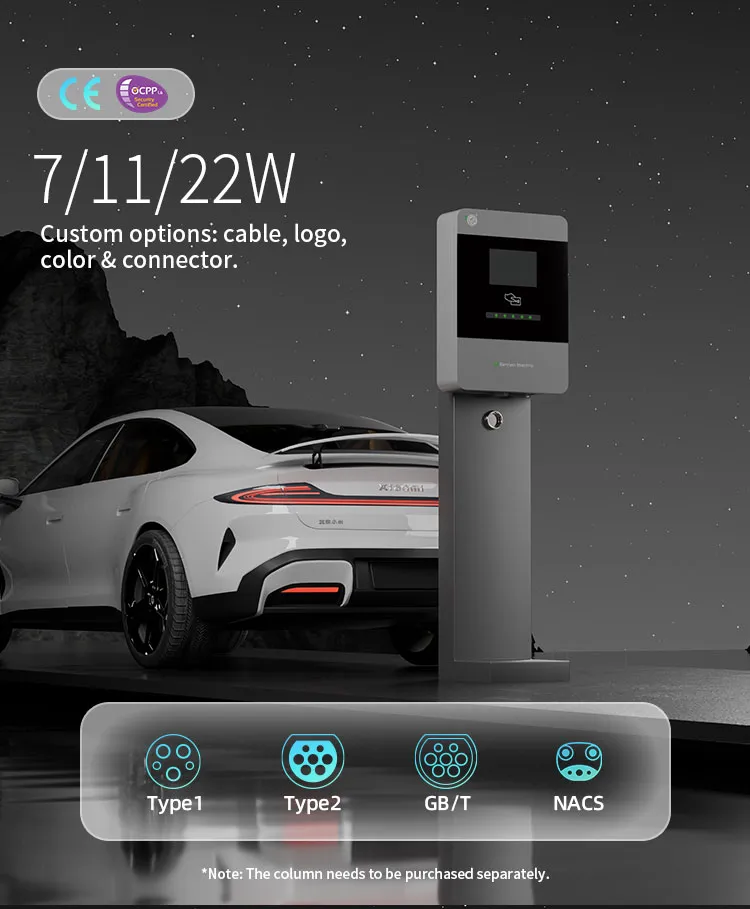

Connector Type J1772 (TYPE 1), Mennekes (TYPE 2), GB/T, NACS
LCD Display 4.3 Inches color screen
Protocol OCPP 1.6
Operating Temp. -30℃ ~ +50℃
Operating Humidity 0% - 95% non-condensing
Operating Altitude <2000M

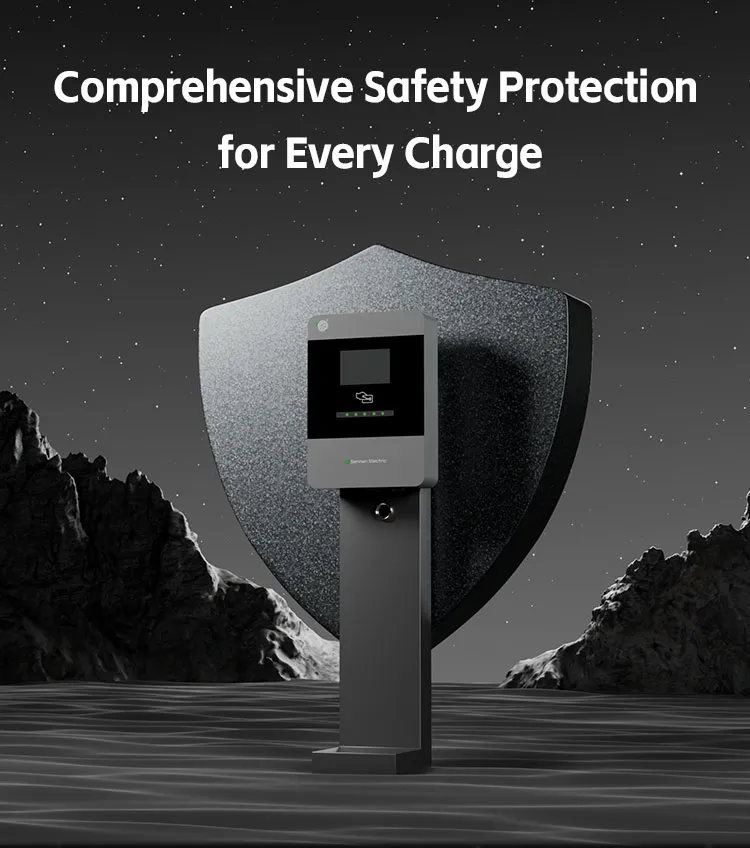

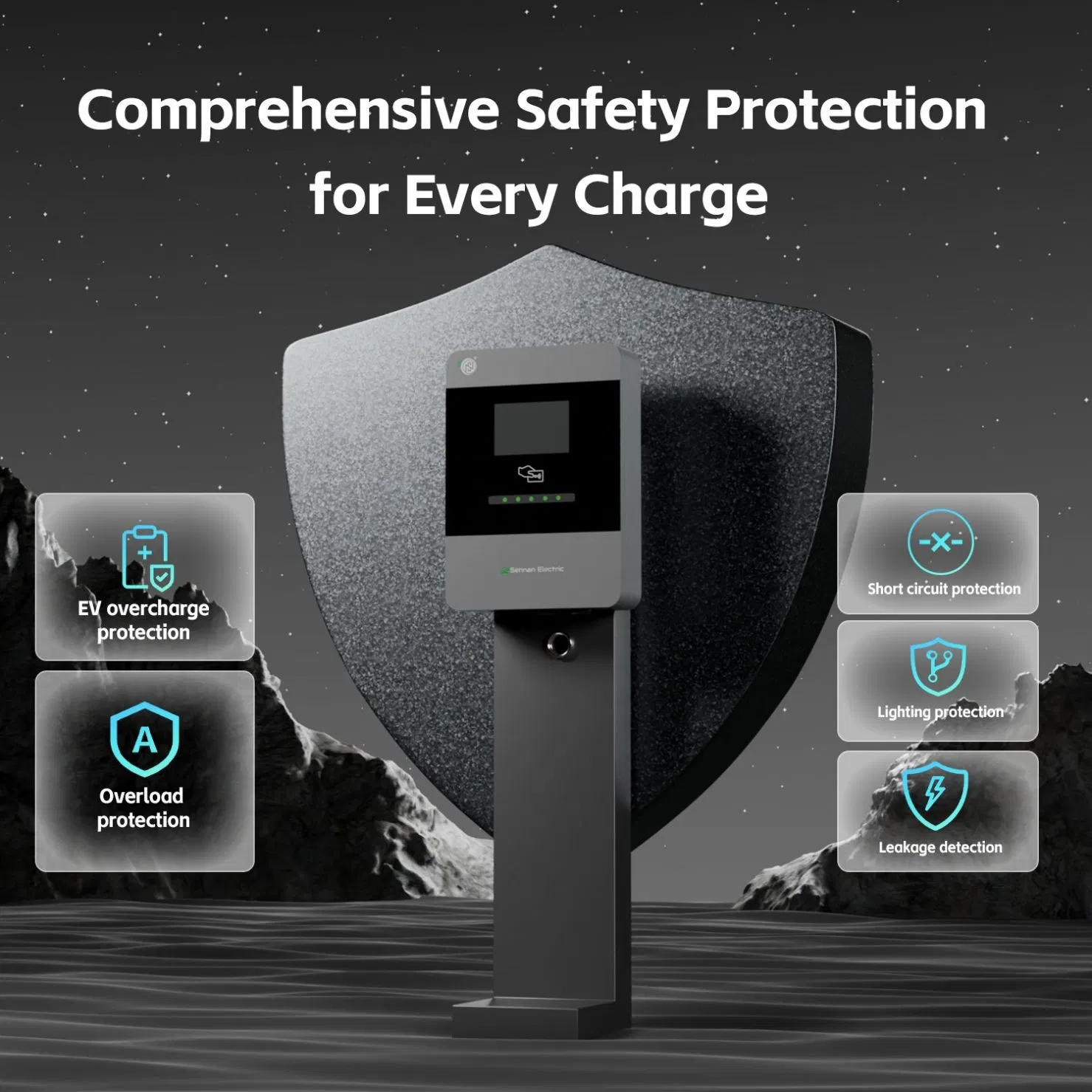

Protection Design Under/Over Voltage, Short Circuit, Over Current, Lightning, Emergency Stop Protection
Product Description
Frequently Asked Questions
What is OCPP?
OCPP is abbreviated for Open Charging Point Protocol. It is a network protocol that allows you to connect the EV charger to a management system on a PC to manage chargers, monitor online cards, and position the chargers.
If I get a charger with 2 guns, can it charge 2 cars simultaneously?
Yes. For example, with a 120kW DC charger with 2 guns, each gun's output power will distribute automatically to 60kW when two cars are charging. If only one car is recharging, the power can reach a maximum of 120kW output.
What brand name of cars can be recharged?
Any brand of EV can be recharged, depending on the connectors standard. Different countries use different standards of connectors (e.g. Type 1, Type 2, GB/T, NACS).

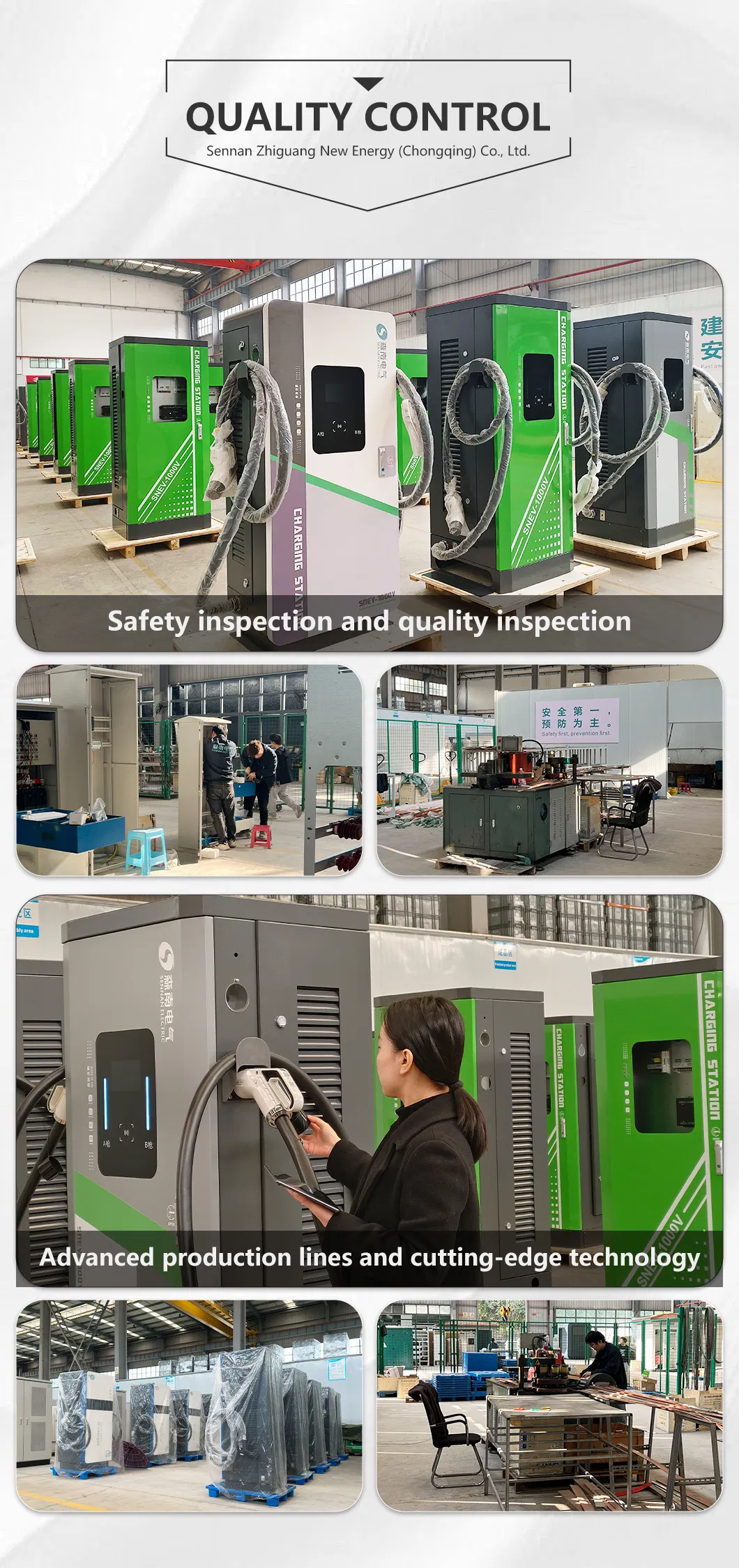

Do you test all your goods before delivery?
Yes, we conduct a 100% test on all goods prior to delivery to ensure quality and functionality.
How about after-sales support?
We provide lifetime technical support, and engineers are available to provide 24-hour online technical support.
Can you assist us in customs clearance?
Yes, we cooperate with customers to handle relevant customs clearance procedures and supply the corresponding customs clearance documentation.
