Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

1 / 5

Ready To Ship Solar Powered LED Light Tower Telescopic Mast Trailer Mounted Solar For Road Construction

Send Inquiry

Product Description

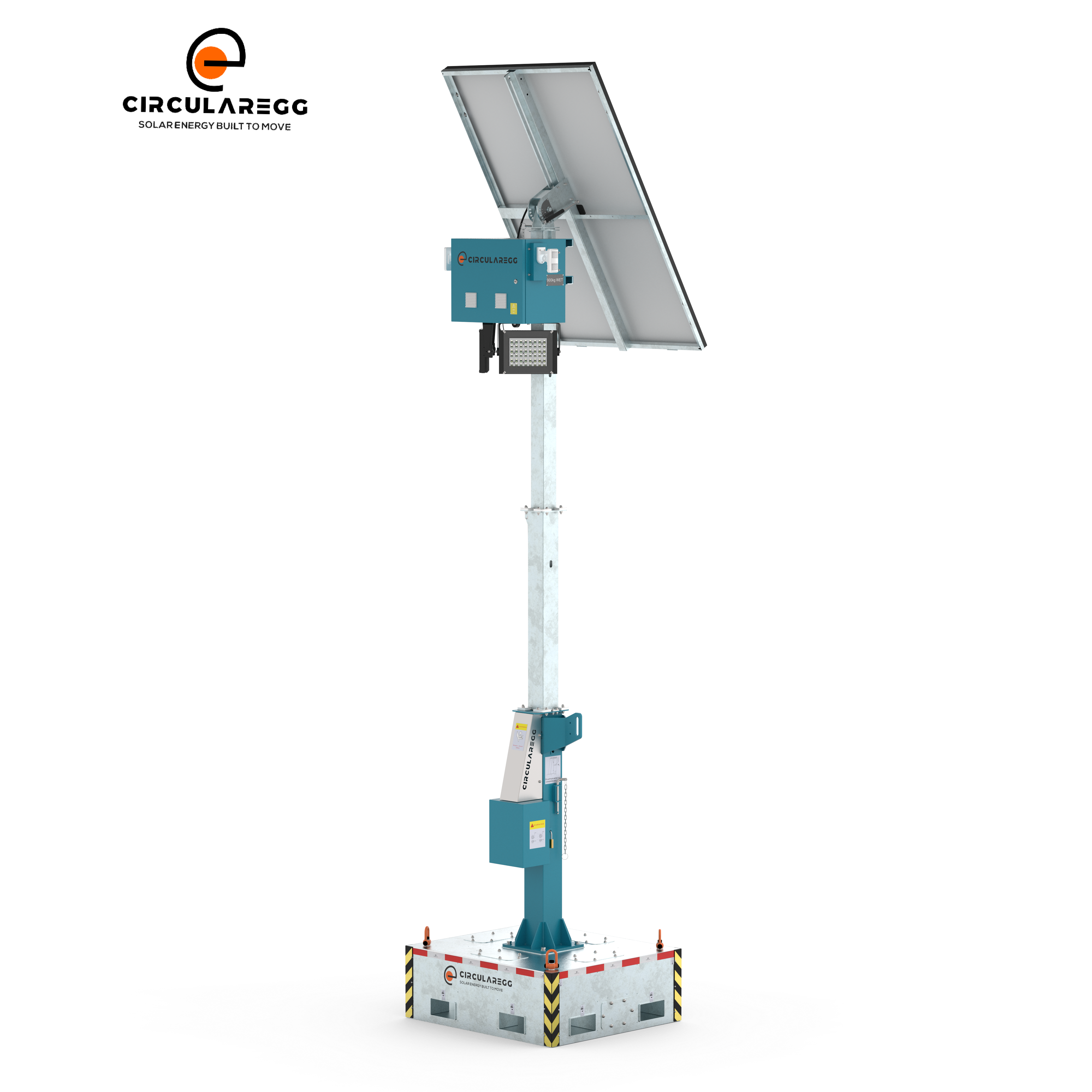

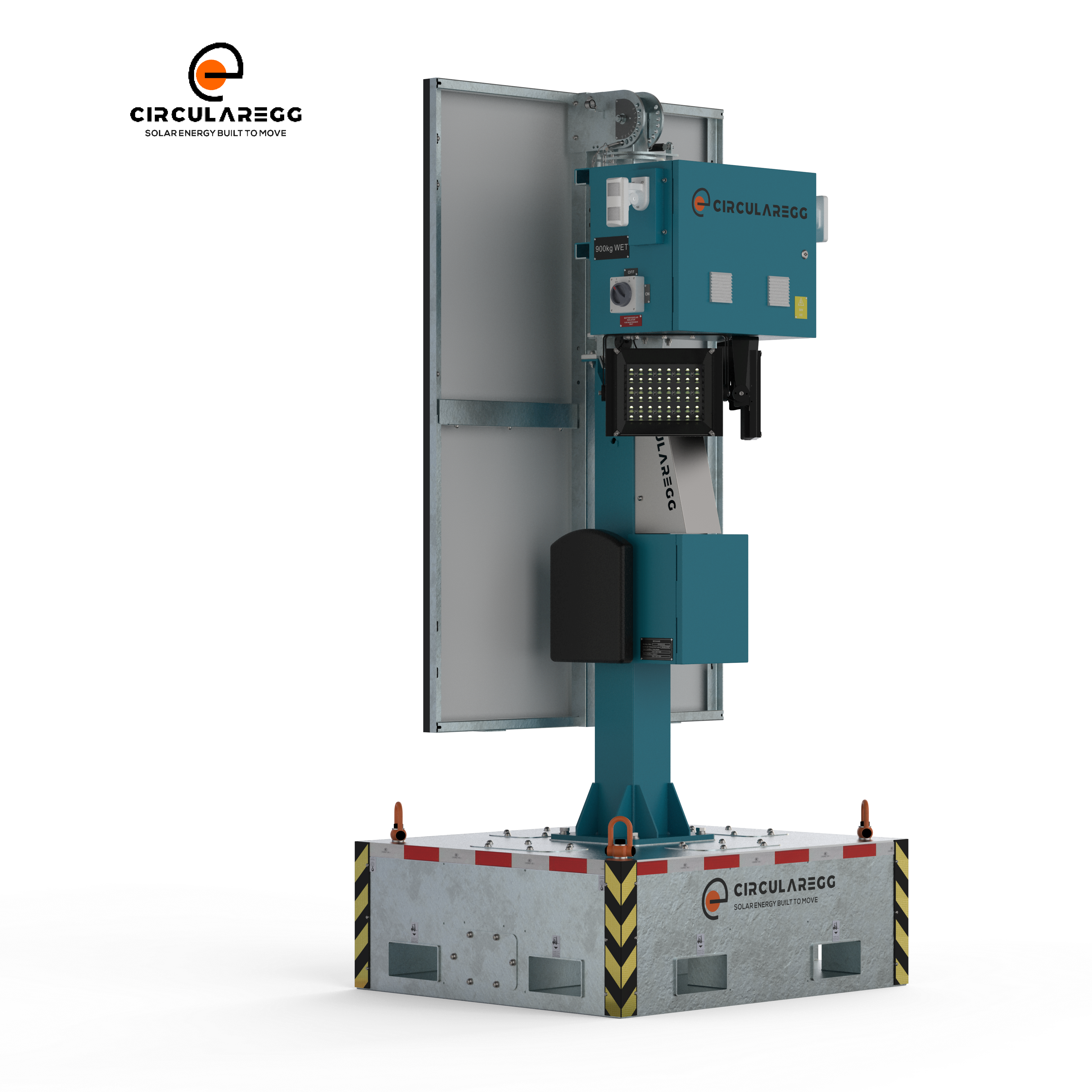

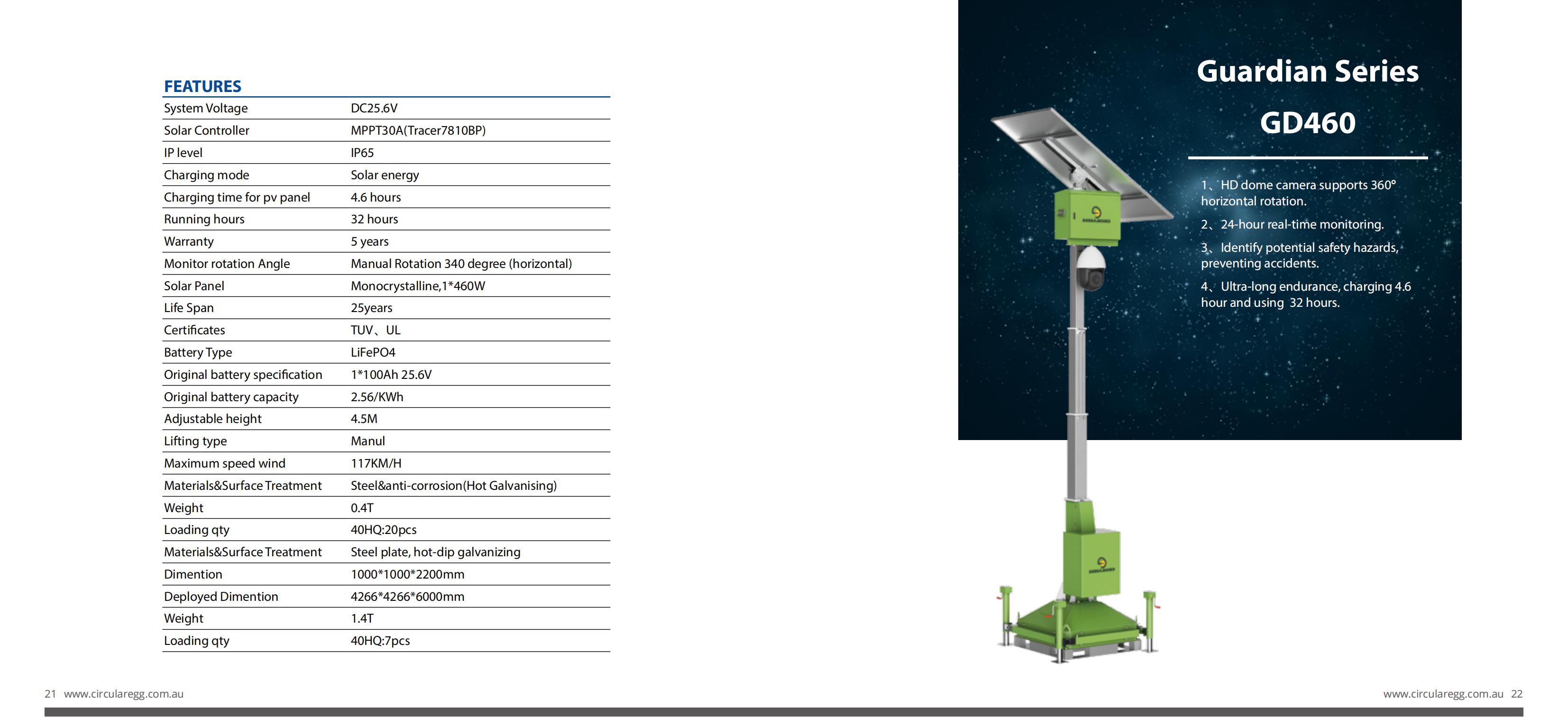

Solar Lighting Camera Illumination Tower

Key Features

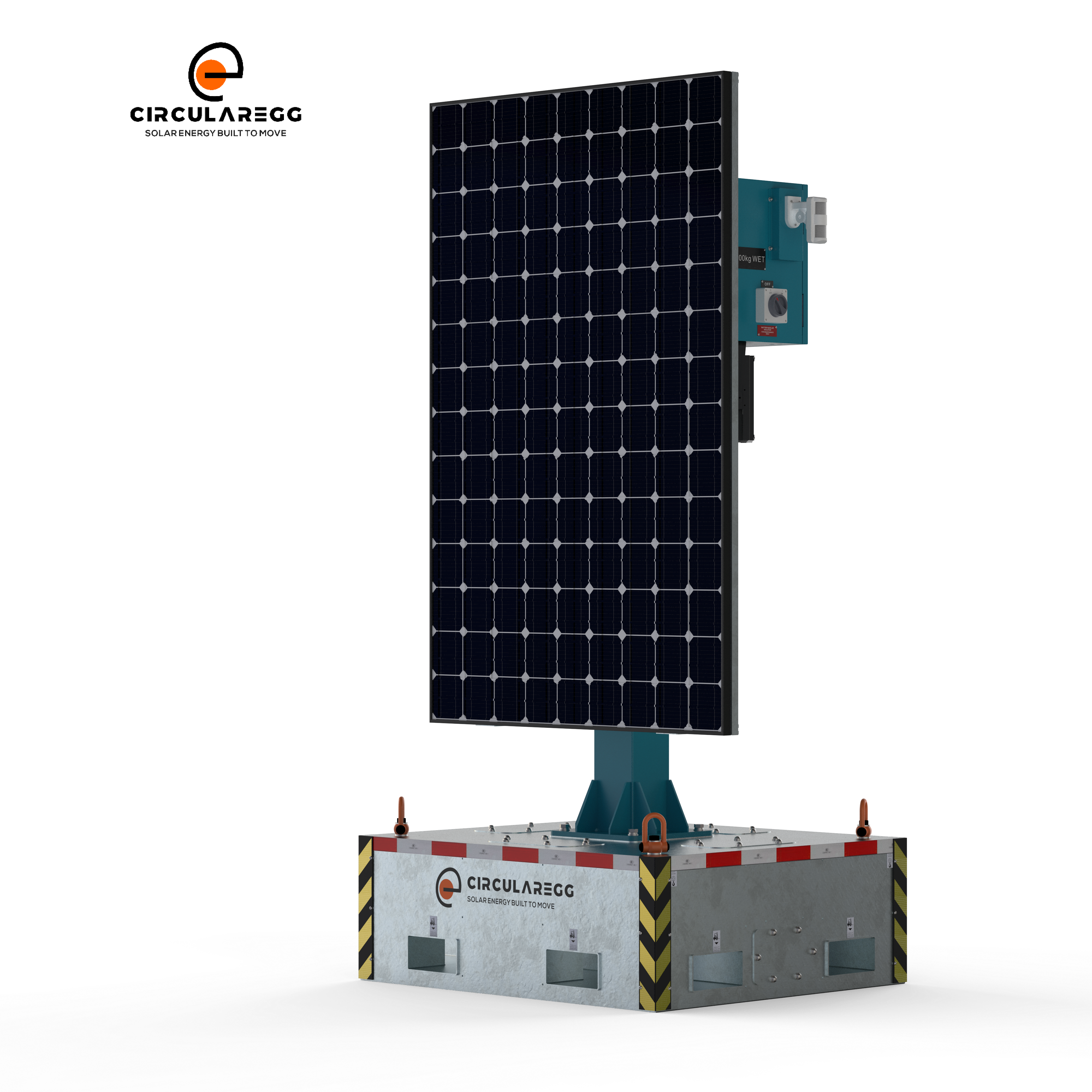

Solar Panel: 1*230W, Mono Solar Panel (Angle: tilt 0°-90°, Rotation 340°)
Battery & Controller: LiFePO4 Battery 1*100Ah 25.6V (2.56/KWh), System Voltage: 25.6V with MPPT30A Controller
Mast System: Steel & anti-corrosion (Hot Galvanising) adjustable height 4.5M, Manual Winch Lifting, 117KM/H Windproof
Efficiency: 4.6 Hours Solar charging time, providing up to 32 Hours of running time
Dimensions & Weight: 915*915*2410mm (Deployed: 2090*2090*5140mm), Net Weight: 800KGS

Technical Specifications

Parameter	Specification Details
Output Voltage (V)	110/240 V
Frequency	50/60 HZ
Battery Capacity	19 KWH / 28 KWH / 43 KWH
Solar Panel Type	Monocrystalline Silicon
Solar Panel Wattage	4550 W / 6550W / 8*550 W
PV Controller	MPPT 60A, 95% efficiency / MPPT 80A, 95% efficiency
Battery Type	Lead-acid
Battery Pack	8200 AH, DC 12V / 12200 AH, DC 12 V
Communication Interface	RS-485
Output Port	110A AC outlet + 24A AC outlets + 1*5V USB
Axle Qty	Single
Tyre and Rim	15 Inch
Support Leg	4pcs, Manual

Product Gallery

Frequently Asked Questions

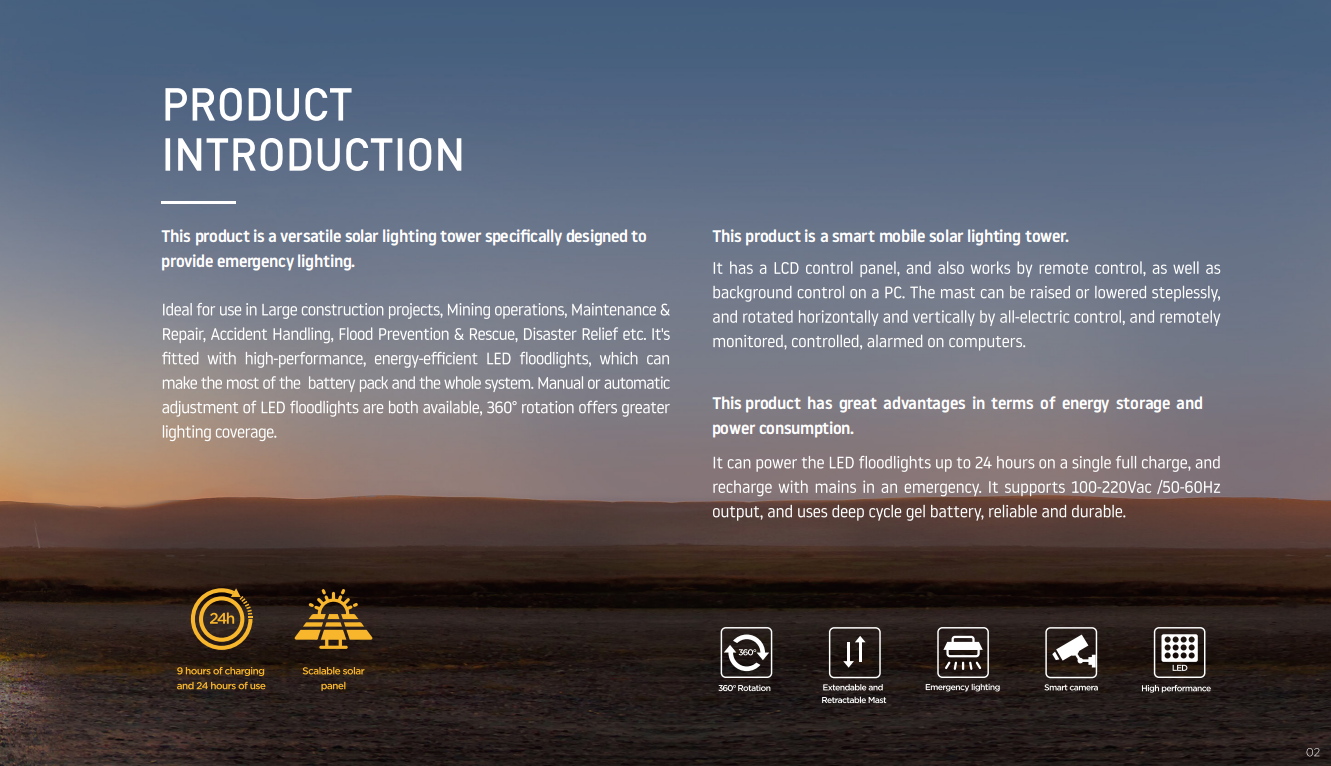

What are the main functions of this solar tower?

This system functions as a mobile Solar Lighting Camera Illumination Tower and CCTV system. It is designed to provide clean-energy power, high-intensity illumination, and remote security monitoring capabilities in areas without reliable grid access.

How long does the battery run and how fast does it charge?

The system can be fully charged by its solar panels in approximately 4.6 hours under ideal sunlight. Once fully charged, the system offers an operational running time of up to 32 hours.

Is the mast durable enough to withstand extreme weather conditions?

Yes. The adjustable 4.5M mast is made of hot-galvanized anti-corrosion steel. It is lifted manually via a robust winch and is certified to be windproof up to speeds of 117 KM/H.

What are the options for solar panel and battery capacity configurations?

We offer scalable configurations. Solar panel options range from 4*550W, 6*550W, to 8*550W Monocrystalline Silicon panels. Correspondingly, battery capacities are customizable between 19 KWH, 28 KWH, and 43 KWH using Lead-acid battery packs.

What input and output interfaces are supported by this system?

The system includes one 10A AC outlet, two 4A AC outlets, and a 5V USB port for device connectivity. For data transmission and system diagnostics, it features an RS-485 communication interface.

How many units can be loaded into a standard shipping container?

A standard 40HQ shipping container has a loading capacity of 20 units of these illumination towers.
