| Model NO. | 500W/1000W/2000W/3000W/5000W |
| Weight | 60kg |
| Warranty | 25 Years |
| Condition | New |
| Application | Home, Industrial, Commercial |
| Rated AC Output Power | 5kw |
| Rated Energy | 5.12kwh |
| Rated Grid Voltage/Grid Voltage Range | 230VAC/176-270VAC |
| Rated Grid Frequency/Grid Frequencyrange | 50Hz(45-54Hz)/60Hz(55-65Hz) |
| Type of Grid Connection | AC Charging Connector |
| battery Type | 51.2V |
| Capacity | 100ah |
| Output Interface | USB18W*4,Type C100W*1,Type C60W*1DC 12V10A*1 ,DC 1 |
| Operating Temperrature Range | -20°C~50°C |
| Max.Operating Altitude | 2000m |
| Transport Package | Carton Box |
| Specification | Normal |
| Origin | China |
| HS Code | 8504409940 |
| Production Capacity | 50000 Piece/Pieces Per Month |
| Package Size | 450.00cm * 280.00cm * 700.00cm |
| Package Gross Weight | 65.000kg |

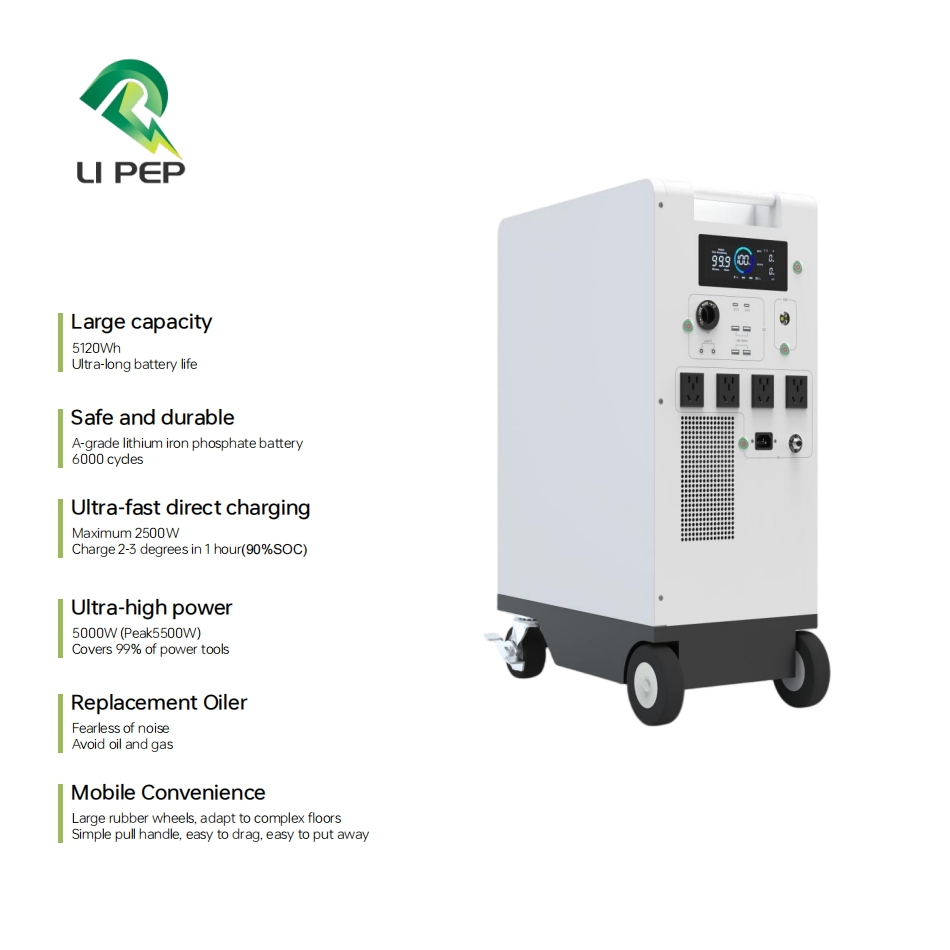

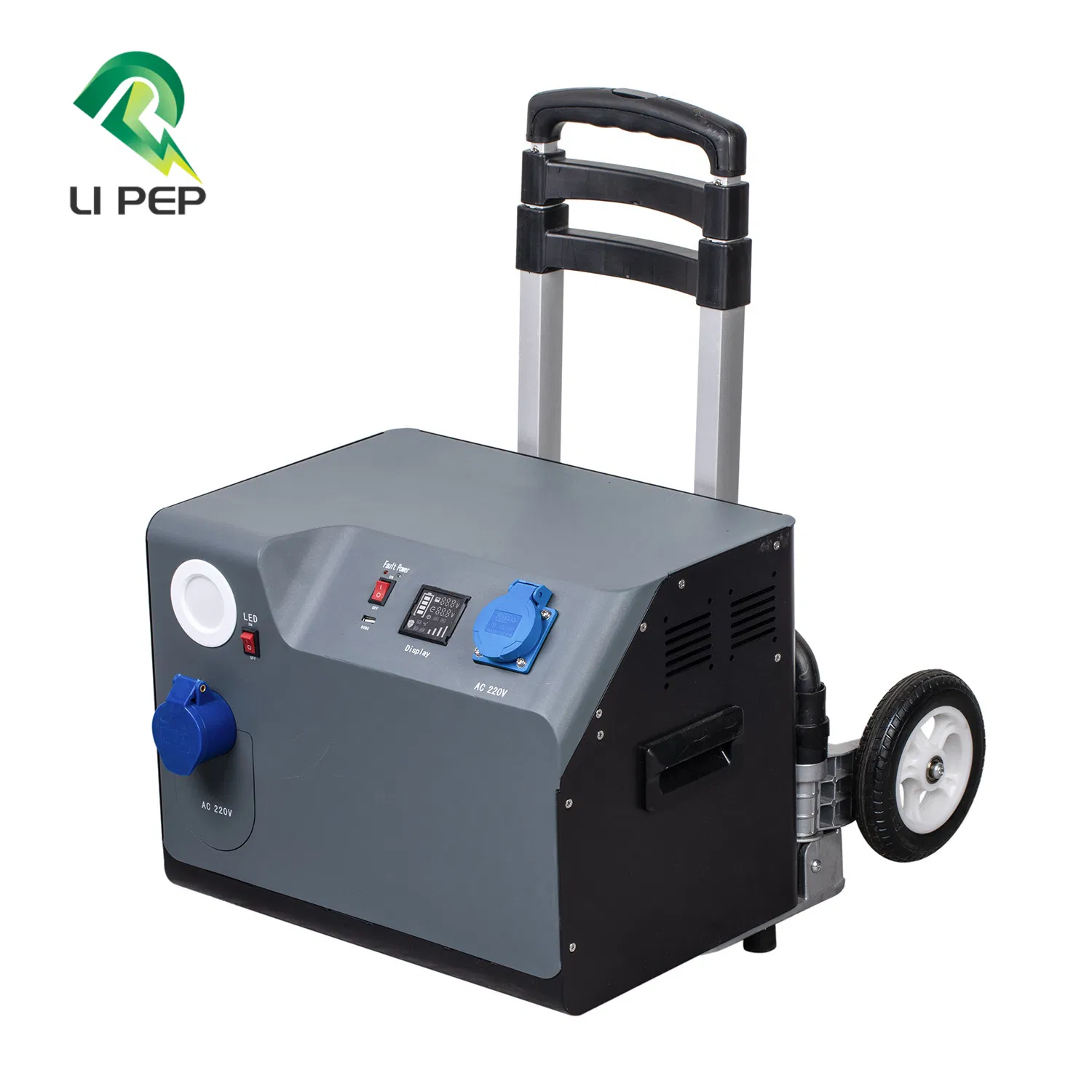

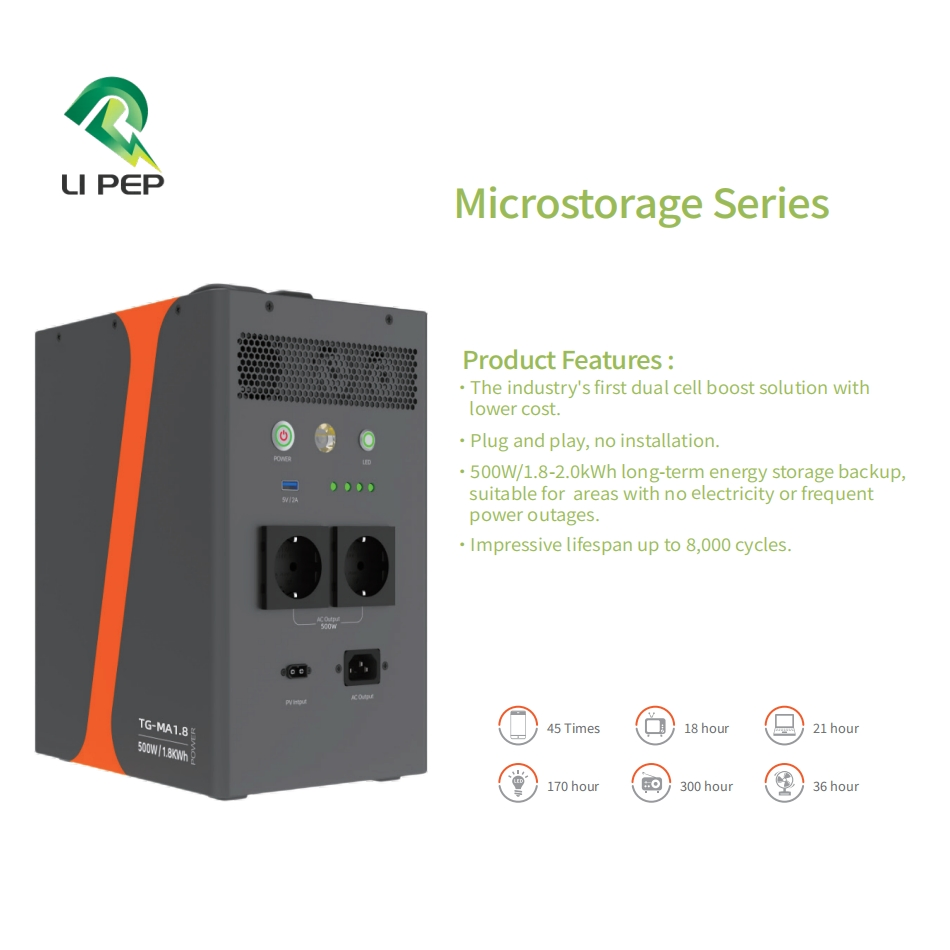

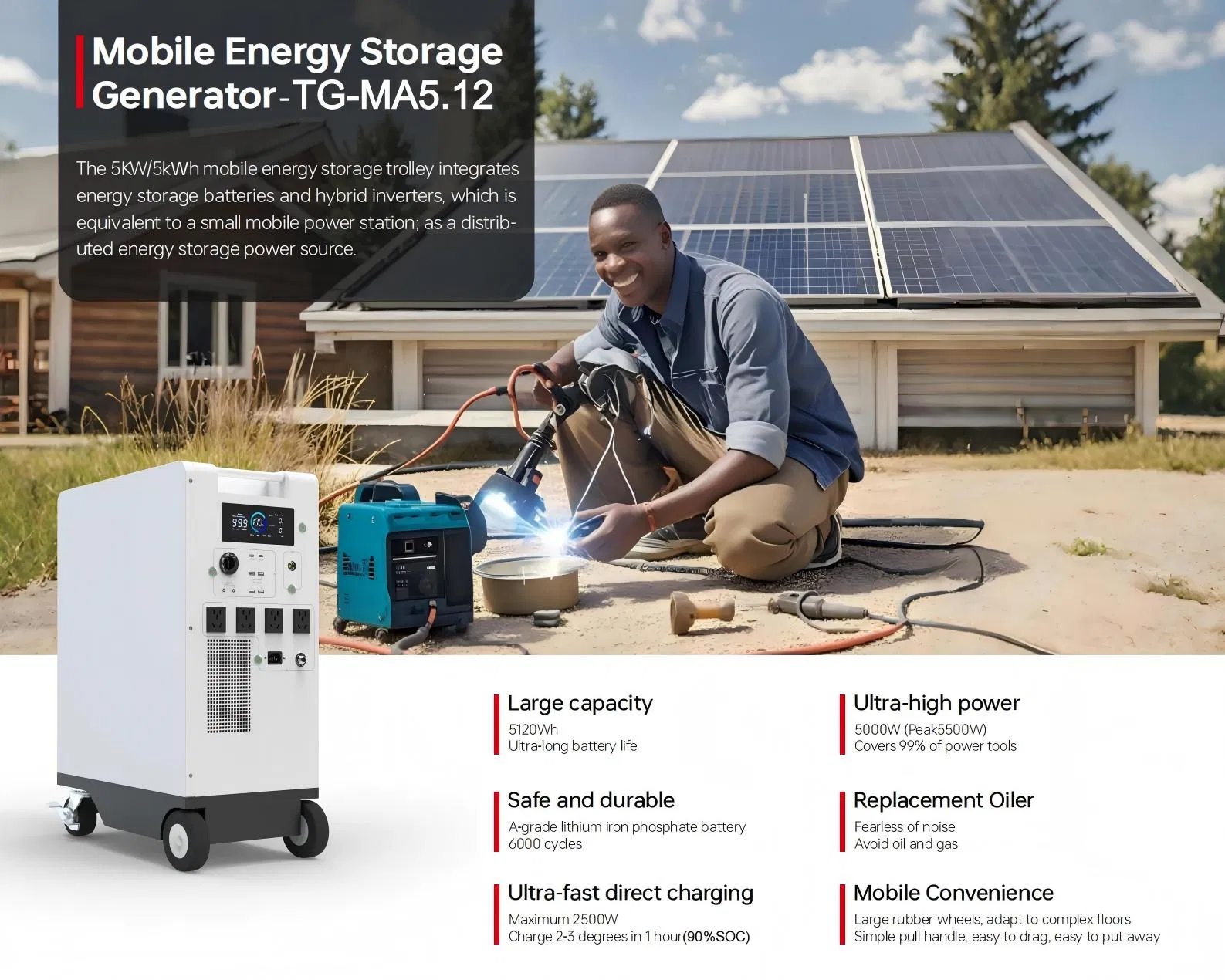

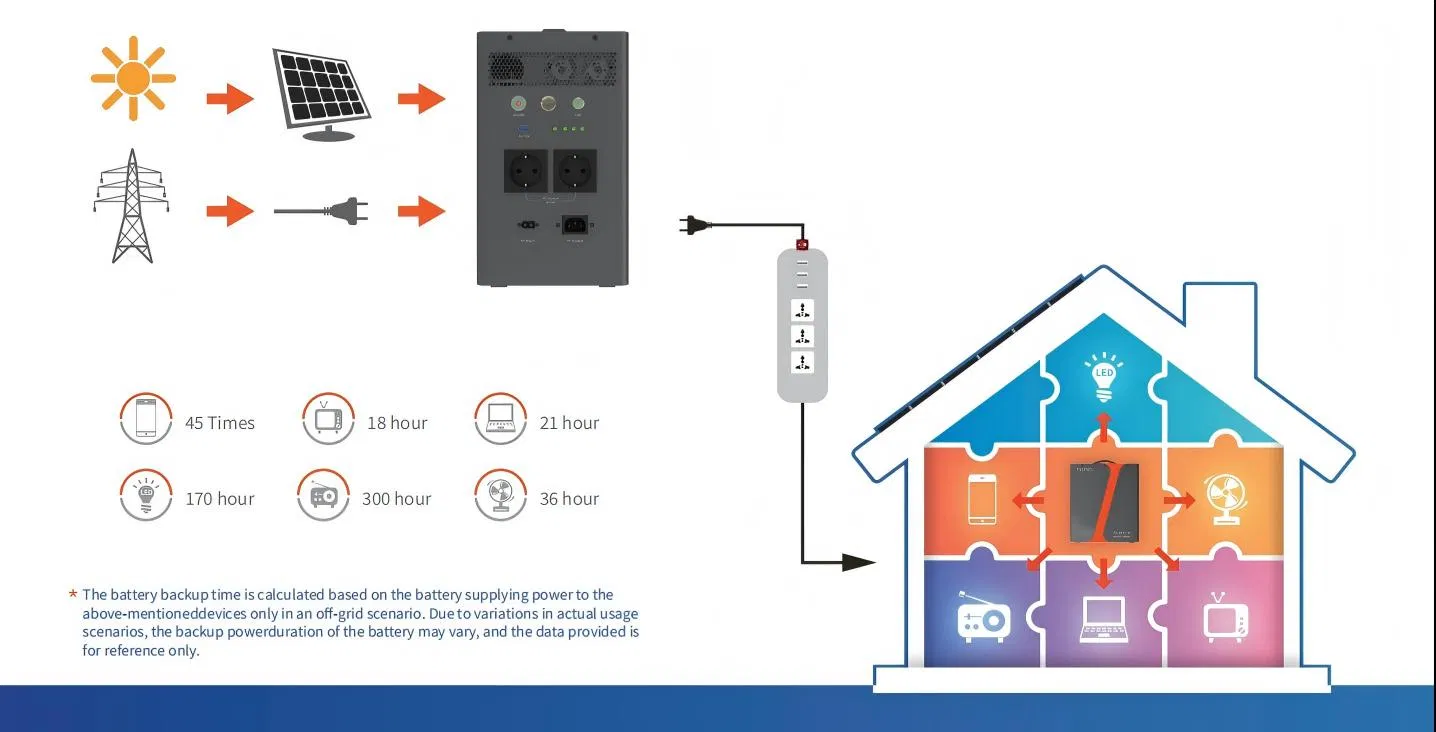

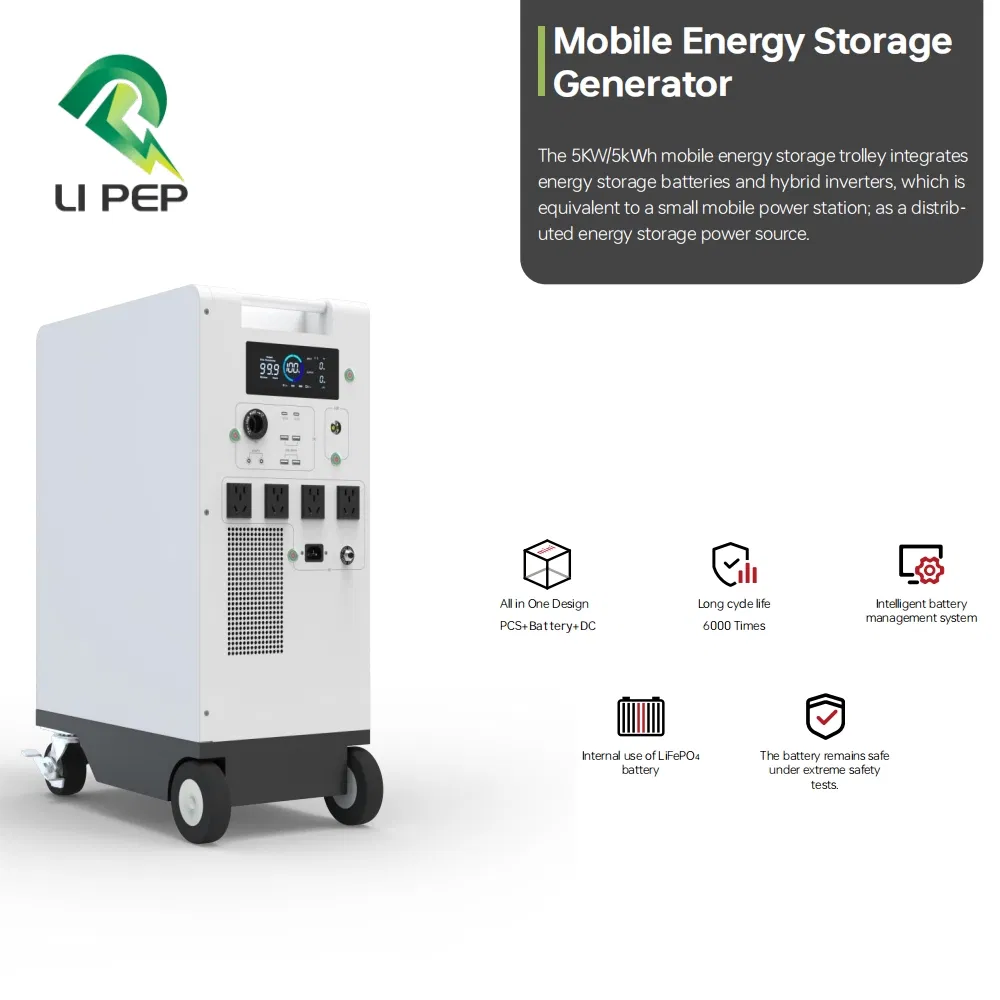

Mobile energy storage power supply featuring AC+DC+USB and other versatile power supply modes. Applicable to the whole scene of outdoor office, entertainment, camping, operation, and standby emergency power supply. It ensures the continuous power supply of computers, mobile phones, basic appliances, and electric tools for outdoor operations.
| Grid output Parameters (AC) | |
| Rated AC output power | 5kW |
| Rated Energy | 5.12kWh |
| THDI | <3% |
| Rated grid voltage/Grid voltage range | 230Vac/176-270Vac |
| Rated grid frequency/Grid frequency range | 50Hz(45-54Hz)/60Hz(55-65Hz) |
| Type of grid connection | AC Charging connector |
| PV Parameter | |
| Max.PV Input Power | 6KW |
| MPPT Voltage Range | 120-450V |
| Max.PV Voltage | 500V |
| Max.PV Charging Current | 30A |
| PV Efficiency | <99.2% |
| PV Interface Type | MC4*1 |
| PV Voltage Accuracy | ±2V |
| Battery Parameter | |
| Battery type | LiFePO4 |
| Battery rated voltage | 51.2V |
| Capacity | 100AH |
| Battery voltage range | 42-58V |
| Rated charging current | 30A |
| Max. charging current | 100A |
| Other System Parameter | |
| Max.Operating Altitude | 2000m |
| Output Interface | USB18W*4, Type C 100W*1, Type C 60W*1 DC 12V10A*1, DC 12V 5A*2 AC 220V*4 |
| Operating temperature range | -20℃-50℃ |
| Weight | 60kg |
| Dimension(W*D*H) | 450*280*700mm |

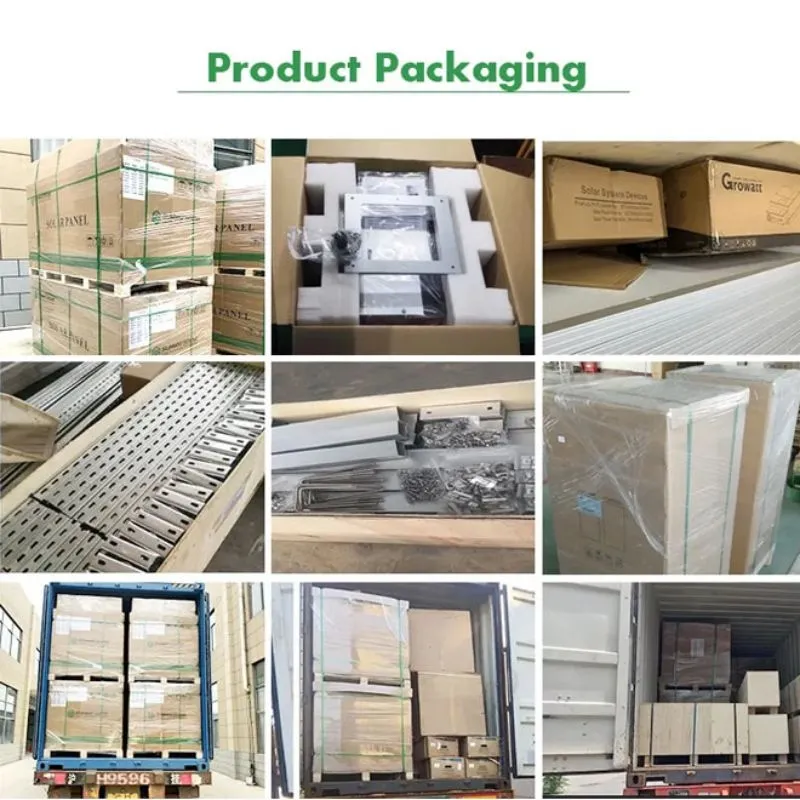

For standard shipments, we adopt high-quality corrugated cartons as our primary packaging option. These cartons are selected for their durability, shock resistance, and cost-effectiveness, keeping goods safe during storage and transportation. Beyond standard packaging, we offer flexible customization services tailored to your unique needs: whether you require alternative materials (such as wooden crates, bubble wrap, or moisture-proof bags), custom-sized containers, branding printing, or reinforced packaging for fragile items, our team can accommodate your specifications to ensure the safe and satisfactory delivery of your goods.

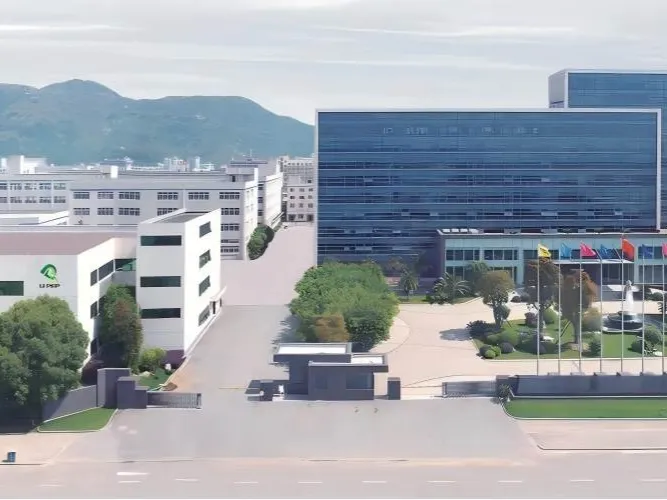

Established In 2018, our headquarters is located in China. We have three production bases with an annual production capacity of more than 2GW. We are mainly engaged in the R&D, production, and sales of PV modules and lithium batteries, as well as providing customers with solutions for solar energy projects. We also provide professional OEM/ODM services to customers around the world.
Our products have been sold to more than 100 countries. The main markets are concentrated in America, EU, and Southeast Asian countries. Our 5KWH-15KWH household energy storage batteries and all models of PV modules have passed UL certification. We also support regional supply and services to meet our global client requirements.
We are a company that upholds the original intention of "earn respect with quality". We always insist on using innovation to promote development. We achieve product innovation by constantly breaking through technological barriers and are committed to the research, development, production, and marketing of energy storage systems and photovoltaic products.

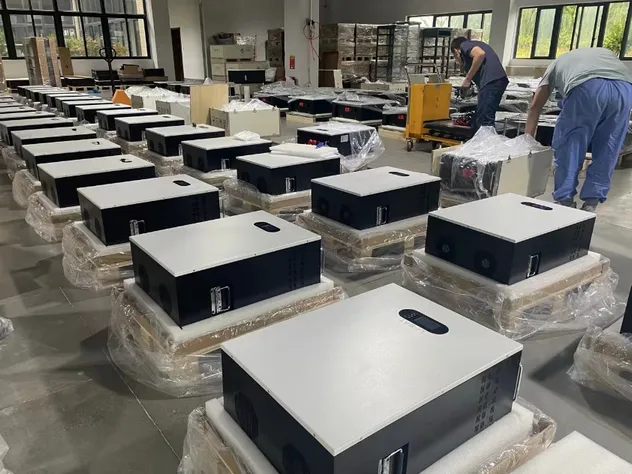

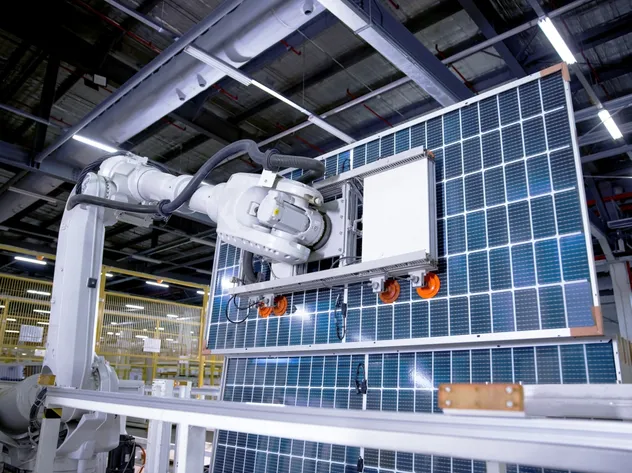

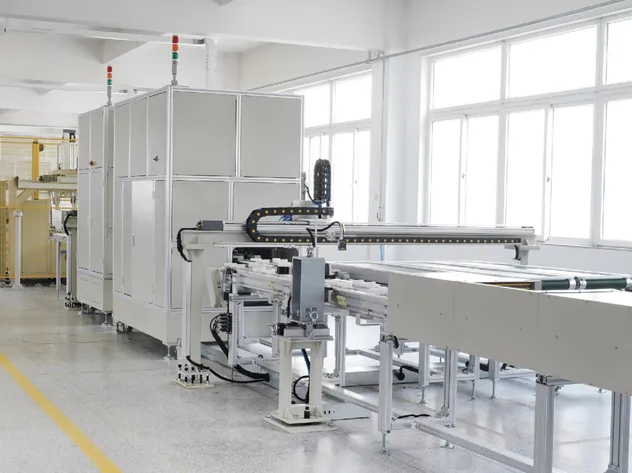

We have a modern production centre and battery laboratory equipped with advanced production and testing equipment, such as automatic battery sorting and welding equipment, battery performance testing equipment, and advanced photovoltaic panel production lines. We strictly follow industry standards to execute every product for our customers!
The laboratory is equipped with advanced programmable constant temperature and humidity testers, high and low temperature testers, drop testers, squeeze testers, and other equipment. Through complete battery performance testing, we provide our partners with safe and stable products.

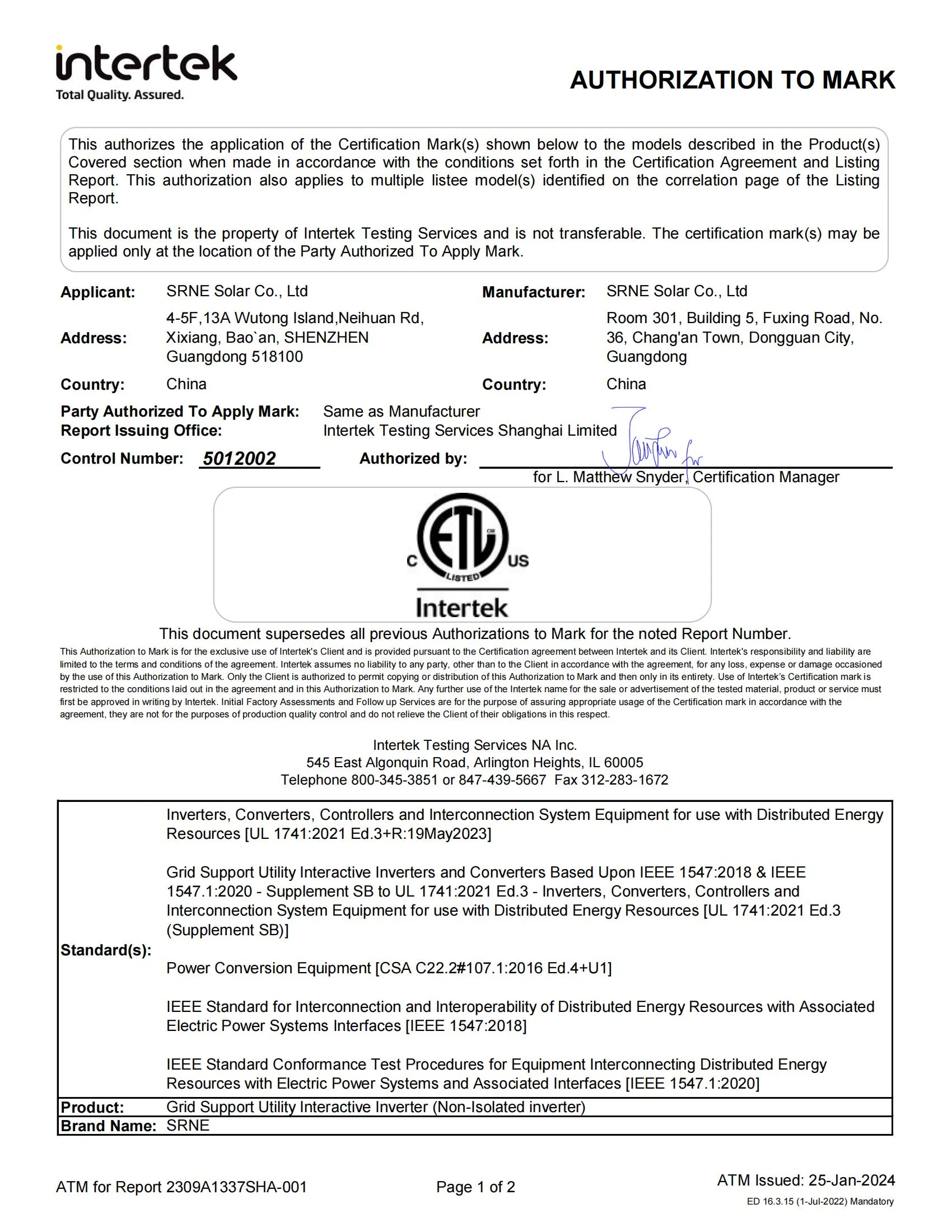

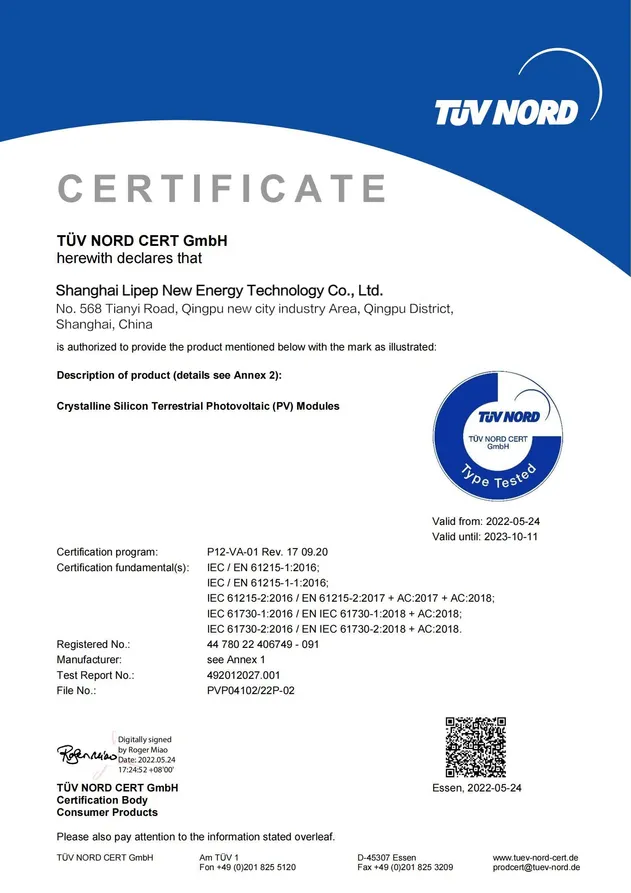

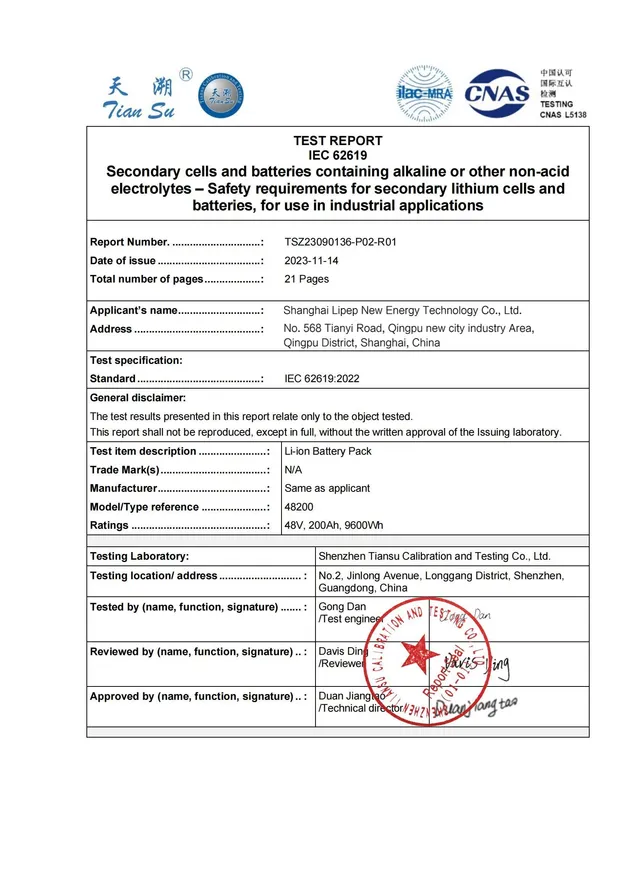

Our products have received relevant certifications. Quality is our top priority, and we strictly follow certification requirements to provide our customers with high quality products.
