CE Certified 10kw Solar Wind Hybrid Power Supply 10kw Portable Power Station

1 / 5

CE Certified 10kw Solar Wind Hybrid Power Supply 10kw Portable Power Station

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview
Product Description
Production Facility
Product Parameters
Detailed Photos

Basic Info.

Model NO.

EP12000iL

Weight

100kg

Warranty

5 Years

Charging Method

AC, Solar, EV Charger, Driving Charging, DC, Wind

Battery Expansion

Yes, Max 245kwh

Fast Charging

Yes, 70mins Fully Charged

Certificates

CE RoHS IEC62619 Un38.8 MSDS

Cell Type

Lithium LFP

Output

Multiple Ports AC/DC/USB/Type C/Cigarette Lighter

APP Function

Yes

Display

with Display

Portability

Drawbar & Wheels

Transport Package

Carton+Pallet

Specification

840X670X490mm, 110kg

Origin

China

Production Capacity

50000PCS/Year

Product Description

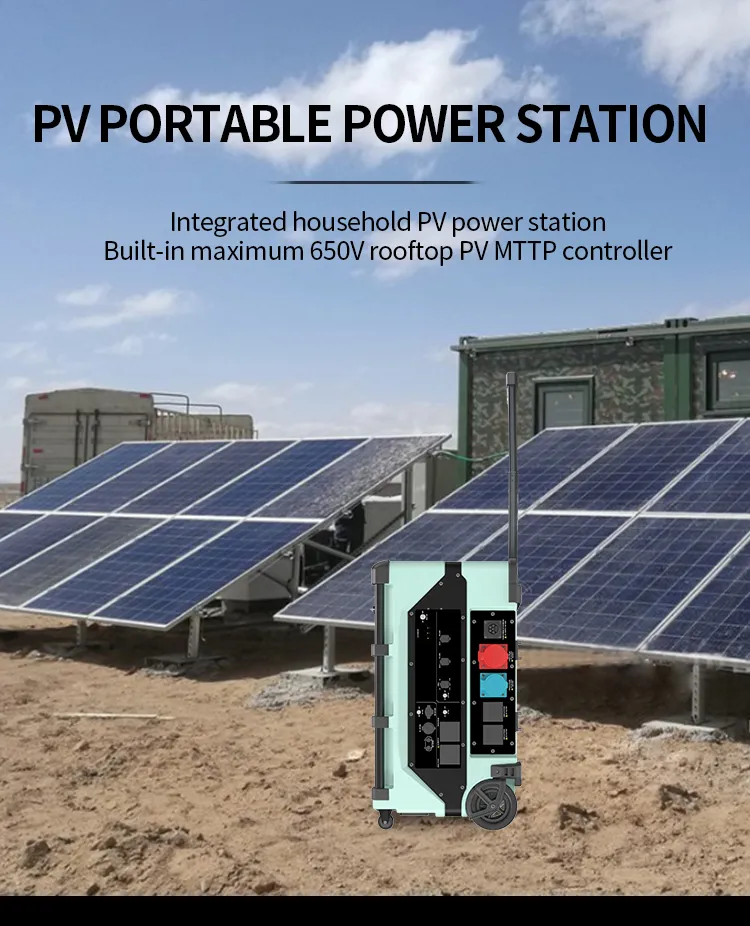

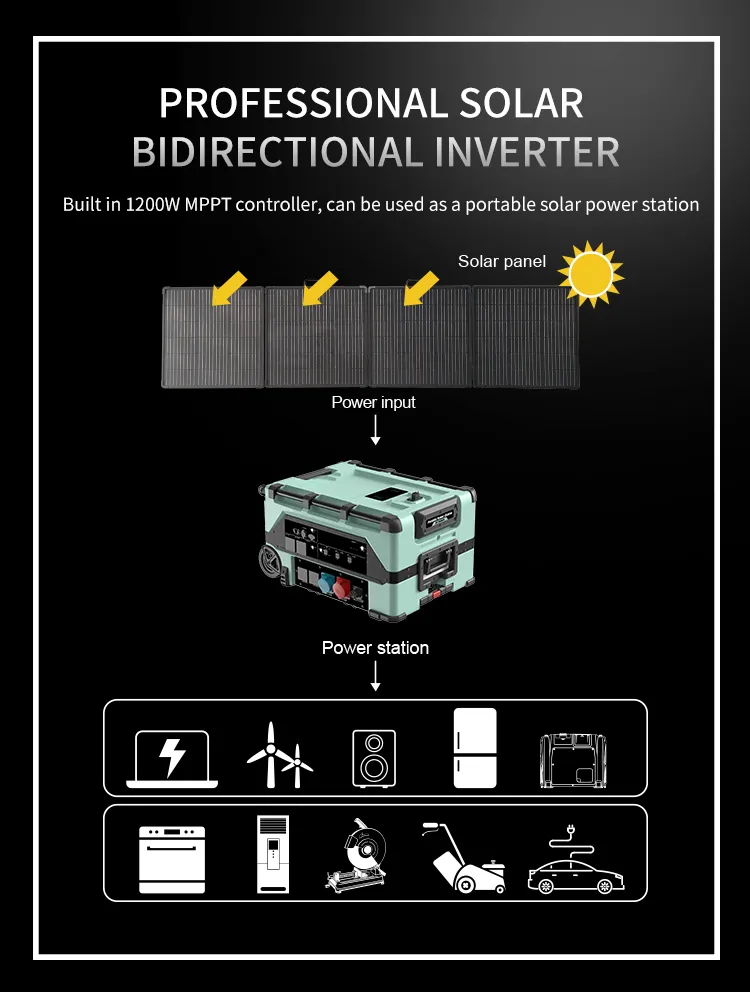

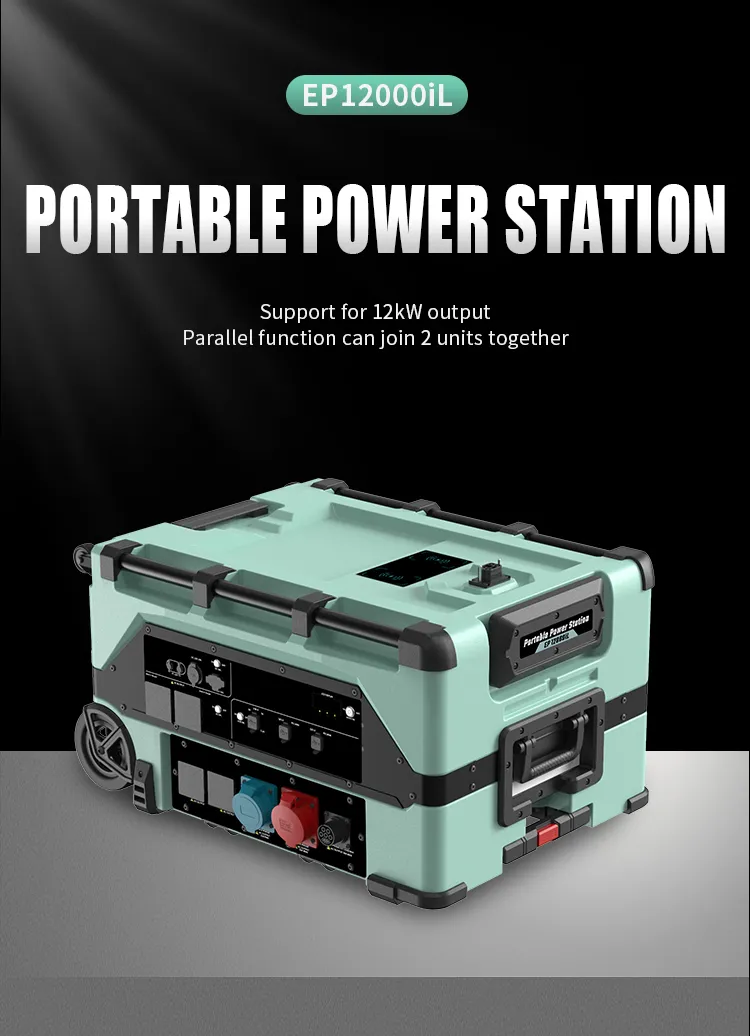

Built in 7680Wh high-power LiFePO4 battery with professional solar bidirectional inverter, support for 12kW output and 8.5kW charging.

Support continuous output of 12kW AC three-phase, 11kW AC single-phase, and 10kW AC split phase.

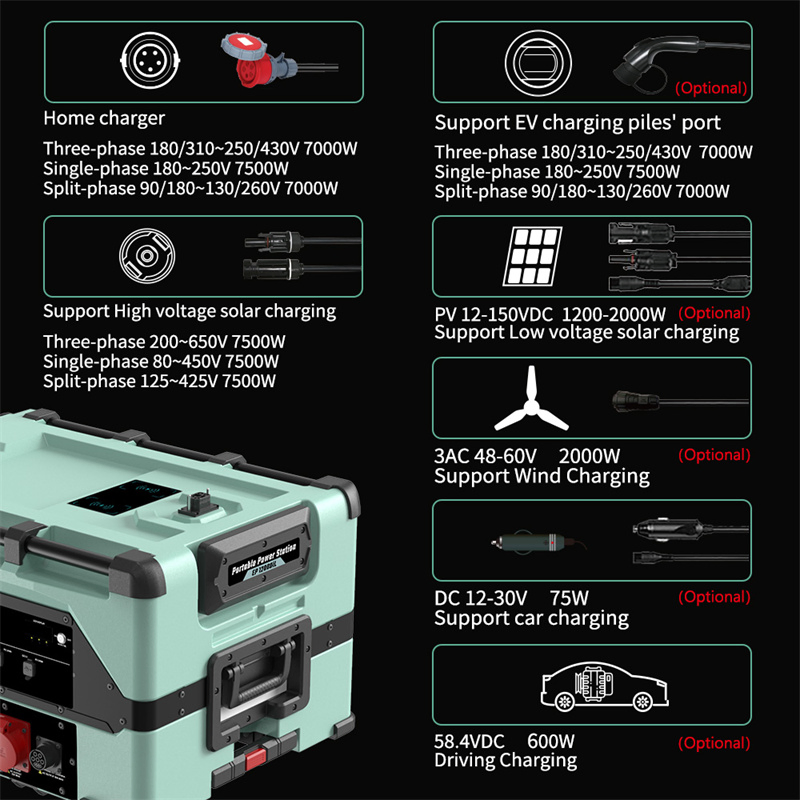

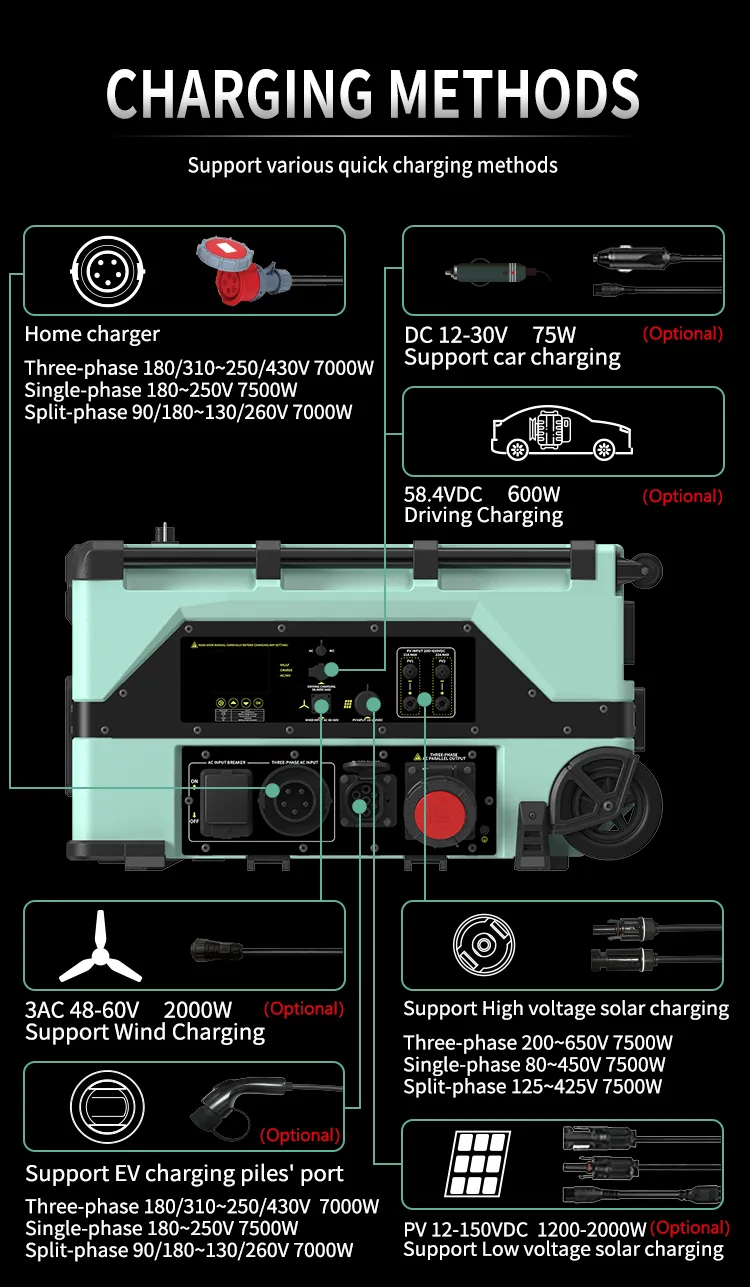

Support various fast charging methods such as utility, high-voltage solar, low-voltage solar, EV charger, driving car, AC generator and wind turbine.

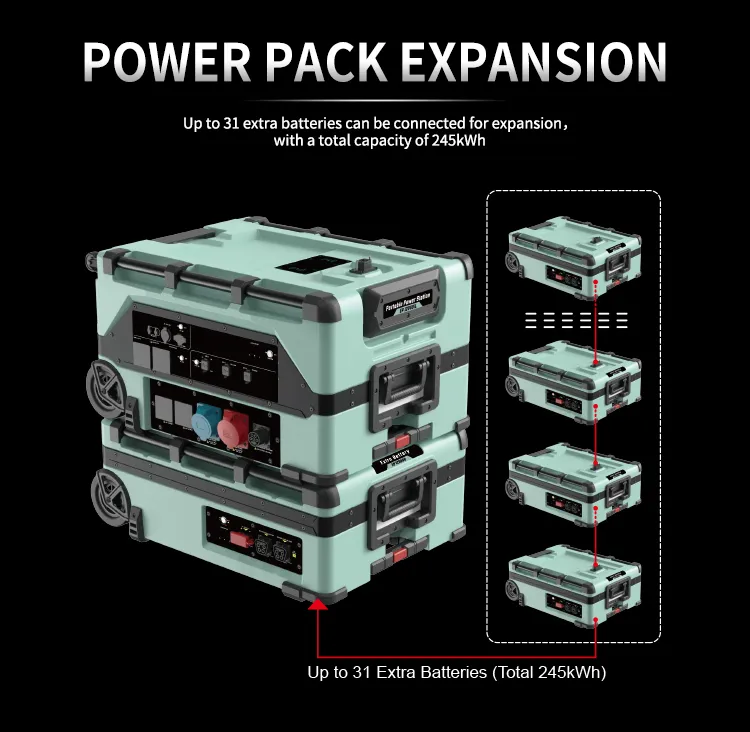

Up to 31 extra batteries can be stacked and connected for expansion, with a total capacity of 245kWh.

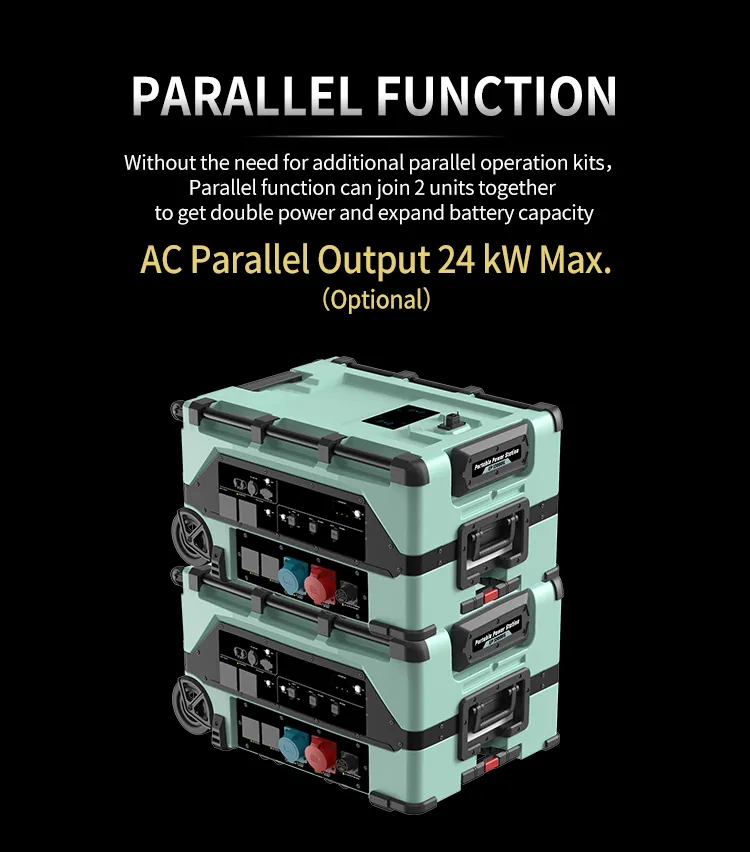

Stacked parallel patented technology, can join 2 units together to get a continuous output of 24kW by stacking.

Built-in the electric vehicle charger, can replace charging stations to charge cars up to 22kW.

The four-wheel chassis and large-diameter wheel can be switched at any time, carrying without any burden.

Unit IP53 and Battery Pack IP66 protection grade.

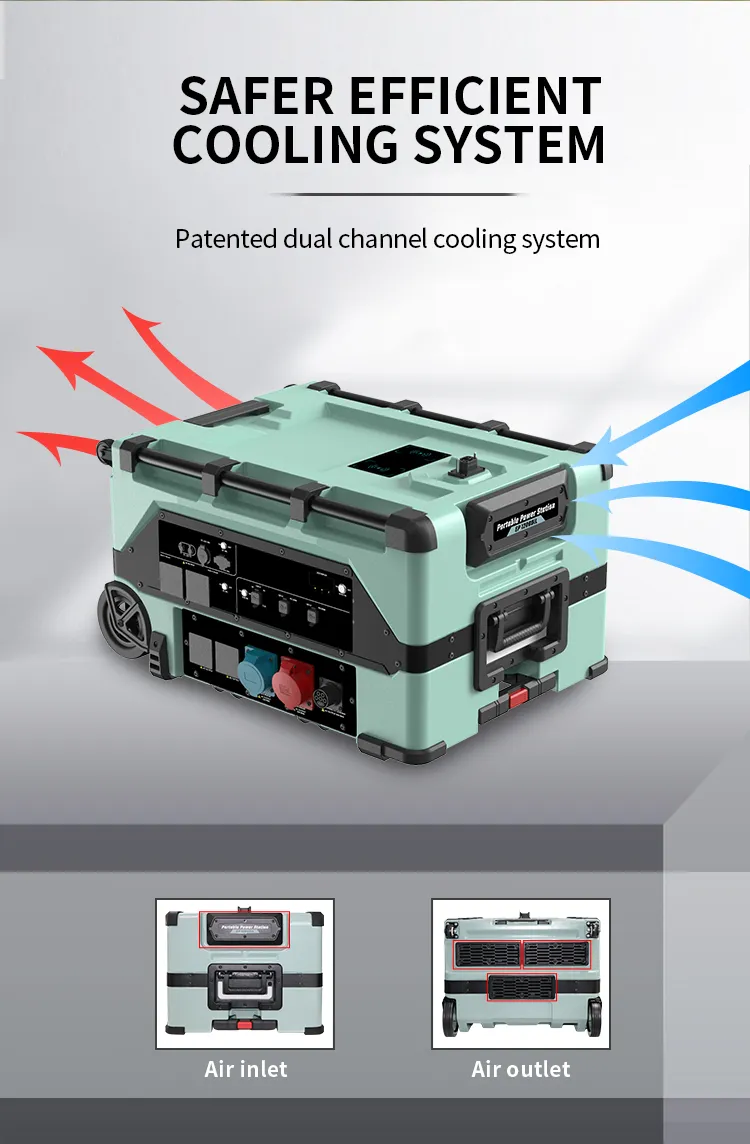

Patented dual channel cooling system.

Integrated handles and anti-collision rubber pad in all directions.

V-0 level flame-retardant and fire-resistant casing.

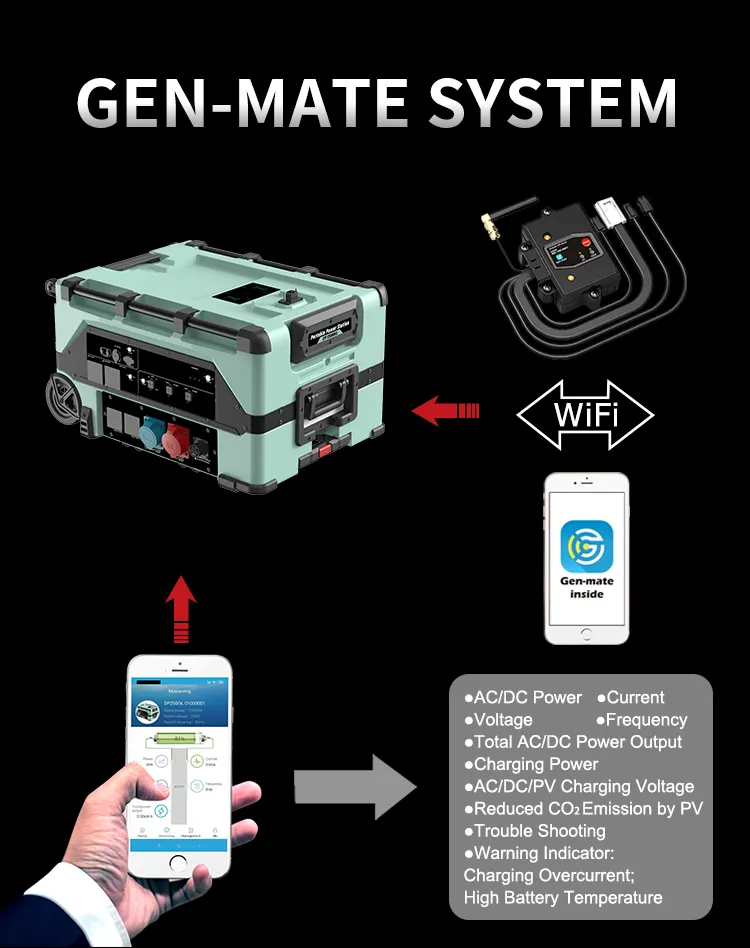

The intelligent control and monitor by smartphone APP.

Conformed to EU and US security certification.

Better quality with 5 years warranty.

Power Supply Product Advantage Graphic 1

Power Supply Product Advantage Graphic 2

Power Supply Product Advantage Graphic 3

Power Supply Product Advantage Graphic 4

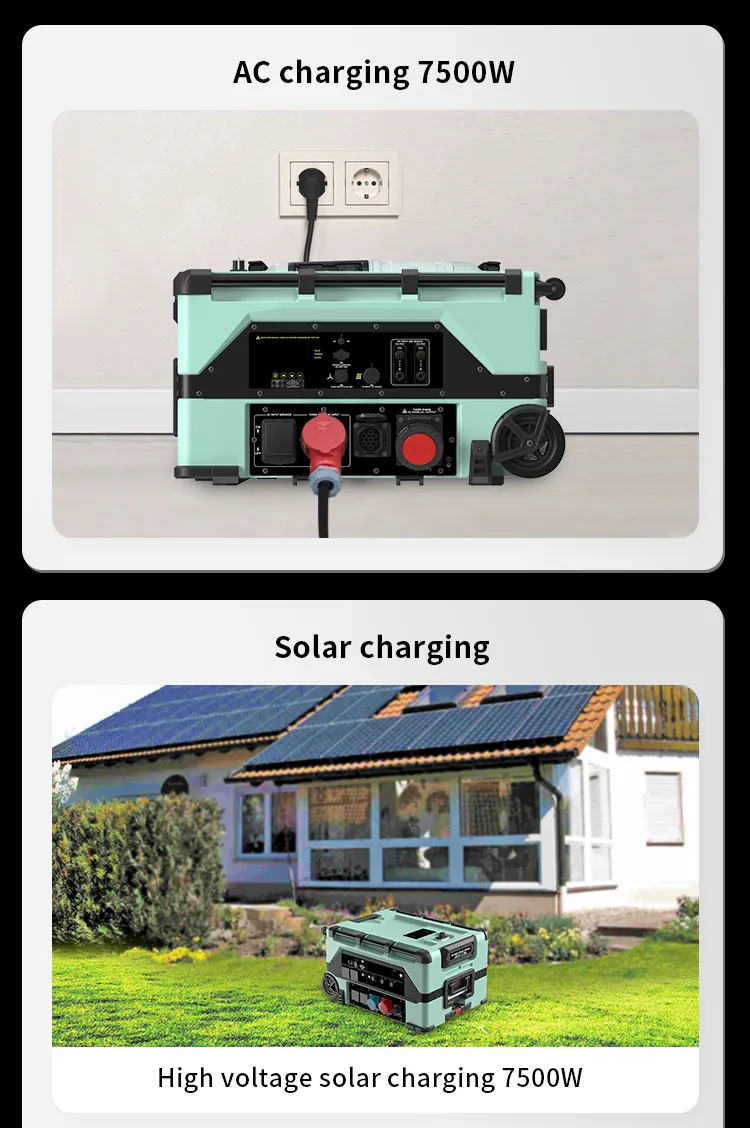

Power Supply Product Advantage Graphic 5

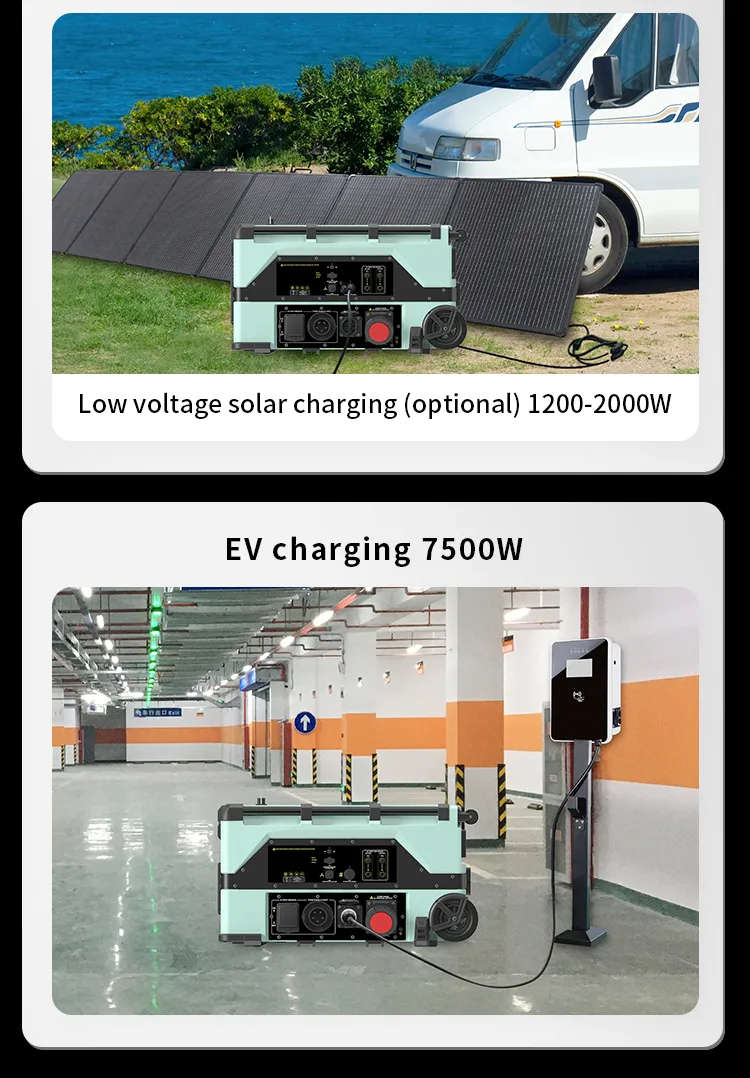

Power Supply Product Advantage Graphic 6

Power Supply Product Advantage Graphic 7

Power Supply Product Advantage Graphic 8

Power Supply Product Advantage Graphic 9

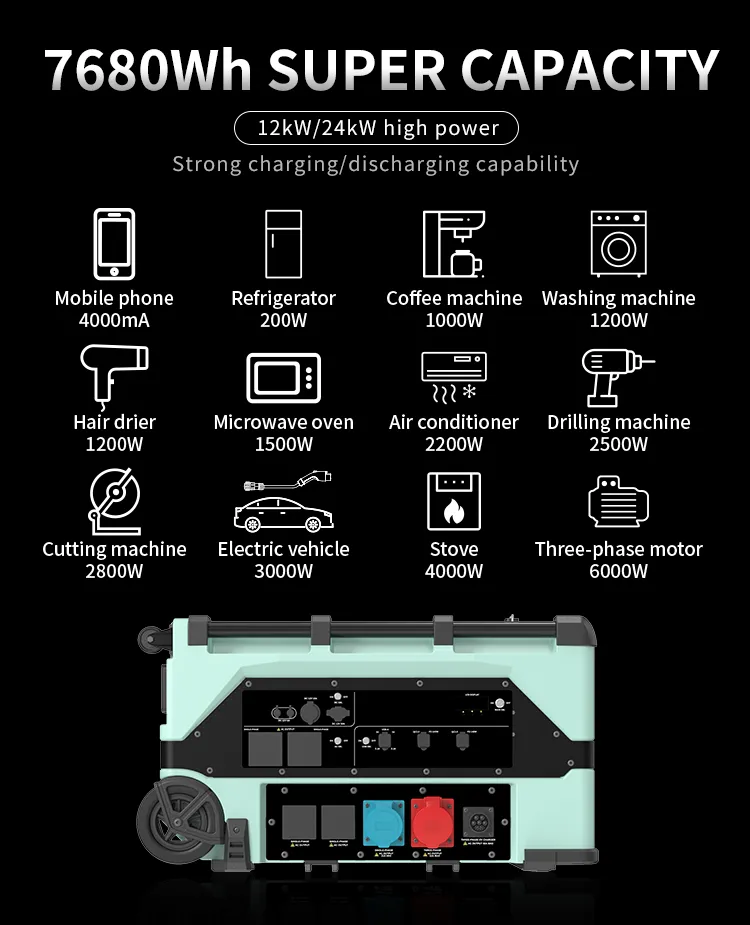

Power Supply Product Advantage Graphic 10

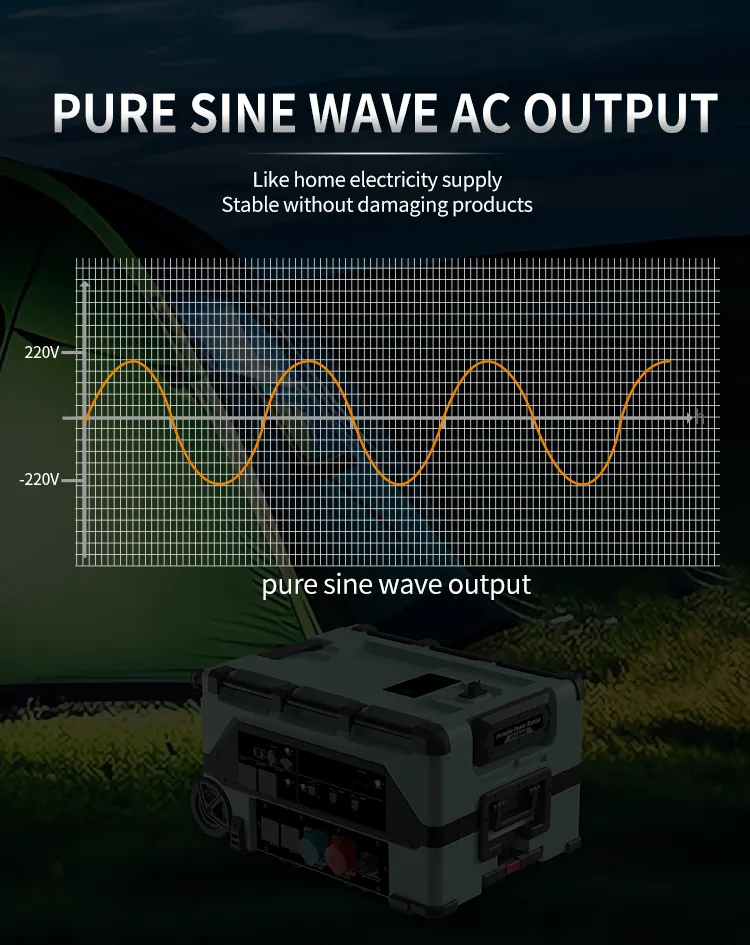

Power Supply Product Advantage Graphic 11

Power Supply Product Advantage Graphic 12

Power Supply Product Advantage Graphic 13

Power Supply Product Advantage Graphic 14

Power Supply Product Advantage Graphic 15

Power Supply Product Advantage Graphic 16

Power Supply Product Advantage Graphic 17

Power Supply Product Advantage Graphic 18

Power Supply Product Advantage Graphic 19

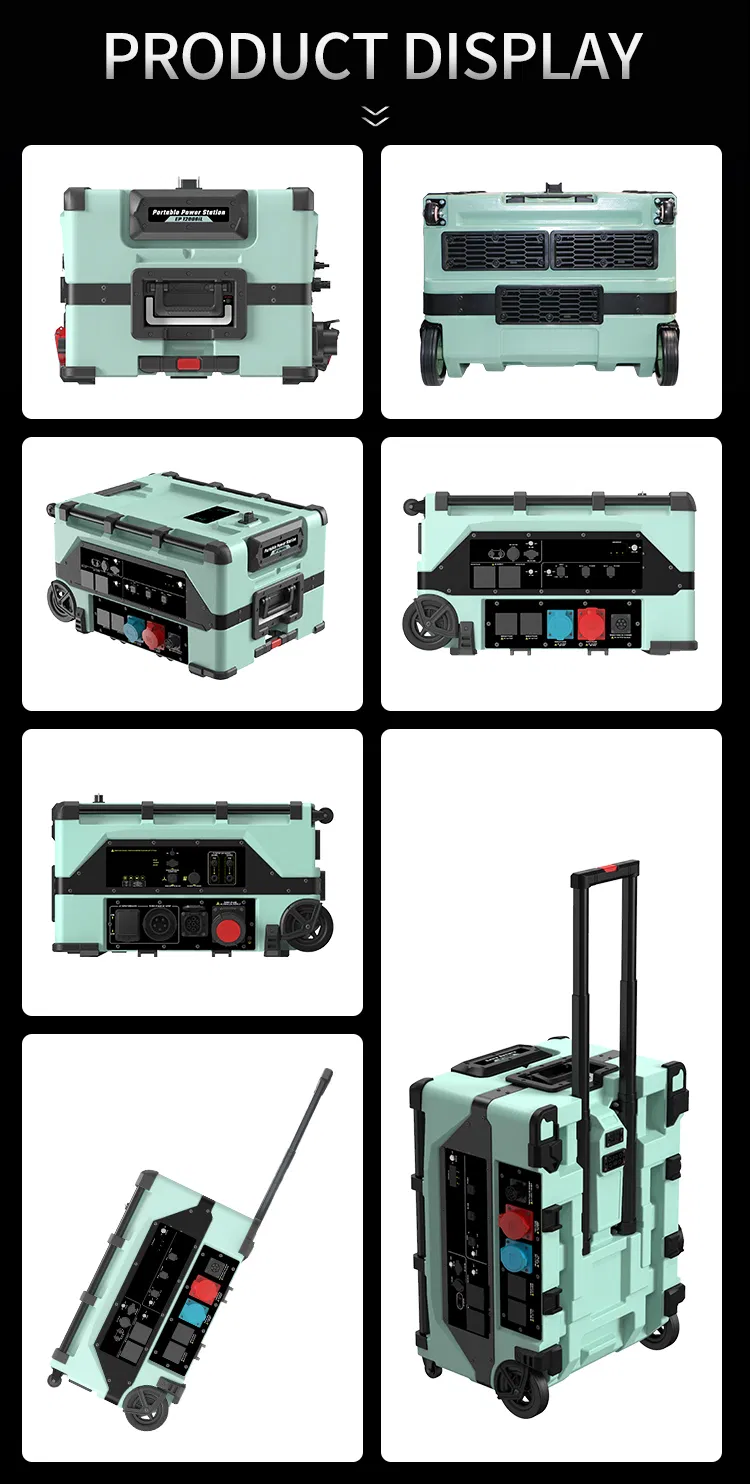

Power Supply Product Advantage Graphic 20

Power Supply Product Advantage Graphic 21

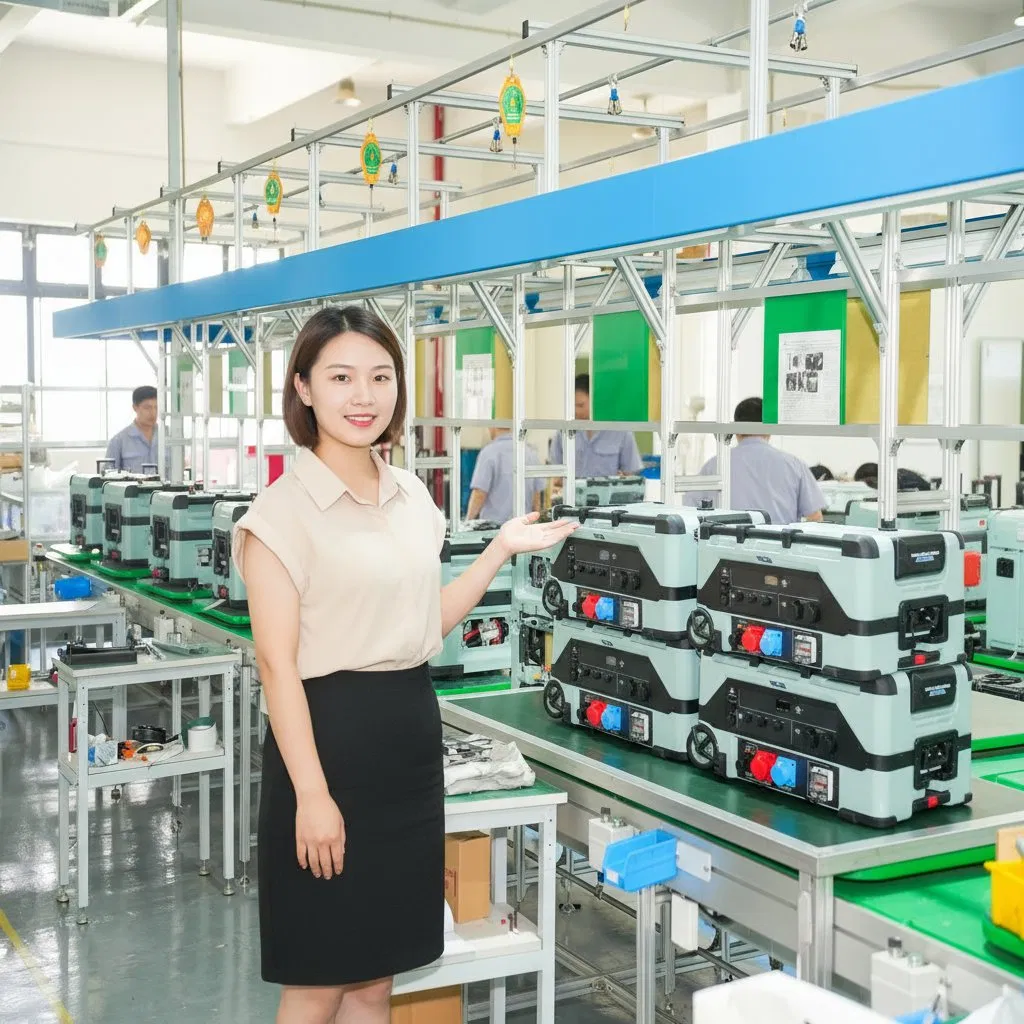

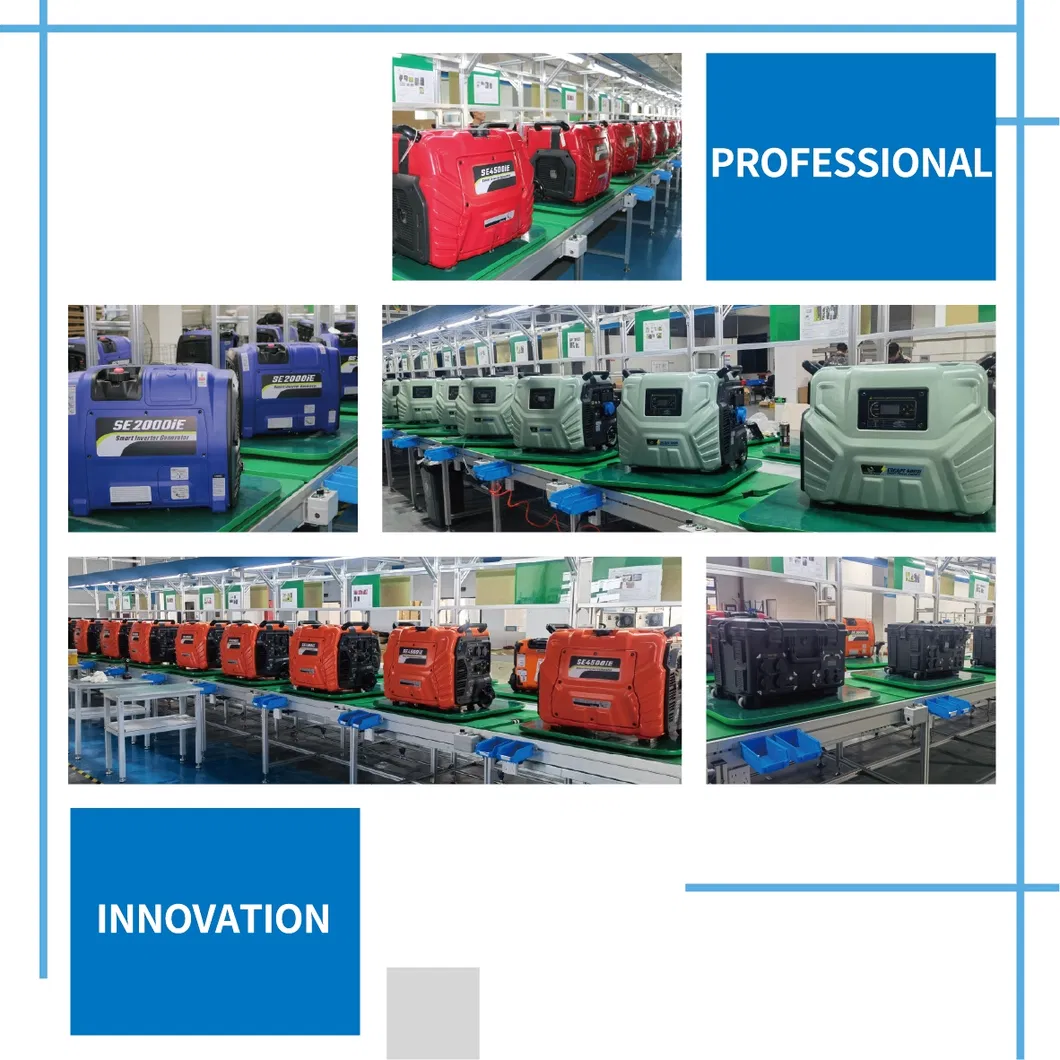

Production Facility

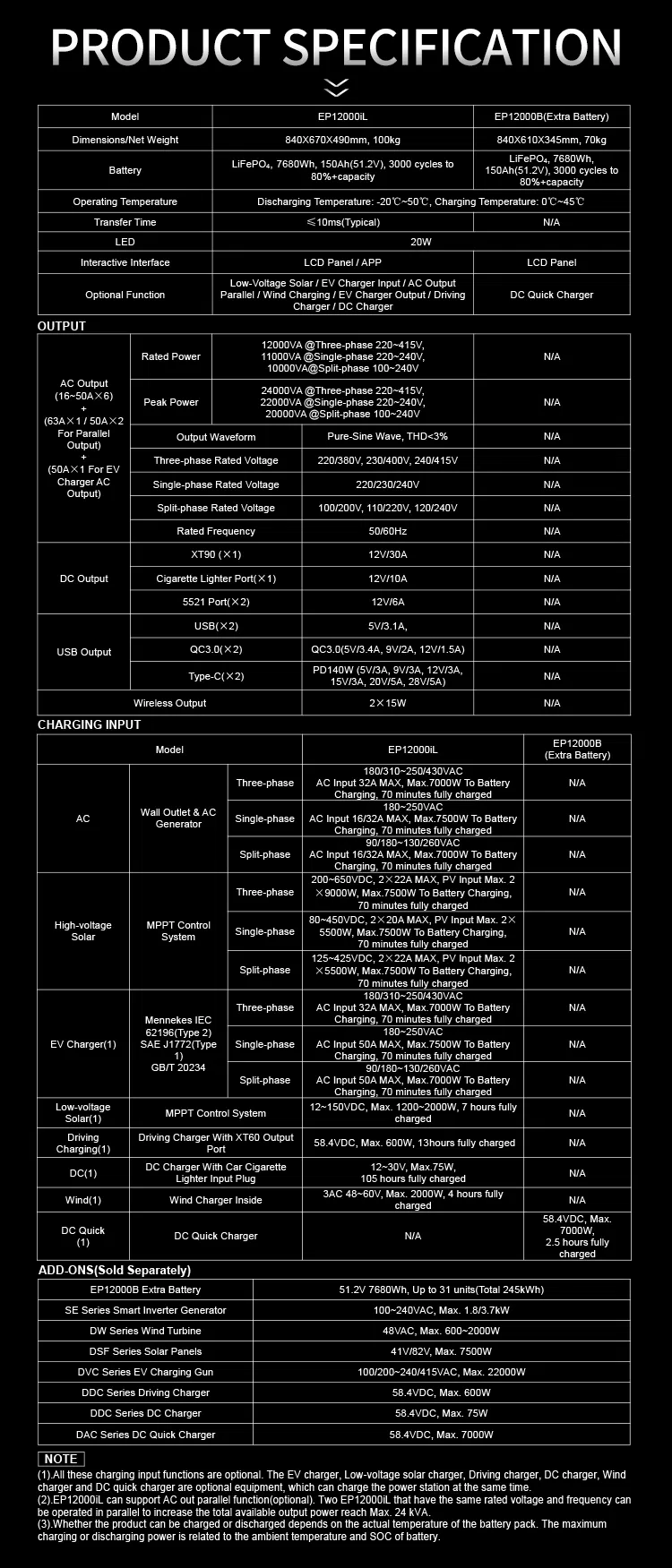

Product Parameters

GENERAL INFO
Model	EP12000iL	EP12000B (Extra Battery)
Dimensions/Net Weight	840X670X490mm, 100kg	840X610X345mm, 70kg
Battery	LiFePO4, 7680Wh, 150Ah (51.2V), 3000 cycles to 80%+ capacity	LiFePO4, 7680Wh, 150Ah (51.2V), 3000 cycles to 80%+ capacity
Operating Temperature	Discharging Temperature: -20ºC~50ºC, Charging Temperature: 0ºC~45ºC
Transfer Time	≤10ms (Typical)	N/A
LED	20W
Interactive Interface	LCD Panel / APP	LCD Panel
Optional Function	Low-Voltage Solar / EV Charger Input / AC Output Parallel / Wind Charging / EV Charger Output / Driving Charger / DC Charger	DC Quick Charger

OUTPUT
AC Output (16~50A×6) + (63A×1 / 50A×2 For Parallel Output) + (50A×1 For EV Charger AC Output)	Rated Power	12000VA @Three-phase 220~415V, 11000VA @Single-phase 220~240V, 10000VA @Split-phase 100~240V		N/A
	Peak Power	24000VA @Three-phase 220~415V, 22000VA @Single-phase 220~240V, 20000VA @Split-phase 100~240V		N/A
	Output Waveform		Pure-Sine Wave, THD<3%	N/A
	Three-phase Rated Voltage		220/380V, 230/400V, 240/415V	N/A
	Single-phase Rated Voltage		220/230/240V	N/A
	Split-phase Rated Voltage		100/200V, 110/220V, 120/240V	N/A
	Rated Frequency		50/60Hz	N/A
DC Output	XT90 (×1)		12V/30A	N/A
	Cigarette Lighter Port (×1)		12V/10A	N/A
	5521 Port (×2)		12V/6A	N/A
USB Output	USB (×2)		5V/3.1A	N/A
	QC3.0 (×2)		5V/3.4A, 9V/2A, 12V/1.5A	N/A
	Type-C (×2)		PD140W (5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A, 28V/5A)	N/A

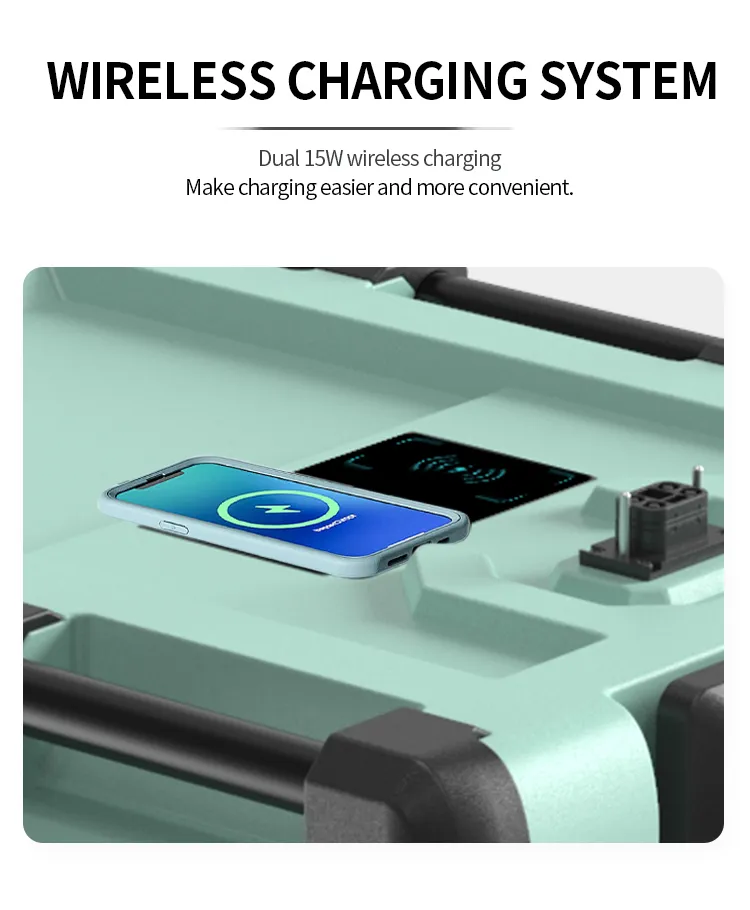

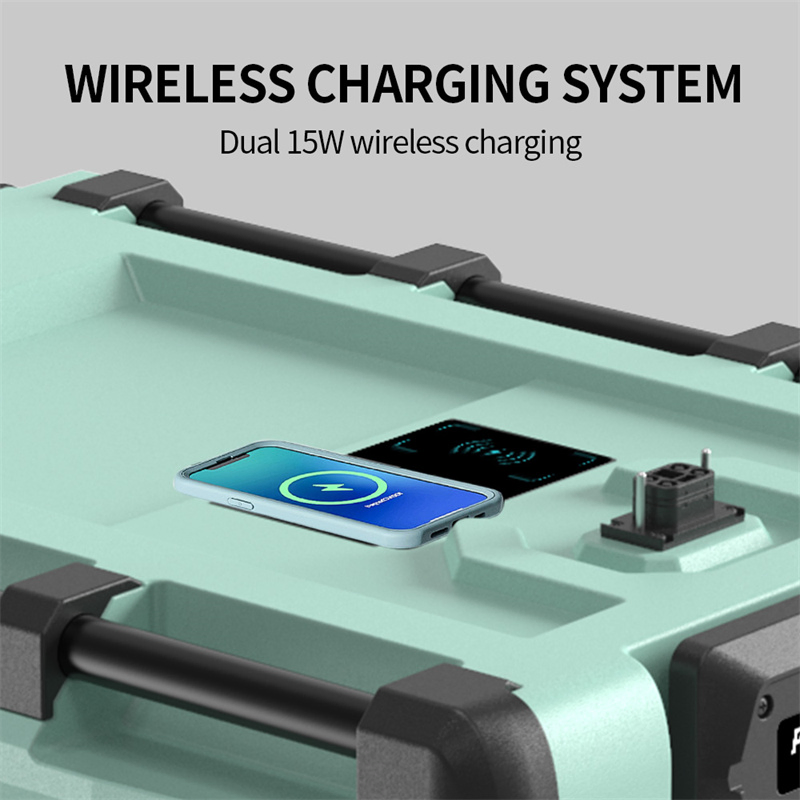

Wireless Output			2×15W	N/A

CHARGING INPUT
Model			EP12000iL	EP12000B (Extra Battery)
AC	Wall Outlet & AC Generator	Three-phase	180/310~250/430VAC AC Input 32A MAX, Max. 7000W to Battery Charging, 70 mins fully charged	N/A
		Single-phase	180~250VAC AC Input 16/32A MAX, Max. 7500W to Battery Charging, 70 mins fully charged	N/A
		Split-phase	90/180~130/260VAC AC Input 16/32A MAX, Max. 7000W to Battery Charging, 70 mins fully charged	N/A
High-voltage Solar	MPPT Control System	Three-phase	200~650VDC, 2×22A MAX, PV Input Max. 2×9000W, Max. 7500W to Battery Charging, 70 minutes fully charged	N/A
		Single-phase	80~450VDC, 2×20A MAX, PV Input Max. 2×5500W, Max. 7500W to Battery Charging, 70 minutes fully charged	N/A
		Split-phase	125~425VDC, 2×22A MAX, PV Input Max. 2×5500W, Max. 7500W to Battery Charging, 70 minutes fully charged	N/A
EV Charger (1)	Mennekes IEC 62196 (Type 2) SAE J1772 (Type 1) GB/T 20234	Three-phase	180/310~250/430VAC AC Input 32A MAX, Max. 7000W to Battery Charging, 70 minutes fully charged	N/A
		Single-phase	180~250VAC AC Input 50A MAX, Max. 7500W to Battery Charging, 70 minutes fully charged	N/A
		Split-phase	90/180~130/260VAC AC Input 50A MAX, Max. 7000W to Battery Charging, 70 minutes fully charged	N/A
Low-voltage Solar (1)	MPPT Control System		12~150VDC, Max. 1200~2000W, 7 hours fully charged	N/A

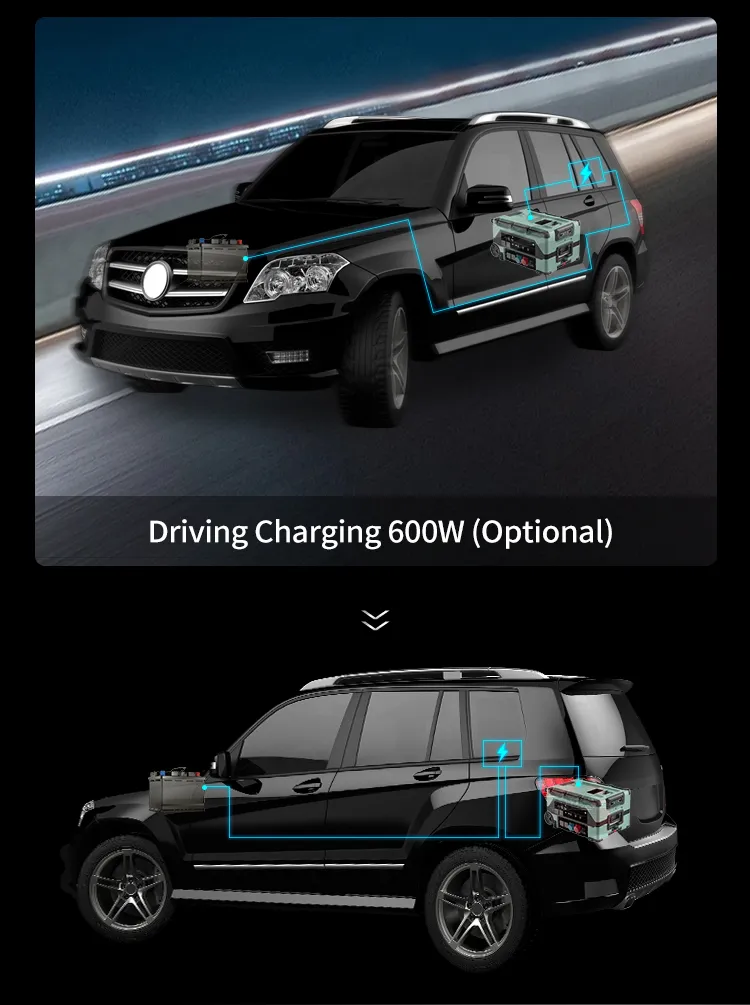

Driving Charging (1)	Driving Charger With XT60 Output Port		58.4VDC, Max. 600W, 13 hours fully charged	N/A
DC (1)	DC Charger With Car Cigarette Lighter Input Plug		12~30V, Max. 75W, 105 hours fully charged	N/A
Wind (1)	Wind Charger Inside		3AC 48~60V, Max. 2000W, 4 hours fully charged	N/A
DC Quick (1)	DC Quick Charger		N/A	58.4VDC, Max. 7000W, 2.5 hours fully charged

ADD-ONS (Sold Separately)
EP12000B Extra Battery	51.2V 7680Wh, Up to 31 units (Total 245kWh)
SE Series Smart Inverter Generator	100~240VAC, Max. 1.8/3.7kW
DW Series Wind Turbine	48VAC, Max. 600~2000W
DSF Series Solar Panels	41V/82V, Max. 7500W
DVC Series EV Charging Gun	100/200~240/415VAC, Max. 22000W
DDC Series Driving Charger	58.4VDC, Max. 600W
DDC Series DC Charger	58.4VDC, Max. 75W
DAC Series DC Quick Charger	58.4VDC, Max. 7000W

Frequently Asked Questions

Q1: What is the battery capacity of the EP12000iL?

A1: The base unit has a built-in 7680Wh LiFePO4 battery. You can expand the total capacity up to 245kWh by stacking up to 31 extra battery units.

Q2: How fast can the power station be charged?

A2: With supported fast charging inputs (AC three-phase, single-phase, split-phase, or high-voltage solar), it can reach a full charge in approximately 70 minutes.

Q3: Can this system be used to charge electric vehicles?

A3: Yes, it has a built-in electric vehicle charger function that can charge EVs at rates up to 22kW.

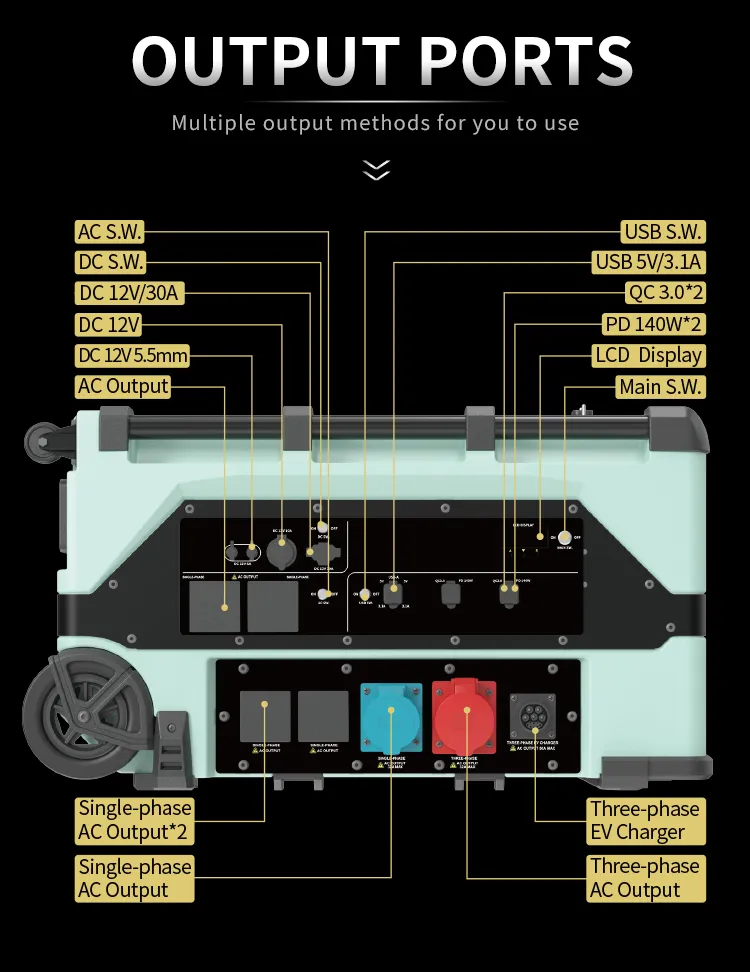

Q4: What kinds of output options are supported?

A4: It provides extensive output interfaces, including AC ports (supporting three-phase 12kW, single-phase 11kW, split-phase 10kW), DC ports (XT90, cigarette lighter, 5521), USB ports (standard and QC3.0), Type-C PD 140W ports, and dual 15W wireless chargers.

Q5: Can multiple units be connected in parallel for higher power output?

A5: Yes, with patented stacked parallel technology, you can combine 2 units together to achieve a continuous output power of up to 24kW.

Q6: What is the operating temperature range and durability rating?

A6: It can discharge from -20ºC to 50ºC and charge from 0ºC to 45ºC. The main unit holds an IP53 protection rating, and the battery pack holds an IP66 rating. It also features a flame-retardant V-0 casing.
